Arctic King WPPH-06CR5 User manual

Portable Air Conditioner
(Local Air Conditioner)
Instruction Manual
Model: WPPH-06CR5
WPPH-08CR5
WPPH-10CR5
Thank you for purchasing our Portable Air Conditioner.
Before using your air conditioner, please read this instruction manual
carefully and keep it for future reference.
READ AND SAVE THESE INSTRUCTIONS!

Preparation.............................................................................................................................................2
Safety Precautions.................................................................................................................................4
Cautions..................................................................................................................................................5
Installation...... ........................................................................................................................................6
Operation..............................................................................................................................................10
Maintenance....................................................................................................................................... .12
Faults Diagnosis...... ............................................................................................................................13
Design and Compliance Notes ...........................................................................................................14
Sociable Remark...... ...........................................................................................................................15
TABLE OF CONTENTS

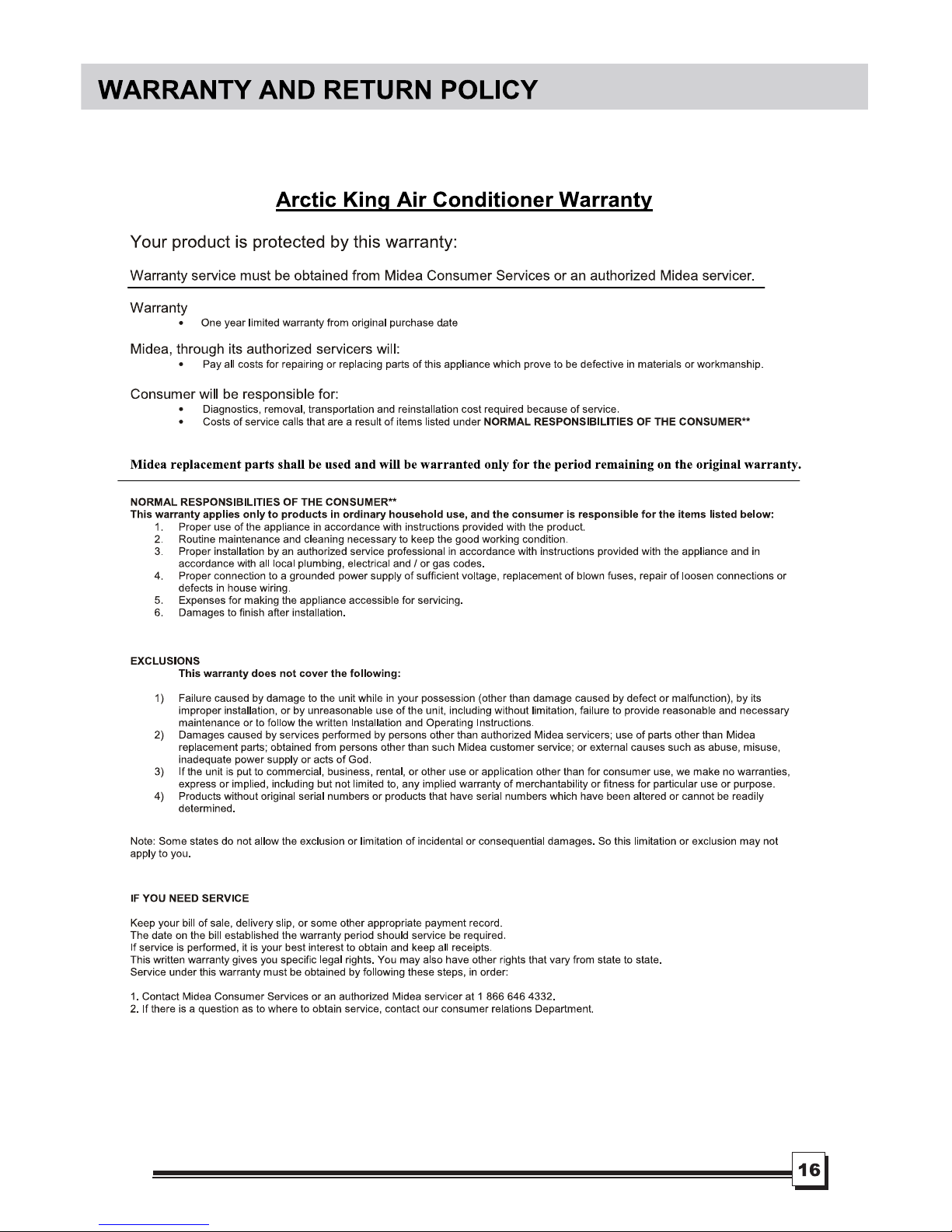

Warranty And Return Policy.................................................................................................................. 16

Preparation
rear
front
bottom tray
drain outlet
handle
(both sides)
air filter
(behind the grille)
upper air intake
air outlet
lower air intake
drain outlet
control panel
remote signal receptor
horizontal louver control
lever(adjust manually)
NOTE: PHA can not be
adjusted.
NOTE: PHA can not be
adjusted.
vertical louver control
lever(adjust manually)
panel
Caster

Safety Precautions
-Installation must be performed according to the installation instructions. Improper installation
can cause water leakage, electrical shock, or fire.
-Use only the included accessories and parts, and specified tools for the installation. Using
non-standard parts can cause water leakage, electrical shock, fire, and injury or property
damage.
-Make sure that the outlet you are using is grounded and has the appropriate voltage. The
power cord is equipped with a three-prong grounding plug to protect against shock. Voltage
information can be found on the side of the unit, behind the grille.
-Install the unit in on a flat, sturdy surface. Failure to do socould result in damage or excessive
noise and vibration.
-The unit must be kept free from obstruction to ensure proper function and to mitigate safety
hazards.
-DO NOT modify the length of the power cord or use an extension cord to power the unit.
DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
-DO NOT install your air conditioner in a wet room such as a bathroom or laundry room. Too
much exposure to water can cause electrical components to short circuit.
-DO NOT install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
-The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet or
to roll over objects, as these could cause tipping.
-DO NOT operate a unit that has been dropped or damaged.
-Only use the included accessories and specified parts for installation. Using nonstandard
parts can cause water leakage, electrical shock, fire, and injury or property damage.
-The unit must be kept free from obstruction to ensure proper function.
-DO NOT allow children to play with the air conditioner. Children must be supervised around
the unit at all times.
-If the air conditioner is knocked over during use, turn off the unit and unplug it from the main
power supply immediately. Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.
Please read through these instructions before you start the installation process.
Improper installation can cause damage to the unit, your personal property, and
also poses a personal safety hazard.

Cautions
-This appliance can be used by children aged from 8 years and above and person with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not
be made by children without supervision. (be applicable for the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
(be applicable for other countries except the European Countries )
-Children should be supervised to ensure that they do not play with the appliance.
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not install the appliance in a location that may be exposed to combustible gas.
-If combustible gas accumulates around the unit, it may cause fire.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
-Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it
will not be tripped over.
-Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized
service facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control
device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
-Contact the authorised installer for installation of this unit.
-When there are wide differences between "USER' S MANUAL" and "Remote controller
Illustration" on function description, the description on "USER' S MANUAL " shall prevail.
-Do not operate your air conditioner in a wet room such as a bathroom or laundry room.

Installation
Choosing The Right Location
Your installation location should meet the following
requirements:
-Make sure that you install your unit on an even
surface to minimize noise and vibration.
-The unit must be installed near a grounded plug,
and the Collection Tray Drain (found on the back
of the unit) must be accessible.

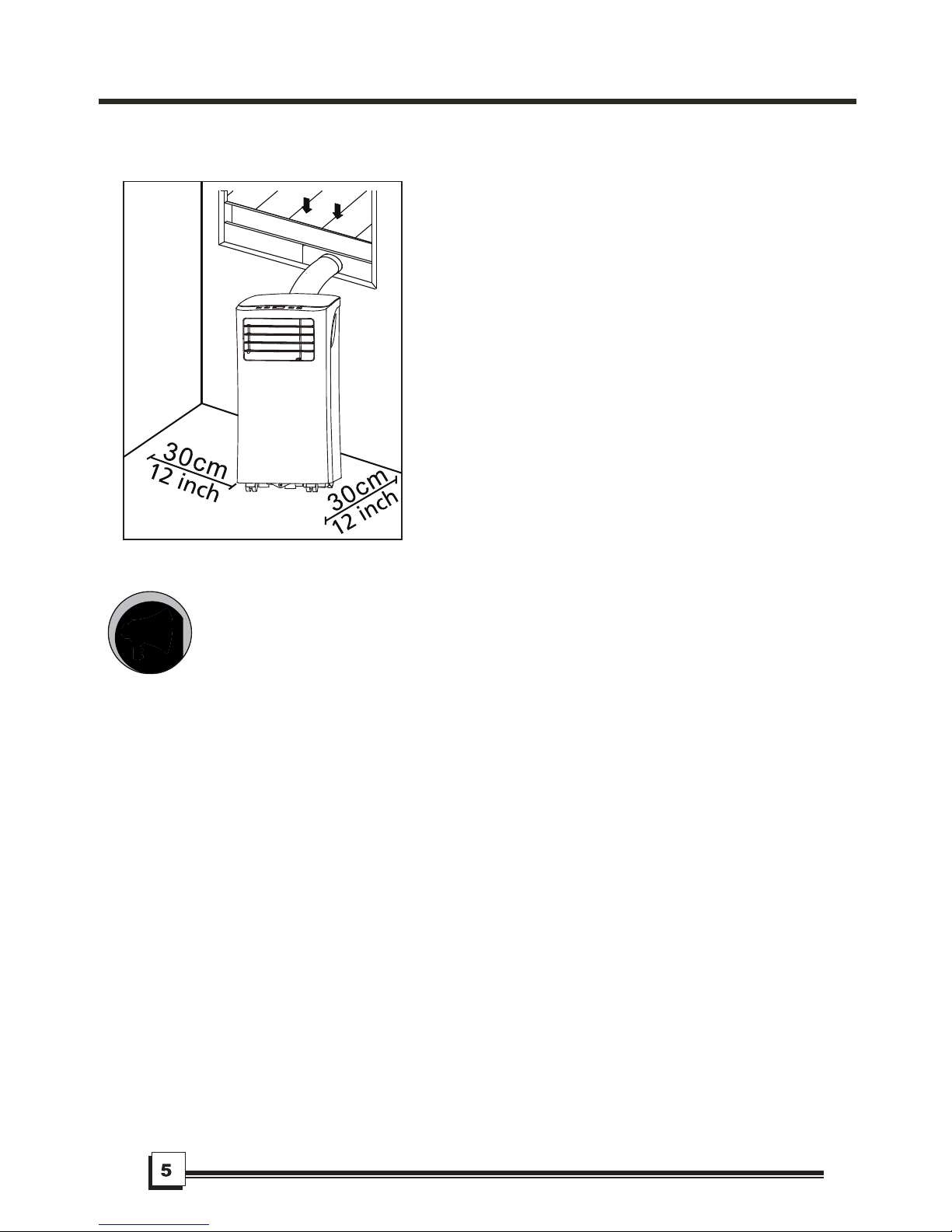

-The unit should be located at least 30cm (12”) from
the nearest wall to ensure proper air conditioning.
-DO NOT cover the Intakes, Outlets or Remote
Signal Receptor of the unit, as this could cause
damage to the unit.
Note About Fluorinated Gasses
-This air-conditioning unit is a hermetically sealed unit that contains fluorinated gasses.
For specific information on the type of gas and the amount, please refer to the relevant label
on the unit itself.
-Installation, service, maintenance and repair of this unit must be performed by a certified
technician.
-Product uninstallation and recycling must be performed by a certified technician.
-If the system has a leak-detection system installed, it must be checked for leaks at least
every 12 months.
-When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.
All the illustrations in the manual are for explanation purpose only. Your machine may be
slightly different. The actual shape shall prevail.The unit can be controlled by the unit control
panel alone or with the remote controller. This manual does not include Remote Controller
Operations, see the <<Remote Controller Instruction>> packed with the unit for details.
NOTE:

Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (optional, to shorten window adaptor for narrow windows)
Accessories
Your Window Installation Kit fits windows 67.5-123cm(26.5-48”) and can be shortened for
smaller windows.
Window Installation Kit
Press the exhaust hose into
the window slider adaptor
and unit adaptor, clamp
automatically by elastic
buckles of the adaptors.
Push the Exhaust hose
into the airoutlet opening
of the unit along the arrow
direction.
Step One: Preparing the
Exhaust Hose assembly
Step Two: Install the
Exhaust hose assembly
to the unit
Step Three: Preparing
the Adjustable Window
Slider
1. Depending on the size of
your window, adjust the
size of the window slider.
2. If the length of the window
requires two window sliders,
use the bolt to fasten the
window sliders once they
are adjusted to the proper
length.
Window slider A Window slider B
Bolt

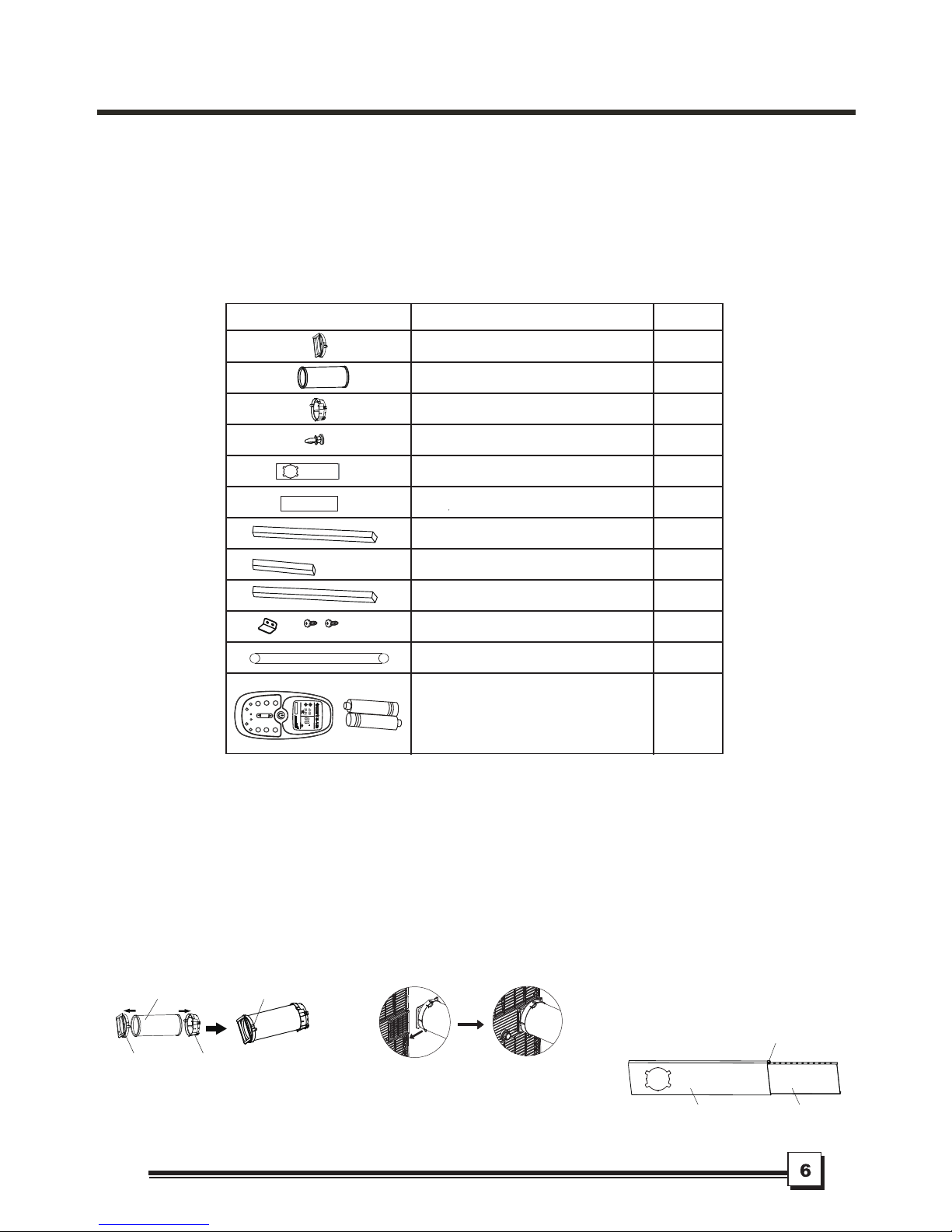

Part Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit Adaptor
Window Slider Adaptor
Window Slider A
Window Slider B
Exhaust Hose
Bolt
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Security Bracket and 2 Screws
Drain Hose
Quantity
Remote Controller and Battery
(For remote control models only)
MODE
SLEEPLED
CLOCK
CANCEL
TIMER
FAN
RESET
LOCK
CLOCK
C
ON
OFF
SET T EMP.
FANSPEED
AUTO
F
SWING TURBO
FOLLOWME
Unit adaptor Window slider
adaptor
Exhaust hose Exhaust hose
assembly

Installation
Note: Once the Exhaust Hose assembly and Adjustable Window Sliderare prepared,
choose from one of the following two installation methods.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as
shown.
Insert the window slider adaptor
into the hole of the window slider.
Insert the window slider
assembly into the window
opening.
Insert the window slider
assembly into the window
opening.
Type 1: Hung Window Installation
Foam seal B
(Adhesive type-shorter)
2 Screws
Security Bracket
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Type 2: Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
Cut the non-adhesive foam
seal C strip to match the
window height. Insert the foam
seal between the glass and the
window frame to prevent air
and insects from getting into
the room.
Foam seal C
(Non-adhesive type)

Installation
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adaptor
into the hole of the window slider.
2 Screws
Security
Bracket
Note: To ensure proper function, DO NOT overextend or bend the hose. Make
sure that there is no obstacle around the air outlet of the exhaust hose (in the
range of 500mm) in order to the exhaust system works properly. All the
illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. The actual shape shall prevail.

Operation

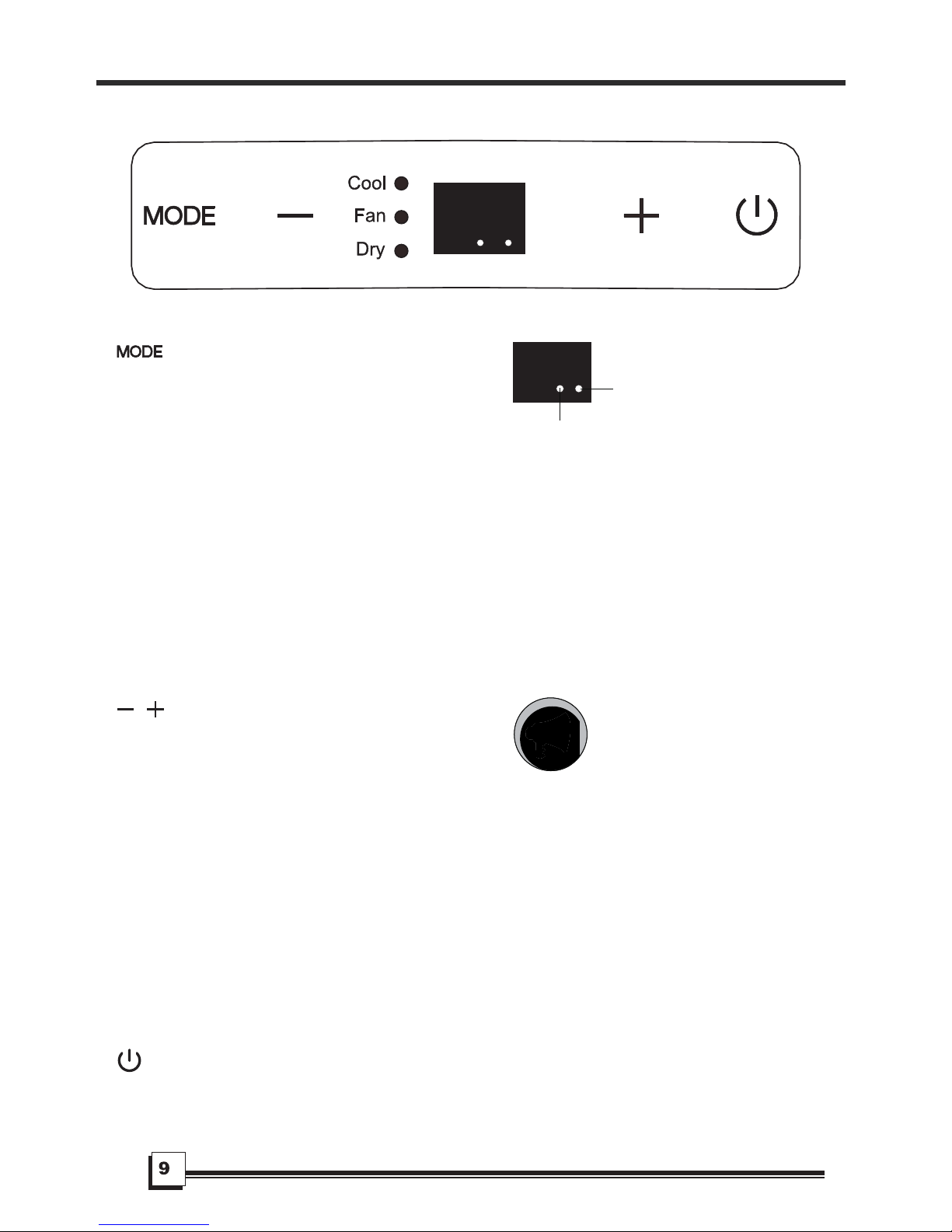

MODE button
Selects the appropriate operating
mode. Each time you press the
button, a mode is selected in a
sequence that goes from COOL,
FAN and DRY .The mode indicator
light illuminates under the different
mode setting.
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F
increments in a range of 17°C/62°F to
30°C/86°F.
Power button
Power switch on/off.
Power
indicator light
Timer mode indicator
light (set only by
remote controller)
Up (+) and Down
(-) buttons
LED display
Shows the set temperature while on cool
mode. While on DRY and FAN modes, it
shows the room temperature.
Shows Error codes:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E4-Display panel communication error.
Shows protection code:
P1-Bottom tray is full--Connect the drain
hose and drain the collected water away.
If protection repeats,call for service.
Note: When one of the above
malfunctions occurs, turn off the unit,
and check for any obstructions.
Restart the unit, if the malfunction is
still present, turn off the unit and
unplug the power cord. Contact the
manufacturer or its service agents or
a similar qualified person for service.
NOTE: On above modes, the unit
operates the auto fan speed
automatically. You can set fan
speed only by the remote controller
on COOL and FAN modes.
NOTE: The control is capable of
displaying temperature in degrees
Fahrenheit or degrees Celsius.
To convert from one to the other,
press and hold the Up and Down
buttons at the same time for 3
seconds.

Operation
Operation Instructions
COOL operation
-Press the "MODE" button until the "COOL" indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room temperature. The temperature
can be set within a range of 17°C~30°C/62°F~86°F.
-Press the "FAN SPEED" button to choose the fanspeed.
DRY operation
-Press the "MODE" button until the "DRY" indicator light comes on.
-Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor
operates at LOW speed.
-Keep windows and doors closed for the best dehumidifying effect.
-Do not put the duct to window.
FAN operation
-Press the "MODE" button until the"FAN " indicator light comes on.
-Press the "FAN SPEED" button to choose the fan speed. The temperature can not be adjusted.
-Do not put the duct to window.
SLEEP/ECO operation
This feature can be activated from the remote control ONLY. To activate SLEEP feature, the set
temperature will increase by 1°C/2°F) in 30 minutes. The set temperature will then increase by
another 1°C/2°F) after an additional 30 minutes. This new temperature will be maintained for 7
hours before it returns to the originally selected temperature. This ends the Sleep mode and the
unit will continue to operate as originally programmed.
Other features
NOTE: This feature is unavailabe under FAN or DRY mode.
NOTE:This feature can be activated from the remote control ONLY. The remote control
servesas a remote thermostat allowing for the precise temperature control at its location.
To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit
and press the Follow Me/Temp Sensing button. The remote display is actual temperature
at its location. The remote control will send this signal to the air conditioner every 3
minutes interval until press the Follow Me/Temp Sensing button again. If the unit does
not receive the Follow Me/Temp Sensing signal during any 7 minutes interval, the unit
will beep to indicate the Follow Me/Temp Sensing mode has ended.
FOLLOW ME/TEMP SENSING feature(optional)

Operation
AUTO-RESTART
If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function
setting automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to
protect the unit. Operation will automatically start after 3 minutes.
AIR FLOW DIRECTION ADJUSTMENT
Adjust the air flow direction manually:
-The louver can be set to the desired position manually.
-Do not place any heavy objects or other loads on the louver, doing so will cause damage to
the unit.
-Ensure the louver is fully opened under heating operation.
-Keep the louver fully opened during operation.
Water drainage
-During dehumidifying modes, remove the drain plug from the back of the unit, install the drain
connector(5/8" universal female mender) with 3/4" hose(locally purchased). For the models
without drain connector, just attach the drain hose to the hole. Place the open end of the hose
directly over the drain area in your basement floor.
Remove the
drain plug
Continuous
drain hose
-When the water level of the bottom tray
reaches a predetermined level, the unit beeps 8 times, the
digital display area shows "P1" . At this time the air
conditioning/dehumidification process will immediately stop.
However, the fan motor will continue to operate(this is normal).
Carefully move the unit to a drain location, remove the bottom
drain plug and let the water drain away. Reinstall the bottom
drain plug and restart the machine until the "P1" symbol
disappears. If the error repeats, call for service.
Bottom drain
plug
NOTE:When the continuous drain hose is not used, ensure that the drain plug and
knob are installed firmly to prevent leakage.
NOTE: Be sure to reinstall the bottom drain plug firmly to
prevent leakage before using the unit.

Maintenance
Safety Precautions
Maintenance Tips
-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. Doing so causes electrical danger.
-DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord
must be replaced with a new cord from the manufacturer.
Clean the Air Filter
Clean the Unit
Store the unit when not in use
-Be sure to clean the air filter every 2 weeks for
optimal performance.
-The water collection tray should be drained
immediately after P1 error occurs, and before storage
to prevent mold.
-In households with animals, you will have to
periodically wipe down the grill to prevent blocked
airflow due to animal hair.

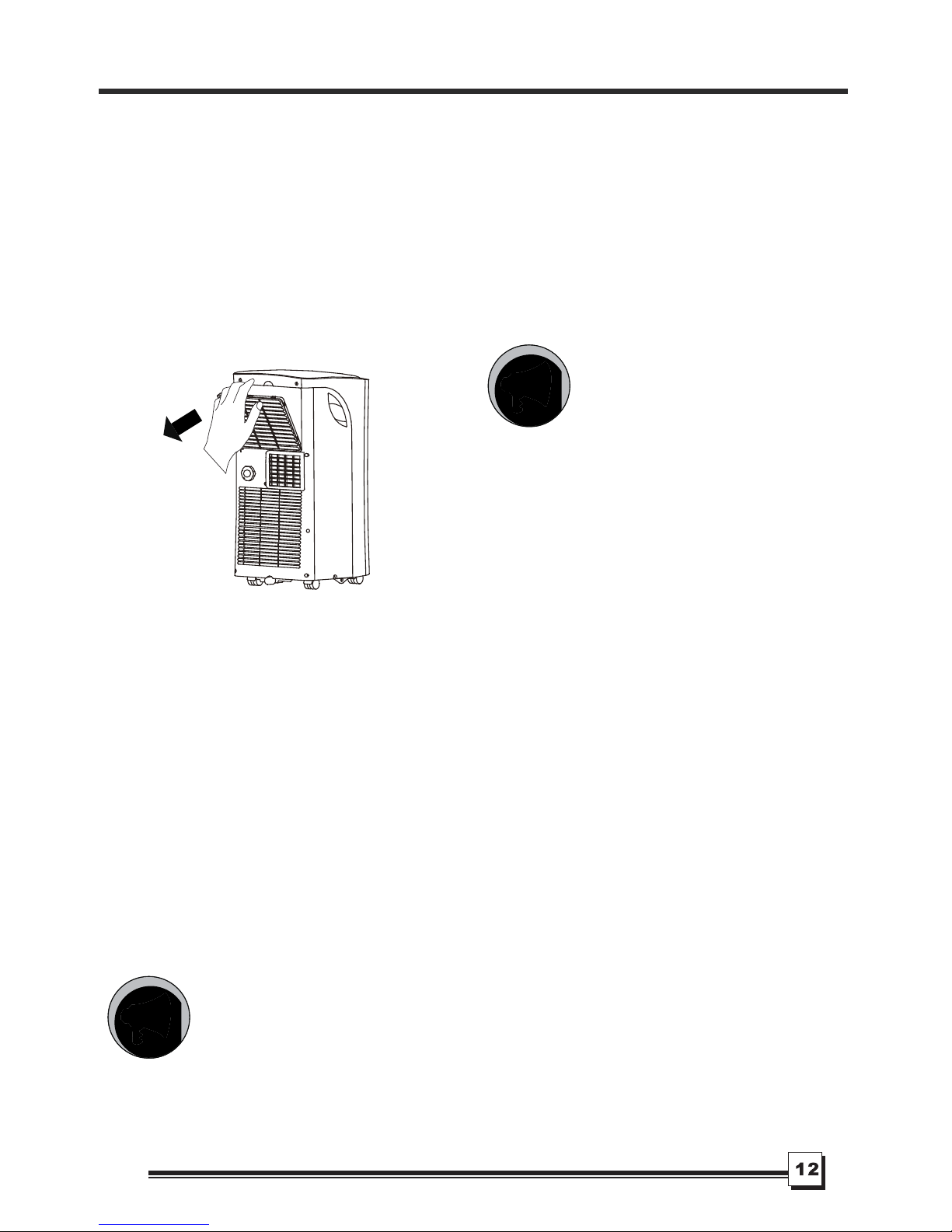

Remove the air filter
Air filter
(take out)
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry lint-free cloth.
-Drain the unit’s water collection tray according to the instructions in the following section.
-Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold.
-Turn off the appliance and unplug it.
-Clean the air filter according to the instructions in the previous section.
Reinstall the clean, dry filter before storing.
-Remove the batteries from the remote control.
Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme
heat can shorten the lifespan of the unit.

Faults Diagnosis
Please check the machine according to the following form before asking for
maintenance:
Problem Possible Cause Troubleshooting
Unit does not turnon
when pressing
ON/OFF button
P1 Error Code
Reset the temperature
Turn off the unit and clean thefilter
according to instructions
Turn off the unit, disconnect thehose,
check for blockage and reconnect the
hose
Call a service technician to inspectthe
unit and top off refrigerant
Decrease the set temperature
Make sure all windows and doors are
closed
Turn off the unit and clean thefilter
according to instructions
Double-check the cooling area
Remove the heat sources if possible
Place the unit on a flat, level surface
This is normal
In COOL mode:
roomtemperature is lower
thanthe set temperature
The Water Collection Tray is full.Turn
off the unit, drain the water from the
Water Collection Tray and restart the
unit.
The air filter is blocked
withdust or animal hair
Exhaust hose is notconnected
or is blocked
The unit is low onrefrigerant
Temperature setting is toohigh
The room area is too large
There are heat sourcesinside
the room
The ground is not level
The air filter is blocked
withdust or animal hair
This sound is caused by
theflow of refrigerant insidethe
unit
The windows and doors inthe
room are open
Unit does not
coolwell
The unit is noisyand
vibrates toomuch
The unit makes
agurgling sound

Design and Compliance Notes
Design Notice
Energy Rating Information
In order to ensure the optimal performance of our products, the design specifications of the unit and remote
control are subject to change without prior notice.
The Energy Rating for this unit is based on an installation using an un-extended exhaust duct without
adapters A or B (as shown in the Installation section of this manual).
Unit Temperature Range
Cool 17-35°C (62-95°F)
Dry
13-35°C (55-95°F)
Mode Temperature Range

Sociable Remark
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separatelyfor special treatment is necessary.It is prohibited to
dispose of this appliance in domestic household waste.For disposal, there are
several possibilities:A) The municipality has established collection systems,
where electronic waste can be disposed of at least free of charge to the user.B)
When buying a new product, the retailer will take back the old product at least free
of charge.C) The manufacture will take back the old appliance for disposal at least
free of charge to the user.D) As old products contain valuable resources, they can
be sold to scrap metal dealers.Wild disposal of waste in forests and landscapes
endangers your health when hazardous substances leak into the ground-water
and find their way into the food chain.
When using this dehumidifier in the European countries, the following
information must be followed:

90
90
90
