Arctica HEF967 Instruction manual

Installation, Operation &
Maintenance Manual
BLAST CHILLER & FREEZER
HEF967 & HEF968 Freezer
(HC Gas R290 used)
For warranty Tel: [phone]
Email address service@ lockhartcatering.com

PLEASE READ THE MANUAL THOROUGHLY PRIOR TO
EQUIPMENT SET-UP,OPERATION AND MAINTENANCE
TABLE OF CONTENTS
◆INSTALLATION…………………….……………... …………………………1
Cabinet location and installation guidelines………………………………….1
Electrical safety …………………………………………………………………2
◆OPERATION ………..…….……………………………………………………3
General use of the cabinet ………………………...………………………..….3
Operation instruction for temperature controller ………...……………………4
◆REGULAR MAINTENANCE……………………………………………….…10
Cleaning the condenser coil…………………………………………………....10
Cleaning the fan blade and motor………………………………………………11
Cleaning the interior of unit………………………………………………………11
◆TROUBLE SHOOTING…………………………………………………………11

1
IMPORTANT SAFETY INSTRUCTIONS,READ CAREFULLY
AND KEEP FOR FUTURE REFERENCE
INSTALLATION
IMPORTANT!!!PLEASE READ BEFORE INSTALLATION
■If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours
before plugging it in.
■Maker sure that there is proper ventilation around the unit in the where it will operate.
■Make sure all accessories are installed before plugging the unit in.
■Please read through the manual in its entirety.
CABINET LOCATION AND INSTALLATION GUIDELINES
■Unpacking
The unit is delivered on a pallet and shrink-wrapped. Documentation is inserted into a clear
pocket located inside the unit. Carefully remove the protective plastic film and cardboard from
the unit exterior and from the door opening surround making sure that any sharp instrument
used does not cause damage, plus remove any quality labels.
■Install the unit on strong and leveled surfaces
－unit may make unpleasant noises if surface is uneven
－unit may malfunction if surface is uneven
－If the floor is not flat, please use something to make sure the base of this unit in horizontal
level
■Install the unit in an indoor, well-ventilated area
－unit performs more efficiently in a well-ventilated area
－for best performance, please maintain clearance of 100mm / 4”on the back of the unit,
50mm / 2”on the top of the unit

2
－outdoor use may cause decrease efficiency and damage to the unit
■Avoid installation in a high humidity and/or dusty area
－humidity could cause unit to rust and decrease efficiency of the unit
－dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least
once a month with a brush or clean cloth
■Select a location away from heat and moisture-generating equipment
－high ambient temperature will cause the compressor to overwork, leading to higher energy
bills and gradual breakdown of the unit
■The appliance shall not be exposed to rain, sun
The cabinet must not be located in a chloride /
acid-containing environment (swimming-bath etc.) due to
risk of corrosion.
CAUTION: PROBLEMS CAUSED BY UNPROPER
POSITION OF UNITS ARE NOT COVERED BY
WARRANTY
■The castor is with a brake, turn it to different side can lock or unlock the castor
ELECTRICAL SAFETY
■Please ensure that the required voltage of the compressor is being supplied at all times
CAUTION: Low or high voltage can detrimentally affect the refrigeration unit.
■All units should be plugged into a grounded and properly-sized electrical outlet with
appropriate overcurrent protection. Please refer to the electrical requirement on the
nameplate. If you do not have the right outlet have a certified electrician
install the correct power source.

3
To minimize shock and fire hazards, be sure not to overload outlet.
Please designate one outlet for your unit., make sure that the unit is properly
grounded.
■Please make sure that your unit has its own dedicated outlet. Do not use an extension
cord.
■When the unit is not in use for a long period of time, please unplug the unit from the
outlet.
■After unplugging the unit, wait at least 10 minutes before re-plugging it. Failure to do
so could cause damage to the compressor.
■Do not attempt to alter or tamper with the electrical cord.
OPERATION
GENERAL USE OF THE CABINET
Blast chiller & freezer quickly reduce the core temperature of the products, whether they are
cooked or fresh, conserving their fresh texture, hygiene and quality, whilst reducing the risk of
bacteria generating.
The traditional method of storing cooked food has always been to leave it to cool naturally until it
reaches a suitable temperature to store in the refrigerator.
During the period when the core temperature falls from +65ºC and +10ºC, the food will lose a lot
of its natural characteristics, such as moisture, consistency, aroma and color. These blast chillers
& freezers are designed to reduce the time period for this critical change in temperature.
■The storage cabinet is designed to fit two kinds of pans
* GN 1/1 pan
* 400x600 EN pan
When blast chilling always use metal or foil containers which
are good conductors. Plastic or polyurethane containers
insulate the food from the cold air. When chilling unportioned

4
food we recommend the use of the appropriate gastronorm
tray or similar.
■Loading food
Attention ： Make sure that the unit drops down to desired temperature before loading the
unit with food
- The maximum temperature of food entering the Blast Chiller/Blast Freezer must not exceed
+80°C (176°F). Regulations state that product should be placed in the Blast Chiller/Blast
Freezer within 30 minutes from completion of cooking.
-The packaging of food and the way in which it is loaded or placed within the equipment can
have a significant effect on the time within which the temperature can be reduced to the
require level and the amount of food which can be processed in each chilling or freezing
batch.(Maximum food thickness 50mm).
■It is important to insert the probe correctly.
The needle of probe should be inserted until the point reaches the
center of the foodstuff.
OPERATION INSTRUCTION FOR TEMPERATURE CONTROLLER
The unit has been created for fast chilling or freezing goods according to international food safety
standards.
There are FOUR types of cycles:
• The CYCLES: Cy1, Cy2, Cy3, Cy4 are pre-set according to the most common cycles used in
food -safety applications; the user can select one of them according to his own requirements
and modify it as he wants.
• Any cycle can be manually terminated before the normal.
• Any cycle can use the insert probes (up to 3), they measures the internal temperature of the
product.
• During the Cycle there are no defrosts and the fans are always on, a defrost cycle can be done
before any freezing cycle.
• The cycle is divided up to 3 phases completely configurable by the user.
• Each instrument is provided with an output for remote display XR REP, which shows the
temperature of cabinets or goods.
• The controller is provided with internal real time clock and can be connected to the printer. This
means that a report, which includes all the main features of cycle, can be printed: start and end
of the cycle, length of the cycle, logging of the temperature of the cabinet and goods.

5
■Frontal panel
■Quick start
1. DISPLAY
The upper display shows the temperature of the room probe.
The lower display shows the temperature of the inserts probe or the count down timer. To pass
to the one insert probe to the another one use the DOWN key.
- Temperature.
- Timer or insert probe
- Alarm and status icons.
If an icon or LED is on, the correspondent function is enabled.
If an icon or LED is flashing, the correspondent function is delayed.
2. KEYBOARD IN STAND BY
HOW TO SELECT A CYCLE:
Push and release the (3) key till the
desired cycle is selected.
HOW TO START A CYCLE: Push and release
the START/STOP button (2). Il The
correspondent yellow LED is switched on..
HOW TO TEMPORARILY STOP THE RUNNING CYCLE.
1. Press and release the key.
2. The compressor and the fan will be stopped for the PAU time (see parameters list) and the flashing
message “Stb” will be displayed.
3. To restart the cycle press and release the key, the cycle will restart from the some point at which it was
interrupted.
4. In any case the cycle automatically restarts after the PAU time.
HOW TO STOP A CYCLE: hold pushed the
START/STOP button (2) till the yellow LED will be
switched Off.
HOW TO SET THE TIME (RTC)

6
Hold pushed the DOWN key (5) till the Min label is displayed.
Use the UP and DOWN KEY to browse the parameters.
TO MODIFY: push the SET button and then the UP and DOWN keys.
TO CONFIRM: push the SET button.
TO EXIT THE RTC MENU: Push together SET + UP keys or wait 5 sec.
HOW DISPLAY / MODIFY THE SET POINT OF THE HOLDING PHASE
TO DISPLAY: Push and release the SET key (6), the
holding set point of the selected cycle is displayed for 5 sed..
TO MODIFY: while the set point is displayed hold pushed the
SET key till the HdS label start flashing. Use the UP and
DOWN key to modify the value.
TO CONFIRM: push the SET key to confirm the value and exit.
HOW MODIFY A CYCLE:
1. Push the key (6) for several seconds till the first parameter (CyS) is displayed.
2. Use the UP and DOWN keys to browse the parameters.
3. To modify a parameter push the SET key and use the arrow keys.
4. Confirm the new value by pushing the SET key.
5. The new value is recorded even if the programming is exited by time out.
3. KEYBOARD WHEN A CYCLE 1,2,3,4 IS RUNNING
DISPLAY TEMPERATURE: The upper display shows the
temperature of the thermostat probe. The bottom display
shows the temperature of a insert probe (if enabled) or the
count down timer. By pushing the DOWN key the probes iP1,
iP2, iP3 and the count down timer are displayed in sequence.
PHASE DISPLAY: pushing the UP key the running phase is
displayed.
HOW TO DISPLAY THE REGULATION SET POINTS
By pushing the SET key the following information are
displayed in sequence:
- rSI = Room set point
- iSI = Stop phase set point, referred to the insert probe
- Back to the room temperature.
HOW TO MODIFY THE ROOM SET POINT
While rSI or iSI are displayed hold pushed the SET key till
the rSi or iSi label start flashing and LED near the SET key
is turned on.
Use the arrow key to modify the value and the SET key to confirm it.

7
4. KEYBOARD WHEN THE HOLDING CYCLE IS RUNNING (H)
HOW TO DISPLAY THE HOLDING (REGULATION) SET POINT
While the holding cycle is running, (H icon lighted), push the SET
key and the holding set point is displayed on the UPPER display
while the SETH label on the bottom display.
HOW TO MODIFY THE ROOM SET POINT
While SETH is displayed hold pushed the SET key till the SETH label
starts flashing and LED near the SET key is turned on. Use the arrow
key to modify the value and the SET key to confirm it.
TO CONFIRM AND EXIT: push again the SET key
5. OTHER KEYS
LIGHT (4): push the LIGHT (4) key to switch the light on and off.
The status of the light is monitored by the yellow LED upper the
key.
AUX (8): ): push the AUX (8) key to switch the ausiliary on and off.
The status of the auxiliary relay is monitored by the yellow LED
Upper the key.
PRINTER / H (7): push the PRINTER key when the keyboard is
connected to the controller, to enabled/ disable the printer.
PRINTER CONFIGURATION MENU
Push the PRINTER (7) key for few seconds to enter the
printer configuration menu. The itP, label is displayed, use
the ARROW keys to browse the parameters
To modify: push the SET key and then the ARROW keys.
To confirm: push the SET key
To exit the Printer menu: Push together SET + UP keys
or wait 5 sec
6. HOW TO START A MANUAL DEFROST.
Assure that none cycle is active or the hold mode is running.
Hold press the UP key fro few seconds.
NOTE: The defrost will not be done if the temperature detected
by the evaporator probe is higher than EdF (stop defrost
temperature) parameter.
7. OTHER FUNCTIONS OF KEYBOARD

8
8. MEANING OF THE LEDS’
A series of light points on the front panels is used to monitor the loads controlled by the instrument.
Each LED function is described in the following table.
9. HOW TO SELECT A CYCLE
1. Push the to move among the cycles C1, C2, C3, C4 and the holding cycle. The related symbol on the
display will be lighted and the cycle will be selected.
NOTE: to pass from a cycle to another one simply push the key when the controller is in stand –by mode.
HOLD PHASE: To select H symbol pushing the .
Cycles are pre-set with the following values:
1. Cy1: for fast chilling and conservation of foods (hard +soft chill).
2. Cy2: for chilling and fast freezing of foods (hard +soft + freezing cycle).
3. Cy3: for direct fast freezing (only fast freezing cycle)
4. Cy4: for fast freezing avoiding ice skin (hard chill + freezing cycle)
5. HLd: hold mode function
6. dEF: for starting a manual defrost
2. Now the cycle is memorised and can be activated.
HOW TO MODIFY A CYCLE
1. Verify that none cycle is running. If one cycle is running stop it by pushing the key for 3s.
2. Push the to move among the cycles C1, C2, C3, C4 and the holding cycle. The related symbol on the
display will be lighted and the cycle will be selected
3. Hold push the key for several seconds till the display will show the first parameter of the selected cycle
(cyS) with its value.
4. Use the UP and DOWN keys to browse the parameters.

9
5. To modify a parameter push the SET key and use the arrow keys.
6. Confirm the new value by pushing the SET key.
7. The new value is recorded even if the programming is exited by time out.
TO exit: wait 30s or push the SET+UP keys.
10.HOW A CYCLE IS DONE
1. Every programmable cycle Cy1, Cy2, Cy3 or Cy4 can be divided into up to 3 phases usually called:
• hard chill
• soft chill
• freezing cycle
2. For each phase there are 3 parameters.
iS1, (iS 2, iS 3): Set point related to the insert probes that stops the current phase.
rS1, (rS2, rS3): set point of the room temperature for each phase.
Pd1, (Pd2, Pd3): the maximum duration time for each phase.
Hds : set point of the hold phase at the end of the whole cycle.
HOW TO USE THE INSERT PROBES.
By means the insert probe, the internal temperature of products can be checked. This measure is used to end
the various phase of the cycle. A special internal function detect if the inset probe is not used, in this case the
cycle is made by time
EXAMPLE OF A BLAST CHILLER CYCLE.
The following drawing explains how a Blast Chiller
cycle can be done.
First phase: “Hard chill”.
It is normally used to fast chill hot foods. E.g. from
80°C / 170°F to 20°C / 70°F.
During “Hard Chill”, both compressor and fan are
always on until the rS1 temperature is reached. At
this point compressor is turned on end off so as to
keep the temperature of the room at the rS1 value.
“Hard Chill” ends when the temperature measured
by the 3 insert probes reach the iS1 value.
Second phase: “Soft chill”.
The Soft Chill starts when the Hard Chill ends. It is used to prevent thin layer ofice from forming on the product.
The Soft Chill lasts until the temperature measured by the 3 insert probes reach the set point iS2 (usually 4 or
5°C).
During Soft Chill the temperature of the room is regulated by the ambient probe with the set point rS2 (normally
at 0 or 1 °C / 32 or 34°F). When the box temperature reaches the rS2 value compressor is turned on end off so
as to keep the temperature of the box at this value.
Third phase: “Freezing cycle”.
Freezing Cycle: used to fast freeze foods.

10
The Freezing Cycle starts when the Soft Chill ends. During the “Freezing Cycle” both compressor and fan are
always on until the rS3 temperature is reached. At this point compressor and fans are turned on end off so as to
keep the temperature of the room at the rS3 value (normally some degrees below iS3).Freezing Cycle end
when the temperature measured by the 3 insert probes reach the iS3 value
End of the Blast Chill cycle and starting of the Hold Mode.
When one of the three insert probes reaches the iS3 value the values End followed by the i1P or i2P or i3P are
shown on the display.
Cycle ends when all the probes have reached the iS3 value. A signal is generated buzzer and alarm relay is
turned ON, the display shows the message “End” alternating with the room temperature.
The alarm automatically stops after the “but” time or by pressing any keys.
At the end of the cycle the controller can start the “Hold mode” keeping the room temperature at the value set in
HdS parameter.
If HdS = OFF, the machine is turned OFF.
NOTE1: with dbH = yES a defrost is done before the holding phase.
NOTE2: If the end cycle temperature iS3 is not reached in the maximum time Pd1+Pd2+Pd3 the instrument
keep on working, but the alarm message “OCF” is given.
REGULAR MAINTENANCE
Before maintenance and cleaning, please unplug the unit, do not plug or unplug the
cord with wet hands.
CLEANING THE CONDENSER COIL
■For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and
lint.
■We recommend cleaning the condenser coil and fins at least once per month.
■Clean with a commercial condenser coil cleaner, available from any kitchen equipment retailer.

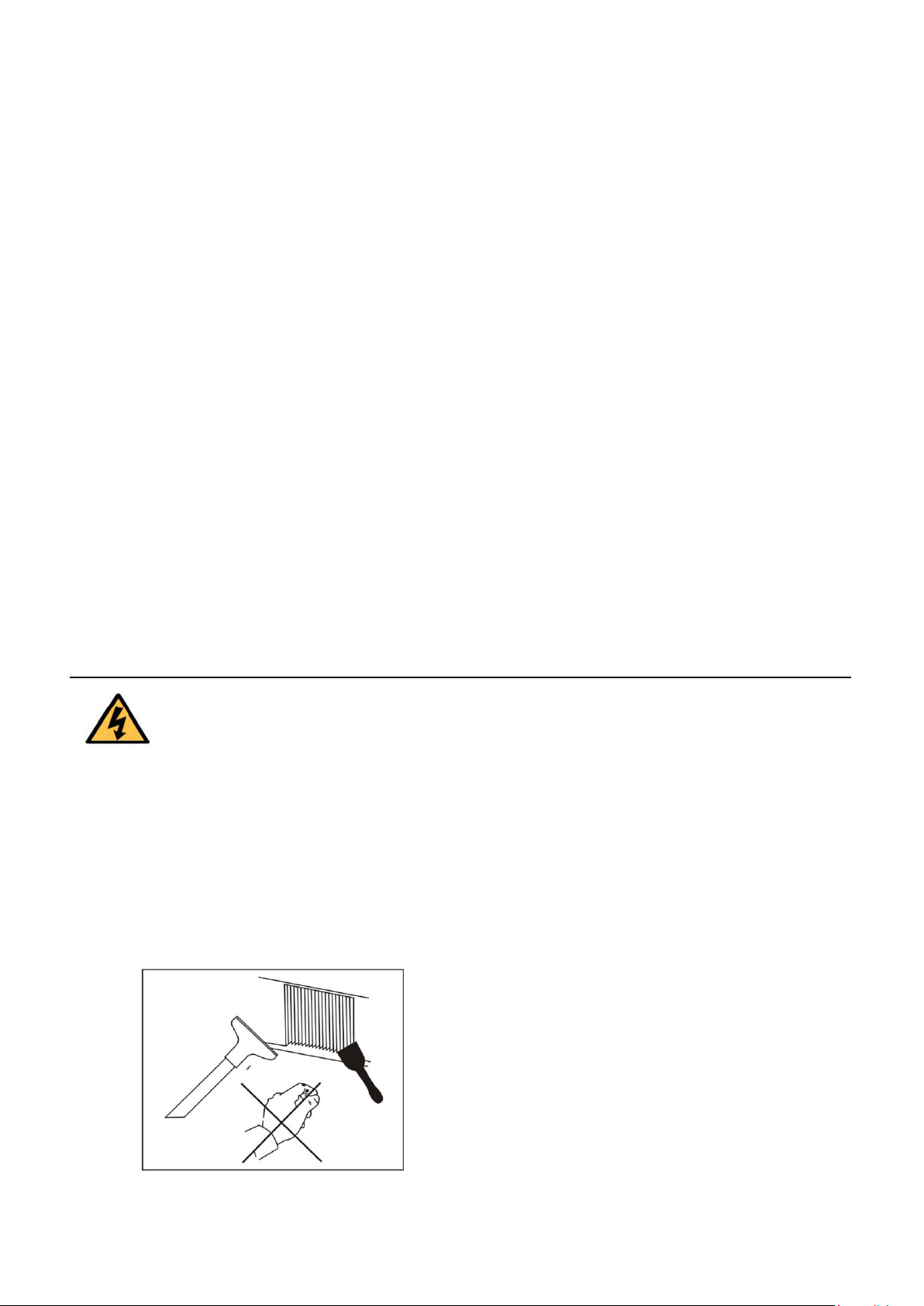

Brush the condenser fins from top to bottom, not side to side.
■After cleaning, straighten any bent condenser fins with a fin comb.

11
CLEANING THE FAN BLADE AND MOTOR
If necessary, clean the fan blades and motor with a soft cloth, if it is necessary
to wash the fan blades, cover the fan motor to prevent moisture damage.
CLEANING THE INTERIOR OF UNIT
■When cleaning the cabinet interior ,use a solvent of warm water and mild soap.
■Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the
stainless steel surface.
■Wash door gaskets on a regular basis, preferably weekly. Simply remove door gasket from
the frame of the door, soak in warm water and soap for thirty (30) minutes, dry with soft cloth,
and replace.
■Check door gaskets for proper seal after they are replaced.
■Periodically remove the shelves and pilasters from the unit and clean them with mild soap and
warm water. To remove the pilasters, first remove the shelves and shelf brackets. Then,
simply lift the pilaster up and out.
WARNING
Disconnect power cord before cleaning any parts of the unit.
TROUBLE SHOOTING
Before requesting any service on your unit, please check the following points.
Please note that this guide serve only as a reference for solutions to common problems.
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACTION
Compressor
not running.
Fuse blown or circuit breaker tripped.
Power cord unplugged.
Thermostat set too high.
Cabinet in defrost cycle.
Replace fuse or reset circuit breaker.
Plug in power cord.
Set thermostat to lower temperature.
Wait for defrost cycle to finish.
Condensing
unit runs for
long periods
of time.
Excessive amount fo warm product
placed in cabinet.
Prolonged door opening or door ajar.
Door gasket(s) not sealing properly.
Allow adequate time for product to cool
down.
Ensure doors are closed when not in use.
Avoid opening doors for long periods of
time.
Ensure gaskets are snapped in
completely. Remove gasket and
wash with soap and water. Check
condition of gasket and Replace if

12
R290 refrigerant is used for this equipment.
Caution!
Consult reprair manual/ower’s guide before attempting to install or service this product. All
safety precautions must be followed. Dispose of properly in accordance with federal or
local regulations. Risk of fire or explosion due to puncture of refrigerant tubing. Follow
handling instructions carefully.
Dirty condenser coil.
Evaporator coil iced over.
necessary.
Clean the condenser coil.
Unplug unit and allow coil to defrost. Make
sure thermostat is not set too cold. Ensure
that door gasket(s) are sealing properly.
Cabinet
temperature
is too warm.
Thermostat set too warm.
Blocking are flow.
Excessive amount of warm product
placed in cabinet.
Fuse blown or circuit breaker tripped.
Dirty condenser coil.
Prolonged door opening or door ajar.
Evaporator coil iced over.
Set thermostat to lower temperature.
Re-arrange product to allow for
Proper air flow. Make sure there is at least
four inches of clearance from evaporator.
Allow adequate time for product to cool
down.
Replace fuse or reset circuit
breaker.
Clean the condenser coil.
Ensure doors are closed when
not in use. Avoid opening doors
for long periods of time.
(see above)
Cabinet is
noisy.
Loose part(s).
Tubing vibration.
Locate and tighten loose part(s).
Ensure tubing is free from contact with
other tubing or components.

13
Danger!
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. Do not use mechanical devices to defrost refrigerator. Do not puncture
refrigerant tubing.
Disposal
EU regulations require refrigeration product to be disposed of by specialist
companies who remove or recycle all glasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your
appliance. Local authorities are not obliged to
dispose of commercial refrigeration equipment but may be able to offer
advice on how to dispose of the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are
CFD-free.
Do not allow children to play with the packaging and destroy plastic gags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded
in the domestic waste! Please actively support us in conserving resources
and protecting the environment by returning this appliance to the
collections centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards
and specification set by
international, independent, and federal authorities.
Products have been approved to carry the following symbol:
