ARDESTO SWMG-7121W User manual

InstallationBefore UseBefore UseAccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1

InstallationBefore UseBefore UseAccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1
InstallationBefore UseBefore UseAccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1

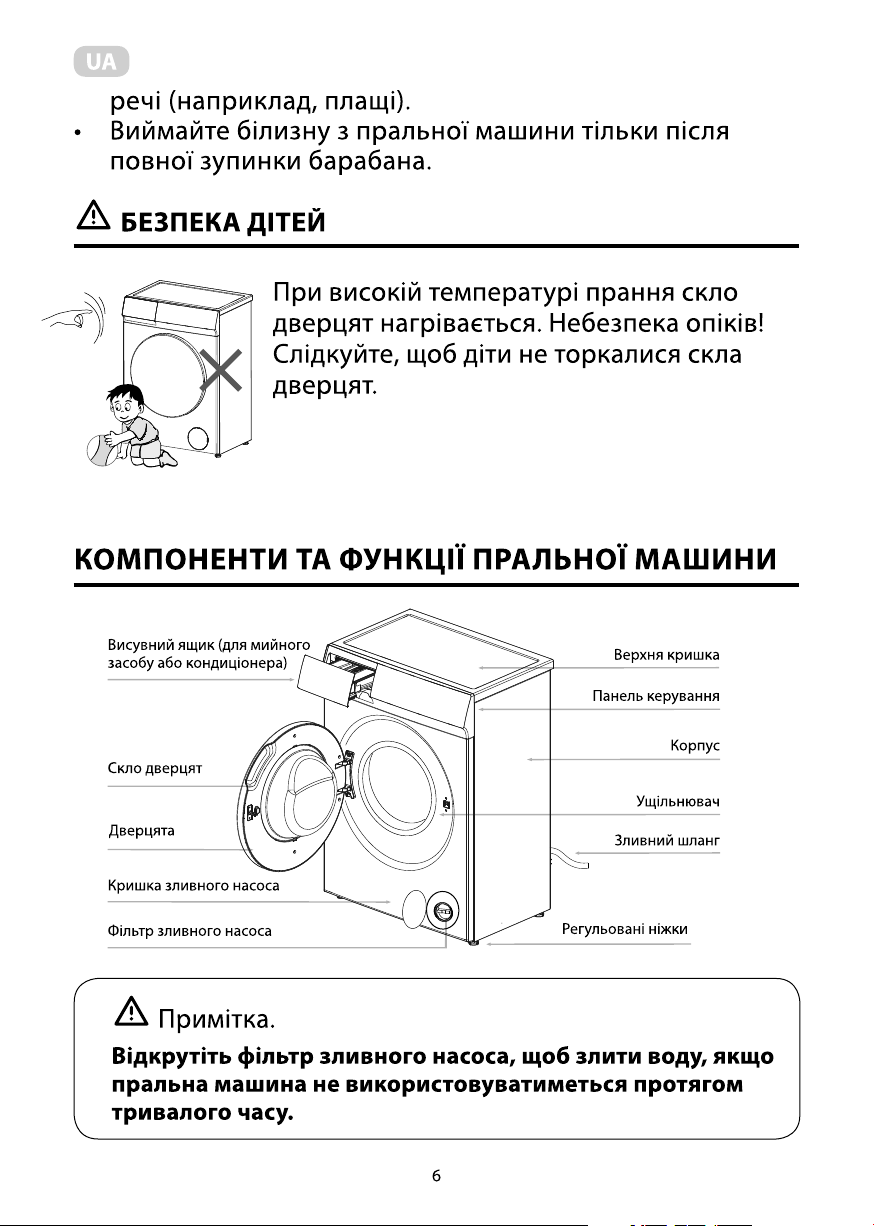

Parts and FeaturesInstallationBefore UseBefore UseBackout packingRemove all the packing(including the foam base) or the vibration and noise may occur.Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.AccessoriesMake sure that you have received all of the items shown below.AccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1Removing transit boltsRemove all the transit bolts at the back of the machine with tools.Plug the holes with the transit bolts caps supplied.Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.CordTransit boltsBack coverwater inlet valveDoor glassTop CoverControl PanelCabinetGasketDrain HoseAdjustable FeetDrain pump filterDoor Drawer(for detergentor fabric softener)Drain pump coverTransit boltsStrong vibration, noise or failures may occur if the transit bolts are not removed.The drawing of machine in the manual is only used for instruction.It may be vary from the mode you buy.Unscrew the drain pump filter to let water run out when themachine is not used for a long time.
Parts and FeaturesInstallationBefore UseBefore UseBackout packingRemove all the packing(including the foam base) or the vibration and noise may occur.Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.AccessoriesMake sure that you have received all of the items shown below.AccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1Removing transit boltsRemove all the transit bolts at the back of the machine with tools.Plug the holes with the transit bolts caps supplied.Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.CordTransit boltsBack coverwater inlet valveDoor glassTop CoverControl PanelCabinetGasketDrain HoseAdjustable FeetDrain pump filterDoor Drawer(for detergentor fabric softener)Drain pump coverTransit boltsStrong vibration, noise or failures may occur if the transit bolts are not removed.The drawing of machine in the manual is only used for instruction.It may be vary from the mode you buy.Unscrew the drain pump filter to let water run out when themachine is not used for a long time.
Parts and FeaturesInstallationBefore UseBefore UseBackout packingRemove all the packing(including the foam base) or the vibration and noise may occur.Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.AccessoriesMake sure that you have received all of the items shown below.AccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1Removing transit boltsRemove all the transit bolts at the back of the machine with tools.Plug the holes with the transit bolts caps supplied.Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.CordTransit boltsBack coverwater inlet valveDoor glassTop CoverControl PanelCabinetGasketDrain HoseAdjustable FeetDrain pump filterDoor Drawer(for detergentor fabric softener)Drain pump coverTransit boltsStrong vibration, noise or failures may occur if the transit bolts are not removed.The drawing of machine in the manual is only used for instruction.It may be vary from the mode you buy.Unscrew the drain pump filter to let water run out when themachine is not used for a long time.
Parts and FeaturesInstallationBefore UseBefore UseBackout packingRemove all the packing(including the foam base) or the vibration and noise may occur.Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.AccessoriesMake sure that you have received all of the items shown below.AccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1Removing transit boltsRemove all the transit bolts at the back of the machine with tools.Plug the holes with the transit bolts caps supplied.Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.CordTransit boltsBack coverwater inlet valveDoor glassTop CoverControl PanelCabinetGasketDrain HoseAdjustable FeetDrain pump filterDoor Drawer(for detergentor fabric softener)Drain pump coverTransit boltsStrong vibration, noise or failures may occur if the transit bolts are not removed.The drawing of machine in the manual is only used for instruction.It may be vary from the mode you buy.Unscrew the drain pump filter to let water run out when themachine is not used for a long time.
Parts and FeaturesInstallationBefore UseBefore UseBackout packingRemove all the packing(including the foam base) or the vibration and noise may occur.Dispose all the wrappage safety and keep them out of the reach of children. Danger of suffocation!It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.AccessoriesMake sure that you have received all of the items shown below.AccessoriesNameQty.AccessoriesNameQty.Inlet hosetransit bolts caps14“U” piece1Manual1Removing transit boltsRemove all the transit bolts at the back of the machine with tools.Plug the holes with the transit bolts caps supplied.Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.CordTransit boltsBack coverwater inlet valveDoor glassTop CoverControl PanelCabinetGasketDrain HoseAdjustable FeetDrain pump filterDoor Drawer(for detergentor fabric softener)Drain pump coverTransit boltsStrong vibration, noise or failures may occur if the transit bolts are not removed.The drawing of machine in the manual is only used for instruction.It may be vary from the mode you buy.Unscrew the drain pump filter to let water run out when themachine is not used for a long time.
InstallationUse processInstallation

InstallationUse processInstallation
InstallationUse processInstallation

InstallationUse processInstallationInstallation place requirementA concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or carpetedsurface.The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm .To avoid vibrations during spinning. the machine should not be installed on soft floor coverings.Level adjustmentThe machine must stand perfectly level on all four feet to ensure safe and proper operation.Incorrect installation may cause vibrationsand noise and may cause the machine to move about.To do these when the machine is not level:Using the spanner turn locknut in a clockwisedirection. Then turn locknuts together with adjustfeet to unscrew.Hold adjust feet securely with a pipe wrench. Turn locknut again using the spanner until it sits firmly up against the housing.Vibration and noise may occur if the locknuts do not sit firmly up against the houses.Drain hose connection1.Direct into a sink If the outlet spigot has not been used before, remove any blanking plug that may be in place.If required,the drain hose can be extended to a length of 4 m.Push the drain hose onto the spigot and secure with a clip if required,ensure a loop is formed in the drain hose to prevent waste from the sink entering the washing machine.2. Connected securely to a standpipe Firstly form a hook in the end of the drain hose using the “U” piece supplied. Place the drain hose into your standpipe, which should have an internal diameter of approximately 30mm thus ensuring there is an air break between the drain hose and standpipe. When discharging into a standpipe ensure that the top fo the standpipe is no more than 90cm and no less than 60cm above floor level.Water inlet connectionConnect the inlet hose supplied with the machine to a tap with a 3/4" thread.Do not use previously employed hoses.Installation should comply with local water authority and building regulations ‘ requirements.When there is a inlet valve at the back of the machine, it must be connected to a cold watersupply. If there are two inlet valve, one is connected to a cold water supply and the otheris connected to a hot water supply. Follow the indication of the picture below to complete theconnection.inlet valve for cold waterinlet hose for cold water with a white nutUse processLocknutsAdjustable feet
