Operator's Manual
TX158, TX159
Two- and Four-Wheel
ATV Trailers
TX191TrackingBeamKit
OMTX158
Rev. 03-01-10
© 2010 Ardisam, Inc.
All Rights Reserved.

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 2
Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEM
BLY, INSPECTION, MAINTENANCE & USE INSTRUC
TIONS PROVIDED BEFORE EACH USE. FAILURE TO
FOLLOW ALL WARNINGS AND INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY OR DEATH.
BE SURE TO FOLLOW ALL INSTRUCTIONS PRO
VIDED. IF ANY INSTRUCTIONS ARE NOT UNDER
STOOD OR IF YOU HAVE A PARTS ISSUE, CALL 800
3456007 BEFORE USING.
THE WHEEL BEARINGS ARE NOT FACTORY
GREASED. YOU MUST GREASE THE BEARINGS BE
FORE USE. CHECK GREASE LEVEL FREQUENTLY
TO PREVENT BEARINGS FROM SEIZING.
DOUBLE CHECKTHE ASSEMBLY OFYOURTRAILER
TO BE SURE YOU ASSEMBLED IT CORRECTLY AND
ALL NUT & BOLT ASSEMBLIES ARE TIGHT BEFORE
INITIAL USE.
BE SURE TO PERIODICALLY CHECK ALL NUT AND
BOLTS FOR TIGHTNESS. OVER TIME, NUTS AND
BOLTS MAY BECOME LOOSE FROM VIBRATION.
BESURETOALWAYSHAVETHECORRECTAMOUNT
OF AIR PRESSURE INTIRES.THIS WILL HELP DETER
FROM UNNECESSARY WEAR AND/OR DAMAGE.
NEVER DRIVE ON HILLY TERRAIN  EXCESSIVE
WEIGHT CAN CAUSE WEIGHT SHIFTS WHICH CAN
LEAD TO LOSS OF CONTROL OF YOUR ATV AND/
OR ATV TRAILER.
DO NOT DRIVE IN EXCESS OF 10 MPH WHILE US
ING THIS PRODUCT.
NEVER ALLOW PEOPLE OR ANIMALS TO RIDE IN
THE ATV TRAILER! IT IS NOT DESIGNED FOR THAT
MATTER.
USE CAUTION NEARTRAILER TILT LATCH. BE SURE
LATCH IS ENGAGED BEFORE EACH USE.
NEVER EXCEEDTHE MAXIMUMWEIGHT CAPACITY
OF 1250 LBS. OF EVENLY DISTRIBUTED WEIGHT.
YUTRAX offers a full line of ATV accessories. We appreci-
ate your purchase of our world class ATV Trailers. Follow
these few simple instructions and your product will be
sure to give you many years of trouble free pleasure.
Instructions should be kept in a safe place and reviewed
at least annually.
If for any reason you have a problem with your product,
DO NOT return to the retailer; contact the YUTRAX
customer service department Monday through Friday
from 8 a.m. to 5 p.m. at 800-345-6007 for assistance.
ASSEMBLY INSTRUCTIONS:
Tools needed -- two 7/16” wrenches, two 1/2”wrenches,
3/4”socket with ratchet & extension, needle nose pliers
and a grease gun w/fitting.
IMPORTANT ASSEMBLY TIP: Do not tighten any
nut and bolt combinations completely until all
parts are assembled together! Finger tighten plus
one turn of a wrench only! This will temporarily
hold the lock nut on the bolt while helping align-
ment of all parts! After all parts are assembled
together, all nut & bolt combinations must be
completely tightened.
1. Insert rear tongue tube (TK81) to the welded-on
“U”-bracket located on the axle tube (TK80) using (1)
provided 5/16-18 x 2-3/4”bolt, nyloc nut and 5/16”
washer. SEE FIGURE 1 OR 2.
2. Insert the front hitch tongue (TK85) and the rear hitch
tongue (TK87) into the connector pocket (TK89) and
secure using (2) provided 5/16-18 x 2-1/4” bolts and
nyloc nuts. SEE FIGURE 1 OR 2.
3. Attach the assembled hitch tongue to the rear tongue
tube using (2) provided 5/16-18 x 4”bolts, nyloc
nuts and (4) steel washers. Be sure the entire tongue
assembly is aligned before tightening. SEE FIGURE 1
OR 2.
NOTE: Front tongue does not go inside rear
tongue. Front tongue bolts on top of rear
tongue.
4. Slide the axle plate (300705) over the short end of axle
spindle (TK48). Thread the short end of axle spindle
into the axle tube until tight. Back off the axle spindle
until holes are aligned and secure using (1) provided
1/4-20 x 1-3/4”bolt and nyloc nut. SEE FIGURE 1 OR
2. Repeat this step for the other side.
FOR TX158
5. Support the trailer far enough off the ground for the
assembly of the wheels. Slide the wheel onto the
threaded axle spindle with grease fitting facing out-
ward. Secure in place following this order: wheel, 3/4”
washer, 3/4”crown nut and cotter pin. Back crown nut
off just enough so wheel spins freely and crown nut
slot aligns with hole in threaded axle spindle. Insert
cotter pin. Using a needle nose pliers, bend cotter pin
ears around so it will not come off the axle spindle.
Repeat this step for remaining wheel. SEE FIGURE 1.
IMPORTANT NOTE: You must grease the bearings of
each wheel. Using a grease gun, pump high quality
grease into the bearings by attaching to grease
fitting located on wheel hub. Check the grease level
frequently to prevent bearings from seizing.

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 3
FOR TX159
5. Support the trailer far enough off the ground for the
assembly of the tracking beams, braces and wheels.
Slide the tracking beam and brace onto the threaded
axle spindle. Secure in place following this order:
tracking beam, tracking beam brace, 3/4”crown nut
and cotter pin. Back crown nut off just enough so
tracking beam will pivot freely and crown nut slot
aligns with hole in threaded axle spindle. Insert cotter
pin. Using a needle nose pliers, bend cotter pin ears
around so it will not come off the axle spindle. Repeat
this step for remaining tracking beam. SEE FIGURES
2 AND 3.
6. Slide the wheel onto the threaded axle spindle of
tracking beams with grease fitting facing outward.
Secure in place following this order: wheel, 3/4”washer,
3/4”crown nut and cotter pin. Back crown nut off just
enough so wheel spins freely and crown nut slot aligns
with hole in threaded axle spindle. Insert cotter pin.
Using a needle nose pliers, bend cotter pin ears around
so it will not come off the axle spindle. Repeat this step
for remaining three wheels. SEE FIGURES 2 AND 3.
IMPORTANT NOTE: You must grease the bearings of
each wheel. Using a grease gun, pump high quality
grease into the bearings by attaching to grease
fitting located on wheel hub. Check the grease level
frequently to prevent bearings from seizing.
FOR BOTH MODELS
7 Attach front trailer frame and the rear trailer frame
together using (2) provided 1/4-20 x 2”bolts, (2) 1/4-
20 x 2-1/2”bolts, (4) nyloc nuts and (8) 1/4”washers.
SEE FIGURE 1 OR 2.
8. Attach the front trailer frame (300713) to the axle plates
using (2) provided 1/4-20 x 1-1/2”bolts, (2) 1/4-20 x 2”
bolts, (4) nyloc nuts and (4) 1/4”washers. SEE FIGURE 1
OR 2. Latch the front trailer frame to the latch located on
trailer tongue to hold in place.
9. Attach the rear trailer frame (300710) to the axle plates
using (2) provided 1/4-20 x 1-1/2”bolts, (2) 1/4-20 x 2”
bolts, (4) nyloc nuts and (4) 1/4”washers. SEE FIGURE
1 OR 2. You must now tighten all nut & bolt
assemblies. Be sure not to over tighten or crush
tubing when tightening!
10. Slide the removable tailgate (300704) into the slots
of rear trailer frame. Slide the removable side rails
(300700 & 300701) into the top side of front and rear
trailer frames. SEE FIGURE 1 OR 2.
NOTE: The side rail that goes in the front of trailer
frame is narrower than the others. Lubrication is
recommended at slide-together points.
USE INSTRUCTIONS:
1. To use the tilt/pivot feature, simply unlatch the latch
located on trailer tongue. This will allow you to tilt the
trailer frame upward to unload. If pivoting is desired,
simply unlatch the latch and turn the trailer frame to
the desired location, left or right, and tilt trailer frame
upward to unload. This feature works well when in
tight areas. Or if backing up your trailer is not an
option, simply drive along side desired unloading
area, unlatch the trailer frame and turn trailer frame to
desired location.
Always…
• Be sure the trailer is securely attached to ATV hitch.
• Check tires for correct air pressure before each use.
• Use as 4-wheeled ATV trailer only.
• Inspect before each & every use to be sure there is no
product damage or loose/missing bolts & hardware.
• Have wheel bearings properly greased to avoid bear-
ings from seizing.
Never…
• Use excessive speeds while towing trailer.
• Exceed the maximum load capacity of 1250 Ibs.
• Allow people or animals to ride in trailer.
• Use on hilly terrain.
• Use a damaged product.
• Use when intoxicated or using over-the-counter
medication or prescription drugs.
• Use on rocky or obstacle ridden terrain.
• Use carelessly -- Think Safety!
OPTIONAL ACCESSORIES
TX112 Ball Hitch Kit
TX191 Extreme Tracking Beam Kit (for TX158 only)

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 4
Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
TX158 ATV Trailer assembled

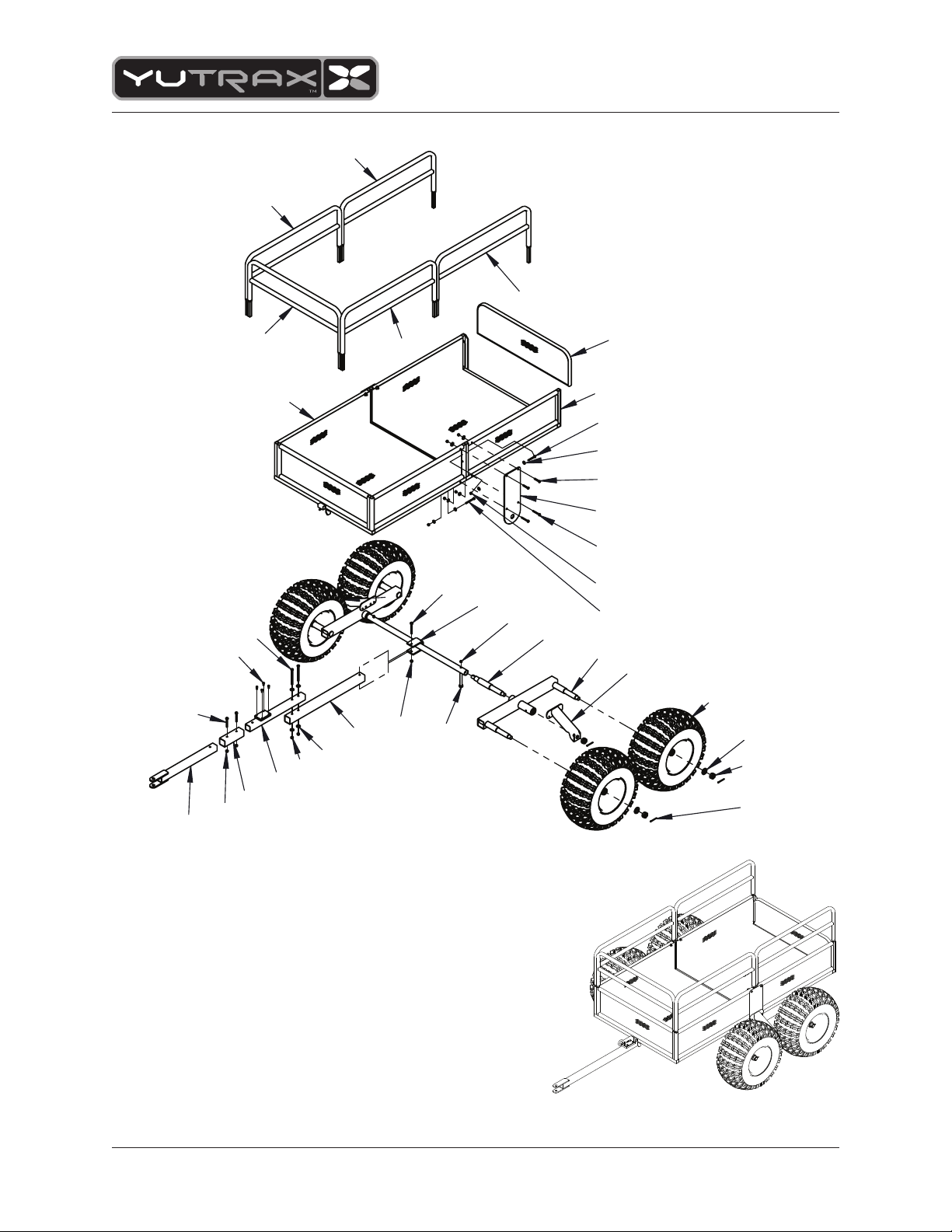

Figure 1: TX158 Trailer Assembly
13
13
13
13
14
15
17
18
5
6
8
12
16
?
22
12
11 24
7
23
3
2
1
25
4
21
27
19
28
10
26

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 5
13
13
13
13
14 15
17
18
5
6
8
12
16
9
23
12
11
24
32
19
3
*
1
25
4
26
29
5
2
20
31
21
21
27
30
21
28
10
TX159 ATV Trailer assembled
Figure 2: TX 159 Trailer Assembly

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 6
Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
KEY # PART # DESCRIPTION QTY.
1 4155 PIN COTTER 5/32 X 11/2
SUPPLIED W4099
6
2 4157 NUTCASTLE 3/4" RETAINER FOR
HIGH SPEED
4
3 4159 WASHER 3/4" SPINDLE SAE 4
4 4166 BOLT 5/1618 X 4 HH GR5 ZN 2
5 48153B BOLT 1/420 X 2 HHCS GR5 BLK ZN 6
6 48240B BOLT 1/420 X 11/2 HHCS GR5
BLK ZN
4
7 48250B BOLT 1/420 X 13/4 HHCS GR5
BLK ZN
1
8 48261B WASHER 1/4 BLK ZNC 14
9 48270B BOLT 1/420 X 21/2 HHCS GR5
BLK ZN
2
10 48300 BOLT 5/1618 X 21/4 HHCS GR5 ZN 2
11 53610 BOLT 5/1618 X 23/4 HHCS GR5 ZN 1
12 67538 NUT 1/420 HNYLK ZN 14
13 300700 WELDMENT / TUBE STRUCTURE
SIDE RACK TRAILER
4
14 300701 WELDMENT / TUBE STRUCTURE
FRONT RACK TRAILER
1
15 300704 WELDMENT, TAILGATE TRAILER 1
16 300705 PLATE, SPLICE AND AXLE MOUNT
TRAILER
2
17 300710 WELDMENT, REAR TRAILER 1
18 300713 WELDMENT, FRONT TRAILER 1
19 300721 WELDMENT, TRACKING BEAM 2
20 300724 WELDMENT, TRACKING BEAM
BRACE
2
21 60G5NY NUT 5/1618 NYLOC 5
22 TK31 LATCH ATV TRAILER 1
23 TK48 THREADED AXLE SHAFT FOR ATV
TRAILER
2
24 TK80 AXLE TUBE  THREADED  MOOSE 1
25 TK81 TONGUE  REAR  MOOSE 1
26 TK46 BOLT 1/420 X 1/2 SHCS 4
27 TK78 TIRE/WHEEL ASSEMBLY, ATV
TRAILERS
4
28 TK85 WELDMENT FRONT TONGUE
HITCH TONGUE
1
29 TK87 WELDMENT REAR HITCH TONGUE 1
30 TK89 FTS, CONNECTOR POCKET 1
31 WF516 WASHER FLAT 5/16" STANDARD
ZN
7
32 4362 BOLT 1/213 X 31/2 HHCS 1
TX159 PARTS LIST
KEY # PART # DESCRIPTION QTY.
1 4155 PIN COTTER 5/32 X 11/2
SUPPLIED W4099
2
2 4157 NUTCASTLE 3/4" RETAINER FOR
HIGH SPEED
2
3 4159 WASHER 3/4" SPINDLE SAE 2
4 4166 BOLT 5/1618 X 4 HH GR5 ZN 2
5 48153B BOLT 1/420 X 2 HHCS GR5 BLK ZN 6
6 48240B BOLT 1/420 X 11/2 HHCS GR5
BLK ZN
4
7 48250B BOLT 1/420 X 13/4 HHCS GR5
BLK ZN
2
8 48261B WASHER 1/4 BLK ZNC 16
9 48270B BOLT 1/420 X 21/2 HHCS GR5
BLK ZN
2
10 48300 BOLT 5/1618 X 21/4 HHCS GR5 ZN 2
11 53610 BOLT 5/1618 X 23/4 HHCS GR5 ZN 1
12 67538 NUT 1/420 HNYLK ZN 14
13 300700 WELDMENT / TUBE STRUCTURE
SIDE RACK TRAILER
4
14 300701 WELDMENT / TUBE STRUCTURE
FRONT RACK TRAILER
1
15 300704 WELDMENT, TAILGATE TRAILER 1
16 300705 PLATE, SPLICE AND AXLE MOUNT
TRAILER
2
17 300710 WELDMENT, REAR TRAILER 1
18 300713 WELDMENT, FRONT TRAILER 1
19 60G5NY NUT 5/1618 NYLOC 5
20 TK31 LATCH ATV TRAILER 1
21 TK46 BOLT 1/420 X 1/2 SHCS 4
22 TK48 THREADED AXLE SHAFT FOR ATV
TRAILER
2
23 TK78 TIRE/WHEEL ASSEMBLY, ATV
TRAILERS
2
24 TK80 AXLE TUBE  THREADED  MOOSE 1
25 TK81 TONGUE  REAR  MOOSE 1
26 TK85 WELDMENT FRONT TONGUE
HITCH TONGUE
1
27 TK87 WELDMENT REAR HITCH TONGUE 1
28 TK89 FTS, CONNECTOR POCKET 1
29 WF516 WASHER FLAT 5/16" STANDARD
ZN
5
TX158 PARTS LIST

Owner's Manual
TX158, TX159 ATV Trailers
TX191 Tracking Beam Kit
Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
Page 7
5
1
1
5
4
2
3
6
Figure 3: Model TX191 Tracking Beam Kit
MODEL AV191 TRACKING BEAM KIT*
1 TK78 TIRE/WHEEL ASSEMBLY 2
2 4159 WASHER, SPINDLE 3/4” 4
3 4157 NUT, CASTLE 3/4” RETAINER 4
4 4155 PIN, COTTER 5/32 X 11/2” 6
5 300721 TRACKING BEAM 2
6 300724 BRACE, TRACKING BEAM 2
* Only two tires and four castle nuts are supplied with
the kit due to trailer coming with two tires and two
castle nuts.

Check for parts online at www.yutrax.com or call 800-345-6007 M-F 8-5 CST
YUTRAX™, Division of Ardisam, Inc.
1160 8th Avenue, PO Box 666
Cumberland, WI 54829
800-345-6007 | Fax [phone]
Email: [e-mail]
WARRANTY
YUTRAX, a division of Ardisam Incorporated, offers a one year limited warranty to be free from defects in materials and
workmanship for the service life of the product, not to exceed twelve consecutive months from the date of purchase.
This warranty applies to the original owner with a proof of purchase and is not transferable. This warranty applies
only to products which have not been subjected to negligent use, misuse, alteration, accident or if repairs have been
made by anyone outside our factory. This warranty supersedes all other warranties either expressed or implied and all
other obligations or liabilities on our part. Ardisam, Inc., does not assume, and does not authorize any other person
to assume for us, any liability in connection with the sale of our products. Warranty work must be sent directly to
Ardisam, Inc. or one of our authorized service centers and performed by them. To obtain warranty service and/or
replacement instructions, you must have prior approval from Ardisam, Inc. before shipping your package to us by
calling our customer service department at 800-345-6007 between 8 a.m. and 5 p.m. Monday through Friday, or by
writing to: Ardisam, Inc., P.O. Box 666, 1160 Eighth Avenue, Cumberland, WI 54829 for a return material authorization
number (RMA#). All items must be shipped prepaid. Ardisam, Inc. will at no charge, repair or replace, at their discre-
tion, any defective part which falls under the conditions stated above. Ardisam retains the right to change models,
specifications and price without notice.
For replacement parts, phone [phone]
or go online to www.yutrax.com.
