Arecont Vision MegaVideo AV2105 User manual

Learn more about our products at www.arecontvision.com
www.arecontvision.com [email protected] 818.937.0700 877.CAMERA.8
AV2105 (Color) AV2105DN (Day/Night) AV2105-AI (Color Auto-Iris)
H.264 camera series
The AV2105 series network camera is part
of Arecont Vision’s full line of H.264
megapixel cameras. This fully compliant
implementation of H.264 (MPEG 4, Part 10)
is capable of sustaining over 80 billion operations
per second and maintaining full motion
progressive scan 1600 x 1200 video at 24 fps.
Part of the MegaVideo® line of cameras,
it offers bandwidth and storage efficiency of
10X greater on average over traditional
megapixel counterparts.
Superior Low Light Performance
• 1/2” CMOS Sensor
Unparalleled High Definition Resolution - 1600 x 1200
• Six times the resolution of IP VGA or analog cameras
Fastest MegaPixel Image Rates
• Up to 24fps in 2 megapixel mode
Forensic Zooming
• Zoom live or after-event while recording full field of view in HD …
replace PTZ devices
Reduced Overall System Cost
• Less cameras to install, less wiring, no external power (POE), less
NVR licensing fees
Cost Efficiency
• Comparable cost to IP VGA & analog cameras
Full or 1/4 Resolution
• Can be selected for either live viewing or archiving purposes
Other key features:
• Simultaneous full field of view and Region-of-Interest (ROI)
• Image cropping allows streaming of full density partial images
• On-camera motion detection
• Mechanical IR Cut Filter (DN Version) and more
Arecont Vision Advantages:
World’s First Full Line of H.264 Megapixel Cameras
• 1.3 to 5 megapixels with no frame rate reduction
H.264 (MPEG4 Part 10) Compression Standard
• Simultaneous support of both H.264 and MJPEG
• 10x average bandwidth and storage reduction over MJPEG
Multi-Streaming
• Up to 8 concurrent non-identical streams with different
frame rates, bit rates, resolutions and picture quality
Bit Rate Control
• Maintain desired bandwidth and storage size
Real Time Streaming Protocol (RTSP)
• Allows for compatibility with media players such as
Apple QuickTime, Windows Media Player, VLC Player, etc.
AV2105
2 Megapixel H.264 IP MegaVideo camera
®

©2008 Arecont Vision
AV2105
Imaging
• 2 megapixel CMOS image sensor
• 1600(H) x 1200(V) pixel array
• 1/2” optical format
• 4.2
μm pixel pitch
• Bayer mosaic RGB lter
• Minimum illumination of:
• Color: 0.1 Lux @ F1.4
• Day/Night: 0 Lux, IR sensitive
• Dynamic range 61 dB
• Maximum SNR 50 dB
Full Field of View (FOV) Resolutions
• Video frame rate up to:
• 24fps @ 1600x1200
• 32fps @ 1280x1024
• Compression type
• H.264 (MPEG4, Part 10)
• Motion JPEG
• 21 levels of quality
• TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols
• 100Base-T Ethernet Network Interface
• Data rate
• bit rate control from 100Kbps to 10Mbps
• bit rate control available for full view, multi view, and archive
• unthrottled data rate up to 55Mbps
• Multi-streaming: 8 non-identical streams
Programmability
• Auto Exposure (AE) and Gain Control (AGC) >120dB
• On-camera real-time motion detection with 64 detection zones
• Auto backlight compensation
• Auto multi-matrix white balance
• 50/60Hz selectable icker control
• Electronic pan, tilt, zoom (PTZ)
• Electronic image ip - 180 degree rotation
• Resolution windowing down to 32x32 pixels window
• Programmable shutter speed to help control motion blur
• MoonLight™ mode - extended exposure
and proprietary noise cancellation
• Programmable resolution, brightness, saturation,
gamma, sharpness, tint
• Picture-in-Picture: simultaneous delivery of
full eld of view and zoomed images
• Bandwidth & storage savings by running at
1/4 resolution
Electrical
• General purpose opto-coupled input and output
• Power over Ethernet (PoE): PoE 802.3af
• Auxiliary power: 12-48VDC and 24VAC
• Power consumption 4.5 Watts maximum
• Optional DC AI connection (AV2105 - AI)
Regulatory Approvals
• FCC, CE and RoHS compliant
Environmental

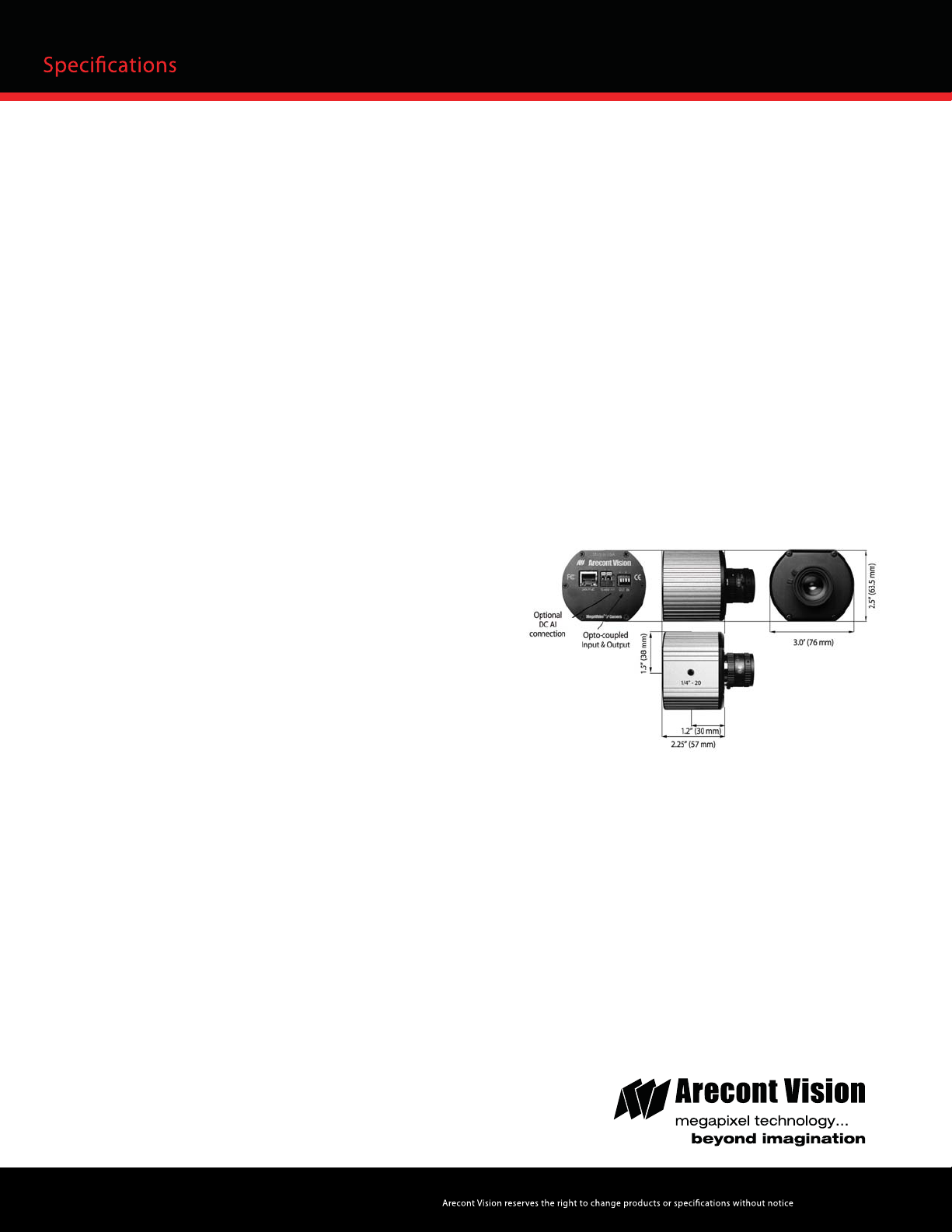

Mechanical
• 3”W (76 mm) x 2.5”H (63.5 mm) x 2.25”D (57mm) (w/o lens)
• 8.6 oz (243 grams) (w/o lens)
• C/CS lens mount
Model Numbers:
AV2105 - Color
AV2105-AI - Color Auto-Iris
AV2105DN - Day/Night
• 1600(H)x1200(V) 2 megapixel
• 800(H)x600(V) 1/4 resolution
Cropped Field of View Resolutions
• 1280x1024 1.3 MP
• 1280x720 HDTV-720p
• 1024x768 XGA
• 800x600 SVGA
• 704x570 PAL
• 704x480 NTSC
• 640x480 VGA
• 352x288 CIF
• 320x240 SIF
Data Transmission
• Operating temperature 0˚C (32 °F) to +50˚C (122 °F)
• Storage temperature -20˚C (-4 °F) to +60˚C (140 °F)
• Humidity 0% to 90% (non-condensing)
Revised on 12/10/09
www.arecontvision.com [email protected] +1.818.937.0700 877.CAMERA.8
©2008 Arecont Vision
2 Megapixel H.264 IP MegaVideo camera
®
Housing Accessories:
Dome 4-I - Indoor 4” Vandal Dome
Dome 4-O- Outdoor 4” Vandal Dome
Dome 5-I - Indoor 5” Recessed Dome
HSG1-O-W - Outdoor Environmental Housing w/Heater/Blower
Lenses:
MPL4-10
MPL8-16
MPL4.0
MPL6.0
MPL8.0
LENS4-13
LENS4-10AI
* Other megapixel lenses are also available with
Arecont Vision’s housing options.
Made in USA
