Arecont Vision MegaVideo AV2100-AI User manual

MegaVideo® Series
Learn more about our products at www.arecontvision.com
www.arecontvision.com [email protected] 818.937.0700 877.CAMERA.8
AV2100M (Color) AV2100DN (Day/Night) AV2100-AI (Color Auto-Iris)
AV2100 Series network camera delivers full
motion progressive scan 1600 x 1200 video at 24 fps
featuring massively-parallel MegaVideo® image
processing architecture capable of sustaining over
6 billion operations per second.
Arecont Vision Advantages:
Superior Low Light Performance
• 1/2” CMOS Sensor
Unparalleled High Definition Resolution - 1600x1200
• Six times the resolution of IP VGA or analog cameras
Fastest MegaPixel Image Rates
• Up to 24fps in 2 megapixel mode
Forensic Zooming
• Zoom live or after-event while recording full field of
view in HD … replace PTZ devices
Reduced Overall System Cost
• Less cameras to install, less wiring, no external
power (POE), less NVR licensing fees
Cost Efficiency
• Comparable cost to IP VGA & analog cameras
Full or 1/4 Resolution
• Can be selected for either live viewing or archiving purposes
Other key features:
• Simultaneous full field of view and Region-of-Interest (ROI)
• Image cropping allows streaming of full density partial images
• On-camera motion detection
• Mechanical IR Cut Filter (DN Version) and more
H.264 versions are also available
AV2100
2 Megapixel JPEG IP MegaVideo camera
®

AV2100
•
• Minimum illumination of:
• Color: 0.1 Lux @ F1.4
• Day/Night: 0 Lux, IR sensitive
Imaging
• 2 megapixel CMOS image sensor
• 1600(H) x 1200(V) pixel array
• 1/2” optical format
• 4.2
μm pixel pitch
• Bayer mosaic RGB lter
• Dynamic range 61 dB
• Maximum SNR 50 dB
Full Field of View (FOV) Resolutions
• 1600(H)x1200(V) 2 megapixel
• 800(H)x600(V) 1/4 resolution
Cropped Field of View Resolutions
• 1280x720 HDTV-720p
• 1024x768 XGA
• 800x600 SVGA
• 704x570 PAL
• 704x480 NTSC
• 640x480 VGA
• 352x288 CIF
• 320x240 SIF
• 1280x1024 1.3 MP
Regulatory Approvals
• FCC, CE and RoHs compliant
Environmental
Model Numbers:
AV2100M - Color
AV2100-AI - Color Auto-Iris
AV2100DN - Day/Night
Data Transmission
• Video frame rate up to:
• 24fps @ 1600x1200
• 32fps @ 1280x1024
• Motion JPEG with 21 levels of quality
• TFTP and HTTP image transmission protocols
• 100Base-T Ethernet Network Interface
• Data rate up to 55Mbps
• Multi-streaming: 8 non-identical streams
Programmability
• Auto Exposure (AE) and Gain Control (AGC) >120dB
• On-camera motion detection with 64 detection zones
• Auto backlight compensation
• Auto multi-matrix white balance
• 50/60Hz selectable icker control
• Electronic pan, tilt, zoom (PTZ)
• Electronic image rotation - 180˚ ip
• Resolution windowing down to 32x32 pixels
• Programmable shutter to minimize motion blurring
for low-light mode
• MoonLight™ mode extended exposure
and proprietary noise cancellation
• Programmable resolution, brightness, saturation,
gamma, sharpness, tint
• Picture-in-Picture: simultaneous delivery of
full eld of view and zoomed images
• Bandwidth & storage savings by running at
1/4 resolution
www.arecontvision.com [email protected] 818.937.0700 877.CAMERA.8
©2008 Arecont Vision

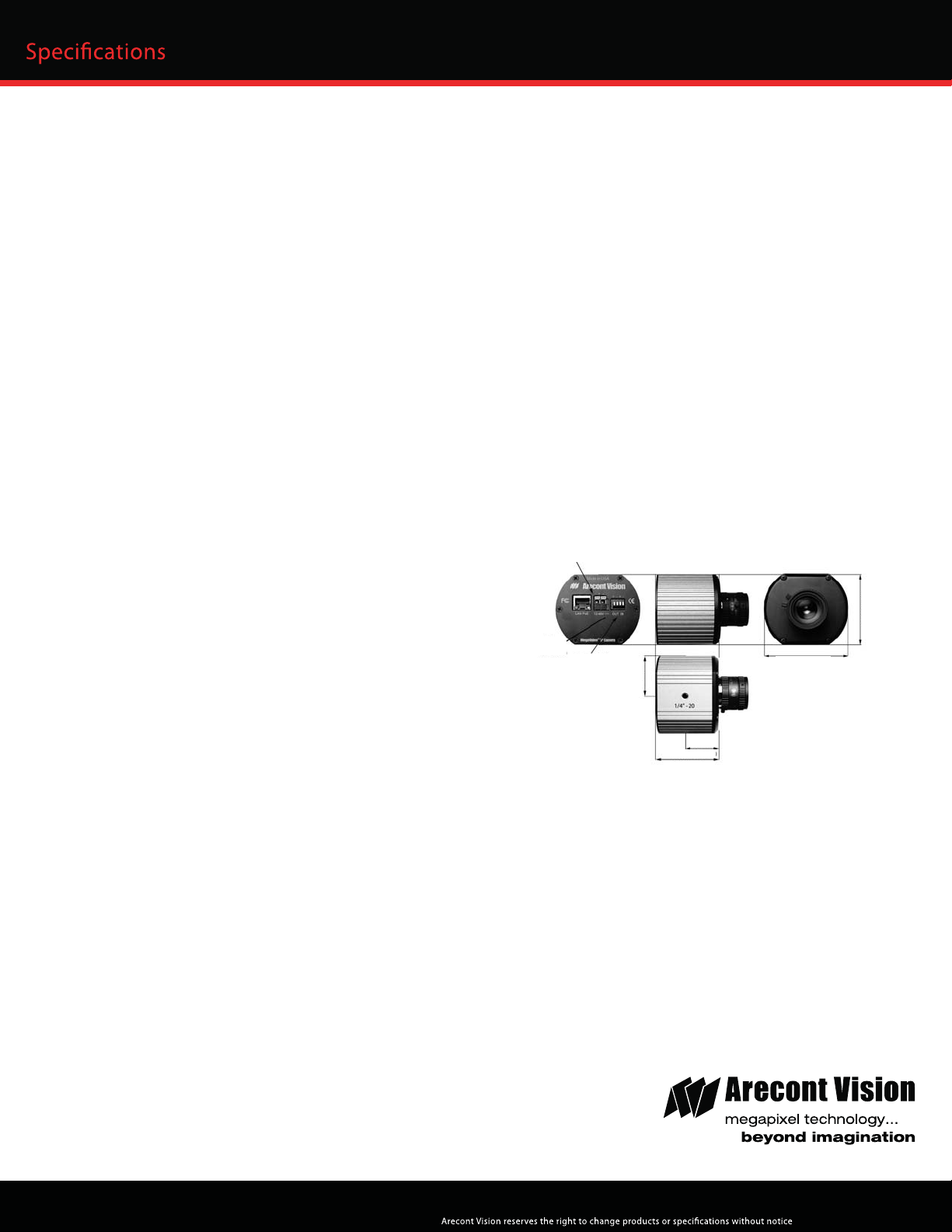

Opto-coupled
Input & Output
Optional
DC AI
connection
3.0” (76 mm)
1.2” (30 mm)
2.5” (63.5 mm)
2.25” (57 mm)
Alternative
15-48V DC
1.5” (38 mm)
Mechanical
• 3”W (76 mm) x 2.5”H (63.5 mm) x 2.25”D (57mm) (w/o lens)
• 8.6 oz (243 grams) (w/o lens)
• C/CS lens mount
• Operating temperature 0˚C (32 °F) to +50˚C (122 °F)
• Storage temperature -20˚C (-4 °F) to +60˚C (140 °F)
• Humidity 0% to 90% (non condensing)
Revised on 12/10/09
Electrical
• General purpose opto-coupled input and output
• Power over Ethernet (PoE): PoE 802.3af
• DC input: auxiliary 15V-48V DC
• Power consumption 3 Watts maximum
• Optional DC AI connection (AV2100 - AI)
®
2 Megapixel JPEG IP MegaVideo camera
Housing Accessories:
Dome 4-I - Indoor 4” Vandal Dome
Dome 4-O- Outdoor 4” Vandal Dome
Dome 5-I - Indoor 5” Recessed Dome
HSG1-O-W - Outdoor Environmental Housing w/Heater/Blower
Lenses:
MPL4-10
MPL8-16
MPL4.0
MPL6.0
MPL8.0
LENS4-13
LENS4-10AI
* Other megapixel lenses are also available with
Arecont Vision’s housing options.
H.264 versions available:
(see H.264 specication sheets for more information)
AV2105
AV2105 - AI
AV2105DN
Made in USA
