Talk & Listen Systems
ARG-RX72BP Receiver
Manual and User Guide
ARG-OM-029 Rev B

Page 2
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE PRODUCT TO RAIN OR MOISTURE
Audio Resource Group products are engineered and manufactured with the highest priority on
safety. However, improper use can result in electric shock and/or fire. To ensure your safety and
prolong the service life of your equipment, please read the following precautions and all
collateral materials carefully before using the product.
1. Read and keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this device near water. Avoid direct contact with liquids of any kind.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
7. Do not place the device in direct sunlight.
8. Do not place, store or install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including powered amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug for products
that use wall power sources. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect power cords from being walked on or pinched: especially at plugs, convenience
receptacles, and the device’s exit point.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug devices from wall outlets during lightning storms or when not in use for long
periods of time.
13. Refer all servicing to qualified service personnel. Servicing may be required when the
apparatus has been damaged in any way or performs in an abnormal fashion.
(Examples may include, but not be limited to: equipment has been dropped or suffered
an impact, liquid has been spilled or objects have fallen into or on top of the unit, or the
unit has been exposed to rain or moisture.)
14. The device should be protected from exposure to dripping or splashing: do not place
objects filled with liquids, such as water bottles or drink containers directly near or on
equipment.

Page 3
HEARING SAFETY
CAUTION!
Many of ARG’s products are designed to amplify sounds to a high volume level which could
potentially cause hearing damage if used improperly. To protect your hearing and the hearing
of others:
1. Set the volume level at the minimum setting, then place the listening accessory
(headphones, earphones or earbuds) on your ears and finally adjust the volume to a
comfortable level.
2. If feedback (a high-pitched squealing sound) occurs, immediately move the receiver
away from the transmitter and reduce the volume level.
3. Do not allow children or other unauthorized persons access to this product.
BATTERY SAFETY AND INSTRUCTIONS
RECYCLING INSTRUCTIONS
Please help ARG protect our environment by taking time to properly dispose of your used
batteries. Do NOT throw into household trash: Please recycle by taking them to a local
recycling collection center.
NON-RECHARGEABLE BATTERIES
In normal use, two AA 1.5V alkaline batteries will last about 40-50 hours in the ARG-
RX72BP. If the sound becomes distorted or weak, it is time to replace the batteries.
RECHARGEABLE BATTERIES
The RX72BP receiver can use 1.25V AA NiMH rechargeable batteries. After charging for 5-
6 hours, these NiMH batteries are designed to operate a RX72BP receiver for approximately
40-50 hours.
IMPORTANT RECHARGEABLE BATTERY INFORMATION
Batteries MUST BE CHARGED for a complete cycle before the first use.
Rechargeable batteries will normally need to be replaced after 1-2 years of use.
Do not leave batteries installed for long periods of inactivity as they may leak. (Battery
leakage is not covered by warranty)
CAUTION!
Do not attempt to recharge disposable batteries, which may explode, release
dangerous chemicals, cause burns or other serious harm to the user or product.
Avoid shorting the batteries by placing plus and minus battery terminals together with
metal objects. Battery damage and burns can result!
Do not dispose of batteries in fire.
Do not open batteries as they contain toxic chemicals.

Page 4
SYSTEM OVERVIEW
The Talk & Listen® System is a portable, high-performance communication system designed to
be used for many types of communication applications. It is composed of five principal
components: transmitter, microphone, receiver, listening equipment (headphone, earphone, ear
bud, etc.) and batteries.
The TX72BP Transmitter broadcasts a high-quality one-way audio signal to an unlimited
number of receivers providing crystal clear FM quality audio to each listener. Much like a
miniature radio station, the speaker uses a transmitter to broadcast a radio signal while the
listeners use a receiver to hear the signal. The transmission range of this system is 100m LOS
(Line of Site).
ARG’s updated 72Mhz Talk & Listen® System showcases many new features including field-
programmable channel groupings; adjustable RF levels; user-friendly scroll-and-click
commands; mono and stereo input; and durable, attractive housing.
HINTS to Using the TALK & LISTEN® Wireless System
Maximum operating distance between the transmitter and receiver is 100m (LOS). The
operating range will vary in different environments. In some locations, the signal may
momentarily disappear. This is called a drop-out signal and is due to reflection and cancellation
of the radio signal. Moving a few feet in any direction should restore the signal.
Getting transmitters too close to one another may cause signal interference, even when they
are set to a different channel. Maintain at least three feet of separation between transmitters to
avoid signal interference.
Receivers are not subject to interference when in close proximity to one another therefore
listeners may sit close together whether on the same or different channels. If a receiver gets too
close to a transmitter, interference may occur. Maintain three feet of separation between a
transmitter and receiver to avoid interference.
Transmitter/Receiver Group Separation

Page 5
OPERATING INSTRUCTIONS
1. Before installing batteries, determine if they are carbon zinc, heavy duty, alkaline or rechargeable. Open the
battery compartment door and locate the “ALK/NiMH” switch, if using carbon zinc, heavy duty or alkaline
batteries slide the switch to the “ALK” position. NiMH rechargeable batteries slide the switch to the “NiMH”
position.
2. Install (2) AA style batteries by pressing them into place, observing the proper battery polarity. Incorrect insertion
may cause both mechanical and electrical damage not covered by the limited lifetime warranty. Units will not
work if the batteries are incorrectly installed.
3. Plug the headphone/earphone into the 3.5mm audio output jack located on the left side of the receiver housing.
The headphone/earphone cable acts as the receiver antenna. Do not bunch up the cord, wrap it tightly around
your body or wrap it around the receiver housing. For maximum range, the cord should hang loosely from the
headphone/earphone to the receiver. Use only Talk & Listen® approved headphones/earphones, substitutions
can greatly affect the overall performance and cause poor audio quality or reduced transmission range between
the transmitter and receiver(s).
4. Turn the power switch on top of the Receiver to “ON”. The LCD backlight will appear and stay on until it detects
10 seconds of inactivity, it will then automatically shut off to save battery power. The LCD backlight will
automatically come back on once any of the control buttons are pressed again.
5. The headphone/earphone volume level on the receiver automatically defaults to “3” at start up to protect the user
from accidental ear damage. To view and adjust the volume level press the “+” or “-“buttons on the front panel,
the LCD backlight will automatically light up and the volume setting number will appear on the LCD display. To
adjust the volume level use the “+” or “-“buttons to set at an appropriate listening level. Once the receiver
detects 10 seconds of inactivity, the backlight will automatically shut off and the volume level icon will disappear
to save on battery power.
6. Confirm the channel number on the receiver(s) is the same as the transmitter channel; to adjust the channel
open the battery compartment door, locate the “LOCK” button, press and hold for three seconds to unlock the
receiver. The “lock” icon on the LCD display will disappear indicating the unit is now unlocked for programming.
Using the “+”or “-“ buttons on the front panel to scroll through the available channels, select the channel. After
10 seconds on inactivity the receiver will automatically lock and the “LOCK” icon will reappear on the LCD
display and the LCD backlight will shut off.
7. The adjustable Squelch feature allows the user to adjust the receiver circuit to turn off the audio input to the
headphone/earphone when the signal is weaker than the noise it is receiving or there is no radio signal at all:
both of which cause an annoying noise. The factory pre-set setting of “3” will work for most environments. To
determine the squelch setting, open the battery compartment door and locate the “SET” button, press once and
the “SQL” code will appear on the LCD display for 5 seconds and then disappear. To adjust the Squelch setting,
open the battery compartment door, press both the “LOCK” and “SET” buttons simultaneously for 4-5 seconds,
the “SQL” code will appear; use the “+” or “-“ buttons on the front panel to adjust. After 10 seconds of inactivity,
the Receiver will automatically lock; the “LOCK” icon will reappear on the LCD Display and the “SQL” code will
disappear and the LCD backlight will shut off.
8. Receiver GRP 1 Programming: turn the receiver OFF; open the battery door, press and hold the “Lock” and
“Set” buttons simultaneously while turning the receiver power ON, the green backlight on the LCD display will
illuminate showing the current channel number programmed; press the “-” or “+” buttons to scroll through and
select one of the 17 available channels. When finished, close the battery door and turn the receiver OFF to exit
programming mode.
9. Receiver GRP 9 Programming: turn the receiver OFF; open the battery door, press and hold the “Lock” and
“Set” buttons simultaneously while turning the receiver power ON, the green backlight on the LCD display will
illuminate showing from left to right, the current “group ” and “channel” numbers. Press the “-” or “+” buttons to
scroll through and select up to 8 of the 17 available channels, press the “set” button to activate or deactivate any
channel. When the “memo” icon is displayed above the channel number, the channel is activated; when the
“memo” icon is not displayed above the channel number, the channel is deactivated. When finished, close the
battery door and turn the receiver OFF to exit programming mode.
10. When finished using the receiver, slide the “ON/OFF” switch to the “OFF” position.

Page 6
RX72BP RECEIVER PRODUCT FEATURES

Page 7
Receiver LCD Display

Page 8
FCC Compliance
The ARG-TX72BP is authorized by rule under the Low Power Radio Service (47 C.F.R. part 95) and must not cause
harmful interference to TV reception or United States Navy SPASUR installations. You do not need an FCC license to
operate this transmitter. This transmitter may only be used to provide: auditory assistance to persons with
disabilities, persons who require language translation, or persons in educational settings; healthcare services to the
ill; law enforcement tracking services under agreement with a law enforcement agency; or automated maritime
telecommunications systems (AMTS) network control communications. Two-way voice communications and all other
types of uses not mentioned above are expressly prohibited.
Operation is subject to the following two conditions:
1) this device may not cause interference
2) this device must accept any interference, including interference that may cause undesired operation of the
device
TROUBLESHOOTING
1. Read through the manual and user guide carefully to verify proper setup and installation of the transmitter and
receiver(s).
2. Make sure the batteries are fresh or completely charged and that the “plus” and “minus” terminals are correctly
placed.
3. If the rechargeable batteries will only work for a short period of time (less than 1 hour) even after they have been
fully charged; they must be regenerated. Turn the transmitter(s) on until the batteries are completely dead, and
then fully charge again. This should restore normal battery life. Rechargeable batteries will gradually lose their
capacity over time and should be replaced every 1 to 2 years.
4. Make sure the microphone is plugged into the TX72BP transmitter and the earphone/headphone is plugged in
the RX72BP receiver.
5. Move the transmitter and receiver closer together as you may be out of range. When using the system indoors, it
is normal for the signal to momentarily disappear in certain locations. This is called a “drop-out”. Moving a few
feet in any direction may restore the signal.
6. When using two or more transmitters simultaneously do not use adjacent channels if possible, for example: if you
have a 3-channel system and you want to use two transmitters simultaneously, set TRANSMITTER ONE to
channel 1 and TRANSMITTER TWO to channel 3; leaving channel 2 as an unused channel. This creates more
spacing between the channels and reduces the likelihood of interference.
7. If you are still hearing interference, turn the transmitter off and listen to a receiver. If you hear the interference
with the transmitter off, you need to change to a clear channel.
8. If you are still experiencing difficulties, call ARG 888-468-4552.
OPERATING FREQUENCIES
Available Frequencies:
72.1MHz (1) 72.5MHz (2) 72.9MHz (3) 75.7MHz (4) 74.7MHz (5) 75.3MHz (6) 75.9MHz (7) 72.2MHz (8) 72.3MHz (9)
72.4MHz (10) 72.6MHz (11) 72.7MHz (12) 72.8MHz (13) 75.4MHz (14) 75.5MHz (15) 75.6MHz (16) 75.8MHz (17)
Group 1: 72.9MHz (3) *Factory Preset, user can re-program to use any of the above frequencies
Group 2: 72.1MHz (1) 72.9MHz (3)
Group 3: 72.1MHz (1) 72.5MHz (2) 72.9MHz (3)
Group 4: 72.1MHz (1) 72.5MHz (2) 72.9MHz (3) 75.7MHz (4)
Group 5: 72.1MHz (1) 72.5MHz (2) 72.9MHz (3) 75.7MHz (4) 74.7MHz (5)
Group 6 72.1MHz (1) 72.5MHz (2) 72.9MHz (3) 75.7MHz (4) 74.7MHz (5) 75.3MHz (6)
Group 7: 72.1MHz (1) 72.5MHz (2) 72.9MHz (3) 75.7MHz (4) 74.7MHz (5) 75.3MHz (6) 75.9MHz (7)
Group 8: 72.1MHz (1) 72.3MHz (9) 72.6MHz (11) 72.8MHz (13) 74.7MHz (5) 75.4MHz (14)
75.7MHz (4) 75.9MHz (7)
Group 9: Save any channel at any frequency from 72.1 MHz to 75.9MHz, up to 8 channels

Page 9
Warranty Statement
Audio Resource Group, Inc. (ARG) develops, designs and manufactures our own products in order to provide
high quality products which provide many years of trouble-free service. The following Warranty Statement
defines the warranty periods for each model of equipment manufactured by Audio Resource Group, Inc.
Talk and Listen Systems

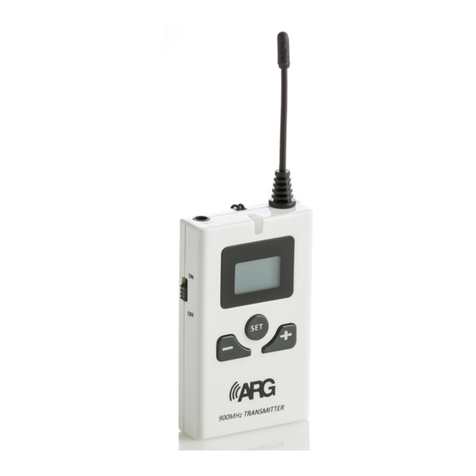

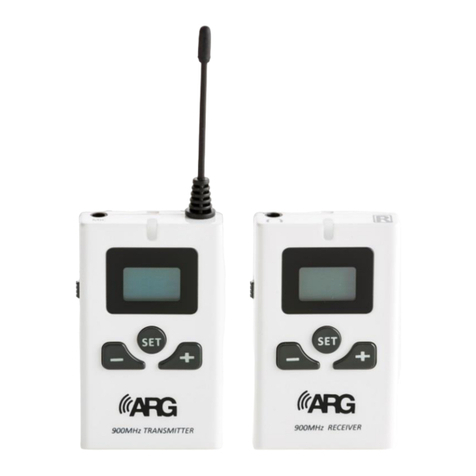

ARG warrants the following transmitters and receivers (TX72BP, TX900BP, TX900HH, TX900M, RX72BPS,
RX72BPM, RX900BPM, RX900M) to be free from defects in workmanship and material under normal use and
conditions for five years from date of purchase.
ARG warrants the following charging systems and power supplies (CHRG24) to be free from defects in
workmanship and material under normal use and conditions for two years from date of purchase.
All other parts and accessories are warranted for 90 days from date of purchase.
The Warranty is only available to the original end purchaser of the product and cannot be transferred.
Warranty is void if damage occurred because of deliberate or accidental physical damage, neglect, misuse or if
the product has been repaired or modified by anyone other than a factory authorized service technician.
Warranty does not include normal wear and tear on the product or any other physical damage unless the
damage was the result of a manufacturing defect. ARG is not liable for consequential damages due to any
failure of equipment to perform as intended.
ARG shall bear no responsibility or obligation with respect to the manner of use of any equipment sold by it.
ARG specifically disclaims and negates any warranty of merchantability or fitness of use of such equipment
including, without limitation, any warranty that the use of such equipment for any purpose will comply with
applicable laws and regulations. The terms of the warranty are governed by the laws of the state of North
Dakota. This warranty, prices, and the specifications of products are subject to change without notice.
REPAIRS AND RETURNS
If you are experiencing difficulty with your system please review the Troubleshooting section of our manuals and
user guides for tips and techniques to correct your issues. If you continue to experience problems with your
equipment, please call Audio Resource Group, Inc. (ARG) toll-free Customer Service Assistance number at
[phone].
If it is necessary to return your system for service, you must first be issued a Return Authorization Number
(RMA) by our Customer Service Technician prior to sending the system to ARG. All returns must be prepaid by
the sender (no freight collect shipments will be accepted). NO RETURNS WILL BE ACCEPTED WITHOUT A
COMPANY ISSUED RMA NUMBER AND PREPAID FREIGHT.
Out-of-Warranty Repairs:
We are no longer able to repair any system that is out of warranty. No RMA numbers will be issued on any
systems that are out of warranty.
Warranty Repairs:
We will, at our option, repair or replace any part or product found to be defective in workmanship or material
under normal use and condition. Warranty is void if damage occurred because of deliberate or accidental
physical damage, neglect, misuse or if the product has been repaired or modified by anyone other than a factory
authorized service technician. Warranty does not include normal wear and tear on the product or any other
physical damage unless the damage was the result of a manufacturing defect.
Ship To:
Audio Resource Group, Inc.
405 Main Ave W Unit 4G
West Fargo, ND 58078
Phone: [phone] Fax: [phone]
[email protected]
ARG Repairs and Return policies, programs, and pricing are subject to change without notice.
