Argent IN38905 Installation guide

Inlet valve water pressure and pipe
sizing must comply with AS3500 &
Manufacturers Specification.
Maximum 500kpa static.
Minumum 100kpa dynamic.
Not suitable for low pressure systems.
1. Inspect all parts prior to installation
for suitability and/or defect.
2. Any suspected defect should be
reported as soon as possible.
3. Should any product be installed
despite a fault having been
found and reported, liability will
not be accepted for the cost of
labour to remove and install any
replacement products.
mm
495
535
585
max.-150
x
735
78
95
86 20-70
1000
R1/2
00
mm
495
535
585
max.-150
x
735
78
95
86 20-70
1000
R1/2
00
IN38905
Inlet height to be
taken from pan
being used
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor reserves the right
to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only. Dimensions and set-outs listed are correct at
time of publication however the manufacturer/distributor takes no responsibility for printing errors.

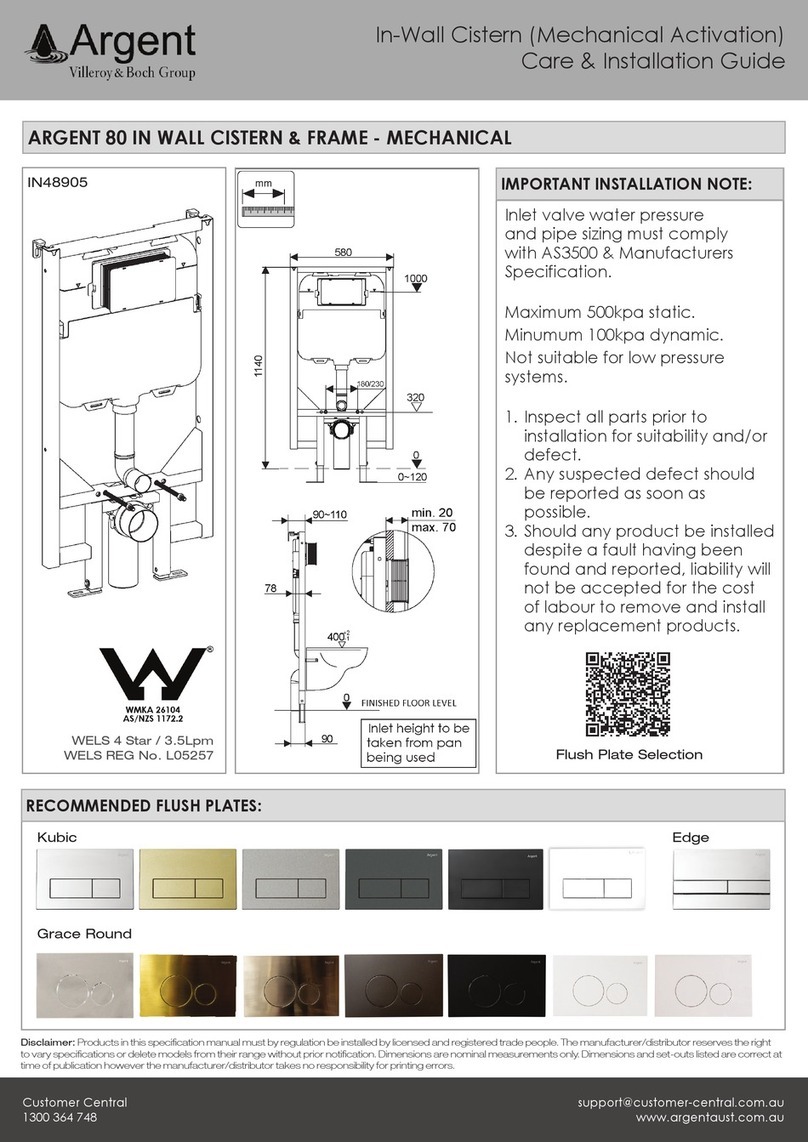

In-Wall Cistern (Mechanical Activation)
