Argo AEI826SH Manual

TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT: AEI826SH
AEI835SH
SPLIT SYSTEM AIR CONDITIONER
0.8180.564.00 10/2008
AEI835SH 387007199
Model No. Product Code No.
AEI826SH 387007198

0.8180.531.00 05/2007
IMPORTANT!
Please read before installation
This air conditioning system meets strict safety and operating
standards.
For the installer or service person, it is important to install or
service the system so that it operates safely and efficiently.
For safe installation and trouble-free operation, you must:
• Carefully read this instruction booklet before beginning.
• Follow each installation or repair step exactly as shown.
• Observe all local, state and national electrical codes.
• Pay close attention to all warning and caution notices given in
this manual.
•The unit must be supplied with a dedicated electrical line.
This symbol refers to a hazard or unsafe practice which can result
in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can result
in personal injury or product or property damage.
If necessary, get help
These instructions are all you need for most installation sites and
maintenance conditions.
If you require help for a special problem, contact our sale/service
outlet or your certified dealer for additional instructions.
In case of improper installation
The manufacturer shall in no way be responsible for improper
installation or maintenance service, including failure to follow the
instructions in this document.
SPECIAL PRECAUTIONS
• During installation, connect before the refrigerant system and
then the wiring one; proceed in the reverse orden when removing
the units.
When wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE
PERSONAL INJURY OR DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIANS SHOULD ATTEMPT
TO WIRE THIS SYSTEM.
• Do not supply power to the unit until all wiring and tubing are
completed or reconnected and checked, to ensure the grounding.
• Highly dangerous electrical voltages are used in this system.
Carefully refer to the wiring diagram and these instructions when
wiring.
Improper connections and inadequate grounding can cause
accidental injury and death.
•Ground the unit following local electrical codes.
• The Yellow/Green wire cannot be used for any connection
different from the ground connection.
• Connect all wiring tightly. Loose wiring may cause overheating
at connection points and a possible fire hazard.
• Do not allow wiring to touch the refrigerant tubing, compressor,
or any moving parts of the fan.
• Do not use multi-core cable when wiring the power supply and
control lines. Use separate cables for each type of line.
When transporting
Be careful when picking up and moving the indoor and outdoor
units. Get a partner to help, and bend your knees when lifting to
reduce strain on your back. Sharp edges or thin aluminium fins on
the air conditioner can cut your fingers.
When installing...
... In a ceiling or wall
Make sure the ceiling/wall is strong enough to hold the unit-weight.
It may be necessary to build a strong wooden or metal frame to
provide added support.
... In a room
Properly insulate any tubing run inside a room to prevent
"sweating", which can cause dripping and water damage to walls
and floors.
... In moist or uneven locations
Use a raised concrete base to provide a solid level foundation for
the outdoor unit.
This prevents damage and abnormal vibrations.
... In area with strong winds
Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.
... In a snowy area (for heat pump-type systems)
Install the outdoor unit on a raised platform that is higher than
drifting snow. Provide snow vents.
When connecting refrigerant tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces of the flare
and union tubes before connecting them; screw by hand and
then tighten the nut with a torque wrench for a leak-free
connection.
• Check carefully for leaks before starting the test run.
NOTE:
Depending on the system type, liquid and gas lines may be either
narrow or wide. Therefore, to avoid confusion, the refrigerant
tubing for your particular model is specified as narrow tube for
liquid, wide tube for gas.
When servicing
• Turn the power OFF at the main power board before opening
the unit to check or repair electrical parts and wiring.
• Keep your fingers and clothing away from any moving parts.
• Clean up the site after the work, remembering to check that no
metal scraps or bits of wiring have been left inside the unit being
serviced.
• Ventilate the room during the installation or testng the refrigeration
system; make sure that, after the installation, no gas leaks are
present, because this could produce toxic gas and dangerous
if in contact with flames or heat-sources.
WARNING
CAUTION
WARNING
2

Page
1. OPERATING RANGE 4
2. SPECIFICATIONS 5
2-1 Unit Specifications 5
2-2 Major Component Specifications 7
2-3 Other Component Specifications 9

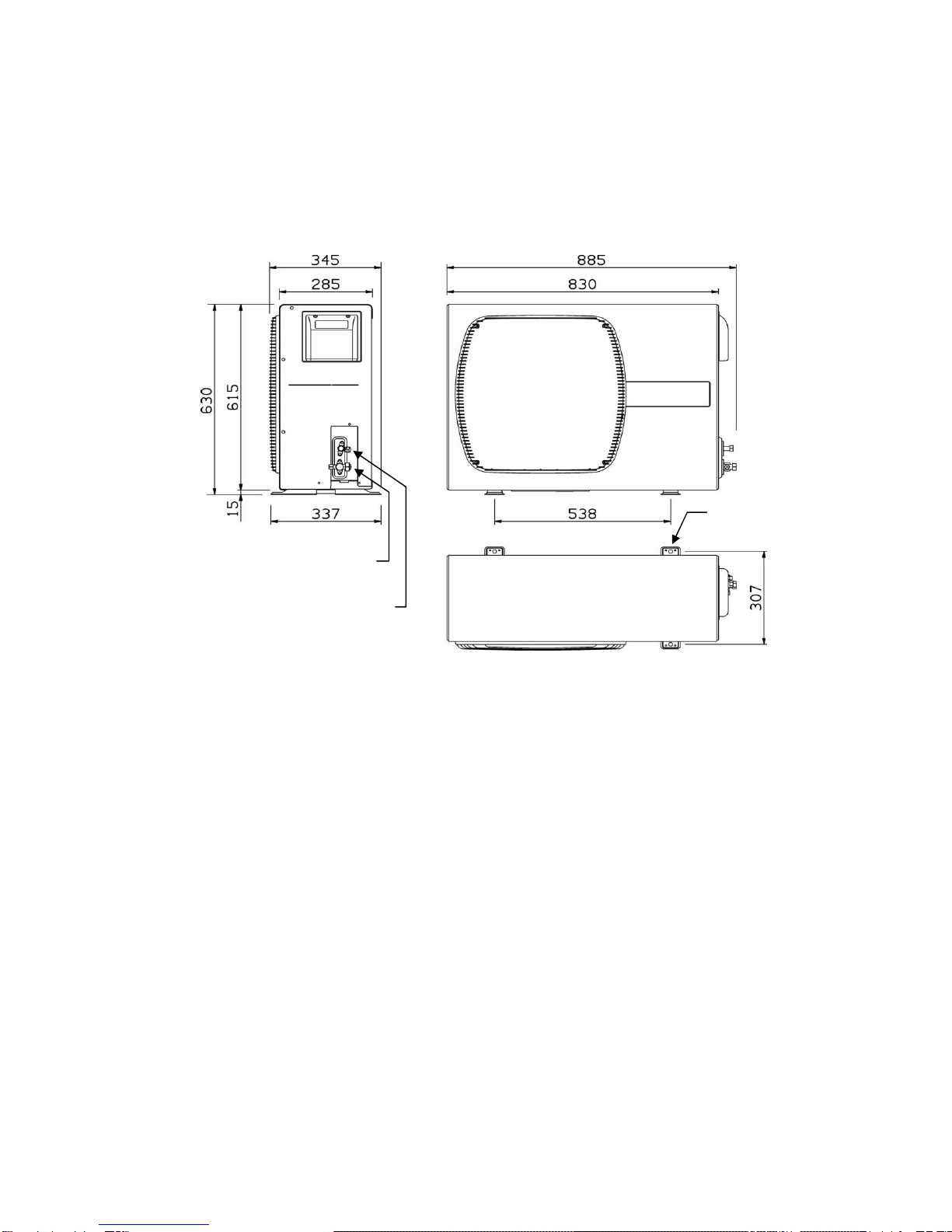

3. DIMENSIONAL DATA 10
4. REFRIGERANT FLOW DIAGRAM 11
5. PERFORMANCE DATA 12
5-1 Performance Charts 12
6. ELECTRICAL DATA 14
6-1 Electrical Characteristics 14
6-2 Electric Wiring Diagram 16

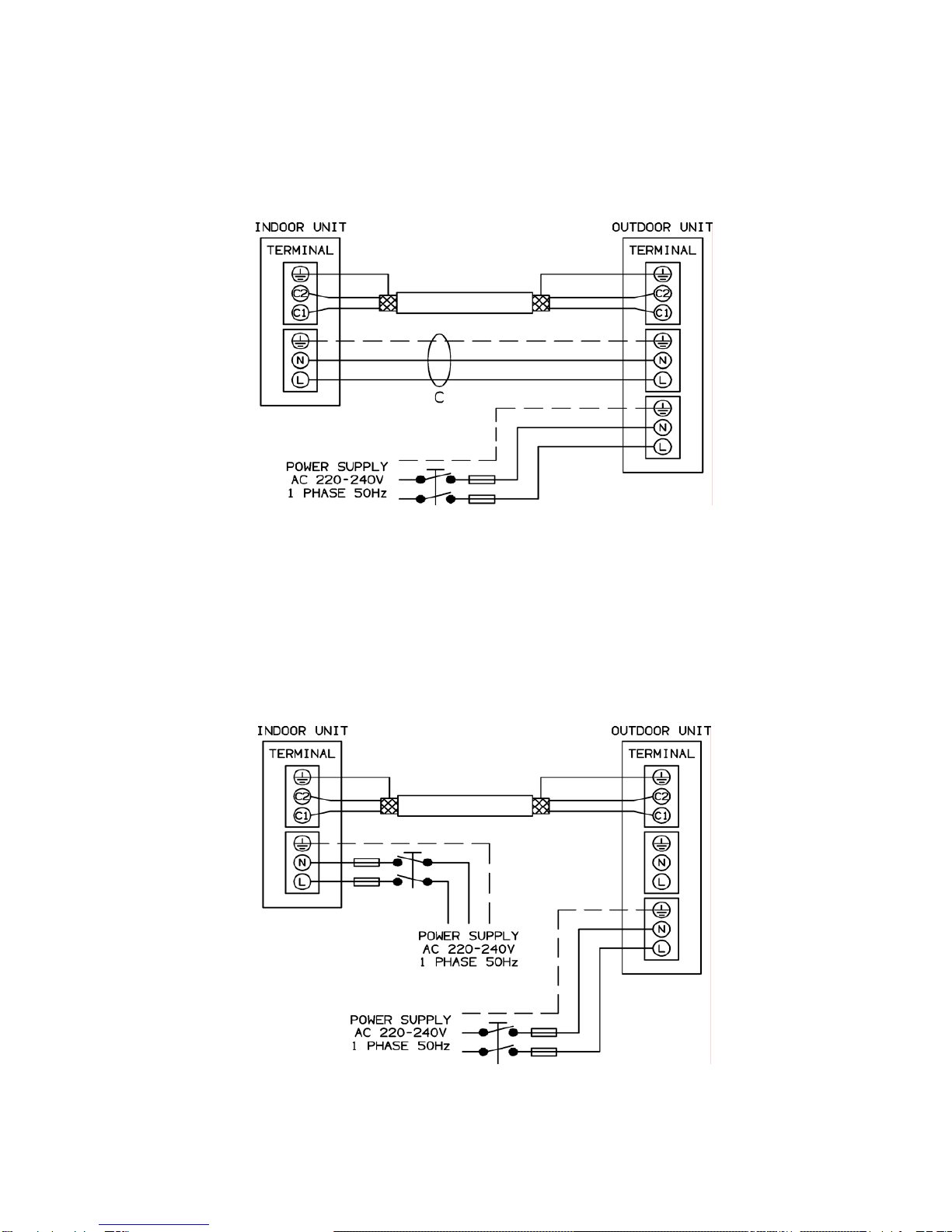

6-3 System Wiring Diagram 16
Table of Contents
3

1. OPERATING RANGE
AEI826SH
AEI835SH
Heating Maximum 27°C D.B.
Temperature Indoor Air Intake Temp.
24°C D.B. / 18°C W.B.
Minimum 5°C D.B. -15°C D.B.
Outdoor Air Intake Temp.
Cooling Maximum 32°C D.B. / 23°C W.B. 43°C D.B.
Minimum 10°C D.B. / 6°C W.B. -15°C D.B.
4

2. SPECIFICATIONS
2-1 Unit Specifications
AEI826SH
Power source
V
olta
g
e ratin
g
Performance * AWI8826HL
(
B
)
Capacity kW
BTU/h
Air circulation (High) m³/h
Moisture removal (High) Liters/h
Electrical Ratin
g
Available voltage range V
Running amperes A
Power input W
Power factor %
C.O.P. W/W
Compressor locked rotor amperes A
Features
Fan speed
Compressor
Refrigerant / Amount charged at shipment g
Refrigerant control
Power noise level Hi dB-A
Refrigerant tubing connections
Max. allowable tubing length at shipment m
Refrigerant Narrow tube mm(in.)
tube diameter Wide tube mm(in.)
Dimensions & Wei
g
ht
Unit dimensions Height mm
Width mm
Depth mm
Package dimensions Height mm
Width mm
Depth mm
Weight Net kg
Shipping kg
Shipping volume m3
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Remarks:
Rating Conditions are:
Cooling: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
Heating: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
*For other INDOOR UNITS' MODELS, please refer to catalogue
Cooling
6,35 (1/4)
600
--
Cooling Heating
93 655
630
Flare type
7,5
59
9,52 (3/8)
Variable ( 200÷800 continuous )
Rotary (Hermetic) DC inverter
R410A / 1000
Electronic expansion valve
1,2 -
3,00
39,0
95
4,50 5,04
198 ~ 264 3,00
645
44,0
0,29
830
345
710
990
410
9895 11260
220 - 240 V ~ 50 Hz
230 V
Heating
2,90 3,30
5

AEI835SH
Power source
V
olta
g
e ratin
g
Performance * AWI8835HL
(
B
)
Capacity kW
BTU/h
Air circulation (High) m³/h
Moisture removal (High) Liters/h
Electrical Ratin
g
Available voltage range V
Running amperes A
Power input W
Power factor %
C.O.P. W/W
Compressor locked rotor amperes A
Features
Fan speed
Compressor
Refrigerant / Amount charged at shipment g
Refrigerant control
Power noise level Hi dB-A
Refrigerant tubing connections
Max. allowable tubing length at shipment m
Refrigerant Narrow tube mm(in.)
tube diameter Wide tube mm(in.)
Dimensions & Wei
g
ht
Unit dimensions Height mm
Width mm
Depth mm
Package dimensions Height mm
Width mm
Depth mm
Weight Net kg
Shipping kg
Shipping volume m3
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Remarks:
Rating Conditions are:
Cooling: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
Heating: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
*For other INDOOR UNITS' MODELS, please refer to catalogue
11942 13307
220 - 240 V ~ 50 Hz
230 V
Heating
3,50 3,90
45,0
0,29
830
345
710
990
410
40,0
94
3,68 4,19
Rotary (Hermetic) DC inverter
Variable ( 200÷800 continuous )
R410A / 1100
Electronic expansion valve
630
Flare type
64
9,52 (3/8)
7,5
198 ~ 264 4,30
950
4,40 930
-1,5
Cooling
6,35 (1/4)
600
--
Cooling Heating
94
6

2-2 Major Component Specifications
AEI826SH
Compressor
Type
Compressor model
Nominal input (compressor rating condition) W
Compressor oil…Amount cc
Coil resistance (Ambient temp. 20°C)
Ω
Overload relay
Safety devices Type
Operating Temp. Open °C
Close °C
Fan & Fan Motor
Type
Q'ty ……. Ø Nr. … mm
Fan motor model…Q'ty
No. Of poles…rpm
Nominal output W
Coil resistance (Ambient temp. 25 °C )
Ω
Safety devices Type
Operating temp. Open °C
Close °C
Heat Exch. Coil
Coil
Rows
Fin pitch mm
Face area m2
External Finish
DATA SUBJECT TO CHANGE WITHOUT NOTICE
853
-
-
-
RB68EP …… 320
0,77
Software Protection
Rotary (Hermetic) DC inverter
G4C090LUCJR
Propeller
1…. Ø 400
P35810 P0012
8 ... variable ( 200 ÷ 800 )
-
20
BRN-BLK: 210
BRN-YEL: 210
-
-
YEL-BLK: 210
Acrylic baked-on enamel finish
Aluminium plate fin / Copper tube
2
1,5
0,37
7

AEI835SH
Compressor
Type
Compressor model
Nominal input (compressor rating condition) W
Compressor oil…Amount cc
Coil resistance (Ambient temp. 20°C)
Ω
Overload relay
Safety devices Type
Operating Temp. Open °C
Close °C
Fan & Fan Motor
Type
Q'ty ……. Ø Nr. … mm
Fan motor model…Q'ty
No. Of poles…rpm
Nominal output W
Coil resistance (Ambient temp. 25 °C )
Ω
Safety devices Type
Operating temp. Open °C
Close °C
Heat Exch. Coil
Coil
Rows
Fin pitch mm
Face area m2
External Finish
DATA SUBJECT TO CHANGE WITHOUT NOTICE
Acrylic baked-on enamel finish
Aluminium plate fin / Copper tube
2
1,5
0,47
8 ... variable ( 200 ÷ 800 )
-
20
BRN-BLK: 210
BRN-YEL: 210
-
-
YEL-BLK: 210
Propeller
1…. Ø 400
P35810 P0012
Rotary (Hermetic) DC inverter
5RS102XBE01
985
-
-
-
RB68A …… 320
0,858
Software Protection
8

2-3 Other Component Specifications
AEI826SH
AEI835SH
4-wa
y
Valve
(
20S
)
Coil rating
Coil resistance Ω
(
at 20°C
)
Electronic Expansion Valve
Coil rating
Coil resistance / phase Ω
(
at 20°C
)
Defrost Valve
Coil rating
Coil resistance Ω
(
at 20°C
)
Thermistor
(
coil sensor
)
Resistance k
Ω
Thermistor
(
compressor dischar
g
e sensor
)
Resistance k
Ω
Thermistor
(
inlet air sensor
)
Resistance k
Ω
Crank case heate
r
Resistance Ω
(
at 20°C
)
Base heate
r
Resistance Ω
(
at 20°C
)
DATA SUBJECT TO CHANGE WITHOUT NOTICE
1440 ± 5%
AC 220/240 V, 50 Hz
SQ-136 (Coil) SHF-4H-23U (Valve)
AC 220/240 V - 50 Hz
1273 ± 10%
ZCAM-MD12EX(Coil) ZCAM-BD15EX (Valve)
DC 12 V
46 ± 4%
FQ-235-RK (Coil) FDF6A-049-RK (Valve)
NTC-THERMISTOR
10 at 25 °C
NTC-THERMISTOR
10 at 25 °C
FLEXELEC CSC2
700 ± 10%
NTC-THERMISTOR
10 at 25 °C
30 W RESISTANCE
1760 ± 10%
9

3. DIMENSIONAL DATA
AEI826SH
AEI835SH
dimension [mm]
WIDE TUBE ø.9,52
NARROW TUBE ø.6,35
4 - Ø12
for anchor bolt
10

4. REFRIGERANT FLOW DIAGRAM
Outdoor Unit: AEI826SH Indoor Unit:
A
WI8826HL(B)
AEI835SH
A
WI8835HL(B)
Outdoor Unit
Indoor Unit
Insulation of Refrigerant Tubing
IMPORTANT
Because capillary tubing is used in the outdoor unit, both the wide and narrow tubes of this
air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation,
both tubes must be well insulated with a proper insulation material.
The thickness of the insulation should be a min. 8mm.
CAUTION
After a tube has been insulated, never try to bend it into a narrow curve
because it can cause the tube to break or crack.
11

5. PERFORMANCE DATA
5-1 Performance charts
AEI826SH
 Coolin
g
Characteristics  Heatin
g
Characteristics
1
0.8180.531.00 05/2007
Note
Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches
extremely high values in heating mode.
Points of Rating condition Data referred to AWI8826HL(B)
0,50
0,55
0,60
0,65
0,70
0,75
0,80
0,85
0,90
0,95
1,00
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Low pressure at wide tube service valve MPa
1,50
1,70
1,90
2,10
2,30
2,50
2,70
2,90
0 5 10 15 20
Outdoor inlet air D.B. temperature (°C)
High pressure at wide tube service valve Mpa
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
32
27
19
2,0
2,5
3,0
3,5
4,0
4,5
5,0
0 5 10 15 20
Outdoor inlet D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
25
20
15
Indoor inlet air
D.B.
(
°C
)
Indoor inlet air
D.B. (°C)
25
20
15
32
27
19
7
7
3
2
27
19
12

AEI835SH
 Coolin
g
Characteristics  Heatin
g
Characteristics
1
0.8180.531.00 05/2007
Note
Overload prevention operates to protect the air conditioner when outdoor ambient temperature reaches
extremely high values in heating mode.
Points of Rating condition Data referred to AWI8835HL(B)
0,50
0,60
0,70
0,80
0,90
1,00
1,10
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Low pressure at wide tube service valve MPa
2,00
2,20
2,40
2,60
2,80
3,00
3,20
3,40
3,60
0 5 10 15 20
Outdoor inlet air D.B. temperature (°C)
High pressure at wide tube service valve Mpa
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
10 15 20 25 30 35 40
Outdoor inlet air D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
32
27
19
3,0
3,5
4,0
4,5
5,0
5,5
6,0
0 5 10 15 20
Outdoor inlet D.B. temperature (°C)
Operating current (A)
Indoor inlet air
D.B. (°C)
25
20
15
Indoor inlet air
D.B. (°C) Indoor inlet air
D.B. (°C)
25
20
15
32
27
1
9
7
7
32
27
19
13

6. ELECTRICAL DATA
6-1 Electrical characteristics
OUTDOOR UNIT: AEI826SH
COOLING
Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,13 3,0
Power input kW 0,031 0,645
Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
HEATING
Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,13 3,0
Power input kW 0,031 0,655
Rating Conditions: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
NOTE: Data referred to indoor unit AWI8826HL(B) model.
For other indoor unit models there could be some differences.
2,87
0,624
Outdoor unit
230 V - 1 Phase - 50 Hz
Outdoor unit
230 V - 1 Phase - 50 Hz
Fan Motor + Compressor
2,87
0,614
Complete Unit
Complete Unit
Fan Motor + Compressor
14

OUTDOOR UNIT: AEI835SH
COOLING
Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,13 4,4
Power input kW 0,031 0,950
Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B. / 24°C W.B.
HEATING
Indoor Unit
Fan Motor
Performance at
Rating conditions Running Amps. A 0,13 4,3
Power input kW 0,031 0,930
Rating Conditions: Indoor Air Temperature 20°C D.B.
Outdoor Air Temperature 7°C D.B. / 6°C W.B.
NOTE: Data referred to indoor unit AWI8835HL(B) model.
For other indoor unit models there could be some differences.
4,17
0,899
Outdoor unit
230 V - 1 Phase - 50 Hz
Outdoor unit
230 V - 1 Phase - 50 Hz
Fan Motor + Compressor
4,27
0,919
Complete Unit
Complete Unit
Fan Motor + Compressor
15

6-2 Electric Wiring Diagram
6-3 System Wiring Diagram
INDOOR UNIT POWER SUPPLY
16

INDOOR + OUTDOOR UNIT POWER SUPPLY
OUTDOOR UNIT POWER SUPPLY
17

0.8180.564.00 10/2008
Tel. [phone] - Fax [phone]
www.argoclima.it
