Argo I Series User manual

37.4254.114.01 03/2023
AWIAS19
AWIBS19
AWICS19
EN
IT
FR
OPERATING
INSTRUCTIONS
ISTRUZIONI
D’USO
NOTICE
D’UTILISATION
BEDIENUNGS-
ANLEITUNG
INSTRUCCIONES
DE USO
MANUAL
DE INSTRUÇÕES
DE
ES
PT
Direct expansion indoor unit for ISERIES systems
Unità interna ad espansione diretta per sistemi ISERIES
Unité intérieure à détente directe pour systèmes ISERIES
Inneneinheiten mit Direktverdampfung für ISERIES-Systeme
Unidad interior de expansión directa para sistemas ISERIES
Unidade interior de expansão direta para sistemas ISERIES

2
EN
The following symbols used in this manual, alert you
to potentially dangerous conditions to users, service
personnel or the appliance:
This symbol refers to a hazard or unsafe practice which
can result in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can
result in personal injury or product or property damage.
This air conditioner is equipped with cooling, drying, heating and fan only functions.
Details on these functions are provided below; refer on these descriptions when using the air conditioner.
CONTENTS
NAME OF PARTS AND OPERATION SELECTOR SWITCH 3
INSTALLATION LOCATION 4
ELECTRICAL REQUIREMENTS 4
SAFETY INSTRUCTIONS 4
USING THE REMOTE CONTROL UNIT 4
REMOTE CONTROL UNIT 5
HOW TO SET THE PRESENT TIME 6
COOLING MODE 6
HEATING MODE 6
AUTOMATIC OPERATION 6
DEHUMIDIFYING MODE(DRY) 7
FAN ONLY MODE 7
ADJUSTING THE FAN SPEED 7
AIR IONIZER 7
NIGHT MODE 7
ENERGY SAVING MODE (ECO) 8
TURBO MODE 8
TIMER SELECTION 8
RESET BUTTON 8
HOW TO SET SCHEDULES 8
PARAMETERS SETTING 9
ADJUSTING THE AIR FLOW DIRECTION 11
OPERATION WITHOUT THE REMOTE CONTROL UNIT 12
USE WITH WIRED CONTROLLER (OPTIONAL-NOT SUPPLIED) 13
CARE AND CLEANING 18
TIPS FOR ENERGY SAVING 19
TROUBLESHOOTING 19
NOTE
WARNING
CAUTION
PRODUCT INFORMATION
The year of production of this unit is indicated in the
Nameplate (see figure below).
Serial number
Year of production
example: 0=2020
1=2021
s/n: Y00000RR
ALERT SYMBOLS

EN
3
NAME OF PARTS AND OPERATION SELECTOR SWITCH
NOTES
●It is possible to set the air conditioner in order to let
all the lamps always OFF, even during operation. (See
Light)
●In case of troubleshooting the air conditioner
diagnostic system activates the lamps accordingly,
even if they are set to OFF. See paragraph
TROUBLESHOOTING for further details.
1. Remote control unit.
2. Remote control sensor: It detects the room
temperature around the remote control unit.
3. Air outlet: Conditioned air is blown out of the air
conditioner through the air outlet.
4.
Air intake: Air from the room is drawn into this section
and passes through air filter which removes dust.
5. Remote control receiver: This section picks up infrared
signals from the remote control unit (Transmitter).

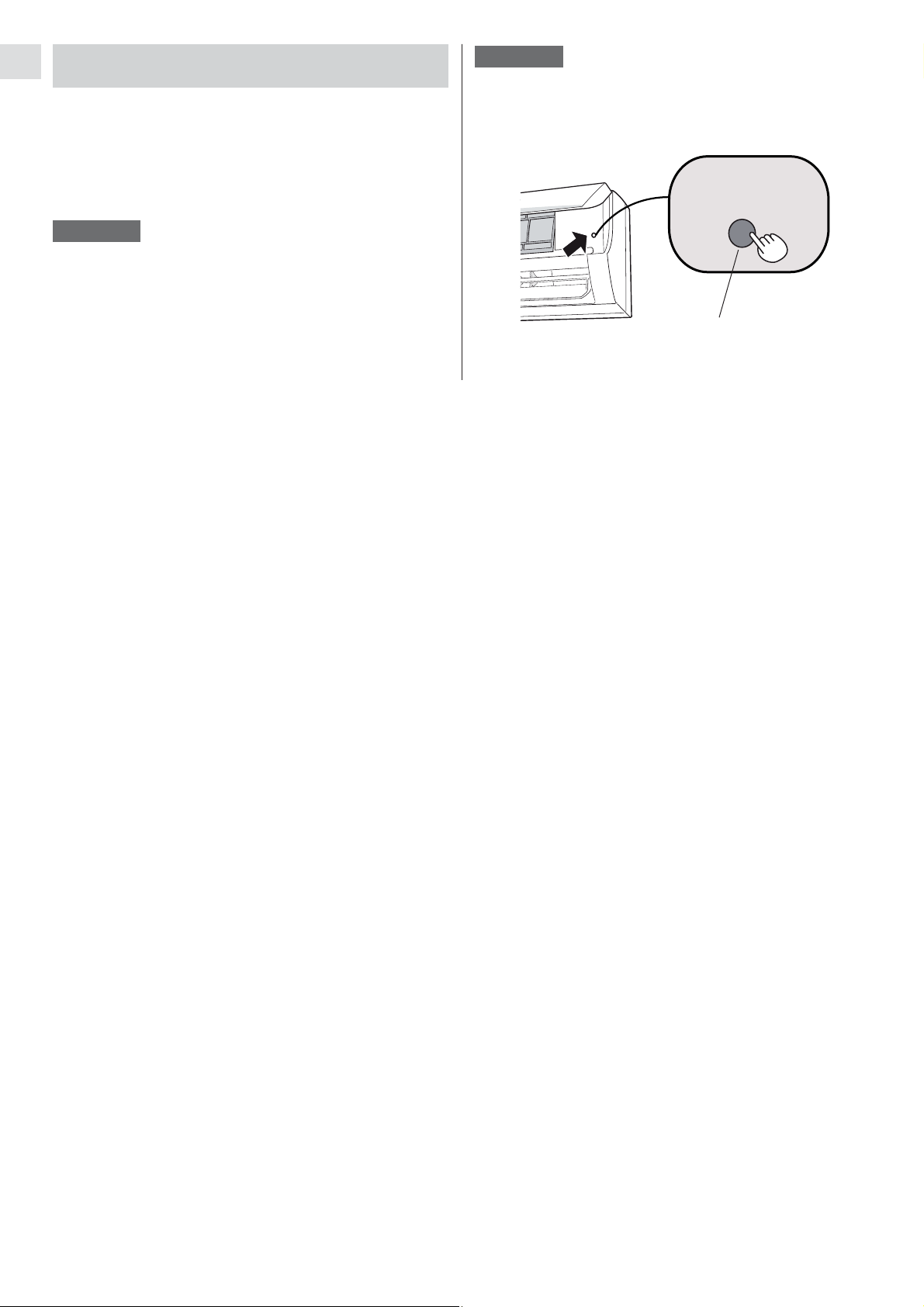

6. Operation selector (without remote control): Push
the button to walk through the operation modes (OFF,
COOL and HEAT)
7. OPERATION lamp: This lamp lights up when the unit
is in standby (red led), it turns off during operation.
8. Room temperature and operating error lamp: This
lamp shows the room temperature or the eventual
operating error codes (see table “AUTO DIAGNOSIS”).
Every time that the remote control signal is received,
this lamp shows the set temperature (setpoint).
The OFF selection does not disconnect the power. Use
the main power switch to turn off power completely.
WARNING
9. Indoor unit sensor: It detects the room temperature
around the indoor unit.
23
4
5
6
7
8
7
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
S
1
MW
TTFS
AUTO
WEEK
SET
23
A
1
9
INDOOR 123
WIRED CONTROLLER
(OPTIONAL-NOT SUPPLIED)

4
EN HOW TO INSTALL BATTERIES
●Remove trhe lid in the rear part of the
remote control unit.
TEMPERATURE SENSOR SELECTOR
●Under normal conditions the room temperature is
detected and checked by the temperature sensor placed
in the remote controller (I FEEL icon displayed ).This
function is designed to provide a comfortable room
temperature by transmitting the temperature control
command from the location next to you. When using this
function, the remote, control should always be pointed
at the air conditioner, therefore it should be placed in
a position in which it is visible by the indoor unit (for
example, do not put it in a drawer).
●It is possible to disable the remote controller room sensor
by pressing and holding the FAN/I FEEL button. In
this case the I FEEL icon on the remote controller display
lights off and only the sensor placed in the air conditioner
becomes active.
USING THE REMOTE CONTROL UNIT
●Insert two AAA alkaline batteries of
1,5 V-DC making sure that point in
the direction marked in the battery
compartment.
●Set the clock (see procedure on page
6).
Remote controller is now ready for
operation.
●The batteries last average more than
six months, anyway it depends on how much you use
the remote control unit.
Remove the batteries if you do not use the remote
control unit for more than one month.
Replace the batteries when the battery symbol appears
on the remote control ( )
●The batteries of the remote control contain polluted
substances. Exhausted batteries must be disposed
according to the laws in force.
OPERATION WITH THE REMOTE CONTROL UNIT
When using the remote control unit, always point the unit
transmitter head directly at the air conditioner receiver.
The remote control unit transmits signals to the indoor
unit each time you press a key and at any temperature
change detected by the internal sensor. In case of
troubles (low batteries, remote control placed in
a position not visible by the indoor unit,...) room
temperature control is automatically switched to the
sensor of the indoor unit. In this case, the temperature
around the remote control unit may differ from the
temperature detected in the air conditioner position.
NOTE
SAFETY INSTRUCTIONS
●Read this booklet carefully before using this air
conditioner. If you still have any difficulties or
problems, consult your dealer for help.
●This air conditioner is designed to give you
comfortable room conditions. Use this only for its
intended purpose as described in this Instruction
Manual.
●Never use or store gasoline or other flammable vapor or
liquid near the air conditioner. It is very dangerous.
●Never install electrical equipment, which is not
protected with IPX1 protection (protection against
vertical water drop), under the unit.
●The manufacturer assumes no responsabilities if the
safety regulations or local codes are not observed.
●Never use the power main switch to start or stop the
air conditioner: always use the ON/OFF button on the
remote control unit or the selector switch on the unit.
●Do not let children play with the air conditioner.
●Do not cool the room too much if babies or invalids
are present.
●This air conditioner is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the air conditioner
by a person responsible for their safety.
WARNING
CAUTION
INSTALLATION LOCATION
●This air conditioner must be installed by qualified
installation technicians in accordance with the
installation instructions provided with the unit.
●Do not install this air conditioner where there are
fumes or flammable gases, or in an extremely humid
space such as a green house.
●Do not install the air conditioner where excessively
high heat-generating objects are placed.
●Do not install the air conditioner where the
atmosphere is extremely damp or humid (e.g.
greenhouse or laundry) it could be wetted by drops
of water (i.e. in laundries).
●To protect the air conditioner from heavy corrosion,
avoid installing the outdoor unit where salty sea
water can splash directly onto it or in sulphurous
air near a spa.
WARNING
ELETRICAL REQUIREMENTS
●Before installation, check that the voltage of the electric
supply in your home or office is the same as the voltage
shown on the nameplate.
● All wiring must conform to the local electrical codes.
Consult your dealer or a qualified electrician for details.
●Each unit must be properly grounded with a ground (or
earth) wire or through the supply wiring.
●Wiring must be done by a qualified electrician.
NOTE ONLY IF YOU INSTALL MORE THAN ONE
INDOOR UNIT IN THE SAME ROOM
Set unit 1, 2, 3 or 4 with Remote Control (see procedure
in Installation Manual).
RESET
-+
-+
HOW TO REMOVE BATTERIES
• Remove the lid.
• Press the battery
toward the negative
end and lift it out by its
positive end (as shown
in the figure).
• Remove the other
battery in the same
way.
RESET
-+
-+

EN
5
ON/OFF BUTTON
Press this button to turn the air conditioner
ON / OFF.
Press for 2 seconds to lock / unlock the
buttons
MODE SELECTOR BUTTON
Press this button to modify the air
conditioner mode.
COOLING
The air conditioner makes the room
cooler.
HEATING
The air conditioner makes the room
warmer.
DEHUMIDIFYING (DRY)
The air conditioner reduces the humidity
in the room.
FAN
The air conditioner works only as a
circulation fan.
AUTOMATIC
When this setting is selected, the unit
calculates the difference between
the thermostat setting and the room
temperature and automatically switches
to the “cooling” or “heating” mode.
A
REMOTE CONTROL UNIT
DISPLAY
Information described below is displayed:
Operation mode
Fan speed
I FEEL mode
Night mode
Timer: 3 types + delayed timer
Cooling
Dehumidification
Fan
Automatic
Clock
A
TRANSMITTER
When you press the buttons of the
remote control unit, the mark
appears on the display to transmit
the setting changes to the receiver
in the air conditioner.
CLOK AND TIMER SETTING BUTTON
Press this button in order to select the
desired timer.
Press for 2 seconds to set the timer
For details refer to paragraphs “HOW
TO SET THE PRESENT TIME”, “TIMER
SELECTION”, and “SETTING THE TIMER”.
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
S
1
MW
TTFS
AUTO
WEEK
SET
23
A
TEMPERATURE SETTING BUTTONS
(cooler)
Press this button to decrease the set
temperature.
(warmer)
Press this button to increase the set
temperature.
USE THESE BUTTONS ALSO TO SURF
THROUGH TIMER AND PARAMETERS’
SETTING
SENSOR
A temperature sensor inside the remote
control unit detects the room temperature.
(see on the back of the remote control unit)
IFEEL MODE
Press this button for a few seconds to
modify the temperature sensor selection
(from remote controller to air conditioner
and viceversa).
FILTER BUTTON
Press this button in order to activate the air
ionizer built into the unit
NIGHT BUTTON
Press this button in order to select the
NIGHT mode.
FLAP BUTTON
Press this button in order to select the
desired flap operation.
Fixed: six position
Continous oscillations
Automatically oscillations

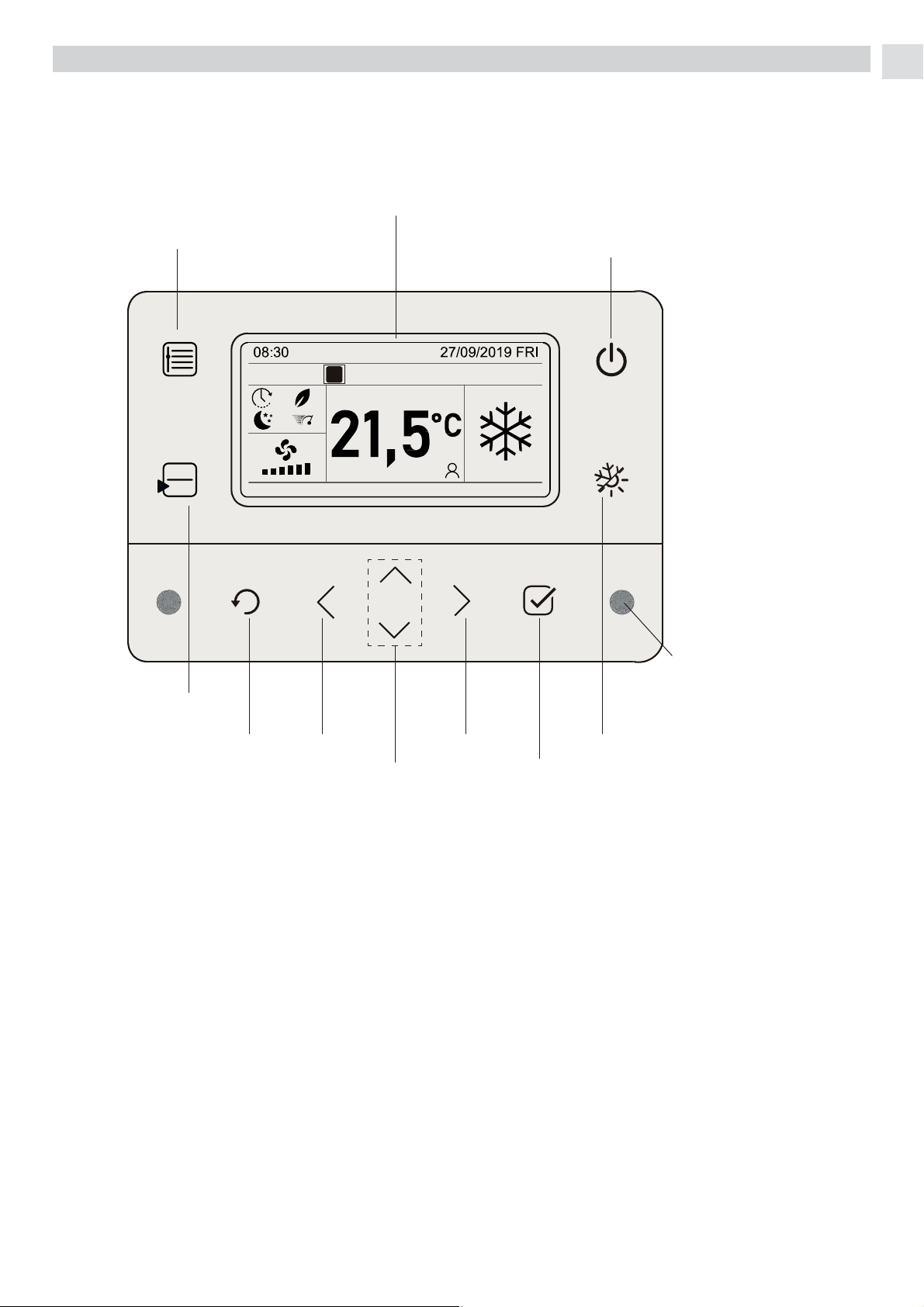

(cooling-heating)
TURBO BUTTON
Press this button
in order to select
the TURBO mode.
ECO BUTTON
Press this button in order to select the ECO
mode.
S
1
MW
TTFS
AUTO
WEEK
SET
23
A
TURBO mode
LIGHT BUTTON
Press this button to turn
the unit display on or off
Days of the week
(from sunday to saturday)
ECO mode
Temperature
FAN BUTTON
Press this button to change the fan speed.
Fan speed is automatically
selected by the unit.
Low speed
Medium/low speed
Medium speed
Medium/high speed
High speed
Very high speed
AUTO
Flap position
Heating
Celsius o Fahrenheit degrees
Low battery
Buttons’ lock active
Light

6
EN HEATING MODE
AUTOMATIC OPERATION
When starting the unit the fan may stop until the indoor
heat exchanger coil has warmed up sufficiently. This
is because the COLD DRAFT PREVENTION SYSTEM
is operating. During this period, the OPERATION lamp
remains lit (red led).
DEFROSTING OF OUTDOOR UNIT HEAT
EXCHANGER
When the outdoor temperature is low, frost or ice may
appear on the heat exchanger coil, reducing the heating
performance. When this happens, an appropriate
defrosting cycle of the exchanger is activated. During this
function operation, the fan of the indoor unit stops. Heating
operation restarts after several minutes. (This interval
will vary slightly depending on the room and outdoor
temperature).

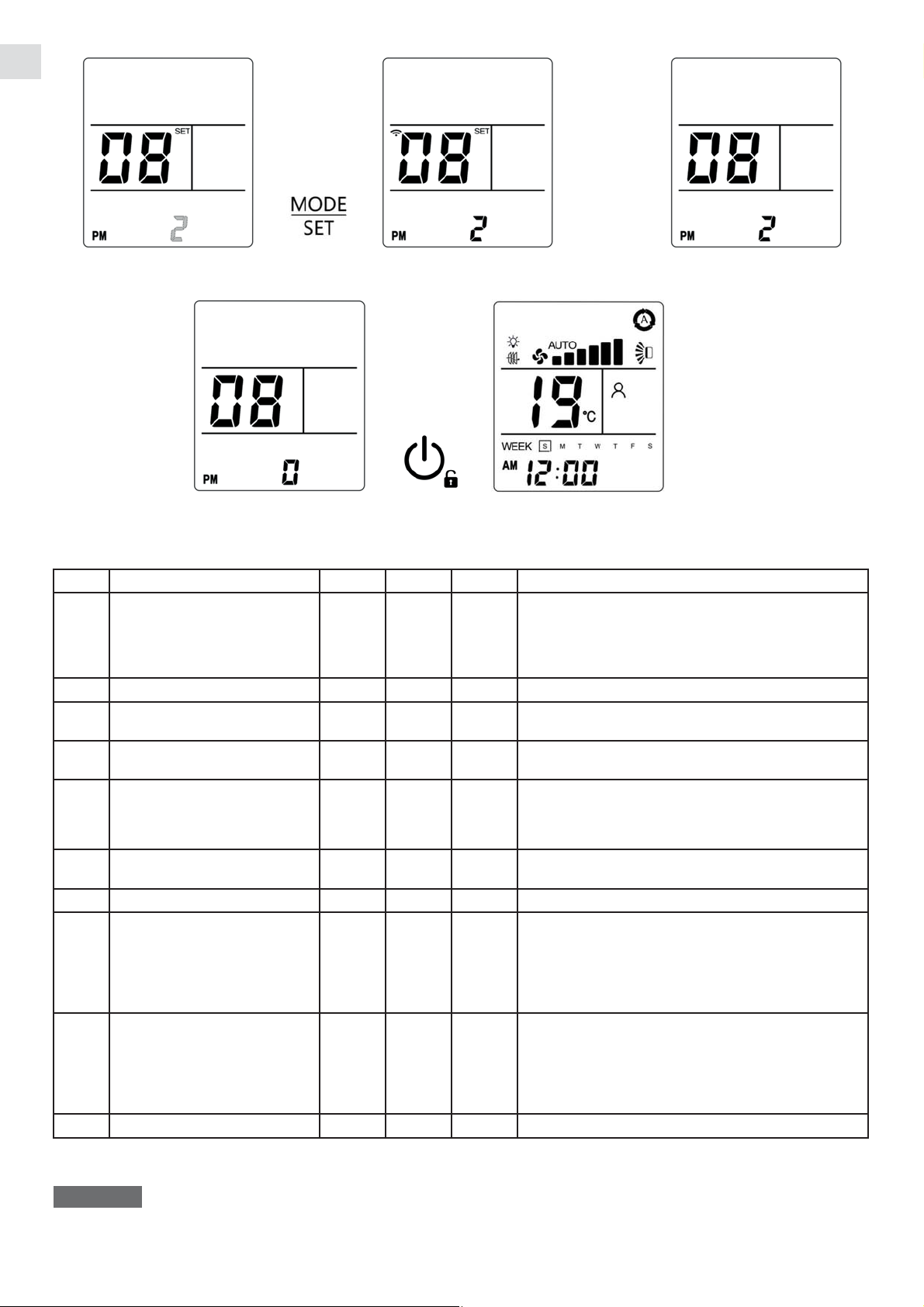

HOW TO SET THE CLOCK
1. Turn on the unit with the ON / OFF
button.
2. Press the button until the
COOLING symbol appears on
the display.
3. Press the buttons to set the
desired temperature ( the temperature
range is between 10 °C and 32 °C ).
COOLING MODE
NOTES
SET
THE DISPLAY SHOWS THE
SELECTED TEMPERATURE
AND THE WORD “SET”.
AFTER 5 SECONDS FROM THE
REQUIRED TEMPERATURE
SETTING THE DISPLAY
WILL SHOW THE ROOM
TEMPERATURE AGAIN.
4. Press the button to select the fan speed.
1
• If the fan is set in automatic mode and the unit stops
because setpoint is reached, also the fan will stop.
• If the fan is set in one of the six manual speeds, it will
go on operating at the selected speed, even if the unit
stops due to reaching the setpoint.
• When the external or internal temperature is too low,
the unit could limit the speed of the compressor or
switch it off for a certain period of time to avoid the
formation of ice on the internal heat exchanger.
35*+
9+:
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
SMW
TTFS
AUTO
WEEK
SET
3
4
2. AM or PM starts flashing: use the arrows to choose
AM or PM, then confirm with
The hour indication starts flashing: set the hour with
the arrows, then confirm with
The minutes indication starts flashing: set the
minutes with the arrows, then confirm with
WEEK starts flashing: set the day of the week with
the arrows, then confirm with
3. At this point the procedure is finished: press the
button to exit the clock menu.
1. Press for a few seconds the Timer button .
Press the button . :OSKX
35*+
9+:
35*+
9+:
35*+
9+:
SMW
TTFS
WEEK
SET 35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
35*+
9+:
35*+
9+:
SMW
TTFS
WEEK
ARROWS
2
1. Turn on the unit with the ON / OFF
button.
2. Press the button until the
HEATING symbol appears on
the display.
3. Press the buttons to set the
desired temperature (
the temperature
range is between 10 °C and 32 °C ).
SET
THE DISPLAY SHOWS THE
SELECTED TEMPERATURE
AND THE WORD “SET”.
AFTER 5 SECONDS FROM THE
REQUIRED TEMPERATURE
SETTING THE DISPLAY
WILL SHOW THE ROOM
TEMPERATURE AGAIN.
4. Press the button to select the fan speed.
1
35*+
9+:
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
SMW
TTFS
AUTO
WEEK
SET
3
4
2
NOTE
• If the unit stops because setpoint is reached, also the
fan will stop.
COLD DRAFT PREVENTION
1. Turn on the unit with the ON / OFF button.
2. Press the button until the AUTO symbol appears
on the display.
3. Press the buttons to set the desired temperature
( the temperature range is between 10 °C and 32 °C ).
35*+
9+: A
SET
THE DISPLAY SHOWS THE
SELECTED TEMPERATURE
AND THE WORD “SET”.
AFTER 5 SECONDS FROM THE
REQUIRED TEMPERATURE
SETTING THE DISPLAY
WILL SHOW THE ROOM
TEMPERATURE AGAIN.

EN
77
AIR IONIZER
Pressing the button (symbol on the display) the air
ionizer is activated; this is very effective to prevent bad
odours and to eliminate bacteria and micro-organisms.
NOTE
The filter is active only if the internal fan is operating.
What does the NIGHT mode mean?
When you select the NIGHT mode, the air conditioner will
modify automatically the set temperature after 60 minutes.
This enables you to save energy without sacrificing your
comfort.
OPERATING MODE SET TEMPERATURE CHANGE
Heating Lowered by 2 °C
Cooling and Dry Raised by 1 °C
During the night mode the internal fan speed is
automatically lowered and reduces the noise.
NOTA
The air conditioner will automatically operate by switching
from heating to cooling operation (or vice versa) in order
to maintain the set temperature.
A
ONON ON
Δ1 H Δ1 H
MIN. MAX.
A
B
C
C
B
A
27
26
25
24
23
22
21
20
19

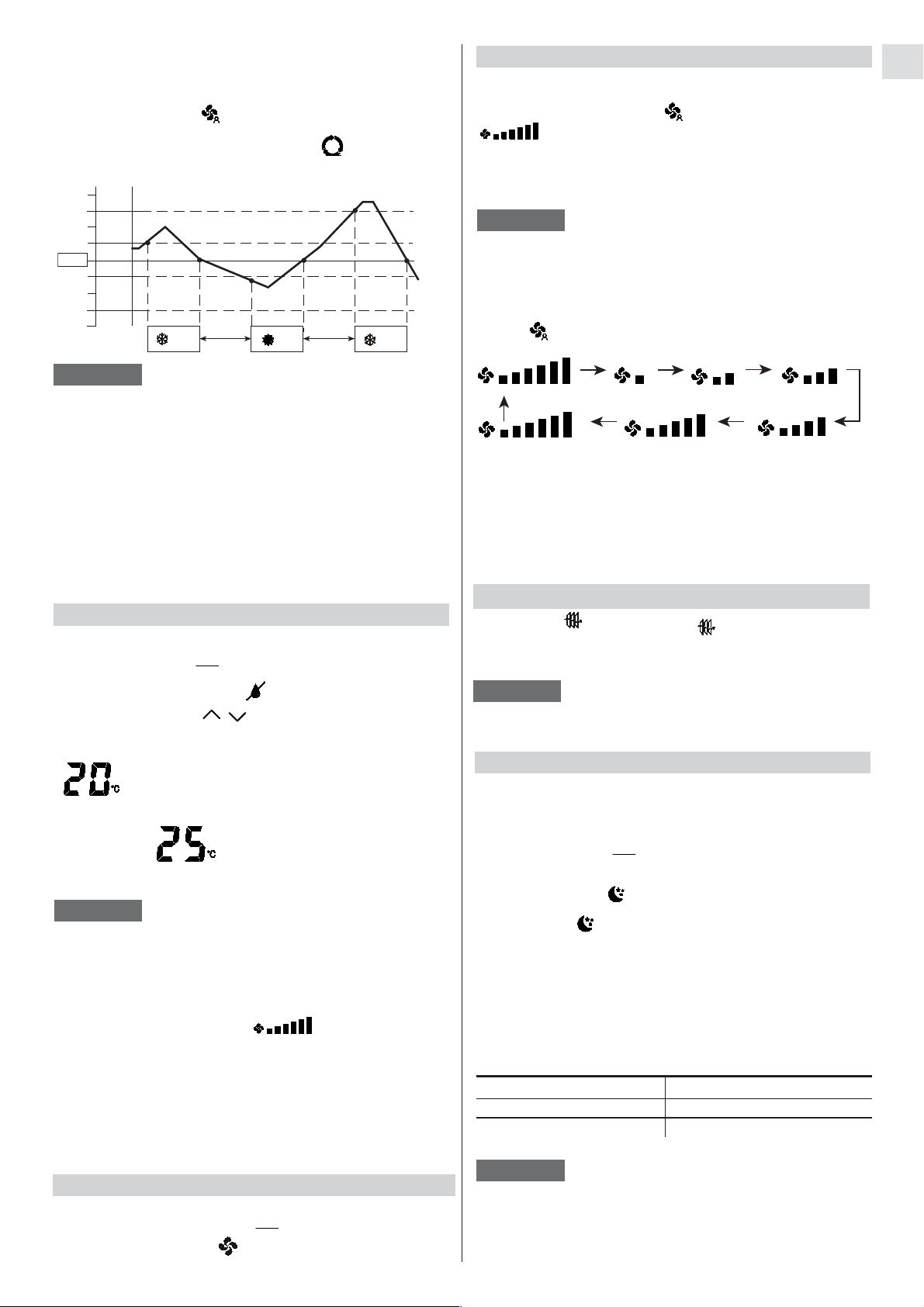

Example of operation diagram in the (Auto) mode
with the set room temperature at 23°C.
NOTE
The air conditioner changes the operation mode (from cool
to heat or vice versa, if one of the following conditions
occurs:
- ZONE A: changes if the difference between the room
temperature and the temperature set on the remote
control unit is at least 3°C..
- ZONE B: changes if the difference between the room
temperature and the temperature set on the remote
control unit is at least 1°C, one hour after the compressor
stop.
- ZONE C: never changes if the difference between the
room temperature and the temperature set on the remote
control unit is no more than 1°C.
4. Press the button to select the fan speed.
DEHUMIDIFYING MODE (DRY)
1. Turn on the unit with the ON / OFF button
2. Press the button until the DEHUMIDIFYING symbol
appears on the display .
3. Press the buttons to set the desired temperature
( the temperature range is between 10 °C and 32 °C ).
•Use DRY operation when you want to reduce the
humidity in the room.
•Once the room temperature reaches the set level, the
unit repeats the cycle of turning on / off automatically.
•During DRY operation, the fan speed is automatically
set (Remote control lamp is ON) to maximize
dehumidification.
•When the room temperature drops below the set
temperature, the unit still continues to operate at a low
temperature and could therefore further reduce the room
temperature in small rooms.
•Dry operation is not possible if the indoor temperature
is less than 10 °C.
NOTES
35*+
9+:
SET
THE DISPLAY SHOWS THE
SELECTED TEMPERATURE
AND THE WORD “SET”.
AFTER 5 SECONDS FROM THE
REQUIRED TEMPERATURE
SETTING THE DISPLAY
WILL SHOW THE ROOM
TEMPERATURE AGAIN.
AUTO
If you want to make air circulate without any temperature
control, press the button until the FAN symbol
appears on the display .
FAN ONLY MODE
35*+
9+:
ADJUSTING THE FAN SPEED
In FAN ONLY mode, the AUTOMATIC speed corresponds
to the high speed H.
AUTOMATIC
Set with the button the “AUTO” position
. The unit automatically controls the fan speed.
When the air conditioner starts operating, the fan speed
varies according to the thermal load of the room .
NOTE
MANUALE
If you want to manually adjust the fan speed just set the
button as desired:
AUTO
AUTO
LML M
MHHVH
MH Medium-high
HHigh
VH Very high
LLow
ML Medium-low
MMedium
,ORZKX
This program is used to increase silence and comfort during
the night.
To activate the Night mode:
1.Press the button to set the air conditioner in cooling,
dehumidifying or heating.
2.Press the button .
3.The symbol appears on the display . Press the
button again to release the function.
NIGHT MODE
35*+
9+:
4OMNZ

8
EN
This program is used to limit the maximum electrical power
absorbed by the unit.
When the energy saving program is selected, the air conditioner
limits the absorbed power to 75% of the maximum power. This
limit can be set by modifying parameter P12 on the remote
control (see paragraph “Parameters setting”).
To activate the Energy save mode:
1.Press the button to set the air conditioner in cooling
or dehumidification.
2.Press the button .
3.The symbol
appears on the display . Press the button
again to release the function.
ENERGY SAVING MODE (ECO)
35*+
9+:
+IU
NOTE
This function is active only if the outdoor unit has an
updated software version.
This program is used to increase the maximum power that
can be supplied by the air conditioner, even if it involves less
silence.
To activate the Turbo mode:
1.Press the button to set the air conditioner in cooling .
2.Press the button .
3.The symbol appears on the display . Press the button
again to release the function.
TURBO MODE
35*+
9+:
:[XHU

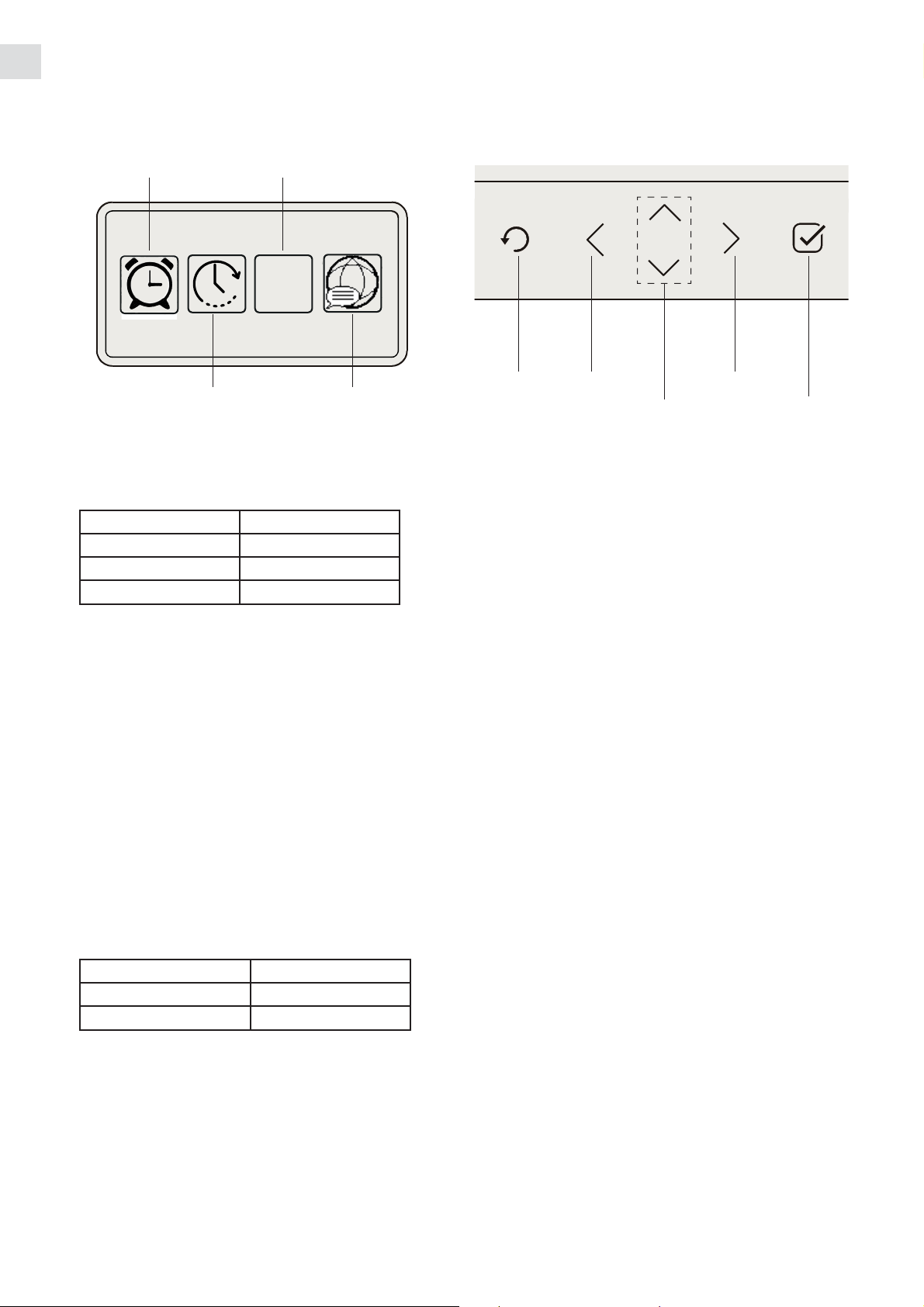

TIMER SELECTION
To select the timer, press the button to switch on the
remote control, then press the button to chose the
desired schedule:
:OSKX
In the event of a power failure and restoration, the timer
selection must be performed again.
NOTE
123
or “OFF”
delayed timer
timer schedule
Press the RESET button on the back of the remote control if
you want to reset all settings and return to the factory setting.
RESET BUTTON
RESET
A) DELAYED TIMER
This timer is used to start the unit (if it
is off) or to stop the unit (if it is on) after
a certain time, to set the delayed time.
1.
Press the Timer button for a few
seconds.
2. Press the arrow “up” to select the
delayed timer .
3. Press the button : the hour
indication starts flashing; set the hour
with the arrows.
4. Press the button again: the minutes
indication starts flashing; set the minutes
with the arrows.
5. Confirm with the button , then press
the button to exit the delayed timer
menu.
B) SCHEDULE
This timer is used to turn the unit on and
off at predefined times and days.
1. Press the Timer button for a few
seconds .
2. Press the arrow “up” to select the
schedule to be set ( , or ) .
3. Press the button : ON indication
starts flashing.
4. Press the button again: AM indication
starts flashing (you can choose AM or
PM with the arrows).
5. Press the button : the hour indication
starts flashing; set the desired hour with
the arrows.
6. Press the button again: the minutes
indication starts flashing; set the minutes
with the arrows.
7. Press the button : OFF indication
starts flashing.
8. Repeat the same procedure to set AM
or PM, hour and minutes.
9. At this point, press the “up” arrow
and WEEK will start flashing.
9. Press the button : the indication of
the first day of the week starts flashing;
set ON or OFF with the arrows, then
confirm with the button .
9. The indication of the second day of
the week starts flashing: repeat the
procedure with every day of the week,
if desired.
10.At the end press to exit the menu.
HOW TO SET SCHEDULES
S
1
MW
TTFS
WEEK
• It is possible to set up to 3 weekly schedules at different
times using the timers.
NOTE
:OSKX
35*+
9+:
35*+
9+:
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
ARROWS
35*+
9+:
123
:OSKX
35*+
9+:
35*+
9+:
35*+
9+:
35*+
9+:
35*+
9+:
35*+
9+:
35*+
9+:
S
1
MW
TTFS
WEEK
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
ARROWS
123

EN
9
PARAMETERS SETTING
or (2 sec) 
To access to the “Parameter menu”, long press “MODE/SET” from the main screen or from the OFF screen:
The first parameter shown is P00. Press“UP”or“DOWN”to scroll the parameter list:
 
When a parameter has been selected, long press “MODE/SET” to modify the value of the parameter. The value of the parameter
starts blinking and SET symbol switches on:
(2 sec) 
Press “UP” or “DOWN” to modify the value of the parameter, then press “MODE/SET” to save and transmit the selected value
of the parameter or press “ON/OFF” to restore the previous value of the parameter:
 

10
EN
(0.5 sec) 
Press “ON/OFF” to go back to main screen:

NOTE
Parameters not listed in the table are reserved and should not be changed. Changing the parameters not listed can cause the
air conditioner to malfunction.
Par. Parameter name Min Default Max Values
P00 Factory default reset 0 0 3 0 = No action
1 = Reset all remote control parameters to facto-
ry default value
2 = Reset all unit parameters to factory default
value
P01 Software version 0 - 7 Software version of the remote controller
P03 Carrier frequency
infrared signal 0 0 1 0 = 33 kHz 1 = 38 kHz
P05 Temperature scale 0 0 1 0 = °C (Celsius)
1 = °F (Fahrenheit)
P06 Transmission channel 0 0 3 0 = Channel #0
1 = Channel #1
2 = Channel #2
3 = Channel #3
P08 Communication address/
refrigerant circuit 0 0 8 See installation manual. Do not modify during operation.
P09 Humidity threshold setting 0 50 99 Threshold % relative humidity
P12 ECO mode power input limit 30 75 99 When ECO mode is selected, max electrical
power input of the unit is limited to P12:
30 = 30% of Max Power Input
31 = 31% of Max Power Input
...
99 = 99% of Max Power Input
P13 Room Air Temperature hea-
ting shift 0 3 10 0 = 0°C 1 = 1°C
...
10 = 10°C
This parameter can be modied according to the
stratication of the air during heating operation
P30 Special command 0 0 1 1=activation of auto-addressing procedure

EN
11
ADJUSTING THE AIR FLOW DIRECTION
HORIZONTAL (manual)
The horizontal air flow can be adjusted by moving the lever
to the left or right, as indicated in the following figure.
VERTICAL (with remote control unit)
Make sure that the remote control unit has been turned on. Press
the FLAP button to select the flap function
Do not move the flap with your hands when the air
conditioner is running.
CAUTION
NOTES ●The flap automatically closes when the unit
is off.
●When the unit starts in heating operation,
the fan stops and the flap is in the 4 position
(if automatical oscillation is selected) until
the air being blown out of the unit begins
to warm. Once the air warms up, the flap
position and fan speed change to the
settings specified with the remote control.
• Use the FLAP button on the remote control to adjust
the position of the flap. If you move the flap by hand,
the factual flap position and the flap position on the
remote control may no longer match. If this should
happen, shut off the unit, wait for the flap to close,
and then turn on the unit again; the flap position will
now be normal again.
• Do not have the flap pointed down during cooling
operation. Condensation may begin to form around
the air vent and drip down.
CAUTION
Lever
Up
Down
Air outlet
grille
Flap
HOW TO ADJUST THE FLAP DIRECTION
Zone «A»
for cooling and dehumidifyng Zone «B»
for heating
Set vertical vanes to the front position during COOLING/
DRY operation if humidity is high.
If the vertical vanes are set to the left-most or right-
most position, condensation will form around the air
outlet and drip off.
CAUTION
A
A
A
Fixed:
six
position
Continous
oscillations Automatical oscillations
35*+
9+:
:[XHU
+IU
4OMNZ
,ORZKX :OSKX 2OMNZ
S
1
MW
TTFS
AUTO
WEEK
SET
23
A

12
EN
2. WHEN THE AIR CONDITIONER IS ON
If you want to turn off the air conditioner push the
OPERATION selector until the unit is in standby (red
operating lamp).
Power failure during operation.
In the event of power failure, the unit will stop. When the
power is resumed, the unit will restart automatically after
3 minutes.
NOTE
If you have lost the remote control unit or it has troubles,
follow the steps below.
1. WHEN THE AIR CONDITIONER IS OFF
If you want to turn on the air conditioner push the
OPERATION selector to select the desired mode (COOL
or HEAT).
OPERATION WITHOUT THE REMOTE
CONTROL UNIT
The air conditioner will start in HIGH fan speed.
The temperature setting is 25°C for cooling mode and
21°C for heating mode.
NOTE
OPERATION
selector

EN
13
USE WITH WIRED CONTROLLER (OPTIONAL-NOT SUPPLIED)
INDOOR 123
MENU’ / PARAMETERS ON/OFF
FAN
BACK LEFT RIGHT
UP / DOWN OK / SETTINGS
OPERATION MODE
ON / OFF Button: Push this button to turn ON / OFF the selected unit (square around the icon number of the unit).
Press it for 2 seconds to turn OFF all the units simultaneously.
OPERATION MODE Button: Push this button to change the working mode.
FAN Button: Push this button to change the fan speed.
MENU / PARAMETER Button: Push this button to enter the main paramters menu .
Press it for 2 seconds to enter the advanced parameters menu (protected by password).
LEFT / RIGHT Buttons: Push this buttons to select indoor units.
UP / DOWN Buttons: Push this buttons to change the setpoint of the selected unit.
BACK Button: Push this button to go back to the previous menu.
OK / SETTINGS Button: Push this button to change the value of the selcted parameter (see PARAMETERS MENU ).
BUTTONS
DISPLAY
This wired controller can be combined with different types of indoor units: for this reason some functions may not be
available.
However, the selection of any functions not available for a certain type of unit does not affect the correct functioning of
the controller itself: simply nothing will happen.
REMOTE CONTROL
IR SIGNAL
RECEIVER

14
EN
COOLING
HEATING
DEHUMIDIFYING
FAN ONLY
AUTOMATIC
HOME DISPLAY
Main functions of the wired controller can be set directly on the home display:
INDOOR 123
SELECTED UNIT
TIMER
ECO
NIGHT
TURBO
FAN SPEED
ROOM TEMPERATURE
SETPOINT
IFEEL
WORKING MODE
A
SELECTED UNIT: The box around the unit number indicates the selected unit.
HIGHLIGHTED UNIT: If the unit number icon is highlighted the unit is ON.
WORKING MODE: This symbol shows the working mode of the connected unit.
FAN SPEED: Every time you push the fan button the fan speed changes as follows:
NOTE: When the unit is off, the fan speed icon will not be shown and the unit number icon wil not be highlighted.
ROOM / DESIRED TEMPERATURE: The display generally shows the room temperature .
Use the / buttons to change the value of the desired temperature.
NOTE: If an error is present, in place of the temperature, the text “E xx” will be showed, where xx is the number of the error.
(See AUTO-DIAGNOSIS TABLE).
IFEEL: When the display shows this symbol the IFEEL function is active.
The room temperature is detected and checked by the temperature sensor placed inside the wired controller or by
IR Remote control sensor if a segnal has been received (see section “USE WITH INFRARED REMOTE CONTROL”)
and up to 10 minutes from the last signal received.
ATTENTION!
For further details about working modes, see section “REMOTE CONTROL UNIT”.
AUTO
LML M
MHHVH
MH Medium-high
HHigh
VH Very high
LLow
ML Medium-low
MMedium
DATE

EN
15
MAIN PARAMETERS MENU
IFEEL
FILTER
NIGHT ECO
TURBO
FLAP TIMER
SETTINGS
IFEEL - NIGHT - ECO - TURBO - FILTER: use OK button to activate or deactivate the function.
FLAP: Every time you press the OK button the plap position changes as follows:
ATTENTION!
For a correct setting of FLAP, please refer to the section “ADJUSTING THE AIR FLOW DIRECTION”.
TIMER: Every time you press the OK button you select a type of timer:
For timer setting see section “SETTING MENU”
SETTING: Pressing the OK button you open the Setting menu .
ATTENTION!
For details about NIGHT, ECO, TURBO, FILTER functions, see section “REMOTE CONTROL UNIT”.
If the icon is highlighted the parameter is active.
Use the < / > buttons to move between the icons.
Use the OK button to change the value of the selected parameter.
123
or “OFF”
delayed timer
timer schedule
Fixed:
six
position
Continous
oscillations Automatical oscillations
Example of active
icon

16
EN SETTINGS MENU
°C
CLOCK
LANGUAGETIMER
TEMPERATURE
Use the < / > buttons to move between the icons.
BUTTONSDISPLAY
BACK LEFT RIGHT
UP / DOWN OK / SET
CLOCK:
Select CLOCK icon and press OK to enter the setting menu. The following options will appear:
LEVEL 1 LEVEL 2
CLOCK FORMAT 24h
TIME 15:48
DATE 16/11/2021 TUE
Select the parameter to be modified (LEVEL 1) using the buttons UP/DOWN, long press the OK button to change the
setting or value, always using the buttons UP/DOWN (LEVEL 2).
Then press OK to confirm or BACK to cancel the change.
CLOCK FORMAT
It is possible to change the clock format between 24h or 12h am / pm
TIME
Set the current time, once you have entered LEVEL 2, press OK to move to the minutes’ setting.
DATE
Set the current date, once you have entered LEVEL 2, press OK to move to the setting of month and day.
TIMER:
Select TIMER icon and press OK to enter the setting menu. The following options will appear:
LEVEL 1 LEVEL 2
DELAY TIMER min 60
CALENDAR
Select the parameter to be modified (LEVEL 1) using the buttons UP/DOWN, long press the OK button to change the
setting or value, always using the buttons UP/DOWN (LEVEL 2).
Then press OK to confirm or BACK to cancel the change.
DELAY TIMER
It is possible to set the on or off delay (minutes) when this type of timer is selected.

EN
17
CALENDAR
Press OK to enter the setting menu. The following options will appear:
LEVEL 1 LEVEL 2
SCHEDULE 1 DAY Enabled LEV. 1
T on 14:30 SUN OFF
LEV. 2
T off 17:30 MON ON
TUE OFF
WED ON
THU ON
FRI ON
SAT OFF
SCHEDULE
Select the number of the Timer program to be set (1, 2 or 3).
T on (ON TIME)
Set the ON time, once you have entered LEVEL 2, press OK to move to the minutes’ setting.
T off (OFF TIME)
Set the OFF time, once you have entered LEVEL 2, press OK to move to the minutes’ setting.
DAY
Select the day, then press OK to move to the ON or OFF setting.
TEMPERATURE: Choose CELSIUS or FAHRENHEIT pressing OK button.
LANGUAGE: Press OK button to change the language (English, Italian, French, Spanish, German, Portuguese) .
ADVANCED PARAMETERS MENU
Press the MENU / PARAMETERS button for 2 seconds to enter the advanced parameters menu, then enter the
password. This is the list of parameters:
P1 RESET DEFAULT VALUES OFF
P6 TLC CHANNEL 0
P8 CIRCUIT ADDRES A
P9 RH TRESHOLD 50%
P12 ECO MODE % 75%
P13 RAT CORRECTION 0
P14 ANTIFREEZE CORRECTION 0
P15 MODBUS ADDRESS 1
P16 MODBUS BAUD RATE 19200
P17 PARITY MODE 1
P18 FAN SPEED SHIFT 0
LCD CONTRAST 50
LCD BRIGHTNESS 90
UNIT TYPE
UNIT SW CODE
UNIT SW VERSION
PANEL SW VERSION
Use the /  buttons to move between the parameters.
Once selected the desired parameter, press the OK
button for 2 seconds and then it is possible to change
the value of the parameter still using the /  buttons.
Press OK to confirm.
NOTE: This modification is not possible for the last four
parameters that are just read values.

18
EN
FILTER CLEANING
Use a vacuum cleaner to remove light dust. If there is
sticky dust on the filter, wash the filter in lukewarm,
soapy water, rinse it in clean water, and dry it.

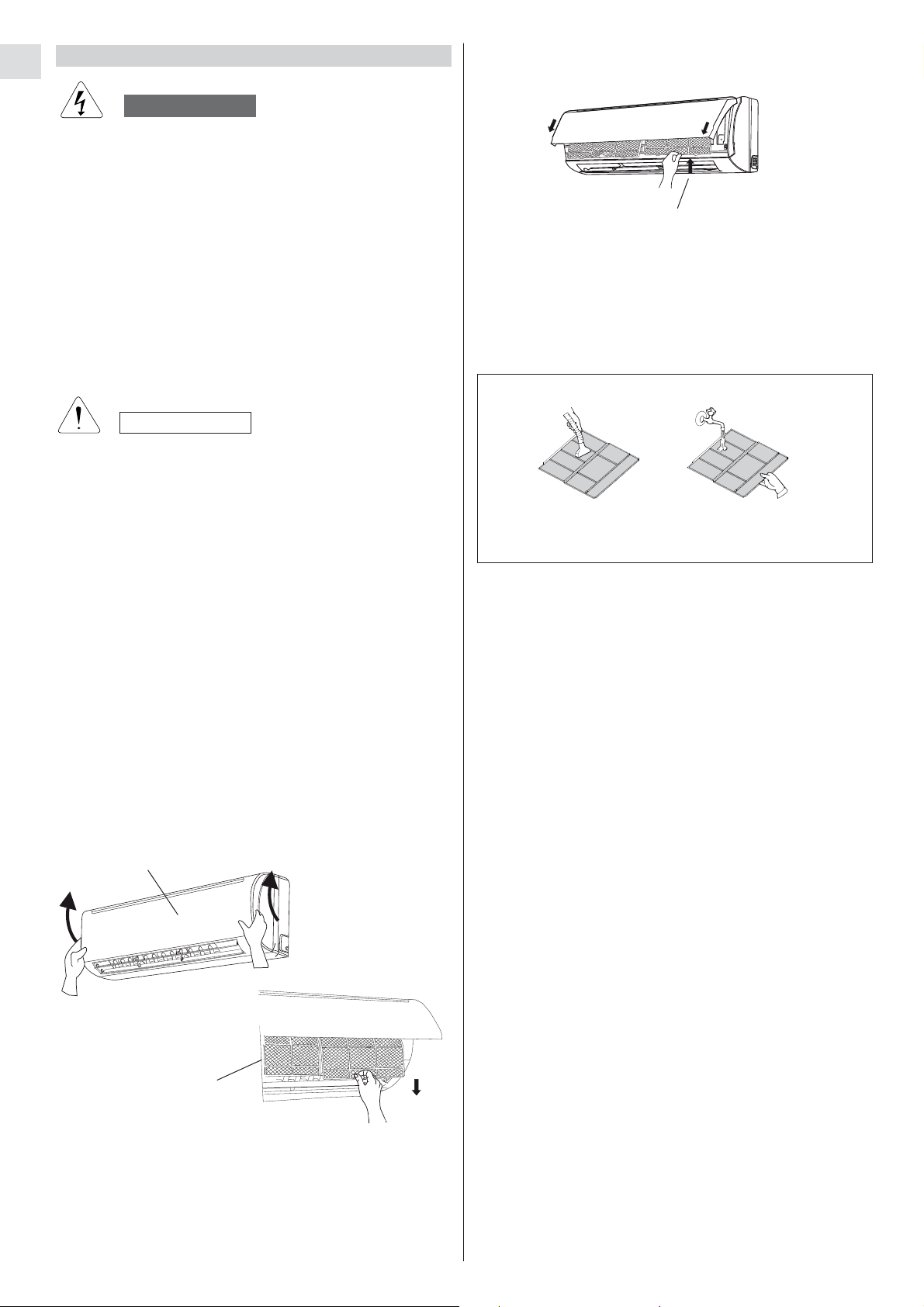

1. Grasp both ends of the front panel and pull it towards
you and up.
2. Push the filter up slightly, and then pull it down. Clean
the air filter.
AIR FILTER
The filter behind the front panel should be checked
and cleaned at least once every three months or more
frequently in case of excessive dust in the room.
Do not use fire or air dryer to dry the filter, to avoid
deformation or fire hazard.
HOW TO REPLACE THE FILTER
1. With the «FRONT» mark facing you, slide the filter up
into the unit and insert it in its place.
2. After installing the filter, close the front panel.
●Never use solvents, or harsh chemicals when cleaning
the indoor unit. Do not wipe the plastic casing using very
hot water.
●Some metal edges and the vanes are sharp and may
cause injury if handled improperly; be especially careful
when you clean these parts.
●The internal coil and other components of the outdoor
unit must be cleaned every year. Consult your dealer or
service centre.
CAUTION
CARE AND CLEANING
●Maintenance operations must be carried out by specially
trained personnel.
●For safety, be sure to turn the air conditioner off and also
to disconnect the power before cleaning.
●Do not pour water on the indoor unit to clean it. This will
damage the internal components and cause an electric
shock hazard.
WARNING
CASING AND GRILLE (INDOOR UNIT)
Clean the casing and grille of the indoor unit with a vacuum
cleaner brush, or wipe them with a clean, soft cloth.
If these parts are stained, use a clean cloth moistened with
a mild liquid detergent.
When cleaning the grille, be careful not to force the vanes
out of place.
HOW TO REMOVE THE FILTER
Front panel
Air filter
Insert into the groove on the unit

EN
19
TIPS FOR ENERGY SAVING
DO NOT:
●Block the air intake and outlet of the unit.
If they are obstructed, the unit will not work well, and
may be damaged.
●Let direct sunlight into the room. Use sunshades,
blind or curtain.
DO:
●Always try to keep the air filter clean. A clogged filter
will impair the performance of the unit.
●To prevent conditioned air from escaping, keep
windows, doors and any other openings closed.
TROUBLESHOOTING
If your air conditioner does not work properly, first check
the following points before requesting service.
If it still does not work properly, contact your dealer or
service centre.
Trouble: the air conditioner does not run at all.
Possible cause:
1. Power failure.
2. Leakage breaker tripped.
3. Operation button is OFF.
4. Batteries in remote control unit have run down.
Remedy:
1. Restore power.
2. Contact service centre.
3. Press the button again.
4. Replace batteries.
Trouble: Poor cooling or heating performance.
Possible cause:
1. Dirty or clogged air filters.
2. Heat source or many people in room.
3. Doors and/or windows are open.
4. Obstacle near air intake or air discharge port.
5. The set temperature on the remote control unit is too
high.
6. Outdoor temperature is too low (heat pump version).
7. Defrosting system does not work (heat pump version).
Remedy:
1. Clean air filters to improve airflow.
2. Eliminate heat source if possible.
3. Shut them to keep the heat or cold out.
4. Remove it to ensure good airflow.
5. Set the right temperature on the remote control unit.
6. Try to use a back-up heater.
7. Consult your dealer.
Trouble: Clicking sound is heard from the air conditioner.
Possible cause:
1. During operation, any plastic parts may expand or
shrink due to a sudden temperature change. In this
event, a clicking sound may occur.
Remedy:
1. This is normal, and the sound will disappear when an
even temperature is settled.
Trouble: “Water flowing” noise.
Possible cause:
1. Was the air conditioner just turned on or off?
Remedy:
1. Noise is produced by the refrigerant flowing inside the
unit (normal phenomenon).
WARNING
●In case abnormal operation of the air conditioner is
noticed, try to to restore normal operation turning-
off electric supply for about 3 minutes, through the
main switch or the wall plug, then start again the air
conditioner.

20
EN
20
ERROR POSSIBLE CAUSE SYSTEM BEHAVIOUR SOLUTION
E0
Unit has not been addressed correctly. Operating mode selected is not compatible with the system (ex. heating mode has been selected, when the system was in cooling mode, or vice versa).
Fan is stopped and flap is closed. The system restarts automatically as soon as the unit is addressed correctly. Fan is stopped and flap is closed. The system restarts automatically as soon as a correct operating mode is selected.
Set the outdoor/indoor unit refrigerant circuit address (see Installation Instructions) Select an available or compatible mode with the other units of the system.
E1
Error on the outdoor unit. Fan is stopped and flap is closed.
The system restarts automatically as soon as the problem on the outdoor unit is solved.
Check the error code using the appropriate LEDs on the PCB of the outdoor unit. Follow the indications of the diagnosis for the outdoor unit.
AUTO-DIAGNOSIS TABLE
