Argo X3I ECO PLUS27 SH LH Operating manual

USER and INSTALLATION MANUAL
Please read this manual carefully before installing and using the air conditioner, and
retain for future reference.
X3 ECO PLUS
MONO SPLIT
AIR CONDITIONERS
INDOOR UNIT OUTDOOR UNIT
X3I ECO PLUS 27 HL WF
X3I ECO PLUS 35 HL WF
USER and INSTALLATION MANUAL
Please read this manual carefully before installing and using the air conditioner, and
X3 ECO PLUS
LH
MONO SPLIT
AIR CONDITIONERS
–
R32
INDOOR UNIT OUTDOOR UNIT
LH X3I ECO PLUS27 SH LH
LH X3I ECO PLUS35 SH LH
V 04/2020
Please read this manual carefully before installing and using the air conditioner, and
R32

Contents
Information for use
The Refrigerant R32 50
Precautions for use 52
Description of components 54
Guide to the remote control and display
Remote control buttons 55
Getting to know the display icons 55
Getting to know the remote control buttons 56
Getting to know the button combination functions 61
Operating guide 62
Replacing the remote control batteries 62
WiFi guide 63
Emergency operation 72
Maintenance
Care and cleaning 73
Troubleshooting
Possible faults and solutions 74
Analysing faults and solutions 75
Installation instructions
Precautions for installation 78
Choosing a location for installation 79
Electrical connection requirements 79
Installation
Indoor unit installation 81
Outdoor unit installation 85
Vacuum pump 89
Post-installation checks 90
Testing and operation
Functional testing 90
Appendices
Piping configuration 90
Safety operation of flammable refrigerant 92
Procedure for extending the piping 93
INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN
DIRECTIVE 2012/19/EU
At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special
local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic
equipment separately avoids possible negative effects on the environment and human health deriving from an
inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy
and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a
crossed-out dustbin.

INFORMATION FOR USE
The Refrigerant R32
 To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
The refrigerant is the fluoride R32 = GWP (Global warming potential). This refrigerant is
flammable and inodorous. It can lead to explosions under certain conditions, however the
flammability of this refrigerant is very low and it can be ignited only by fire.
 Compared to other common refrigerants, R32 is a non-polluting refrigerant with no harm to
the ozonosphere and a lower effect upon the greenhouse effect. R32 has very good
thermodynamic features which lead to a really high energy efficiency. The units therefore
need less filling.
Warning:
Do not try to accelerate the defrosting process or to clean the appliance in different ways other than
those recommended by the manufacturer. Should repair be necessary, contact your nearest
authorized Argoclima After Sales Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance has to be stored in a room that doesn’t have any continuously
operating ignition sources. (for example: open flames, an operating gas appliance or an operating
electric heater.) Do not pierce or burn.
Appliance has to be installed, operated and stored in a room with a floor area larger than X m2.
(Please refer to table "a" in section of " Safety Operation of Inflammable Refrigerant" for Space X.)
For repairs, strictly follow manufacturer’s instructions only for appliances filled with R32 flammable
gas. Be aware that refrigerants do not have any odour.
Appliance filled with flammable gas R32.
Before using the appliance, read the owner’s manual.
Before installing the appliance, read the installation manual.
Before repairing the appliance, read the service manual.

V 04/20 51
DISCLAIMER CLAUSES
The manufacturer assumes no responsibility for personal injury or loss of
product characteristics caused (after appropriate verification) by:
1. Improper use of the product;
2. Modifications to the product made with equipment other than those indicated
in the manufacturer's instruction manual
3. Product defects caused directly by corrosive gas;
4. Defects due to improper transport of the product;
5. Installation, maintenance or repair operations carried out without complying
with the instruction manual or the related regulations;
6. Problems caused by quality or performance specifications of parts and
components produced by other manufacturers;
7. Damage from natural disasters or force majeure.
To install, move or maintain the air conditioner, contact an installer or the
authorized service center, equipped with the necessary license to operate on
the refrigerants.
The air conditioner must be installed, moved or maintained by personnel with
the necessary authorizations.
Failure to do so could result in serious injury, personal injury or death.

V 04/20 52
INFORMATION FOR USE
Precautions for use
WARNING

This product is not a toy. Children of less than 3 years should be
kept away unless continuously supervised.
 This device is not intended for persons (including children aged
from 8 years and above) with reduced physical, sensory or mental
capabilities, or without the necessary experience and knowledge,
unless they have received the necessary supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
 Children of less than 3 years must be kept away, if not properly
supervised.
 Children aged from 3 and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed
in its intended normal operating position and they have been
given instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from 3 years
and less than 8 years shall not plug in, regulate and clean the
appliance or perform user maintenance.
 Cleaning and maintenance of the unit must not be performed by
children without supervision.
 To prevent the risk of fire, do not connect the air conditioner to a
multifunction socket.
 Always disconnect the power before servicing or cleaning the unit.
 To prevent the risk of electric shock or malfunction, do not spray
water on the indoor unit.
 Do not spill water on the remote control.
 To prevent the risk of electrical shock or damage, do not attempt
to repair the air conditioner yourself. After performing the checks
in the troubleshooting section, contact an authorised service
centre.
 Do not obstruct the inlet or outlet. Otherwise, a fault may occur.
 Contact a qualified technician if it is necessary to move the air
conditioner to another location.
 Do not climb on or place heavy objects on the top panel of the
outdoor unit. Otherwise, there is a risk of damage or personal
injury.
 Do not put fingers or other objects in the air inlet/outlet grilles.

V 04/20 53
Otherwise, there is a risk of damage or personal injury.
 The air conditioner must be properly earthed. Improper earthing
can cause electrical shock.
 Always install a circuit breaker. Otherwise, a fault may occur.
 The unit must be installed and serviced by a qualified technician.
Otherwise, there is a risk of damage or personal injury.
 Frequency band(s) in which the radio equipment operates
2400MHz-2483.5MHz.
 Maximum radio-frequency power transmitted in the frequency
band(s) in which the radio equipment operates: 20dBm.
WARNING

In case of smoke or burning
smell, turn off the power supply
and contact the service center.
If the problem persists, the unit
could be damaged and cause
electrical shock or fire.

It is necessary that power supply
adopts the special circuit with
protection through an air switch
and ensure it has sufficient
capacity . The unit switches on
or off automatically according to
user needs: do not turn on or
turn off the device frequently
otherwise it could suffer harmful
effects.

Do not cut or damage the power
cords and control cables. If the
power cable and the cable of the
control signal are damaged, they
must be replaced by a
professional technician.

The power supply must be
equipped with a special circuit to
prevent fire.
Otherwise, it may result in fire or
electric shock.

Disconnect the power supply if
the air conditioner is not used for
a long time
Otherwise, the accumulation of
dust can cause overheating.

Do not damage the power cord
or use an unauthorized cable.
Otherwise, it may cause
overheating or fire.

When cleaning the unit, stop
operation and turn off the power.
Otherwise, may occur electric
shock or damage.

The voltage rating of this product
is 220 - 240V, 50Hz. The
compressor vibrates strongly if
the voltage is too low, causing
damage to the cooling system.
The electrical components are
easily damaged if the voltage is
too high.

Do not attempt to repair the air
conditioner yourself.
An improper repair can cause
fire or electric shock. For this
reason, it is advisable to contact
a service center for repairs.

Check if the installed media is
sufficiently stable.
If damaged, it can cause the
equipment to fall and cause
injury.

Do not climb on the outdoor unit
or place anything on it.
The falling of the outdoor unit
can be dangerous

Earthing: The unit must be
properly grounded. The cable
grounding must be connected
with the appropriate device in
the building.
Operating limits
Operating range:
Cooling mode: from -15°C to +43°C (outdoor temperature)

Heating mode: from -22
°C to +24°C (outdoor temperature)
Description of components
Indoor unit
Outdoor unit
°C to +24°C (outdoor temperature)
Description of components
remote control
DISPLAY

V 04/20 55
GUIDE TO THE REMOTE CONTROL AND DISPLAY
Remote control buttons
Getting to know the display icons

V 04/20 56
Getting to know the remote control buttons
N.B.:
 When you connect the power, the air conditioner will emit a beep. The power indicator will
illuminate (red). You will now be able to control the air conditioner with the remote control.
 With unit on, when you press the ON/OFF button on the remote control, the icon on the remote
control display will flash once and the air conditioner will emit a beep. This means that the signal
has been sent to the unit.When the unit is on, the icons for the set functions will appear on the
display.
 This remote control can control the temperature in Auto mode.
 If the air conditioner is equipped with WIFI or wired control, you must first control the unit in Auto
mode with the standard remote control and then you can connect it to the app and set the
temperature in Auto mode via smart-phone or wired control.
 If the remote control is combined with a unit that can’t control the temperature in Auto mode, the
temperature set in this mode may not be valid or the temperature shown on the unit display may
not match that shown on the remote control's display in Auto mode.
1. ON/OFF button
Press the ON/OFF button to turn the air conditioner on or off. When you turn on the air
conditioner, the power indicator on the indoor unit's display will illuminate (green). The
colour varies for different models. The indoor unit will emit a beep.

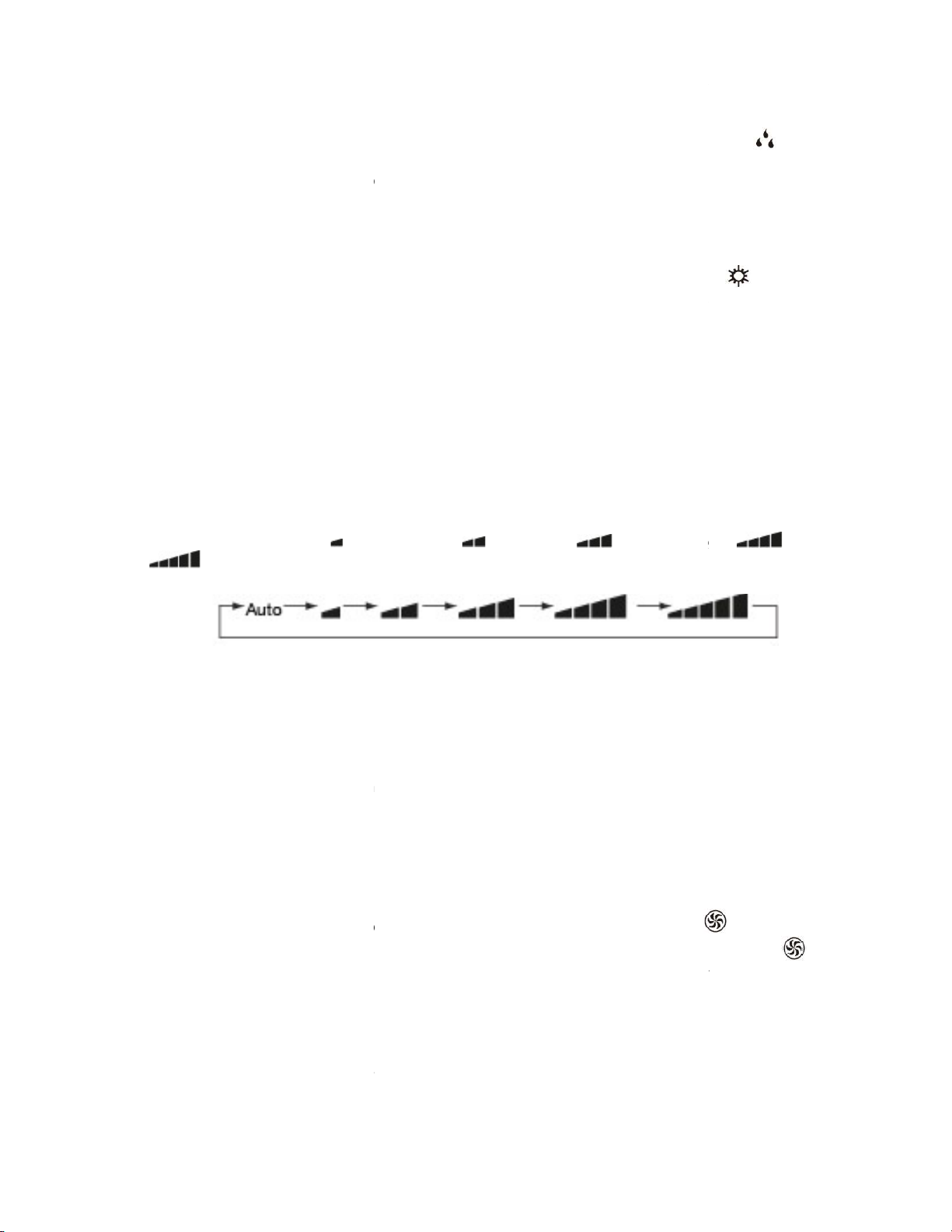

2. MODE button
Press this button to select the desired operating mode.
 When you select automatic mode, the air conditioner will operate automatically according to the
factory settings. The set temperature cannot be adjusted and will not be displayed. Pressing the
"FAN" button will allow you to adjust the fan speed. Pressing the "SWING" button will allow you to
adjust the angle of airflow.


When you select cool mode, the air conditioner will run in cool mode. The
illuminate on the displ
ay. Press "
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.

When you select dry mode, the air conditioner will run at low speed in dry mode.
will illuminate on the display. The fan speed cannot be adjusted in this mode. Pressing the
"SWING" button will allow you to adjust the angle of airflow.

When you select fan mode, the air conditioner will operate only the fan, blowing air
or heating. All the indicators will switch off. Press the "FAN" button to adjust the fan speed.
Pressing the "SWING" button will allow you to adjust the angle of airflow.

When you select heat mode, the air conditioner will run in heat mode
illuminate on the display. Press "
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.
N.B.:
To prevent blasts of cold air
from being blown into the room, there will be a delay of 1
after selecting heat mode before operation begins. (The actual delay will depend on the indoor
ambient temperature).
The temperature can be set between 16
low, medium and high.
3. FAN button
Pressing this button will allow you to cycle through and set the fan speed:
automatic (AUTO), Low (
), Low
).
N.B.:
The fan speed in
dehumidification mode is low.
Pressing the ventilation speed button for 2 seconds in Cooling or Dehumidification mode
activates the X-
FAN function and the icon appears on the remote control: the unit will continue to
ventilate for a few minutes, even after
thus preventing the formation of mold. This function is not available in Auto, Ventilation or
Heating mode.
If the X-
FAN function has been selected: after turning off the unit with the ON / OF
indoor unit fan will continue to run for a few minutes at low speed. During this time, press the
FAN key for 2 seconds to stop the fan.
If the X-
FAN function is not selected, when the air conditioner is switched off by pressing the ON /
OFF b
utton, the fan goes off together with the unit.
4. TURBO button
In cool/heat mode, press this button to switch to rapid cool/heat mode. The
on the remote control display. Press this button again to exit the TURBO function. The
will disappear from the display.
cool or heat quickly so that the ambient temperature approaches the pre
as possible.
5. ▲/ ▼ button
Press "▲" or "▼" once
to increase or decrease the set temperature by 1°C. Press and hold "
or "
▼" for 2 seconds to rapidly adjust the set temperature on the remote control. When set
complete, release the button and the indoor unit's temperature indicator will change acc
(The temperature cannot be adjusted in automatic mode).
When you select cool mode, the air conditioner will run in cool mode. The
ay. Press "
▲" or "▼" to adjust the set temperature. Press the "FAN" button
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.
When you select dry mode, the air conditioner will run at low speed in dry mode.
will illuminate on the display. The fan speed cannot be adjusted in this mode. Pressing the
"SWING" button will allow you to adjust the angle of airflow.
When you select fan mode, the air conditioner will operate only the fan, blowing air
or heating. All the indicators will switch off. Press the "FAN" button to adjust the fan speed.
Pressing the "SWING" button will allow you to adjust the angle of airflow.
When you select heat mode, the air conditioner will run in heat mode
. The
illuminate on the display. Press "
▲" or "▼" to adjust the set temperature. Press the "FAN" button
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.
from being blown into the room, there will be a delay of 1
after selecting heat mode before operation begins. (The actual delay will depend on the indoor
The temperature can be set between 16
– 30°C and four fan speeds a
re available: automatic,
Pressing this button will allow you to cycle through and set the fan speed:
), Low
-medium( ) Medium ( ), Medium-
high (
dehumidification mode is low.
Pressing the ventilation speed button for 2 seconds in Cooling or Dehumidification mode
FAN function and the icon appears on the remote control: the unit will continue to
ventilate for a few minutes, even after
switching off the unit, to dry the battery of the indoor unit,
thus preventing the formation of mold. This function is not available in Auto, Ventilation or
FAN function has been selected: after turning off the unit with the ON / OF
indoor unit fan will continue to run for a few minutes at low speed. During this time, press the
FAN key for 2 seconds to stop the fan.
FAN function is not selected, when the air conditioner is switched off by pressing the ON /
utton, the fan goes off together with the unit.
In cool/heat mode, press this button to switch to rapid cool/heat mode. The
on the remote control display. Press this button again to exit the TURBO function. The
will disappear from the display.
I
f start this function, the unit will run at super
cool or heat quickly so that the ambient temperature approaches the pre
-
set temperature as soon
to increase or decrease the set temperature by 1°C. Press and hold "
▼" for 2 seconds to rapidly adjust the set temperature on the remote control. When set
complete, release the button and the indoor unit's temperature indicator will change acc
(The temperature cannot be adjusted in automatic mode).
When you select cool mode, the air conditioner will run in cool mode. The
 indicator will
▲" or "▼" to adjust the set temperature. Press the "FAN" button
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.
When you select dry mode, the air conditioner will run at low speed in dry mode.
The indicator
will illuminate on the display. The fan speed cannot be adjusted in this mode. Pressing the
When you select fan mode, the air conditioner will operate only the fan, blowing air
without cooling
or heating. All the indicators will switch off. Press the "FAN" button to adjust the fan speed.
. The
indicator will
▲" or "▼" to adjust the set temperature. Press the "FAN" button
to adjust the fan speed. Pressing the "SWING" button will allow you to adjust the angle of airflow.
from being blown into the room, there will be a delay of 1
– 5 minutes
after selecting heat mode before operation begins. (The actual delay will depend on the indoor
re available: automatic,
high (
), High (
Pressing the ventilation speed button for 2 seconds in Cooling or Dehumidification mode
FAN function and the icon appears on the remote control: the unit will continue to
switching off the unit, to dry the battery of the indoor unit,
thus preventing the formation of mold. This function is not available in Auto, Ventilation or
FAN function has been selected: after turning off the unit with the ON / OF
F button, the
indoor unit fan will continue to run for a few minutes at low speed. During this time, press the
FAN function is not selected, when the air conditioner is switched off by pressing the ON /
icon will appear
on the remote control display. Press this button again to exit the TURBO function. The
icon
f start this function, the unit will run at super
-high fan speed to
set temperature as soon
to increase or decrease the set temperature by 1°C. Press and hold "
▲"
▼" for 2 seconds to rapidly adjust the set temperature on the remote control. When set
-up is
complete, release the button and the indoor unit's temperature indicator will change acc
ordingly.

When setting the TIMER ON, TIMER OFF or CLOCK, press "
(Please refer to the relevant sections for the CLOCK, TIMER ON and TIMER OFF buttons).
6. SWING (Horizontal)
button
Press this button to set the angle of inclination of the flap to the left and right. The flow outlet
angle can be set circularly, according to the sequence shown below:
Note:
• Keeping this button pressed for more than 2 seconds the flap wi
leaving the key the flap will stop and the current position of the flap will be maintained.
• In the SWING mode, when switching from off to this mode, if you press the button again
after 2 sec.
has elapsed, the unit will go directly off; if instead the key is pressed a second
time before 2 sec.
has passed, the change in the position of the flap will follow the sequence
illustrated above.
7. SWING (vertical) button
Press this button to set th
e swing angle (up/down). You can cycle through and set the fan's angle
of airflow as shown below:
 When you select
, the air conditioner will operate the fan automatically. The horizontal flap will
automatically tilt up and down to the maximum angle.
 When you select
The horizontal flap will stop in a fixed position.
 When you select
, the air conditioner will operate the fan at a fixed angle. The
horizontal flap will deliver air at a fixe
 Hold and press the
button for 2 seconds to set the desired tilt angle. Release the button once
you have reached the desired angle.
N.B.:

may not be available. When the air conditioner receives this signal, the fan will start
operating in automatic mode.
8. SLEEP button
By pressing this button you can select Sleep 1, Sleep 2, Sleep 3 and cancel the Sleep function.
- SLEEP 1
works in cooling and dehumidification mode: after one hour of unit operation, the
temperature will increase by 1°C, after 2 hours it will increase by 2°C; in heating mode, after one
hour of unit operation, the temperature will decrease by 1°C and after tw
2°C.
- SLEEP 2
the air conditioning operates on the basis of pre
In cooling mode:
no display
(horizontal louvers stops
at current position)
When setting the TIMER ON, TIMER OFF or CLOCK, press "
▲" or "▼" to adjust the time.
(Please refer to the relevant sections for the CLOCK, TIMER ON and TIMER OFF buttons).
button
Press this button to set the angle of inclination of the flap to the left and right. The flow outlet
angle can be set circularly, according to the sequence shown below:
• Keeping this button pressed for more than 2 seconds the flap wi
ll swing to the left and right;
leaving the key the flap will stop and the current position of the flap will be maintained.
• In the SWING mode, when switching from off to this mode, if you press the button again
has elapsed, the unit will go directly off; if instead the key is pressed a second
has passed, the change in the position of the flap will follow the sequence
e swing angle (up/down). You can cycle through and set the fan's angle
, the air conditioner will operate the fan automatically. The horizontal flap will
automatically tilt up and down to the maximum angle.
, the air conditioner will operate the fan in a fixed position.
The horizontal flap will stop in a fixed position.
, the air conditioner will operate the fan at a fixed angle. The
horizontal flap will deliver air at a fixe
d angle.
button for 2 seconds to set the desired tilt angle. Release the button once
you have reached the desired angle.
may not be available. When the air conditioner receives this signal, the fan will start
By pressing this button you can select Sleep 1, Sleep 2, Sleep 3 and cancel the Sleep function.
works in cooling and dehumidification mode: after one hour of unit operation, the
temperature will increase by 1°C, after 2 hours it will increase by 2°C; in heating mode, after one
hour of unit operation, the temperature will decrease by 1°C and after tw
o hours will decrease by
the air conditioning operates on the basis of pre
-
set temperature curves.
no display
(horizontal louvers stops
at current position)
▲" or "▼" to adjust the time.
(Please refer to the relevant sections for the CLOCK, TIMER ON and TIMER OFF buttons).
Press this button to set the angle of inclination of the flap to the left and right. The flow outlet
ll swing to the left and right;
leaving the key the flap will stop and the current position of the flap will be maintained.
• In the SWING mode, when switching from off to this mode, if you press the button again
has elapsed, the unit will go directly off; if instead the key is pressed a second
has passed, the change in the position of the flap will follow the sequence
e swing angle (up/down). You can cycle through and set the fan's angle
, the air conditioner will operate the fan automatically. The horizontal flap will
, the air conditioner will operate the fan in a fixed position.
, the air conditioner will operate the fan at a fixed angle. The
button for 2 seconds to set the desired tilt angle. Release the button once
may not be available. When the air conditioner receives this signal, the fan will start
By pressing this button you can select Sleep 1, Sleep 2, Sleep 3 and cancel the Sleep function.
works in cooling and dehumidification mode: after one hour of unit operation, the
temperature will increase by 1°C, after 2 hours it will increase by 2°C; in heating mode, after one
o hours will decrease by
set temperature curves.

V 04/20 59
1. When the initial temperature is set to 16°C-23°C, after activating the Sleep function, the
temperature will increase by 1°C every hour, after three hours the temperature will stabilize, after
7 hours the temperature will decrease by 1°C and the unit will start working constantly.
2. When the initial temperature is set to 24°C-27°C, after activating the Sleep function, the
temperature will increase by 1°C every hour, after two hours the temperature will stabilize, after
7 hours the temperature will decrease by 1°C and the unit will start working constantly.
In heating mode:
1. When the initial temperature is set to 17°C-20°C, after activating the Sleep function, the
temperature will decrease by 1°C every hour, after one hour the temperature will decrease and
the unit will maintain this constant temperature.
2. When the initial temperature is set to 21°C-27°C, after activating the Sleep function, the
temperature will decrease by 1°C every hour, after two hours the temperature will decrease and
the unit will maintain this constant temperature.
3. When the initial temperature is set to 28°C-30°C, after activating the Sleep function, the
temperature will decrease by 1°C every hour, after three hours the temperature will decrease
and the unit will maintain this constant temperature.
- SLEEP 3: it is possible to customize the sleep curve: in this mode, keep the "TURBO" key
pressed for a long time to access the setting of the CUSTOM SLEEP function.
1. The remote control timer display shows "1 hr" and the set temperature indication "88" displays
the corresponding temperature of the last set sleep curve and flashes (the first data item is
linked to the initial values of the curve set in factory).
2. Press "▲" and "▼" to adjust the corresponding temperature. After adjustment, press the
"TURBO" key to confirm.
3. At this point, the time of the timer on the remote control increases automatically in steps of 1
(ie "2 hr" or "3 hr" ... or "8 hr"). The set temperature indication "88" displays the corresponding
temperature of the last set sleep curve and flashes.
4. Repeat steps (2) and (3) until the temperature setting is complete for 8 hours; at this point the
sleep curve is set correctly. When this operation is completed, the remote control resumes
displaying the time of the initial timer and the temperature displayed is the one initially set.
9. I FEEL function
Press this button to start the I FEEL function. The icon will appear on the remote control
display. When you select this function, the remote control will send the detected ambient
temperature to the indoor unit, which will then adjust its operation automatically based on the
difference between the detected temperature and the set temperature.
Press the button again to exit the I FEEL function. The icon will disappear from the display.
The remote control should be positioned near the user when this function is selected. The
remote control should not be placed anywhere high or low temperatures may occur to
avoid inaccurate ambient temperature detection.
Place the remote control near the user when this function is set. Do not place the remote control
near high or low temperature objects to avoid an inaccurate ambient temperature. Position the
remote control where the indoor unit can receive the remote control signal.
10. TIMER ON / TIMER OFF button
SETTING TIMER ON

V 04/20 60
This function allows you to program the air conditioner to turn on. When you press this button, the
icon will disappear from the display and the word "ON" will flash on the remote control display.
Press "▲" or "▼" to adjust the TIMER ON setting.
Press and hold "▲" or "▼" for 2 seconds to rapidly change the time until you reach the desired
value. Press TIMER ON to confirm. The word "ON" will stop flashing. The icon will re-appear
on the display.
CANCELLING TIMER ON
If the TIMER ON function is enabled, press the TIMER ON button to cancel the setting.
SETTING TIMER OFF
This function allows you to program the air conditioner to turn off. When you press this button, the
icon will disappear from the display and the word "OFF" will flash on the remote control display.
Press "▲" or "▼" to adjust the TIMER OFF setting. Press and hold "▲" or "▼" for 2 seconds to
rapidly change the time until you reach the desired value. Press "TIMER OFF". The word "OFF"
will stop flashing. The icon will re-appear on the display.
CANCELLING TIMER OFF
If the TIMER OFF function is enabled, press the TIMER OFF button to cancel the setting.
N.B.:
• You can set the TIMER ON and TIMER OFF function in OFF and ON mode.
• Before you set the TIMER ON or TIMER OFF function, set the clock.
• When the TIMER ON or TIMER OFF function is enabled, the air conditioner will turn on or off
according to the set time. Turning the air conditioner ON/OFF will not affect the setting.
11. CLOCK button
Press this button to set the clock. The icon will flash on the remote control display. Press "▲"
or "▼" within 5 seconds to set the clock. Each time you press "▲" or "▼", the clock will increase
or decrease by 1 minute. Press and hold "▲" or "▼" for 2 seconds to rapidly change the time.
Release the button when you reach the desired time. Press "CLOCK" to confirm the time. The
icon will stop flashing.
N.B.:
• The time displays in the 24-hour clock format.
• If no adjustment is made for 5 seconds the remote control will exit the setting mode. This also
applies to the TIMER ON/OFF function.
12. QUIET button
1. When the Quiet function is selected, the symbol will appear on the display .
2. In cooling mode the internal fan works with 4 steps of speed; 10 minutes later or when the
indoor temperature is ≤28°C, the internal fan will operate at step 2 or in quiet mode, ie in
accordance with a comparison between the internal temperature of the environment and the set
temperature.
3. In heating mode the internal fan operates with step 3 of speed or in quiet mode, ie in
accordance with a comparison between the internal temperature of the room and the set
temperature.
4. In the dehumidification and ventilation mode the internal fan operates in quiet mode.
5. In auto mode the internal fan operates in auto quiet mode according to the current modes:
cooling, heating and ventilation.
13. Wi-Fi button
Press this button to start the Wi-Fi function. When the Wi-Fi function is active, the "Wi-Fi" icon will
appear on the remote control display.
To turn on WiFi：Press " WiFi " button to turn on WiFi function.
To turn off WiFi：Hold " WiFi " button for 5s to turn off WiFi function
When the remote control is off, press and hold the "Mode" button and the "Wi-Fi" button
simultaneously for 1 sec to return to the factory settings.

V 04/20 61
14. LIGHT button
Press this button to turn off the indoor unit's display light. The icon will disappear from the
remote control display. Press this button again to turn on the display light. The icon will
appear on the display.
15. HEALTH/SCAVENGING button
The HEALTHY function means that cold plasma kills bacteria, removes odors and releases
negative oxygen ions.
The SCAVENGING or purification function means active external / internal ventilation to exhaust
the air drawn in by the environment and to introduce fresh air.
Press this button once to start the air purification function: the symbol appears on the display..
Press the button a second time to start the purification and sanitizing function at the same time,
symbols and appear.
Press the button for the third time to turn off both functions.
Press the button the fourth time to start the sanitizing function, appears .
Press this button again to repeat the operations listed above.
16. TEMP button
Pressing this button will allow you to display the set temperature, the indoor ambient
temperature, or the outdoor ambient temperature on the indoor unit's display. You can cycle
through the settings on the remote control display as shown below:
• When you select or “no display” with the remote control, the set temperature will appear
on the indoor unit's display.
• When you select with the remote control, the indoor ambient temperature will appear on
the indoor unit's display.
• When you select with the remote control, the outdoor ambient temperature will appear on
the indoor unit's display.
N.B.:
• It is not possible to display the outdoor ambient temperature on all models. The indoor unit
will receive the signal but will display the set temperature.
• The set temperature will appear on the unit's display on start-up, if enabled to do so.
• When you select to display the indoor or outdoor ambient temperature, the indoor unit will
display the corresponding temperature for three to five seconds, after which it will
automatically revert to displaying the set temperature.
Getting to know the button combination functions
Energy saving function
In cool mode, press the TEMP and CLOCK buttons simultaneously to start or stop the energy
saving function. When you start the energy saving function, "SE" will appear on the remote control
display and the air conditioner will automatically adjust the set temperature according to the factory
settings to achieve the best energy-saving effect. Press TEMP and CLOCK again simultaneously
to exit the energy saving function.
N.B.:
• When the energy saving function is enabled, the fan will operate at the default automatic speed
and cannot be adjusted.
• When the energy saving function is enabled, the set temperature cannot be adjusted. The remote
control will not send a signal to the unit when the TURBO button is pressed.
no display

V 04/20 62
 The SLEEP and energy saving functions cannot operate simultaneously. If the energy saving
function was set in cool mode, press the SLEEP button to cancel it. If the SLEEP function was set
in cool mode, start the energy saving function to cancel it.
8°C heating function
In cool mode, press the TEMP and CLOCK buttons simultaneously to start or stop the 8°C heating
function. When this function is enabled, and 8°C will appear on the remote control display and
the air conditioner will continue to operate at 8°C. Press TEMP and CLOCK again simultaneously
to exit the 8°C heating function.
N.B.:
• When the 8°C heating function is enabled, the fan will operate at the default automatic speed and
cannot be adjusted. The remote control will not send a signal to the unit when the TURBO button
is pressed.
The SLEEP and 8°C heating functions cannot operate simultaneously. If the 8°C heating function
was set in cool mode, pressing the SLEEP button will cancel it. If the SLEEP function was set in
cool mode, starting the 8°C heating function will cancel it.
• When the temperature display is in °F, the remote control will show that the unit is operating at
46°F.
Remote control button lock function
Press "▲" and "▼" simultaneously to enable or disable the remote control button lock function.
When this function is enabled, will appear on the remote control display. If you attempt to
operate the remote control, the icon will flash three times and no signal will be sent to the unit.
Switching temperature display
In OFF mode, press the "▼" and "MODE" buttons simultaneously to switch from a temperature
display in °C to °F.
Operating guide
1. When you connect the power, press the "ON/OFF" button on the remote control to turn the air
conditioner on.
2. Press the MODE button to select the desired operating mode: AUTO, COOL, DRY, FAN or
HEAT.
3. Press "▲" or "▼" to adjust the desired temperature. (The temperature cannot be adjusted in
automatic mode.)
4. Press the "FAN" button to set the desired fan speed: automatic, low, medium or high.
5. Press the "SWING" button to adjust the fan's angle of airflow.
Replacing the remote control batteries
1. Use AAA – LR03 1.5V batteries, conforming to Battery
Directive no. 2006/66/EC and modification by Dir.no
2013/56/EU
2. Remove the battery compartment cover, marked with
(see image to right), by sliding it in the direction of
the arrow.
3. Use only two AAA – LR03 1.5V batteries. Make sure
the + and – ends are facing the correct direction.
4. Slide the battery compartment cover back into place.
N.B.:
 When the unit is operating, point the remote control's signal transmitter at the indoor unit's
receiver.
signal sender battery
Cover of battery box
remove
reinstall

 The distance between the transmitter and the receiver must not exceed 8 metres and should
remain free of obstacles.
 If the room contains a fluorescent light or cordless telephone, signal interference is likely to
occur.
 When the remote control is not used for a month or more, remove the batteries.
 Use batteries of the same type when replacing the batteries, as necessary.
 If the icons on the remote control display are blurred or not visible, replace the batteries.
 Do not attempt to recharge the batteries. Replace both batteries at the same time.
 Do not throw batteries into fire; they may explode.
WIFI GUIDE
How to operate the air conditioner with Wifi
1. Make sure that the device (smartphone or Tablet) used is equipped with a standard version of
Android (version 4.4 or higher) and iOS (iOS7.0 or higher) as the operating system. For more details
refer to the App.
2. Units can be connected and controlled only via Wi-Fi network or via Hotspot function.
3. Routers with WEP encryption are not supported.
4. The application interface is universal for all products and many features may not match for all
units. It may vary depending on the operating system used or the update in use. Refer to the current
version.
Installation and use instruction
1. Frame the QR Code using aQR Code Reader
or search for the "EWPE SMART" application in the app store
INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2006/66/EC AND MODIFICATIONS BY DIRECTIVE NO. 56/2013/EU
Replace batteries when they are depleted. At the end of their life, batteries must be disposed of separately from unsorted
waste. They must be taken to designated recycling centres or returned to a retailer providing this service. Separate disposal
of batteries helps to reduce the potential harmful effects on the environment and human health caused by their improper
disposal and also enables the recovery and recycling of component materials, saving significant energy and resources. The
requirement for separate disposal is indicated by the crossed-out wheelie bin label affixed to the appliance. Illegal disposal of
the product by the user is subject to administrative penalties as per current regulations.

V 04/20 64
download and install the application.
Install the App by referring to its guide. Once the installation is complete, the icon
appears on the smartphone's home page.
2. After installing the application, open "EWPE SMART" and click Sign up to register:
Please use as your account a name not common, adding for instance some numbers.
3. Access

V 04/20 65
In addition to accessing from the quick interface, you can also access the homepage by
clicking on the profile image in the upper left corner.
4. Adding units
Press + in the upper right corner of the homepage to add a unit.After choosing "AC", you can
choose different unit reset systems depending on the type of system.
"EWPE SMART" will provide the operating instructions according to the selected reset
system.
Electrically reset the selected unit (following the instructions on "EWPE
SMART" APP) and click on Next to add the unit automatically (you
need to enter the Wi-Fi password).

V 04/20 66
TOUCH
CONTROL
PANEL
Press the button on the touch panel.
With the unit off, press and hold the "Wifi"
button for 10 seconds. When the unit beeps,
it means that the reset was successful.
REMOTE CONTROL WITH WIFI BUTTON
Direct the remote control towards the unit.
With the remote control off, press the
"Mode" + "Wifi" buttons simultaneously for
10 seconds. When the unit beeps, it means
that the reset was successful.
The configuration is carried out within 2
minutes. If it does not happen within 2
minutes, repeat the reset operation.
REMOTE CONTROL WITHOUT WIFI BUTTON
(MODE and TURBO)
Direct the remote control towards the unit.
Press the "Mode" + "Turbo" buttons
simultaneously and the unit will immediately
beep and another beep after 10 seconds.
Remove the power supply (plug) for at least 10
seconds and then reinsert it after another 3
seconds.
.
Alternatively, after setting and resetting the air conditioner, click on Add appliance manually in the
upper right corner to select the Wi-Fi network to associate. Select the desired network and continue
the configuration.
After performing the electrical reset of the unit and entering the information, perform a search for
the unit (Search appliance) and continue the configuration.

V 04/20 67
Configuration of the main functions
In the Homepage click on the device you wish to control and access the operating interface of it.
1. Select, operating mode, temperature and fan speed.
