Argo X3I AS52HL Guide

Models:
X3I AS35HL
X3I AS52HL
Thank you for choosing Air Conditioners, please read this owner’s manual carefully before operation
and retain it for future reference. If you have lost the Owner’s Manual, please visit www.argoclima.com
X3 Multisplit DCI
Cassette type indoor units
V 06/2017
User & Installation Manual

User Notice
When operating, the entire capacity of the cooperating indoor unit should be not
larger than 150% of outdoor unit. Otherwise, it will cause the shortage of cooling
(heating) capacity.
The total capacityof the indoor units which runs at the same time can not exceed
150% of that of the outdoor units, otherwise, the cooling (heating) effect of each
indoor unit would be poor.
Switch the main power on 8 hours beforestarting the unit, helpful for a successful
startup.
A Breaker (or fuse) need to be installed in every indoor unit, and the capacity
should in according with indoor unit’s electrical parameter; all the indoor units are
required to be centralized controlled by a total Switch, this Switch can cut off the
electric power supplyin case of emergency. The Breaker (or fuse) on each indoor
units have the function ofshort circuit prevention and abnormal overload avoiding,
it should be connected in normal situation. The total switch controlling the power
supply of all the indoor units. Before clearing and maintenance job being carried
out to the indoor units, it is veryimportant to turn off the total power supplyswitch.
In order to turn on the units successfully, the main powerswitchshould beopened
8 hours before the operation.
After receiving the turn off signal, every indoor unit will continue to work for
20-70sec to make useof the rest cool airor the rest heat airin the heat exchanger,
while preparing for the next operation. And this is normal.
When the selected operating mode of the indoor unit are clash with the operating
mode of the outdoor unit, the malfunction light will blink after 5s on the indoor unit
or remote controllershowing that the operation clash, then the indoor unit willstop.
At this time, change the operation mode of the indoor unit to the one that would
not clash with the outdoor operating mode to make the operation normal. The
cooling mode is not clash with the dry mode, while the fan mode is not clash with
anymode.
The appliance shall not be installed in the laundry
An all-pole disconnection switch having a contactseparation of at least 3mm in all
poles should be connected in fixed wiring
Information regarding transport/storage temperature (-25-55°C) is missing

Main switch provided byend user: main switch handle should be black or gray, it
can be locked in “OFF” position with padlock
The main disconnection deviceshouldbe explainedin usermanual and the height
should be recommended at 0.6-1.7m. Over current protection is required(EN
60947-3, EN 60947-2)
The cooling range of the unit is the outdoor environment temp.-5~48°C DB, the
heating range of the unit ( only for the heat pump type unit) is the outdoor
environment temp. -15~27°C WB.
This appliance can be used bychildren aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
notplaywith the appliance. Cleaning and usermaintenanceshall not be made by
children without supervision.
If the supplycord is damaged, it must be replaced bythe manufacturer, its service
agent orsimilarlyqualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the
return and collection systems or contact the retailer where the
product was purchased. They can take this product for
environmental safe recycling.
R410A(R32/125:50/50):2087.5

Contents
1 Safety Information.................................................................................1
2 Install of The Cassette Type Indoor Unit................................................2
2.1 Schematic diagram of installation spaces ...................................................................2
2.2 Select install location of the indoor unit.......................................................................2
2.3 Important notice...............................................................................................................3
2.4 Dimension of ceiling opening and location of the hoistingscrew (M10).................4
2.5 Main bodyof hoisting air conditioner............................................................................5
2.6 Connection of the refrigerant pipe................................................................................6

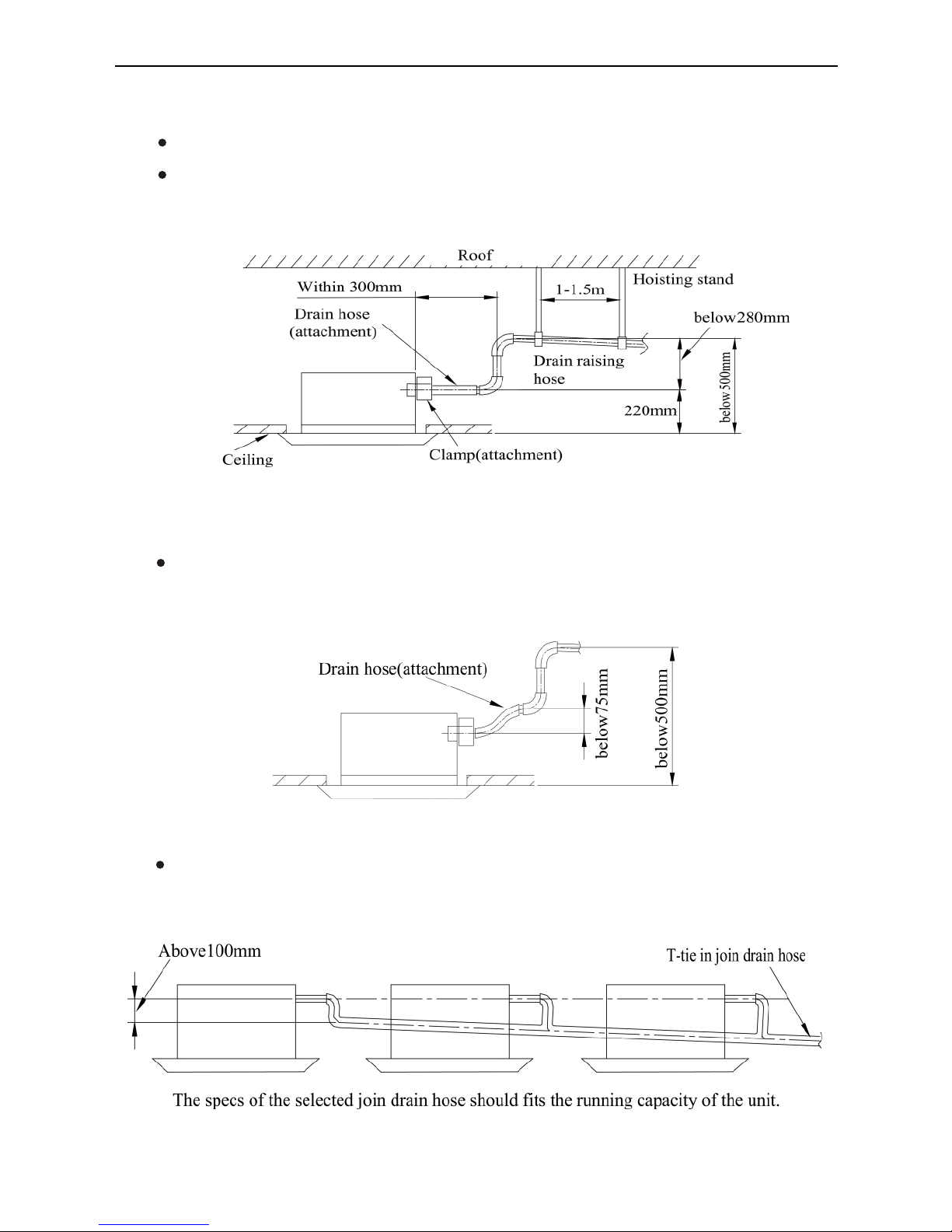

2.7 Drainage hose..................................................................................................................7
2.8 Electrical wiring................................................................................................................9

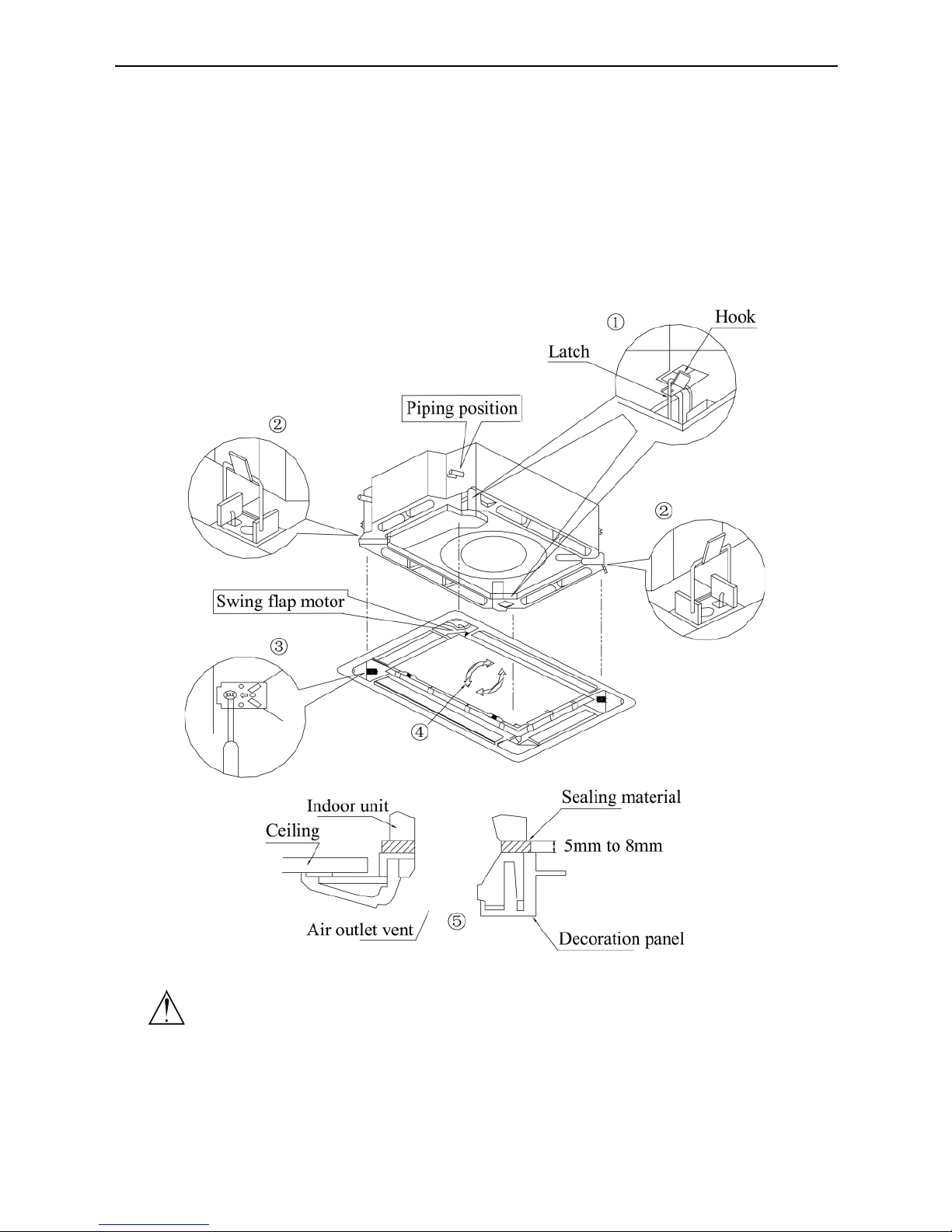

2.9 Install the panel..............................................................................................................10
3 Constitutes and Names of Parts of Cassette Type Indoor Unit.............13
4 Working Temperature Range...............................................................13
5 Malfunction Debarring.........................................................................14
5.1 Check the following items before contacting maintenance center........................14
5.2 Instruction.......................................................................................................................15
5.3 The following circumstance are notmalfunction......................................................15
5.4After-sales Service........................................................................................................15
6 Maintenance Method...........................................................................16

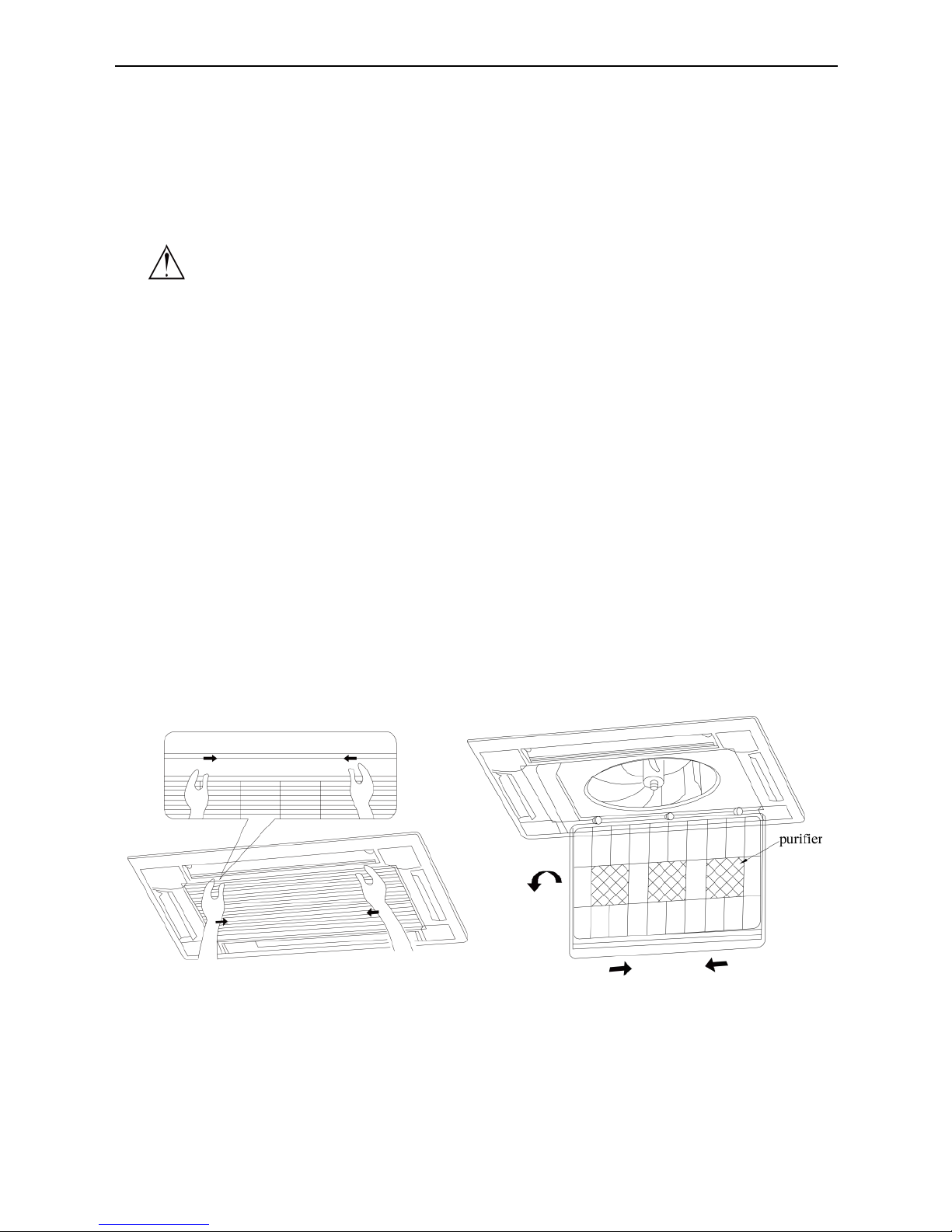

6.1 Cleaning air filter............................................................................................................16
6.2 Clean air inlet grille........................................................................................................17
6.3 Install and change of air purifier..................................................................................18
6.4 Clean Outlet vent and Surface Panel.........................................................................18
6.5 Maintenance before or after usage season...............................................................19

X3 Multisplit Cassette ,8
1
1 Safety Information
Please read this manual carefully before use this unit, and operate it correctly
according to the guide in this manual.
Please take specially note to the meaning of these two marks:
Warning !: This mark means that it may cause casualty or badly heart if the
operation is incorrect.
Note!: This mark means that it may cause casualty or property loss if the
operation is incorrect.
Warning :
Do not adopt fuse with unsuitable capacity or adopt iron thread instead of fuse,
otherwise malfunction or fire may happened.
Cut down the main power switch immediately if malfunction (such as smell the
burning odor etc.) happened.
Maintain ventilation to prevent oxygen leakage in room.
Don’t insert nger orsticklike things into discharge vent or outlet grill.
Please make sure that the unit is installed in the place that can bear the weight
of it adequately. If the place is not strong enough, the air cond itioner may drop and
cause casualty event.
Don’t spray or smear any oil paint or insecticide on the surface of unit,
otherwise, fire may be leaded.
Do not refit the conditioner. Please contact the agency or prefect ional
personnel to repair or move the conditioner.
An all-pole disconnection switch having a contact separation of at least 3mm in all
poles should be connected in fixed wiring.
Note !:
①. Please check and make sure that the cord, drainage pipe and tubes are
connected in the correct way to prevent leakage of water, refrigerant, electric
shock or fire.
②. The main power must connectable to the earth in order to assure the
conditioner earthing e ectively and to prevent electric shock. Please don’t
connect the earthing line with the gas pipe, water pipe, lightening rod or the
connecting line of telephone.

X3 Multisplit Cassette ,8
2
③.The air conditioner should be turned o at least after 5 mins’ operation ,
otherwise it would affect the duration of the unit.
④.Don’t let the children operate the air conditioner.
⑤.Please don’t operate the unit by wet hand.
⑥.Please turn off the main power of the unit before cleaning the conditioner or
change the filter.
⑦.Please cut off the main power if the conditioner will be used for a long time.
2 Install of The Cassette Type Indoor Unit
2.1 Schematic diagram of installation spaces
Fig. 2.1
2.2 Select install location of the indoor unit
(1) Obstruct should put away from the intake or outlet vent of the indoor unit so
that the airflow can be blown though all the room.
(2) Make sure that the installation had accord with the requirement of the
schematic diagram of installation spaces.
(3) Select the place where can stand 4 times of the weight of the indoor unit and
would not increase the operating noise and oscillate.
X3I AS35HL
X3I AS52HL

X3 Multisplit Cassette ,8
3
(4) The horizontally of the installation place should be guaranteed.
(5) Select the place where easy drain condensated coagulated water, and easy
connect with outdoor unit.
(6) Make sure that there are enough space for care and maintenance. Make sure
that the weight between the indoor unit and ground is above 2500mm.
(7) When installing the steeve bolt, check if the install place can stand the weight
4times of the unit’s. If not, reinforce before installation. (Refer tothe install
cardboard and find where should be reinforced)
Note! There will be lots of lampblack and dust stick on the acentric, heat
exchanger and water pump in dining room and kitchen, which would reduce the
capacity of heat e xchanger, lead water leakage and abnormal operation of the water
pump. The following treatment should be taken underthis circumstance:
(1) Ensure that the smoke trap above cooker has enough capacity to obviate
lampblack to prevent the indraft of the lampblack by the air conditioner.
(2) Keep the air conditionerfar from the kitchen so that the lampblack would not
be indraft by the air conditioner.
2.3 Important notice
(1) To guarantee the good performance, the unit must be installed by professional
personnel according with this instruction.
(2) Please contact the local Gree special nominated repair department before
installation. Any malfunction caused by the unit that is installed by the
department that is not special nominated by Gree would not deal with on time
by the inconvenience of the business contact.

X3 Multisplit Cassette ,8
4

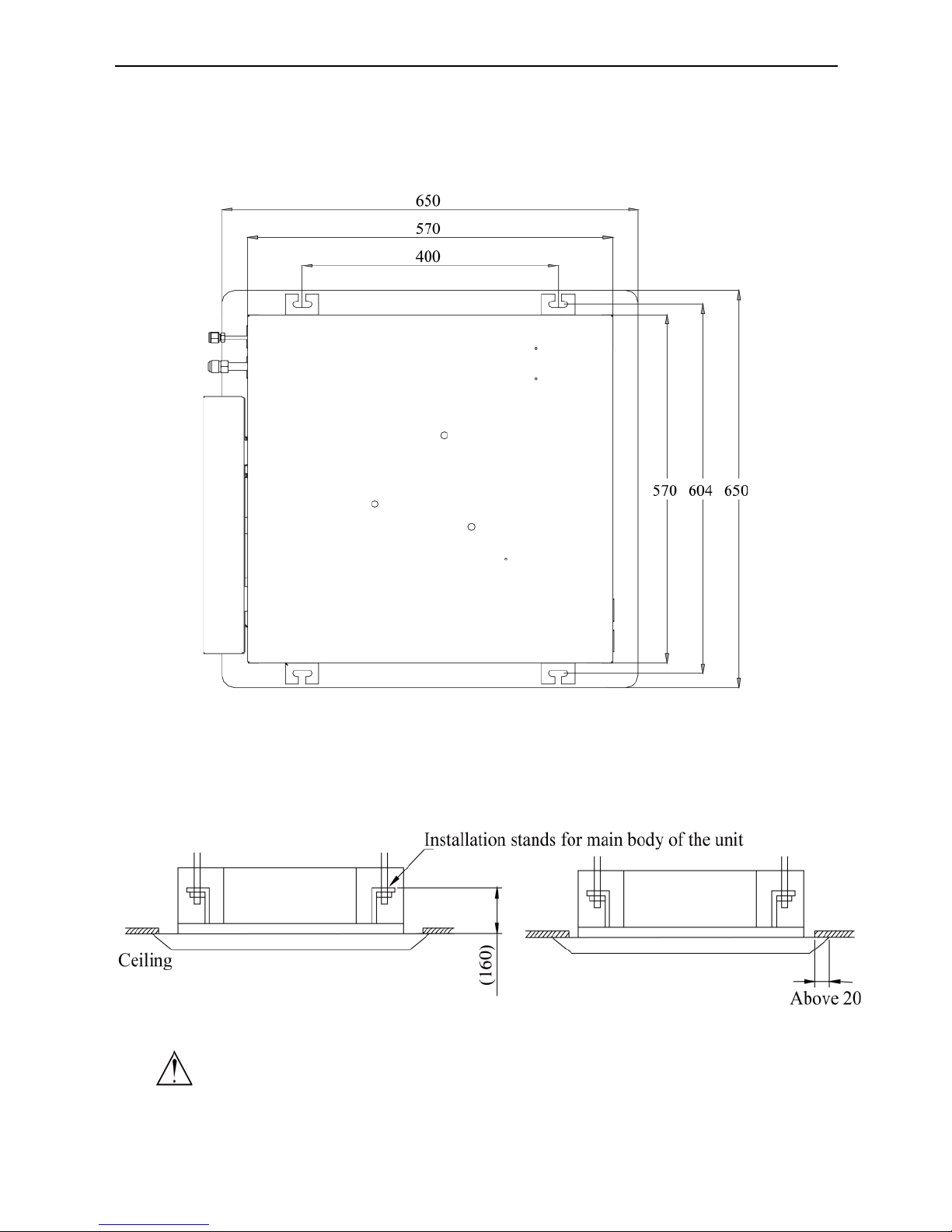

2.4 Dimension of ceiling opening and location of the
hoisting screw (M10)
Fig. 2.2 Install dimension of mode
The drilling of holes in the ceiling must be done by the professional personnel.
Fig. 2.3
Notes: The dimension for the ceiling openings with * marks can be as large as
610mm. But the overlapping sections of the ceiling and the decorated surface boards
should be maintained at no less than 20mm.
X3I AS35HL / X3I AS52HL

X3 Multisplit Cassette ,8
5

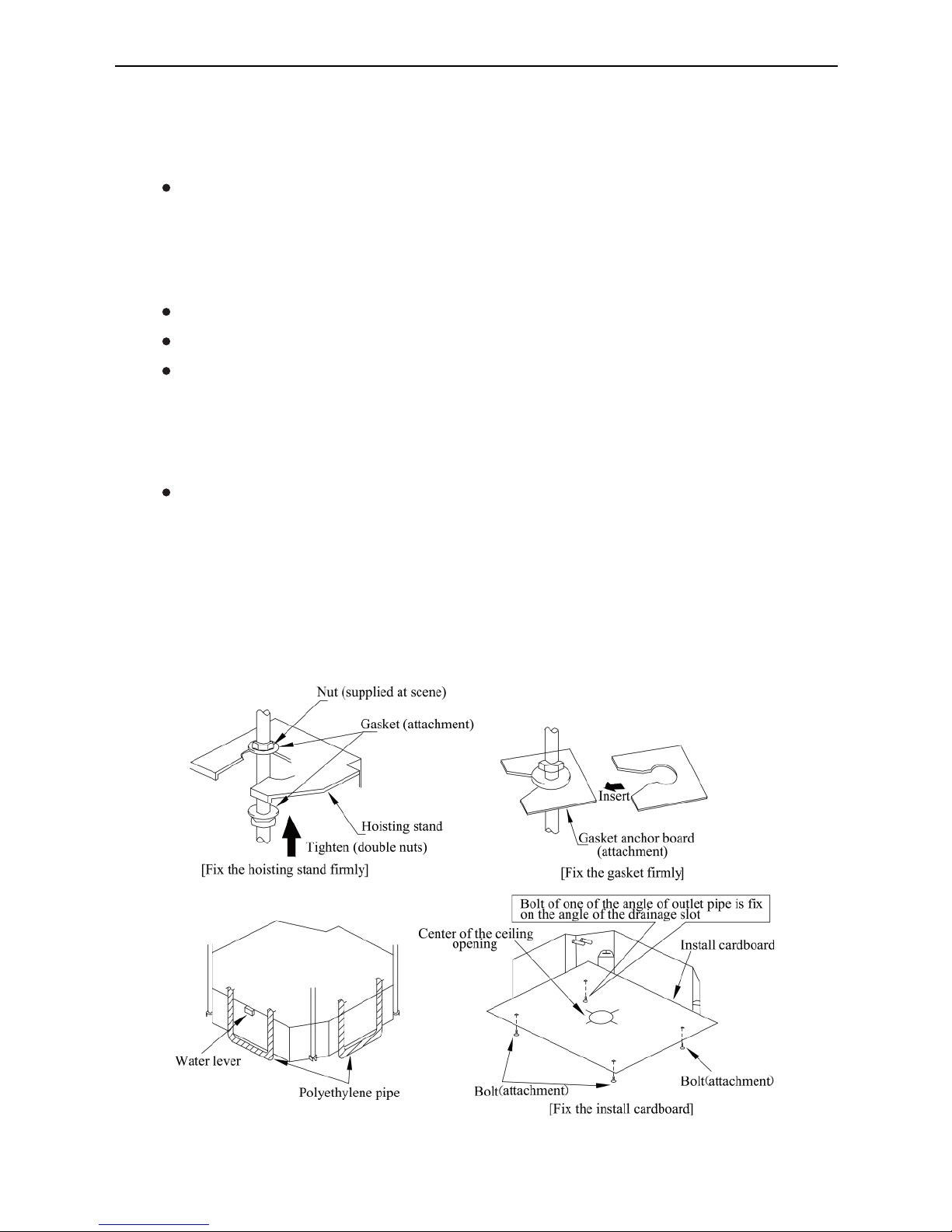

2.5 Main body of hoisting air conditioner
(1) The primary step for install the indoor unit.
When attach the hoisting stand on hoisting screw, d o use nut and gasket
individually at the upper and lower of the hoisting stand to fix it. The use of gasket
anchor board can prevent gasket break off.
(2) Use install cardboard
Please refer to the install cardboard about the dimension of ceiling opening.
The central mark of the ceiling opening is marked on the install cardboard.
Install the install cardboard on the unit by bolt (3 piece), and fix the angle of the
drainage pipe at the outlet vent by bolt.
(3) Adjust the unit to the suitable install place. (Refer to the Fig. 2.3)
(4) Check if the unit is horizontal.
Inner drainage pump and bobber switch are included in the indoor unit, check if
4 angle of every unit are horizontal by water lever. (If the unit is slant toward the
opposite of the coagulate water flow, there may be malfunction of the bobber switch
and lead water drop.)
(5) Backout the gasket anchor board used to prevent gasket break off and tighten
the nut on it.
(6) Backout the install cardboard.
Fig. 2.4

X3 Multisplit Cassette,8
6
Note! Please do tighten the nuts and bolts to prevent air conditioner break off.

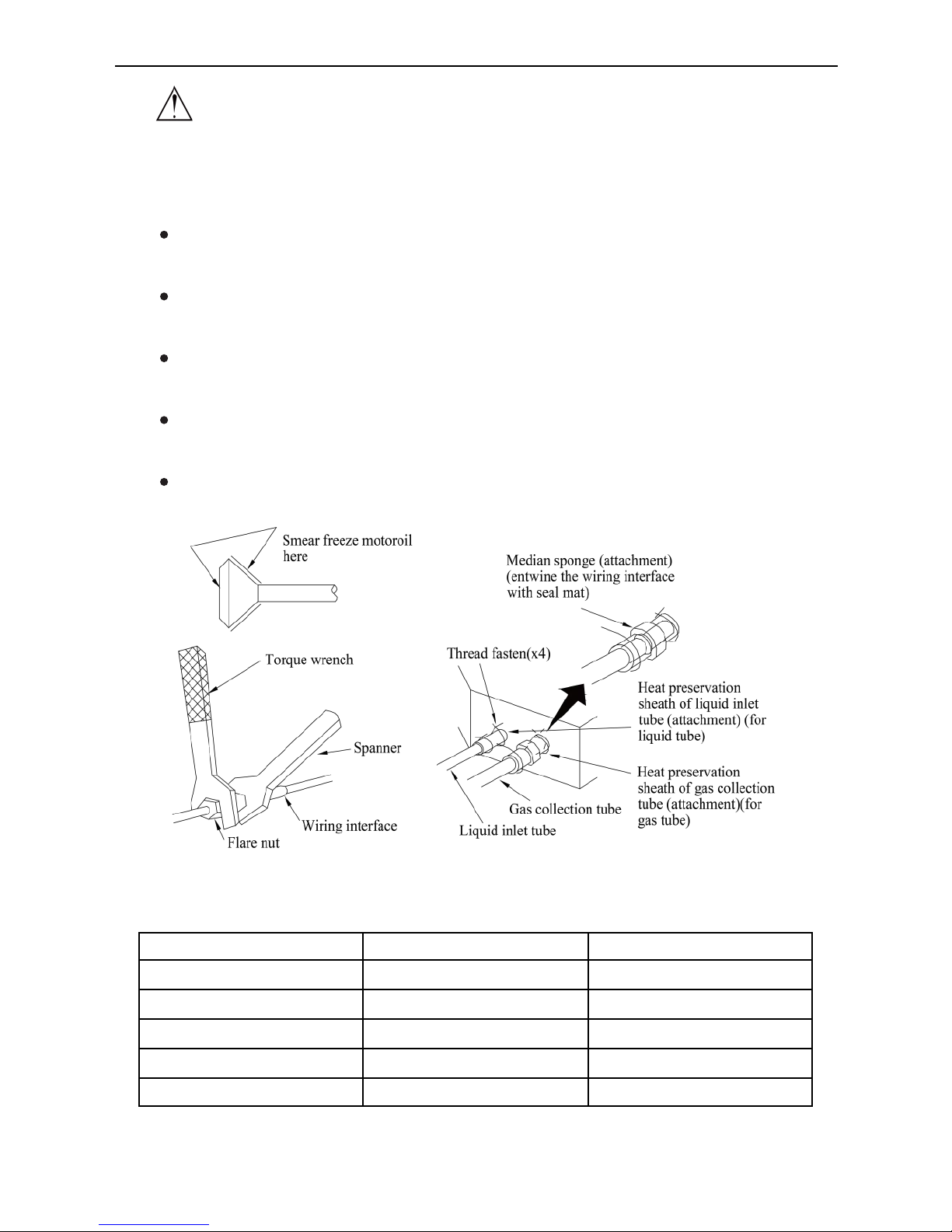

2.6 Connection of the refrigerant pipe
When connect the pipe to the unit or backout it from the unit, please do use
both spanner and torque wrench. as shown in Fig. 2.5.
When connect, smear both inside and outside of the flare nut with freeze motor
oil, screw it by hand and then tighten it with spanner.
Refer to Table 2.1 to check if the wrench had been tightened (too tight would
mangle the nut and lead leakage).
Examine the connection pipe to see if it had gas leakage, then take the
treatment of heat insulation, as shown in the Fig. 2.5.
Only use median sponge to entwine the wiring interface of the gas pipe and
heat preservation sheath of the gas collection tube.
Fig. 2.5
Table 2.1: The tightening torque needed for tightening nut
Diameter
（
Inch
）
Surface thickness
（
mm
）
Tightening torque (N·m)
Φ1/4’’ ≥0.5 15-30 (N·m)
Φ3/8’’ ≥0.71 30-40 (N·m)
Φ1/2’’ ≥1 45-50 (N··m)
Φ5/8’’ ≥1 60-65 (N·m)
Φ3/4’’ ≥1 70-75 (N··m)

X3 Multisplit Cassette ,8
7
2.7 Drainage hose
(1) Install the drain hose
The diameter of the drain hose should be equal or bigger than the connection
pipe’s.
Drain hose should be short and drooping gradient should at less 1/100 to
prevent the formation of air bubble.
If drain hose cannot has enough drooping gradient, drain raising pipe should be
added.
To prevent bent of the drain hose, the distance between hoisting stand should is
1 to 1.5m.
Fig. 2.6
Use the drain hose and clamp attached. Insert the drain hose to the drain vent,
and then tighten the clamp.
Entwine the big sponge on the clamp of drain hose to insulate heat.
Heat insulation should be done to indoor drain hose.
Fig. 2.7
(The diameter of polythene pipe: Outer diameter 25mm Surface thickness ≥ 1.5 mm)

X3 Multisplit Cassette ,8
8
Drain stepup pipe note
The install height of the drain raising pipe should less than 280mm.
The drain raising pipe should form a right angle with the unit, and distance to
unit should not beyond 300mm.
Fig. 2.8
Instruction
The slant gradient of the attached drain hose should be within 75mm so that the
drain hole doesn’t has to endure the unnecessaryoutside force.
Fig. 2.9
Please install the drain hose according to the following process if several drain
hoses join together.
Fig. 2.10

X3 Multisplit Cassette UI
9
(2) Check the smoothness of drain after installation.
Check the drain state by immitting 600cc water slowly from the outlet vent or
test hole.
Check the drain in the state of refrigerating after installation of the electric
circuit.
Fig. 2.11
2.8 Electrical wiring
Note: The power of the entire indoor unit must be connected in outdoor unit.
About the electrical wiring, please see the circuit diagram attached with the unit.
All the installation of electrical wiring must be done by professional personnel.
Please do take the earthing treatment.
Wiring method of connection unit and controller
Connection wiring (communication):
①. Open electric box cover (1), drag the wiring (communication) from the rubber
plug A, and impact them well individually by impact fastener.
②. Wiring according to the indoor side circuit diagram .
Fix the impact fastener after connection.
Entwine the small sponge on the electric wire ( do entwine it to pre vent
condensation)

X3 Multisplit Cassette UI
10
Impact tightly by impact fastener after connection and then fit on the electric
box (1) and (2).
Connect the wiring (communication) through the piping hole of the chassis and
the bottom of the appliance upward, then connect the brown wire to the Terminal board
“3”, black wire (the communication wire) to the Terminal board “2” , blue wire to the
box.
Fig. 2.12
2.9 Install the panel
(1) Set the panel to the indoor unit body by matching the position of the swing flap
motor of the panel to the piping position of the panel to the piping position of
the indoor unit as shown by Fig. 2.13.
(2) Install the panel
①. Install the panel on the indoor unit temporarily. When install, hang the latch on
the hook that is located on the opposite side of the swing flap on the panel of
the indoor unit. (2 positions)
②. Hang the remaining 2 latches to the hooks on the sides of the indoor unit. (Be
Terminal board “N(1) and connect the earthing wire to the screw terminal on the electric
X3 Multisplit Cassette ,8

X3 Multisplit Cassette IU
11
careful not to let the swing motor lead wire get caught in the sealing material.)
③.Screw the 4 hexagon head screws under the latches in about 15mm. (The
panel would rise)
④.Adjust the panel by turning it toward the direction pointed by the arrow as
shown in Fig. 2.13, so that the adjust board connect the ceiling well.
⑤.Tighten the screws until the thickness of the sealing material between panel
and indoor unit reduced to 5-8mm.
Fig. 2.13
Notes:
①.Improper screwing of the screws may cause the troubles shown in Fig. 2.14.

X3 Multisplit Cassette IU
12
Fig. 2.14
②.If gap still exist between ceiling and decoration panel after tightening the
screws, readjust the height of the indoor unit. (As shown in Fig. 2.15).
Fig. 2.15
After fixing, be sure no gap left between the ceiling and the panel.
③.Wiring of the decoration panel (Fig. 2.16)
Connect the joints for swing flap motor lead wire (at 2 places) installed on the
panel.
Fig. 2.16

X3 Multisplit Cassette IU
13
3 Constitutes and Names of Parts of Cassette Type
Indoor Unit
X3I AS35HL
X3I AS52HL
4 Working Temperature Range
Table 4.1 Working Temperature Range
Indoor side state
Outdoor side stae
Dry bulb
temp. °C
Wet bulb
temp. °C
Dry bulb
temp. °C
Wet bulb
temp. °C
Rated Cooling 27 19 35 24
Max. cooling 32 23 48 26
Min. cooling 21 15 18 —
Rated Heating 20 15 7 6
Max. heating 27 —24 18
Min. heating 20 15
−
15
−
16

X3 Multisplit Cassette IU
14
5 Malfunction Debarring
Warning!
①.Cut down the main power switch immediately if malfunction (such as smell the
burning odor etc.) happened, and then contact service center. If the abnormal
state is maintained, the unit may be damaged or electric shock or fire may be
happened.
②.Do not refit the conditioner. Please contact service center to repair or move
the conditioner.
5.1 Check the following items before contacting maintenance
center
Phenomena Reason Remedial Measures
Air conditioner
doesn’t run at all
Blow of fuse or breaker Change fuse or close brea ker
Power cut Resta rt when there is power
supply
Don’t connect with power Connect power well
Low batteries of wireless remote
controller Change new batteries
Wireless remote controller
exceed remote control area
Signal could be received within
8m
Air conditioner runs
but stops immediately
Blockage in inlet or outlet vent of
indoor or outdoor unit Clean out blockage
Abnormal cooling or
heating
Blockage in inlet or outlet vent of
indoor or outdoor unit Clean out blockage
Improper of temp. setting Adjust settings in wireless
remote controller
Low setting of fan speed Adjust settings in wireless
remote controller
Incorrect of wind direction Adjust settings in wireless
remote controller
Door or window opened Close
Direct sun burn Hang curtain or jalousie before
windows
Too many people in room
Too many heater in room
Filter blocked by dirt Clean filter

X3 Multisplit Cassette IU
15
5.2 Instruction
If problem still cannot found out after above checking, please contact service
center and instruct phenomena and model.
5.3 The following circumstance are not malfunction
“Malfunction”Reason
Air conditioner
doesn’t run
Start up unit immediately
after turned off
The overload protects switch makes it run
after 3 minutes delay.
When opening power Run for about 1 minute without other actions
Mist is blown from
air conditioner When cooling
The high humidity air in room is cooled
rapidly
Noise is heard
from air
conditioner
Slight click sound heard
once begin running
Sound of initialization for electric expand
valve
Hissing sound heard
continuously when
cooling
The sound for gas refrigerant flowing in the
unit
Hissing sound heard
when staring or stopping The sound for gas refrigerant stop s flow
Slight hissing sound
heard when running or
after running
Sound for running of drainage system
Crea k sound heard when
running or after running
The grating sound caused by expands of
panel and other parts for the change of
temperature
Dust be blown for
air conditioner
Started up after long
time’s doesn’t run s Dust in indoor unit be blown out
Odor gives out
from air
conditioner
When running
This is becau se when air conditioning, odors
or cigarette smoke from the roomthat was
sucked in is discharged again.
5.4 After-sales Service
When having quality or other problems when purchasing air conditioner, please
contact the local service center.

X3 Multisplit Cassette IU
16
6 Maintenance Method
When air conditioner won’t be used for a long time, please cut o the main power
supply of air conditioner.
Warning!
①.Do turn off the unit and cut off the main power supply when cleaning the air
conditioner, otherwise electric shock or harm may happen.
②.It is forbidden to wash air conditioner by water rinsing, otherwise electric shock
may happen.
6.1 Cleaning air filter
When the usage environment has lots of dust, air filter should be cleaned more
frequently (about once 6 months).
(1) Open air inlet grille
Pull the 2 handle on air inlet grille at the same time with the direction showed by
arrow in Fig. 6.1, pull down slowly. (Re verse when closing)
(2) Disassembly air filter
As shown in Fig. 6.2, pull the handle behind air inlet grille, raise it and disassembly.
Then discharge the 3 purifier fixed on filter.
Fig. 6.1 Fig. 6.2
(3) Clean
Adopts cleaner or water to wash filter; if the filter is too dirty ( like oil stain on it ),
adopts warm water ( lower than 45) with neutral scourer to clean it, then dry it in the
shade.
