Argos 147/6114 User manual

OI WOW Eclipse Undersink Storage
147/6114
Issue 1 - 10/10/13
48cm
30cm
60cm

Components - Panels
Please check you have all the panels listed below
12
4
7
Left side panel Right side panel
Door panel Corner piece x 4
8
2
If you have damaged or missing components,
call the Customer Helpline:08456 400800
Back panel x 2
5
3
6
Bottom panel
Top panel Adjustable shelf

Components - Fittings
Please check you have all the fittings listed below
Note:The quantities below are the correct amount to complete the assembly .In some cases more
fittings may be supplied than are required.
D
A
G
J
H
E
B C
F
I
3
Ruler - Use this ruler to help correctly identify the screws
Tools required
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170
105
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1 2 3 4 5 6
(medium & large)
Phillips screwdriver Small
hammer
Ruler/tape
measure
Flatblade screwdriver
(medium)
6mm Suitable drill bit
(for use with wall plug)
Eye protection
(when using a
hammer or glue)
30mm Screw x 2
Straight hinge x 2
Φ4 x 12mm Screw x 30
Metal leg x 4
Hanger Bracket x 2 Φ3 x 12mm Screw x 10
Wall plug(for solid walls only) x 2
Metal Support x 4
Locking Pin x 16 Locking Nut x 16
Hammer Drill
(Only for dril hole on the wall)

Assembly Instructions
c:
b:
d:
B
B
B
B
4
Step 1
1
12
8
8
C
C
C
C
Assembling side panel and door
panel
B
C
c:
Screw locking pins into corner
pieces as shown.
8
G1G2
a:
Loosen straight hinge screw as
shown to separate it into & .
Use Φ4 x 12mm screw to attach
straight hinge onto right side
panel.
A
G2
8
2
C
C
C
C
A
G2
G2
8
8
A
d:
Attach corner pieces to left &
right side panel and insert
locking nuts into side panel,
tighten locking nuts to secure.
C
G1
G1
7
A
A
G1
b:
Use Φ4 x 12mm screws to fix
straight hinge onto door panel
7
A
G1
8
a:
GG1
G2
3
A
G2
Tips: not make the
hinge in wrong way

Assembly Instructions
a: b:
Step 2
Step 3
5
Assembling back panel
3
3
A
A
A
A
J1
J1 J1
J1
J1
J2
J3
J
E
A
D
4
4
5
D
4
Use Φ3 x 12mm screw to fix
back panel to the unit,please
make sure the bracket hole on back
panel match top panel as shown.
Use Φ4 x 12mm screw to fix
hanger bracket on top panel .
3
4
A
E
b:
Use Φ4 x 12mm screw to fix leg
plate on bottom panel .
Continued on next page .
Assembling legs
5
A
J1
1
2
4
5
C
C
C
C
C
C
C
Carefully attach side panels
to top panel and bottom
panel ,insert locking nuts into
it, tighten locking nuts to secure
the unit.
4
5
1
2
C
Assembling the unit
Step 4
J
J
a:
Unlock metal leg by using screw
driver as shown.

A
6
NOTE:If you have damaged or missing components,
call the Customer Helpline:08456 400800
Argos LTD,489-499 Avebury Boulevard,
Central Milton Keynes, MK9 2NW
Assembly Instructions
Step 8
someone to help you at this stage.
After above assembly, please
double check and make sure all
screws are tightened before us.
Warning!
Please make sure the unit is
secured to the wall before use.
Step 4 - continued
G1
G1
G1 G2
G2
G2
H
D
H
I
I
F
6
7
7
7
7
Step 6
Attach door panel to the unit by
fixing onto as shown ,adjust
the door left or right ,up or down ,in
or out if needed .
by hand by hand
Assembling legs
NOTE:It would be useful to ask
someone to help you at this stage.
Assembling door panel
Insert metal support into side
panels,carefully put shelf on it.
Use screw and wall plug to
fix the unit on the wall via wall
bracket .
6
F
HI
NOTE:It would be useful to ask
Fixing to the wall
7
G
G
G
G1
c: d:
J1J2
J2
J2
J2
J3
J3
J3
J3
J3
c:
Screw bolt on the leg plate
by hand.
d:
Screw the leg body clockwise
to lock.
J2
Step 8
Step 5
Please refer to next page the Guide
for Wall Mounting & Fixings.
I
H
D
Note:
Not use screwdriver to tighten
this step,to avoid overtighten.

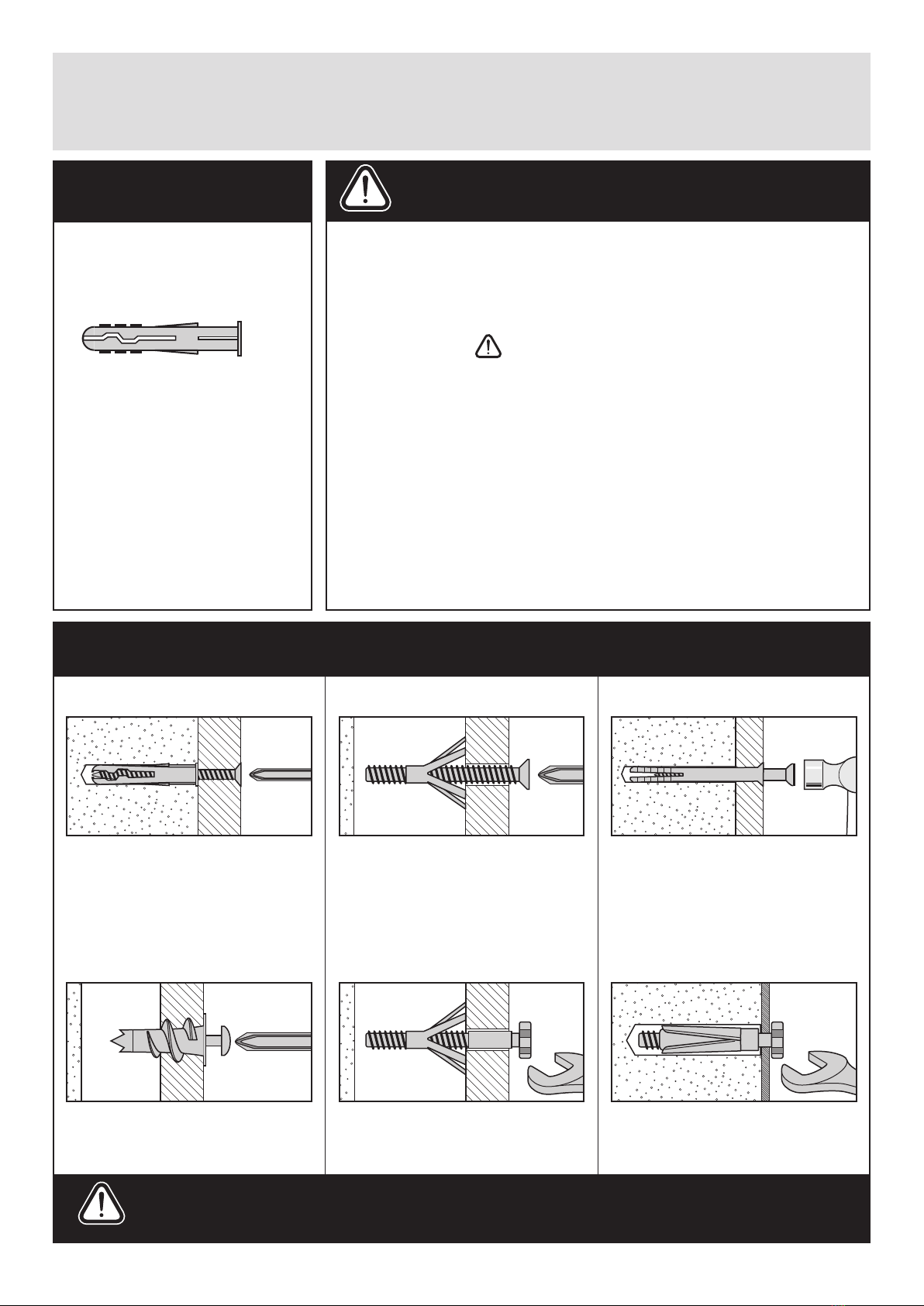

A Guide to - Wall Mounting & Fixings
Revision 2 - 7/10/09
Important note:
Types of walls
Care &
Maintenance
No.1 “General Purpose” wall plug
No.6 “Shield Anchor” wall plug
Heavy loads
No.3 “Cavity Fixing” wall plug
No.4 “Cavity Fixing-Heavy Duty”
wall plug
No.5 “Hammer Fixing” wall plug
No.2 “Plasterboard” wall plug
Generally aerated blocks should not
be used to support heavy loads, use
a specialist tting in this case. For light
loads, general purpose wall plugs can
be used.
For use with heavier loads such as TV
& HiFi speakers and satelite dishes etc.
For use with plasterboard partitions or
hollow wooden doors.
For use when tting or supporting
heavy loads such as shelving, wall
cabinets and coat racks.
For use with walls stuck with
plasterboard. The hammer xing allows
it to be xed to the wall rather than the
plasterboard. Always check the xing
is secure to the retaining wall.
For use when attaching light loads on
to plasterboard partitions.
Safety: Always check the fitting
and location to ensure your safety
in and around the home.
Fitting: From time to time check
the fitting to ensure the wall plugs
or screws do not become loose.
You can use one of the following types of wall plug if your walls are made
of brick, breeze block, concrete, stone or wood.
Important: When drilling into walls always
check that there are no hidden wires or pipes etc.
Hints:
1: General rule: Always use a larger screw and wall plug
if you are not sure.
2: Ensure you use the recommended drill bit to match the wall
plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or
enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic
tiles. Ensure wall plugs are inserted beyond the thickness of
the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well tted and are a tight t in the
drilled hole.
If plastic wall plugs
are supplied with your
product:
Make sure that the screws and wall plugs being used
are suitable for supporting your unit. Consult a qualified
tradesperson if you are unsure.
- these are only suitable for
use in masonry walls.
If you are in any doubt about
the correct wall plugs for
your wall, seek professional
advice.
Failure of the product due to
using incorrect xings is the
responsibility of the installer.
