Aria Child Asana 35 AP User manual

Asana 35 AP
/ Asana 35
Read all instructions before use.
If these instructions are not followed, the safety
of a child may be severely endangered.
Keep instructions for future use.
that’s me!
www.GBchildusa.com
Infant Car Seat
User Guide

2
Registering Your Child Restraint................................. 4
For Recall Information ..................................................... 5
Certification...................................................................... 5
If You Need Assistance or Have Questions...................5
Warnings and Important Information ....................... 6-12
Child Height and Weight Limits................................... 13
Base Features ................................................................. 14-15
Carrier Features ............................................................. 16-19
FirmFit Load Leg............................................................. 20-25
LATCH Locations ............................................................ 26
Vehicle Installation Locations...................................... 27
UNSAFE Vehicle Seat Belt Types.................................... 28-29
SAFE Vehicle Seat Belt Types ......................................... 30-31
Base Installation
With LATCH..................................................................... 32-37
With Lap/Shoulder Belt ............................................... 38-41
With Lap Belt ................................................................. 42-45
Index

3
Carrier Installation WITHOUT the Base
Using the Lap/Shoulder Belt...............................46-47
Carrier Installation WITHOUT the Base
Using the Lap Belt .............................................. 48-49
Checking the Recline ............................................50-51
Adjusting the Recline ................................................. 52
Checking the Recline with the Base.................... 53-54
Placing Your Child in the Carrier ..........................55-57
Changing the Buckle Strap Position.....................58-59
Changing the Waist Strap Position.......................60-65
Using the Infant Body Support .................................. 66
Securing Your Child in the Carrier........................67-69
LATCH Storage ............................................................70
Instruction Manual Storage ........................................ 71
Care and Maintenance.......................................... 72-73
Warranty Information and Replacement Parts..........76
Index

4
Child restraints could be recalled for safety reasons.
You must register this restraint to be reached in a recall.
Send your name, address, e-mail address if available and
the restraint’s model number and manufacturing date to:
Aria Child Inc.
P.O. Box 1415
New York, NY 10102-2195
or call 1-844-543-2020
or register online at:
http://www.GBchildusa.com/carseatregistration
Registering Your Child Restraint
FOR YOUR CHILDS CONTINUED SAFETY
Please take a few moments to promptly ll out and return the
attached card or register online.
Although child restraint systems undergo testing and evaluation, it is
possible that a child restraint could be recalled.
In case of recall, we can reach you only if we have your name and
address, so please send in the card or register online to be on our
recall list.
Please ll this card out and mail it NOW,
or register online at
http://www.GBchildusa.com/carseatregistration
while you are thinking about it.
This card is already addressed and we/ve paid the postage.
Tear o and mail this part
Consumer: Just ll in your name and address and e-mail address (optional).
Model Number xxxxx-xxxx
Model Name Asana 35 Infant Car Seat
Manufacture Date xxxx/xx/xx
CHILD RESTRAINT REGISTRATION CARD
Name
City State Zip Code
Mailing address
Telephone number
E-mail address
Please complete the pre-paid registration card that is attached
to your child restraint and send the portion shown below in
today.

5
Call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY:1-800-424-9153),
or go to http://www.NHTSA.gov
Aria Child Inc.
530 Harrison Ave. Boston, MA 02118
1-844-543-2020
www.GBchildusa.com
For helpful information regarding child restraints :
www.NHTSA.gov
www.safercar.gov/parents/CarSeats.htm
www.seatcheck.org
This child restraint conforms to all applicable Federal motor
vehicle safety standards. This Restraint is Certified for Use in
Motor Vehicles and Aircraft. It is not intended to be used in
low-speed vehicles such as golf carts, ATV’s or any other
non-certified vehicle.
Certification
For Recall Information
If You Need Assistance or Have Questions
If you have any questions regarding installation of your child
restraint, please contact us at:

6
DO NOT place rear-facing child seat on
front seat with air bag. DEATH OR
SERIOUS INJURY can occur. The back
seat is the safest place for children 12
and under.
• Owners of vehicles with side airbags should refer to their
owner’s manual for child restraint installation instructions.
• ACCORDING TO CRASH STATISTICS, children are safer
when properly restrained in rear vehicle seating positions,
rather than in the front seating positions.
• REGISTER YOUR CHILD RESTRAINT with the manufacturer.
• READ AND UNDERSTAND the instructions in this manual,
the labels on your seat and in your vehicle owner’s manual
before installing your child restraint and base.
• IMPROPER USE OF THIS CHILD RESTRAINT and base
could increase the risk of a serious injury or death in a
sudden stop or car crash.
• FOLLOW ALL INSTRUCTIONS on this child restraint and in the
written instructions stored in the base.
WHEN USED IN YOUR VEHICLE
Warnings and Important Information
WARNING
ADVERTENCIA
MISE EN GARDE

7
Warnings and Important Information
• USE ONLY WITH children who weigh between 4 - 35 lbs
(1.8 - 15.9 kg) and whose height is 32 inches (81 cm) or less.
Child’s head MUST be 1” (2.5 cm) or more below the top of
the seat.
• FOR LOW BIRTH-WEIGHT INFANT, you must always use the
infant body support. The infant body support must be used
for infants who weigh less than 6 lbs (2.7 kg).
• SOME CHILDREN WITH SPECIAL NEEDS, such as preemies or
those who have tested positive for positional apnea, may be at
increased risk of suering breathing or other diculties in a
child restraint. Please consult a physician to determine what
type of child restraint should be used for your child before
using this product.
• SNUGLY ADJUST the belts provided with this child restraint
around your child.
• NEVER use bulky clothing or blankets that will interfere
with properly tightening the harness.
• STRANGULATION HAZARD: Child can strangle in loose
restraint straps. Always use harness. NEVER leave child in
carrier when straps are loose or undone.
• Children have STRANGLED in loose or partially
buckled harness straps. Fully restrain the child
even when carrier is used outside the vehicle.
WARNING
ADVERTENCIA
MISE EN GARDE
WARNING ADVERTENCIA
Children have STRANGLED in loose or partially
buckled harness straps. Fully restrain the child even
when carrier is used outside the vehicle.
Niños se han ESTRANGULADO con correas del
arnés sueltas o parcialmente trabadas. Refrene
completamente al niño, incluso cuando use el
transportador fuera del vehículo.

8
• NEVER LEAVE CHILD UNATTENDED in or around the vehicle.
Vehicle backovers can happen in any type of vehicle. Vehicles
have blind spots, the areas around the vehicle that you can not
see from the driving position. Always check around the vehicle
before moving your vehicle.
• ONLY PLACE THIS CHILD RESTRAINT IN A REAR-FACING
DIRECTION on a forward facing vehicle seat when using it in
a vehicle. Refer to page 27.
• NEVER place this child restraint on side-facing or rear facing
vehicle seats.
• SECURE THIS CHILD RESTRAINT with the vehicle’s child
restraint anchorage system (LATCH) if available or with a vehicle
belt, never both.
• ALWAYS TIGHTLY INSTALL THE CHILD RESTRAINT AND
BASE TO THE VEHICLE SEAT, since in a crash an unsecured
child restraint system may injure other occupants.
• TO PREVENT EJECTION, SECURELY ATTACH the child
restraint to the base and LIFT UP TO CHECK that it is attached.
• MAKE SURE nothing interferes with the carrier attachment to
the base.
• ALWAYS store the LATCH connectors when they are not being
used for installation.
WARNING
ADVERTENCIA
MISE EN GARDE

9
WARNING
ADVERTENCIA
MISE EN GARDE
• NEVER place two LATCH connectors on one vehicle LATCH
anchor.
• AFTER INSTALLING CARRIER WITHOUT BASE INTO THE
VEHICLE, check the RED level line on the side of seat to make
sure that it is level with the ground.
• DO NOT allow children to play with the vehicle seat belts.
A child within reach of a seat belt may become entangled if
he or she pulls the seat belt all the way out and wraps the belt
around his or her head, neck, or waist.
• ALWAYS lock an unoccupied vehicle. Children could easily
climb into vehicles and lock themselves in causing heat
exhaustion or hypothermia.
• NEVER leave a child alone in a parked car, even with the
windows rolled down or the air conditioning on.
•TO AVOID AN ACCIDENT, NEVER tend to your child while
driving. Always safely pull over and stop the vehicle before
tending to your child.
• NEVER remove child from their child restraint while in a moving
vehicle. Serious injury or death could occur in a sudden stop or
crash.

10
• NEVER leave child unattended.
• SUFFOCATION HAZARD: Infant carrier can roll over on soft
surfaces and suocate child. NEVER place carrier on beds,
sofas or other soft surfaces.
• STRANGULATION HAZARD: Child can strangle in loose
restraint straps. Always use harness. NEVER leave child in
carrier when straps are loose or undone.
• Children have STRANGLED in loose or partially
buckled harness straps. Fully restrain the child
even when carrier is used outside the vehicle.
• FALL HAZARD: Child’s movements can slide
carrier. NEVER place carrier near edges of
counter tops, tables, or other elevated surfaces.
• DO NOT use on shopping carts.
• NEVER USE INFANT CARRIER OR BASE
IF IT HAS BEEN DAMAGED OR BROKEN
OR ANY COMPONENT IS MISSING. DO
NOT use a cut, frayed or damaged child
restraint harness, vehicle seat belt or
LATCH belt.
WHEN NOT USED IN A VEHICLE
WARNING ADVERTENCIA
Children have STRANGLED in loose or partially
buckled harness straps. Fully restrain the child even
when carrier is used outside the vehicle.
Niños se han ESTRANGULADO con correas del
arnés sueltas o parcialmente trabadas. Refrene
completamente al niño, incluso cuando use el
transportador fuera del vehículo.
WARNING
ADVERTENCIA
MISE EN GARDE

11
• WHEN USING THE GB ASANA 35 AP or ASANA 35 child
restraint, only use with GB strollers that allow the use with a
child restraint. Refer to your stroller USER GUIDE for stroller
attachment instructions. NEVER use this child restraint with
other manufacturer’s strollers or with strollers for which it was
not intended.
•DO NOT carry the child restraint by the canopy or harness
adjustment strap.
• DO NOT allow children to play with the child restraint.
• ALWAYS MAKE SURE handle is locked in the upright carrying
position before lifting. An unlocked handle could result in serious
injury to your child from falling from the child restraint.
• ALWAYS REPLACE THE CHILD RESTRAINT AND BASE AFTER
A CRASH OF ANY KIND EVEN IF IT WAS UNOCCUPIED. A
crash can cause unseen damage to the child restraint that may
not be visible.
• DO NOT MODIFY YOUR CHILD RESTRAINT OR BASE or use
any accessories or parts not supplied by the manufacturer of
your child restraint.
• DISCONTINUE USE of this child restraint after 6 years from the
manufacture date. The manufacture date can be found on the
underside of your child restraint.
IMPORTANT INFORMATION
WARNING
ADVERTENCIA
MISE EN GARDE

12
• THE CHILD RESTRAINT is certified for use in an aircraft when
installing the carrier without base.
• THE CHILD RESTRAINT MAY BECOME VERY HOT IF LEFT IN
THE SUN OR HOT AREAS. Always make sure to check the
temperature of any metal or plastic parts before placing your
child in the child restraint.
• NEVER allow someone else to use this child restraint
and base without also passing along this manual to them.
• NEVER use a second-hand child restraint or base or a child
restraint or base that you do not know its history.
• NEVER allow children to play with the FirmFit arm or the
FirmFit Load Leg.
WARNING
ADVERTENCIA
MISE EN GARDE

13
Your child MUST meet the height and weight
requirements listed:
Weight: 4 - 35 lbs. (1.8 kg-15.9 kg)
Height: 32 inches (81 cm) or less in height.
The American Academy of Pediatrics recommends children
should ride rear-facing for as long as possible up to 2 years
in age, or until they reach maximum height and weight for their
seat. Do not use this child restraint beyond the expiration date
or if the child exceeds the limits of this seat.
Child Height and Weight Limits
•Harness straps must be adjusted to be
AT or JUST BELOW child’s shoulders
• CHILD’S HEAD MUST be 1” (2.5 cm) or
more below the top of the seat as shown below
1" (2.5 cm)
Hold up to top of seat
to check for 1” spacing.
1” (2.5 cm)

14
1
5

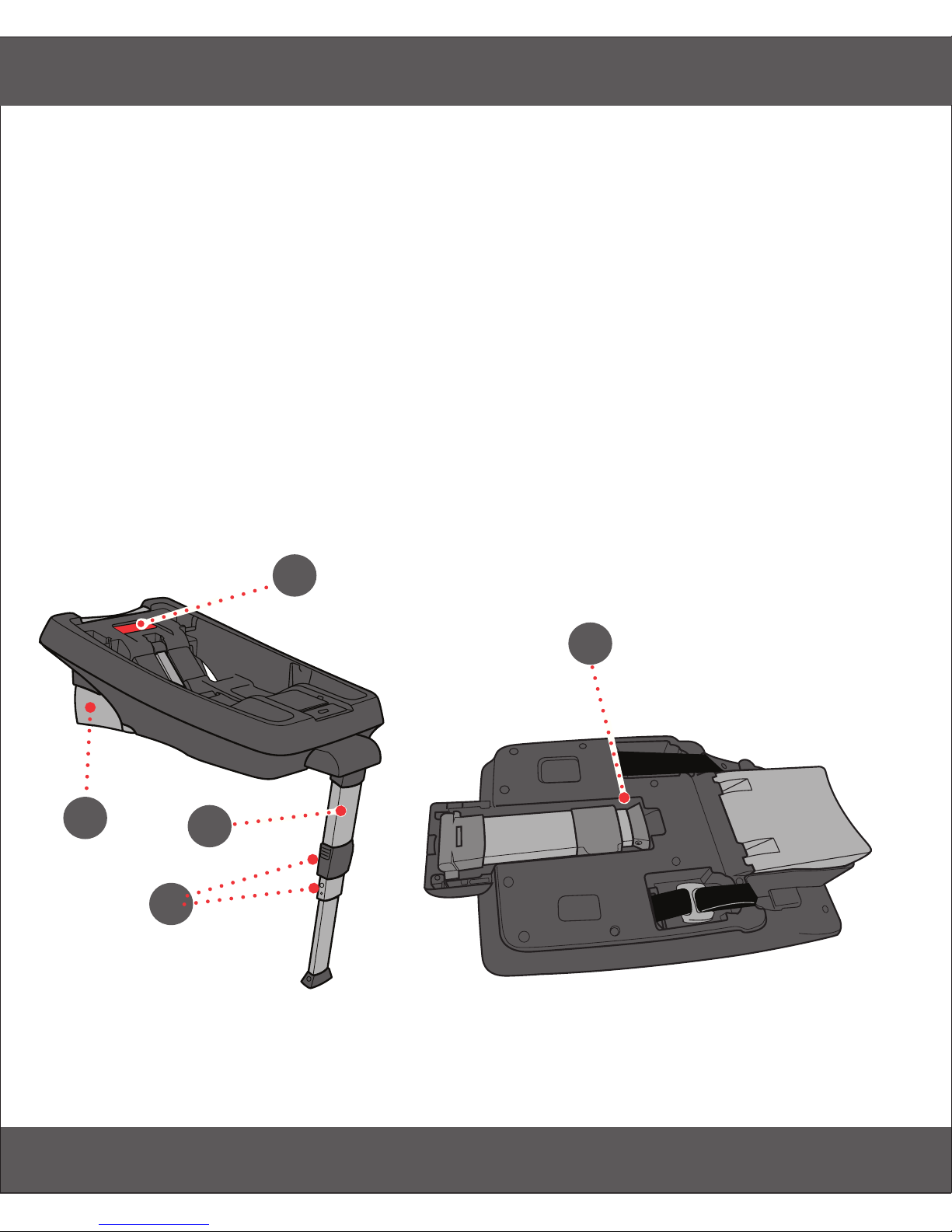

Base Features
These base features are on the Asana 35 and the
Asana 35 AP models:
1. Recline foot adjustment button
2. Recline foot
These base features are only on the
Asana 35 AP model:
3. FirmFit load leg
4. FirmFit load leg adjustment buttons
5. FirmFit load leg storage compartment
4
3
2

15
Base Features
6. Recline indicator
7. LATCH storage pocket
8. LATCH connector
9. LATCH release button
10. Belt path
11. Child restraint attachment bar
12. FirmFit arm
13. FirmFit arm release button
14. FirmFit arm lock indicator
15. User Guide
storage compartment
6
8
8
12
10 11
13
14
15
9
7

16
Carrier Features
1. Lap belt guides
2. Base attachment hooks
3. Seat pad
4. Handle
5. Canopy
6. Headrest
7. FirmFit harness
8. Chest clip
1
9. Harness buckle
10. Harness buckle strap
11. Headrest adjustment / Harness
adjustment button
12. Harness adjustment strap
13. Low birth weight
infant body support
5
6
7
8
9
12
4
11
13
10
3
2

17
Carrier Features
14. Stroller attachment
buttons
15. Handle adjustment
button
16. Carrier release
handle
17. Harness strap
18. Waist strap slots
19. Waist strap
20. Harness buckle strap retainer
21. Harness splitter plate
14
15
16
17
18
21
19
20

18
There are 4positions:
- Carrying position (A),
- Middle positions (B - C),
- Stationary position (D).
To adjust, squeeze handle
adjustment buttons on both sides,
then rotate the handle. The
handle will lock into position.
You should hear a click when the
handle button is engaged and
handle is locked into position.
ALWAYS CHECK to make sure
handle is locked into place
after adjusting.
WARNING
ADVERTENCIA
MISE EN GARDE
Handle
ALWAYS make sure the handle is securely locked in
the upright carrying position (A) before carrying.
ANY locked position can be used in vehicle.
CLICK!
(A) (B)
(C)
(D)

19
To attach canopy, insert the canopy
bow into the canopy mounts on both
sides of the seat until they click into
place.
Fasten the hook and loop patches on
the canopy to the seat pad as shown.
Repeat on other side of seat.
To remove, press tab on canopy bow
and pull out. Canopy can be removed
for washing.
WARNING
ADVERTENCIA
MISE EN GARDE
Handle Canopy
CLICK!

20
FirmFit Load Leg (only on Asana 35 AP model)
NEVER USE if the leg lifts the base o the
vehicle seat.
NEVER install the load leg in a seating
position that will not allow the leg to be
extended in a LOCKED position with firm
contact with the vehicle floor.
NEVER place load leg on a storage door compartment on the
vehicle floor if the vehicle manufacturer warns against it. Some
vehicle manufacturers do not allow the use of load legs in all
seating positions. Please refer to your vehicle’s owner’s manual
before installing the base with the load leg.
The load leg helps minimize crash
forces on a baby in a frontal crash. It
allows the child restraint’s safety system to
absorb crash energy eciently and to
transfer forces more eectively by
directing them to the vehicle floor.
WARNING
ADVERTENCIA
MISE EN GARDE
