Aria QR242B User manual

# QR242B
# QR242S
#QR242W
UNDER CABINET RANGE HOOD
HOTTE DE CUISINIÈRE POUR DESSOUS D’ARMOIRE
CAMPANA EXTRACTORA PARA INSTALACIÓN BAJO GABINETE
OWNER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USARIO

QR242B / QR242S / QR242W 2
ENGLISH
Table of Contents
Safety Information ..................................2
Warranty
One Year Limited Warranty...........................4
Warranty Claim Procedure...........................4
Pre-Installation
Tools/Materials Required ............................5
Package Contents .................................6
Hardware Included.................................6
Planning Installation ...............................7
Installation .......................................10
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance
Replacing Filter ..................................14
Replacing Lights .................................14
Care and Cleaning
Range Hood .....................................15
Filter...........................................15
Troubleshooting ...................................16
Specications
Wiring Diagram ..................................17
External Range Hood Diagram.......................18
Service Parts......................................19
MANUEL DE L’UTILISATEUR ..........................20
MANUAL DEL USARIO ...............................38
Safety Information
READ AND SAVE THESE INSTRUCTIONS
Warning – To reduce the risk of re, electric shock, or injury to
persons, observe the following:
1. Use this unit only in the manner intended by the manufacturer. If
you have any questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel
and lock service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualied
person(s) in accordance with all applicable codes and standards,
including re-rated construction.
4. Sufcient air is needed for proper combustion and exhausting of
gases through the ue (chimney) of fuel burning equipment to
prevent back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
WARNING: FUEL (GAS) BURNING RANGES MUST BE VENTED
OUTDOORS USING, AT MINIMUM, METAL DUCTWORK AND RANGE
HOODS OF SUFFICIENT CAPACITY. Follow your fuel burning equipment
manufacturer’s guidelines, as well as, all applicable safety standards
published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and your local code authorities.
DANGER: Turn off the power circuit breaker or the power
switch on the junction box before installing or servicing
this unit. Touching circuitry inside the range hood while it is
energized will result in death or serious injury.
DANGER: All electrical wiring must be properly installed,
insulated, and grounded. Improper insulation and grounding
will result in deadly electrical shock.
DANGER: If installing this unit over a gas range, turn off
the gas at the source before installing or servicing this unit.
WARNING: Attempting to install or service this unit when
you do not have the necessary technical or electrical
background could result in personal injury.
WARNING: The unit has sharp edges. Always wear safety
gloves during installation, cleaning, or servicing.
WARNING: Always leave safety grills and lters in place.
Without these components, operating fans could catch on to
hair, ngers, or loose clothing.
WARNING: Stay clear of the rotating fan when the motor
is running.
WARNING: Keep this appliance clean and free of grease
and residue build-up at all times to prevent res.
CAUTION: This device is for general ventilating use only.
Do not use to exhaust hazardous or explosive materials
and vapors.

3 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Safety Information (continued)
COOKING SAFETY INFORMATION
1. Never leave the range hood unattended when in use.
2. Never cook over open ames under the range hood.
3. Always turn the range hood on when cooking at high heat
or when cooking aming foods.
4. If you choose to hang the range hood as below (Fig. 1) distance
(D) from the cooktop surface, use extra caution as the surface
of range hood may be extremely hot to the touch. For this unit,
(D in Fig. 1) is 458 mm - 710 mm (18 in - 28 in). If you choose
an 18 inch installation, the temperature of the unit surface will
be high if the unit is operated under high power cooking for a
certain amount of time.
5. Use caution when cooking with oil or with deep-fryers.
Overheating may cause oil to reach its ash point and ignite.
Used oil will ignite at lower temperatures more readily than
fresh oil. Heat oils slowly on low to medium setting.
6. Avoid boil overs, as they may cause smoking and greasy
spillovers that could ignite.
7. To prevent burns or res, always use cookware appropriate to
the size of the heating element that you are using.
8. In event of a cooking re, observe the following:
-Be careful to avoid burns.
- Smother ames with a close-tting lid, cookie sheet, or
metal tray, then turn off the burner. If the ames do not go
out immediately, evacuate and call the re department.
- Never pick up a aming pan.
-Do not use water, including wet dishcloths or towels, as you
could cause a steam explosion.
-Use an extinguisher only if: (a) you have a class ABC
extinguisher and you know how to operate it, (b) the re is
small and contained in the area where it started, (c) the re
department is being called, and (d) you can ght the re with
your back to the exit.
CLEANING SAFETY INFORMATION
1. The fan and lters must be cleaned periodically and kept free
from accumulation of cooking residue. Old and worn lters must
be replaced immediately.
2. Never disassemble parts to clean. Parts should be disassembled
by qualied persons only.
3. Charcoal lter, if used, must be replaced periodically as needed.
WARNING: To reduce the risk of re, use only metal duct
work. Never use plastic duct work.
WARNING: To reduce the risk of re or electric shock, do
not use this range hood with with any external solid state
speed control device.
CAUTION: For general ventilation use only. Do not use the
range hood fans to exhaust hazardous or explosive vapours.
CAUTION: Never dispose of cigarette ashes, ignitable
substances, or any foreign objects in fans.
CAUTION: At least two people are needed to move and
safely install the unit. Failure to properly lift the range hood
could result in product damage or personal injury.
CAUTION: To reduce risk of re and to properly exhaust
air, be sure to duct air outside-do not vent exhaust air into
spaces within walls or ceilings or into attics, crawl spaces,
or garage.

QR242B / QR242S / QR242W 4
ENGLISH
Warranty
ONE YEAR LIMITED WARRANTY
A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.
Conglom Kitchen & Bath warrants this product to be free from defects in materials or workmanship for one (1) year from the date of purchase.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to Conglom Kitchen & Bath for all
warranty claims.
This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than genuine Conglom Kitchen &
Bath replacement parts, (Replacement parts may be obtained by e-mail at [e-mail] or by calling 1-877-333-0098 between
8:30 am - 5:00 pm EST) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor,
service provider or member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh
or abrasive cleaners and/or materials.
Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.
Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:
-Improper installation not in accordance with manufacturer’s instructions.
-Dents and/or scratches incurred during shipping, handling, or installation.
- Change in colour or nish due to chemical usage.
-Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.
-Alterations made to the unit by the purchaser or installer.
- Damage caused by accidental impact, re, ood, freezing, and normal wear.
- Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.
-Any defects or damage to light bulbs.
This warranty does not extend to commercial and institutional installation or use.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs or replacement parts are needed, please contact our customer service team at [e-mail] or
1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm, EST).
Before you make your call, please ensure that you have:
-Model number or description.
-Proof of sale.
-Details regarding the defect and/or part number.
-Name(s) and address(es) of the owner and/or installer.

5 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Pre-Installation

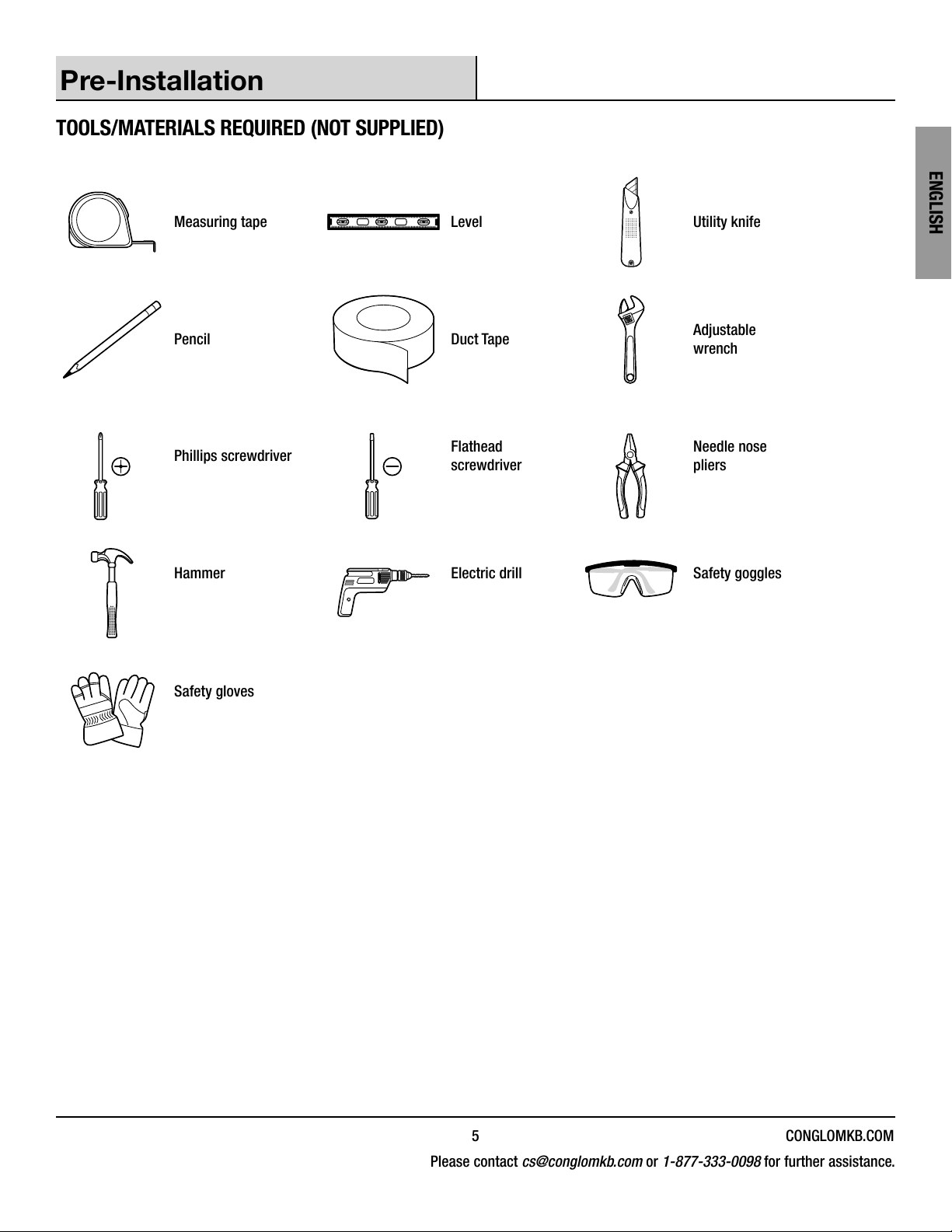

TOOLS/MATERIALS REQUIRED (NOT SUPPLIED)
Measuring tape Level Utility knife
Pencil Duct Tape Adjustable
wrench
Phillips screwdriver Flathead
screwdriver
Needle nose
pliers
Hammer Electric drill Safety goggles
Safety gloves

QR242B / QR242S / QR242W 6
ENGLISH
Pre-Installation (continued)
PACKAGE CONTENTS
Carefully check the unit for damage and/or missing parts prior to installation. If there is any damage or if you are missing parts, do not
proceed with the installation. Report damage and/or missing parts immediately to our customer service team at [e-mail]
or 1-877-333-0098 (Service available in English and French, Monday - Friday from 8:30 am - 5:00 pm EST). Please do not dispose of
packaging before you are satised with your new product.
Part Description Quantity
A Range hood 1
BAluminum & charcoal lter 1
C Retangular damper (located inside the hood) 1
HARDWARE INCLUDED
NOTE:
Parts not shown in actual size.
AA BB CC
Part Description Quantity
AA Long tapping screws (ST4x18mm) 4
BB Short tapping screws (ST4x10-F-Hmm) 6
CC Wire Connectors 3

7 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Pre-Installation (continued)

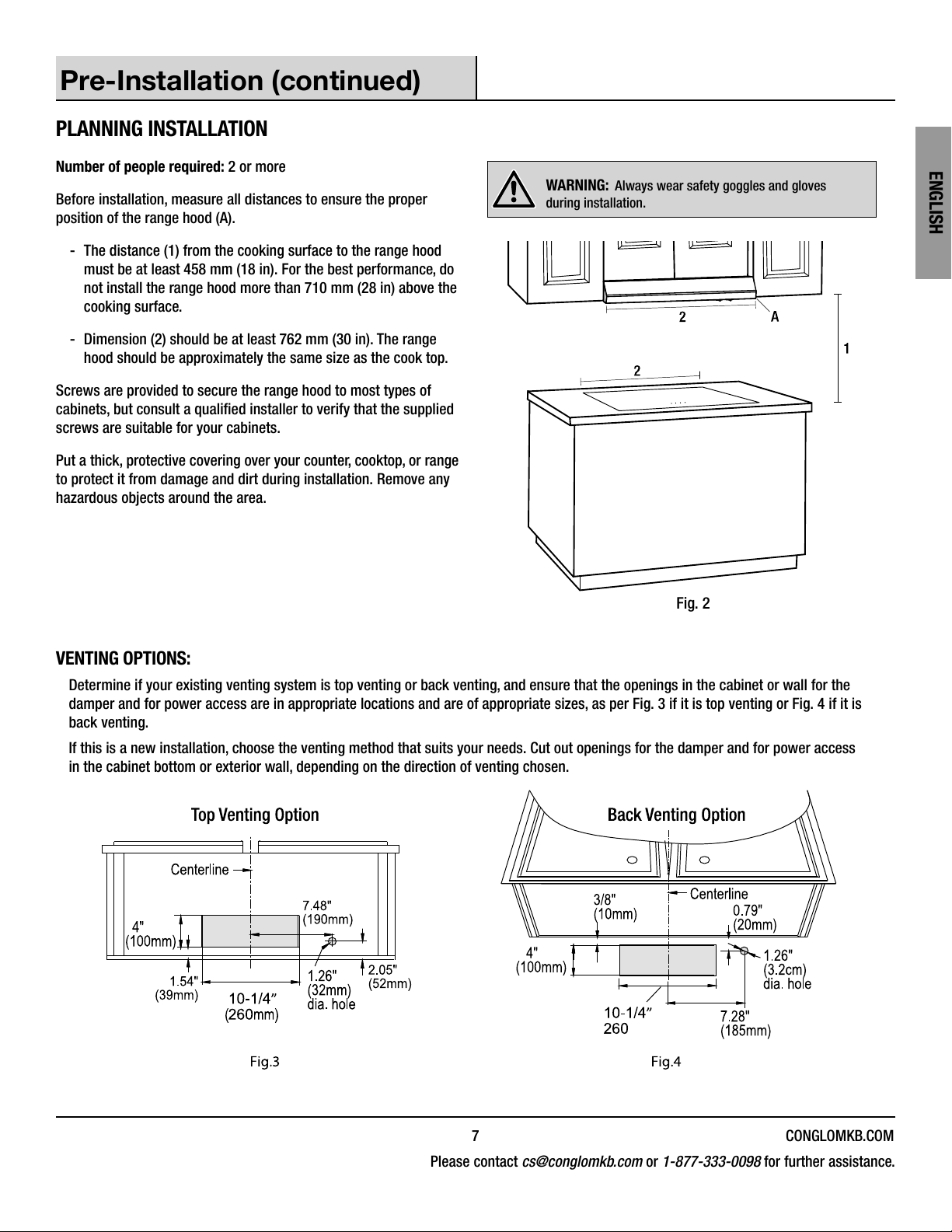

PLANNING INSTALLATION
Number of people required: 2 or more
Before installation, measure all distances to ensure the proper
position of the range hood (A).
-The distance (1) from the cooking surface to the range hood
must be at least 458 mm (18 in). For the best performance, do
not install the range hood more than 710 mm (28 in) above the
cooking surface.
- Dimension (2) should be at least 762 mm (30 in). The range
hood should be approximately the same size as the cook top.
Screws are provided to secure the range hood to most types of
cabinets, but consult a qualied installer to verify that the supplied
screws are suitable for your cabinets.
Put a thick, protective covering over your counter, cooktop, or range
to protect it from damage and dirt during installation. Remove any
hazardous objects around the area.
WARNING: Always wear safety goggles and gloves
during installation.
Fig. 2
VENTING OPTIONS:
Determine if your existing venting system is top venting or back venting, and ensure that the openings in the cabinet or wall for the
damper and for power access are in appropriate locations and are of appropriate sizes, as per Fig. 3 if it is top venting or Fig. 4 if it is
back venting.
If this is a new installation, choose the venting method that suits your needs. Cut out openings for the damper and for power access
in the cabinet bottom or exterior wall, depending on the direction of venting chosen.

QR242B / QR242S / QR242W 8
ENGLISH
Pre-Installation (continued)
FOLLOW THESE GUIDELINES WHEN INSTALLING DUCT WORK:
-Your venting system must vent to the outdoors either horizontally through the back wall (13) or vertically through the roof (14)
(refer to Fig. 5/Fig. 6/Fig. 7).
- Calculate the total effective length of the duct work by adding the equivalent lengths in the table shown (Fig. 9). For each tting
used add the length of the equivalent straight duct used in the system.
- Fasten all connections between pieces of duct with sheet metal screws and tape all joints with certied duct tape.
-If you must turn the path of the duct work using elbows, keep the number of elbows to a minimum for effective performance and
use no more than three 90° elbows. Ensure that there is a minimum of 458 mm (18 in) of straight vent between each elbow. Install
rst elbow as far away from the range hood’s exhaust opening as possible.
- Cap the exterior of the duct with a wall cap (15) or roof cap (16). Never use 102 mm (4 in) laundry-type wall caps. Use caulking to
seal exterior wall or roof opening around the cap.
-The venting system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.
13
15
Horizontal Wall Venting
Fig.5
Vertical Roof Venting
14
16
Fig.7
13
Horizontal Wall Venting
Fig.6
15
In an interior venting system air is not exhausted outdoors (Fig. 8). Instead, air passes through the aluminum and charcoal lters and is
recirculated indoors through the top vent of the range hood (17). Please refer to the Installation Section for more details.
17
Fig. 8
Equivalent Length Chart
Type of duct Length added
45° Elbow 0.91 m (3 ft)
90° Elbow 1.52 m (5 ft)
90° Flat elbow 3.66 m (12 ft)
2.74 m (9 ft) Straight duct 2.74 m (9 ft)
Wall cap 0 m (0 ft)
Fig. 9

9 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Pre-Installation (continued)

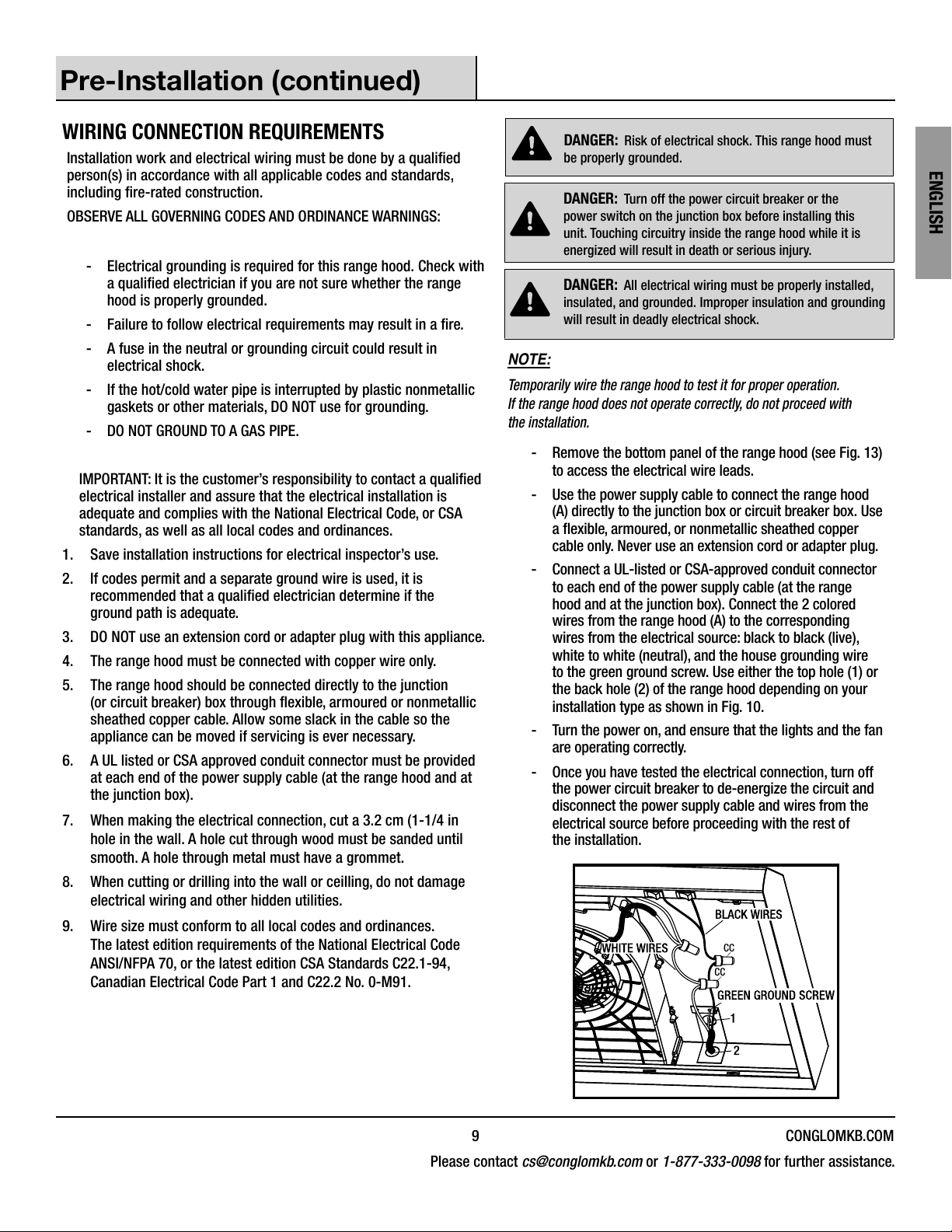

WIRING CONNECTION REQUIREMENTS
Installation work and electrical wiring must be done by a qualied
person(s) in accordance with all applicable codes and standards,
including re-rated construction.
OBSERVE ALL GOVERNING CODES AND ORDINANCE WARNINGS:
-Electrical grounding is required for this range hood. Check with
a qualied electrician if you are not sure whether the range
hood is properly grounded.
- Failure to follow electrical requirements may result in a re.
-A fuse in the neutral or grounding circuit could result in
electrical shock.
-If the hot/cold water pipe is interrupted by plastic nonmetallic
gaskets or other materials, DO NOT use for grounding.
-DO NOT GROUND TO A GAS PIPE.
IMPORTANT: It is the customer’s responsibility to contact a qualied
electrical installer and assure that the electrical installation is
adequate and complies with the National Electrical Code, or CSA
standards, as well as all local codes and ordinances.
1. Save installation instructions for electrical inspector’s use.
2. If codes permit and a separate ground wire is used, it is
recommended that a qualied electrician determine if the
ground path is adequate.
3. DO NOT use an extension cord or adapter plug with this appliance.
4. The range hood must be connected with copper wire only.
5. The range hood should be connected directly to the junction
(or circuit breaker) box through exible, armoured or nonmetallic
sheathed copper cable. Allow some slack in the cable so the
appliance can be moved if servicing is ever necessary.
6. A UL listed or CSA approved conduit connector must be provided
at each end of the power supply cable (at the range hood and at
the junction box).
7. When making the electrical connection, cut a 3.2 cm (1-1/4 in
hole in the wall. A hole cut through wood must be sanded until
smooth. A hole through metal must have a grommet.
8. When cutting or drilling into the wall or ceilling, do not damage
electrical wiring and other hidden utilities.
9. Wire size must conform to all local codes and ordinances.
The latest edition requirements of the National Electrical Code
ANSI/NFPA 70, or the latest edition CSA Standards C22.1-94,
Canadian Electrical Code Part 1 and C22.2 No. 0-M91.
DANGER: Risk of electrical shock. This range hood must
be properly grounded.
DANGER: Turn off the power circuit breaker or the
power switch on the junction box before installing this
unit. Touching circuitry inside the range hood while it is
energized will result in death or serious injury.
DANGER: All electrical wiring must be properly installed,
insulated, and grounded. Improper insulation and grounding
will result in deadly electrical shock.
NOTE:
Temporarily wire the range hood to test it for proper operation.
If the range hood does not operate correctly, do not proceed with
the installation.
-Remove the bottom panel of the range hood (see Fig. 13)
to access the electrical wire leads.
-Use the power supply cable to connect the range hood
(A) directly to the junction box or circuit breaker box. Use
a exible, armoured, or nonmetallic sheathed copper
cable only. Never use an extension cord or adapter plug.
-Connect a UL-listed or CSA-approved conduit connector
to each end of the power supply cable (at the range
hood and at the junction box). Connect the 2 colored
wires from the range hood (A) to the corresponding
wires from the electrical source: black to black (live),
white to white (neutral), and the house grounding wire
to the green ground screw. Use either the top hole (1) or
the back hole (2) of the range hood depending on your
installation type as shown in Fig. 10.
-Turn the power on, and ensure that the lights and the fan
are operating correctly.
-Once you have tested the electrical connection, turn off
the power circuit breaker to de-energize the circuit and
disconnect the power supply cable and wires from the
electrical source before proceeding with the rest of
the installation.
CC
CC

QR242B / QR242S / QR242W 10
ENGLISH

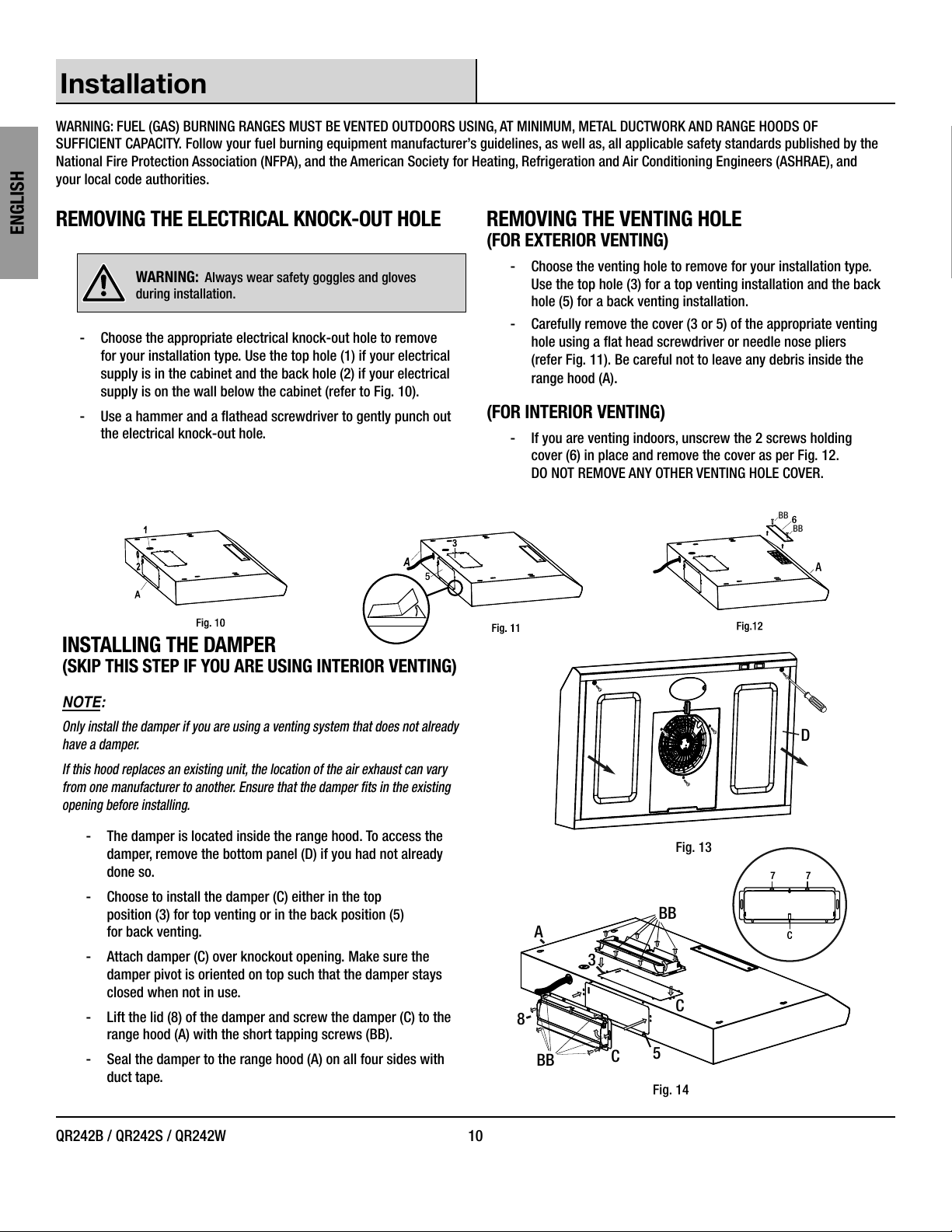

Installation
WARNING: FUEL (GAS) BURNING RANGES MUST BE VENTED OUTDOORS USING, AT MINIMUM, METAL DUCTWORK AND RANGE HOODS OF
SUFFICIENT CAPACITY. Follow your fuel burning equipment manufacturer’s guidelines, as well as, all applicable safety standards published by the
National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and
your local code authorities.
REMOVING THE ELECTRICAL KNOCK-OUT HOLE
WARNING: Always wear safety goggles and gloves
during installation.
- Choose the appropriate electrical knock-out hole to remove
for your installation type. Use the top hole (1) if your electrical
supply is in the cabinet and the back hole (2) if your electrical
supply is on the wall below the cabinet (refer to Fig. 10).
- Use a hammer and a athead screwdriver to gently punch out
the electrical knock-out hole.
REMOVING THE VENTING HOLE
(FOR EXTERIOR VENTING)
-Choose the venting hole to remove for your installation type.
Use the top hole (3) for a top venting installation and the back
hole (5) for a back venting installation.
-Carefully remove the cover (3 or 5) of the appropriate venting
hole using a at head screwdriver or needle nose pliers
(refer Fig. 11). Be careful not to leave any debris inside the
range hood (A).
(FOR INTERIOR VENTING)
-If you are venting indoors, unscrew the 2 screws holding
cover (6) in place and remove the cover as per Fig. 12.
DO NOT REMOVE ANY OTHER VENTING HOLE COVER.
5
BB
BB
INSTALLING THE DAMPER
(SKIP THIS STEP IF YOU ARE USING INTERIOR VENTING)
BB
D
BB
8
A
C
C
3
5
Fig. 13
Fig. 14
NOTE:
Only install the damper if you are using a venting system that does not already
have a damper.
If this hood replaces an existing unit, the location of the air exhaust can vary
from one manufacturer to another. Ensure that the damper ts in the existing
opening before installing.
-The damper is located inside the range hood. To access the
damper, remove the bottom panel (D) if you had not already
done so.
-Choose to install the damper (C) either in the top
position (3) for top venting or in the back position (5)
for back venting.
-Attach damper (C) over knockout opening. Make sure the
damper pivot is oriented on top such that the damper stays
closed when not in use.
-Lift the lid (8) of the damper and screw the damper (C) to the
range hood (A) with the short tapping screws (BB).
-Seal the damper to the range hood (A) on all four sides with
duct tape.

11 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Installation (continued)
INSTALLING THE RANGE HOOD
DANGER: Turn off the power circuit breaker or the
power switch on the junction box before installing this
unit. Touching circuitry inside the range hood while it is
energized will result in death or serious injury.
DANGER: If installing this unit over a gas range, turn off
the gas at the source before installing or servicing this unit.
-Lift the range hood (A) up under the cabinet to determine
its nal position. Mark the location of the four keyhole
mounting slots (1) on the underside of the cabinet.
-Set the range hood (A) aside on a protective surface.
-Drill four pilot holes in the locations that you marked.
-Screw the four long tapping screws (AA) into the
pilot holes. Do not tighten the screws all the way –
leave the screw heads about 7 mm (0.28 in) from the
cabinet surface.
-Lift the range hood (A) into position, feeding the power
cable and the electrical wires through the power access
opening. Allow some slack in the cable and wires so that
the appliance can be moved if servicing is ever necessary.
-Position the range hood (A) so the large end (2) of the
keyhole mounting slots (1) are over the screws (AA). Then
push the range hood (A) toward the wall so the screws (AA)
are in the neck (3) of the keyhole slots. Tighten the screws
(AA). Ensure that the range hood (A) is securely fastened to
the cabinet before releasing it.
-If applicable, test the damper blade to ensure it rotates up
and down freely.
-If applicable, connect the duct work to the range hood (A).
Seal the joints with duct tape to ensure an airtight t.
- Reinstall the bottom panel and lters as showin in Fig. 16.
FINAL STEP
-Reconnect the power supply cable and wires to the
electrical supply. Turn the power on and ensure that the
lights and fan are operating correctly.
Fig. 15
Fig. 16

QR242B / QR242S / QR242W 12
ENGLISH
Installation (continued)
INSTALLING THE CHARCOAL FILTER
(SKIP THIS STEP IF YOU ARE USING EXTERIOR VENTING)
NOTE:
The charcoal lter should only be installed if you are not using an external venting system.
- Turn the lter clip to either side and remove the aluminum lter.
- Place the charcoal lter (B) in place, ensuring that it covers the fan guard area.
- Reinstall the aluminum lter and lock it securely in place with the lter clip.

13 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Operation
NOTE:
The fan and lights operate independently of each other.
TURNING THE FAN ON/OFF
-To turn on the fan, press the appropriate speed control
switch [Low Speed (3), High Speed (1)] to select the desired
level of power. Once a button is pressed, the previous speed
mode will be cancelled.
-Press the power switch (2) to turn off the fan.
TURNING THE LIGHTS ON/OFF
-Press the light switch (4) to turn on the lights.
-Press the light switch (5) to turn off the lights.
41 2 3 5

QR242B / QR242S / QR242W 14
ENGLISH
Maintenance
REPLACING FILTERS
When lters need replacing, use only genuine replacement
lters available by calling our customer support team.
Replace lters that are damaged with punctures, bends, or
broken frames.
-Turn off the range hood and disconnect the power.
- Remove the used or damaged lter and replace it with a
new lter, then reconnect the power.
REPLACING LIGHT BULB
When light bulb burns out, replace tit with a 40 W E26 base
light bulb.
-Turn off the range hood, disconnect it from its power
source, and ensure that the lights are cool.
-Turn the bulb counter-clockwise and pull it out to remove it.
-Push in the new bulb and turn it clockwise. Do not
release the bulb until you are sure the bulb has been
securely installed. Then reconnect the power.
-If new bulbs do not operate, ensure that they are
inserted correctly.
DANGER: Turn off the power circuit breaker or the power
switch on the junction box before performing maintenance.
Touching circuitry inside the range hood while it is energized
will result in death or serious injury.
WARNING: Failure to replace worn out or damaged lters
will increase the risk of re.
WARNING: Light bulbs can become hot when turned on.
Do not touch bulbs until they are switched off and cooled.
Touching hot bulbs could cause serious burns.

15 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH

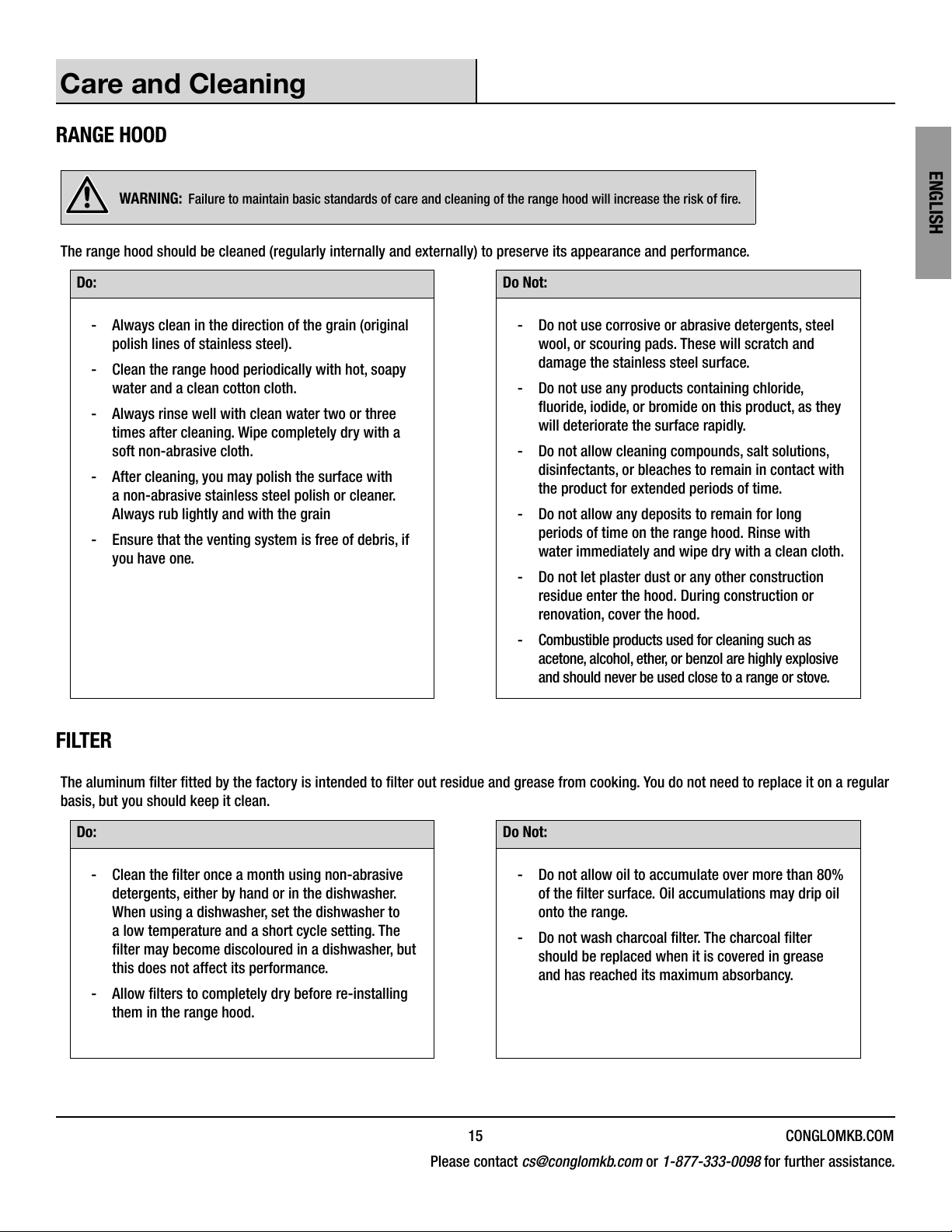

Care and Cleaning
RANGE HOOD
WARNING: Failure to maintain basic standards of care and cleaning of the range hood will increase the risk of re.
The range hood should be cleaned (regularly internally and externally) to preserve its appearance and performance.
Do: Do Not:
-Always clean in the direction of the grain (original
polish lines of stainless steel).
-Clean the range hood periodically with hot, soapy
water and a clean cotton cloth.
-Always rinse well with clean water two or three
times after cleaning. Wipe completely dry with a
soft non-abrasive cloth.
-After cleaning, you may polish the surface with
a non-abrasive stainless steel polish or cleaner.
Always rub lightly and with the grain
-Ensure that the venting system is free of debris, if
you have one.
-Do not use corrosive or abrasive detergents, steel
wool, or scouring pads. These will scratch and
damage the stainless steel surface.
-Do not use any products containing chloride,
uoride, iodide, or bromide on this product, as they
will deteriorate the surface rapidly.
-Do not allow cleaning compounds, salt solutions,
disinfectants, or bleaches to remain in contact with
the product for extended periods of time.
-Do not allow any deposits to remain for long
periods of time on the range hood. Rinse with
water immediately and wipe dry with a clean cloth.
-Do not let plaster dust or any other construction
residue enter the hood. During construction or
renovation, cover the hood.
-Combustible products used for cleaning such as
acetone, alcohol, ether, or benzol are highly explosive
and should never be used close to a range or stove.
FILTER
The aluminum lter tted by the factory is intended to lter out residue and grease from cooking. You do not need to replace it on a regular
basis, but you should keep it clean.
Do: Do Not:
- Clean the lter once a month using non-abrasive
detergents, either by hand or in the dishwasher.
When using a dishwasher, set the dishwasher to
a low temperature and a short cycle setting. The
lter may become discoloured in a dishwasher, but
this does not affect its performance.
- Allow lters to completely dry before re-installing
them in the range hood.
- Do not allow oil to accumulate over more than 80%
of the lter surface. Oil accumulations may drip oil
onto the range.
- Do not wash charcoal lter. The charcoal lter
should be replaced when it is covered in grease
and has reached its maximum absorbancy.

QR242B / QR242S / QR242W 16
ENGLISH
Troubleshooting
DANGER: Turn off the power circuit breaker or the power switch on the junction box before performing maintenance.
Touching circuitry inside the range hood while it is energized may result in serious injury or death.
Problem Solution
The range hood does not operate. -Check that the power supply cable and all electrical wiring are
properly connected.
-Check that the power is turned on at the junction box or circuit breaker.
-Check that the wiring between the switch control and the control board are
connected properly.
The range hood vibrates when the fan is operating. -Check that the range hood has been secured properly. Tighten into position,
if necessary.
-Check that the motor is secured in place. If not, then tighten the motor in place.
-Check that the fan is not damaged. If so, replace the fan.
The fans seem weak. -Check that the duct size used is at least 177 mm (7 in) round. The range hood
will not function efciently with insufcient duct size.
-Check that the duct is not clogged with debris and the tight mesh on the wall
cap, if applicable, isn’t restricting air ow.
-Check that the damper unit is opening properly.
-Check that no birds or animals have nested in the duct.
The lights work, but the fan is not spinning, is stuck,
or is rattling. -The thermal protection system detects if the motor is too hot to operate and
shuts the motor down. In this case, the motor will function properly after the
thermal protection system cools down (after approximately 10 min).
-Check that the fan isn’t jammed or scraping the bottom.
-If nothing else works, the motor may be defective or seized. If so, replace
the motor.
The range hood is not venting properly. -Check that no birds or animals have nested in the duct.
-Check that the distance between the cooktop and the bottom of the range hood
is between 458 mm (18 in) and 710 mm (28 in).
-Check that duct work follows all requirements. Use round metal duct work with
a uniform diameter of 177 mm (7 in). The length of duct work must not exceed
35 ft (10.7 m). Reduce the length of duct work and the number of elbows if
necessary. Ensure that all joints are properly connected, sealed, and taped.
-Check that the duct does not open against the wind.
-Ensure that the power is on high speed for heavy cooking.
-Close all windows nearest to the range hood to eliminate sudden air gusts.
-To enhance the performance of the range hood, open slightly a window on the
opposite side of the house where the range hood vents outdoors.
A light does not work. -Check to see if light bulb is burnt. If so, replace.
-Check the light bulb to see if it is loose. If so, tighten.
-Remove the problem bulb and insert one you know is working. If the properly
functioning light does not come on, the problem may be the light assembly.
Have the light assembly serviced or replaced.

17 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH
Specications
Model Dimensions Rating Control Type Max. Fan
CFM Speeds Light Bulb Wattage Venting Options
QR242B
QR242S
QR242W
758 mm (29.8 in) W
120 V~60 Hz
1.3 A
Rocker
Switches
185 ±
10%
High 1 x 40 W Incandescent
E26 base light bulb
Top venting
Back venting
Recirculating/
Inside venting
468 mm (18.4 in) D
Low
100 mm (4 in) H
WIRING DIAGRAM
BLACK
RED
II I IO O
BLUE
BLACK BLACK
BLACK
LN
120~60Hz
6uF / 250V
GRAY
YELLOW
YELLOW & GREEN
WHITE
WHITE L
1 40W E26
WHITE

QR242B / QR242S / QR242W 18
ENGLISH
Specications (continued)

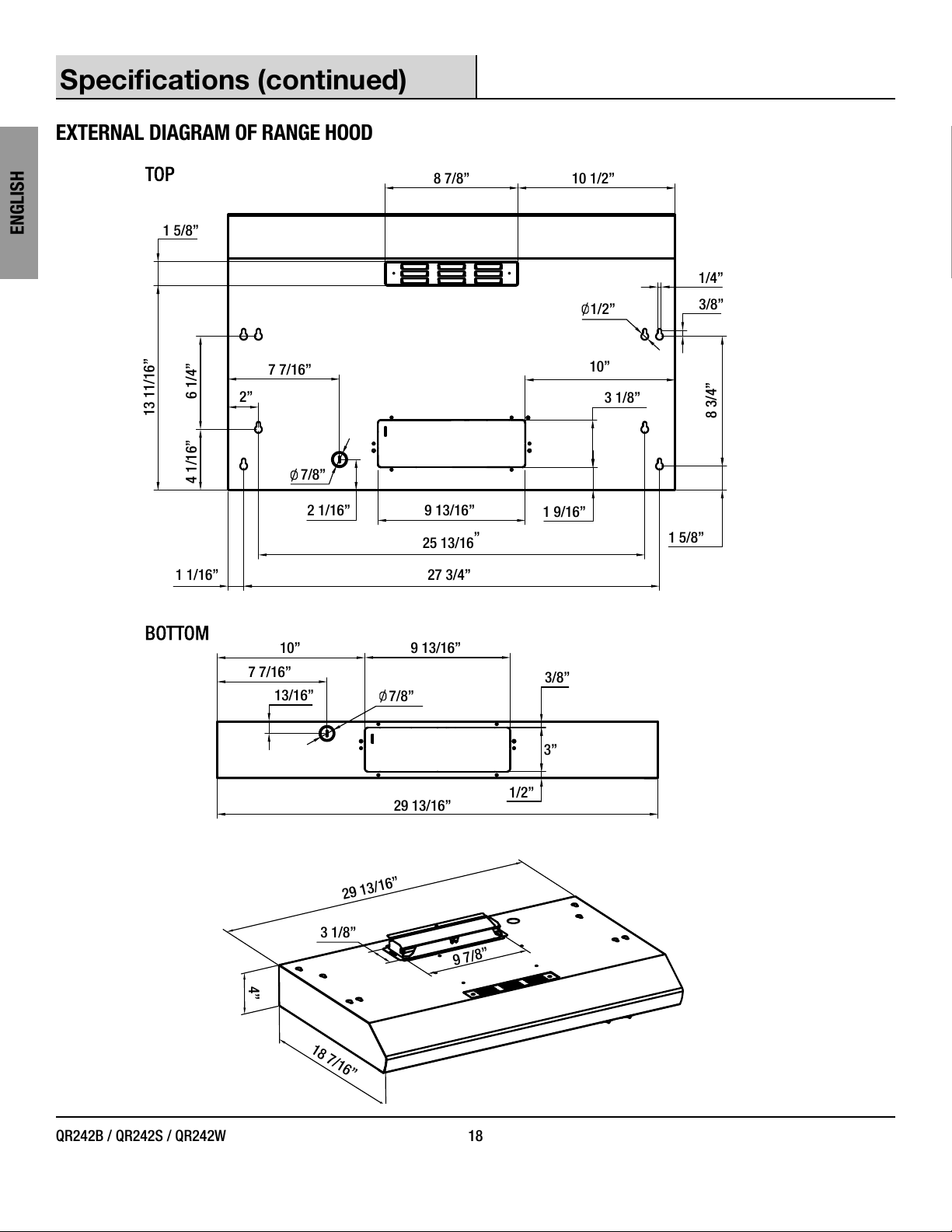

EXTERNAL DIAGRAM OF RANGE HOOD
10”
3 1/8”
1/2”
1/4”
3/8”
8 3/4”
6 1/4”
4 1/16”
13 11/16”
1 5/8”
1 9/16”
27 3/4”
25 13/16”
9 13/16”
2 1/16”
1 1/16”
7/8”
7 7/16”
1 5/8”
8 7/8”
10” 9 13/16”
29 13/16” 1/2”
3”
3/8”
7/8”
7 7/16”
13/16”
10 1/2”
2”
29 13/16”
9 7/8”
3 1/8”
18 7/16”
4”

19 CONGLOMKB.COM
Please contact [e-mail] or 1-877-333-0098 for further assistance.
ENGLISH

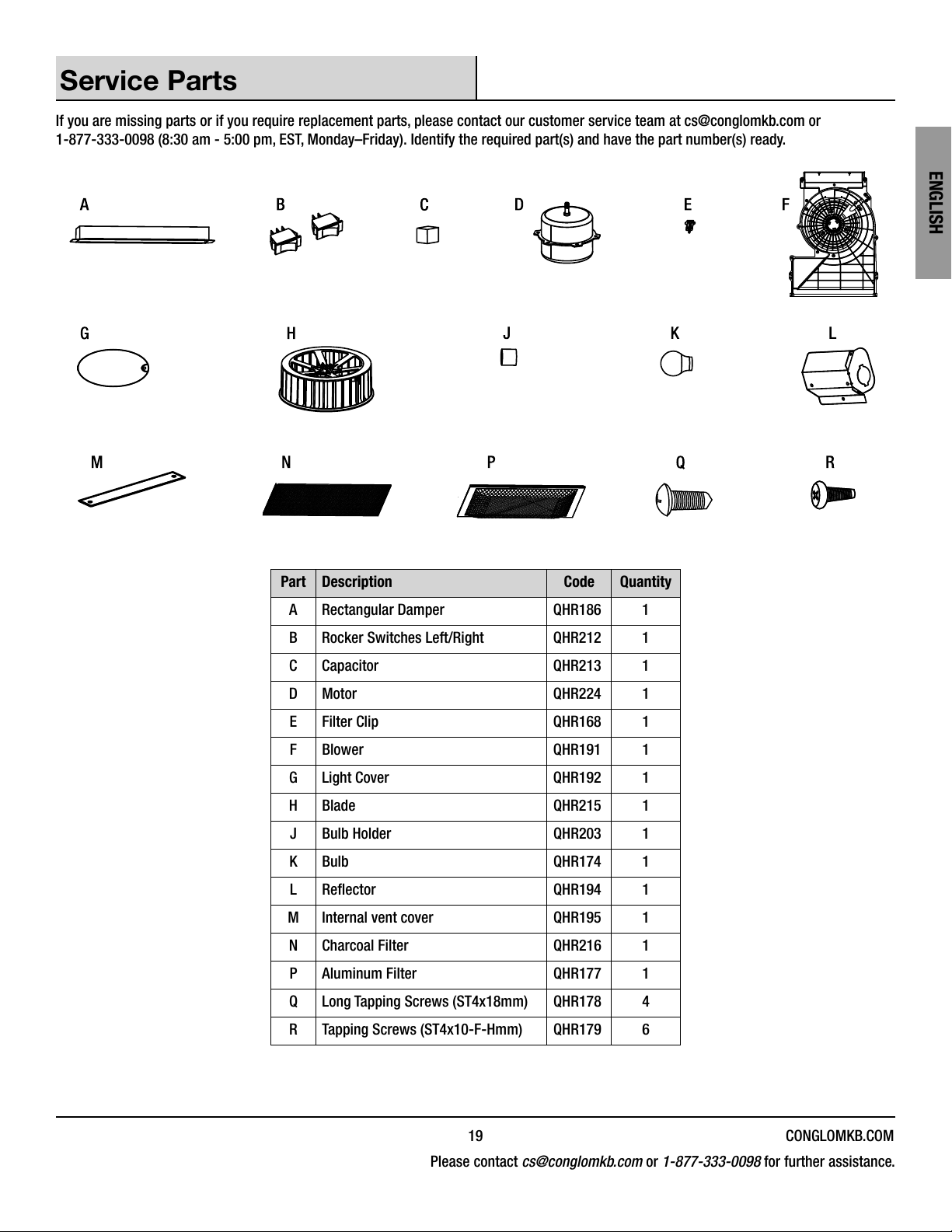

Service Parts
If you are missing parts or if you require replacement parts, please contact our customer service team at [e-mail] or
1-877-333-0098 (8:30 am - 5:00 pm, EST, Monday–Friday). Identify the required part(s) and have the part number(s) ready.
Part Description Code Quantity
A Rectangular Damper QHR186 1
B Rocker Switches Left/Right QHR212 1
C Capacitor QHR213 1
D Motor QHR224 1
E Filter Clip QHR168 1
F Blower QHR191 1
G Light Cover QHR192 1
H Blade QHR215 1
J Bulb Holder QHR203 1
K Bulb QHR174 1
LReector QHR194 1
M Internal vent cover QHR195 1
N Charcoal Filter QHR216 1
P Aluminum Filter QHR177 1
Q Long Tapping Screws (ST4x18mm) QHR178 4
RTapping Screws (ST4x10-F-Hmm) QHR179 6

20
FRANÇAIS
QR242B / QR242S / QR242W 20
Table des matières
OWNER’S MANUAL ..................................2
Consignes de sécurité ..............................20
Garantie............................................
Garantie limitée d’un an............................22
Procédure de réclamation pour la garantie .............22
Préinstallation.......................................
Outils requis.....................................23
Contenu de l’emballage............................24
Quincaillerie incluse ..............................24
Planication de l’installation ........................25
Installation .......................................28
Fonctionnement ...................................31
Entretien ...........................................
Remplacement du ltre ............................32
Remplacement des ampoules .......................32
Soin et nettoyage ....................................
Hotte de cuisinière................................33
Filtre...........................................33
Dépannage .......................................34
Caractéristiques .....................................
Schéma électrique................................35
Schéma externe de la hotte de cuisinière ..............36
Pièces de rechange ................................37
MANUAL DEL USARIO ...............................38
Consignes de sécurité
LIRE ET CONSERVER CES DIRECTIVES
Avertissement – An de réduire les risques d’incendie, de choc
électrique ou de blessures, veuillez prendre connaissance des
directives suivantes:
1. Cet appareil ne peut être utilisé autrement que pour l’usage prévu
par le fabricant. Consulter le fabricant pour toutes questions
concernant l’appareil.
2. Avant de réparer ou de nettoyer l’appareil, couper l’alimentation
électrique au panneau de service et le verrouiller pour éviter toute
remise en marche accidentelle. Si vous ne pouvez verrouiller le
panneau, y apposer un avertissement bien en vue.
3. L’installation et le raccordement électrique doivent être faits par
une(des) personne(s) qualiée(s), conformément aux codes et
normes de construction, incluant ceux concernant les incendies.
4. Un apport d’air sufsant est requis pour assurer une combustion
efcace et l’évacuation des gaz pour tous les appareils de cuisson
alimentés par un combustible an d’éviter tout refoulement d’air.
Suivre les directives et les normes de sécurité du fabricant des
appareils et se conformer aux normes recommandées par The
National Fire Protection Association (NFPA), par l’American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),
et par les autorités locales.
5. Lorsque vous faites une ouverture dans un mur ou un plafond,
veillez à ne pas endommager les ls électriques ou les conduites
qui y sont dissimulées.
6. Les ventilateurs à conduit doivent toujours être ventilés à l’extérieur.
AVERTISSEMENT : L’ÉVACUATION DES GAZ D’UN APPAREIL DE CUISSON
ALIMENTÉ PAR UN COMBUSTIBLE (GAZ) DOIT ÊTRE FAITE VERS
L’EXTÉRIEUR EN UTILISANT AU MOINS UN CONDUIT MÉTALLIQUE ET
UNE HOTTE D’UNE CAPACITÉ SUFFISANTE. Respectez les directives
du fabricant de votre appareil de cuisson, de même que toutes les
normes de sécurité applicables publiées par la National Fire Protection
Association (NFPA) et l’American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), ainsi que les codes du bâtiment locaux.
DANGER : Éteignez le disjoncteur électrique ou l’interrupteur
d’alimentation sur la boîte de jonction avant d’installer ou de
réparer cet appareil. Toucher un circuit intérieur de la hotte
alors qu’il est sous tension peut entraîner des blessures graves,
voire mortelles.
DANGER : Tout raccordement électrique doit être fait
conformément aux normes, isolé et mis à la terre. L’isolation
et la mise à la terre incorrectes entraîneront une décharge
électrique mortelle.
DANGER : Pour l’installation au-dessus d’une cuisinière
à gaz, le gaz doit être coupé à la source avant l’installation
ou l’entretien.
AVERTISSEMENT : Tenter d’installer ou de réparer cet
appareil lorsque vous n’avez pas les connaissances techniques
ou électriques nécessaires pourrait entraîner des blessures.
AVERTISSEMENT : Les bordures de métal de l’appareil
peuvent être tranchantes. Veuillez porter des gants protecteurs
pendant l’installation, la nettoyage, ou la réparation.
AVERTISSEMENT : Ne faites pas fonctionner l’appareil sans
les grilles de sécurité et les ltres, car sans ces éléments, les
ventilateurs pourraient aspirer la chevelure, les doigts ou les
vêtements amples.
AVERTISSEMENT : Restez à l’écart du ventilateur lorsque le
moteur est en marche.
AVERTISSEMENT : Gardez cet appareil propre et exempt
de graisse et d’accumulation de résidus en tout temps pour
prévenir les incendies.
PRUDENCE : Cet appareil est destiné à un usage de
ventilation de type générale seulement. Ne pas utiliser pour
évacuer des matières ou vapeurs dangereuses et explosives.
