Miele DA 420 V EXT User manual

Operating and installation instructions
Rangehood
DA 420 V, DA 420 V EXT
DA 424 V, DA 424 V EXT
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 200 860
en - AU, NZ

Caring for the environment..........................................4
Warning and Safety instructions .....................................5

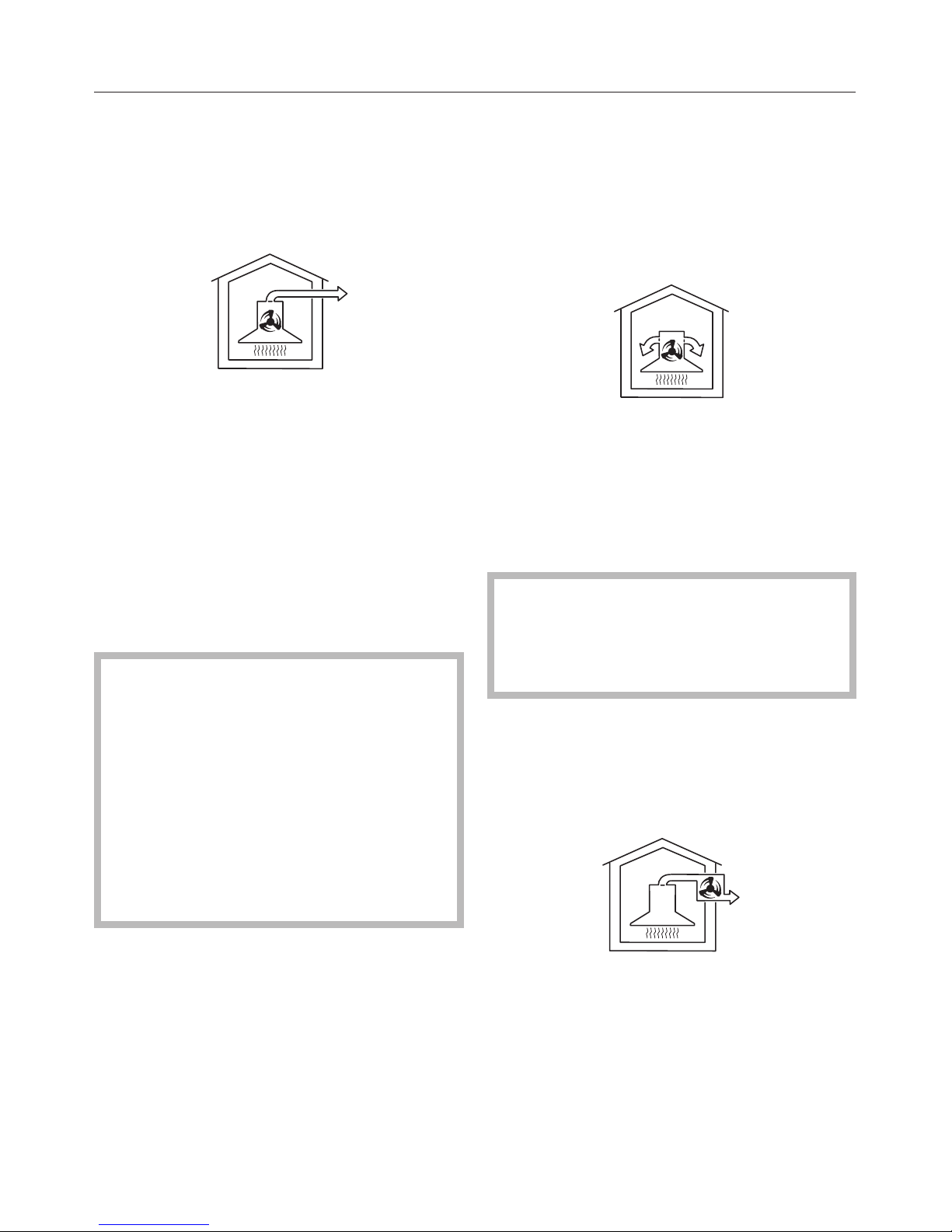

Modes of operation ...............................................11

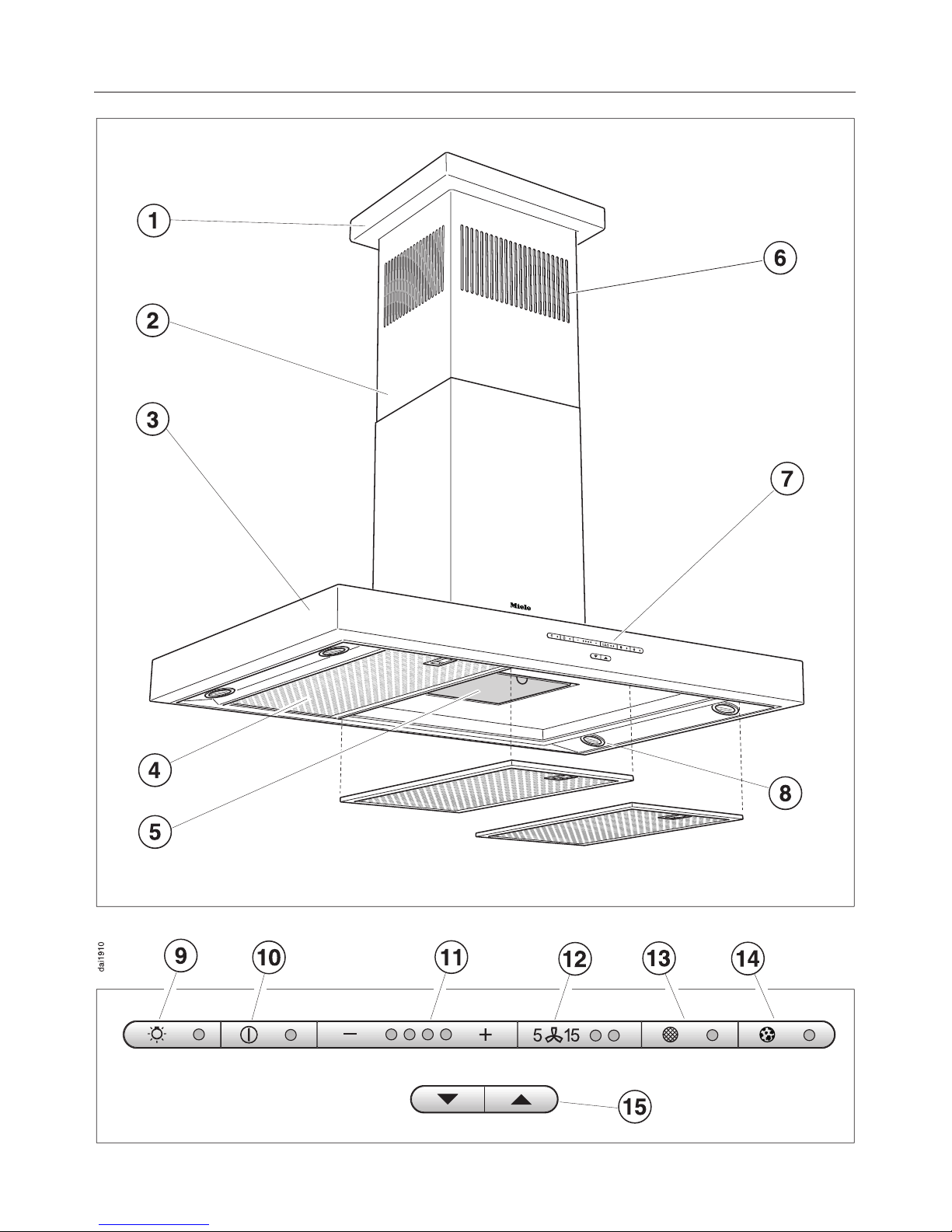

Guide to the appliance ............................................12
Miele|home .....................................................14
Con|ctivity ......................................................14

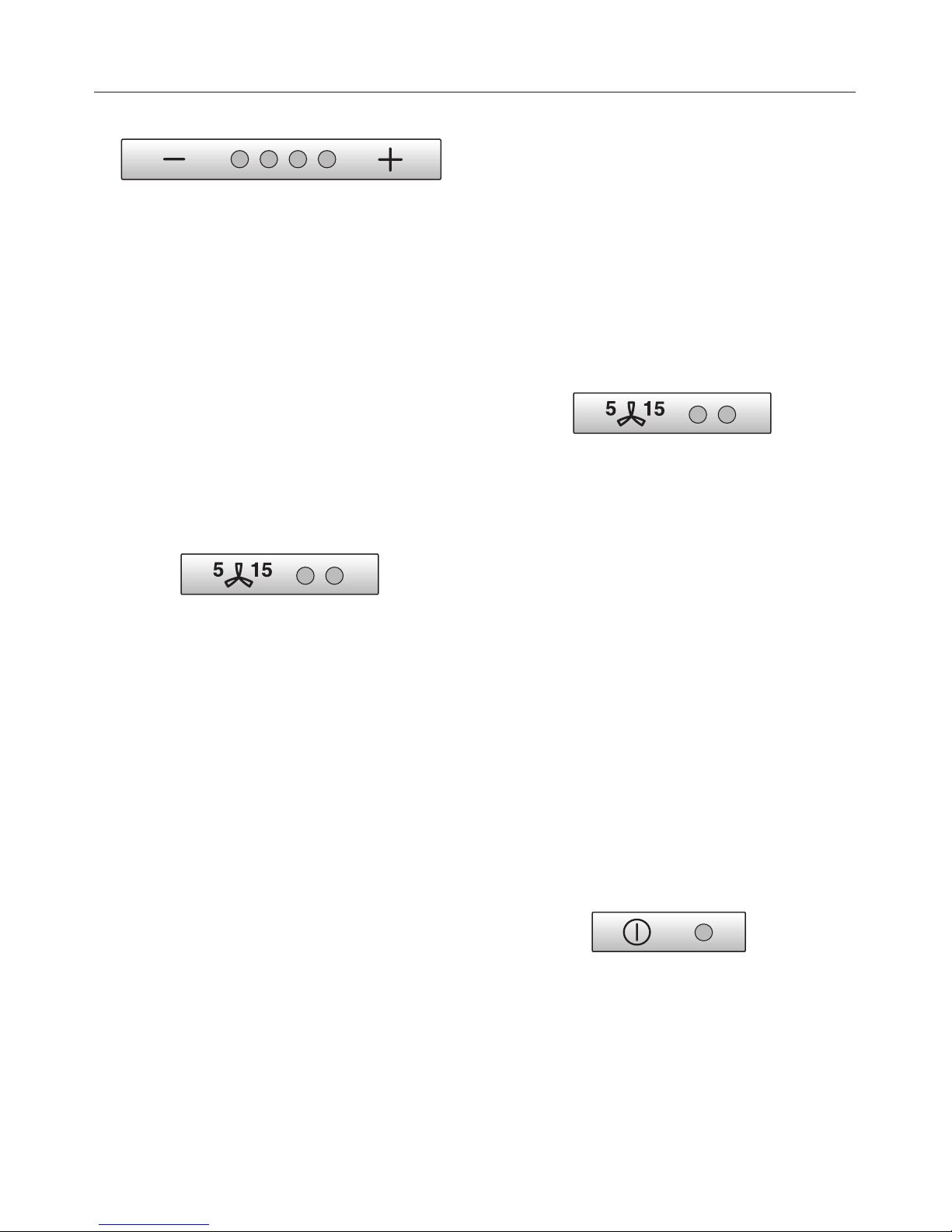

Operation .......................................................15
To switch the fan on................................................15
To select a power level .............................................15
Intensive setting ................................................15
Run-on option ....................................................16
To switch the fan off................................................16
To switch the lighting on ............................................17
Dimming the lighting ...............................................17
To switch the lighting off ............................................17
Filter operating hours counter ........................................18
Adjusting the height of the canopy ....................................21
Cleaning and care ................................................22
Housing .........................................................22
Grease filters .....................................................23
Fitting and replacing the charcoal filters ................................25
Changing a halogen lamp ...........................................26
After sales service ................................................27
Appliance dimensions.............................................28
Safety distance between cooktop and rangehood (S) ...................29
Installation ......................................................30
Installation instructions .............................................30
Assembly parts ...................................................30
Special installation instructions for recirculation mode ......................30
Extending or limiting the adjustment range ...........................31
Electrical connection .............................................33
Contents
2

Operation with DSM 400 control module..............................34
Potential free connection .........................................34
Connection to a light switch .......................................34
Connection for air extraction .......................................35
Condensate trap ..................................................36
Silencer .........................................................37
Technical data ...................................................38
Contents
3

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
4

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
5

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly and, where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
– it is switched off at the mains fuse,
– the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
If the appliance is connected via a
plug: Do not pull the mains
connection cable but the mains plug
to disconnect your appliance from
the mains electricity supply.
Warning and Safety instructions
6

~Do not connect the appliance to the
mains electricity supply via a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For appliances with an external fan
motor fitted (...EXT models), the
connection of the two units must be
made using the connection cable and
the plug connectors.
These models may only be combined
with a Miele external motor.
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.

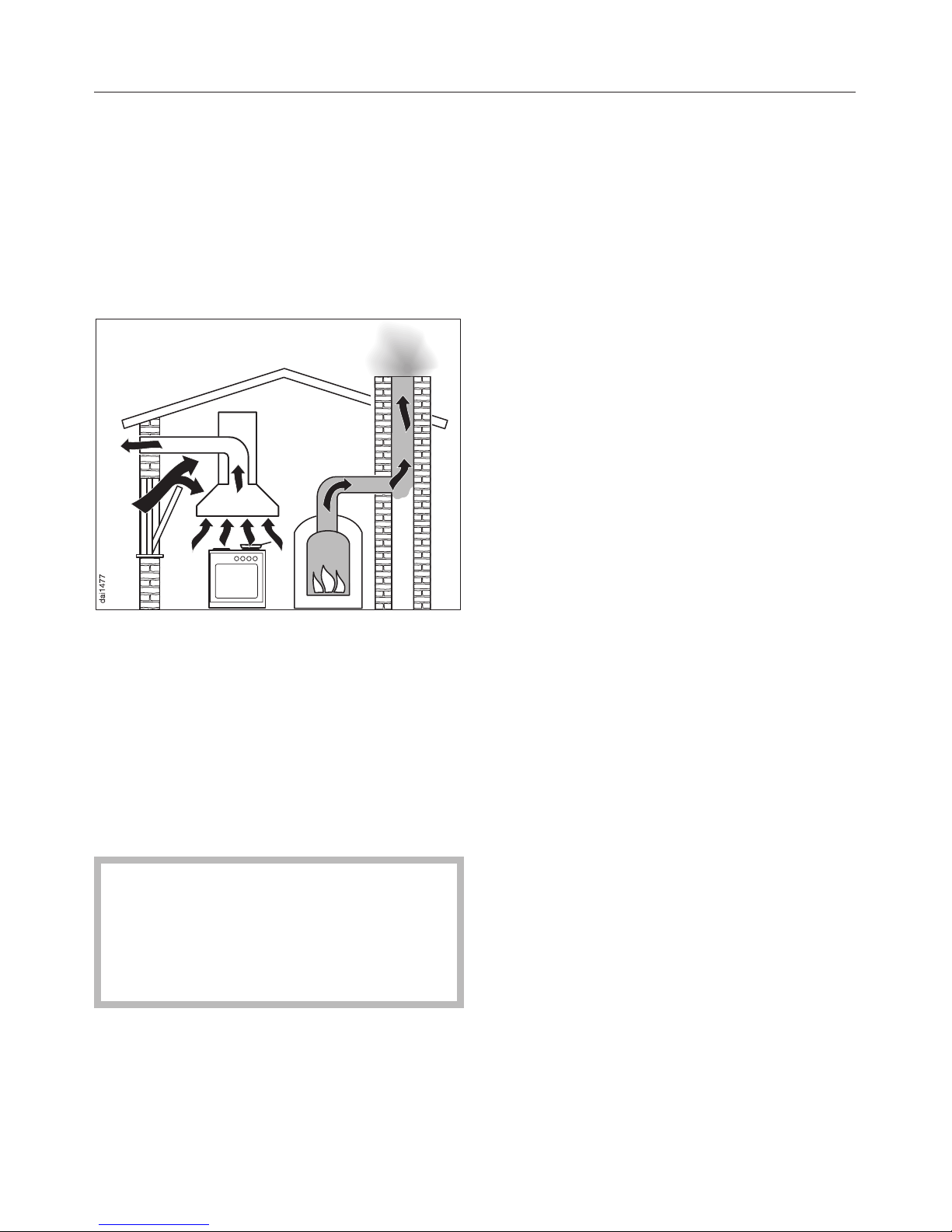

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the rangehood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas cooktops or ovens which draw air
in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, with or
without an external motor fitted, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
7

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation
simultaneously, an underpressure in the
room of 0.04 mbar (4 pa) is the
maximum permissible.
Ventilation can be maintained by air
inlets which cannot be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the extractor can only
be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder must be
sought.
If the rangehood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
8

Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the rangehood on fire.
~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
Warning and Safety instructions
9

Correct installation
~Refer to the rangehood or cooktop
manufacturer's instructions as to
whether a rangehood may be operated
above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from Miele or
from builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele spare parts
and accessories with this rangehood. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
10

The rangehood works with
. . . air extraction:
The air is drawn in, cleaned by the
grease filters and directed outside.
The rangehood is fitted with a
non-return flap, which is closed when
the rangehood is switched off. No
exchange of room air and outside air
can take place. When the rangehood is
switched on, the non-return flap opens
for the cooking vapours to be blown
directly outside.
Please note, the performance of
this rangehood hinges greatly on
the installed ducting to vent the
vapours. Poor choice of ducting
results in poor rangehood
performance. For ducting
recommendations, please refer to
the relevant section in these
operating instructions or contact a
specialised installer.
. . . air recirculation:
(Applies to the DA 420 V only. A
conversion kit and charcoal filter are
required, which are available as
optional accessories: see "Technical
Data")
The air is drawn in and cleaned first by
the grease filters and then by a
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the
rangehood telescopic tower.
Before using the rangehood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
...anexternal motor:
( ...EXT models only)
EXT models are designed to be
connected to an external motor located
outside the room.
The external motor is connected to the
rangehood by means of a control cable
and is operated by the controls on the
rangehood.
Modes of operation
11

Guide to the appliance
12

aCover plate
bTelescopic tower
cCanopy
The canopy is not designed to be
used as a shelf.
dGrease filters
eCharcoal filter
Available as an optional accessory for
recirculation mode (DA 420 V only)
fRecirculation grille
(only for recirculation mode on the DA
420 V)
gControls
hCooktop lighting
iTouch control for cooktop lighting
This control switches the lighting on
and off, and is also a dimmer switch.
jOn/Off touch control for the fan
kTouch controls to select the fan
power level
lTouch control for the run-on
option
The fan can be set to switch off
automatically after either 5 or 15
minutes.
mTouch control for the grease filters
The indicator lamp for the grease filter
touch control lights up when the grease
filters need to be cleaned.
This control is used to reset the
operating hours counter after cleaning
the grease filters (see "Cleaning and
care").
It can also be used to check and alter
the operating hours counter.
nTouch control for the charcoal
filter
(DA 420 V only)
The indicator lamp for the charcoal filter
touch control lights up when the
charcoal filter used in recirculation
mode needs to be replaced. For this to
happen, the operating hours counter
needs to be set before the appliance is
used for the first time.
The control is used to reset the
operating hours counter after replacing
the charcoal filter (see "Cleaning and
care").
It can also be used to check and alter
the operating hours counter.
oControls for raising and lowering
the canopy
The height of the canopy can be
adjusted by up to 260 mm (this can be
extended to 300 mm, see "Installation").
For information about using the
appliance, see "Operation".
Guide to the appliance
13

Con|ctivity
This rangehood is communication
enabled.

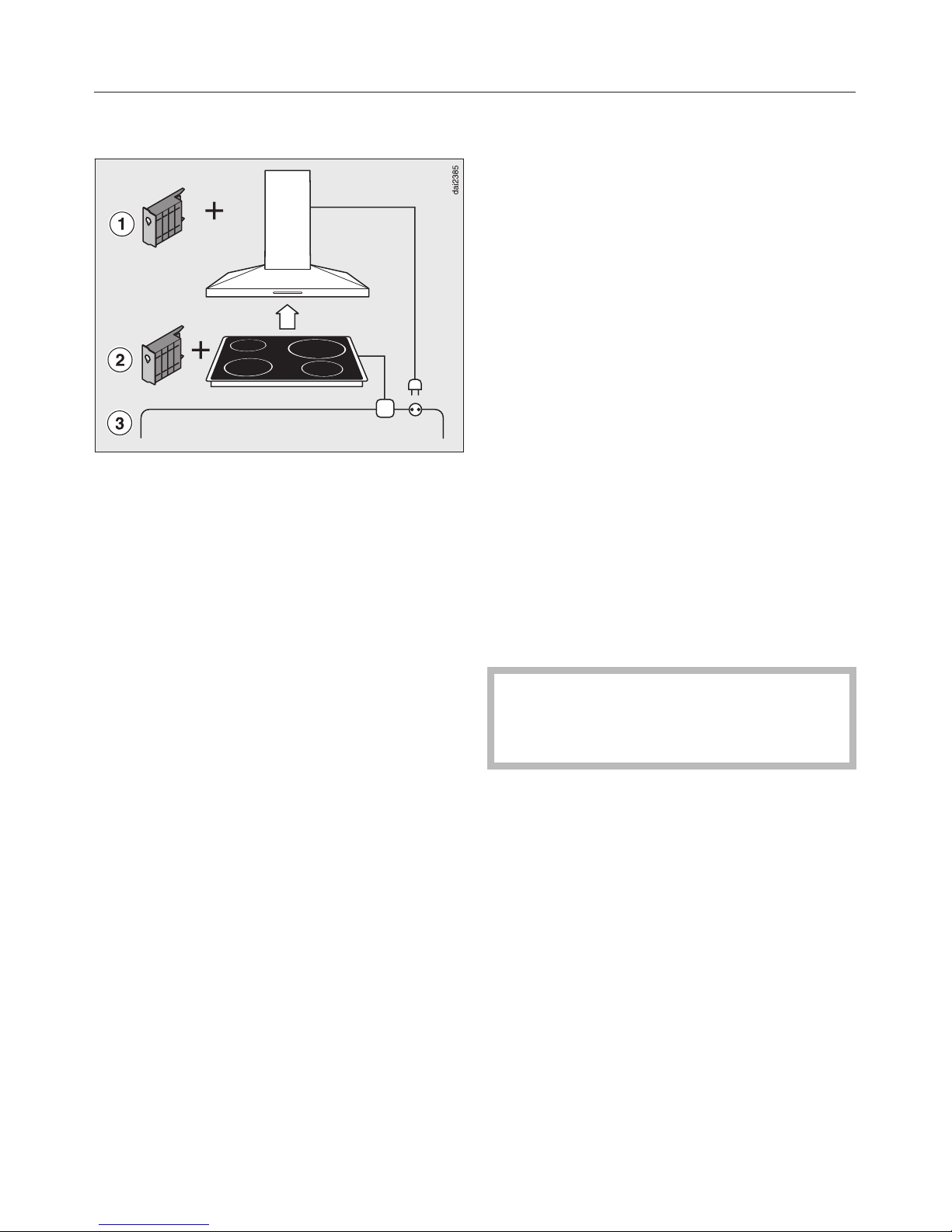

Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the rangehood
to be automatically controlled by the
operating status of a Miele electric
cooktop with onset controls.
For communication to take place, the
cooktop must be fitted with
communication module b.
The cooktop transmits information
about its operating status to the
rangehood via the household power
supply (Powerline) c.
–When the cooktop is switched on,
the cooktop lighting and the
rangehood fan also switch on.
–During cooking the rangehood
automatically sets the fan's power
level according to the number of
cooking zones in operation and their
power levels.
–After switching the cooktop off, the
fan and the cooktop lighting will
switch off automatically after a period
of time.
For detailed information about this
function, please read the separate
instruction booklet supplied with the
XKM 2000 DA communication module.
The communication module is fitted to
the rangehood in the area of the fan
and is connected to the controls of the
rangehood.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Miele|home
14

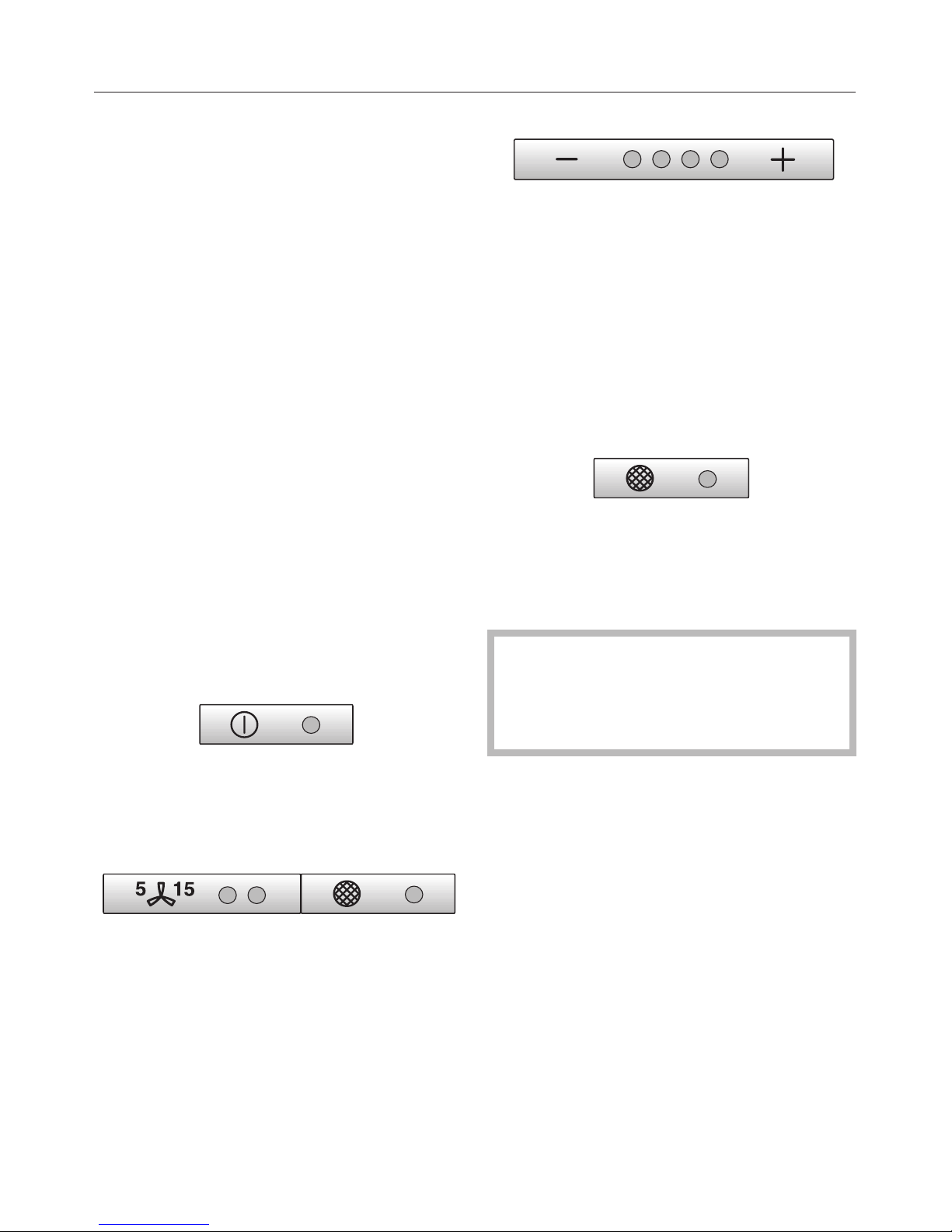

To switch the fan on
^Press the On/Off touch control.
The fan runs at power level "II".
The indicator lamp will come on.
To select a power level
^Use the –/+controls to select the
power level required.
Touch control += higher setting
Touch control –= lower setting
Depending on the intensity of the
cooking vapours, levels I to III are
usually sufficient for normal cooking.
Intensive setting
When frying or cooking food with a
strong aroma, you may wish to select
the Intensive setting for a short period.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the cooktop lighting must be
switched off.
^Press the run-on option touch control
for approximately 10 seconds. The
first fan setting indicator will light up.
^Then press, one after the other,
– the cooktop lighting touch control,
–the –touch control, and
–the cooktop lighting touch control
again.
Operation
15

The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off of the Intensive setting is not
activated.
^Press the +touch control to activate
automatic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –touch control to
deactivate the automatic switch-off
function.
^Press the run-on option touch control
to confirm your selection.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Run-on option
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
The fan can be set to switch off
automatically after either 5 or 15
minutes:
^After cooking has finished, press the
run-on option touch control whilst the
fan is still running.
– Press once = The fan will switch off
after 5 minutes (left-hand indicator
lamp).
– Press twice = The fan will switch off
after 15 minutes (right-hand indicator
lamp).
To switch off the run-on option, press
the run-on option touch control again.
The appliance will then not switch off
automatically.
To switch the fan off
^Press the On/Off touch control to
switch the fan off.
The indicator lamp will go out.
Operation
16

To switch the lighting on
The cooktop lighting can be switched
on and off independently of the fan.
^Briefly press the lighting touch
control to switch on the cooktop
lighting.
The indicator lamp will come on.
The lighting will switch on at maximum
brightness.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^With the lighting switched on, press
and hold in the cooktop lighting
touch control.
The brightness will gradually dim until
you release the touch control.
^Press the touch control in again to
increase the brightness to the level
required and then release it.
If you keep the touch control pressed
in, the light will continually change
between bright and dim.
To switch the lighting off
^Press the cooktop lighting touch
control briefly to switch the lighting
off.
The indicator lamp will go out.
Safety cut-out
Should the rangehood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
^Pressing the On/Off touch control will
switch the fan back on again.
Operation
17

Filter operating hours counter
The number of hours the appliance has
been in operation is stored in memory.
The indicator lamp for the grease filter
touch control will come on after 30
hours of operation. The grease filters
must then be cleaned.
Afterwards, the filter operating hours
counter must be reset.
^To do this, press and hold the grease
filter touch control for about 3 seconds.
The indicator lamp for the touch control
will go out.
For recirculation mode, the operating
hours counter for the charcoal filter
needs to be set to the required time
(see "Setting and altering the charcoal
filter operating hours counter").
The indicator lamp for the charcoal filter
touch control will light up after the
rangehood has operated for the number
of hours set. The charcoal filter must
then be replaced with a new one.
Afterwards, the filter operating hours
counter must be reset.
^Press the charcoal filter touch control
for about 3 seconds.
The indicator lamp for the touch control
will go out.
Reading the filter operating hours
counter
To check the percentage of time set
already used:
^Press the On/Off touch control to
switch the fan on.
^Press and hold the grease filter or the
charcoal filter touch control.
One or more of the indicator lamps for
the –/+touch controls will flash.
The number of flashing lamps shows
the percentage of the operating time
which has already been used up.
1 lamp = 25 %
2 lamps = 50 %
3 lamps = 75 %
4 lamps = 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operation
18

Altering the grease filter operating
hours counter
The operating hours counter for the
grease filter is set at 30 hours. The time
set can be lengthened or shortened:
you can choose 20, 30, 40 or 50 hours.
You can set the operating hours
counter to suit the type of cooking you
do.
–Select a short time if you roast or fry
a lot.
–If you use very little fat for cooking,
select a longer time.
– If you only cook occasionally, we
recommend that you still select a
short time, because grease which
has built up gradually over a long
period of time will harden on the
grease filter and make cleaning more
difficult.
^Press the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the grease filter touch control at
the same time.
The indicator lamp for the grease filter
touch control and one of the –/+touch
control lamps will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 20 hours
2nd lamp from the left = 30 hours
3rd lamp from the left = 40 hours
4th lamp from the left = 50 hours
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
grease filter touch control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Operation
19

Setting and altering the charcoal
filter operating hours counter
(with recirculation mode)
The charcoal filter is needed for
recirculation mode.
The rangehood is set at the factory for
extraction mode. On delivery, the
operating hours counter for the
charcoal filter is set to unlimited.
For recirculation mode, the operating
hours counter needs to be set to the
required time:
^Press the On/Off touch control to
switch the fan off.
^Press the run-on option touch control
and the charcoal filter touch control
at the same time.
The indicator lamp for the charcoal filter
touch control and one of the lamps
above the –/+touch controls will flash.
The –/+control lamps show the time
which has been set:
1st lamp from the left = 120 hours
2nd lamp from the left = 180 hours
3rd lamp from the left = 240 hours
4th lamp from the left = unlimited
^Use the –/+touch controls to select
the desired time.
^Confirm the selection by pressing the
charcoal filter touch control.
All the indicator lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Operation
20
