Aristel AN1706 User manual

3G/GSM Gate Opener 1/18 Rev. V1.4B, Jan 2019
ARISTEL NETWORKS
MANUAL
3G GATE OPENER
AN1706 (WCDMA)
`
Please read these instructions completely before use.

3G/GSM Gate Opener 2/18 Rev. V1.4B, Jan 2019
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS........................................................................................... 3
2. BRIEF INTRODUCTION............................................................................................ 3
3. PRODUCT FEATURES............................................................................................... 4
4. STANDARD PACKING LIST ..................................................................................... 4
5. INSTALLATION........................................................................................................... 4
5.1 SIM card installation........................................................................................... 4
5.2 Antenna Connection............................................................................................ 5
5.3 Wiring Diagram ................................................................................................. 5
5.4 Power Supply ...................................................................................................... 6
6. LED INDICATORS ...................................................................................................... 7
7. OPERATION................................................................................................................. 8
8. PROGRAMMING ........................................................................................................ 8
8.1 Programming by dialing in ................................................................................. 8
8.2 Programming by text message ............................................................................ 9
9. ADMINISTRATOR NUMBER ................................................................................ 10
10. CHECK SIGNAL STRENGTH ........................................................................... 10
11. CHECK RELAY STATUS .................................................................................... 10
12. HOW TO RESET THE UNIT WHEN YOU FORGET THE PASSWORD....… 10
13. CHECK A LOG OF DIAL IN NUMBERS VIA E-MAILOR SMS .....................11
14. USER COMMANDS................................................................................................. 14
15. SPECIFICATIONS ................................................................................................... 17
16. QUICK PROGRAMMING VIA SMS AND OPERATION ................................ 17

3G/GSM Gate Opener 3/18 Rev. V1.4B, Jan 2019
Thank you for purchasing GSM Gate Opener. Please read this manual carefully before using. Be
sure to keep this manual for future reference in case of any problems happen.
1. SAFTY PRECAUTIONS
1. Unplug the power adapter before cleaning. Do not use liquid cleaners or aerosol Cleaners. Use
a damp cloth for cleaning.
2. Do not use this product near water.
3. Do not use this product near an area where there is a potential of gas leaks or near any fumes
that can be explosive.
4. Do not place this equipment near or over a radiator or any other heat source.
5. Do not overload the wall outlet or power cord where the power adapter is installed. This can
result in fire or electric shock.
6. Avoid spilling liquid on this equipment and do not insert any objects through the Ventilation
slots.
7. Avoid using the equipment during an electrical storm. There is a remote risk of electrical shock
from lighting.
2. BRIEF INTRODUCTON
3G/GSM Gate Opener is a SIM based remote control system which can activate automatic gates with
a free call from you mobile phone. The users’ phone numbers are programmed into the device by
SMS or call. The device recognizes incoming Caller ID and drops the call without answering. With
this system you can authorize up to 100 phone numbers to open the gate or door at no cost
This model has 3 inputs included, input 2 can monitor the status of an electrical circuit when the
circuit’s state changes. The 3G opener will send an SMS messages to all of the nominated alarm
contacts saved in the unit.
3. Product Features:
1. Simple to use, easy to program.

3G/GSM Gate Opener 4/18 Rev. V1.4B, Jan 2019
2. Programming via SMS command.
3. Ideal for remote control of automatic gates, barriers, doors, central heating systems, home
4. Send SMS notification when a short circuit exists on inputs
5. 100 telephone numbers memory for access control by caller ID automatic number recognition
at no call cost to user.
6. To open the gate/door by password with 4 digit code access option if the number is not stored in
the access control section.
7. 2 outputs and 3 inputs for switching contacts (alarm output, sensors etc.)
8. Automation, industrial process, intruder alarm dialer and more.
4. STANDARD PACKING LIST
Item
Description
Q’ty
Included
Optional
1
3G/GSM Gate Opener
1
◎
2
Adapter
1
◎
3
Short Antenna
1
◎
4
External Antenna - 3 meter length
1
◎
5
Bracket for antenna
1
◎
6
Manual
1
◎
5. INSTALLATION
：
5.1 SIM CARD INSTALLATION (Fig1)
1. Ensure power is off before inserting or removing the SIM card
2. Register your SIM card with the network, and check that it works in a mobile phone
3. Remove the PIN code from the SIM before inserting it in the unit
4. Insert the SIM card ( note orentation of notched corner)
5. Make sure the SIM is fully inserted

3G/GSM Gate Opener 5/18 Rev. V1.4B, Jan 2019
5.2 ANTENNA CONNECTION
1. Ensure that there is good network reception at the location where it wil be installled.
2. If you use an antenna with a 3 metre cable, install it as high as possible on the top of the pillar
for best possible reception.

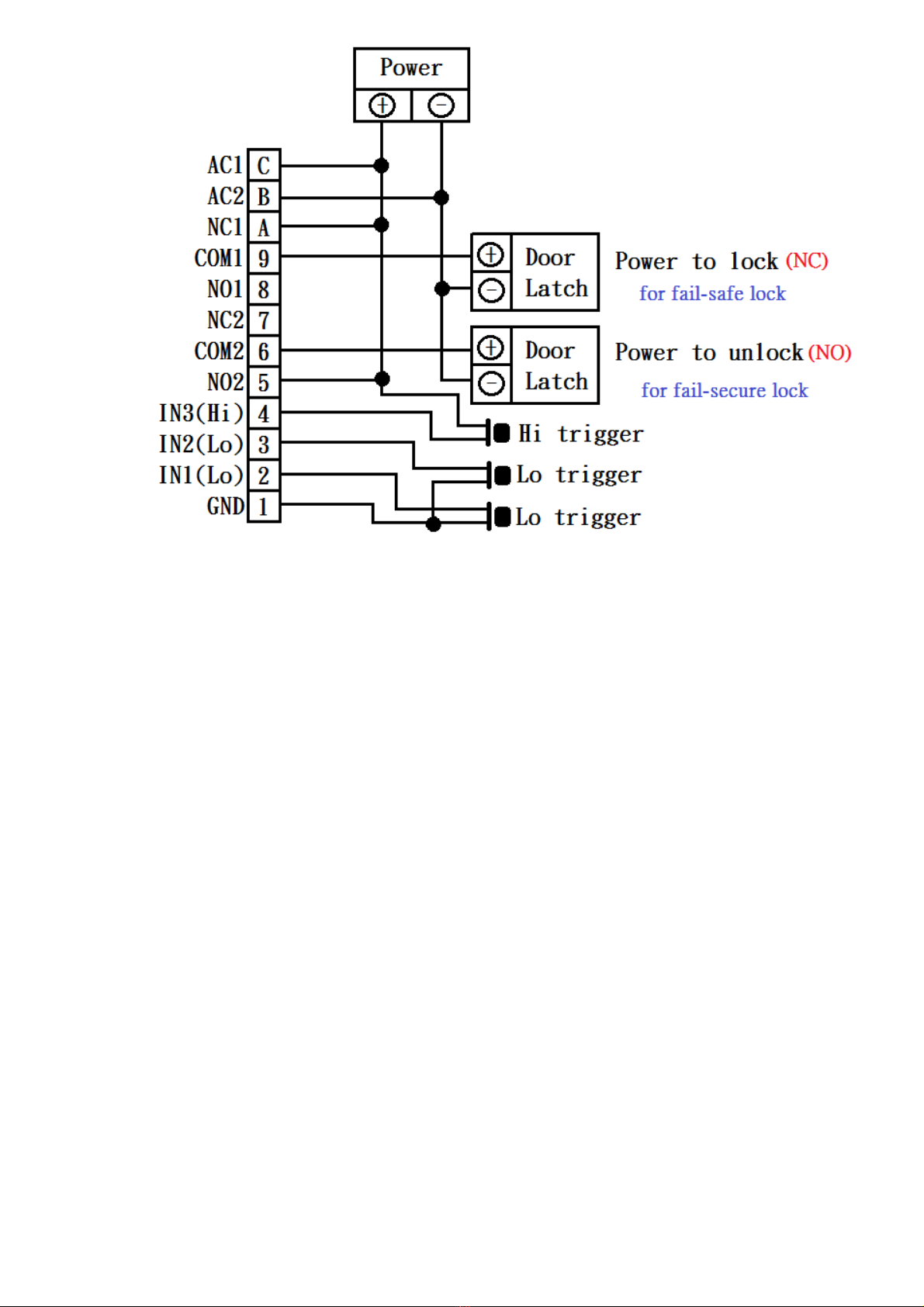

5.3 WIRING DIGRAM (Fig2 & Fig3)
Fig2
Interface introduction:
1
2
3
4
5
6
7
8
9
A
B
C
GND
IN1(Lo)
IN2(Lo)
IN3(Hi)
NO2
COM2
NC2
NO1
COM1
NC1
AC2
AC1
Fig1

3G/GSM Gate Opener 6/18 Rev. V1.4B, Jan 2019
Fig3
5.4 POWER SUPPLY
The 3G/GSM Gate Opener is designed to work with power supplies 12V~24V AC or DC.
The power supply should be capable of supplying a constant current of no less than 1amp.
After a final check of wiring switch on the power. allow 20~30 seconds for the unit to boot up and
detect the network.

3G/GSM Gate Opener 7/18 Rev. V1.4B, Jan 2019

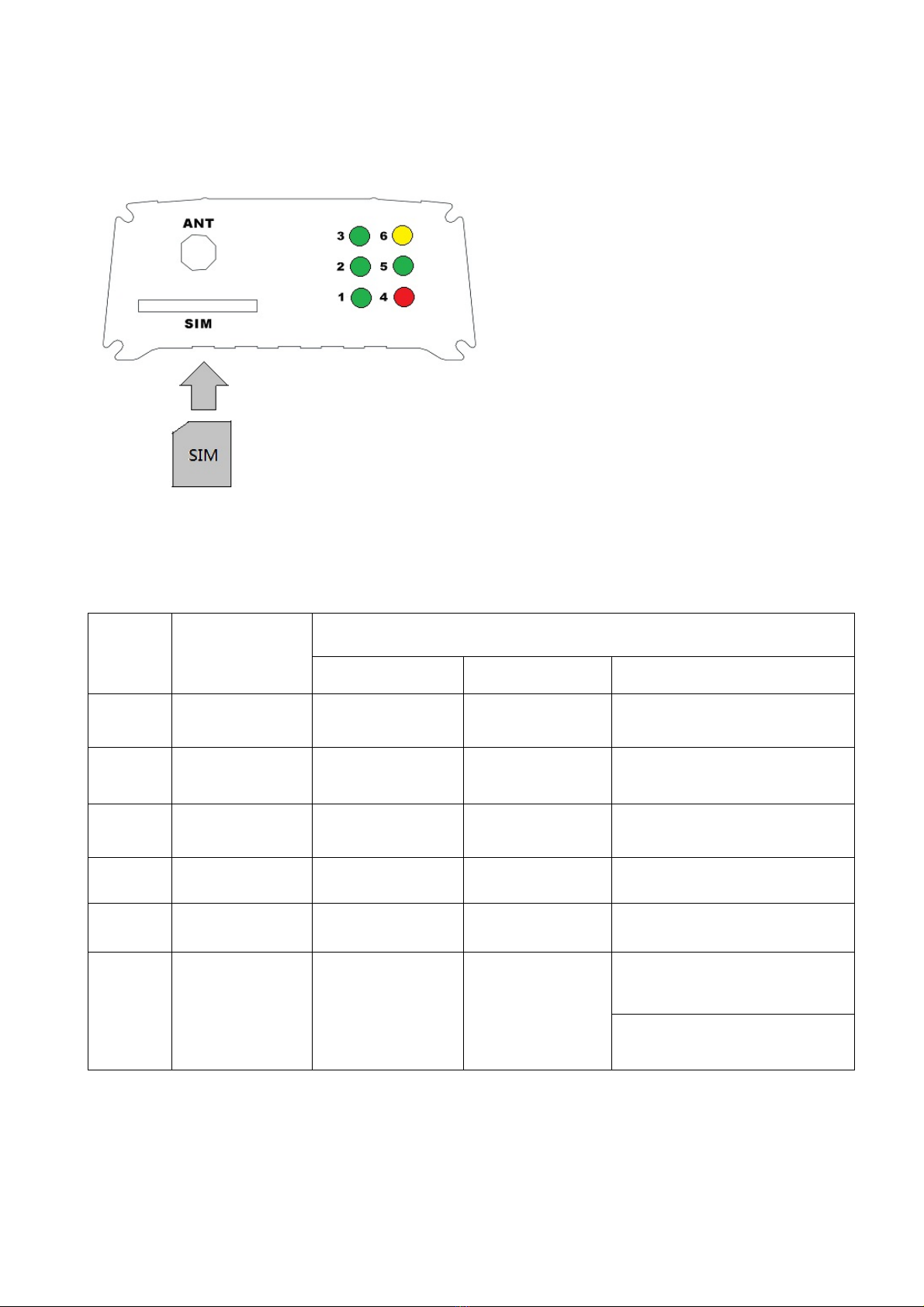

6. LED INDICATORS
Fig4
LED
Number Definition
LED Status
Solid
Off
Flash
1
Trigger input 3
Input 3 active
& Sending SMS
Standby
In triggering setup time
(24+Time#)
2 Trigger input 2 Input 2 active
& Sending SMS Standby In triggering setup time (17+Time#)
3 Trigger input 1 Input 1 active
& Sending SMS Standby In triggering setup time (15+Time#)
4 Power Power ON Power OFF X
5
3G/GSM
Network Busy or searching Module OFF
Flashes once per second
(Standby)
6 Device status Standby Power OFF
Flashes once per second
(No SIM inserted )
Flashes twice per second
(SIM not registered)

3G/GSM Gate Opener 8/18 Rev. V1.4B, Jan 2019
7. OPERATION
Programming of authorized telephone numbers in the unit will enable these numbers to call the gate
opener’s Mobile number, and whenever the unit receives a call, it will recognize the authorized
telephone number(s) calling it, and will disconnect without answering (so there will be no charge).
The gate or door relay will be activated. The relay can also be temporarily or permanently switched
on or off by sending SMS or dialing in.
This 3G/GSM Opener can enable users to gain access from their mobile phone by two methods
1. Caller ID recognition
2. by access control password mode
1. Caller ID recognition to open
Ring in to open the door for an authorized telephone number.
2. Access control password to open
Dial the SIM card telephone number. The unit will answer the call and you will hear a bleep tone.
The door can be opened after enter correct password code. Or just simply send SMS password code
to the device.
*71*5678#：Trigger relay 1
*72*5678#：Hold relay 1
*73*5678#：Release relay 1
*74*5678#：Trigger relay 2
*75*5678#：Hold relay 2
*76*5678#：Release relay 2
*This is for door open option when telephone numbers are not stored.
8.PROGRAMMING
Programming can be carried out either by text message or by dialing into the GSM Gate Opener.
8.1 Programming by dialing in
Dial the SIM card telephone number. The unit will answer the call and you will hear a bleep tone.
Enter Programming Mode by Pressing…..
*12*1234# (1234 is default password)
A successful pass code will produce a single long beep. A failed attempt will produce 3 short bleeps.
Example: start to program the phone number for dialing in to open the door.
Use the following commands to program the unit
* Insert international country code (1~3 digits): 71[country code] #
* Add a number (up to 100 numbers):72[relay][phone number] #
* Delete a number: 73[phone number]#

3G/GSM Gate Opener 9/18 Rev. V1.4B, Jan 2019
* Delete all numbers: 73*#
Note:
*programming dialing in can’t be used from telephones which are already programmed to open the
door when they dial the GSM Gate Opener.
* If the number is programmed to open the door but you still would like to use the same number to
dial in for programming, then you can disable Caller ID display (withhold the number) on the
mobile. In Australia, insert 1831 number prefix before the gate number.
8.2 Programming by text message
Programming by text message is the simplest way to customize the settings of the 3G/GSM Gate
Opener and add or delete telephone numbers. Simply send texts in the format to the telephone
number of the SIM within the 3G/GSM Gate Opener.
Note:
1. A Single SMS text messages is limited to 140 characters.
2. You can program many different user command codes in a single text message with SMS
command format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
3. Each SMS must start with the pass code , default 1234 in the following format *12*1234 #
Followed immediately by a command.
Program with the following format:
*12*1234#71[country code]#72[relay][phone number]#72[relay][phone number]#72[relay][phone
number]#......
Relay= 1 or 2
The passcode *12*1234 only needs to be put at the beginning of each new message.
Example:
Ireland Country code: 353 (UK: 44 / USA: 1 / Do not using any leading zeros)
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format:
*12*1234#71353#7210865683624#7220865682554#7210862235644#
To delete phone numbers of dialing in to open
SMS format: (to delete phone number 1 and 2)
*12*1234#730865683624#730865682554#
SMS format: (to delete all numbers)
*12*1234#73*#

3G/GSM Gate Opener 10/18 Rev. V1.4B, Jan 2019
After the numbers are programmed you can also send the text message to check the stored numbers
by sending SMS format *22*1234# , then the 3G/GSM opener will reply the phone number list text
message.
9. ADMINISTRATOR NUMBER
Once the administrator number is stored, the unit will only accept programming from this number
and only via SMS programming.
Example:
Program a mobile number as an administrator number via SMS
Mobile number: 0865682554
Command to use *12*1234#74 [Admin number]#
SMS format *12*1234#740865682554#
To delete the Admin number *12*1234#74*#
10. CHECKING SIGNAL STRENGTH
When a request for 3G/GSM signal strength, send an SMS command is sent to the 3G/GSM
Opener. The unit should reply with a signal strength code and service provider name. The
code will be between 0~31 means the signal level is from poor to best.
Example:
SMS format *21*1234#
SMS reply Vodafone Signal Level = 31 【Signal is very strong】
11. CHECK RELAY STATUS
You can send SMS command code to check relay status.
SMS format *24*1234#
SMS Reply Relay1 [status], Relay2 [status] (status = Hold / release / trigger)
Input 1 [status] , Input 2 [status], Input 3 [status] (status= high / low)
12. HOW TO RESET THE UNIT WHEN YOU FORGET THE PASSWORD
1. To keep the red button pressed on the PCB
2. Then power up and wait for 5 sec
3. After you see LED 2 and 3 starts to flash which means it’s resetting.
4. Release the red button

3G/GSM Gate Opener 11/18 Rev. V1.4B, Jan 2019

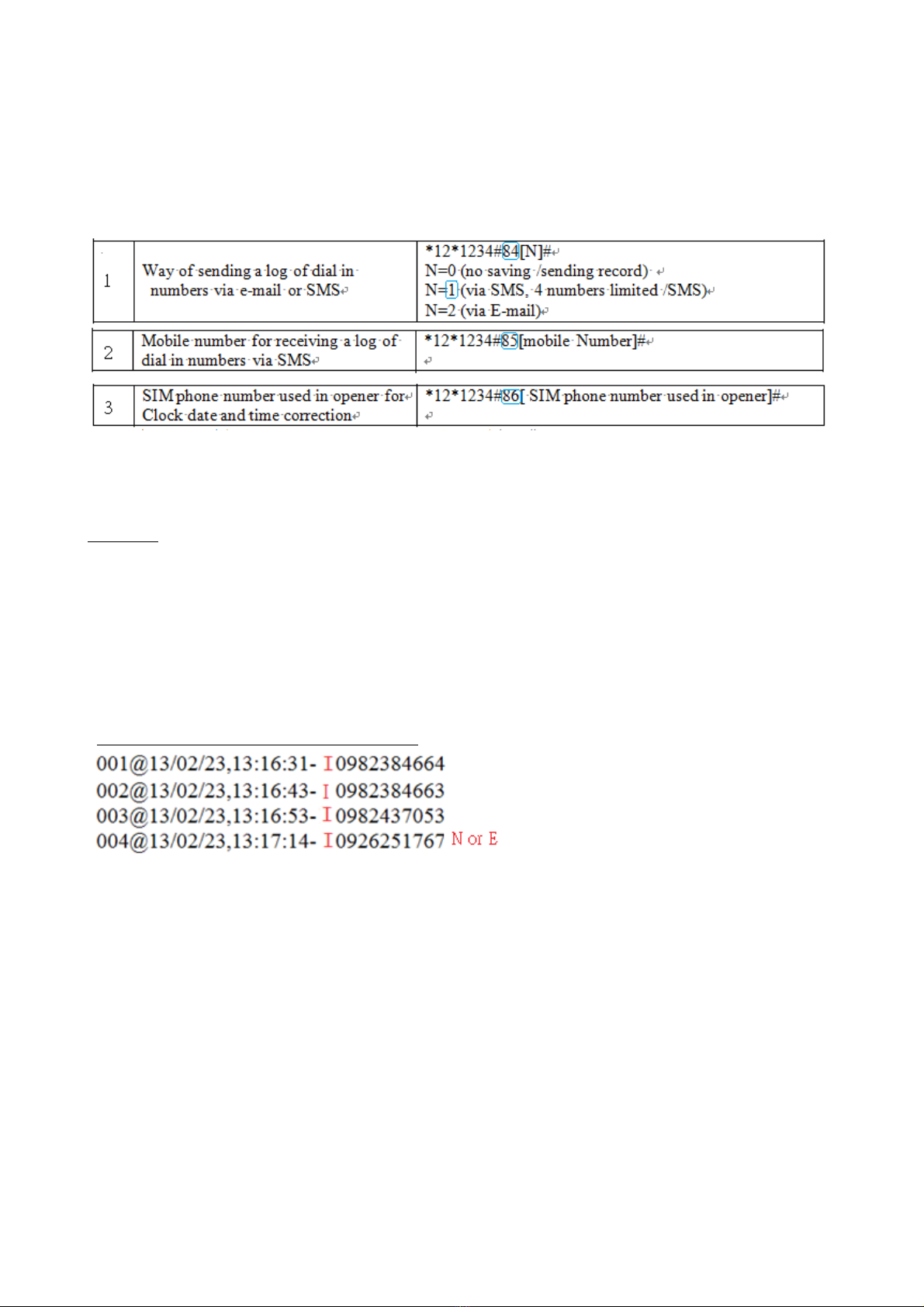

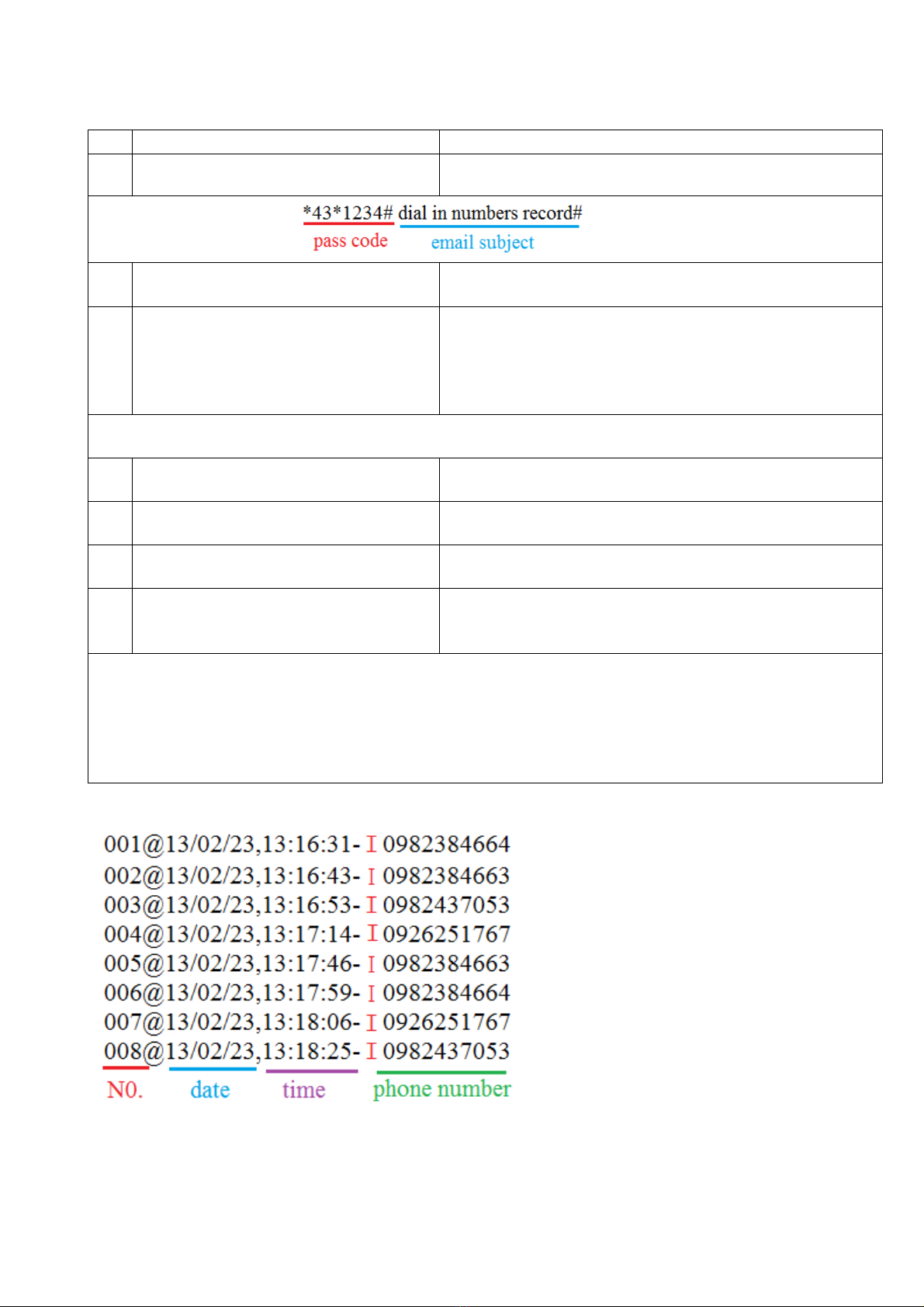

13. CHECK A LOG OF DIALED IN NUMBERS VIA E-MAIL OR SMS
This system allows you to save dial in numbers log and will then automatically send the record via
e-mail or SMS as your request.
There is a list of commands you need and examples to guide you on the settings for this feature.
Please setup following required parameters and commands before you can use it.
NOTE: G-mail doesn’t support this feature.
No.
Function
SMS command codes
1 Auto sending a log of dial in numbers
*12*1234#83[N]#
N= 0 (sending when it reaches 100 numbers)- default
N=1(sending when it reaches 200 numbers, Max)
Sending record when it reaches 200 numbers. / command code example: *12*1234#831#
2 Way of sending a log of dial in
numbers via e-mail or SMS
*12*1234#84[N]#
N=0 (no saving /sending record)
N=1 (via SMS, 4 numbers limited /SMS)
N=2(via E-mail)
Sending record via email / command code example: *12*1234#842#
3

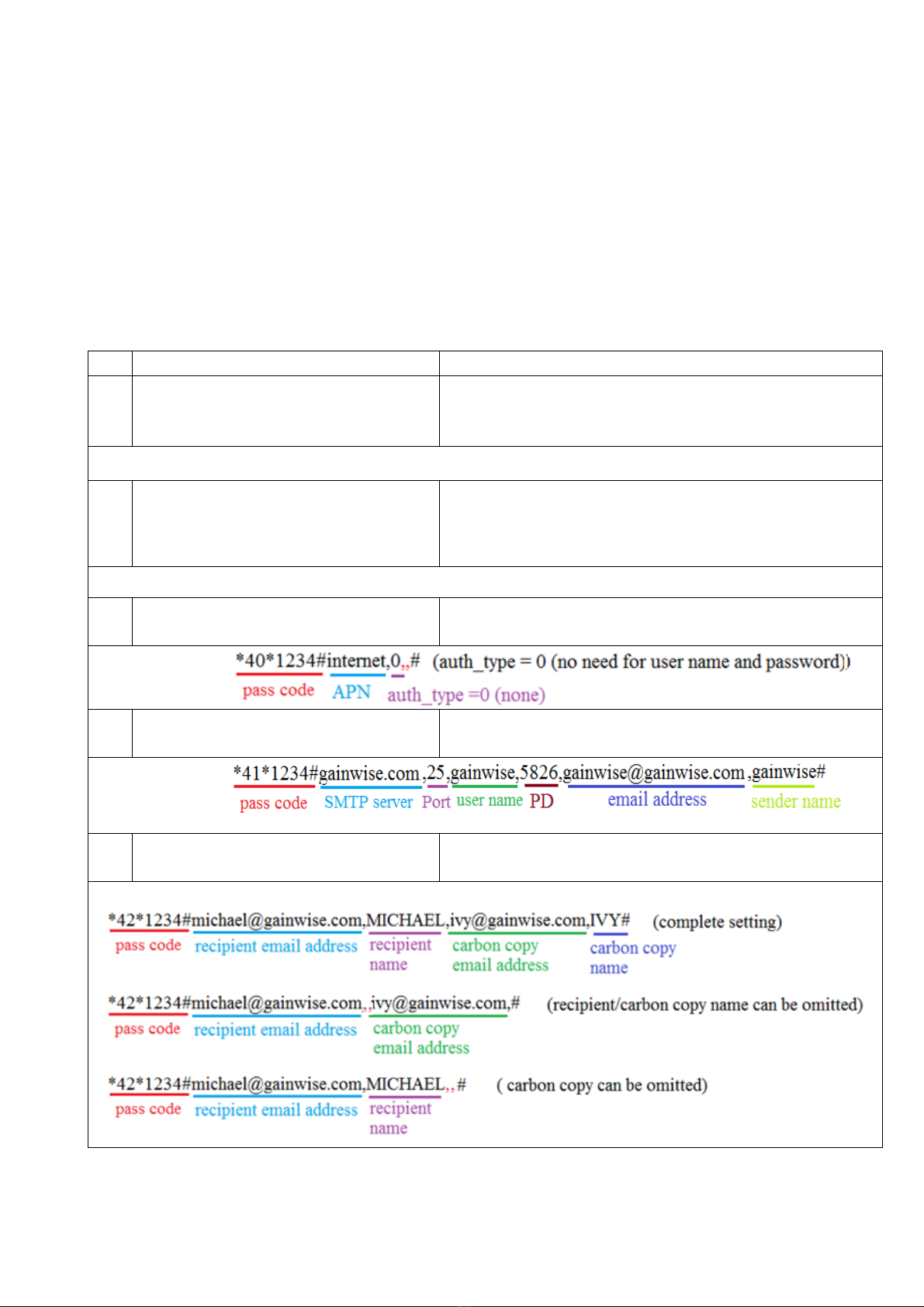

GPRS parameters setting
*40*1234#APN, auth_type,user name,password#
auth_type: 0= none / 1= PAP / 2= CHAP
Command code
Example:
4
E-mail parameters setting
*41*1234#SMTP server,port,user name, password, e-
mail address, e-mail sender name#
Command code
Example :
5
Recipient & Carbon copy settings
*42*1234# recipient e-mail address, recipient name,
carbon copy e-mail address, carbon copy name#
Commande code example:

3G/GSM Gate Opener 12/18 Rev. V1.4B, Jan 2019
No.
Function
SMS command codes
6
E-mail subject setting
*43*1234# e-mail subject#
Command code Example:
7
To immediately send current dial in
numbers log via email or SMS
*44*1234#
SMS reply: successful or failed
8 Check parameters setting
*4[N]*1234#
N=0( reply GPRS parameters)
N=1 ( reply e-mail parameters)
N=2 ( reply recipient & carbon copy)
N=3 ( reply e-mail subject)
Check GPRS parameters setting / Command code example: *40*1234#
9
Mobile number for receiving a log of
dial in numbers via SMS
*12*1234#85[mobile number]#
10
Delete mobile number for receiving a
log of dial in numbers via SMS
*12*1234#85*#
11
SIM phone number used in opener for
Clock date and time correction
*12*1234#86[ SIM phone number used in opener]#
12
To delete SIM phone number used in
opener for Clock date and time
correction
*12*1234#86*#
Note: why you need to setup the number for system time clock date and time correction?
This device has a time clock and supports automatically updating their date and time via NITZ
information from network. In case some of the networks are not available for NITZ information, we
strongly suggest to setup this clock date and time correction. When the device detects NITZ information
is not available from the network will automatically send a command to itself via the SIM card used in
the opener for time correction which will keep your “ dial in numbers log ” with correct date and time.
Log example:
Ｉ: Dial in number

3G/GSM Gate Opener 13/18 Rev. V1.4B, Jan 2019
How to program checking a log of dialed in numbers via SMS
There are 3 programming codes you will need to make this feature work
You can program many different user command codes in a single text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
Example:
Mobile number for receiving a log 0907967223
SIM phone number used in opener 0948778458
*12*1234#841#850907967223#860948778458#
Send *44*1234# to check log
Replied log information via SMS example:
I: Dial IN numbers
N: Next text massage
E: End text message

3G/GSM Gate Opener 14/18 Rev. V1.4B, Jan 2019
14. USER COMMANDS
You can program many different user command codes in a single text message with SMS command
format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #........
No.
Command
Description
settings
Default
1
01 [new password]#
Change password of Programming
Mode
password:4 ~6digits
1234
2
02[new password]#
Change password of Access control
Mode
password:4 ~6digits
5678
3
11[Time]#
Door open confirming time
Time = 0~99 seconds
0 sec
no delay
4
12[Time]#
Relay 1 activation time
Time = 1~9999 seconds
1
5
13[Time]#
Relay 2 activation time
Time = 1~9999 seconds
1
6
14[Time]#
Activation time when input 1 is
trigged
Time = 1~9999 seconds
0 sec
no delay
7
15[Time]#
Sending SMS duration when
input 1 continues triggering
Time = 0-60 minutes
15[Tim
e]#
8
16[Time]#
Activation time when input 2 is
trigged
Time = 1~9999 seconds
0 sec
no delay
9
17[Time]#
Sending SMS duration when
input 2 continues triggering
Time = 0-60 minutes
0 min
no delay
10
23[Time]#
Activation time when input 3 is
trigged
Time = 1~9999 seconds
0 sec
no delay
11
24[Time]#
Sending SMS duration when
input3 continues triggering
Time = 0-60 minutes
0 min
no delay
12
18[Status]#
Set Input1 status
Status= 0 or 1
0=N.O
1=N.C
0
13
19[Status]#
Set Input 2 status
Status= 0 or 1
0=N.O
1=N.C
0
14
22[Status]#
Set Input 3 status
Status= 0 or 1
0=N.O
1=N.C
0

3G/GSM Gate Opener 15/18 Rev. V1.4B, Jan 2019
No.
Command
Description
settings
Default
15
20[mode]#
Set Input 1 mode
Mode= 0, 1 , 2 or 3
0 = Disable , 1 = Trigger
2 = Egress 1, 3= Egress2
1
16
21[mode]#
Set Input 2 mode
Mode= 0, 1, 2 or 3
0 =
Disable , 1 = Trigger
2 = Egress 1, 3 = Egress2
1
17
27 [mode]#
Set Input 3 mode
Mode= 0 or 1
0 = Disable , 1 = Trigger
1
18
28+IN*time start+ time
end*time start + time
end*……....#
Set time duration ( enable inputs )
E
xample:
E
nable input 1time duration
00:00~05:00,
12:00~16:00,
21:00~23:00
SMS format:281*0005*1216*2123#
IN= 1, 2 or 3
( input 1~3)
T
ime start = 00~23
Time end = 01
~24
( hour as a
n unit)
enable
19
71[country code]# To set country code
Country code= 1-3 digits
(UK:44 / USA:1)
886
20
72[relay][phone number]#
Store phone number
F
or ringing in to open the door
(
max: 100 numbers)
Relay= 1 or 2
P
hone number =3 ~14 digits
N/A
21
73 [phone number]#
Delete a ring in to open number
phone number =3 ~14 digits
N/A
22
73*#
Delete all ringing in to open
numbers
23
74[admin number] #
Add administrator phone
number
admin number =3 ~14 digits
( no number no restriction)
N/A
24
74*#
Delete administrator phone
number
25
75[N][phone number]#
Add mobile number of alarm
contact when inputs are triggered.
N=phone number 1, 2 or 3
phone number =3 ~14 digits
N/A
26
75[N]*#
Delete mobile number of alarm
contact when inputs are triggered.
N=1~3(sequence of phone
number)
N/A
27
Relay control SMS reply
871+N#
N= 0 or 1 0= disable
1= enable
SMS replay
Re
lay 1 trigger, relay 2 trigger
R
elay 1 hold, relay 2 hold
Relay 1 release, relay 2 release
0
28
999#
Reset

3G/GSM Gate Opener 16/18 Rev. V1.4B, Jan 2019
User commands to check system info & control relay via SMS
No.
Command
Description
SMS Reply
1
*21* 1234 #
check GSM signal
strength and operator
Signal Level = 0~31
From poor to strong
2
*22*1234#
Reply stored numbers
[ number1]#[number2]#[number3]#......
E:Next page / N: End
3
*23*1234#
Reply alarm contact
numbers when inputs are
triggered
[ number1]#[number2]#[number3]#
4
*24*1234# Check relay and inputs
status
Relay 1: status (status= hold/ release/
trigger)
Input1: status (status= high / low)
Input 2:status (status= high / low)
5
*31*1234#[ SMS content]#
Store SMS content when
input 1 is triggered.
SMS content=max 100 characters
6
*31*1234#
To check input 1 SMS
content
Default SMS “ trigger 1 is active”
7
*32*1234#[ SMS content]#
Store SMS content when
input 2 is triggered.
SMS content=max 100 characters
8
*32*1234#
To check input 2 SMS
content
Default SMS “ trigger 2 is active”
9
*33*1234#[ SMS content]#
Store SMS content when
input 3 is triggered.
SMS content=max 100 characters
10
*33*1234#
To check input 3 SMS
content
Default SMS “ trigger 3 is active”
11
*71*5678 #
Trigger relay 1
No reply
12
*72*5678 #
Hold relay 1
No reply
13
*73*5678#
Release relay1
No reply
14
*74*5678 #
Trigger relay 2
No reply
15
*75*5678 #
Hold relay 2
No reply
16
*76*5678#
Release relay2
No reply

3G/GSM Gate Opener 17/18 Rev. V1.4B, Jan 2019
15. SPECIFICATIONS:
Operating Voltage
12~24 volts AC or DC
Operating Current
Maximum 250mA, typically 55mA
GSM / WCDMA Module
Cinterion EHS6
GSM / WCDMA Frequency
GSM 850/900/1800/1900 Mhz, WCDMA 800/850/900/1900/2100 Mhz
Power Consumption
Standby: 42mA/hr / Relay on: 83 mA/hr
Physical size
9.5 (L) X 6.0 (W) x 2.5 (H) cm
Antenna
Short Antenna
Humidity
Less than 80% RH
Operating Temperature
-20
℃ to 50℃
16. QUICK PROGRAMMING VIA SMS AND OPERATION
Program a phone number for dial in door release (Max 100 numbers)
Note: Program a phone number for dial in door release you NEED TO enter country code.
*12*1234#71[country code]#72[relay][phone number]#72[relay][phone number]#72[relay][phone
number]#......
Relay= 1 or 2
Example:
Ireland Country code: 353 (UK: 44 / USA: 1 / Do not using any leading zeroes)
086 5683624 (mobile number 1)
086 5682554 (mobile number 2)
086 2235644 (mobile number 3)
SMS format:
*12*1234#71353#7210865683624#7220865682554#7210862235644#
Operation
You can dial in or send SMS password code to the device to control relay.
*71*5678#：Trigger relay 1
*72*5678#：Hold relay1
*73*5678#：Release relay1
*74*5678#：Trigger relay 2
*75*5678#：Hold relay 2

3G/GSM Gate Opener 18/18 Rev. V1.4B, Jan 2019
*76*5678#：Release relay 2
Active Online
www.activeonline.com.au
Ph. 1300 816 742
E: [email protected]
