Westfalia 85 27 06 User manual

Artikelnummer der Bedienungsanleitung: 85 52 16
Instruction Manual
Swing Gate Opener
Article No. 85 27 06

II
Please familiarize yourself with the proper usage of the device by
reading and following each chapter of this manual, in the order
presented. Keep these operating instructions for further
reference.
This operating instruction contains important details for handling
the device. Please pass it on along with the unit if it is handed
over to a third party!
Please read all safety instructions!
These instructions will make it easier for you to handle the device
and help prevent misunderstandings and possible damage or
injury.
Dear Customers

III
Overview
Moving Gate
Can cause Injury or Death!
1. Keep Gate clear! Gate may move at
any time.
2. Do not allow children to operate the
gate or play in the gate area.
3. The gate area is for vehicles only.
4. Read and understand the manual.
5. Pedestrians have to use a separate
entry.
Do not remove this warning sign!
1
4
2
3
6
7
8
9
10
12
14
16
18
20
19
17
15
13
11
5
Opener 1
Opener 2

IV
Overview
Pos.
Description
Pieces
1
Gate Opener
2 Pieces
2
Control Box
1 Piece
3
Remote Control
2 Pieces
4
Warning Sign
2 Pieces in German
2 Pieces in English
5
Triangular Key
2 Pieces
6
Post Bracket
4 Pieces
7
Post Pivot Bracket
2 Pieces
8
Gate Bracket
2 Pieces
9
Washer Ø M10 mm
14 Pieces
10
Hex Bolt M10 x 200 mm
8 Pieces
11
Lock Washer Ø M10 mm
14 Pieces
12
Hex Bolt M10 x 75 mm
4 Pieces
13
Washer Ø M8 mm
2 Pieces
14
Hex Bolt M10 x 30 mm
2 Pieces
15
Hex Nut M10 mm
14 Pieces
16
Hex Bolt M8 x 30 mm
2 Pieces
17
Hex Nut M8 mm
2 Pieces
18
Clevis Pin Ø 12 x 40 mm
2 Pieces
19
Hairpin Clip
4 Pieces
20
Clevis Pin Ø 12 x 30 mm
2 Pieces

1
Table of Contents
Safety Notes................................................................................. Page 3
Before first Use............................................................................. Page 6
Mounting Conditions/Requirements .............................................. Page 6
Preparation................................................................................... Page 4
Hints ............................................................................................. Page 8
Types of Posts.............................................................................. Page 9

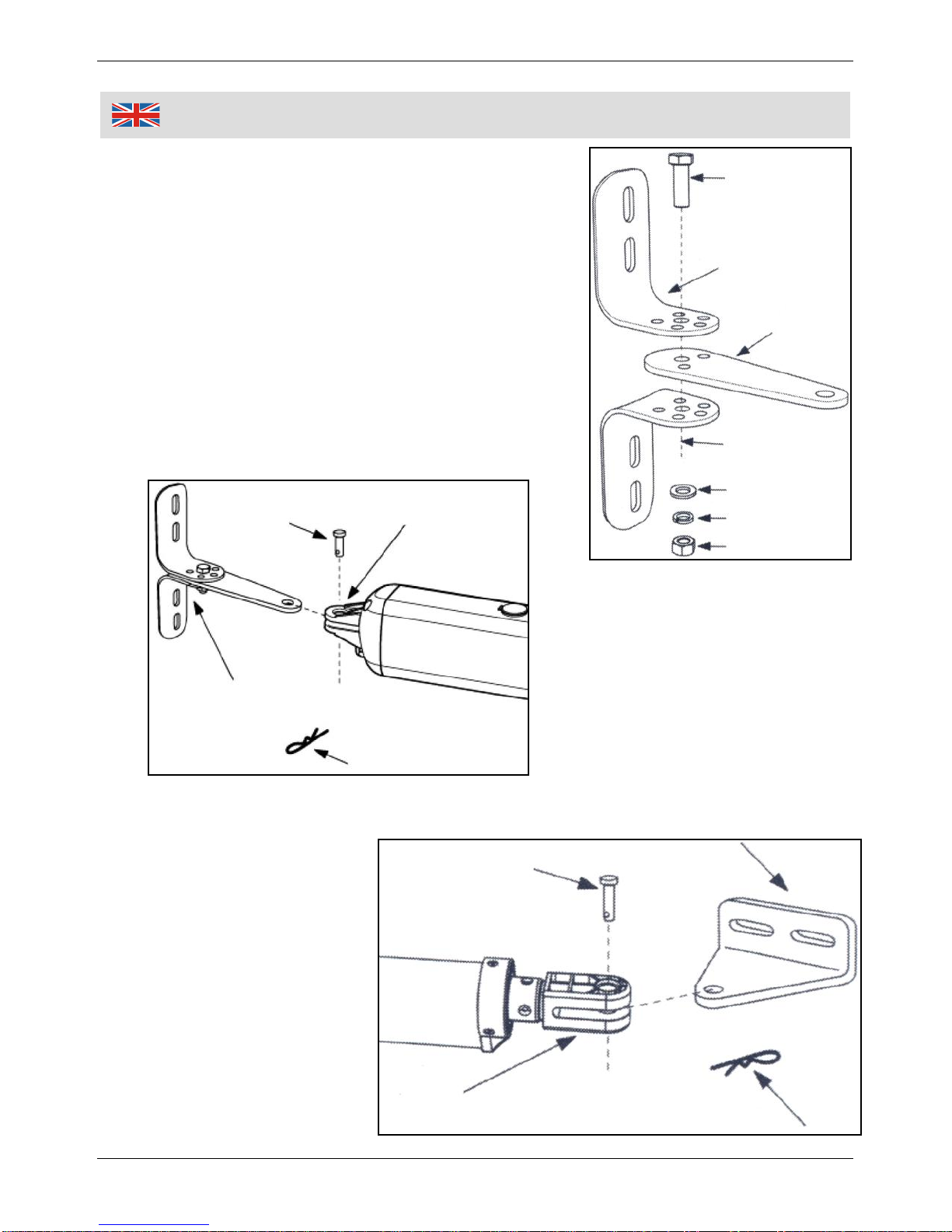

Assembly...................................................................................... Page 10
Position of the Gate Opener.......................................................... Page 11
Mounting....................................................................................... Page 13
Mounting and connecting the Control Box..................................... Page 18
Wiring Diagram............................................................................. Page 19
P1 Programming single Gate Opener ........................................... Page 20
P1 Programming dual Gate Openers............................................ Page 21
P2 Setting Master/Slave Gate....................................................... Page 21
P3 Setting the Master/Slave Open Interval.................................... Page 22
P4 Setting the Master/Slave Close Interval................................... Page 22
P5 Blocking Force for Gate Opener 1 ........................................... Page 23
P6 Blocking Force for Gate Opener 2 ........................................... Page 23
P7 Max. Motor Run Time for Gate Opener 1................................. Page 24
P8 Max. Motor Run Time for Gate Opener 2................................. Page 24
P9 Photocell Beam System........................................................... Page 25
PA Automatic Closing Time .......................................................... Page 25
Pb Soft Start................................................................................. Page 25
PC Setting the Fast Run Time and Soft Stop Time ....................... Page 26
Pd Return to Factory Settings ...................................................... Page 27
Programming the Remote Control................................................. Page 28

2
Table of Contents
Erase all Remote Control Codes................................................... Page 28
Using ............................................................................................ Page 29
Adjusting the Limit Switch ............................................................. Page 29
EMERGENCY Release................................................................. Page 30
Using the Remote Control from the Car ........................................ Page 30
Changing the Battery in the Remote Control................................. Page 31
Checking the Reversion................................................................ Page 31
Maintenance and Cleaning ........................................................... Page 31
Technical Data.............................................................................. Page 32
Connection Diagram for Accessory............................................... Page 33

Safety Notes
3
Make sure the voltage corresponds to the type label on the unit.
Persons with limited physical, sensorial or mental abilities are
not allowed to use the unit, unless they are supervised and
briefed for their safety by a qualified person.
The swing gate opener is designed for opening and closing light-
weighted swing gates. The swing gate opener is designed for
private use only.
The swing gate opener is designed for operating swing gates in
vehicle drives. Pedestrians must use a separate entrance.
Basic knowledge in mechanics and electrics is required for
properly installing the swing gate opener. Incorrect mounting can
cause serious injuries and substantial property damages. Ob-
serve the local safety regulations to prevent accidents. Westfalia
assumes no liability for improper installation of the swing gate
opener.
Do not modify the swing gate opener in any way.
Electrical installation has to be carried out by a qualified
professional only.
Check the whole swing gate system (joints mounting material
etc.) for any signs of wear or damages and do not use the swing
gate opener with a damaged swing gate system. Do not use the
swing gate opener unless repair work or alignment is carried out
properly.
Disable the existing swing gate locks in order to avoid damages.
Ensure proper mounting when installing the swing gate opener.
Check the swing gate for proper mechanical operation. It is
essential that the swing gate can be easily opened and closed
by hand.
Please note the included General Safety Notes and the
following safety notes to avoid malfunctions, damage
or physical injury:

Safety Notes
4
The max. allowable gate size and gate weight must not be
exceeded. Using the gate opener on larger and heavier gate is
not permitted.
Mount the control box within the sight of the gate. Mount the
control box out of the pivoting swing range of the gate, preferably
in a height of 1.5 m from the ground and out of reach of children.
Do not allow children to play with the control box or the remote
control.
Attach the warning signs well
visible on the gate and inform
all user of the swing gate
opener about the risk during
operation.
Only operate the gate opener if the gate is fully visible and there
are no obstructions, persons or animals. Keep persons or ani-
mals out of reach of the gate as long as the gate is not complete-
ly opened or closed.
Please mind the danger area. There is risk of pinching. Please
observe the drawings on page 15.
Do not allow children to stand or play in the gate area.
Wait until the gate has come to a complete standstill before
driving in or out.
Do not pinch the power cord in any way while connecting with
the control box.
Hints for persons with cardiac pacemaker. The transmission
range of the remote control is within the relevant standards and
generally harmless. To eliminate residual risk we recommend
not carrying the remote control directly on your body. For your
safety, when using the remote control keep it away from your
body and in direction to the gate.

Safety Notes
5
Before undertaking any maintenance on the swing gate opener,
unplug from power mains (except of test run and while pro-
gramming).
Do not grasp moving parts while the swing gate opener is in
operation. There is risk of pinching!
Keep the swing gate bottom and the ground clean and free of
snow, ice, stones etc.
Only use original spare parts, original accessory and mounting
material.
Should the swing gate opener becomes damaged, do not use it
any further and have it repaired by a professional or send it back
to our customer support department. Do not disassemble the
unit and do not try to repair it yourself.
The unit is intended for use up to 2000 m above sea level.

Preparation
6
Before first Use
Unpack all parts of the swing gate opener set and check for any
damage in transit resp. for completeness. Compare the scope of
delivery with the pages III + IV.
Dispose of packaging materials or store it out of reach of children.
Plastic bags etc. may become a deadly toy for children.
Mounting Conditions/Requirements
The swing gate opener is designed for light-weighted swing gate
systems in private use only.
The swing gate opener is designed for gates with max. weight of
300 kg and with a length of max. 3 m and a max. height of 3 m.
The structure of the gate has to be rigid (iron, metal, wood).
The swing gate system must be in good mechanical and trouble-
free condition and should not be damaged or has signs of wear.
It must be possible to open and close the gate by hand without
any problems. The mechanical gate lock must be dismounted
resp. disengaged.
The control box may only be installed by a qualified professional
in an easily accessible place.
Preparation
1. To ensure proper and quick mounting, read the manual
thoroughly.
2. Allow a second person to assist you. This will make installation
easier.
3. Have the required tools available.
- Power Drill and Drill Bits - Tape Measure/Folding Ruler
- Wrenches (Size 14 +17) - Wire Stripers
- Small Level - Hacksaw
- Philips and Slot Screwdriver - Ball Pen/Pencil

Preparation
7
Sign
Opener 2
Opener 1
Property
Electric
Lock*
Alarm Lamp *
Solar
Panel*
Control
Box
Battery *
Socket +
Plug *
4. Disengage the existing swing gate lock.
Hint: The swing gate does not need an additional lock as the
swing gate opener is self-locking when connecting to the control
box. The gate cannot be easily opened without damaging the
gate opener or the hinges of the gate system.
The accessory marked with * is not available at Westfalia.
The power cable from the opener 2 to the control box (red dotted
line) must be put into a PVC conduit and placed underground in
order to avoid damaging the cables. If digging is not possible,
put the power cable into a PVC conduit that is stable enough to
withstand vehicles passing over.

Hints
8
The swing gate opener is operated with 230 V~ 50 Hz. The
electrical wiring should be exclusively for the gate opener and it
should be additionally protected by a 10 A fuse.
Power supply should be connected with an EMERGENCY-
STOP-Main Switch. In case of questions, contact a professional.
For correctly programming the gate openers, it is essential that
gate opener 1is mounted at the right side of the gate and gate
opener 2is mounted at
the left side of the
opener –view from in-
side of the property –
(see picture on page 7).
The gate opener must be
mounted that way, so the
opening of the emer-
gency release is facing
up.
One or both gate openers can
be either mounted at the
middle of the gate (this will be
the best static position) or at
the bottom of the gate (for a
uniform appearance).
If the gate system does not
have vertical braces or a
horizontal cross member, then
the gate system has to be
reinforced prior to mounting
the gate opener.
Cross Member
Vertical Brace
Emergency Release

Types of Posts
9
Timber
Metal Plate
Metal Plate
Timber
(6)
(7)
(6)
(7)
Concrete
(6)
(7)
4 Dowels
Ø 10 mm
The mounting material can be mounted on wooden posts, on
square concrete posts or concrete walls.
If the post diameter is smaller than 15 cm, make sure the post is
set in cement in order to ensure stability.
When mounting on stone or concrete posts, use dowels that
cannot slacken. Preferably use compound anchors (better than
standard steel and PVC expansion dowels).
When mounting on brick walls preferably fix a large steel plate
on the wall and make sure the plate covers several brick lines.
For mounting the post brackets (6) you can also use an angle
plate. This angle plate can be fixed around the post edge.

Assembly
10
(8)
(18)
Front Mount
(19)
(20)
Rear Mount
(19)
Bracket Assy
1. Assemble the post bracket (6) together
with the post pivot bracket (7), as
shown in the drawing.
2. Tighten the hex nut but do not over-
tighten.
3. Mount the gate opener 1 with the
already assembled bracket assy (post
pivot bracket and post bracket) and
use the clevis pin (20) and the hairpin
clip (19) in order to lock the opener.
4. Mount the gate
bracket (8) on the
front mount of the
gate opener (1).
Use the clevis pin
(18) and secure
with the hairpin clip
(19).
(14)
(6)
(7)
(6)
(9)
(11)
(15)

Position of the Gate Opener
11
(6)
A
B
Post
(7)
Moving Rod is extended
The instructions in this manual are intended for Pull-to-Open gate
installation. That means the gate will be opened by retracting the
gate opener rod. Therefore the gate opener must be installed from
inside of the property. Make sure the gate does not extend over
public footpaths or roads while operating.

Position of the Gate Opener
12
Please mind the table in order to
determine the correct position of the
mounting material resp. the gate
opener.
The distances A + B must not exceed
42 cm. The distance A must be at
least 8 cm or longer. Example: If
distance A is 20 cm, the distance B
may not exceed 22 cm. The resultant
angle may not be smaller than 90°.
The red marked angles should be
avoided!

Mounting
13

Mounting
14
(5)
Post
Bracket Assy
Opener
(8)
Gate is OPENED
1. Insert the triangular key (5) into the
housing and lightly press down while
turning the key clockwise. By doing this
the gate opener will be unlocked. Now
the moving rod can be extended.
The moving rod should always be lubri-
cated sufficiently. Make sure the moving
rod does not become dirty or dusty.
Determine the distances A + B.
2. Adjust the moving rod and insert the triangular key into the
housing. Turn the key counter clockwise in order to lock the rod
in place.
3. Mount the gate opener temporarily on the gate and fasten with
clamps in order to check correct position.
Make sure the gate opener is level!

Mounting
15
Mind. 2.5 cm
Danger Area
(Pinch Area)
Make sure the gate
opener and the bracket
will not hit each other.
Danger Area
(Pinch Area)
Mind. 2.5 cm
Gate is CLOSED
(Moving Rod is extended)
Gate is OPENED
(Moving Rod is retracted)
Driveway
Make sure the minimum distance between gate and gate opener is
2.5 cm. This distance must be maintained in the gate-closed
position and the gate-opened position.
Make sure the gate opener and the
bracket do not hit each other. If the angle
is not correct, readjust the angle with the
5 openings in the post bracket.
16
14
13
4
17

Mounting
16
Braces
Wood/
Metal
Braces
Sturdy Metal Tube
8
Gate is OPENED
10 mm Holes
Mark the drilling holes through the gate
bracket and drill holes with 10 mm diameter
into the gate. Tighten all screws and nuts.
Protruding bolt ends (10) should be cut with
the hacksaw.
Cover the gate opener while drilling. Please
note that dust and swarf might damage the
gate opener.
Use the included screws or other suitable
screws and dowels for the resp. surface.
If the braces of the gate are thin, the
braces can be reinforced with sturdy metal tubes. By doing this, the
gate bracket (8) can be mounted securely on the braces. A wooden
or metal plate can also be screwed on the gate.
Drill Holes
Bracket Assy
