Turnstiles FSW 900 User manual

Swing Gate Operator
FSW 900
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

CONTENTS
Important Safety Information
Important Safety Instructions.......................................4
Important Installation Instructions................................4
General Safety Precautions.........................................5
UL325 Gate Operator Classication............................6
Installing the Warning Signs ........................................6
Restrictions and Warnings...........................................7
Precautions..................................................................7
Entrapment Protection.................................................8

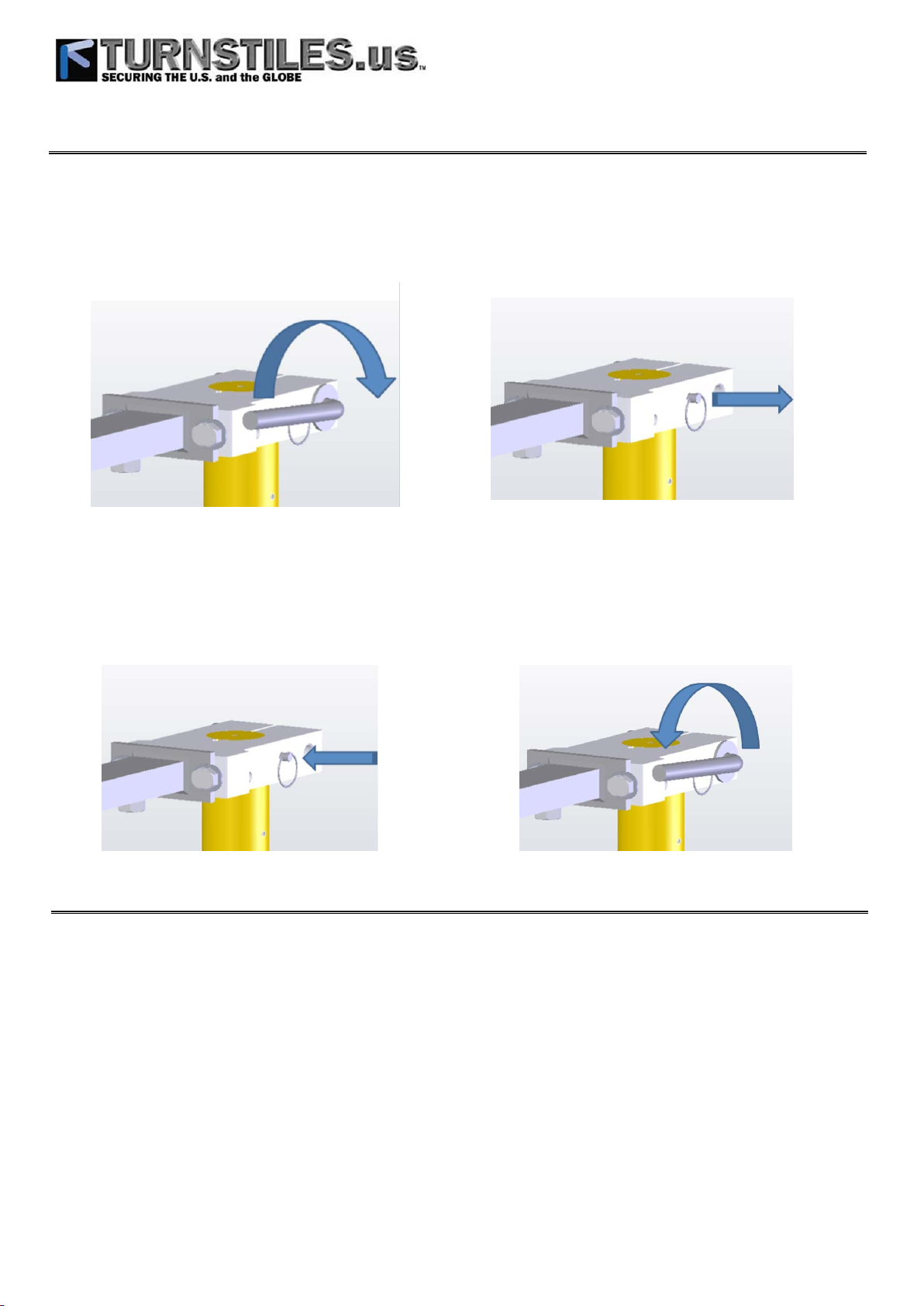

Manual release............................................................9
Preinstallation Guidelines............................................9
Technical specication
Gate Operator Specications ....................................10
Gate Operator Installation

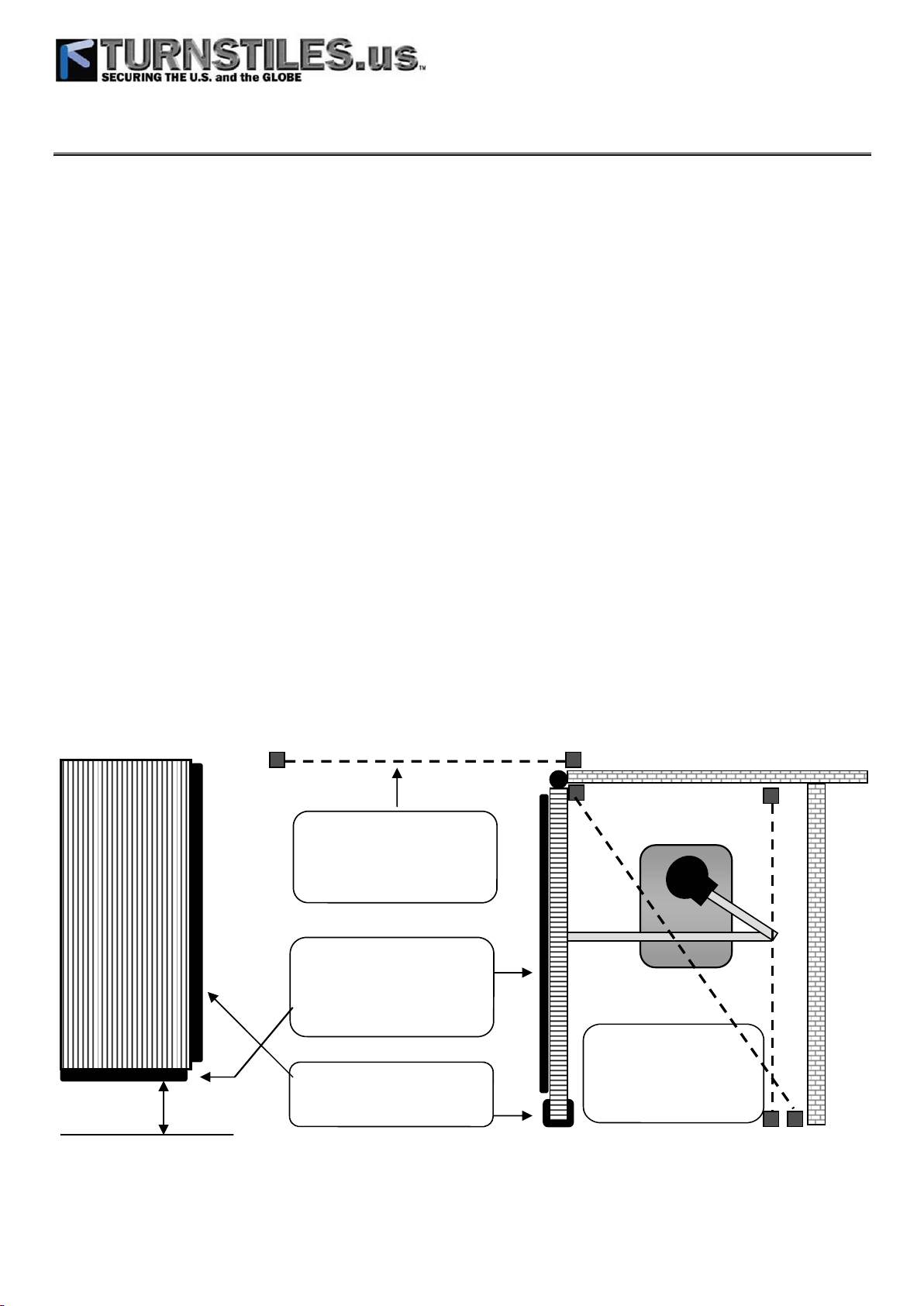

Gate Operator Location ........................................... 10
Concrete Pad Size & Location ................................. 11
Gate Operator Bolt Down ........................................ 11
Measure and Weld the Gate Arm ............................. 12
Connecting the Gate Arm ......................................... 12
Limit Switch Setup ................................................... 13
Gate Operator Direction .......................................... 13
Electrical Installation
Power Switch Location ............................................ 14
AC Power Guidelines ............................................... 14
AC Power Connection ............................................. 14
Battery Power Connection ....................................... 15
Accessory Power ..................................................... 15

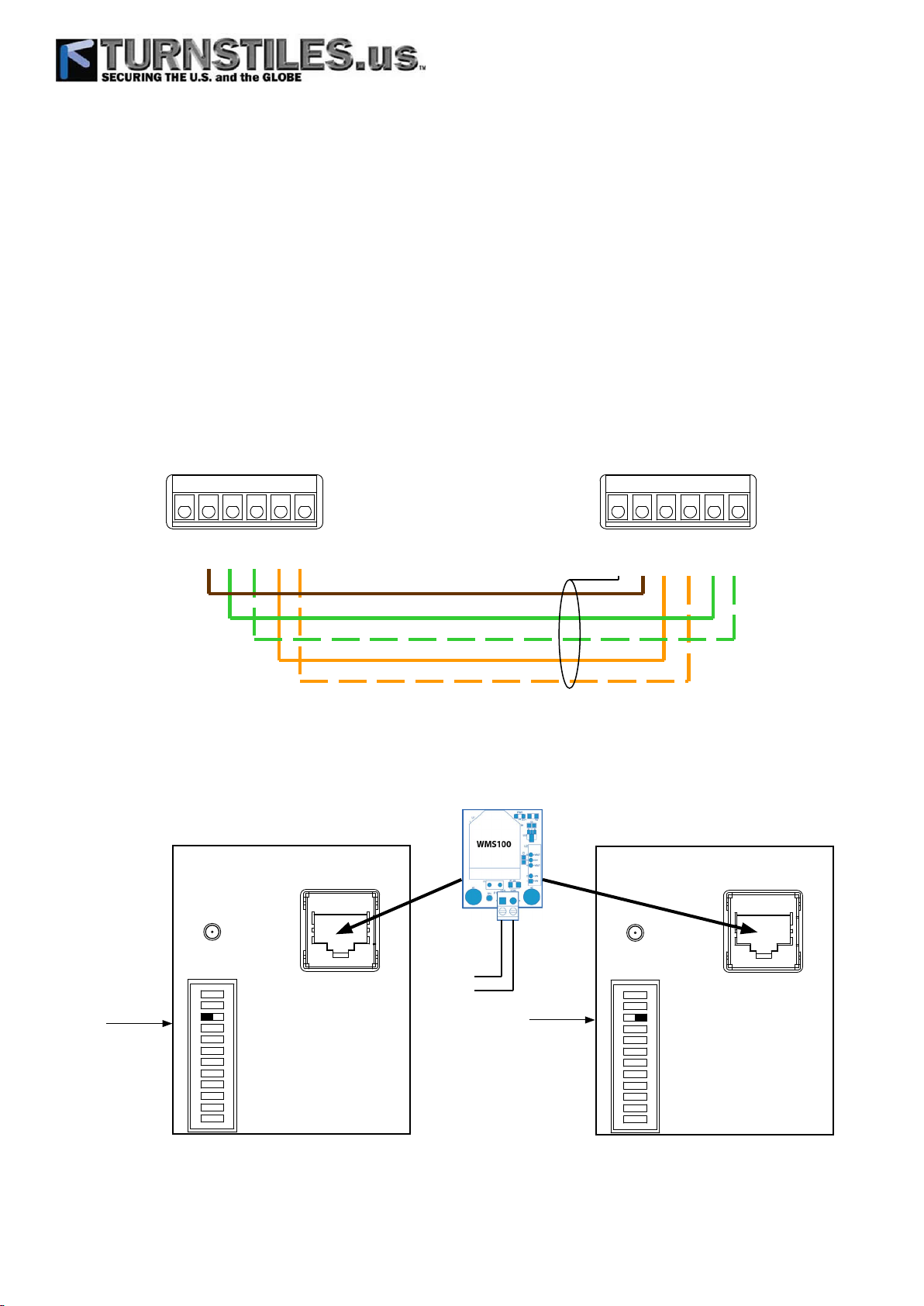

Master/Slave Connection ........................................ 16
Gate Operator Adjustments
Reverse Sensitivity Adjustment ............................... 17
Reverse Sensitivity Shutdown ................................. 17
Close Time Delay Adjustment .................................. 18
DIP Switch Settings ................................................. 18
Accessory Connections
Overview ....................................................................... 19

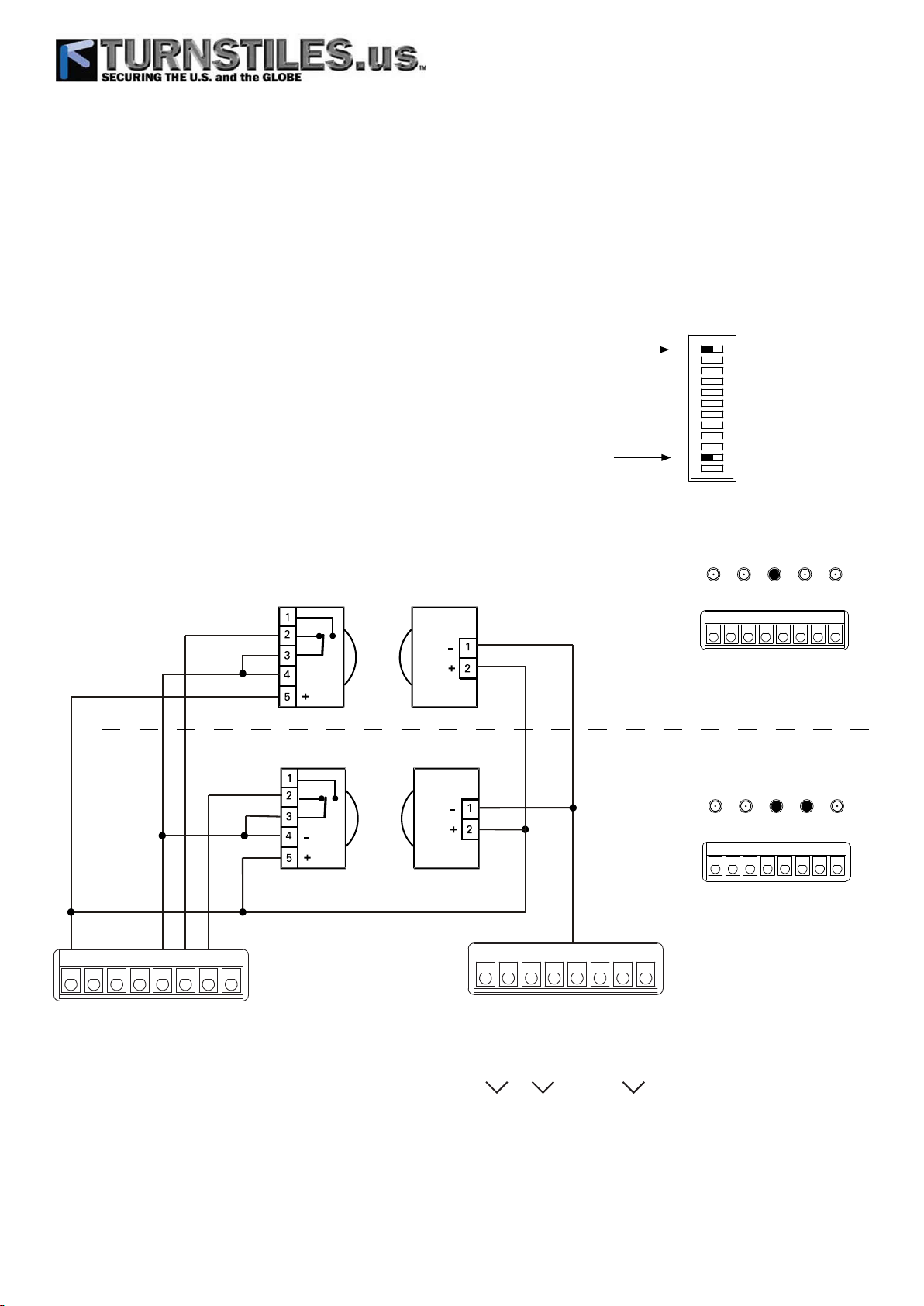

Photocell Sensor Connections ..................................... 20
Edge Sensor Connections ............................................ 21
Standard Reverse Connections .................................... 22
Open, Close, Stop Connections ................................... 22
External Reset Connection ........................................... 22
Access Control Connection .......................................... 23
Fire Lock Connection .................................................... 23

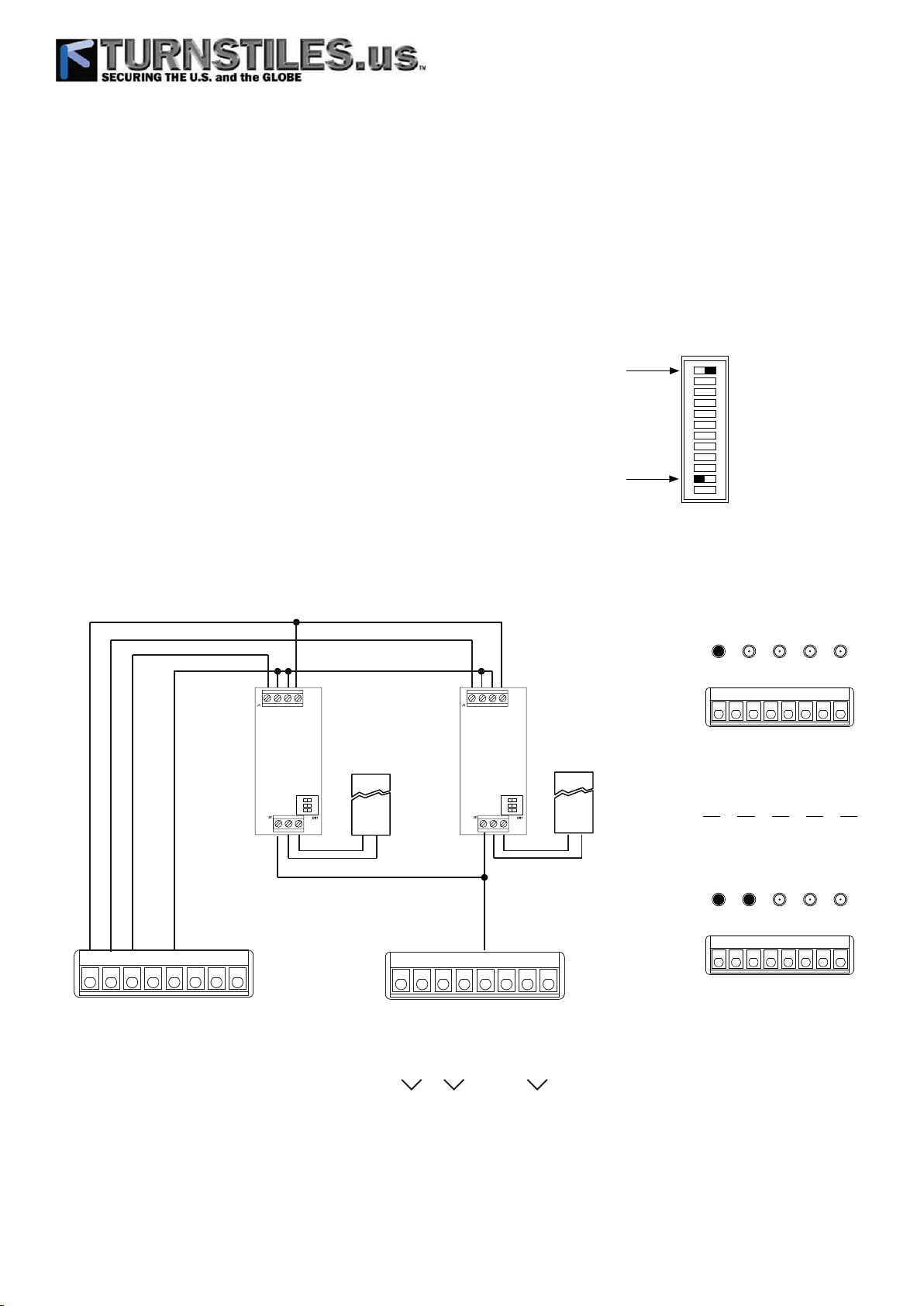

Radio Receiver Connections ........................................ 24
MagLock & Solenoid Lock Connections ....................... 24
Warning Light Connections .......................................... 25
Solar Panel Connections .............................................. 25
Loop & Loop Detectors
Basic Loop Layout ........................................................ 26
Loop Installation Guidelines ......................................... 26
Plug-In Loop Detector Connections .............................. 27
External Loop Detector Connections ............................ 27
Troubleshooting Tips
Fault Light Count .......................................................... 28
Spare Parts
....................................................................................... 30
Limited warranty
....................................................................................... 32
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

1. Install the gate operator only when the following
conditions have been met:
• The operator is appropriate for the type and usage
class of the gate.
• All openings of a horizontal slide gate have been
guarded or screened from the bottom of the gate to
a minimum of 4 feet (1.25 m) above the ground to
prevent a 2.25 inch (55 mm) diameter sphere from
passing through openings anywhere in the gate or
through that portion of the adjacent fence that the gate
covers when in the open position.
• All exposed pinch points are eliminated or guarded.
• Guarding is supplied for exposed rollers.
2. The operator is intended for installation on gates used
by vehicles only. Pedestrians must be provided with a
separate access opening.
3. To reduce the risk of entrapment when opening and
closing, the gate must be installed in a location that
allows adequate clearance between the gate and
adjacent structures. Swinging gates shall not open
outward into public access areas.
4. Before installing the gate operator, ensure that the gate
has been properly installed and that it swings freely in
both directions. Do not over-tighten the operator clutch or
pressure relief valve to compensate for a damaged gate.
5. User controls must be installed at least 6 feet (1.83
m) away from any moving part of the gate and located
where the user is prevented from reaching over, under,
around or through the gate to operate the controls.
Controls located outdoors or those that are easily acces-
sible shall have security features to prevent unauthorized
use.
6. The Stop and/or Reset buttons must be located within
line-of-sight of the gate. Activation of the reset control
shall not cause the operator to start.
7. All warning signs and placards must be installed
and easily seen within visible proximity of the gate. A
minimum of one warning sign shall be installed on each
side of the gate.
Important Installation Instructions
WARNING - TO REDUCE THE RISK OF SEVERE
INJURY OR DEATH:
•READ AND FOLLOW ALL INSTRUCTIONS.
• Never let children operate or play with the gate
controls. Keep remote controls away from children.
• Always keep people and objects away from the
gate. NO ONE SHOULD CROSS THE PATH OF A
MOVING GATE.
• Test the gate operator monthly. The gate MUST
reverse on contact with a rigid object or when an
object activates a non-contact sensor. If necessary,
adjust the force or the limit of travel and then retest
the gate operator. Failure to properly adjust and retest
the gate operator can increase the risk of injury or
death.
• Use the manual release mechanism only when the
gate is not moving.
• KEEP GATE PROPERLY MAINTAINED. Have
a qualied service person make repairs to gate
hardware.
• The entrance is for vehicles only. Pedestrians must
use a separate entrance.
•SAVE THESE INSTRUCTIONS.
Important Safety Instructions
IMPORTANT SAFETY INFORMATION
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

Gate Construction
Vehicular gates should be constructed and installed
in accordance with ASTM F2200: Standard Specica-
tion for Automated Vehicular Gate Construction.
For more information, contact ASTM at: www.astm.org
Installation
• If you have any questions or concerns regarding the
safety of the gate operating system, do not install the
operator and consult the manufacturer.
• The condition of the gate structure itself directly
a󰀨ects the reliability and safety of the gate operator.
•Only qualied personnel should install this equipment.
Failure to meet this requirement could cause severe
injury and/or death, for which the manufacturer
cannot be held responsible.
• The installer must provide a main power switch that
meets all applicable safety regulations.
• It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
• Install devices such as reversing edges and photo
beams to provide better protection for personal
property and pedestrians. Install reversing devices
that are appropriate to the gate design and
application.
• Before applying electrical power, ensure that voltage
requirements of the equipment correspond to the
supply voltage. Refer to the label on your gate
operator system.
Usage
• Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
• The manufacturer cannot be held responsible
for damage caused by improper, erroneous or
unreasonable use.
• If a gate system component malfunctions, disconnect
the main power before attempting to repair it.
• Do not impede the movement of the gate, you may
injure yourself or damage the gate system as a result.
• This equipment may reach high thermal temperatures
during normal operation, therefore use caution when
touching the external housing of the gate operator.
• Use the manual release mechanism according to the
procedures presented in this manual.
• Before performing any cleaning or maintenance
operations, disconnect power to the equipment.
• All cleaning, maintenance or repair work must
performed by qualied personnel.
General Safety Precautions
8. For gate operators that utilize a non-contact sensor
(photo beam or the like):
• See instructions on the placement of non-contact
sensors for each type of application.
• Exercise care to reduce the risk of nuisance tripping,
such as when a vehicle trips the sensor while the
gate is still moving.
• Locate one or more non-contact sensors where the
risk of entrapment or obstruction exists, such as at
the reachable perimeter of a moving gate or barrier.
• Use only FAAC “Photobeam” photoelectric eyes to
comply with UL325.
9. For gate operators that utilize a contact sensor (edge
sensor or similar):
• Locate one or more contact sensors where the risk
of entrapment or obstruction exists, such as at the
leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide
gate
• Locate one or more contact sensors at the bottom
edge of a vehicular vertical lift gate.
• Locate one or more contact sensors at the bottom
edge of a vertical barrier (arm).
• Locate one or more contact sensors at the pinch
point of a vehicular vertical pivot gate.
• Locate hard-wired contact sensors and wiring so
that communication between sensor and gate
operator is not subjected to mechanical damage.
• Locate wireless contact sensors, such as those
that transmit radio frequency (RF) signals, where
the transmission of signals are not obstructed or
impeded by building structures, natural landscaping
or similar hindrances. Wireless contact sensors shall
function under their intended end-use conditions.
• Use only FAAC XS 55 edge sensors with with CN 60
E controller.
Important Installation Instructions (continued)
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

RESIDENTIAL VEHICULAR GATE OPERATOR CLASS I
A vehicular gate operator system intended for use in a single family dwelling, garage or associated parking area.
UL325 Gate Operator Classications
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR CLASS II
A vehicular gate operator system intended for use in commercial locations or buildings such as multi-family housing
units (ve or more single family units), hotels, parking garages, retail stores or other buildings that service the general
public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR CLASS III
A vehicular gate operator system intended for use in industrial locations or buildings such as factories, loading docks
or other locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR CLASS IV
A vehicular gate operator system intended for use in guarded industrial locations or buildings such as airport security
areas or other restricted access locations that do not service the general public, and in which unauthorized access is
prevented via supervision by security personnel.
This FAAC gate operator is supplied with two
warning signs to alert people that a possible
hazard exists and that appropriate actions
should be taken to avoid the hazard or to
reduce exposure to it.
Permanently install one warning sign on each
side of the gate so they are fully visible to
tra󰀩c and pedestrians.
Use appropriate hardware such as metal
screws (not supplied) to permanently install
each warning sign.
Installing the Warning Signs
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

Restrictions and Warnings

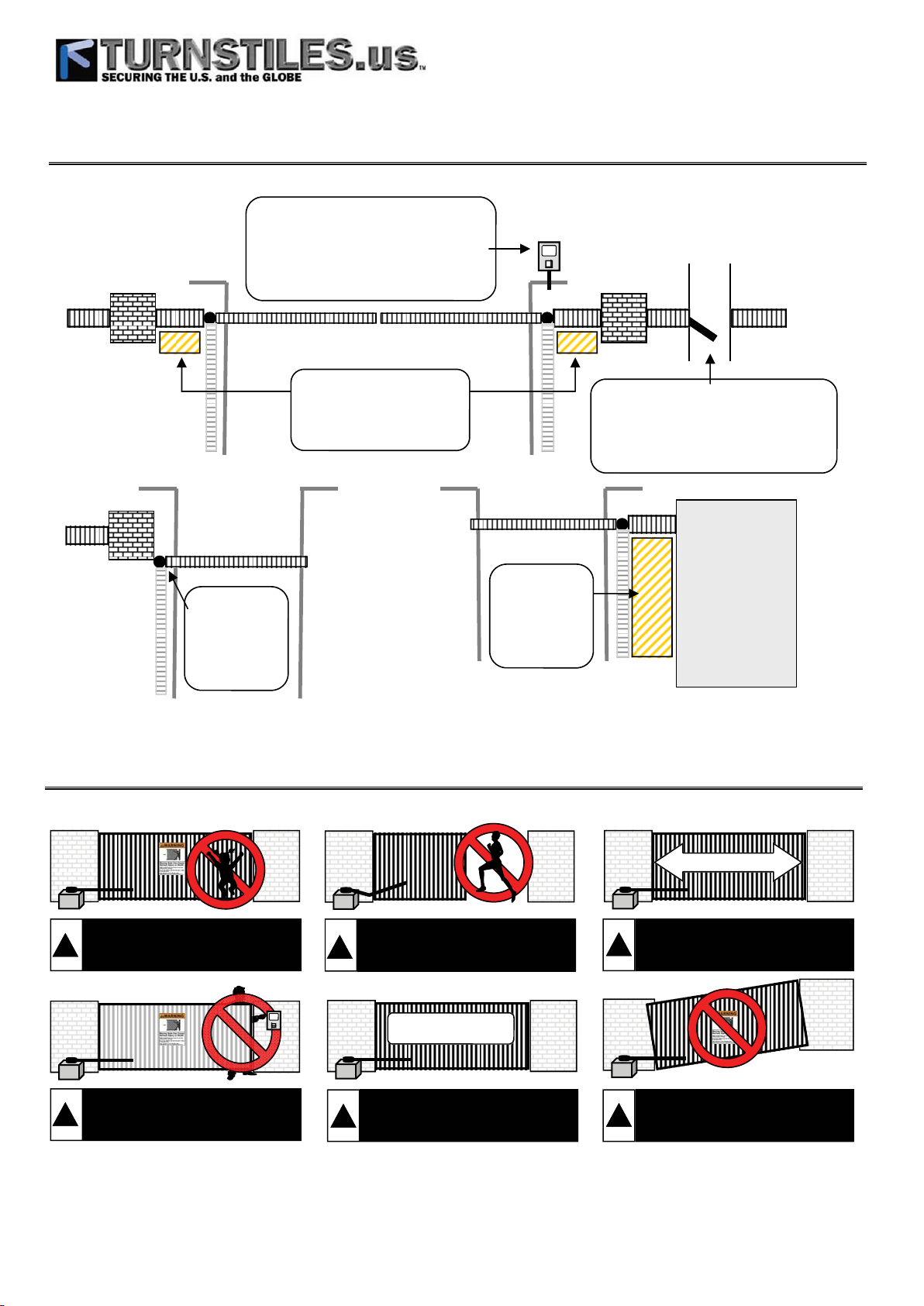

DO NOT allow children to play
near, on or with the gate, gate
operator, or any of its controls.
1000 lb. Maximum
40 Feet Maximum
DO NOT mount the gate operator
to a gate longer than 40 feet.
Maximum gate length = 40 feet.
DO NOT allow pedestrian use of the
vehicular gate. No one should cross
the path of a moving gate!
!
DO NOT mount the gate operator
on uphill or downhill applications.
Do not allow gate to free swing.
DO NOT mount the gate operator
to a gate heavier than 1000 lbs.
Maximum gate weight = 1000 lbs.
DO NOT mount operating devices
accessible through the gate or in
between the gate and wall.
!!
!!!
Precautions
Vehicular Gate Only
Pedestrian
Access
Fence
The operator is intended for installation only
on swing gates used for vehicular traffic.
Pedestrians must be provided with a sepa-
rate access opening.
NO ONE SHOULD CROSS THE PATH OF
A MOVING GATE!
Gate operator controls must be placed far
enough from the gate to prevent the user
from coming in contact with the gate while
operating the controls. All activating devices
must be installed in a clear line-of-sight with
the gate and its travel. Be sure to mount all
devices clearly out of reach of through gate.
Fence
Pilaster
Fence
Pilaster
Provide spacing between the
hinge, gate and pilaster to
reduce the risk of entrapment for
this area.
Vehicular Gate Only
Fence
Pilas-
Mount hinges on
the corner of
pilasters to help
prevent
entrapment
areas.
Building
Or
Structure
Or
Fence
Provide spacing
between the
hinge, gate and
building to
reduce the risk of
entrapment in
this area
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

Internal Entrapment Prevention:
This vehicular gate operator is equipped with an inherent (Type A) entrapment sensing device. The system will sense an obstruction
in both the open and close cycles, and will reverse the direction of the gate travel upon encountering an obstruction. If the system
detects a second obstruction before reaching the full open or close limit after the initial reversal, a warning alarm will activate and
the operator will require a reset before resuming normal operation. This is called a “Hard Shutdown”. Please read and follow the
“Shutdown Conditions” section of this manual for more directions.
External Entrapment Prevention:
Non-contact and/or contact sensors must be installed to provide external entrapment prevention in accordance with UL325 section
3.1. Use only UL325 compliant devices and low voltage (24V) devices. Carefully follow the installation manual for the UL325 device
used for installation, usage, and maintenance.
Non-Contact Sensors (Photo Beams):
Non-contact sensors generally are photoelectric cells or like devices. For gate operators utilizing non-contact sensors:
Refer to the diagram below for placement of non-contact sensors.
Use care to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving.
One or more non-contact sensors shall be located where a risk of entrapment or obstruction exists, such as the perimeter reachable
by a moving gate or barrier. Use caution when installing non-contact sensors since some devices only cover a select area. For
example, a photo beam will not cover the full height of a gate/fence area. Refer to the diagram below.
Contact Sensors (Edge Sensors):
Contact sensors generally are sensing edges or like devices. For gate operators utilizing contact sensors:
Refer to the diagram below for placement of contact sensors.
One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such the leading edge, trailing edge,
and posts mounted inside and outside of the vehicular slide gate and motor.
Hardwired contact sensors shall be located and its wiring arranged so the communication between the sensor and the gate operator
is not subject to any mechanical damage.
Wireless contact sensors such as ones that transmit radio frequency (RF) signals to the gate operator for entrapment prevention
functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, landscaping
or similar obstructions. All wireless contact sensors shall function under the intended end-use conditions.
Open beams help protect
areas between the gate and
an adjacent fence or wall.
CAUTION: This beam only
detects at the installed height.
Standard Reverse beams help
prevent the gate from hitting ob-
structions during the close cycle.
CAUTION: This beam only detects
at the installed height.
Wall or Fence
One or more Edge Sensors could
be located on the inside and
outside leading edge of the gate.
One or more Edge Sensors shall
be located on the bottom edge of
the gate if the gate travels more
than 6” above ground at any point
of its arc or travel.
Bottom Edge
SensorIfGreater
Than 6 Inches
Entrapment Protection
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

Preinstallation Guidelines
Before starting any installation, consider the following guidelines:
•Install the gate system and gate in accordance with ASTM F220-02 Standard Specication for Automated Vehicular Gate Construction
• Install the gate system and gate in accordance with UL325 standards.
•Provide spacing between the gate and any structure such as a building, wall or fence to reduce the risk of entrapment in this area.
• Install over-travel stops at both ends of the gate rail or track to help prevent the gate from derailing
•Be sure the gate is properly installed and moves freely. Repair or replace worn or damaged gate hardware before installing the
gate operator.
• Add safety devices such as warning signs, photo eyes, and reverse edges to help prevent injuries or death.
• Reduce all pinch points and protect all entrapment areas.
•If pedestrian tra󰀩c will be present, provide a separate pedestrian walk gate clear from the path of the automatic gate.
•Loops and loop detectors are required to help prevent the gate from closing on vehicles. Loops do not protect pedestrian tra󰀩c.
• Select the proper gate operator for the installation. Consider the usage, capacity, gate size, gate weight, and needed features an
safety accessories.
Manual Release
To manually release the gate operator:
TURN POWER OFF. Use the emergency release/shut o󰀨 only when the gate is not moving. Make sure power for the gate opera-
tor is OFF by using the On/O󰀨 switch located inside the cover on the left side of the controller.
• Remove the top arm cap cover.
• Lift the Release Handle.
• Remove the Alignment Pin.
• Move the gate to the desired location.
To reengage the gate operator:
Make sure power is OFF.
• Manually move the gate to align the arm with the output shaft and insert the Alignment Pin.
•Press the Release Handle down until tight. The release handle should be tightened so the arm connector does not slip on the
output shaft during gate operation.
• Attach the top arm cap cover.
• Turn power on. Make sure the gate and all reversing devices are operating correctly.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

TECHNICAL SPECIFICATION
Model FSW 900 Swing Gate Operator
The FAAC Model FSW 900 is an electro-mechanical vehicular swing gate operator. The direct drive 24V motor allows for smooth
start and stop operation, with easy to set limit switches. It has a built in battery backup system and 2 accessory power plugs. The
standard articulated arm allows for an easy installation.
Input voltage 120 VAC (+5% -5%)
Power 500 W
Current 5 A
Motor voltage 24 VDC
Motor power 0.67 hp (0.5 KW)
Leaf max weight 800 lb (363 Kg)
Leaf max length 18 ft (5.5 m)
AC accessory outlets 2 GFCI protected
AC accessory current 4 A
Gate speed 90° in approx 14 sec.
Gearbox 900:1 fail secure
Use frequency 75 cycles/h
Operating temperature -4°F ÷ 131°F (-20°C ÷ +55°C)
Operator weight 125 lb (57 Kg)
18.5 in
18 in
GATE OPERATOR INSTALLATION
23.5 in
Gate operator location:
Use the following steps to locate the standard position of the gate operator. The charts may be used for alternate locations.
1. D = 35" from hinge center straight back.
2. E = 11" from D to Operator Output Shaft.
3. DISTANCE = 45" from gate to wall.
A B C D E Dist
46 35.5 29.5 35 11 45
46.75 35.5 33.5 42 11 37
46.75 37 31.5 40 11 41
47.25 37.25 30 37 11 45
47 35 29.5 32 11 45
42.5 33 26.5 28.5 11 41
A
B
Long Arm
E
C
Short Arm
D
Distance
A B C D E Dist
34.5 34.75 29.5 35 14 43
44 36.5 32.5 42 14 32
44 37 30.5 40 14 40
45 37 30.5 37 14 43
44.75 35.75 29.5 32 14 44
41 39 27.5 28.5 14 41
Dimensions in inches
Dimensions in inches
Gate Operator Specications
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

11
Concrete Pad Size & Location:
24”
4”
28”
24”
12”12”
8”
20”
24”
28”
Available
Conduit
Area
Gate Operator Bolt Down:
To align the operator to the gate and bolt it down:
1. Remove the gate operator cover and place the operator on the concrete pad. Position the operator as determined in “Gate
Operator Location. Make sure the gate and operator are parallel and level with each other.
2. Mark the mounting holes and remove the operator. Drill the mounting holes to the required depth and diameter for the sleeve
anchors being used. It is recommended to use 3/8” x 4” sleeve anchors. The use of sleeve anchors allows greater exibility
and makes the installation and alignment much easier.
3. Clean the mounting holes and install the sleeves. Position the operator over the anchors. Recheck to make sure the gate and
operator are parallel and level with each other. Tighten the anchor bolts to securely hold the operator.
The FSW900 vehicular gate operator is designed to be mounted on a concrete pad. Select a location for the gate operator to be
installed. For pad location and size:
1. Determine the location for the operator to be installed. Determine the location of the output shaft as described above. Then
determine the location of the concrete pad following the drawing below
2. Follow all local building codes to determine the required depth of the concrete pad. The average concrete pad should be 24”
wide x 28” long x 24” deep. Extend the pad 4” above ground.
3. When the exact location of the operator can be predetermined, all conduits may be located in the concrete pad terminating di-
rectly under the operator. Extend each conduit a minimum of 1” above the level of the concrete pad. See the Conduit Location
diagram below. It is suggested to install a minimum of four (4) conduits: (1) High Voltage Conduit, (1) Low Voltage Conduit, (1)
Loop Lead Wire Conduit, (1) Accessory Conduit.
4. When the exact location of the operator can not be predetermined, bring all conduits up to one side and terminate in a Bell
Box. Make connections to the operator using water-tight ex conduit.
5. Form the concrete pad and pour concrete. Allow the concrete to cure for 48 hours before removing forms and mounting the
operator.
6. Do not place mounting bolts in the concrete while pouring. Bolts may drift in wet concrete making the operator location inac-
curate.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

12
Measure and Weld The Gate Arm
To determine the arm length in a standard location:
1. Make sure the Arm, Operator, and gate are level with each other.
2. A = Measure 46” from gate hinge out on gate.
3. B = Measure 35.5” for Long Arm length.
4. C = Measure 29.5” for Short Arm length.
5. Use the “Gate Operator Location Charts” for optional dimensions.
6. Mark all points and remove arm before welding.
7. With the arm disconnected, weld the arm, arm bars and brackets.
A
B
Long Arm
E
C
Short Arm
Connecting the Gate Arm
1. Make sure the power switch is OFF before connecting the arm assembly.
2. Place the Arm Connector over Output Shaft.
3. Manually move the gate to align the arm with the Output Shaft and insert the Alignment Pin.
4. Move the Release Handle down to tighten. The release handle should be tightened so the arm connector does not slip
on the output shaft during gate operation
5. The Release Handle Nut Plate may be removed to adjust the Release Handle position if needed. Reconnect the plate
when adjusted.
6. Attach the top Arm Cap Cover.
CORRECT INSTALLATION INCORRECT INSTALLATION
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

13
Limit Switch Setup
The gate operator uses a limit switch assembly to adjust the dis-
tance of travel. These adjustments should be made before power
is supplied to the operator. To adjust the distance of travel using
the limits:
1. Turn power OFF! Use the power switch on the side to assure
AC and Battery power are both OFF.
2. Manually move the gate fully to the right. Push the limit guide
plate down and roll the top limit nut until it activates the top limit
switch. The switch will click when activated.
3. Manually move the gate to the left. Push the limit guide plate
down and roll the bottom limit nut until it activates the bottom
limit switch. The switch will click when activated.
4. Release the limit guide plate and make sure it is engaged in
the slots of each limit nut.
5. Readjust the limit nuts as necessary to ne tune the full-open
and full-closed positions.
Gate Operator Direction
The gate operator uses a DIP switch setting to determine the open and close direction. To set the Open/Close direction:
1. Turn power OFF! Use the power switch on the side to assure AC and Battery power are both OFF.
2. Standing inside the gate looking at the gate operator, determine if the gate opens to the LEFT or RIGHT.
3. If the gate opens to the LEFT, move DIP SWITCH 6 to the Left.
4. If the gate opens to the RIGHT, move DIP SWITCH 6 to the Right.
Opens LEFT
Opens RIGHT
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Off On
DIP SWITCH 6
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Off On
DIP SWITCH 6
TOP CAM:
CLOSE for Left hand op.
OPEN for Right Hand op.
Limit
Cam
Screw
BOTTOM CAM:
OPEN for Left hand op.
CLOSE for Right Hand op.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

14
Power Switch Location
The gate operator uses a built-in power switch to control power to the operator and controller. This switch should be turned OFF
during installation and service. Failure to use this switch can result in unexpected gate movement. Please note:
1. The switch is located on the LEFT side of the control box.
2. DOWN position = OFF. UP position = ON.
3. This switch must be used to turn OFF AC and battery power. Only disconnecting AC power still allows battery power to the
operator, controller, and accessories.
4. Turn OFF until the installation is complete.
AC Power Guidelines
Under normal conditions, the gate operator will use a single phase AC power line to operate the gate, charge the batteries, and
power gate accessories. Use the following guidelines when installing the AC power:
1. Check the local wiring codes in all cases and follow all local building codes. Wiring and hookup should be performed by a quali-
ed electrician/installer only.
2. AC power should be supplied from a circuit breaker panel and must have its own dedicated circuit breaker. This supply must
include a green ground conductor.
3. Only use UL approved 14 AWG or larger 600 Volt Insulated Wire. Use the following chart to determine the AC wire size. This
information is for suggested use only - Check your local codes before installation.
4. Properly ground the gate operator to minimize or prevent damage from power surges and/or lightning. Use a grounding rod if
necessary. A surge suppresser is recommended for additional protection.
Wire Size (AWG) Distance (feet)
14 250
12 400
10 650
8 1000
AC Power Connection
To connect AC power to the gate operator:
1. Turn the circuit breaker for the AC gate operator power OFF before connecting the AC input wires.
2. Turn the Power Switch OFF located on the left side of the controller before connecting the AC input wires.
3. Connect the AC input wires to the AC terminal located on the bottom/center of the control box. See diagram below.
4. Batteries must be installed after the AC power is on. See Battery Power Connection.
L N
GREEN = Earth Gro und
WHITE = Neutral
BLACK = 120 VAC
ELECTRICAL INSTALLATION
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

15
Accessory Power
Two plug-in power plugs are located on the back of the controller. These plugs are for low voltage accessories and are separately
fused. Low voltage, low current draw transformers may be plugged into these outlets for accessory power. DO NOT USE THESE
POWER OUTLETS FOR INSTALLATION OR SERVICE TOOLS. Each plug supplies 110 VAC when AC power is active to the gate
operator. If AC is not available, the power plugs will not supply power. Accessories requiring power during battery backup modes
should use the 24 VDC located on the controller terminals.
Additional accessory power may be found on the controller terminals. The controller terminals supply 24 VDC for accessories. This
power is available during AC and battery power modes. When AC power is active, accessories will be supplied 24 VDC without a
power draw on the batteries. When the battery backup mode is active, accessories will be supplied 24 VDC from the batteries. If
the battery power mode is used frequently, consider the current draw of the accessories. The lower the current draw, the longer the
battery power supply will last. Additional 24 VDC for accessories may be found on the Radio Terminal, Edge/Photo Terminal, and
External Loop Terminal. A connection between 24V DC+ and GND will supply power.
Battery Power Connection
If AC power is connected, the system does not need the batteries to function. However, the batteries must be connected for the
Power Fail Battery Backup features to operate. When AC power is active, the batteries will charge until fully charged. Once the
batteries have fully charged, the system will stop charging. Charging is automatic when AC power is available. The system should
be prewired with the batteries. If not, to connect batteries to the system as showed below.
GND GND Open N.O. Reverse N.O. Shadow N.O. 24V DC
+
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
Radio Pwr
-24V DC
GND
N.O.
Radio Pwr
+24V DC
NOTE: The batteries should be tested regularly for proper battery backup operation. They should be replaced each year or as
needed.
12VDC, 8 amp
Battery
12VDC, 8 amp
Battery
+
+
-
-
RED
BLACK
Solar - Solar + Battery - Battery +
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

16
Master/Slave Connection
The operator can be used in a Master-Slave conguration to control the two leafs of a bi-parting gate. That can be done with a
wired or wireless connection. The wired connection should be the default choice if there is a way to bring a cable across the gate
opening. If that’s impractical you can use the wireless connection accessory WMS100 to establish the communication between
Master and Slave. In the latter case you need to make sure there is no metal blocking the line of sight between the two operators,
for example a metal gate with no openings.
To connect two operators together:
1. Determine which operator is the Master and which operator is the slave. All external devices such as loop detectors and
safety devices must be wired directly to the Master unit. If one gate travels farther than the other the gate that travels
farther must be the Master
2. Turn Slave Operator DIP Switch 3 to ON = SLAVE
3. Turn Master Operator DIP Switch 3 to OFF = MASTER
4. WIRED CONNECTION: in a separate conduit, run a 6-conductor cable (twisted pairs) between the Master operator and the
Slave operator. Make the connections on the Master/Slave Terminal Block following the schematic below. (Recommended
Wire: Outdoor Rated CAT 5 Cable. If shielded make sure the shield is connected on one side only)
[RX –] to [TX –] ORANGE-WHITE
[RX+] to [TX+] ORANGE
[TX–] to [RX–] GREEN-WHITE
[TX+] to [RX+] GREEN
[GND[ to [GND] BROWN
Power
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Tamper Detect
Soft Start / Hard Start
Off On
Master / Slave
Interconnect
Power
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Tamper Detect
Soft Start / Hard Start
Off On
Master / Slave
Interconnect
24V
GND
Master / Slave
RX - RX + TX - TX + GND Shiled
Master / Slave
RX - RX + TX - TX + GND Shiled
MASTER
SWITCH 3
OFF
SLAVE
SWITCH 3
ON
Master Gate Operator Slave Gate Operator
ALTERNATIVE:
4. WIRELESS CONNECTION: Plug one WMS100 board on the RJ45 connector on the top left of the Master control board and
one on the Slave. Wire the 24V power to it from one of the accessory terminal blocks.
5. Power up the operators and verify that the SLAVE LEDs are blinking
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

17
Clockwise Turn
INCREASE Sensitivity
(Reverse the gate more easily)
Counter-Clockwise Turn
DECREASE Sensitivity
(Reverse the gate less easily)
For the Reverse Sensor to function correctly, the gate must be properly installed and work freely in
both directions. Repair or replace worn hardware. DO NOT use sensitivity to compensate for a gate in
need of service.
Reverse Sensitivity Adjustment
The gate operator is equipped with an inherent (Type A) entrapment sensing system. The sensor detects obstructions in both the
open and close path of the gate. There is an OPEN SENSITIVITY Adjustment and a CLOSE SENSITIVITY Adjustment. To adjust
the sensitivity:
1. Activate the gate to open.
2. While the gate is running open, slowly rotate the OPEN SENSITIVITY adjustment clockwise to INCREASE the sensitivity until
the gate stops in mid-travel.
3. Gently rotate the OPEN SENSITIVITY adjustment counter-clockwise 1/8 turn to DECREASE the sensitivity.
4. Activate the gate to close.
5. While the gate is running closed, slowly rotate the CLOSE SENSITIVITY adjustment clockwise to INCREASE the sensitivity
until the gate stops in mid-travel.
6. Gently rotate the CLOSE SENSITIVITY adjustment counter-clockwise 1/8 turn to DECREASE the sensitivity.
7. Operate the gate a few times to be sure it fully cycles without stopping.
8. Place an immobile object in the open path of the gate to stop the gate while in travel. The gate should stop and enter a Soft
Shutdown upon striking the object.
9. Place an immobile object in the closed path of the gate to stop the gate while in travel. The gate should stop and enter a Soft
Shutdown upon striking the object.
10. Repeat steps 2 - 6 until the correct sensitivity adjustment is found.
Reverse Sensitivity Shutdown
Upon a rst obstruction, the reverse sensor will:
1. Stop the gate and reverse it approximately two (2) inches.
2. Disable the Timer To Close Feature until the gate operator receives a new command = Soft Shutdown.
3. Any standard input can reactivate the gate and return it to normal operation.
Upon a second consecutive obstruction before the gate reaches either limit, the reverse sensor will:
1. Stop the gate.
2. Disable the gate operator = Hard Shut Down.
3. Sound the audio alarm for ve (5) minutes or until the operator has been reset.
4. Only resetting the operator will reactivate the gate and return it to normal operation.
5. To reset the operator in a Hard Shut Down situation: Press the Reset button on the left side of the controller, activate the Reset
input or turn the power switch OFF and back ON.
6. Verify proper operation of gate and components
GATE OPERATOR ADJUSTMENTS
Time Delay
Open Sensitivity
Close Sensitivity
+
+
+
CAUTION:
Gently rotate each
adjustment. Turning
the adjustment POT
too hard will break
the adjustment.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

18
Close Time Delay Adjustment
The gate operator is equipped with a built-in automatic timer to close feature. This feature should be set to the OFF position until
proper safety and reverse devices have been installed. CAUTION: Turning on the Close Time Delay without proper safety and
reverse devices can cause serious injury, death, and property damage. The Close Time Delay can be set to from 1 to 90 seconds.
When active, the Close Time Delay will hold the gate open until the internal timer has timed out and then allows the gate to close.
Switch Function Description
1 Monitor Photo / Edge OFF: The Photo safety inputs are monitored
ON: The Edge safety inputs are monitored
2 Anti-Tailgate OFF: Gate opens and closes normally. Reverse loop reverses the gate all the way
ON: Uses loops to control vehicles individually. Reverse loop stops the gate
3 Master / Slave OFF: Operator is set as a Master
ON: Operator is set as a Slave
4Close Timer OFF: Time Delay Close feature is inactive. Command to open, command to close.
ON: Time Delay Close feature is active. Gate opens, times out, closes.
5Power Fail Cycle /
Open
OFF: During power failure, gate will cycle using BBU until batteries are too low to function.
ON: During power failure, gate will open and remain open until AC power is restored.
6 Open Left / Right OFF: Opens the gate Left. (Standing inside looking out at operator)
ON: Opens the gate Right. (Standing inside looking out at operator)
7 Quick Close
OFF: Gate opens and closes normal
ON: Gate opens until loops reverse and shadow loops are cleared. Then gate closes even if
it did not reach full open position
8 Stop (NO / NC) OFF: Allows a NO Stop Switch to be used.
ON: Allows a NC Stop Switch to be used. Stop Switch must be installed for this setting to be ON
9 Battery Cycle OFF: Cycles gate until batteries are too low and stops. Switch 5 must be OFF
ON: Cycles gate until batteries are too low and then opens gate. Switch 5 must be OFF
10 Mag / Solenoid Delay OFF: No delay - opens gate immediately
ON: Delays 2 seconds before activating gate. Allows time for Maglock to discharge
11 Monitor Close /
Op-Cl
OFF: The Close safety inputs only are monitored
ON: The Close and Open safety inputs are monitored
12 Hard Start
OFF: Normal Soft Start, Soft Stop mode.
ON: Operator starts with 40% motor power for more starting torque. Normal start = 5% motor
power
Timer ON
To turn OFF/ON and adjust the Close Time Delay:
1. To turn OFF the Close Time Delay, move DIP SWITCH 4 to the Left.
2. To turn ON the Close Time Delay, move DIP SWITCH 4 to the Right.
3. Turn power O󰀨 and back On to reset DIP Switch settings.
4. Rotate the TIME DELAY adjustment clockwise to INCREASE the delay.
5. Rotate the TIME DELAY adjustment counter-clockwise to DECREASE the delay.
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Off On
DIP SWITCH 4
Clockwise Turn
INCREASE Time Delay
(Holds gate open longer time)
Counter-Clockwise Turn
DECREASE Time Delay
(Holds gate open shorter time)
DIP Switch Settings
The DIP Switches located on the top right face of the controller are used to set several di󰀨erent functions. This list gives a brief
description. Please review each individual section in this manual for more detail.
CAUTION: Gently rotate each adjustment.
Turning the adjustment POT too hard will
break the adjustment.
Time Delay
Open Sensitivity
Close Sensitivity
+
+
+
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

19
Overview
Activity
Timer
Fault
Slave
Time Delay
Open Sensitivity
Close Sensitivity
+
+
+
Shadow Reverse Open
Power
Battery
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Shadow
Reverse
Open
Open
Close
Stop
EC EO PC PO Rev
Fire
Access
Reset
Off On
Fire Access Reset GND GND Stop Close Open Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC Open 2 Open 1 Reverse 2 Reverse 1 Shadow 2 Shadow 1
+
Maglock
Mon
Light
Master / Slave
Interconnect
External
Loop Detectors
Light Com Light N.O. GND FSW TX Maglock Com Maglock N.C. Solenoid Com Solenoid N.O. GND GND Open N.O. Reverse N.O. Shadow N.O. 24V DC
+
Sen 2 Sen 1 Sen Gnd Sen Pwr Lim- Lim+ GND
Sensor
Solar - Solar + Battery - Battery + Radio Pwr
-24V DC
GND
N.O. Radio Pwr
+24V DC
Radio
Motor
Red Black
+
Limit
1
24V DC 24-36V DC 2
+
Master / Slave
RX - RX + TX - TX + GND Shiled
IN GROUND
LOOPS
SAFETIES
ACCESS
INPUTS
OUTPUTS
EXTERNAL LOOP
DETECTORS
RADIO BATTERY /
SOLAR
MASTER /
SLAVE
ACCESSORY CONNECTIONS
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

20
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
Light Com Light N.O. GND FSW TX Maglock Com Maglock N.C. Solenoid Com Solenoid N.O.
CLOSE RX CLOSE TX
OPEN RX OPEN TX
NO
NC
C
NO
NC
C
Photocell sensor connections
To comply with the UL325 standard monitored safety inputs must be used to protect every entrapment zone. An entrapment zone is
dened as a location or point of contact where a person can be entrapped between the moving gate and a rigid object. The opera-
tor has inputs for entrapment protection photo sensors in the opening and closing direction. These sensors can be monitored for
their presence and correct operation at the beginning of each cycle.
To enable monitoring of the Photocell inputs set Dip Switch 1 OFF. To monitor only the Close input Set Dip Switch 11 OFF, to moni-
tor both Close and Open inputs set Dip Switch 11 ON. When an input is monitored the corresponding photocell must be connected
otherwise the operator will not start. To verify the input is wired properly the corresponding LED must be lit, see gure below.
Photo Close safety input: The Input is only active during close cycle.
1. An input during the close cycle will stop the gate and reverse it to the full
open position. If the Close Timer option is ON it will be restarted when the
input clears.
2. If the Open safety input is active before reaching the full open position, the
gate will stop. When the input is cleared, the gate will continue to reverse
open.
Photo Open safety input: The Input is only active during open cycle.
1. An input during open cycle will stop the gate and initiate a short reverse
2. The gate will remain stopped until the input is cleared.
3. When the input is cleared, the gate will continue to open.
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Off On
DIP SWITCH 1
DIP SWITCH 11
EC EO PC PO Rev
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
EC EO PC PO Rev
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
Dip Switch 11 - OFF
Dip Switch 11 - ON
NOTE: Dip Switch 1 and 11 change a󰀨ected inputs to Normally Closed. If there is a fault on the monitored sensor the corresponding
LED will not be lit, or it will not blink at the beginning of each cycle.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099

21
Edge sensor connections
To comply with UL regulations monitored safety inputs must be used to protect every entrapment zone. An entrapment zone is de-
ned as a location or point of contact where a person can be entrapped between the moving gate and a rigid object. The operator
has inputs for entrapment protection edge sensors in the opening and closing direction. Use FAAC CN 60 E edge sensor control-
ler and the schematic below for proper monitoring. The sensors can be monitored for their presence and correct operation at the
beginning of each cycle.
To enable monitoring of the the Edge inputs set Dip Switch 1 ON. To monitor only the Close input Set Dip Switch 11 OFF, to monitor
both Close and Open input Set Dip Switch 11 ON. When an input is monitored the corresponding edge controller must be con-
nected otherwise the operator will not start. To verify that the input is wired properly the corresponding LED must be lit, see gure
below.
Edge Close safey input: Input is only active during close cycle.
1. An input during the close cycle will stop the gate and initiate a short reverse
2. When the edge close input is cleared the gate will remain in a stopped position
until a renewed intended activation input is received (open, close, re, access,
radio). If the close timer option is ON it will be disabled until a full cycle com-
pletes.
Edge Open safety Input: Input is only active during open cycle.
1. An input during open cycle will stop the gate and initiate a short reverse
2. When the edge open input is cleared the gate will remain in a stopped position
until a renewed intended activation input is received (open, close, re, access, radio).
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
CLOSE EDGEOPEN EDGE
14
79
ON
XS 55
14
79
ON
XS 55
CN 60 E CN 60 E
Light Com Light N.O. GND FSW TX Maglock Com Maglock N.C. Solenoid Com Solenoid N.O.
Monitor Photo / Edge
Anti-Tailgate
Master / Slave
Close Timer
Power Fail Open / Cycle
Open Left / Right
Quick Close
Stop (NC / NO)
Low Battery Cycle / Open
Mag / Solenoid Delay
Monitor Close / Op-Cl
Soft Start / Hard Start
Off On
DIP SWITCH 1
DIP SWITCH 11
EC EO PC PO Rev
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
EC EO PC PO Rev
Std Reverse Photo Open Photo Close GND GND Edge Open Edge Close 24V DC
+
Dip Switch 11 - OFF
Dip Switch 11 - ON
NOTE: Dip Switch 1 and 11 change a󰀨ected inputs to Normally Closed. If there is a fault on the monitored sensor the corresponding
LED will not be lit, or it will not blink at the beginning of each cycle.
www.TURNSTILES.us / www.entrapass.com / 8641 S. Warhawk Road, Conifer, CO 80421 / 303-670-1099
