Ariston EURO COMBI 47-116-10 User manual

A/23 MFFI - A/27 MFFI
G.C.N. 47-116-10 / 47-116-12
Installation Instructions
Type C Boilers
LEAVETHESE INSTRUCTIONS
ADJACENT TOTHE GAS METER
Country of destination: GB

2
B023
TABLE OF CONTENTS
1. GENERAL INFORMATION
1.1 General Instructions
1.2 Technical Information
1.3 Overall View
2. INSTALLATION
2.1 Reference Standards
2.2 Siting the Appliance
2.3 Overall Dimensions
2.4 Clearances
2.5 Mounting the Appliance
2.6 Electrical Connection
2.7 Gas Connection
2.8 Water Connections
2.9 Flue Connection
2.10 Room Thermostat Connection
2.11 Electrical/System Diagrams
2.12 Water Circuit Diagrams
3. COMMISSIONING
3.1 Initial Preparation
3.2 Removing the Front Panel
3.3 Control Panel
3.4 Initial Start-up
3.5 Operational Adjustments
3.6 Combustion Analysis
3.7 Fume Discharge Monitoring
3.8 Boiler Safety Systems
3.9 Draining the System
4. GAS ADJUSTMENTS
Gas Adjustment Table
4.1 Changing the Type of Gas
5. MAINTENANCE
6. MISCELLANEOUS
6.1 Wiring Diagram for Two Heating Zones
6.2 Wiring Diagram for Connection to Ariston Unvented Cylinderl

3
B023
This manual is an integral and essential part of the product. It should be kept
with the appliance so that it can be consulted by the user and our authorised
personnel.
Please carefully read the instructions and notices about the unit contained in
this manual, as they provide important information regarding the safe
installation, use and maintenance of the product.
For operating instructions please consult the separate User’s Manual.
Read the instructions and recommendations in these Installation Instructions
carefully to ensure proper installation, use and maintenance of the appliance.
Keep this manual in a safe place.You may need it for your own reference while
our Servicing Centre technicians or your installer may need to consult it in the
future.
This is a combined appliance for the production of central heating (C.H.) and
domestic hot water (D.H.W.).
This appliance must be used only for the purpose for which it is designed.
The manufacturer declines all liability for damage caused by improper or
negligent use.
No asbestos or other hazardous materials have been used in the fabrication of
this product.
Before connecting the appliance, check that the information shown on the data
plate and the table on pages 4-5 comply with the electric, water and gas mains
of the property.You will find the data plate on the reverse of the control panel.
The gas with which this appliance operates is also shown on the label at the
bottom of the boiler.
Do not install this appliance in a damp environment or close to equipment
which spray water or other liquids.
Do not place objects on the appliance.
Do not allow children or inexperienced persons to use the appliance without
supervision.
If you smell gas in the room, do not turn on light switches, use the telephone or
any other object which might cause sparks.
Open doors and windows immediately to ventilate the room.
Shut the gas mains tap (on the gas meter) or the valve of the gas cylinder and
call your Gas Supplier immediately.
If you are going away for a long period of time, remember to shut the mains gas
tap or the gas cylinder valve.
Always disconnect the appliance either by unplugging it from the mains or
turning off the mains switch before cleaning the appliance or carrying out
maintenance.
In the case of faults or failure, switch off the appliance and turn off the gas
tap. Do not tamper with the appliance.
For repairs, call your local Authorised Servicing Centre and request the use of
original spare parts. For in-guarantee repairs contact MTS (GB) Limited.
Check the following at least once a year:
1- Check the seal of water connections, replacing the gaskets if necessary.
2- Check the seal of the gas connections, replacing the gaskets if necessary.
3- Check the general condition of the appliance and of the combustion
1. GENERAL
INFORMATION
User’s
Manual
A/23 MFFI
A/27 MFFI
1.1 General Instructions

CE Certification
Heat Input max/min kW 25.6/11.0
Heat Output max/min kW 23.1/9.2
Efficiency of Nominal Heat Input % 90.2
Efficiency at 30% of Nominal Heat Input % 87.8
Heat Loss to the Casing (³T=50°C) % 1.2
Flue Heat Loss with Burner Operating % 8.6
Flue Heat Loss with Burner Off % 0.4
Maximum Discharge of Fumes (G20-G25) Kg/h 59
Residual Discharge Head mbar 1.15
Consumption at Nominal Capacity (G20-G25)m3/h 2.72/3.32
Gas Consumption after 10 Minutes* m30.32/0.39
(15°C, 1013 mbar) (G30-G31) Kg/h 2.02/2.00
Temp.of exhaust fumes at nominal
capacity (G20-G25) °C 137
CO2 Content % 5.8
O2 Content % 9.2
CO Content ppm 32
Minimum Ambient Temperature °C +5
Head Loss on Water Side (max) (³T=20°C) mbar 200
Residual Head of System bar 0.25
Heating Temperature max/min °C 82/42
Domestic Hot Water Temperature max/min °C 56/36
D.H.W.Flow Rate ³T=35°C l/min 9.5
D.H.W.Flow Rate ³T=35°C gal/min 2.1
D.H.W. Minimum Flow Rate l/min 2.6
Pressure of Domestic Hot Water max/min bar 6/0.2
Expansion Vessel Capacity l 7
Expansion Vessel Pre-load Pressure bar 1
Maximum Water Content in System l 145
Maximum Heating Pressure bar 3
Nominal Pressure Natural Gas (G20-G25) mbar 20-25
LPG (G30-G31) mbar 30-37
Electrical Supply V/Hz 230 / 50
Power Consumption W 150
Protection Grade of Electrical System IP 44
Internal Fuse Rating FAST 2 AT
Weight Kg. 47
G.C. Number 47-116-10
4
B023
1.2 Technical Information
chamber visually.
4- Visual check of the combustion: clean burners if necessary.
5- With reference to point 3, dismantle and clean the combustion chamber if
necessary.
6- With reference to point 4, dismantle and clean the injectors if necessary.
7- Visual check of the primary heat exchanger:
- check for overheating of the exchangers fins;
- clean the exhaust side of the exchanger and fan if necessary.
8- Regulate the gas pressure, ignition pressure, partial flame, maximum
flame.
9- Check proper operation of the heating safety system:
- maximum safety temperature;
- maximum safety pressure.
10 - Check the proper operation of the gas safety system:
- gas or flame safety device;
- gas valve safety device.
11 - Check that the electrical connections have been made in compliance with
the instructions shown in the installation instructions.
12 - Check the efficiency of the hot water supply (flow and temperature).
13 - Check general operation of the appliance.
14 - Check the exhaust system for the combustion products.
29.8/12.0
27.3/10.1
91.6
88.3
1.3
7.1
0.4
62
1.4
3.16/3.86
0.37/0.45
2.35/2.32
128
6.6
8.0
34
+5
200
0.25
82/42
56/36
11.2
2.5
2.6
6/0.2
7
1
145
3
20-25
30-37
230 / 50
190
44
FAST 2 AT
47
47-116-12
A/23 MFFI A/27 MFFI
*Calculated at 70% maximum output

5
B023
A/23 MFFI - A/27 MFFI
Legend:
1. Flue Connector
2. Combustion Chamber Hood
3. Main Heat Exchanger
4. Combustion Chamber Insulation Panel
5. Burner
6. Expansion Vessel
7. Overheat Thermostat
8. Spark Generator
9. Diverter Valve
10. Main CircuitTemperature Probe
11. Main Circuit Flow Switch
12. Diverter Valve Microswitch
13. Filter Seat
14. Drain Valve
15. Secondary Heat Exchanger
16. Safety Valve (3 bar)
17. Circulation Pump with Automatic Air Release Valve
18. Gas Valve
19. Detection Electrodes
20. Ignition Electrodes
21. Fan
22. Venturi
23. Air Pressure Switch
Fig. 1.1
1.3 OverallView

6
B023
The technical information and instructions provided herein below are intended
for the installer so that the unit may be installed correctly and safely.
The installation and initial start up of the boiler must be by a CORGI Approved
Installer in compliance with the installation standards currently in effect, as well
as with any and all local health and safety standards i.e.CORGI .
This appliance must be installed by a competent installer in
accordance with the 1984 Gas Safety (installation & use)
Regulations (as amended)
The installation of this appliance must be in accordance with the relevant
requirements of the 1984 Gas Safety (installation & use) Regulations, the Local
Building Regulations, the current I.E.E. Wiring Regulations, the byelaws of the
local water authority, and in Scotland, in accordance with the Building
Standards (Scotland) Regulation and Health and Safety document No. 635
“Electricity at work regs. 1989”.
Installation should also comply with the following British Standard Codes of
Practice:
The appliance may be installed in any room or indoor area, although particular
attention is drawn to the requirements of the current I.E.E. Wiring Regulations,
and in Scotland, the electrical provisions of the Building Regulations applicable
in Scotland, with respect to the installation of the combined appliance in a room
containing a bath or shower.
Where a room-sealed appliance is installed in a room containing a bath or
shower the boiler and any electrical switch or appliance control, utilising
mains electricity should be situated so that it cannot be touched by a
person using the bath or shower.
The location must permit adequate space for servicing and air circulation
around the appliance as indicated in paragraph 2.4.
The location must permit the provision of an adequate flue and termination.
For unusual locations special procedures may be necessary.
BS 6798-1987 gives detailed guidance on this aspect.
A compartment used to enclose the appliance must be designed specifically for
this purpose. No specific ventilation requirements are needed for an installation
within a cupboard
This appliance is not suitable for outdoor installation.
The type C appliances (in which the combustion circuit, air vent intake
and combustion chamber are air-tight with respect to the room in which
the appliance is installed) can be installed in any type of room.
There are no limitations with respect to ventilation and the volume of the room
itself. The boiler must be installed on a solid, permanent wall to prevent access
to the electrical parts (when live) through the aperture on the back frame.
2.1 Reference Standards
2.2 Siting the Appliance
Low pressure
pipes BS 6891 1988
Boilers of rated input
not exceeding 60 kW BS 6798 1987
Forced circulation hot
water system BS 5449 1990
Installation of gas hot water
supplies for domestic purposes
( 2nd family gases) BS 5546 1990
Flues BS 5440-1 1990
Air supply BS 5440-2 1989
2. INSTALLATION

7
B023
Legend:
A = Central Heating Flow (3/4”)
B = Domestic Hot Water Outlet (1/2”)
C = Gas Inlet (3/4”)
D = Domestic Cold Water Inlet (1/2”)
E = Central Heating Return (3/4”)

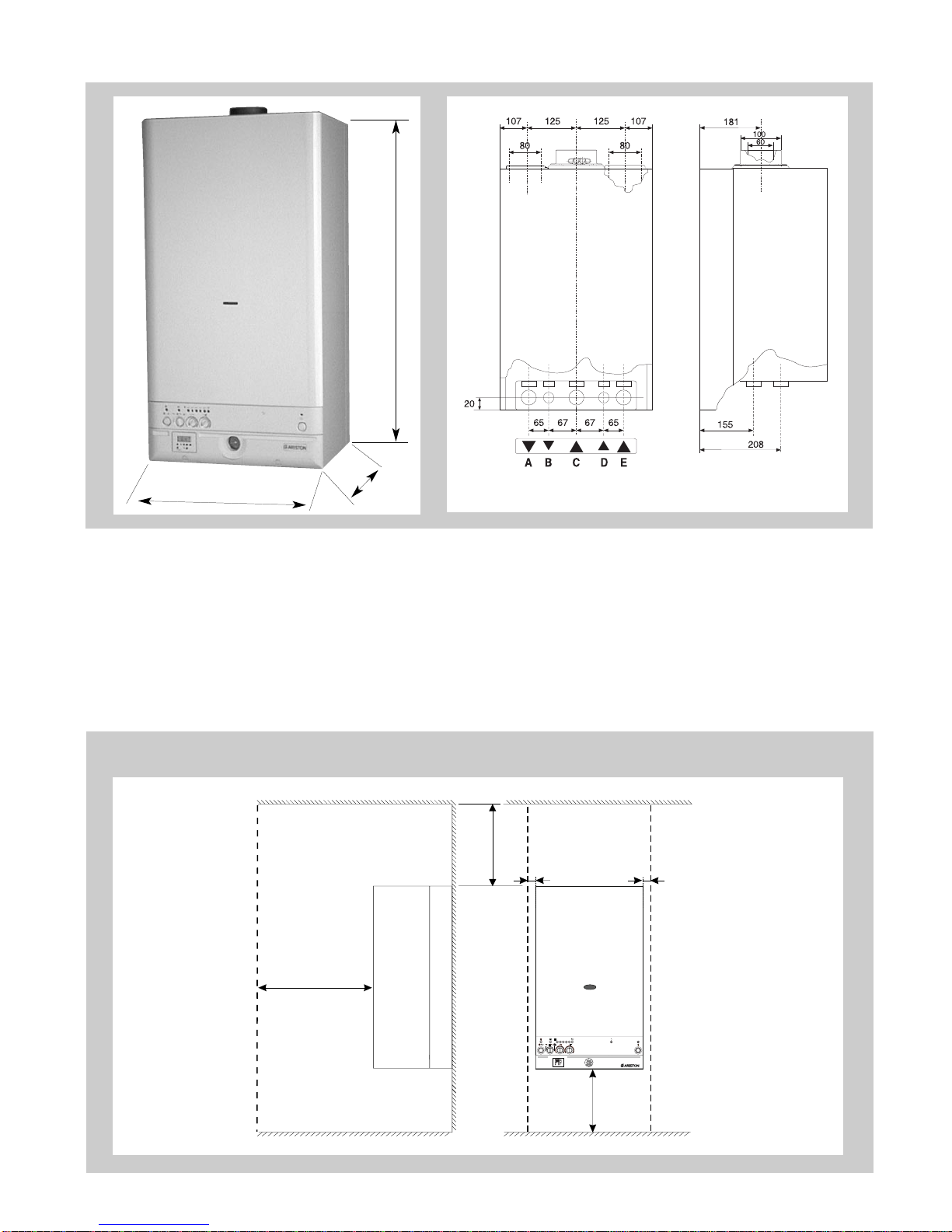

2.3 Overall Dimensions
890
365
(A-B-D-E)
(C)
465
In order to allow for access to the interior of the boiler for maintenance purposes, the
boiler must be installed in compliance with the minimum clearances indicated in the
diagram below.
400
300
450
60 60
40 50 60 70 80
C C
2.4 Clearances
A/23 MFFI - A/27 MFFI
Fig. 2.1
Fig. 2.2

8
B023
Fasten the boiler in place using the template and anchors supplied with the
unit. It is highly recommended that a spirit level be used to position the boiler so
that it is perfectly level.
For additional information, please consult the instructions contained in the
connection kit and the flue kit.
For safety purposes, have a competent person carefully check the electrical
system in the property, as the manufacturer will not be held liable for damage
caused by the failure to earth the appliance properly or by anomalies in the
supply of power. Make sure that the residential electrical system is adequate for
the maximum power absorbed by the unit, which is indicated on the rating plate.
In addition, check that the section of cabling is appropriate for the power
absorbed by the boiler.
The boiler operates with alternating current, as indicated in the technical data
table (1.2), where the maximum absorbed power is also indicated. Make sure
that the connections for the neutral and live wires correspond to the indications
in the diagram.The appliance electrical connections are situated on the reverse
of the control panel (see the servicing manual for further information)
2.5 Mounting the Appliance
2.6 Electrical Connection
Important!
In the event that the power supply cord must be changed, replace it with one
with the same specifications. Make the connections to the terminal board
located within the control panel, as follows:
- The yellow-green wire should be connected to the terminal marked with the
earth symbol; make sure to re-use the ferrule mounted on the other supply
cord;
- The blue wire should be connected to the terminal marked “N”;
- The brown wire should be connected to the terminal marked “L”.
Note:The diagrams for the electrical system are indicated in section 2.11.
Warning, this appliance must be earthed.
External wiring to the appliance must be carried out by a qualified technician
and be in accordance with the current I.E.E. Regulations and applicable local
regulations. The EuroCombi range of boilers are supplied for connection to a
230 V~ 50 Hz supply.
The supply must be fused at 3 A.
The method of connection to the electricity supply must facilitate complete
electrical isolation of the appliance, by the use of a fused double pole isolator
having a contact separation of at least 3 mm in all poles or alternatively, by
means of a 3 A fused three pin plug and unswitched shuttered socket outlet
both complying with BS 1363.
The point of connection to the electricity supply must be readily accessible and
adjacent to the appliance unless the appliance is installed in a bathroom when
this must be sited outside the bathroom.
2.7 Gas Connection
The local gas region contractor connects the gas meter to the service pipe.
If the gas supply for the boiler serves other appliances ensure that an adequate
supply is available both to the boiler and the other appliances when they are in
use at the same time.
Pipe work must be of an adequate size. Pipes of a smaller size than the boiler
inlet connection should not be used.
Fig. 2.3

9
B023

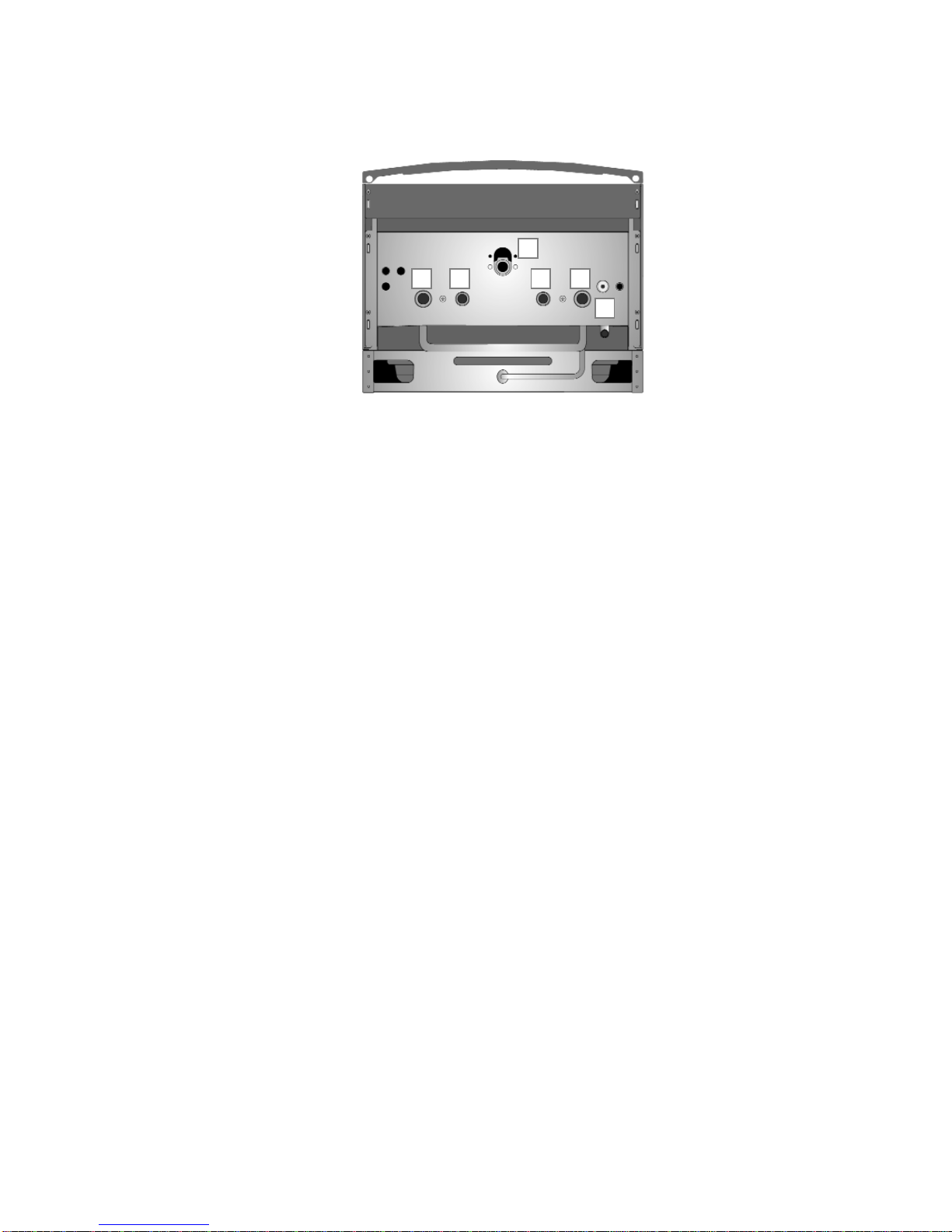

2.9 Water Connections
Legend
A = Central Heating Flow
B = Domestic Hot Water Outlet
C = Gas Inlet
D = Domestic Cold Water Inlet
E = Central Heating Return
I = Safety Valve
Central Heating
Detailed recommendations are given in BS 6798:1987 and BS 5449-1:1990,
the following notes are given for general guidance.
Pipe Work:
Copper tubing to BS EN 1057:1996 is recommended for water pipes. Jointing
should be either with capillary soldered or compression fittings.
Where possible pipes should have a gradient to ensure air is carried naturally
to air release points and water flows naturally to drain taps.
The appliance has a built-in automatic air release valve, however it should be
ensured as far as possible that the appliance heat exchanger is not a natural
collecting point for air.
Except where providing useful heat, pipes should be insulated to prevent heat
loss and avoid freezing.
Particular attention should be paid to pipes passing through ventilated spaces
in roofs and under floors.
By-pass:
The appliance includes an automatic by-pass valve, which protects the main
heat exchanger in case of reduced or interrupted water circulation through
the heating system, due to the closing of thermostatic valves or cock-type
valves within the system.
System Design:
This boiler is suitable only for sealed systems.
Drain Cocks:
These must be located in accessible positions to permit the draining of the
whole system.The taps must be at least 15mm nominal size and
manufactured in accordance with BS 2870:1980.
Safety Valve Discharge:
The discharge should terminate facing downwards on the exterior of the
building in a position where discharging (possibly boiling water & steam) will
not create danger or nuisance, but in an easily visible position, and not cause
damage to electrical components and wiring.
The discharge must not be over an entrance or a window or any other type of
A
C
B D E
I
A/23 MFFI - A/27 MFFI
Fig. 2.4

10
B023
public access.
Air Release Points:
These must be fitted at all high points where air naturally collects and must
be sited to facilitate complete filling of the system.
The appliance has an integral sealed expansion vessel to accommodate the
increase of water value when the system is heated.
It can accept up to 7 l (1.5 gal) of expansion water.If the heating circuit has
an unusually high water content, calculate the total expansion and add an
additional sealed expansion vessel with adequate capacity.
Mains Water Feed - Central Heating:
There must be no direct connection to the mains water supply even through a
non-return valve, without the approval of the Local Water Authority.
Filling:
A temporary method for initially filling the system and replacing lost water
during servicing in accordance with Water Supply Byelaw 14 must be
provided.
DomesticWater
The domestic water must be in accordance with the relevant recommendation
of BS 5546:1990. Copper tubing to BS EN 1057:1996 is recommended for
water carrying pipe work and must be used for pipe work carrying drinking
water.
2.9 Flue Connections
Flue System
The provision for satisfactory flue termination must be made as described
in BS 5440-1.
The appliance must be installed so that the flue terminal is exposed to outdoor air.
The terminal must not discharge into another room or space such as an
outhouse or lean-to.
It is important that the position of the terminal allows a free passage of air
across it at all times.
The terminal should be located with due regard for the damage or
discolouration that might occur on buildings in the vicinity.
In cold or humid weather water vapour may condense on leaving the flue
terminal.
The effect of such "steaming" must be considered.
If the terminal is less than 2 metres above a balcony, above ground or above a
flat roof to which people have access, then a suitable terminal guard must be
fitted.When ordering a terminal guard, quote the appliance model number.
A suitable terminal guard is available from:
TOWER FLUE COMPONENTS
Morley Road
Tonbridge
KentTN9 1RA
The minimum acceptable spacing from the terminal to obstructions and
ventilation openings are specified in Fig.2.5.
Residual Head of the Boiler

TERMINAL POSITION mm
A - Directly below an open window or other opening 300
B - Below gutters, solid pipes or drain pipes 75
C - Below eaves 200
D - Below balconies or car-port roof 200
E - From vertical drain pipes and soil pipes 75
F - From internal or external corners 300
G - Above ground or below balcony level 300
H - From a surface facing a terminal 600
I - From a terminal facing a terminal 1200
J - From an opening in the car port
( e.g.door, window ) into dwelling 1200
K - Vertically from a terminal in the same wall 1500
L - Horizontally from a terminal in the same wall 300
11
B023
A
BC
D
E
F
G
J
K
HI
L
GF
Fig. 2.5
Ø 60/100 mm
The boiler is designed to be connected to a coaxial flue discharge system.
A
Ø 80 mm
Ø 80 mm
In addition, it is also possible to use a twin-pipe (split) system by fitting a special
adaptor to the flue discharge collar and using one of the apertures for the air
vent intake located on the top part of the combustion chamber (A).
A
A
Fig. 2.7
Fig. 2.6

12
B023
This procedure must be done as follows:
1- Remove the air vent intake you want to use, in the area indicated in
Fig. 2.8, by breaking the perforated ring.
2 - Use a tool to grasp the lid and remove it completely.
3 - Clean any burrs or sharp edges with a knife or an appropriate tool.
In Fig. 2.10 below, several different types of flue systems are shown.
For additional information regarding the flue accessories, please consult the
Flue Pipe Accessories manual.
A
Fig. 2.8 Fig. 2.9
Fig. 2.10

13
B023
In calculating the lengths of the pipes, the maximum length must also take into
consideration the values for the exhaust/air intake end terminals, as well as 90°
elbows for coaxial systems.
The C52 types must comply with the following requirements:
1. The discharge/intake vent pipes must have the same diameter of ø80 mm.
2. The maximum combined flue length is 17 m. In this case the minimum length
for the air intake pipe is 1 meter; the maximum length of vertical
exhaust pipe must be a maximum of 12 m.
3. If an elbow is inserted into the discharge/ventilation system, the calculation
of the overall extension must take into consideration the values for each
curve, as indicated in the table.
4. The exhaust pipe must extend at least 0.5 m above the ridge of the roof if it is
located on a side other than that for the air intake (this is not obligatory if
the exhaust and air intake pipes are located on the same side of the
building).
(*) L = Length of Piping
C12 (xx) 4 m ø 60 /100 L* < 0.5 m
Coaxial
System C32 (xx) 4 m ø 60 /100 L* < 0.5 m
C42 (xx) 4 m ø 60 /100 L* < 0.5 m
23 kW 27 kW
C12 (xy) 54 m 46 m ø 80 L < 7 m (23 kW) L < 5 m (27 kW) L > 4 9 m (23 kW) L > 6.5 m (27 kW)
C32 (xy) 54 m 46 m ø 80 L < 7 m (23 kW) L < 5 m (27 kW) L > 4.9 m (23 kW) L > 6.5m (27 kW)
Twin Pipe
Systems C42 (xy) 54 m 46 m ø 80 L < 7 m (23 kW) L < 5 m (27 kW) L > 4.9m (23 kW) L > 6.5m (27 kW)
C52 (xy) 17 m 17 m ø 80 L < 7 m (23 kW) L < 5 m (27 kW) L > 4.9m (23 kW) L > 5.3m (27 kW)
ExhaustType Diameter of Pipes
(mm) Use of a Restrictor
on the Discharge Side Risk of Condensation Forming
Maximum Extension
Exhaust/Air

14
B023
5Remove the grommet “D” shown in photo 5, make a hole in it and pass
the room thermostat wire through.
6Remove the link located on the terminal and connect the wire.
7Replace the grommet and the terminal to their original positions, close the
cover on the grommet compartment and fasten the wire-clamp “C” in place.
8If a remote time clock is to be fitted, disconnect the integral time clock plug
from the P.C.B.
9Using a volt-free switching time clock, connect the switching wires from the
time clock following points 1-7 above.
10If using a time clock and room thermostat, these must be connected in
series as per points 1-9 above.
Note: Only a two-wire type room thermostat can be used.
2.10 RoomThermostat
Connection
34
567
D
C
B
C
1
A
2

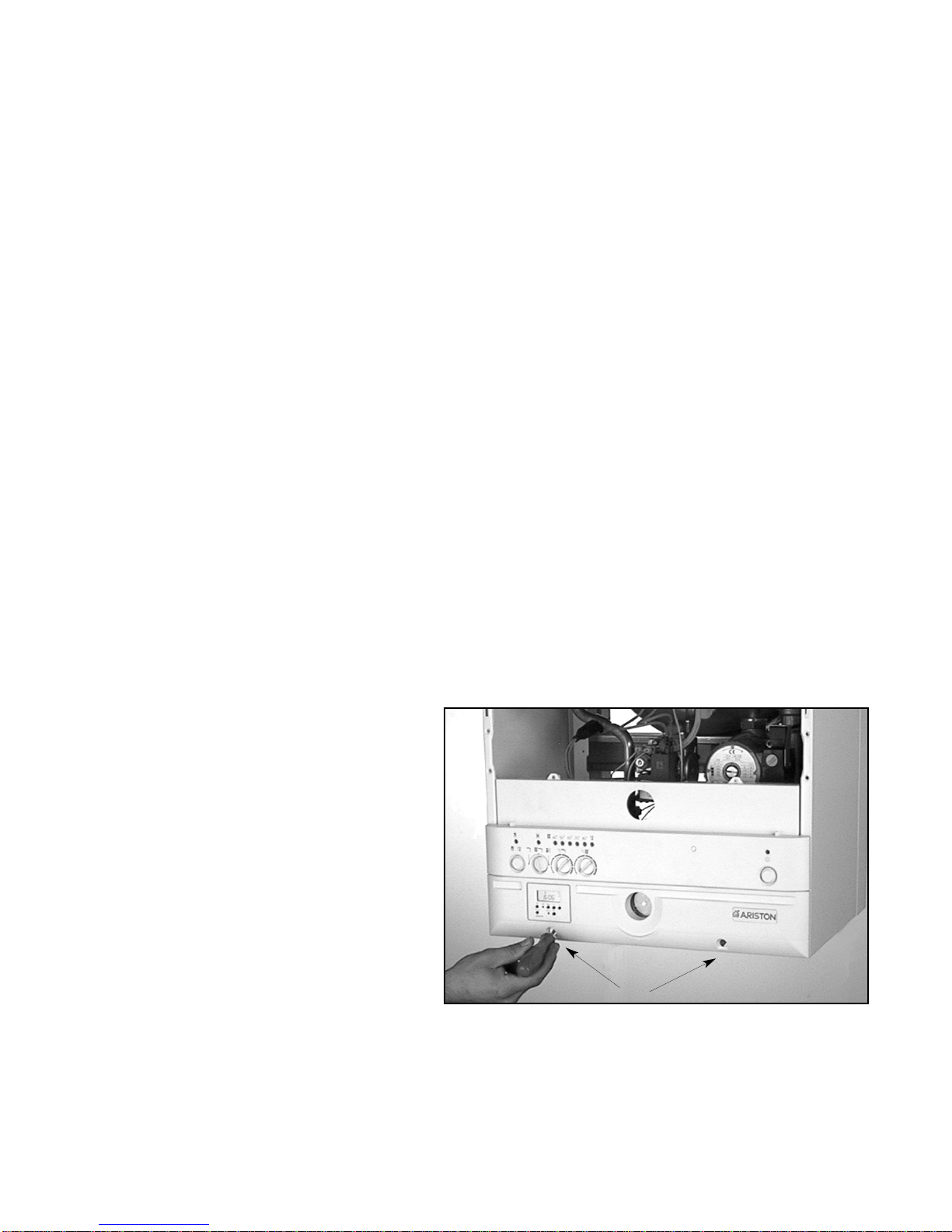

In order to perform this procedure, remove boiler cover as indicated in section
3.2.Then proceed as follows:
1Remove the screws “A” located on the bottom part of the boiler;
2Widen the sides so that the control panel can be rotated.
3Open the cover “B” on the left hand side of the compartment.
4Insert the wire for the connection of the room thermostat into the wire
holder “C”, as indicated in photo 3.

15
B023

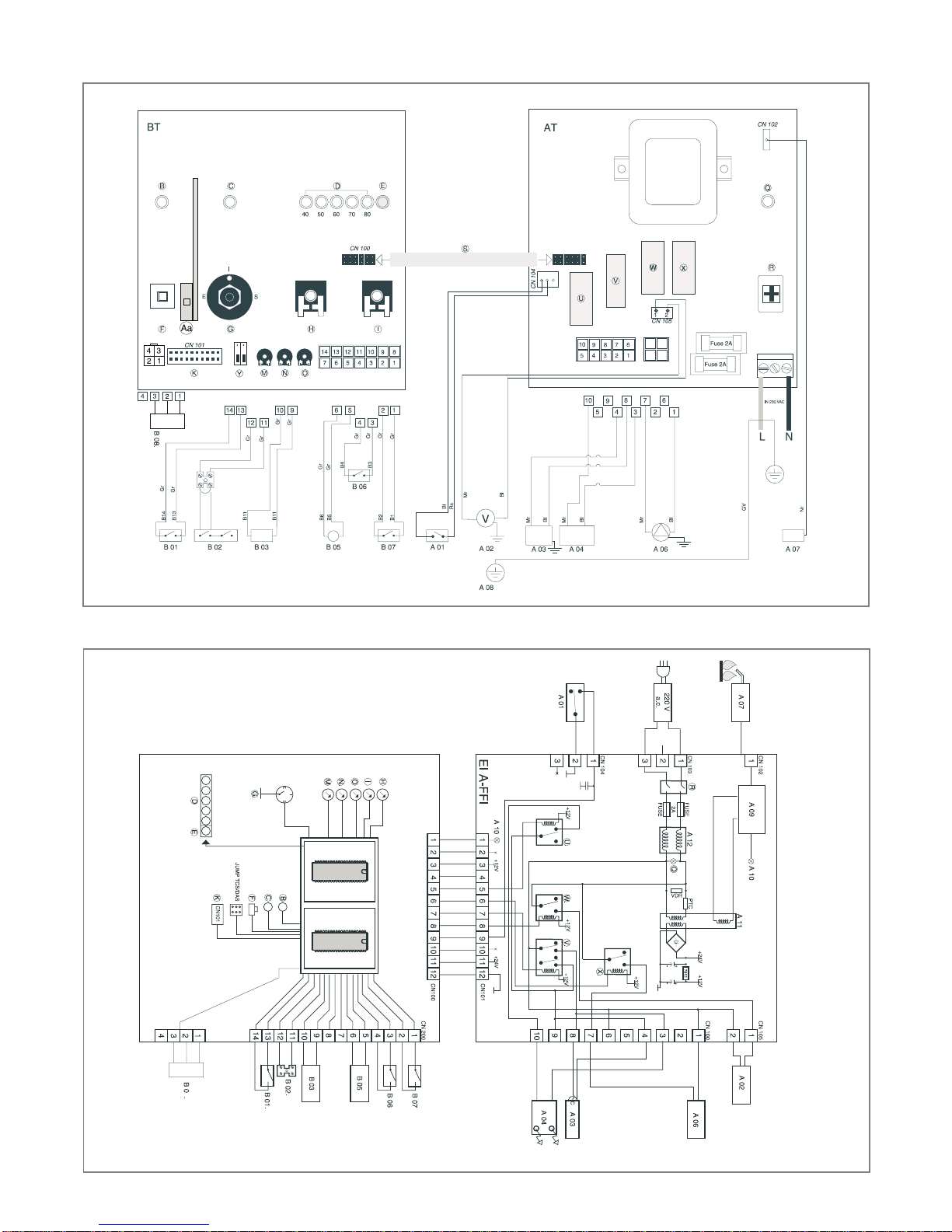

2.11 Electrical Diagram
Legend:
AT = High Voltage P.C.B.
BT = Low Voltage P.C.B.
B = Flame Failure L.E.D.
C = Insufficient Water Pressure L.E.D.
D = Water Temperature Indicator L.E.D.s
E = Overheat Thermostat Warning L.E.D.
F = System Reset Button
G = Selector Knob for Operating Mode
H = Domestic Hot Water Temp. Adjustment
I = Central Heating Temp. Adjustment
J = Wire Connector for Room Thermostat
K = Connector forTotal Check System
M = Anti-cycling Device Adjustment for Heating
N = Soft-light Adjustment
O = Max Heating Temperature Adjustment
P = Time Clock Connection
Q = On/Off L.E.D.
R = On/Off Switch
S = Interface Wire for P.C.B.s
T = Relay Motorised Valve
U = Ignitor Relay
V = Gas Valve Relay
W = Fan Relay
X = Circulation Pump Relay
Aa = Adaptor (British Gas use only)
Y = Selector TCS2
A01= Air Pressure Switch
A02= Fan
A03 = Gas Valve
A04= Ignitor
A05 = Motorised Valve
A06= Circulation Pump
A07= Flame Detector
A08 = Earth Terminal
A09= Flame Detection Circuit
A10= Flame Indicator L.E.D.
A11= Transformer
A12= Filter
B01 = Over Heat Thermostat
B02 = Room Thermostat
B03 = Gas Valve Modulator
B05= Heating Sensor
B06= Pressure Switch for Heating Circuit
B07= Microswitch for Diverter Valve
Colours
Gry = Grey
Rd = Red
Bl = Blue
Grn/Yll = Yellow/Green
Wh = White
Brn = Brown
Blk = Black
Wh/Rd = White/Red

16
B023
A/23 MFFI - A/27 MFFI
EX C-MI/FFI
8
A/23 MFFI - A/27 MFFI

2.12 Water Circuit Diagram
17
B023
A/23 MFFI - A/27 MFFI
Legend
1. Air Pressure Switch
2. Fan
3. Main Heat Exchanger
4. Main Burner
5. Ignition Electrodes
Detection Electrode
6. Gas Valve
7. Overheat Thermostat
8. Main Circuit Temperature Probe
9. Diverter Valve
10. Main Circuit Flow Switch including
Safety Pressure Switch for
Primary Circuit
11. Automatic By-pass
12. Microswitch for Diverter Valve
13. Secondary Heat Exchanger
14. Domestic Water Inlet Filter
15. Boiler Drain Valve
16. Safety Valve
17. Water Pressure Gauge
18. Circulation Pump with Automatic
Air Release Valve
19. Expansion Vessel
3 COMMISSIONING
3.1 Initial Preparation
Preliminary electrical system checks to ensure electrical safety must be carried
out by a competent person i.e. polarity, earth continuity, resistance to earth and
short circuit.
Filling the Heating System:
Remove the panels of the case and lower the control panel (see point 3.2.for
further information).
Open the central heating flow and return cocks supplied with the connection
kit.
Unscrew the cap on the automatic air release valve one full turn and leave
open permanently.
Close all air release valves on the central heating system.
Gradually open valve(s) at the filling point (filling-loop) connection to the
central heating system until water is heard to flow, do not open fully.
Open each air release tap starting with the lower point and close it only when
clear water, free of air, is visible.
Purge the air from the pump by unscrewing anticlockwise the pump plug and
also manually rotate the pump shaft in the direction indicated by the pump
label to ensure the pump is free.
Close the pump plug.
Continue filling the system until at least 1 bar registers on the pressure
gauge.
Inspect the system for water soundness and remedy any leaks discovered.
Filling of the D.H.W. System:
Close all hot water draw-off taps.
Open the cold water inlet cock supplied with the connection kit.
Open slowly each draw-off tap and close it only when clear water, free of
bubbles, is visible
Gas Supply:
Inspect the entire installation including the gas meter, test for soundness and
purge, all as described in BS 6891:1988.
Open the gas cock (supplied with the connection kit) to the appliance and
check the gas connector on the appliance for leaks.
When the installation and filling are completed turn on the central heating

40 50 60 70 80
C C

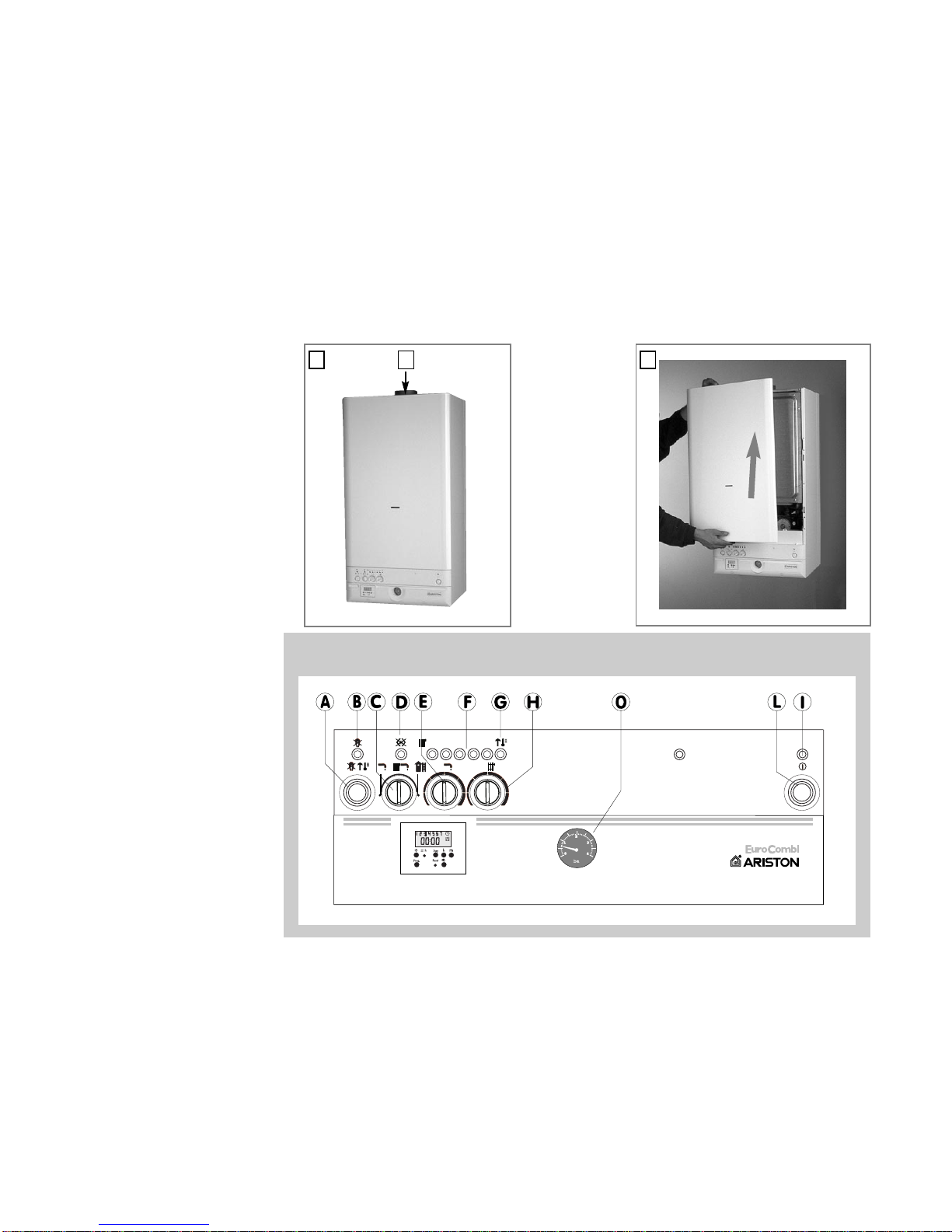

3.3 Control Panel
A - Ignition Lockout Reset Button/Safety (Overheat)Thermostat Reset
B - Ignition Lockout L.E.D.
C - Selector Knob for Summer/Winter/Flue Analysis Modes*
D - Low System Water Level L.E.D.
E - Temperature Adjustment Knob for Domestic Hot Water
F - Heating System Thermometer
G - Safety (Overheat)Thermostat Intervention L.E.D.
H - Adjustment Knob for Heating Temperature
I - On/Off L.E.D.
L - On/Off Switch
O - System Pressure Gauge
* Warning the flue analysis mode must only be selected by a qualified service engineer.
18
B023
3.2 Removing the
Front Panel
A/23 MFFI - A/27 MFFI
21 F
To remove the front panel of the casing, proceed as follows:
1. Remove the screw “F” located on the top edge of the panel.
2. Lift and unhook the panel.
system (sect. 3.4) and run it until the temperature has reached the boiler
operating temperature.The system must then be immediately flushed through.
The flushing procedure must be in line with BS 7593:1992 Code of practice for
treatment of water in domestic hot water central heating systems.
During this operation, we highly recommend the use of a central heating
flushing detergent (Fernox Superfloc or equivalent), whose function is to
dissolve any foreign matter that may be in the system.
Substances different from these could create serious problems to the
pump or other components.
The use of an inhibitor in system such as Fernox MB-1 or equivalent is strongly
recommended to prevent corrosion (sludge) damaging the boiler and system.
Failure to carry out this procedure may invalidate the appliance warranty.

19
B023
3.4 Initial Start-up
The checks to be run before initial start-up are as follows:
1. Make sure that:
-the screw on the automatic air valve has been loosened when the
system is full;
- If the water pressure in the system is below 1 bar, bring it up to the appro-
priate level;
-Check to see whether the gas cock is closed;
-Make sure that the electrical connection has been made properly and that
the earth wire is connected to an efficient earthing system;
- Supply power to the boiler by pressing the On/Off switch <L> - the L.E.D. “I”
will turn on - turn the selector knob “C” to the < winter> setting.This will start
the circulation pump. After 7 seconds, the boiler will signal a shut-
down due to failure ignition. Leave the boiler as it is until all of the air has
been bled from the lines.
-Loosen the cap on the head of the pump to eliminate any air pockets;
-Repeat the procedure for bleeding the radiators of air;
-Open the taps for a brief period;
-Check the system pressure and, if it has dropped, open the filling-loop
again to bring the pressure back up to 1 bar.
2. Check the exhaust flue for the fumes produced by combustion.
3. Make sure that all gate valves are open;
4. Turn on the gas cock and check the seals on the connections, including the
one for the burner, making sure that the meter does not signal the passage
of gas.Check the connections with a soap solution and eliminate any leaks.
5. Press the reset button “A” for the lighting system; the spark will light the
main burner. If the burner does not light the first time, repeat the procedure.
6. Check the minimum and maximum pressure values for the gas going to the
burner; adjust it if needed using the values indicated in the table in
section 4.
(See the relative section for burner pressure adjustment within the servicing
manual).
3.5 Operational
Adjustments
The boiler was designed to make it easy to regulate and check the various
features. To access the areas where the adjustment and control devices are
located, simply remove the plugs by pressing from the inside, unscrew the
screws “A” and remove the bottom part of the instrument panel, rotating it
upward.
Right hand side service panel also provides access to:
- the power supply cord connector;
- the fuses.
Left hand side:
- the potentiometer for regulating the ignition delay (anti-cycling) feature, which
can be set from 0 to 2 minutes (factory set at 1 minute);
- the potentiometer for regulating the soft-light feature, the setting for which
can range from the minimum thermal power to the maximum:

20
B023

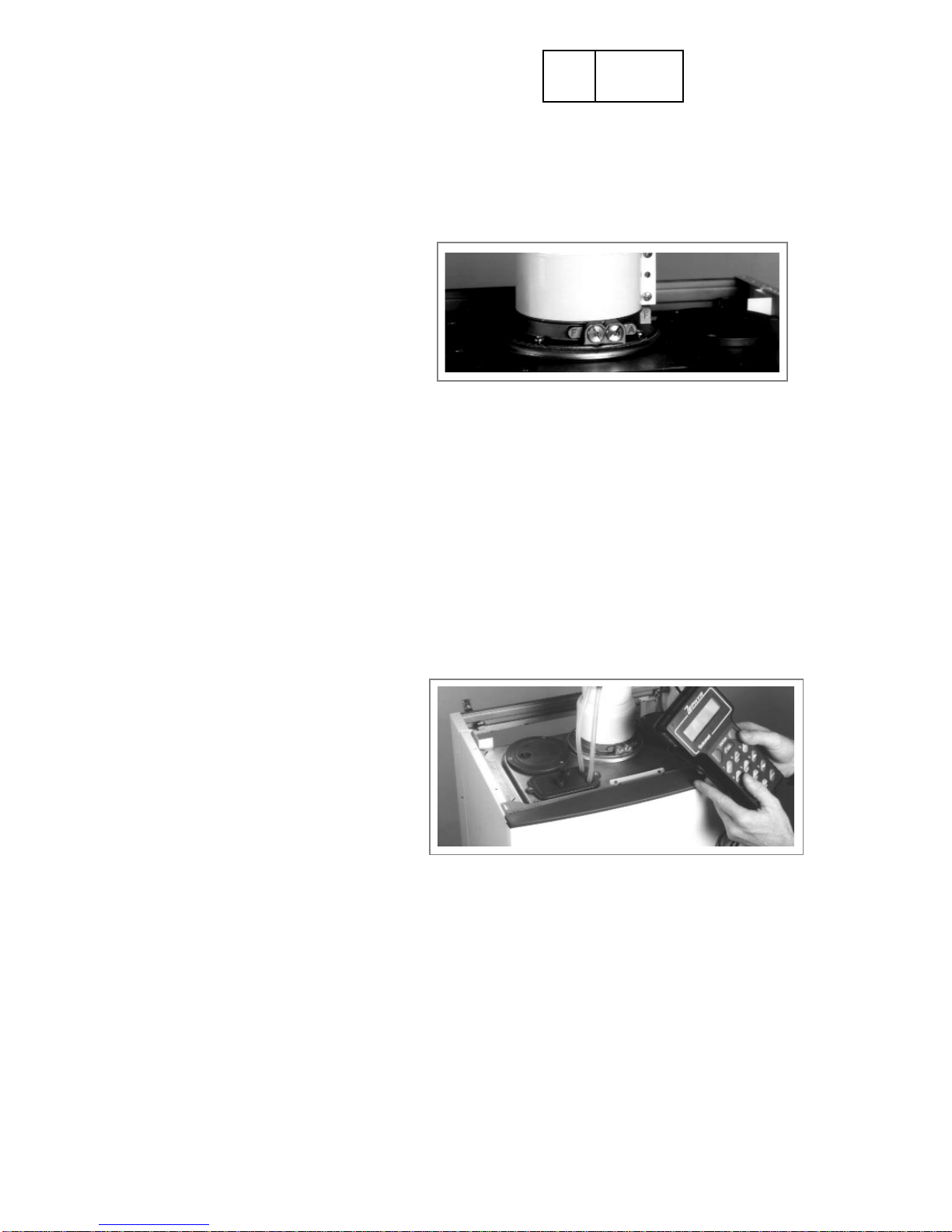

The boiler is designed to make it easy to analyse the combustion by-products.
Using the especially designed apertures, readings can be taken on the
temperature of the combustion by-products and of the combustion air, as well
as of the concentrations of O2and CO2, etc.
The best maximum-power test conditions for the heating system are when the
selector “C” is turned to the flue analysis setting.
The discharge/ventilation of the exhaust fumes can be monitored to check for
losses in general pressure in the system.This is done to eliminate the cause of
lighting failure with the main burner not indicated by a shutdown status.
With a differential manometer connected to the test socket on the combustion
chamber, the DP value for the air pressure switch can be taken. The measured
value should not be less than 10 mbar under maximum thermal power
conditions (with the knob “C” on the flue test setting) in order for the unit to
function properly and without interruption.
- the potentiometer for the maximum thermal power for the heating system,
maximum thermal power setting (factory set at the maximum value, unless
indicated otherwise on the adhesive sticker located in proximity to the
potentiometer);
- The connection for the diagnostic device (TCS-TCS2).
G20 5.5 mm c.a.
G25 4.5 mm c.a.
G30-31 1.8 mm c.a.
The boiler is equipped with the following safety systems (see section 3.3 for
references):
1 - Ignition Failure
This control signals an ignition failure on the burner 7 seconds after a lighting
failure.The L.E.D.“B”.will turn on to signal the shutdown status.
The system can be reset by pressing and releasing the button “A” after
checking to make sure that the gas valve is open. Repeat this process until the
burner lights.
2 - Circulation Failure
This control signals that the safety pressure switch on the primary circuit has
not sensed a pressure of at least 1 bar within 40 seconds of the activation of
the circulation pump, it shuts off the boiler and lights the L.E.D. “D”.The system
can be reset (after the pressure has been brought up to the proper level) by
using the On/Off switch “L”.
3 - Overheating
This control shuts off the boiler in the case where the primary circuit reaches a
temperature in excess of 110°C. The L.E.D. “G” will come on to signal this shut
3.6 Combustion Analysis
3.7 Fume Discharge
Monitoring
3.8 Boiler Safety Systems
