AURES MULTI
INSTALLATION & OPERATION MANUAL
INSTANTANEOUS ELECTRIC WATER HEATER

2
EN
GENERAL SAFETY INSTRUCTION
1. This manual is an integral part of the product. Keep it with in a safe place, and hand it on to
the next user/owner in case of change of property.
2. Read the instructions and warnings in this manual carefully, they contain important informa-
tion regarding safe installation, use and maintenance.
3. The appliance must be installed and commissioned by a competent person in accordance
with local legislation and health and safety regulations. All electrical power supply to the unit
must be isolated and made safe before you open the terminal block.
4. DO NOT use the appliance for anything other than its specied use. The manufacturer is not
liable for damage resulting from improper or incorrect use or failure to observe the instruc-
tions given in this manual.
5. Incorrect installation can result in damage to property and injury to persons and animals; the
manufacturer is not liable for the consquences.
6. DO NOT leave the packaging materials (staples, plastic bags, expanded polystyrene, etc.)
within the reach of children - they can cause serious injury.
7. This appliance can be used by children aged from 3 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. DO NOT permit chil-
dren to play with the appliance. User cleaning and maintenance may not be done by
unsupervised children.
8. Any repairs, maintenance, plumbing and electrical connection must be done by qa com-
petent person using original spare parts only. Failure to observe the above instructions can
compromise the safety of the appliance and relieves the manufacturer of any liability for the
consequences.
9. The hot water temperature is regulated by a thermostat which also acts as a safety device to
prevent dangerous overheating.
10. The electrical connection must be done as indicated in this manual.
11. If the appliance is equipped with a power cable, the latter may only be replaced by an author-
ised service centre or professional technician.
12. Make sure to drain the appliance when it is out of service or in an area subject to subzero
temperatures.
13. Do not leave ammable materials in contact with or in the vicinity of the appliance.
14. DO NOT touch the appliance when barefoot or if any part of your body is wet
15. Before using the device and after routine maintenance, we recommend ushing the unit to
remove any debris .
16. Do not place anything under the water heater which may be damaged by a leak.

3
EN
Symbol Meaning
Failure to observe this warning can result in injury, which may even be fatal in certain circumstances
Failure to observe this warning can msult in damage or injury, even to property; plants and animals
Observe the product's general and specic safety instructions.
GENERAL SAFETY STANDARDS
Ref. Warning Risk Symbol
1.Do not open the appliance or remove from its
installation
Electrocution hazard due to the presence of live electrical
equipment. Personal injury -overheated burns caused by
components and wounds caused by sharp edges
2. Do not start or stop the appliance by inserting/
pulling the power plug
Electrocution hazard due to damage to the power cord,
its plug or the socket
3. Do not damage the power cable Electrocution hazard due to bare live wires
4. Do not leave objects on the appliance Personal injury due to objects falling o the appliance as
a result of vibration
Damage to the appliance or other property due to
objects falling o the appliance as a result of vibration
5. Do not climb onto the appliance Personal injury due to falling o the appliance
Damage to the appliance or other property due to the
appliance itself detaching from its mounting
6. Do not clean the appliance without having rst
isolated the electrical power supply to the unit.
Electrocution hazard due to the presence of live electrical
equipment
7. Install the appliance to a solid wall which is not
subject to vibration
Danger of the appliance falling o the wall due to
structural collapse
8. Make the electrical connection with cables of
adequate cross-section
Danger of re due to overheating of undersized electrical
wires
9. Restore all safety and control functions after
working on the appliance and check that they are
operational before returning it to service
Damage or blocking of the appliance due to improper
control
10. Drain all components containing hot water, using
the bleed cocks, before handling them
Danger of burns
11. Descale the system as given in the products
"safety sheet"; when doing so, ventilate the
room, wear safety clothing, make sure not to mix
products, and protect the appliance itself and any
adjacent objects
Personal injury due lo contact of the skin and eyes with
add, inhalation or ingestion of noxious chemicals
Damage to the appliance and adjacent objects due to
corrosion by acid
12. Do not use insecticides, solvents or aggressive
detergents to clean the appliance
Damage to plastic and painted parts and assemblies

4
EN
TECHNICAL CHARACTERISTICS
For the technical specications, refer to the nameplate (the nameplate is located on the right side of the
water heater).
PRODUCT INFORMATION
Model AURES
M 9.5 240V EU
Power (kW)
9.5
Voltage (V)
240
Phases
Mono
Installation
Multi point
Construction
Close outlet
Frequency (Hz)
50/60
Electric current (A)
39.6
Electrical diagram
III
Water Protection
IP25
Pipe Connection
1/2" BSP
Minimum water flow (l/min)
2.1
Qelec (kWh)
2.224
Max water pressure
800 kPa (8 bar)
Load profile
XS
Lwa (dB)
15
ηwh
39%
Rated Volume (l)
0.45
Weight (kg)
2.2
Dimensions (mm)
304 x 220 x 110
The power consumption data in the table and the other information given in the Product Data Sheet (Enclosure
A to this manual) are dened in relation to EU Directives 812/2013 and 814/2013.
The products without the label and the data sheet for water heaters and solar devices, stipulated in regulation
812/2013, are not intended to be used in such assemblies.
Products equipped with a regulator knob have the thermostat positioned in the <ready to use setting indicated
in the Data Sheet (Enclosure A), according to which the relevant energy class has been declared by the
manufacturer.
The product should be connected only to an electrical supply with the relevant system impedance no
more than 0.237 ohm.
Restrictions to connection may be imposed by the supply authority on the use of equipment in the
actual relevant system impedance at the interface point on the user's premise exceeds 0.237 ohm.
This appliance is conforming with the international electrical safety standards IEC 60335-1 and IEC
60335-2-35. When present, The CE marking of the appliances attests its conformity to the following EC
Directives, of which it satises the essential requisites:
- LVD Low Voltage Directive: EN 60335-1, EN 60335-2-35, EN 60529, EN 62233, EN 50106.
- EMC Electro-Magnetic Compatibility: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3,
EN 61000-3-11 and EN 61000-3-12.
- ERP Energy related Products: Eu812, Eu814, EN50193-1-2013
The UKCA marking of the appliances attests its conformity to the following UK legislation
- Electromagnetic Compatibility Regulations 2016
- Electrical Equipment (Safety) Regulations 2016
- The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019
- The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations
2012

5
EN

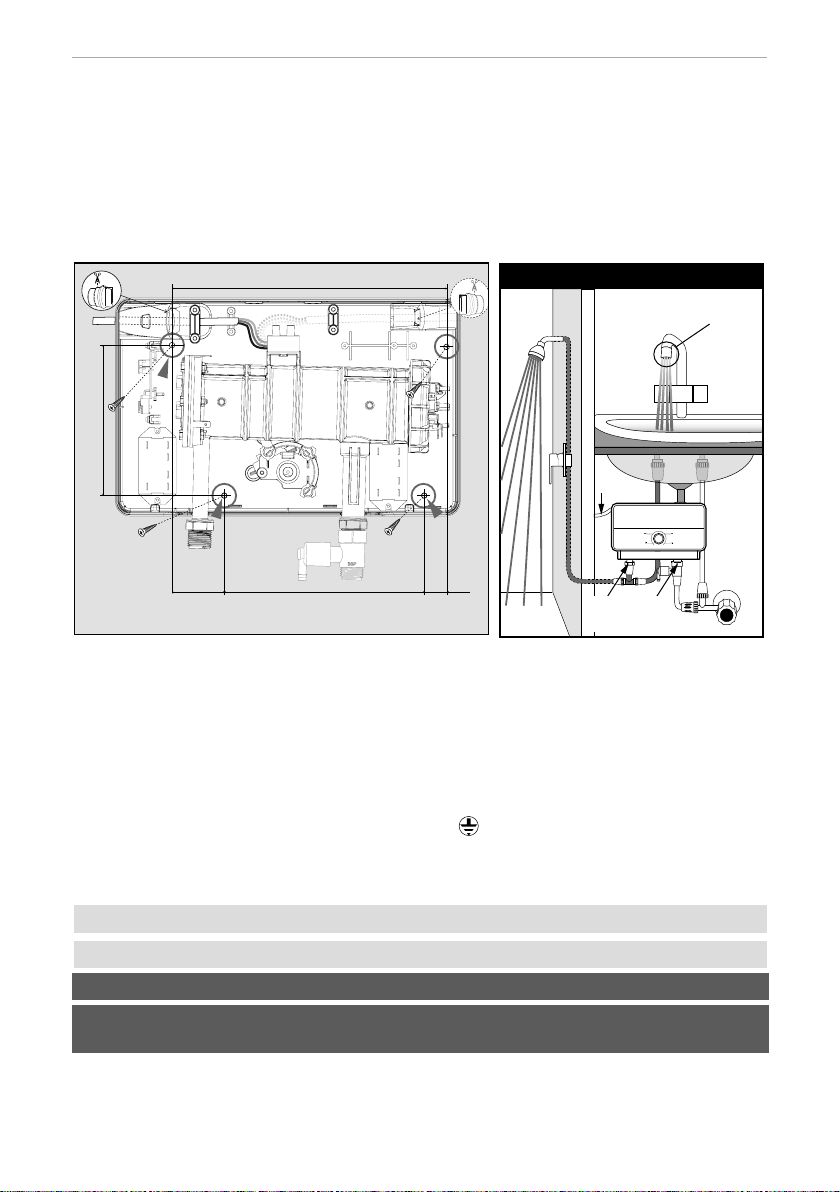

Installation Instructions:
The appliance must be installed and commissioned by a competent person in accordance with established
regulations and local health and safety regulations.

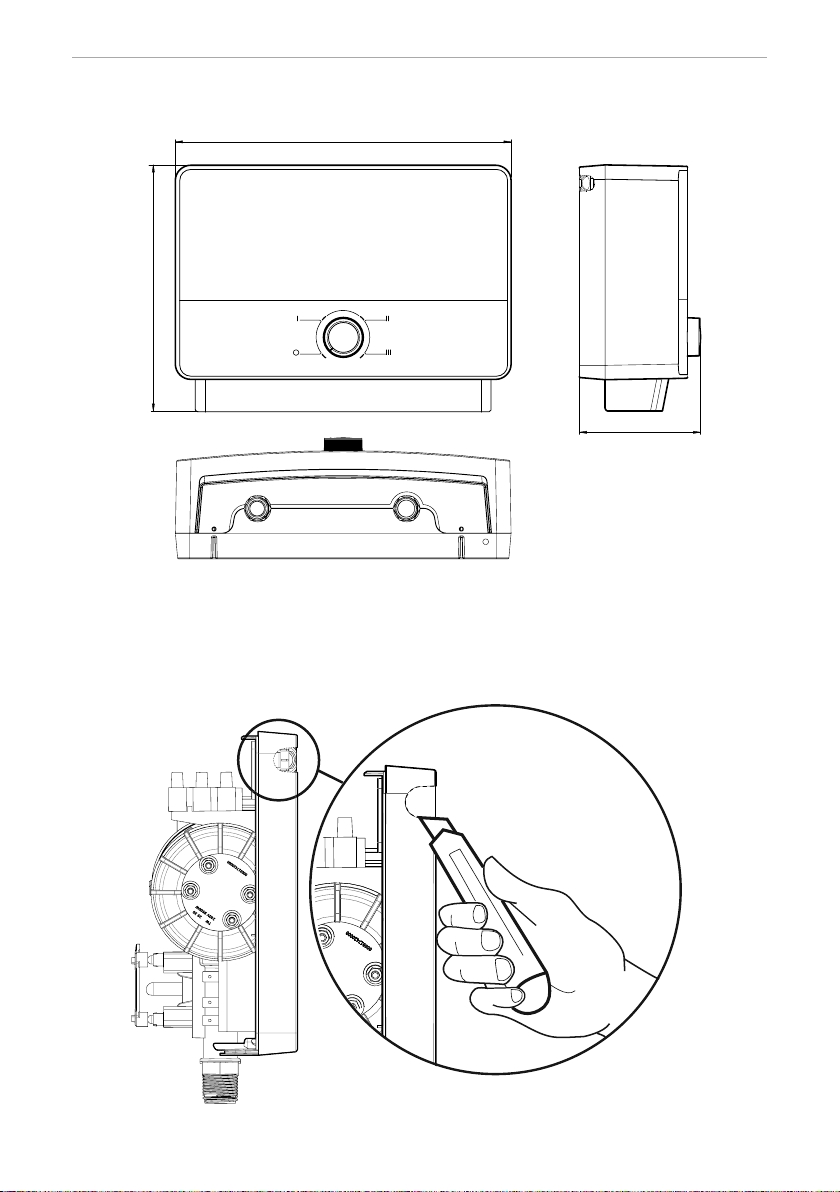

240 mm
44 mm 20 mm
131 mm
176 mm
1. Before performing any operations, disconnect the electricity using the external switch
2. Open the two screws located at the bottom of the device and remove the cover from base.
3. Fix the base horizontally against a wall or side of cabinet, the inlet and outlet water pipes are on the
down/bottom side of the unit. Use the four mounting screws provided.
cable
Flow restrictor
AERATOR
Hot
water
out
Cold
water in
only
4. Use the supplied water lter on the inlet water pipe line (see diagram)
5. Connect the incoming cold water pipe to the inlet connection point on the bottom right side and the
outgoing hot water pipe to the outlet water pipe on the bottom left side. Turn open the of water supply and
check there is no water leakage from the unit.
6. Use an all pole switch conforming with national laws in force (contact gap of at least 3 mm, preferably
equipped with fuses) to disconnect the appliance's power supply.
7. Connect the power cable to the terminal block inside the unit. The appliance must be earthed and the earth
cable must be xed to the terminal marked by the symbol .
8. Turn on the unit and check that it is operating as required.
9. Reconnect the cover to the base with 2 screws.
10. It is required that a Ground Fault Circuit Interrupter/Earth Leakage Circuit Breaker be incorporated in the circuit.
11. Make sure to install the pressure relief valve correctly (supplied with the product) before Inlet pipe.
12. It is required to install a ow control restrictor (AERATOR) at the sink or shower.
13. WARNING: UNIT MUST BE PROPERLY GROUNDED
14. THIS HEATER MUST HAVE ITS OWN INDEPENDENT CIRCUIT USING A CORRECTLY RATED CIRCUIT
BREAKER AND SUITABLE WIRE, SEE TABLE RECOMMENDED CABLE.

6
EN
INSTALLATION
OPERATING INSTRUCTIONS
1. Your new Instant Water Heater is ow activated. Regulate the knob in one of the 3 setting power (I, II,
III) the product will switch ON once the hot water tap is turned on, the heating element will work and
warm the water only when there is a ow of water through the appliance.. You will need to allow at least
2.1 litres per minute to ow through the unit in order to activate the Instant Heating System. Run water
through the heater for a few minutes.
2. Be sure to every so often clean the spray head to assure a smooth water ow.
3. Be sure to every so often clean the incoming water lter.
4. Be sure to install your Instant Water Heater in a heated location. The appliance cannot be installed in
areas where the temperature may drop critically and there may be a risk that ice may form.
5. The user can adjust the hot water temperature regulating the setting power on the unit. the user can
choose from 4 dierent power settings:
- O - Heating element is o
- I - Only the 1st Heating element switches on.
- II - Only the 2nd heating element switches on.
- III - 1st and 2nd heating elements switch on, working together.
INSTALLATION REQUIREMENTS
A. A separate electrical supply is required.
B. The device must be connected to a separate circuit breaker.
C. The recommended electrical cable for supplying the device, see table I (next page)
WARNING!
BEFORE BEGINNING ANY WORK ON THE ELECTRICAL INSTALLATION BE SURE
THAT THE CIRCUIT BREAKER IS INTHE“OFF”POSITION TO AVOID DANGER OF
ELECTRICAL SHOCK
Inlet and
outlet at
the bottom
Outlet Inlet

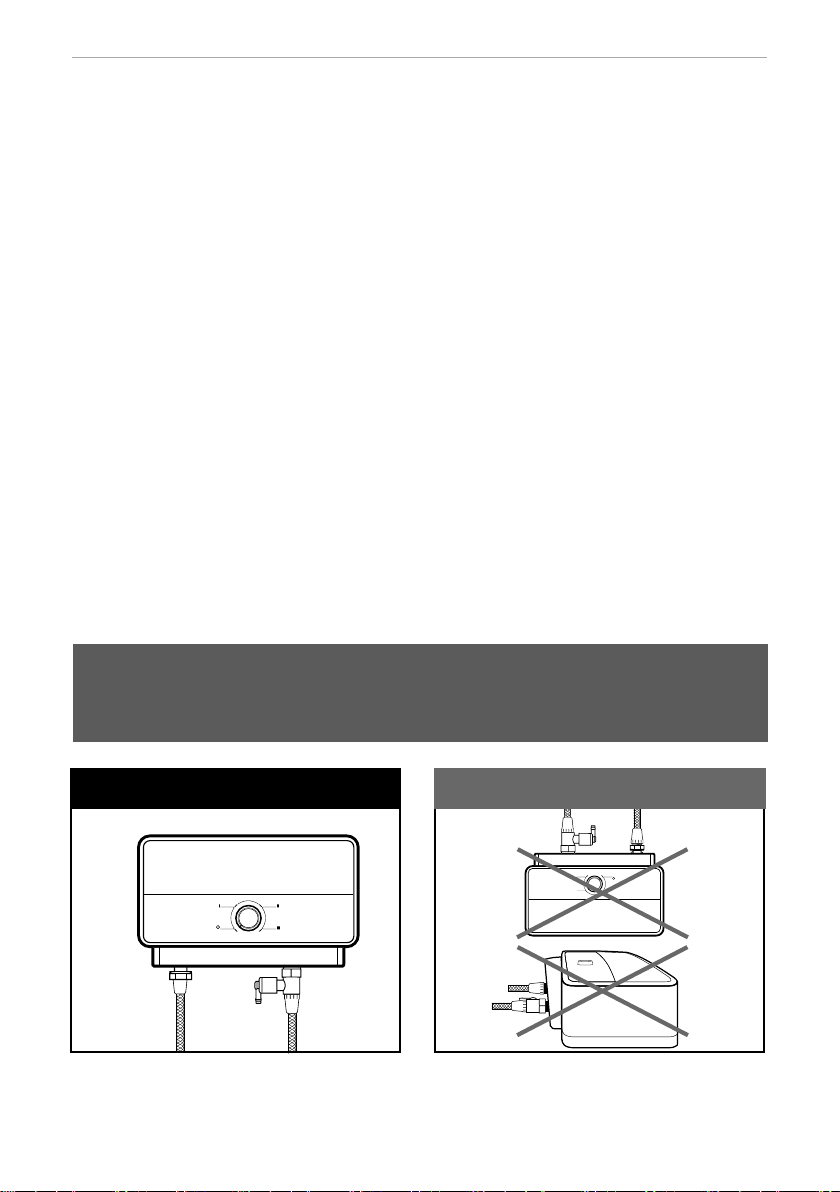

Incorrect Installation
Correct Installation

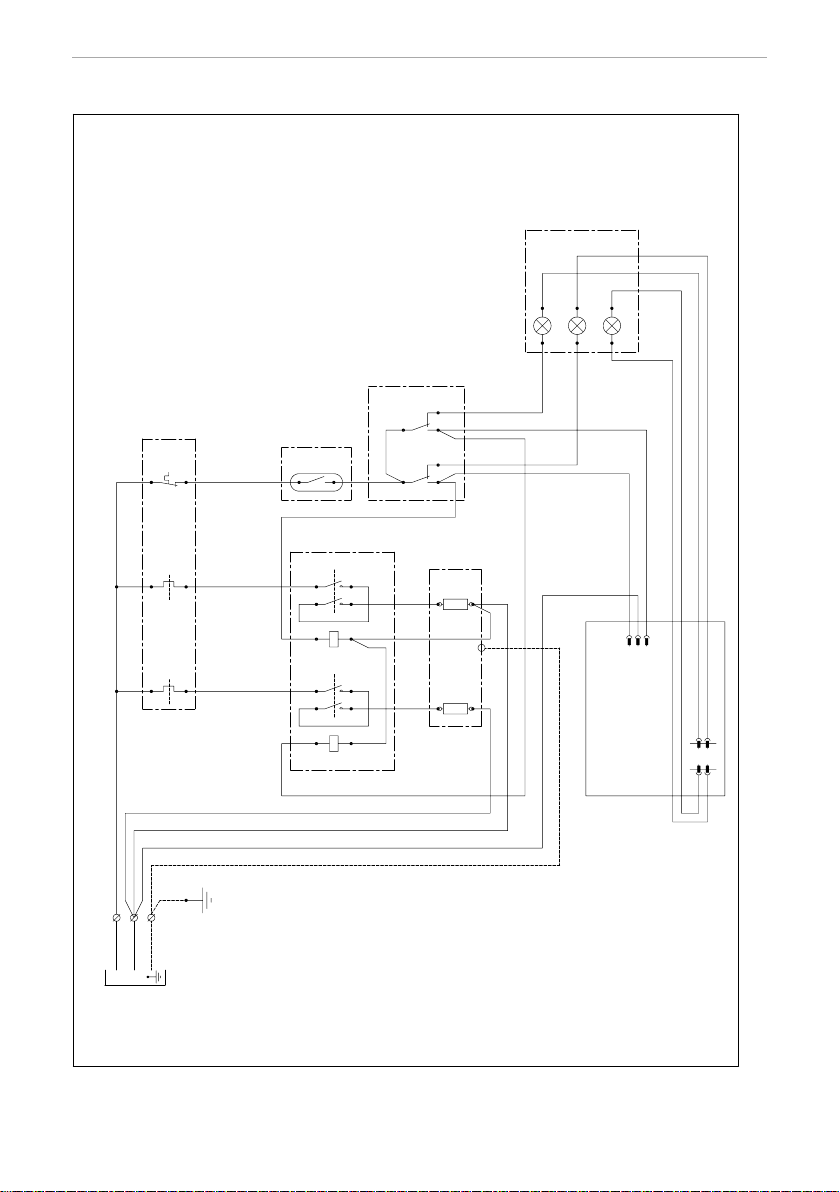

See electrical diagrams at the end of the booklet.
ATTENTION
The water inlet of this appliance must be connected directly to a cold water mains supply.

7
EN
Power
kW Loaded Heating setting Recommended
Cable
Recommended
Fuse Rating
220V 230V 240V
AURES M 9.5 240V EU
-- -- 9.5 4.7+4.8 kW H05VV-F 3x6mm² * 40A

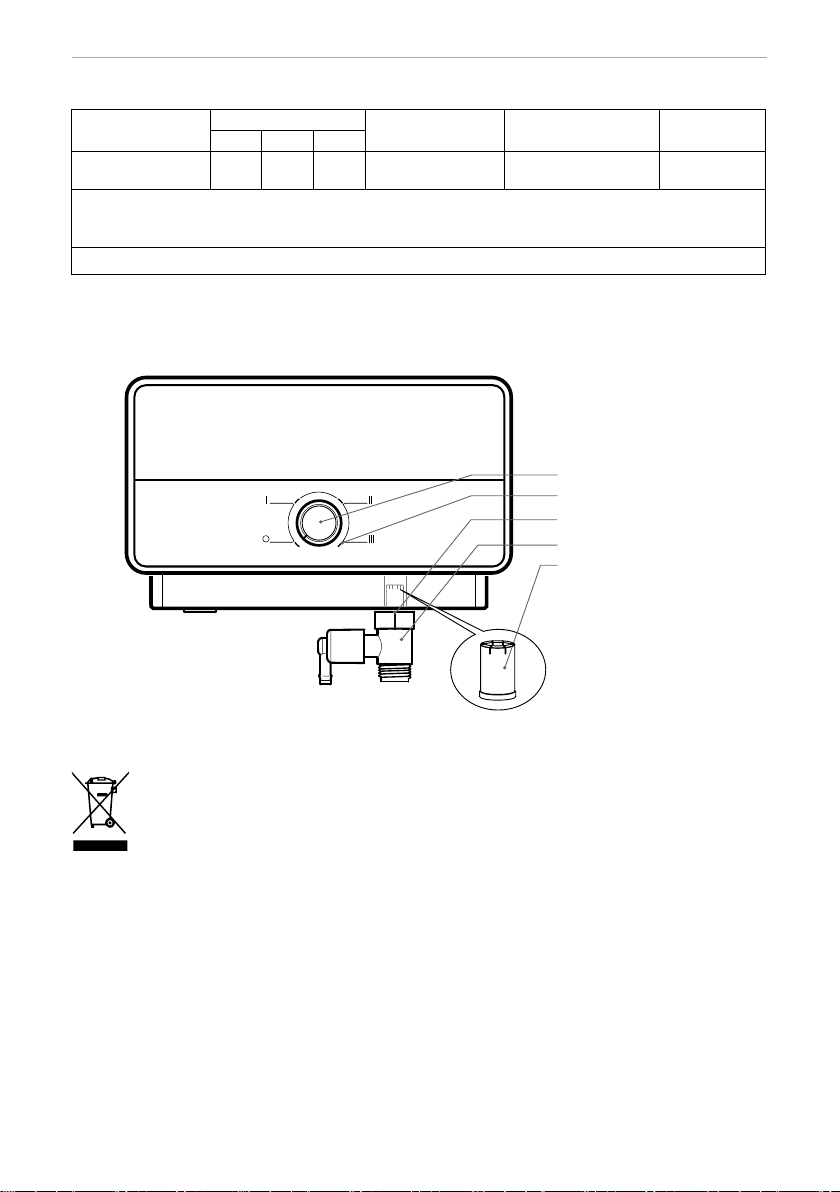

• Operating water pressure 50-800 kPa (0.5-8 bar) • Water pressure operating power switch
• Standard 1/2"Ø compression inlet connection • Top-Left and Optional Top-right cable entry • Bottom-right water entry
UNIT DIMENSIONS: HEIGHT 220mm WIDTH 304mm DEPTH 110mm
Table 1: Recommended cable
Power Knob
Power LED
Water Inlet
Pressure Relief Valve
Filter
Water Outlet
* Recommended power cable size: 6mm2/10mm2(in the UK 10mm2is a requirement where it runs longer than 10 metres).
This product conforms to Directive WEEE 2012/19/EU.
The symbol of the crossed waste paper basket on the appliance indicates that at the end of its working
life the product should be disposed of separately from normal domestic household rubbish, it must be
disposed of at a waste disposal center with dedicated facilities for electric and electronic appliances or
returned to the retailer when a new replacement product is purchased. The user is responsible for the disposal of
the product at the end of its life at an appropriate waste disposal center. The waste disposal center (which using
special treatment and recycling processes eectively dismantles and disposes of the appliance) helps to protect
the environment by recycling the material from which the product is made. For further information about waste
disposal systems visit your local waste disposal center or the retailer from which the product was purchased.

8
EN
Troubleshooting
SYMPTOM POSSIBLE CAUSE SOLUTION
Water not hot
enough
Too much water owing through
the heater
Reduction In the ambient
temperature
Water Pressure below of 100 kPa
Electrical Malfunction
Reduce the ow rate of the water via the
outlet tap.
Switch to higher temperature setting.
Check if the mains stop valve is fully open
and that the there are no other restriction
in the supply line.
Have the Heater unit checked by a
qualied eIectrician or contact your local
authorised distributor.
Water too hot Not enough Water owing through
the heater
Increase in the ambient temperature
Increase the ow rate via the outlet tap
Switch to lower temperature setting
Heater switch O
during use
Interruption of mains electrical
supply
ELSD trip, possible earth leakage
Check incoming power supply, MCB,
switches and supply cabling. Check earth
leakage and reset ELSD
If problem persists, call your local
authorised distributor for assistance.
Water ceases to
ow
Blockage of spray head, twisted or
blocked exible shower hose.
No water supply.
Clean or replace spray head, check for
free passage of water through hose.
Replace as necessary.
Check water supply, stop valve Open?
and no blockage.
Water
temperature
varies from hot to
cold during use
Water pressure has dropped below
min. level.
Increase hot water supply,
No hot water
despite fully open
hot water outlet
No electrical power
The activation ow rate needed to
turn on the heating element has not
been reached.
Check the circuit breaker and check
voltage at the wiring block.
Clean lter screen
• Turn circuit breaker o
• Open hot valve to release pressure from
the unit.
• Turn circuit breaker on.

9
ELECTRICAL WIRING
III
N
L
POWER SUPPLY 230V
=F1 - THERMOSTAT
=F4 - HEATING ELEMENTS =F2 - POWER RELAY
=F5 - POWER LED
-H.E.1 -H.E.2
-S2
-S1
-H1 -H2 -H3
PCB INDICATOR
=F6 - COMMAND SWITCH
=F7 - REED RELAY
-T1
-RR
-K1 -K2
CZ2 CZ3
ACL1
57 °C85 °C85 °C
-RT1 -RT2

10
EN
Product sizes
304
220
110
Optional cable entry
Top-left cable inlet is for cable until 10 mm
2
Optional top-right cable entry is only for power cable size: 6 mm
2

11
EN
Close cover Steps
AB
Close cover Steps

Manufactured by:
Ariston Thermo S.p.A.
Viale Aristide Merloni, 45
60044 Fabriano (AN)
Tel. [phone]
ariston.com
Commercialised in UK by:
Ariston Thermo UK
3 Juniper West
Basildon
SS15 6SJ
www.ariston.com/uk
e-mail: [email protected]
Customer Service: 0333 240 8777
Technical Advice: 0333 240 7777
420011129100 - 07/2021
