ACL800FL-CONV-W RS485 to TCP/IP
Converter Installation Sheet
Description
The ACL800FL-CONV-W is highly integrated serial to ethernet
converter that enables you to connect any UTC biometric
reader over a local LAN network or over the Internet to your
computer. Configuration of the IP address, dynamic DNS,
TCP/UDP ports can be done from browser or from theACL800
BioManager software. The software is capable to automatically
search IP addresses of the converters, as well as the serial
numbers of the biometric readers.
The device is already preset for use with the biometric readers.

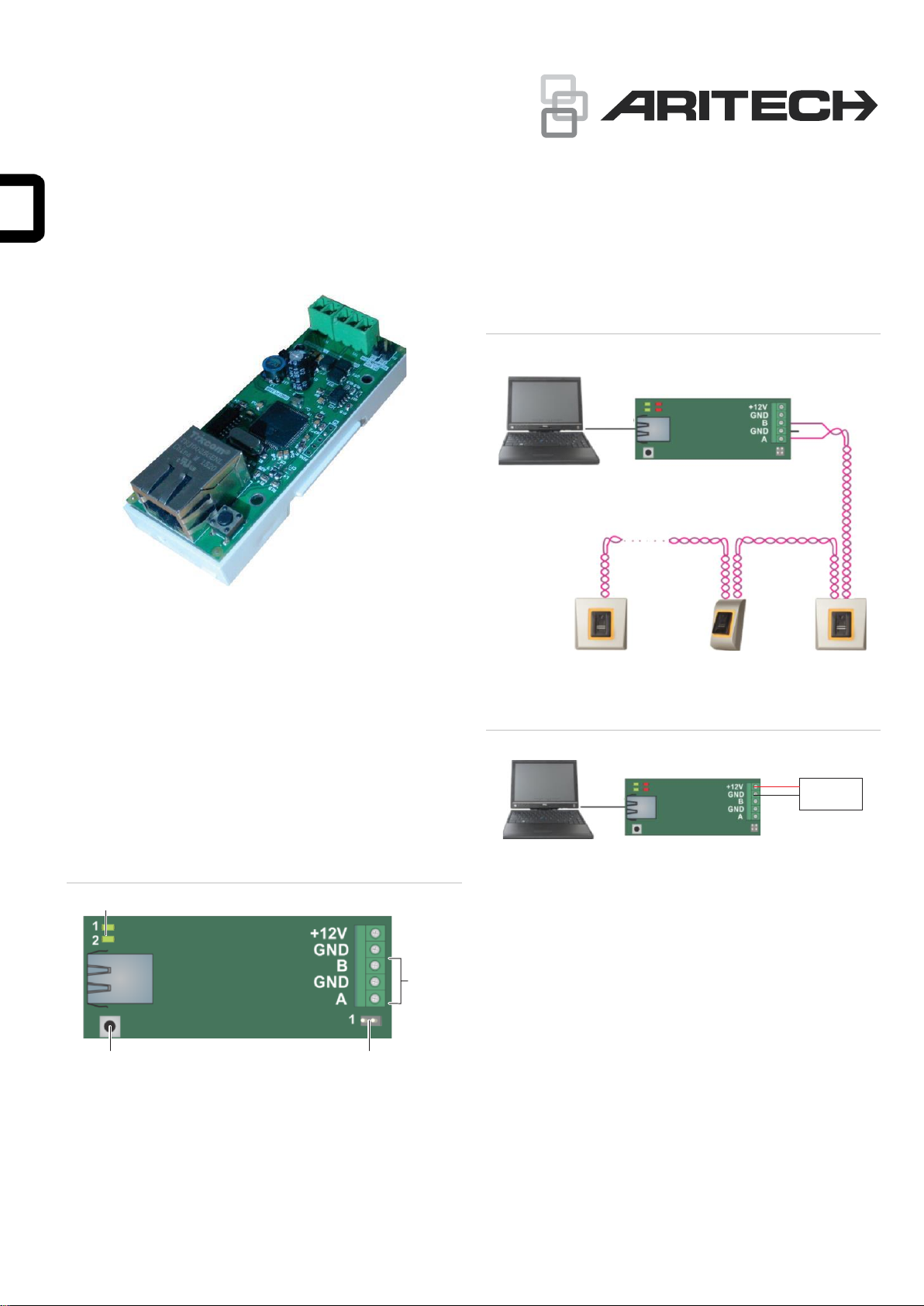

Wiring
Figure 1: PCB
Figure 2: Connections
Figure 3: Power supply connection
Changing the IP address
The default IP of the converter is: 192.168.1.100. If you like to
change the IP address, follow the instructions bellow.
1. Connect the converter ACL800FL-CONV-W directly to the
PC.
2. Change the IP address of the PC to the same range as
the converter’s IP address (192.168.1.XXX)
3. Open Browser or ACL800 BioManager (as explained in
“Configuration” on page 2) and change the IP to the
desired one.
4. Save.
RS485
Reset Termination resistor
120Ω
LEDs
Biometric readers
RS4851 km max. / 31 units
ACL800FL-CONV-W
RS485ACL800
Biomanager
TCP/IP
ACL800FL-CONV-W
PC
Power
supply
TCP/IP +
−

2 / 4 P/N 1073494-EN • REV B • ISS 07JUL22
Configuration
From Web Browser
1. Write the IP as URL (default http://192.168.1 100).
2. Write the username and password (default Username:
admin; Password: 00000000).
Figure 4: Authentication and settings
From ACL800 BioManager
Right click on Portals, and select Search Network Portals.
Figure 5: Search Network portals
Click Search, then click the setup button for the connected
converter.
Figure 6: Search portals
Reset IP to defaults
Press and hold the tact switch for about 5 seconds until the
second green LED turns on. The tact switch is shown in
Figure 1 on page 1 as Reset.
The reset is applied to the IP address, the TCP port and the
password.
Advanced settings
•Setup port: Network port for search and setup in ACL800
BioManager.
•Password: Password for access to read and change the
settings of the converter. It is recommended to change the
default password and use it for all converters in the
system.
•MAC: Physical address of the device.
•DHCP Enable: Enable/Disable the DHCP client.
•DNS: Address of the DNS server.
•Data port: Port used for communication between the
Server and devices behind the converter. The same value
is used in the “Portal” in the software.
•Dedicated client: When enabled, the converter will connect
only to PC with specified IP or MAC.
•Version: Firmware version of the converter.

P/N 1073494-EN • REV B • ISS 07JUL22 3 / 4
Specifications
Power Supply
12 VDC, 100 mA
Network interface
10 BaseT, Half duplex
RS485 interface
38400 Bps (8 bit data, no parity, 1 stop bit)
“Find Portals” by:
ACL800 BioManager
Yes
POE
No
Security
Dedicated IP or/and MAC address
DDNS support
Yes
Visual LED signalization
TCP/UDP packets
DHCP client
Yes
Default IP address
192.168.1.100
Reset IP to default
Yes, by tact switch
PCB size
32 x 86 mm, 4 fixing holes Ø3 mm
Housing
DIN Rail or Wall mount, plastic, size 2 unit
Operating temperature
0 to +40°C, noncondensing
Dimension
90 x 37 x 33 mm
