Arkon SM412 User manual

Place the suction cup of the pedestal down on the mounting
surface in the center of the dash mount with the lever up.
Flip the locking lever (A) down to secure the pedestal to the dash
mount. Adjust the angle of the pedestal arm by tightening the
vertical adjustment knob (B).
Package Contents:
(1) SM012 - Mini weighted friction dash mount
(1) GN014-SBH - Swivel windshield suction pedestal
(1) SM040-2 - Universal phone / device cradle with adjustable legs
(1) Optional adhesive safety hook (recommended but not required)
(1) Alcohol cleaning pad
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/ or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
Do not place mount in or near an air bag deployment zone or
where it will obstruct view of the road.
!
SM412
|Mini Friction Dashboard Mount with Universal Cradle
Patent Pending
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
P
atent Pen
d
i
ng

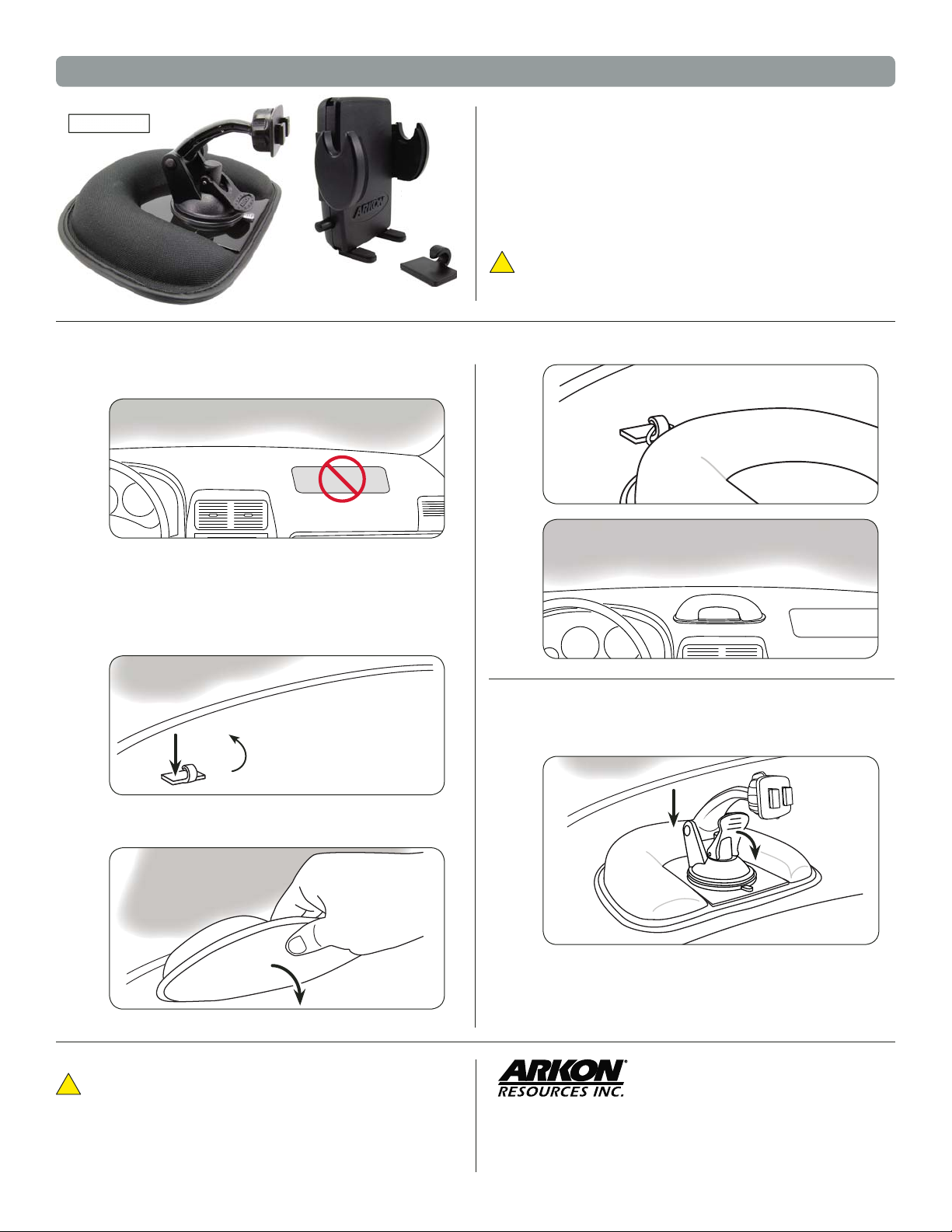

Dash Mount Installation
Find a safe location on the vehicle dash that is not in an air
bag deployment zone.
Optional Safety hook installation will add extra stability.
Clean the area with the included alcohol pad and let dry.
Remove the adhesive backing on the safety hook base. The
hook curve must point towards the windshield. Press and
hold the hook down on the dash surface for about a minute.
Allow 24 hrs. to cure to the dash at room temperature (72° F).
Place the loop on the back of the dash mount around the
safety hook and place on the dash in front of the hook.
Step 1.
Step 2.
Step 3.
AIRBAG
W
I
N
D
S
H
I
E
L
D
Hook towards windshield
Dashboard Pedestal Installation
Step 1.
Step 2.
Continued on other side...
Mini Dash Mount
with Swivel Pedestal
Adhesive
Safety Hook
SM040-2
Universal
Phone Cradle
A
B
SM04
0
Unive
r
Pho
ne

!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and/ or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA [phone]
INT’L [phone]
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
Connect Universal Cradle to Pedestal
Device Attachment and Universal Cradle Adjustment
Attach the cradle to the pedestal head by inserting the dual
T-tabs (C) into the dual T-slots (D) on the back of the cradle.
If necessary, adjust the support legs (E) by sliding them
laterally. These provide support for your device.
Place device on the support legs (E) and squeeze the side
grip arms (F) until they t securely to the device.
Push the release button (G) in order to release the device
from the cradle.
Step 1.
Step 1.
Step 2.
Step 3.
Continued from previous side...
CD
F
G
E
SM412
|Mini Friction Dashboard Mount with Universal Cradle - Continued
