Arlo ALS1101 User manual

Arlo Security Light System
Quick Start Guide
DRAFT

3
Welcome
Thank you for choosing Arlo.
Getting started is easy.

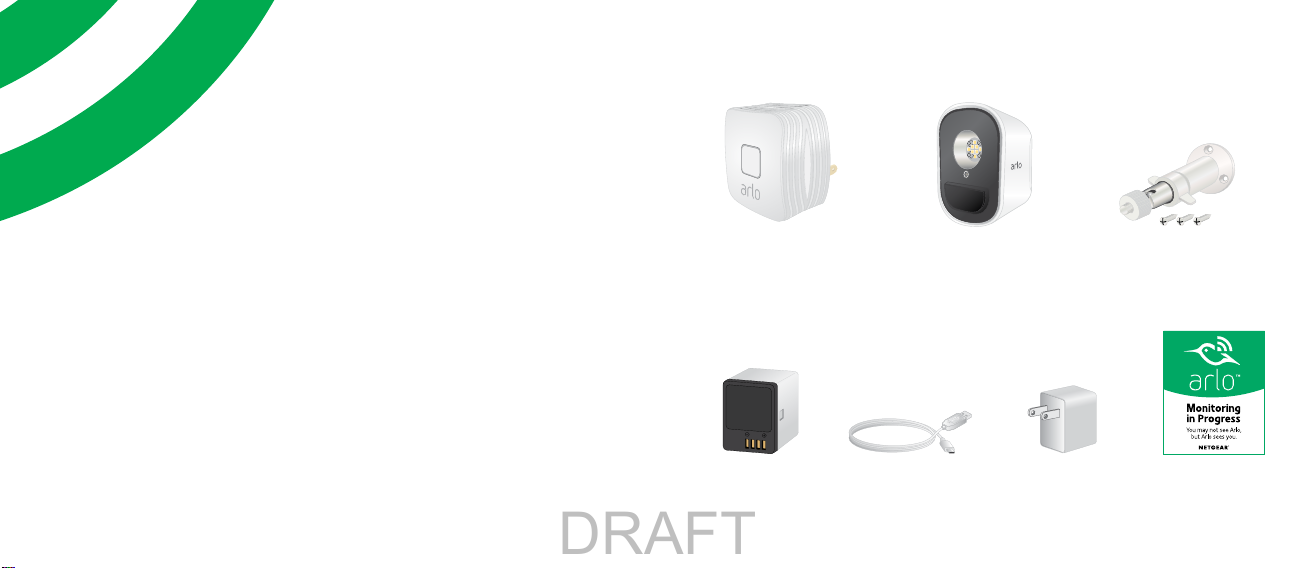

What’s Included
Wire-Free Smart
Security Light
Rechargeable
battery
USB cable Window
decal
Outdoor
security mount
Arlo Bridge
AC power adapter
(varies by region)
DRAFT

5
4
Get the App
Download the Arlo app for your smartphone or tablet by
scanning this QR code or searching for Arlo in the app store.
Note: If you already use the Arlo app, make sure that you
are using the latest version. To find out if an update is
available, go to the App store and search for Arlo.
arlo.netgear.com
Set Up Your Security Light System
1. Launch the Arlo app from your smartphone or tablet.
2. Create an account or log in.
If you did not set up an Arlo account yet, tap New to Arlo?
and create an account.
If you already use an Arlo account, log in to the app.
3. Tap Add Device.
4. Tap Arlo Security Lights.
5. Follow the onscreen instructions to add the bridge and each
security light.
DRAFT

7
6

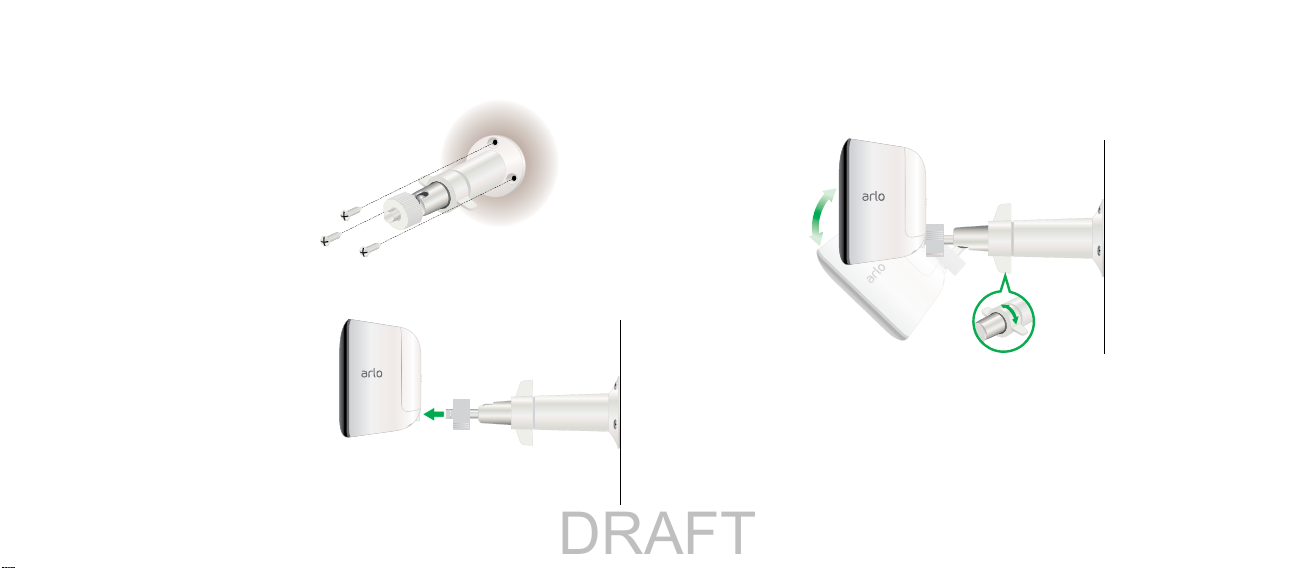

Mount Your Security Light
1. Use the provided screws to
attach the mount to a wall.
2. Tighten the metal collar on the mount to secure the post.
3. Screw the security light
onto the threaded post.
4. Tighten the plastic collar
to secure the light.
5. Tilt and swivel the light to the position you prefer.
DRAFT

9
8
You’re Done!
Congratulations! Your Arlo Security Light System is set up and
ready to go.
To view useful tutorial videos, find troubleshooting tips, or get
support, visit support.arlo.com.
Charge the Battery
You can use the USB cable and the AC power adapter to charge
the battery in your security light.
1. If you are using the security light outdoors, move it indoors
while you are charging the battery.
The security light and the wall socket must be indoors.
2. Connect the USB cable to
the security light and to
the AC power adapter.
3. Plug the AC power adapter
into a wall socket.
The battery charges
automatically.
DRAFT

11
10

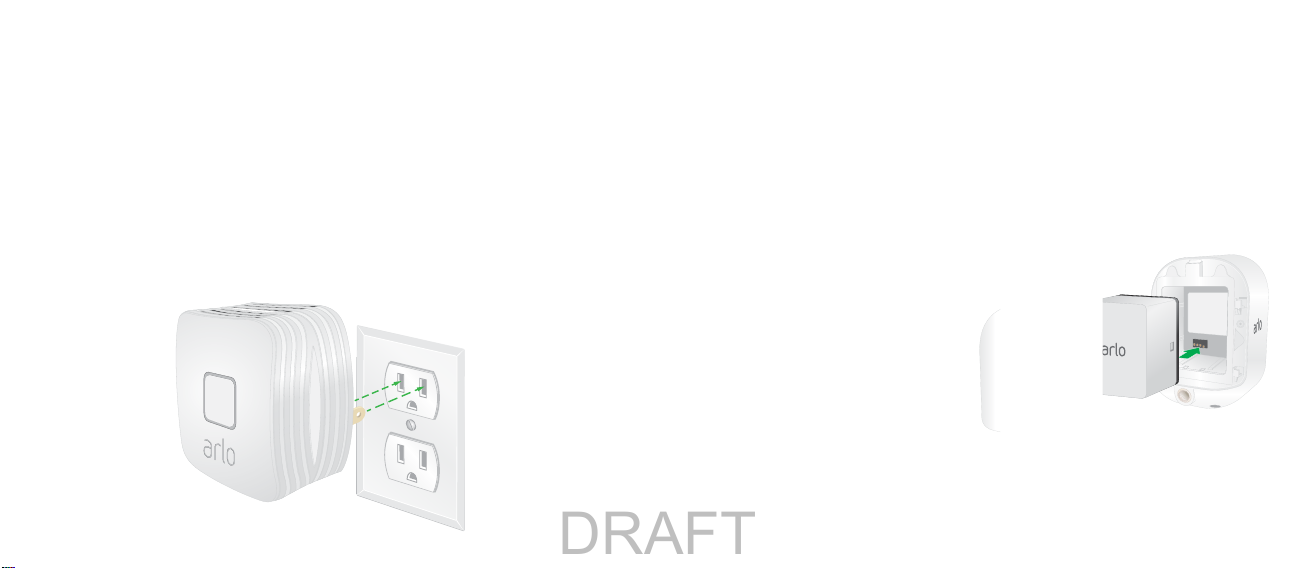

Power On the Bridge
Before you plug in the bridge for the first time, we recommend
that you follow the instructions in the Arlo app to add your
security light system.
To power on the bridge, plug the bridge into a wall socket.
The bridge and the wall socket must be indoors. The prongs on
the bridge vary by region.
Insert a Battery Into a Security Light
Before you insert the battery for the first time, we recommend
that you follow the instructions in the Arlo app to add your
security light system.
1. Unlock the battery compartment cover by pressing and
releasing the back of the security light.
2. Align the battery contacts.
3. Insert the battery.
4. Replace the battery
compartment cover.
DRAFT

13
12
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
15.21
You are cautioned that changes or modifications not expressly approved by the
part responsible for compliance could void the user’s authority to operate the
equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 20 centimeters between the radiator and your body.
Canada, Industry Canada (IC)
This device complies with Industry Canada licence-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device
DRAFT

15
14
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence
.L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Caution: Exposure to Radio Frequency Radiation.
To comply with RSS 102 RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons.
Pour se conformer aux exigences de conformité CNR 102 RF exposition, une
distance de séparation d’au moins 20 cm doit être maintenue entre l’antenne de
cet appareil et toutes les personnes.
CE RED
(a) frequency band(s) in which the radio equipment operates;
(b) maximum radio-frequency power
(c) accessories
(d) software
This equipment should be installed and operated with a minimum distance of 20
cm between the radiator and your body.
DRAFT

February 2018
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTL LTD
Building 3, University Technology Centre
Curraheen Road, Cork, Ireland
©NETGEAR, Inc., NETGEAR, the NETGEAR Logo, and Arlo are trademarks of
NETGEAR, Inc.
Use of the Works with Apple HomeKit logo means that an electronic accessory
was designed to connect specifically to iPod touch, iPhone, or iPad, respectively,
and is certified by the developer to meet Apple performance standards. Apple is
not responsible for the operation of this device or its compliance with safety and
regulatory standards.
Si ce produit est vendu au Canada, vous pouvez accéder à ce document en
français canadien à arlo.com/docs.
(If this product is sold in Canada, you can access this document in Canadian
French at arlo.com/docs.)
For the current EU Declaration of Conformity, visit
kb.netgear.com/app/answers/detail/a_id/11621/.
For regulatory compliance information, visit netgear.com/about/regulatory/.
PART NUMBER
