Armor Soho Caller-ID User manual

USER'S MANUAL
Caller-ID
Headset Telephone
SOHO Executive

- Packing List
- Key Functions
- Assembly
- Installation
- Date Set
- Flash Time Set
- LCD Display Set
- Volume, T/P, Ringer, REC Control Set
- How to Call
- How to Use Functions
- How to Use Headset
- Maintenance and Services
- Warranty Period
- p3 ~ 5
- - - - - - - - - - - - p6 ~ 7
- - - - - - - - - - - - - - p8 ~ 10
- - - - - - - - - - p11 ~ 17
- - - - - - - - - - - - - - - - - - p18
2. Packing List & Key Functions
3. Installation
4. Setting
5. How to Use
6. Notice
Table of Contents

Headset --------------- 1 PC
Telephone Base Unit - 1 PC
2-1. Packing List
TEL Line ------------ 1 PC Headset Stand ------ 1 PC
User's Manual ------ 1 PC
Packing List & Key Functions
“AAA” Batteries -- 2 PCS

2-2. Key Functions
1. SOHO Executive Base Unit
LCD Display
LED Indicator
Secondary
Function Buttons
Primary
Function Buttons
Dial Buttons
Mute/Hold Button
On/Off Button
Headset Jack
Volume Control
Power Supply Jack
Tone/Pulse Switch
Ringer Pitch Switch
REC Jack
Tel Line Jack
Packing List & Key Functions

Headphone
Microphone
Busy Light LED
Indicator
RJ-11
Modular Plug
2. Headset
Remote Control
Packing List & Key Functions

Connect TEL Line
Connect the telephone
line cord at rear of base
to wall jack.
Install Batteries
Open the battery door
cover and install 2 ‘AAA’
batteries.
Installation
3-1. Assembly
Connect Headset Cable
Connect the headset cable
on the left side of the base
into the headset jack.
Install Headset Stand
Install the headset stand
as illustrated above.

Headset
Tel Line

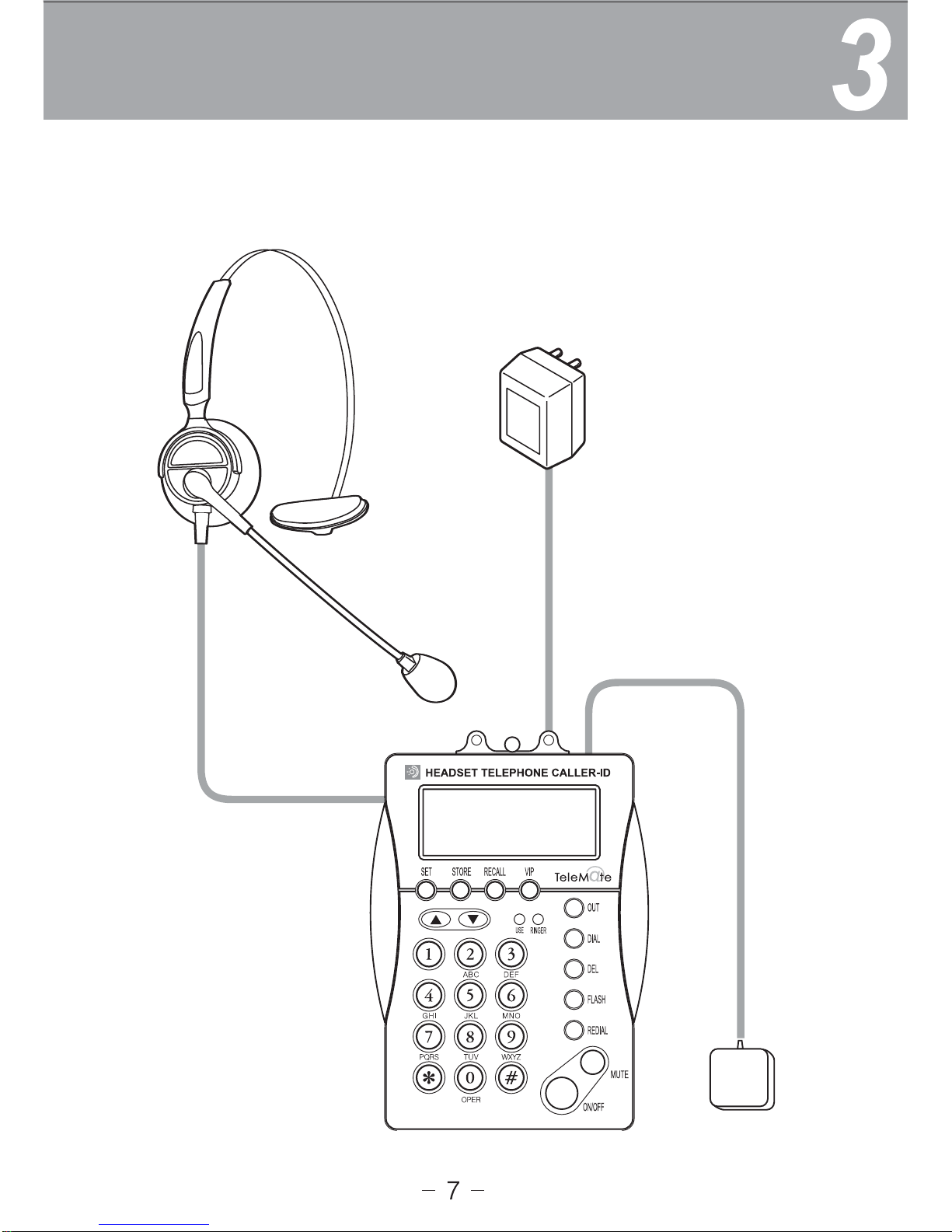

3-2. Installation
Installation

4-1. How to set Date & Time
Notice
Please do not change the Preset options.
These setting modes are set during
production.
1. SET 1 DATE : Set 'Date' and 'Time'.
2. SET 2 CODE : Preset by Manufacturer.
3. SET 3 FLASH : Set Flash Time.
4. SET 4AUTO IP : Not for use in North America.
5. SET 5 IP : Not for use in North America.
6. SET 6 LCD : Set Contrast of LCD Display.
7. SET 7 PAUSE : Preset by Manufacturer.
Setting
Push 'SET' button and then
push "▲", "▼" to select the mode.
Push the ‘SET’ button when off-hook until SET 1 Date
appears. Push the ‘SET’ button again to change the
Year, Month, Day, and Time.
Use the "▲" or "▼" Buttons to adjust values.
To save settings and exit, press the ‘DEL’ button.
MONTH DAY TIME
YEAR SELECT(12/24)TIME

Push the Set Button once and Push "▲" Button twice.
'SET 3 FLASH' will appear. Now push the ‘SET’ button
again to change the ‘FLASH TIME.’
Use the "▲" or "▼" Button to adjust the ‘FLASH TIME’.
You can choose 100 / 300 / 600 / 1000ms
in your SOHO Executive. The SOHO Executive is
pre-set at 600ms.
To save settings and exit, press the ‘DEL button.
4-2. How to set Flash Time
Setting

Setting
On the left side of your
SOHO Executive slide the
volume control to adjust
the headphone volume.
Use the T/P switch at the rear
of your SOHO Executive to
adjust for Tone / Pulse dialing.
Use the ringer switch at the
rear of your SOHO Executive
to adjust the ringer volume.
Tone Pulse
1. Volume Control
2. Tone / Pulse Switch
3. Ringer Pitch Switch
Push the ‘SET’ button once, then press the "▲" button five
times until ‘SET 6 LCD’ appears. Push the ‘SET’ button
again to change the contrast of the LCD using
the "▲" or "▼" buttons. You can choose 1 to 5 on your
SOHO Executive.
To save settings and exit, press the ‘DEL’ button.
4-3. How to set the Contrast of your LCD Display
4-4. Volume, T/P, Ringer Control Set

1. Make a Call
Push the on/off button for
a dial tone then dial the
telephone number
2. Receive a Call
- Push the on/off button to
open a line.
- Push the on/off button to
end your call.
5-1. How to Make & Receive Calls using
the ON/OFF Button
How to Use
5-2. How to Make & Receive Calls using
the Control on the Headset Cord
- SOHO Executive Headset has a built in circuit to open
the line from the cord.
- It also allows you to mute and control headphone
volume levels right from the controls on the cord.
(Detailed information in section 5-4 How to Use Headset)

- Push the On/Off button to open
the line
- Push ‘RECALL’
- Press the pre-saved speed dial
number to be dialed
- The phone will automatically dial
- Push the On/Off button when
“On Hook” (Not on a call)
- Push the ‘STORE’ button in the
primary function area of base unit
- Dial the number to be saved
- Push the ‘STORE’ button again
- Push (0-9) to correspond with
selected speed dial number
- Push the On/Off button to save
5-3. How to use SOHO Executive Functions
There are various functions for your convenience.
1. How to use the Speed Dial
Your SOHO Executive has 10-number Speed Dial.
a. How to Save a Speed Dial
b. Make a Call Using Speed Dial
How to Use

a. How to Save VIP Numbers
- Search for a number to save as
a VIP number. (Use the "▲", "▼"
Buttons to select number)
- Push the ‘STORE’ button to save
the selected number (You will see
a ' ' icon on the LCD Display.)
b. Make a Call with VIP Number
- Push the 'VIP' Button.
- Search for a number to call.
(Use the "▲", "▼" Buttons
to select number.)
- Once the number appears on
the LCD, push the 'DIAL' button
to call the VIP number.
c. Delete VIP number
- Push 'VIP' Button.
- Search for a number to delete
(Use "▲", "▼" Buttons to select
number.)
- Push 'Store' Button.
2. How to Set, Search, and Make a Call with
“VIP” Number
When you receive a very important call or frequently used
telephone numbers, this function allows you to easily manage
and save those numbers.
How to Use

- Push the ‘OUT’ button at the
Secondary Function Button area.
- Then use the "▲" or "▼" buttons
to select a number.
- Push ‘DEL’ to remove the number
that appears.
- Push the 'OUT' button at the
Secondary Function Button area.
- Then use the "▲" or "▼" Buttons
to select a number.
- Push 'DIAL' to make a call.
- Push the ‘OUT’ button at the
Secondary Function Button area.
- Then use the "▲" or "▼" buttons
to select a number.
- The number is shown as
illustrated on the left. (Displays
communication time & order)
c. Delete 'Outgoing Numbers Called'
b. How to Make a Call
a. Search Outgoing Call Numbers
3. Search 'Outgoing Call Numbers' & Make a Call
The last 30 outgoing calls are automatically saved. You can search
through the last 30 outgoing calls and make a call directly from the list.
How to Use

4. Search “Received” Calls & Make a Call
You can save 100 numbers of received incoming calls. Moreover,
you can search the numbers and make a call directly by picking up
the line pressing the ‘DIAL’ button. (You must subscribe to the
“Caller-ID Service” in your local area from your telephone service
provider.)
a. Search Received Numbers
- Use the "▲", "▼" buttons
to select numbers.
- The number is shown as the
picture on the left. (Displays
communication time & order
of received callers)
b. How to Make a Call
- Use the "▲", "▼" buttons
to select numbers.
- Push 'DIAL' button at the
Secondary Function Button
area to make a call.
c. Delete Received calls from Memory
- Use the "▲", "▼" buttons
to select numbers.
- Push 'Delete' button
to remove the number.
How to Use

5. Using the 'Hold/Mute' Function
6. Using the “Flash” Function
- If you need to put a call on hold, push
the ‘MUTE’ button.
- A melody sound will be heard by the
caller and the user when a call is on
hold.
- When you are ready to resume your call,
push the ‘MUTE’ button again.
a. Your SOHO Executive connects
to a single line application
- Push the ‘FLASH’ button to answer
a call waiting line (you have to
subscribe to “Call Waiting” with
your local area telephone service
provider)
How to Use

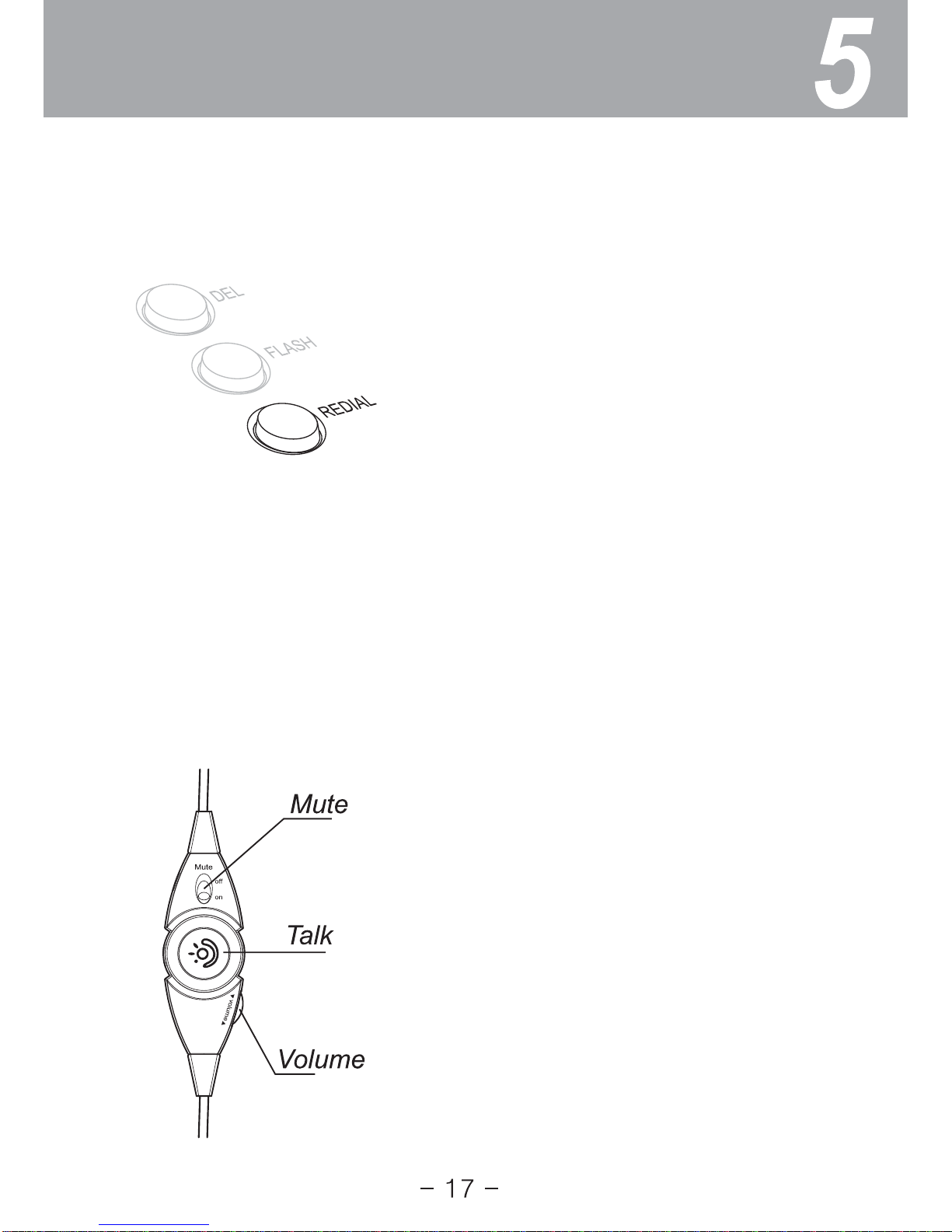

a. Make a Call using “Redial”
- Push the 'REDIAL' Button at
the Secondary Function Button
area to make a call.
- You can use this function
while your SOHO Executive
is Off-Hook (not on a call).
7. Using the “Redial” Feature
Mute When you slide Mute
Switch 'OFF', the microphone is
disabled.
Talk When you make a call
or receive a call, just push
this button.
Volume Speaker Volume Control
The Headset “in line” control feature buttons allow you to open
and close the line without using the keypad. It also has a volume
control and mute switch.
5-4. How to use the Headset Remote Control
How to Use

Notice
Notice
Maintenance & Service
- The SOHO Executive must be kept clean at all times
- Check the batteries if the transmit or receive volume
levels fluctuate.
1 Year Warranty
- A replacement or repair can be arranged with your
supplier if fault occurs during first year of operation.
- A replacement is only available if fault is due to
manufactured components or workmanship.
- Warranty does not cover normal wear and tear,
damage, misuse, liquid spills, lightning strikes, or
other electrical damage.
