Fanvil D800 User manual

ProolinVoIPUserManual
MultimediaVideo Phone
Model: D800
http://www.proolin.com
[e-mail]

Contents
INTRODUCTION...........................................................................5
MULTIMEDIA VIDEO PHONE OVERVIEW....................................................................5
WITH ATTACHMENT.................................................................................................5
PHONECOMPONENTDESCRIPTIONS...........................................................................6
INTERFACEINTRODUCTION.......................................................................................9
TOUCH SCREEN DESCRIPTION ................................................................................11
AUTOPROVISION ...................................................................................................12
BASICFUNCTION.......................................................................13
SCREEN KEYBOARD...............................................................................................13
STATUS BAR ..........................................................................................................13
NOTIFICATION PANEL.............................................................................................14
MAIN SCREEN .......................................................................................................16
THE APPLICATION OF MULTIMEDIA VIDEO PHONE FUNCTION .................................17
DESKTOP WIDGETS................................................................................................20
PHONESET................................................................................22
SYSTEM.................................................................................................................22
NETWORK .............................................................................................................24
Network................................................................................................................................24
PPPoEdial..............................................................................................................................25
QoS........................................................................................................................................26
Port........................................................................................................................................27
Stun.......................................................................................................................................27
ACCOUNT..............................................................................................................28
CALL.....................................................................................................................32
Phone....................................................................................................................................32
Dial........................................................................................................................................33
Service...................................................................................................................................34
DISPLAYSETTINGS .................................................................................................35
Screen...................................................................................................................................36
Hibernate..............................................................................................................................36
Display...................................................................................................................................37

SOUND ..................................................................................................................38
Tone.......................................................................................................................................38
Volume..................................................................................................................................39
LANGUAGE............................................................................................................39
DATETIME.............................................................................................................40
MAINTAIN .............................................................................................................41
Autoprovision.......................................................................................................................41
Resetfactory.........................................................................................................................43
Reboot...................................................................................................................................44
AUDIO...................................................................................................................44
Audio.....................................................................................................................................44
Audioparam..........................................................................................................................45
VIDEO ...................................................................................................................46
Videoparam..........................................................................................................................46
Bandwidth.............................................................................................................................47
CALLFIREWALL .....................................................................................................48
PHONEAPPLICATION.................................................................51
PHONE ..................................................................................................................51
CONTACTS.............................................................................................................54
CALLLOG..............................................................................................................57
MEMORY KEY .......................................................................................................59
NETWORK PHONEBOOK .........................................................................................61
CONTACTS GROUP .................................................................................................62
MWI.....................................................................................................................63
OTHERAPPLICATION.................................................................64
EMAIL ...................................................................................................................64
CALCULATOR ........................................................................................................65
NOTEPAD..............................................................................................................67
BROWSER ..............................................................................................................68
RECORDER ............................................................................................................68
DIGITALCLOCK .....................................................................................................69
ALARM CLOCK......................................................................................................70
GALLERY ..............................................................................................................70
FILE MANAGER .....................................................................................................71
CAMERA................................................................................................................73
WIZARD ................................................................................................................74
MUSIC...................................................................................................................74
ANDROIDSYSTEMSETTING.......................................................77
BASICSETTINGS ....................................................................................................77

WAN......................................................................................................................................77
Sound & display....................................................................................................................78
Configuration management..................................................................................................80
Language&keyboard............................................................................................................81
Date& time...........................................................................................................................82
VOIPSETTINGS .....................................................................................................82
CALLSETTINGS......................................................................................................86
ADVANCEDSETTINGS.............................................................................................89
Location &security...............................................................................................................89
Privacy...................................................................................................................................89
Applications...........................................................................................................................90
Accounts& sync....................................................................................................................90
SD cardand memory.............................................................................................................90
Search....................................................................................................................................91
ABOUTPHONE .......................................................................................................91

Introduction
Multimedia VideoPhone Overview
With Attachment
Item Function
PowerAdapter Power supply for telephone.
NetworkCable Used to access networkfor the phone.
Handle Makephone calls with the phone sbasic functions.
HandleLineConnected with the handle and the phone.

Phone component descriptions
Search key.Tap the key you can enter intothe search
interface.
Enteringthe function menu.You canbrowse throughthe
menu all functions ofthe systemareapplied,andthe
execution of the application.
Return key. Clickon this button will jumpout the current
window.
Homekey. Return to the idle interface.
Volumecontrol key.You can be in the player programor
call ringingusingthis key to adjust the volumesize.
Mute key.Inthe call mode, press this button you can
hear other'svoices,but the otherscannot hear your
voice; press this button again to leavethis mode.In
the call state,you can pressthis button toturn off
the ringtips.

Confirmkey.
Delete key.
Resend key.The phone willautomatically dial the last
outgoingcall.
Navigation key.
Menu key.
Phone book.Tap to enter into the contacts interface.
Call log.Tap to see the call log.
Headset key.
Digital keyboard.
The hands-free key.

Installationbackplane
Ÿ set thephoneinhorizontal
The backplate ishorizontally placed inthetelephone atthe bottom,
and four feet backof the bottomof the phone into the correspondinggroove,
pressed down firmly until thefeet withthe phone closed,Right now itssteady
level placed on the desktop.
Ÿ vertical hang
The backplate is upright placed in the telephone at the bottom,
and four feet backof the bottomof the phone into the correspondinggroove,
pressed down firmly until the feetWith thephone closed,Right now itssteady
vertical placed on the desktop or hangon the wall.

Interface introduction
name meaning
Left one）
SDCard interface Connect SDCard for saving
dates.
Left second）
DC Power Interface Input: 220VAC
Output: 12VDC
Left third）
LANNetworkinterface Specification RJ45,connect
computer.
Right third）
WANInternet interface Specification RJ45,connect
internet.
(Right second）
PSTN Normal phone
interface
Specification RJ11,connect the
general public telephone
network(SE780 has no PSTN
interface function)

Rightfirst）
Handle interface
Specification RJ9,Used to
connect the handlewhen
calling

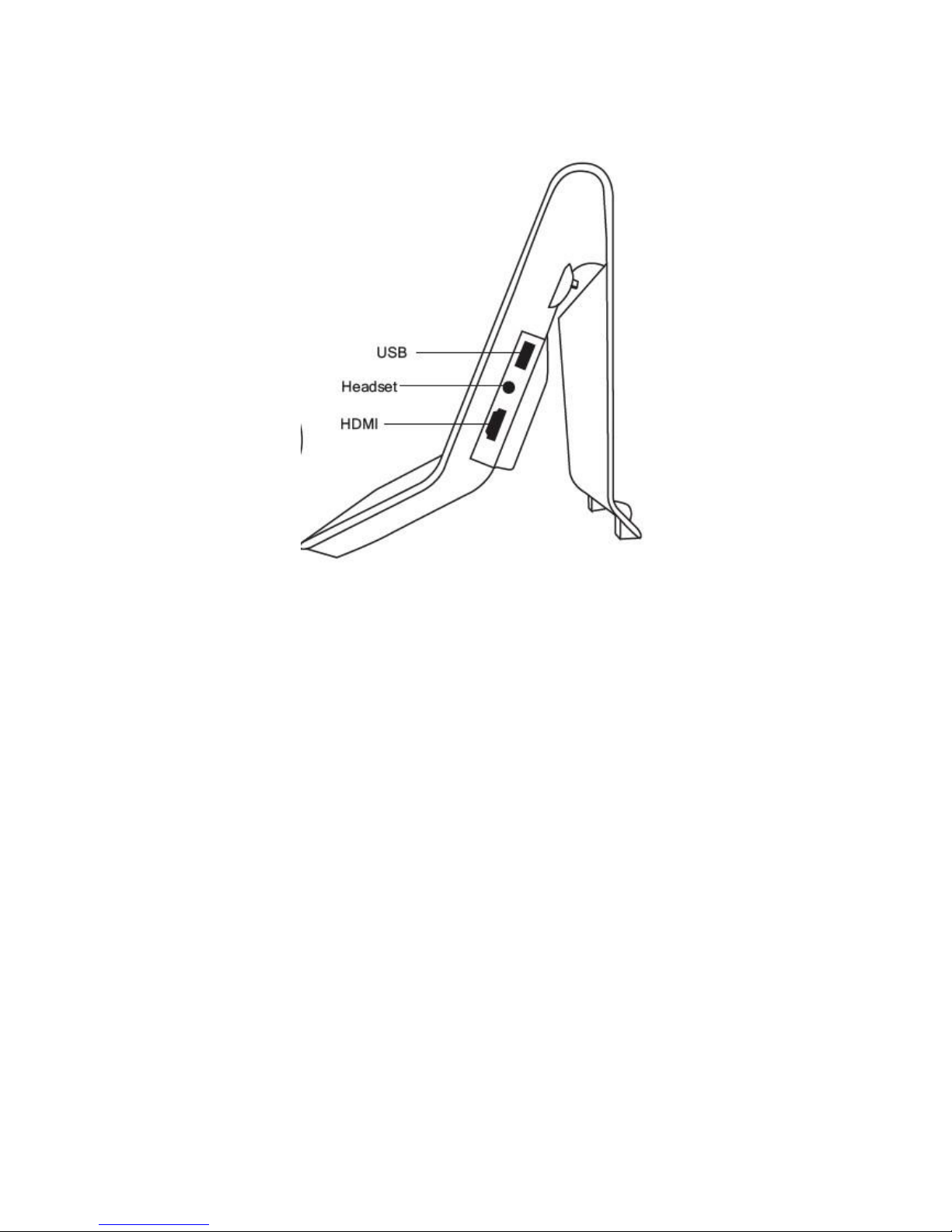

称 含义
Rightfirst）
USBinterface. Connect USBdisk.
Center）
Hand-set interface. Connect hand-set.
Rightfirst）
HDMIinterface.
HDMIinterface for
high-definition audio and video
Ÿ Note:
1the phoneline intothehandle interface,correspondingto theright place in
the interface.
2 will unit backin line withtheabovetwo methods of eitherway,installedin

the bottomof the phone.
3 will power adapter unit of DC correspondingto the mouth,the left one
location of the interface, and the other end into the power socket.
4 use RJ45 stringwill end intothe unitLANmouth (correspondingto the left
three interface),andthe otherend intothe and external networkconnected
networkequipment,if the networkconnection standby desktop still show
for ,please checkthe networkconfiguration is correct,please checkthe
equipment such as Internet is normal or not.If unit connection string,standby
desktop to connect to thenetworkstate display that networkisconnected to
normal,at this timethe phone can be related to the Internet,such as Internet
phone related operations.
5 if this timewith the other endof thetelephone to takeroot cable bridge
interface,and theother endat thecomputer,thecomputer can throughthe
telephone at bridgefunction access network,please checkthe network
configuration is correct,pleasecheckthe equipment such as Internet is normal
or not.Ifunit connection shows for ,standby desktop to connect to the
networkstate display that networkis connected to normal,at this timethe
phone can be related to the Internet, such as Internet phone related operations.

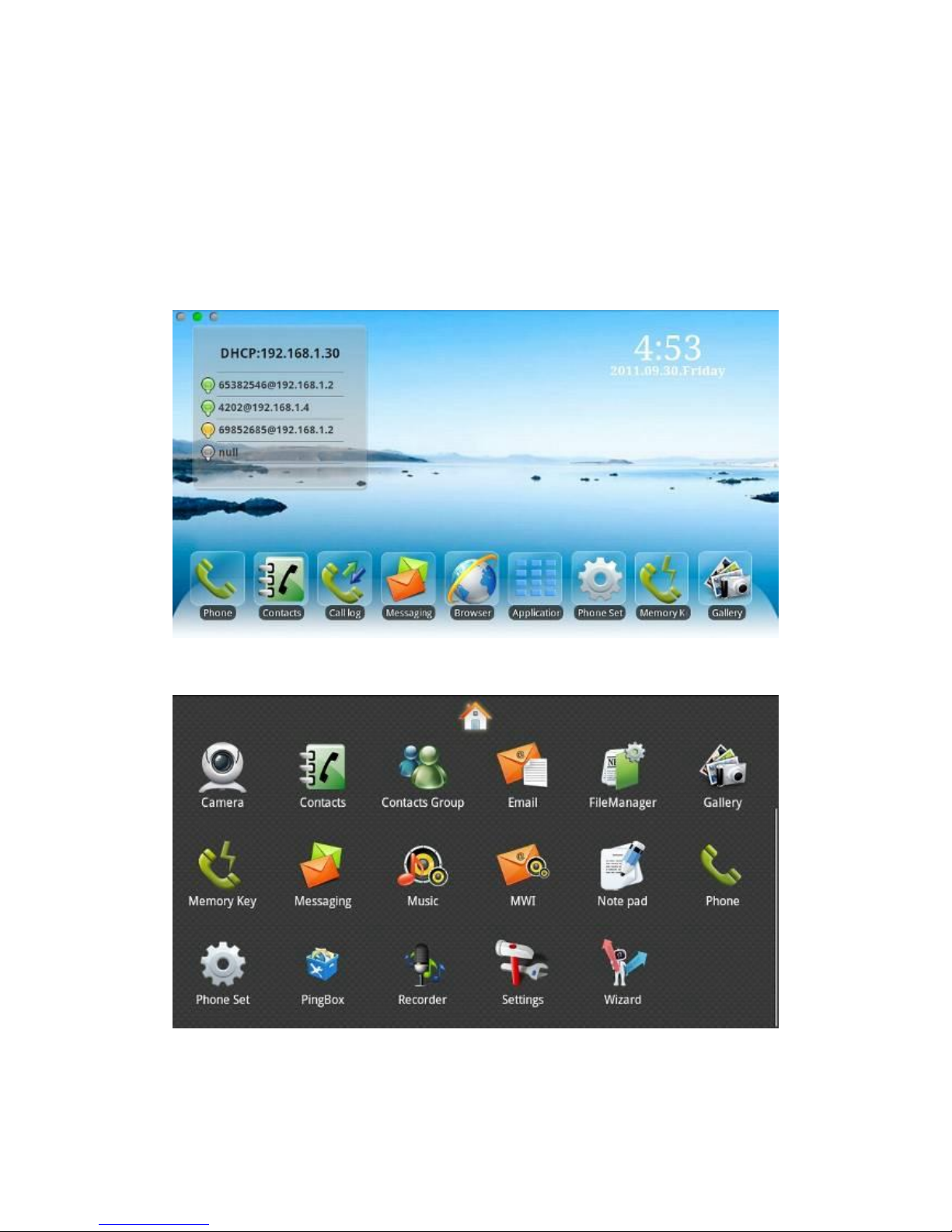

Touch Screen Description
The controls ofmultimedia touch screen willchanged dynamically,it depends
on your executingtask.
OpenApplications: Clickicon “Application”.

Scroll: Dragup or down toscroll screen.Insomescreens (such as webpage),
you can scroll fromone side to the other side.
Dragyour finger to scroll will not choose or activate anythingon the screen.
Rapid slidingfinger to scroll the screen:
You can wait for rollingstop,or you also cantap or touch any position on the
screen to stop it.Tapor touch to stop scrollingdoes not choose or activate
anythingon the screen.
Autoprovision
Please contact service provider for the new version upgrade.
Auto provision: Phone to register and configure automatic
updates server address,the phone will at intervals of to the server to checkfor
updates and upgrades.See the specific automatically upgrade instructions.
Switch to Auto provision
USBautoprovision:
Ithas two update methods:
1. Create adirectory named implinux in the USBdisk, and copy theupdatefile
to this directory, and then insert the USBinto the phone.
Phone reboot will automaticallycompare the update version number in the U
disc and telephoneown version number,ifnot the
sameversion and higher than the existingversion,the phonewill
automatically upgrade. (Upgrade all system).
2. Create adirectory named named impinstallin the USBdisk, and copy the
update file to this directory, and then insert the USBinto the phone.
Phone reboot will automaticallycompare the update version number in the U

disc and telephoneown version number,ifnot the
sameversion and higher than the existingversion,the phonewill
automatically upgrade. (Upgrade where needs to be
BasicFunction
Screen Keyboard
Ifthe Android in someplaces needs to input,clickon the input box will
automatically pop-up screen keyboard Installed input method with the
on-screen keyboard, different input method is not the same）, such as
Finished enteringtext,you can pressthe return key to close the
screen keyboard.
InputText
1Tap the text field.
2 Tap the screen keys on the keyboard.
Typein capitalletters Shift key,tap shift key can switchthe uppercase
lowercase.
Deletecharacter Delete character,tab key to deleteacharacter,if
you want to delete many characters,tap theicon
for alongtime.
Typeindigital,
punctuation andsymbols
Tap key,as this timewill switch to digital,
punctuation and symbols input interface.
Space Space symbol.
Enter Enter symbol, tap this key can switch to next line.
StatusBar
The status bar on the right standby desktop is given information about
Multimedia Video Phone:
Status bar Meaning
Networkstatus(normal) Displays the networkconnection is
normal.
Tap the icon
directly into

the networksettings.
Networkstatus(failure) Shows no networkconnection. Need to
checkthe networksettings
and connections are correct.
USB
Display phone successful recognition of
USBequipment.You can tap the icon
directly to switchinto theUSB
application wizard.
Missedcalls
Show thatthere are missed calls. You
can clickon the icon directly to switch
into the call record.
Headsetmode
Show that into the headset mode. You can
tap the icon directly to switchinto the
dialingmode.
Silentmode
Show that station is silent mode; in the
standby interface directly clickthe mute
button to cancel the mute.
Hands-free mode
Show that phone is in hands-free status.
OpentheDND
Show that the phone on Do Not Disturb
feature,whenthere isanincomingcall
screen displayed without ringing,and
there is also acall on DND state,it will
haveamissed call icon appeared in the
status bar.
Call forwardShow that opened the call forward
function.
Autoanswer Show that opened the auto answer
function
Blacklist Ifacontact is added to theblacklist, then
open the blacklist function,this phone
call will do not comein contact.
Alarm clock Ifit sets alarmclock,on the status bar
will display the alarmclockicon.
New record Show that phone has new unread
recordings.
NotificationPanel
Notification panel which shows the defaultcontent was that the network
connection status,clickthe drop-down panelcan view networkstatus; when
there is anew call,notification panel will display to view the current call,you
can tapto enterthecallinterface; ifthereisamissed call,itwill displaymissed

call icon,you can clickthe icon to view the details; or you can choose to clear
all thingsat the notification panel; when there has unread recordings,the
unread recordingswill display at the panel, Added afew unread recordings?）,
tap to enter the detail interface.

MainScreen
Multimedia Video Phones will godirectly to the main screen after startup.
Itwill display the application sshortcut and it has three screens, you can tap
to slide the screen fromleft to right to switch the different screens.
Default Screen:
Clickthe application icon will jumpto the followingdiagraminterface,Touch
the boards will review the applications:
You can enter to different applications.
Ifthere are extra or unwanted application shortcuts,you can longpress the
shortcut,and then thetrash icon appears at thebottomof the screen,so wecan
removethe application icon in the dustbin. Please see the followingfigure:

The ApplicationofMultimedia VideoPhone Function
Phone
You can dial aphone call,hotline on call,also can throughthe
digital keyboard for manual dialing
Email
With e-mail functions, set the account contact will automatically
synchronize to amailbox account, you can view the message
directly on the phone.
Phoneset
Itcontains the phone settings,networksettings,screen settings
and so on,youcan bein thecorrespondingmenu corresponding
set.
Calculator
With simple calculation operations such asadd,subtract,
multiply, divide and advanced operationsfunction of
the calculator.
Notepad
Recorded anumber of important events,or duringacall you can
press the “Note pad”to recordinformationsuch asphone
number and so on.
MemoryKey
You can gothroughthe rapid predefined contact button for
aspeed dial.

Contacts
The phone bookcanthroughsystemto synchronize with thePC
such as Outlookaddress books and so on.Support search,add,
remove, and edit functions.
Contacts
Group
You can managecontacts,and contacts can begrouped, and you
also can easier to find acontact.
Browser
Through the connection ofcomputer network,youcanbrowse
any website.
Recorder
Provide callrecording, message, and the machine recording. You
can easier to makevoice records and notes.
AlarmClock
Customized to display the timearound the world.
Settings
Itcontains the phone settings,networksettings,screen settings
and so on,youcan bein thecorrespondingmenu corresponding
set.(Android systemsettings)
Gallery
View photos stored on thephone,or throughthe USBstorage
device storingphotos or images,you can enterthe photo gallery
for dynamic playing.
FileManager
You can easily managethe files.
Camera
Through the camera you can takeHigh-definition pictures and
makeother operations.
Wizard
You can set up anetworkconnectionthroughthe wizard mode,
changefaster and more convenient.
Message
Likethe mobile phone,with messages to write,readand send
function.
Music
Songmusic player.You canbe usingother applications while
usingthe music player.

MWI
When the phone is enabled the auto answer function to switch to
the voice mail, calls will automatically turn to voice mail.
Screen
calibration
Calibrate the screen to guarantee the correct of the screen.
Calendar
Enter into the calendar you can view the “year,month,day and
the day of the week”.
Call log
Enter the calllogyou can view all call records.
Including “IncomingCalls”, “OutgoingCalls”and “Missed
Calls”records.
PingBox
PingBox is asystemof built-in networktestingtools,through
which it can checkthe networktraffic.

DesktopWidgets
Operation steps:
Longpress the desktop,pop-up "Add to HomeScreen" list,tap the
“Widgets”,tap the widgets you want to display on the desktop,the desktop
will show you the required widgets.This easy to operate and quick,which
saves the timeand lookbeautiful.
Analog clock:
Analogclockwith adial in the formdisplayed on the desktop,
can be placed on the desktop of any spaceposition,it is
convenient to checkthe time.
Desktop display:
Digital clock:
Digital clockdisplayed with white fonts, “time,year,month,
day,day of the week”;On thedesktop,you can moveto any
empty place.
Desktop display:
Search:
The default searchbar istheGoogle sQuickSearch Box,You
can enter any content you want to search to find.
Desktop display:
Call set:
You can throughCall set widget to setthe phone,clickthe
DND can directly enablethe DND mode; Clickthe Call
forward will jumpto the incomingcall forwardinterface; click
the Auto answer will open the auto answer function; clickon
the Call firewall will jumpinto the call firewall interface.
Desktop display:
Phonestatus:
Phone status widget displays the phone'sregistration
information,
it contains IPinformation,which is DHCPmode or Manual
mode;
Telephone registration form:if not registered lines showed that
