Armorgard scrubkart SBK1T User manual

User manual for your
Armorgard ScrubKart
scrubkart
Model Numbers SBK1T, SBK2T, SBK3T,
SBK1M, SBK2M, SBK3M

2
Welcome...
to your Armorgard ScrubKart, your mobile hand
washing solution, purpose built for construction sites.
Please read this user manual carefully
prior to using the ScrubKart.
If you have any questions on setting up your ScrubKart,
please call 023 9238 0280
Contents
Welcome... ...........................................................................................2
Safety information.................................................................................3
Technical Specification..........................................................................3
Getting to know your Armorgard ScrubKart..........................................4
Filling up the ScrubKart ........................................................................6
Connections to the ScrubKart ..............................................................7
Using the ScrubKart .............................................................................8
Electrical Safety ....................................................................................9
WEEE (Waste Electrical and Electronic Equipment) ...............................9
Regular maintenance............................................................................9
General information ............................................................................10
Water heater.......................................................................................10

3
Technical Specification
Product Code SBK1T SBK2T SBK3T SBK1M SBK2M SBK3M
Power Inlet 110V 240V N/A 110V 240V N/A
Net Weight 100kg 100kg 95kg 100kg 100kg 95kg
Water Source Tank Tank Tank External External External
•The ScrubKart is not WRAS approved and therefore should not be used for drinking water.
•All relevant PPE must be worn when using or setting up the ScrubKart.
•Take care with moving parts as they may present a finger trap hazard.
•A risk assessment must be carried out by a competent person before use.
•Some ScrubKart models include a boiler to produce hot water. The manual for the boiler must be read and
understood before using the ScrubKart. The manufacturers warnings and instructions are relevant and
should be understood before use.
•The hot water temperature is regulated by a thermostat which also acts as a resettable safety device to
prevent dangerous overheating.
•The boiler may need regular servicing on an annual or a usage-dependant basis. Owner must refer to the
separate manufacturers user manual.
•The ScrubKart’s purpose is to maintain hygiene and sanitary standards on a site. To ensure it’s continual
effectiveness, the ScrubKart and it’s accessories must be washed and disinfected regularly.
•Relevant fire extinguishers must be nearby whilst the ScrubKart is in use.
•Regularly check visible cables, sockets and RCD for damage. If damaged, remove from service. Any
maintenance required should only be carried out by a competent person.
•The ScrubKart must be on level ground when in use or connected to power.
•The ScrubKart is a heavy product so care should be taken when manoeuvring or transporting it. Ensure the
containers inside are empty before moving it.
•The temperature on the water heater should be set and adjusted by a competent person.
•Care should be taken whilst emptying the waste water tank and it should be disposed of responsibly.
•Never mix the use of the water tanks. Waste water tank should only be used for waste water and clean
water for fresh water.
•Water should be checked regularly for Legionella and replaced if any trace found.
•Water heated to over 50° C can cause immediate serious burns if delivered directly to the taps, ensure the
water temperature is set to the correct temperature before use.
•Do not leave flammable materials in contact with or in the vicinity of the appliance.
•DO NOT use the appliance for any other than its specified use. The manufacturer is not liable for damage or
injury resulting from improper or incorrect use or failure to observe the instructions given in this manual.
•To reduce the risk from Legionella, long periods of water stagnations should be avoided; it means the system
should be used or flushed at least weekly.
•Before the ScrubKart is used for the first time, the water heater must be filled by pumping 15L of water
through the system.
•When draining the water heater, refer to the manufacturers guide for the correct procedure.
•In cold conditions or climates, ensure that the containers are left empty overnight.
Safety information

4
Getting to know your Armorgard ScrubKart
Hand soap
dispenser
Data plate
with serial
number
Stainless steel
tap and sink
Hands free
swing bin
Foot pedal to
operate water
Durable 350mm
solid wheels
Paper towel
dispenser
Safety signage

5
Clean water
tank
Waste water
tank
Lockable
rear door
Water
heater *
* Available on some models.
Durable 350mm
solid wheels
Water tank
transport
support bars
Paper towel
dispenser

6
Remove the container(s) and
attend to them as required. Take
special care to ensure that they
are not ever cross-contaminated.
2.
3. 4.
Replace the containers, ensuring
they are correctly connected,
and then insert the bars into their
original slots.
15L of water must be
pumped through before the
15L
unit is powered on, to ensure the
water heater is filled up. Water
will not flow out of the tap until the
15L water heater has been filled.
1.
The connection to the clean water
container must be screwed on
while in use. Unscrew the plastic
water cap carefully when required
to replace the water.
Filling up the ScrubKart

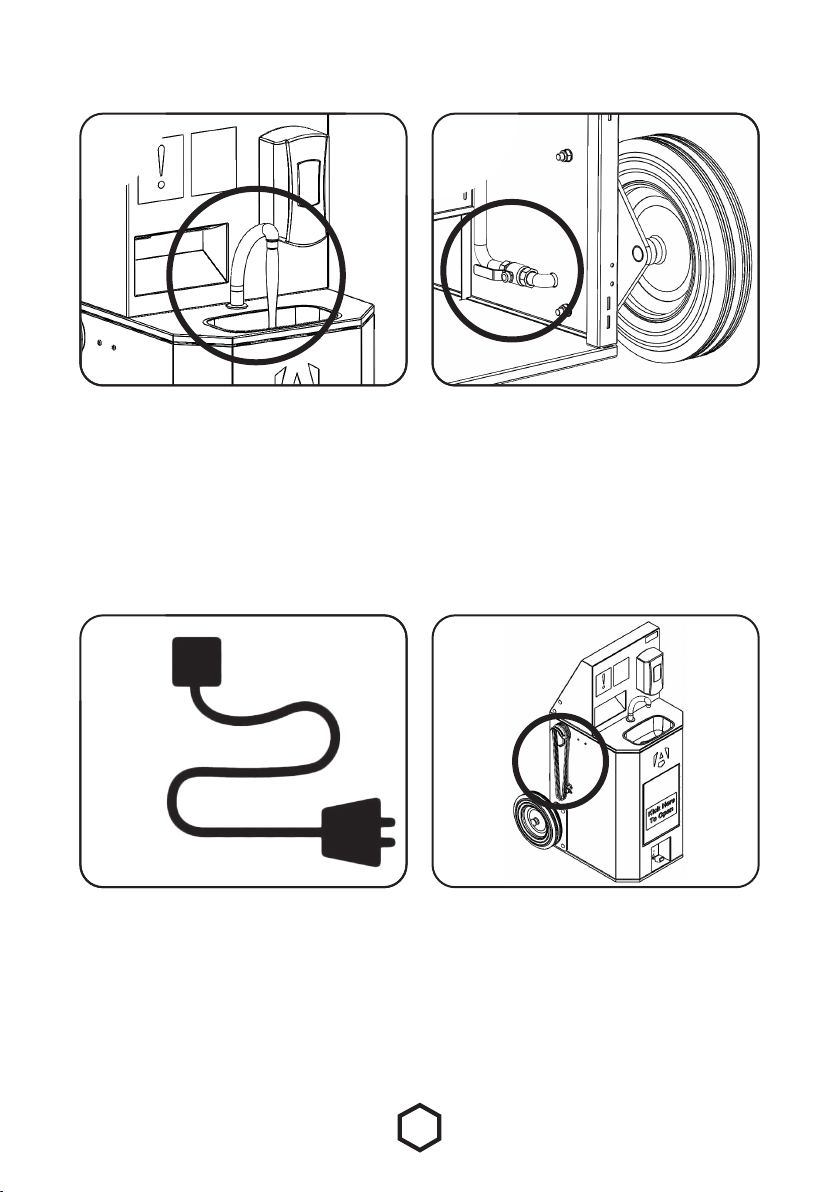

7
The ScrubKart should be
disconnected from any external
supply and any trailing leads
should be secured before moving
it. Only move it when the tanks
inside are empty.
1.
3.
2.
4.
Ensure that the ScrubKart is
plugged in safely by checking that
the plug and socket are dry, and
free from debris before plugging in
and powering on.
Connections to the ScrubKart
Ensure that all pipes and water
connection are sealed and
leak-proof by testing the water
flow, ensuring there’s no puddles
forming anywhere, before plugging
in the unit with electricity.
For the mains fed version, a
competent person must check
the position of the lever on the
isolation valve and ensure that
the water pressure is suitable for
location of ScrubKart.

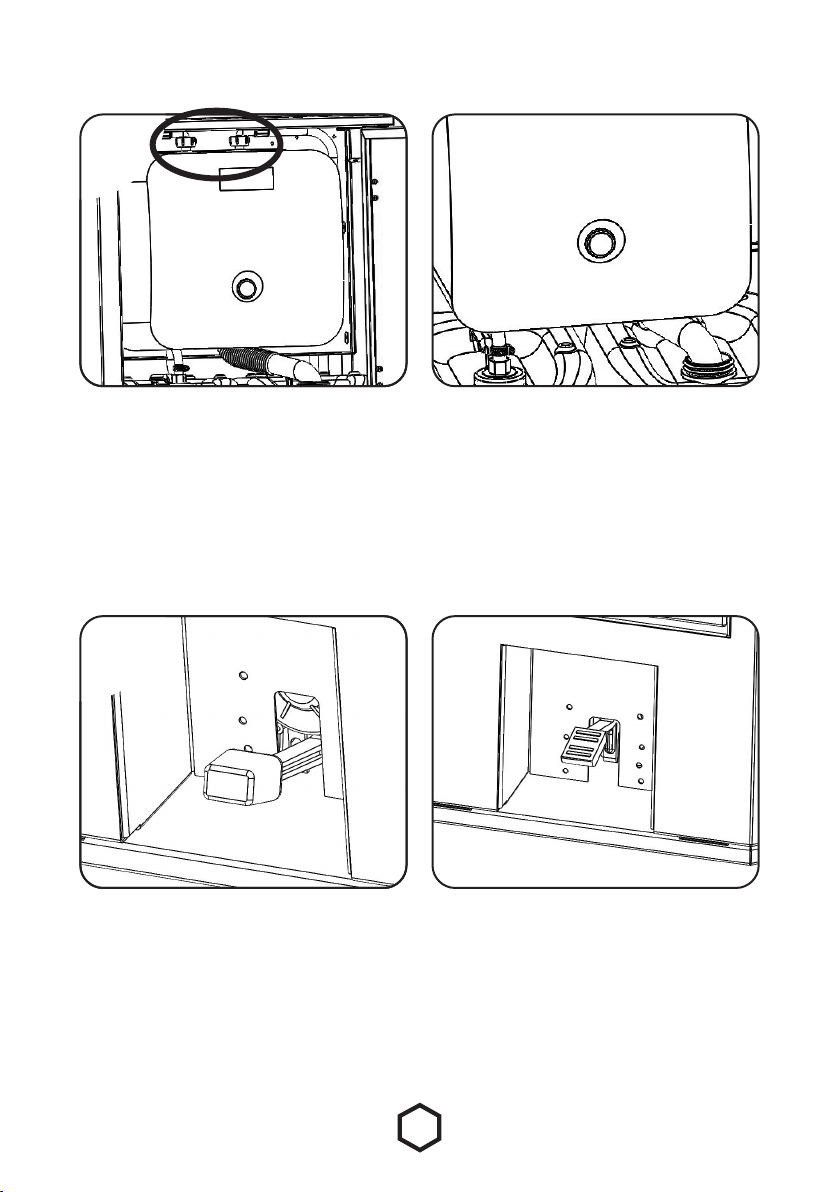

8
For use with the manual foot
pump, use a frequent pressing up
and down motion on the lever to
create a suitable flow of water.
1.
3.
2.
4.
The unit will need to be left for
around 30 mins on 110v and
10 mins on 240v to heat up to
temperature. The temperature of
the water can be adjusted on the
boiler by a competent person.
For the mains fed pump,
compress the lever with your foot
and release when flow of water is
no longer required.
When using the ScrubKart, ensure
all connections are secure and
turned on. The boiler must be
filled before connecting the unit to
electricity.
Using the ScrubKart

9
Electrical Safety
WEEE (Waste Electrical and Electronic Equipment)
Regular maintenance
•WARNING: Electricity can kill. Ensure you are working in a safe environment at all times.
•Ensure that the PAT test record for the unit is not expired.
•Before use, ensure that all sockets are undamaged and free from water, dirt, oil and any other
foreign objects.
•Take necessary precautions to prevent cables from becoming a hazard.
•Armorgard can not be held responsible for misuse of cables or equipment.
•The EC Directive on WEEE aims to minimise the impact of electrical and electronic goods on
the environment, by increasing re-use and recycling and reducing the amount of WEEE going
into landfill.
•In essence some of the chemicals and metals in electrical items can be harmful to the soil.
and human health when disposed of in landfill sites. By working together we can all reduce the
amount of landfill and resulting contamination.
•The customer is responsible for disposing of the WEEE at the end of its useful life unless
otherwise agreed.
•Please dispose of electrical and electronic equipment through a Designated Collection Facility
(DCF) where special facilities exist for correct disposal.
•Routine checks and maintenance should be applied regularly to the ScrubKart as follows:
•The boiler should be turned off, drained and cleaned. Refer to the manufacturers guide for the
correct procedure to follow.
•Both the fresh water container and waste container should be thoroughly cleaned and
rinsed. They should be both empty and dry before being replaced and reconnected inside the
ScrubKart.
•Disinfect and wipe down the ScrubKart inside and out, including related components and
accessories.
•Remove any leftover soap from the soap dispenser and clean.
•Disconnect any external water or electrical supply, and secure trailing leads on the unit.

10
Spare parts
Replacement parts are available for the following:
The ScrubKart models SBK1T, SBK2T, SBK1M and SBK2M are
supplied with an integral water heater. For more details on this,
please refer to the manufacturers user guide and data sheets.
General information
Water heater
- Clean water tank
- Foot pump
- Wheels
- Waste water tank
- Soap dispenser
- Water heater (if applicable)
