AROEVE MK04 User manual
PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
Air Purifier
User Manual
US
Model: MK04
1
SAFETY INSTRUCTIONS
Important：
Please read and comply with all of the instructions and warnings provided in this manual
before using the product. Failure to comply with the instructions and warnings provided
herein may result in inaccurate results or damage to the product itself.
1. Ensure the plug fits properly into a polarized power outlet.
2. This appliance should only be used in room with temperatures between 40°F and 110°F.
3. To avoid fire or shock hazard, connect the purifier into correct electrical outlet.
4. NEVER place on a soft surface such as a bed or sofa as this could cause the unit to tip over
and the air inlet or outlet grills to be blocked.
5. Do not place anything on top of unit.
6. Do not move or tilt the unit while it is in operation.
7. Do not insert fingers or objects into the air inlet and air outlet.
8. Do not use outdoors.This unit is only suitable for indoor use, please avoid strong sunlight
and rain.
11. Do not handle the unit with wet hands.Thoroughly dry your hands before handling any
part of the air purifier.
12. Do not place the unit directly below an air conditioner to prevent any moisture from
getting in to the purifier.
13. Do not allow children,pet to play on or near the unit. Close supervision is necessary when
any appliance is used by or near children, or disabled persons.
14. Keep unit away from heated surfaces and naked flames such as stove tops,ovens,
raditors or computers.
16. Always unplug the air purifier before moving or cleaning the unit, opening the rear
cover, changing the filter and whenever the unit is not in use.
18. This unit does not remove carbon monoxide or radon.It can not be used as a safety
device to prevent or clean up accidents with combustion processes and hazardous
chemicals.
19. NEVER use detergents,gasoline,glass purifier,furniture polish,paint thinner,or other
household solvents to clean any part of the purifier.
20. Non-professional personnel or unauthorized repair personnel shall not repair or
transform the machine by themselves.
21. Do not operate the appliance with a damaged cord or plug. If the motor fan fails to
operate or the unit has been dropped or damaged in any manner, contact the customer
service.
15. Always turn the purifier off before unplugging it.
17. To disconnect the unit, be sure to pull the plug instead of the cord.
23. Always allow 15 inches of clearance on all sides of the purifier.
9. Do not use near water to avoid electrical hazards.
10. Do not use the unit in wet or humid environments.
2
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiv-
er is connected.
—Consult the dealer or an experienced radio/TV technician for help.
SAFETY INSTRUCTIONS
To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install
the proper outlet. Do not alter the plug in any way .
Warning: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk
of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature。
WARNING：To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any
Solid-State Speed Control Device.
SPECIFICATION
Name：Air Purifier
Rated Voltage : 120V~
Rated Current : 0.48A
Rated Frequency : 60Hz
Rated Power : 34W
3
GETTING TO KNOW YOUR AIR PURIFIER
Air Inlet
Control Panel
Air Quality Indicator Ring
HEPA Filter
Filter Cover
Power Cord
Air Outlet
Package Contents
1 x Air Purifier
1 x True HEPA 3-Stage Original Filter (Pre-Installed)
1 x User Manual
GETTING STARTED
Your air purifier comes with an original Filter included，do remember to remove the
packaging for the filter before use.

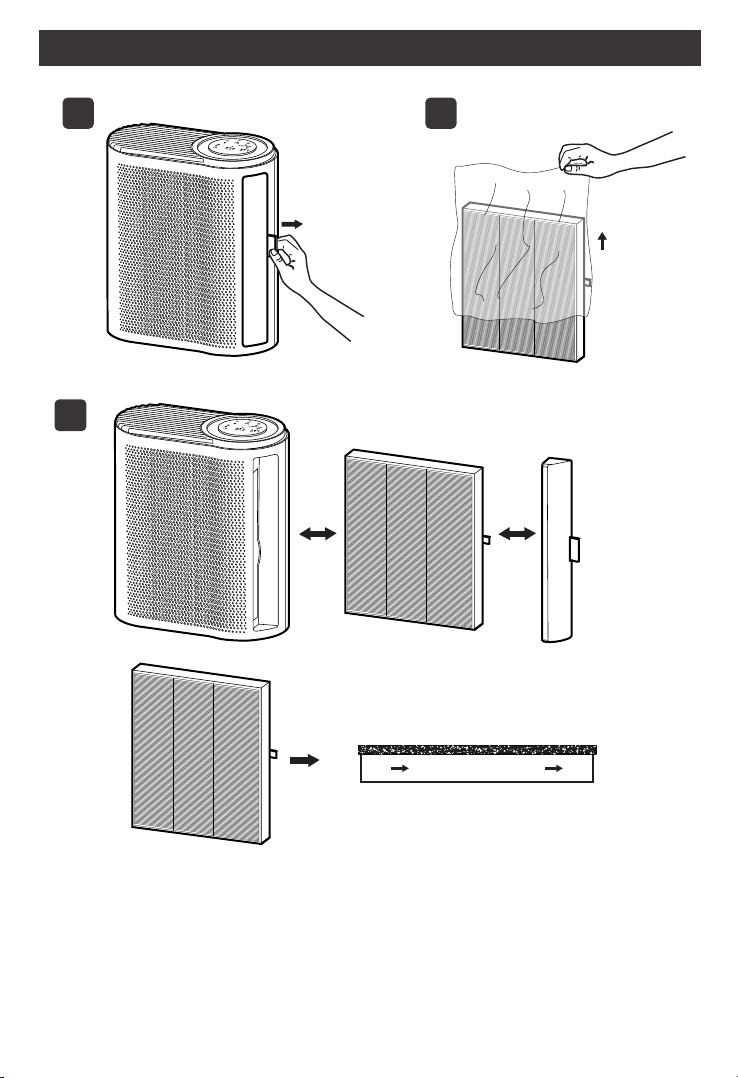

1. Pull out the filter cover. (See pic 1)
2.Remove the filter from its plastic package.(See pic 2)
3.Put the filter back into the air purifier and replace the filter cover.(See pic 3)
Note: Make sure you insert the filters in the correct position.
4
GETTING STARTED
1
3
2
NOTE:
insert the filter in the direction of arrow
(HEPA net inside, activated carbon net outside)
5
Timer Button
Sleep Mode
Button
Display off /Filter Reset Button Light Button
Mode Button
ON/OFF Button
CONTROL AND DISPLAY
1. Turn ON/OFF
●Tap ” ” to turn on the purifier. The fan will start on Level 1 with the indicator
light on.
●The Dust sensor starts to work.Upon start up,the unit may take a few minutes to
calibrate and measure the air quality. During this time,the Air Quality Indicator will
pulse between blue, yellow, and red until the air quality is determined. When the
appropriate reading is determined, the indicator will then remain a solid color.
●Tap “ ” again to turn off the purifier.
Your air purifier is equipped with Dust Sensors that detect the level of PMs in the
room and provide a visual display to indicate air quality. The Air Quality Indicator
Ring is located around the Control Panel.The Sensor is constantly monitoring the air
and the Air Quality Indicator will illuminate either blue, yellow, or red depending on
the level of PMs detected in the room:
BLUE - Good air quality
Yellow - Moderate air quality
Red - Poor air quality
NOTE:
2. Modes Switch
Tap “ ” to change fan speed between 1, 2 and Auto.
Auto Mode: When the Auto mode is activated, the air purifier will adjust the fan speed
automatically based on air quality. For example, if the air quality is bad, the fan will
automatically be set to high speed.
6
CLEANING AND MAINTENANCE
Cleaning the Air Purifier
We recommend that you clean the air purifier at least once every 3 months and before
extended storage.
l Unplug before cleaning.
l Use only a dry cloth to wipe the external surfaces of the air purifier.DO NOT USE WATER,
WAX POLISH, OR ANY CHEMICAL SOLUTION.
l Vacuum the inside of the air purifier.
Cleaning the Filter
l The outer pre-filter should be cleaned every 2–4 weeks to increase the eciency and
extend the life of your filter.
l Clean the pre-filter using a soft brush or vacuum hose to remove hair, dust, and large
particles.
l Do not clean the filter with water or other liquids.
Maintenance
If your Air Purifier will not be used for more than 30 days, we recommend that you:
l Remove the HEPA Filters from the unit.
l Wrap the HEPA Filters in an air tight plastic bag.
l Remove the Pre-Filter and Enhanced Odor and VOC Filters and place them in an air
tight plastic bag.
CONTROL AND DISPLAY
3. Timer Setting
When the machine is working, press “ ” to set the timer from 8H-12H-24H-OFF.
When the time is up, the machine will turn off automatically. The timer indicator lights
will show the corresponding time.
4. Sleep Mode
In sleep mode, the fan runs in low speed and low noise; all indicator lights are off except
for sleep mode button and on/off button.
Tap “ ” to turn Sleep Mode on/off.
This turns off the display lights on the air purifier, including button lights and air quality
indicator lights (except the Display off Indicator).
1. Tap “ ” to turn off the display.
2. Tap “ ” or any button to turn the display back on.
5. Display off
6. Memory Function
When the air purifier is plugged in, it will remember its previous fan speed and UV setting
Note: The air purifier will not remember timers or Sleep Mode.
7
TROUBLESHOOTING
Problem Possible Solution
Air purifier makes an
unusual noise and
the air outlet is less.
Strange smell coming
from the purifier.
The indicator light is still
red after replacing the
filter
The reason for the red light:
1. This product uses infrared sensors, and the sensor lens
can not accurately measure the air quality due to the
accumulation of dust.
2. The air quality is at a relatively poor level, causing infrared
sensors to detect poor environmental quality and keep
turning red.
Solution: After replacing the filter, please put the machine
in a clean space to run for 6~24 hours, the sensor will
automatically return to the blue light.
Make sure the filter is properly in place with plastic
packaging removed.
Make sure the air purifier is operating on a hard, flat, even
surface.
Replace the filter.
The air purifier may be damaged, or a foreign object may
be inside. Stop using the air purifier and contact Customer
Support . Do not try to repair the air purifier
Replace the filter element
Make sure not to use your purifier in an area with high
humidity or while diffusing essential oils.
Contact Customer Support.
Air purifier will not turn on
or respond to button
controls.
Plug in the air purifier.
Plug the air purifier into a different outlet.
The air purifier is malfunctioning. Contact Customer Support
Check to see if the power cord is damaged. If it is, stop
using the air purifier and contact Customer Support.
Airflow is significantly
reduced.
Make sure the filter is removed from its packaging and
properly in place.
The pre-filter may be clogged by large particles, such as hair
or lint, blocking airflow. Clean the pre-filter.
Replace the filter.
Leave 15 in / 38 cm of clearance on all sides of the air
purifier.
8
Contact Customer Support Team:
Email: [email protected]
WARRANTY
We appreciate your feedback and will do our best guarantee your satisfaction.
Within 2 year after your purchase,shall the product has defects, we will provide a refund or
resend you a new one. Please email us with your concern and order number. Your inquiries
will be taken care of as soon as possible.
This warranty only cover orders from authorized brand online stores and our ocial website.
We are not responsible for any purchases from other distribution channels.
TROUBLESHOOTING
Filter uses less than 2000
hours the environment
light has been on red
prompt to replace the
filter.
Tip 1: The service life of the filter depends on the
environment, if the environment is heavily polluted
or dusty, the filter is easy to accumulate dust and
becomes dirty. (Note: the environment with greater
ventilation is more likely to accumulate dust)
Tip 2: Humid weather air will be a little more small
molecules, more easily combined with dust to form
pm 2.5 particles, the sensor senses pm2.5 particles
after the red light will be on.
Measures 1: It may be necessary to replace the filter.
Check whether the filter has been very dirty
and needs to be replaced.
Measures 2: The room humidity of 75% or more or opening
the window on a rainy day, will continue for
1~2 days with red light until the ambient
humidity drops to below 75%.
Problem Possible Solution
If your problem is not listed , please contact Customer Support.
WARRANTY
Other manuals for MK04
1
Table of contents
Other AROEVE Air Cleaner manuals
