atmosphere 10-1076 User manual

Air Purifier
Owner’s
Manual
This product may be covered by one
or more of the following U.S. patents:
D503,972; D538,418; 7,316,732;
7,537,649; 7,629,548

1
Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation and Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Choosing the Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Preparing the Filters for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Removing the Filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installing the Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Getting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TIMER Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SPEED Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TURBO Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
AUTO Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
POWER Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Particle Sensor Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Filter Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Clean Air Delivery Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Filter Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
As Needed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cleaning the Pre-filter and Particle Sensor Filter . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Replacing the Odour Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Replacing the HEPA Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Replacing the Remote Control Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Satisfaction Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

2
Important Safety Instructions
Read all instructions before using the ATMOSPHERE™ Air Purifier.
WARNING: When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or injury to
persons, including the following:
1. Always disconnect from power source before cleaning or performing
maintenance, such as filter replacement.
2. You must remove the front cover and the filters, remove the filters from the
bags and reinstall the filters before operating the air purifier.
3. Do not open the housing. Internal parts are not to be serviced by the
user. Repairs should be done by authorised service personnel only.
4. Do not allow liquids or any objects to be put into openings. Keep
openings free of excessive dust, lint, hair or anything that may reduce
the air flow.
5. Do not expose to rain or use in a wet area; for example, near a bathtub
or a kitchen sink.
6. Do not unplug by pulling on the cord. To unplug, grasp the plug and
pull gently.
7. Do not operate with a damaged cord or plug. If the cord or plug is
damaged, it must be replaced by the manufacturer or its service agent
or a similarly qualified person to avoid a hazard.
8. Do not cut, damage, or modify the cord. Do not place the cord
underneath or between heavy objects and always keep the cord away
from heated surfaces.
9. If the air purifier is not working properly or has been dropped or damaged,
contact Customer Support.
10. Do not clean the air purifier using solvents or chemicals. Do not spray
aerosols on the ATMOSPHERE Air Purifier.
11. Young children should be supervised to ensure that they do not play
with the appliance.
12. The appliance is not intended for use by young children or infirm persons
without supervision.
Notes
1. The ATMOSPHERE Air Purifier is not intended for use where oil particles
are in the air, such as factories, or where continuous tobacco smoking
is present, such as bars. Use in these environments could result in poor
performance and shorten the filter life.
2. The air purifier is shipped with the HEPA and odour filters in protective
bags to prolong the filters’ effectiveness. You must remove the front cover,
remove the filters from the bags and reinstall them before operating the
air purifier.
3. CARBON DUST MAY BE GENERATED DUE TO SHIPPING AND HANDLING.
WHEN DISPOSING OF THE ODOUR FILTER PACKAGING, BE CAREFUL NOT TO
LET THE DUST ESCAPE OR ALLOW THE PACKAGING TO BRUSH AGAINST ANY
CLOTHING, FURNITURE, OR CARPET.
4. To avoid blocking air flow, do not place items on the air purifier or too
close to its front cover.
5. Avoid placing the air purifier in front of heating vents.
READ AND SAVE THESE INSTRUCTIONS
Customer Support: In Australia call 1800 45 46 47. In New Zealand
call 0800 611 611.

3
Features
Air Filtration Process (Fig. 1)
Air enters through the front cover (A) on the air purifier. The pre-filter (B)
removes large, lint-like particles. The second filter (C) provides true HEPA
filtration, removing particles as small as 0.009 micron in size. The odour
filter (D) reduces objectionable smells, such as tobacco, pet, and cooking
odours. Filtered air is discharged upward through the grill in the back of the
housing (E).
Performance Features
• Removes particles as small as 0.009 micron in size.
• Effectively reduces unpleasant odours, such as from cigarette smoke,
cooking, and pets.
• U.S. Association of Home Appliance Manufacturers (AHAM) certified to
remove airborne tobacco smoke, dust, and pollen at air flow volumes up to
7.1m3(250 cu ft) per minute.
• Rated for use in a single room up to 36m2 (390 sq ft) in size.
• Tested to reduce airborne bacteria, mold, viruses, fungi, asbestos, dust
mites and their by-products, and radon decay products.
• High energy efficiency with low power consumption. Meets or exceeds
U.S. EPA’s ENERGY STAR®standards for energy efficiency.
Operating Features
• Air purifier has four operating modes – two continuous and two timed – to
let you choose the precise operation you need.
• AUTO mode uses a built-in particle sensor that sets fan speed based on
concentration of smoke, dust, and pollen particles in the room.
• Timer has 12-, 8-, 4-, 2-, and ½-hour settings.
• Fan has five speeds: 1 (low) through 5 (turbo).
• 30-minute turbo burst can be activated by pressing a single button.
• Built-in monitors indicate when each filter needs cleaning or replacing.
Convenient, slim-profile remote control included.
Fig. 1

4
Installation and Set-up
Choosing the Location
Your air purifier can be placed directly against a wall. The housing design
ensures proper clearance between the air purifier and the wall to allow full
circulation of purified air. The air purifier can also be placed in the center of
a room, or in a corner, with no change in effectiveness.
For maximum effectiveness, use the air purifier in a room that’s 36 m2or
less. For larger rooms, multiple air purifiers should be used.
Important: Do not locate the air purifier in front of a heating vent. Also, make sure the location
you select will allow the cord to easily reach a wall outlet. The cord is 3.05
meters long.
Preparing the Filters for Operation
The ATMOSPHERE™ Air Purifier uses three filters–pre-filter, HEPA filter,
and odour filter. The HEPA and odour filters are shipped in plastic bags to
minimize the spread of carbon dust. Prior to using the air purifier, the plas-
tic bags must be removed and the filters properly re-installed.
Removing the Filters

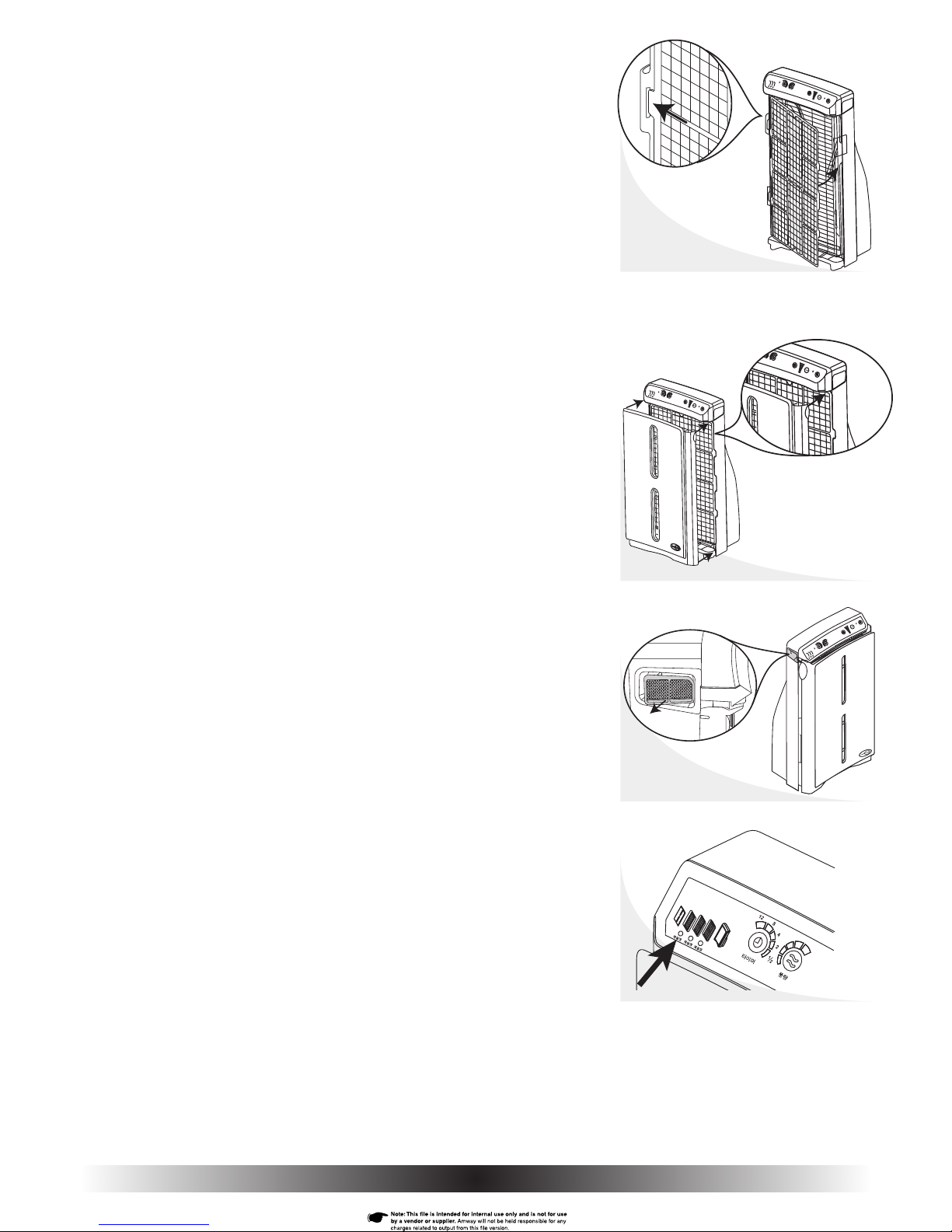

1. To access the filters, remove the front cover from the air purifier using the
finger tabs located on each side of the air purifier–near the top (Fig. 2).
Steady the air purifier by first placing your thumbs on the outside edges
of the front display label. Remove the front cover by gently pulling on the
tabs with your fingers. Then, pull off the bottom of the cover.
2. The pre-filter is attached to the outside of the HEPA Filter. Remove the
combined pre- and HEPA filters by squeezing the two tabs located on either
side of the HEPA filter frame (near the top) until they unlatch (Fig. 3a).
3. Swing the filters out and away from the housing (Fig. 3).
Fig. 3
Fig. 3a
Fig. 2

5
Fig. 4
Fig. 7

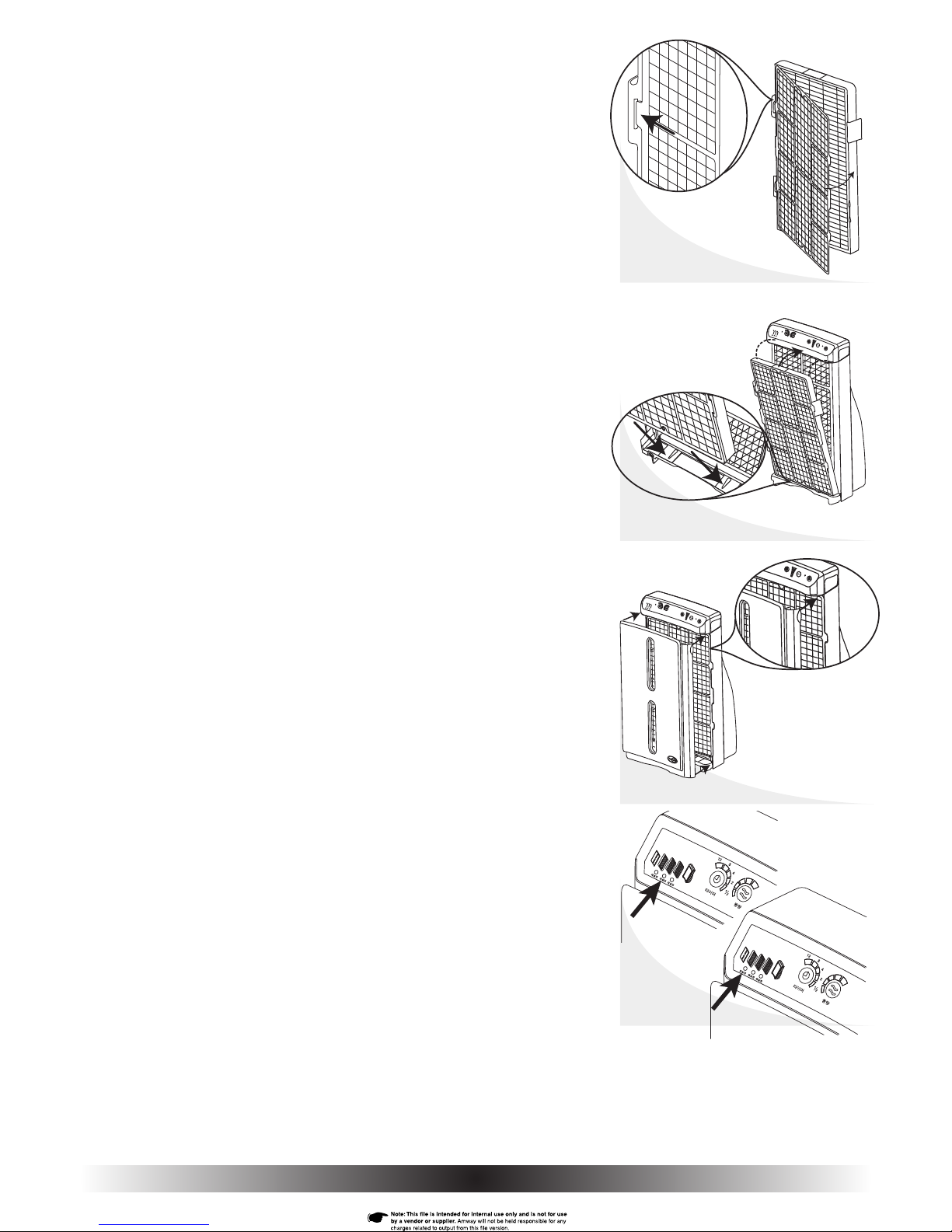

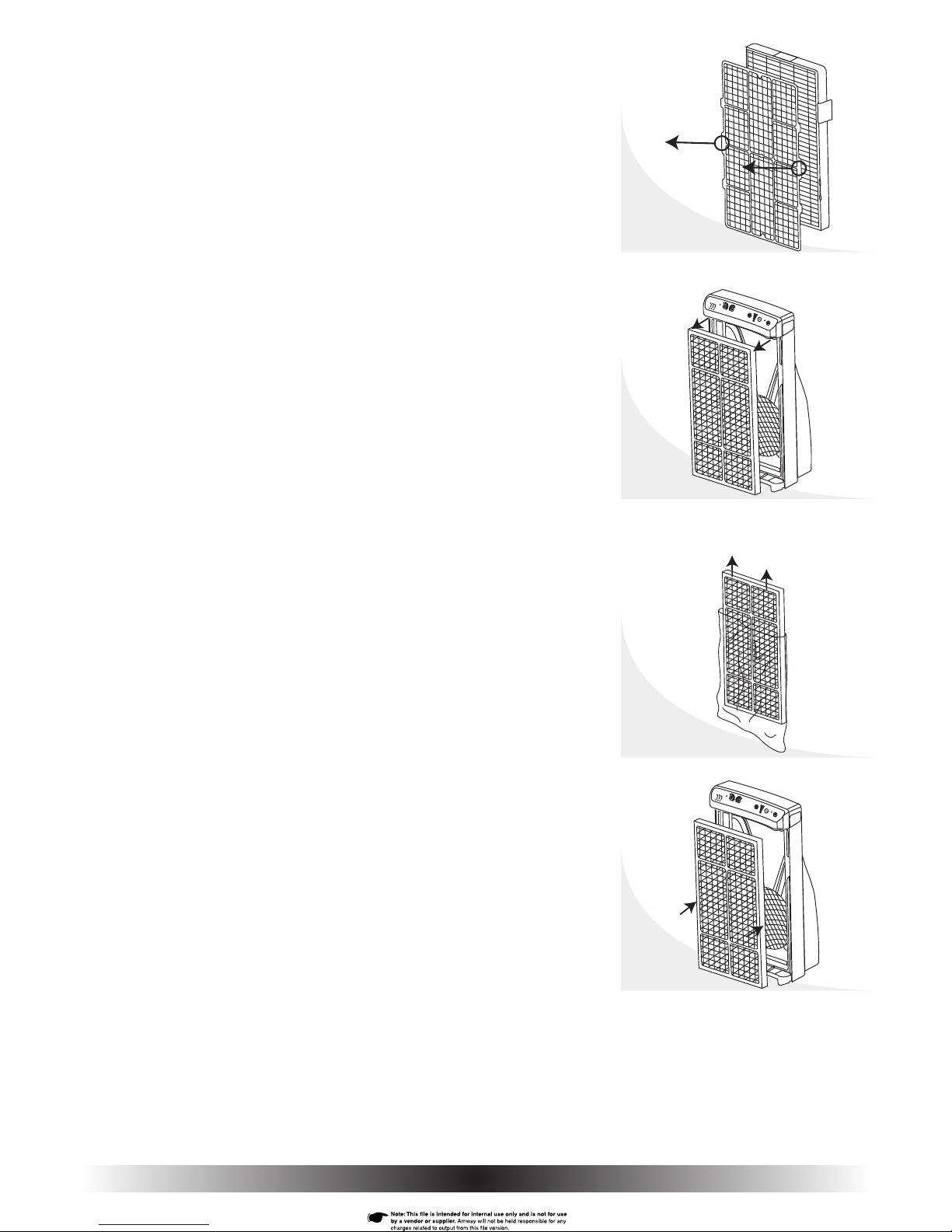

4. Pull on the side tabs to remove the pre-filter from the HEPA filter
(Fig. 4).
5. Remove the odour filter by pulling straight out (Fig. 5).
Installing the Filters
1. Remove the odour filter from its plastic bag (Fig. 6) and carefully replace
the filter all the way back inside the air purifier (Fig. 7).
Note: Carbon dust from the odour filter may stick to the bag during shipping. When
handling the odour filter and its packaging, be very careful that carbon dust
does not stain your clothes, furniture, or carpet.
Fig. 6
Fig. 5

6

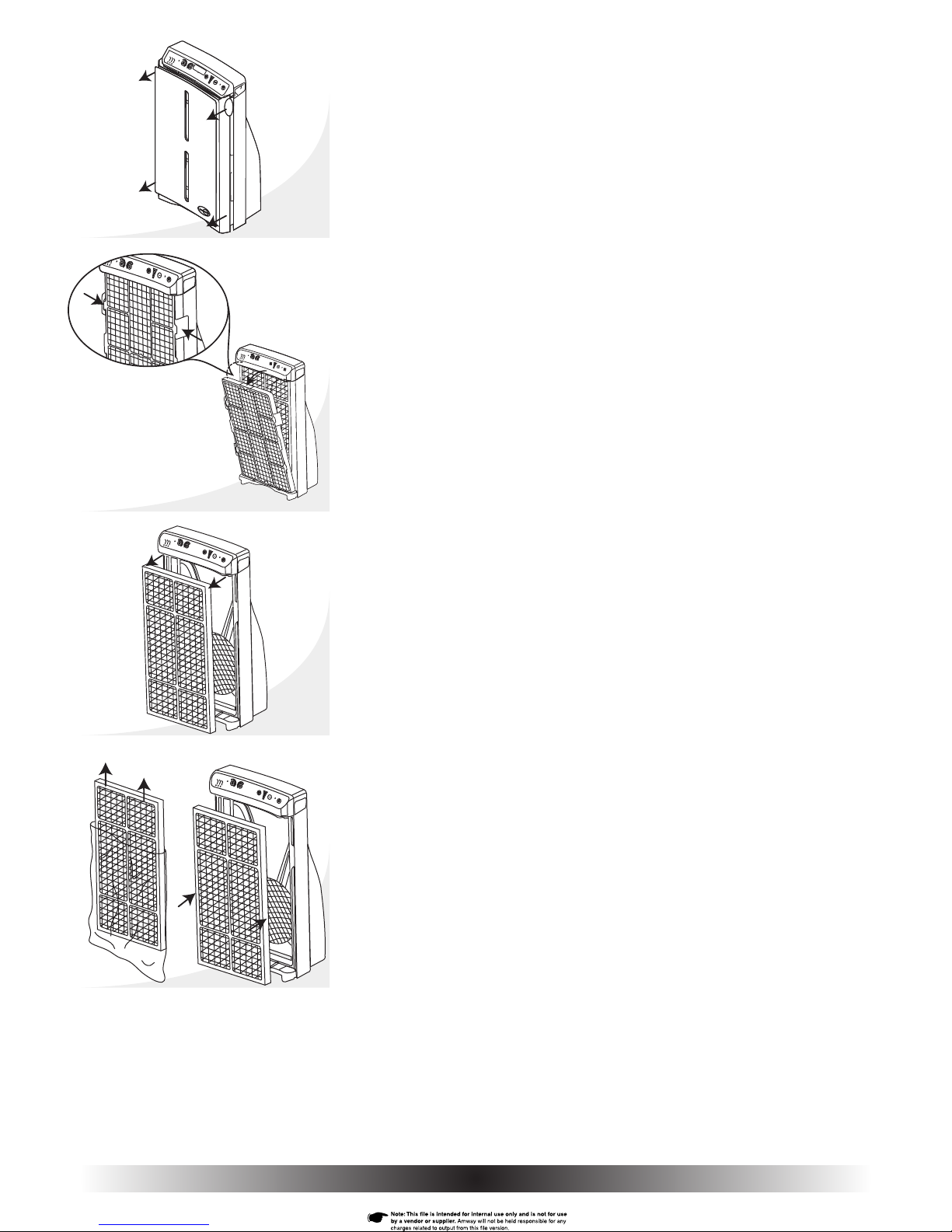

2. Remove the HEPA filter from its plastic bag (Fig. 8).
3. Reattach the pre-filter by sliding the left two tabs into the slots in the
frame of the HEPA filter (Fig. 9a).
4. Slide the right two tabs into the slots in the frame of the HEPA filter
(Fig. 9).
5. With the pre-filter facing out, reinstall the combined filter assembly by
first placing the bottom of the frame into the slots at the bottom of the
housing (Fig. 10a).
6. Swing the filters in place making sure the two tabs on the frame fit into
the slots on each side of the housing (Fig. 10).
7. Reattach the front cover by aligning the four black pegs on the back of the
cover with the four corresponding holes on the housing (Fig 11a). Starting
with the top two, push the four black pegs into the holes (Fig. 11).
Fig. 8
Fig. 11
Fig. 11a
Fig. 9
Fig. 9a
Fig. 10a
Fig. 10

7
Operating Instructions
Getting Power

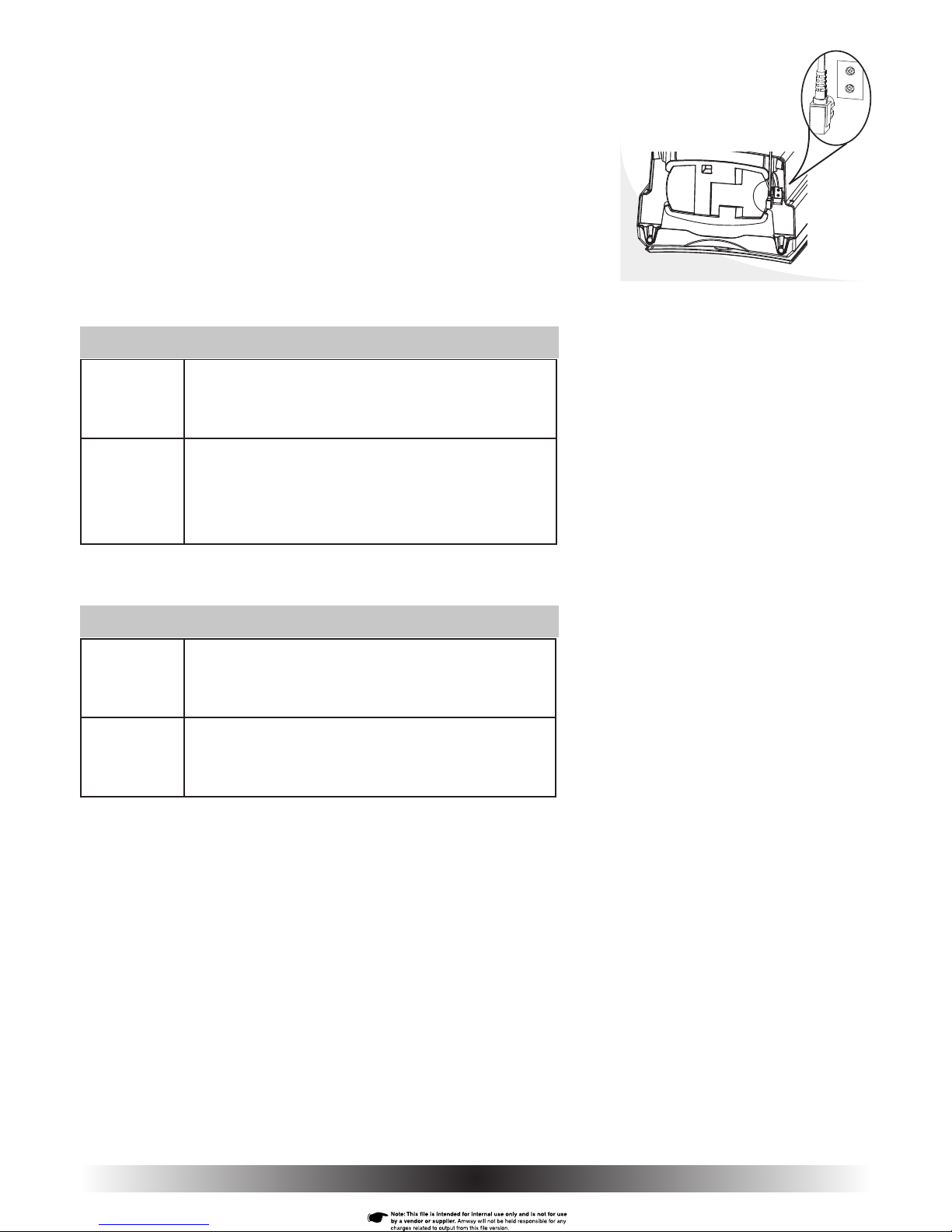

Put unit plug into socket on base of Air Purifier (Fig. 12).
Operating Modes
Your air purifier has four modes of operation, controlled by five buttons on
the control panel. Two modes provide continuous operation, and two provide
timed periods of operation. The four modes are described in Operating Modes
table; the functions of the five buttons are summarized in Control Panel
Functions table.
OPERATING MODES TABLE
NOTE: For maximum air cleaning effectiveness, continuous operation is recommended.
A timed operation is selected when you want the air purifier to operate for
a set amount of time at a specified speed.
CONTINUOUS OPERATION
MANUAL
Mode
Provides continuous operation until you turn air purifier
off or change to another mode. Fan speed remains the
same until you change it manually.
AUTO
Mode
Provides continuous operation until you turn air purifier
off or change to another mode. Fan speed automatically
changes in response to input from the particle sensor: the
dirtier the air, the higher the fan speed.
TIMER
Mode
Operates for a specified time period, which you select, at
a fan speed you select. At the end of the selected time
(from ½ – 12 hours), air purifier turns off.
TURBO
Mode
Provides a burst of cleaning power. Air purifier operates
at highest speed (turbo) for 30 minutes, then turns off or
returns to the previous mode and speed.
TIMED OPERATION
Fig. 12

8
Control Panel
The five control buttons on your air purifier control panel (Fig. 13) enable
you to select the desired mode of operation and to manually change fan
speed and timer setting. The result of a button-press depends in part on
whether the air purifier is already operating and as well as the mode it
is currently in. A complete summary of functions and responses as each
button is pressed are listed in Control Panel Functions table.
Control Panel Button Functions
Button Functions: When you press any of the control panel buttons, the air
purifier will beep to let you know that an action was taken. When the POWER,
AUTO, or TURBO buttons are activated, they also light up; for the SPEED
and TIMER functions, their setting-level displays light up instead.
1. Timer: Programs the air purifier to operate for a pre-determined time
ranging from ½ hour to 12 hours. Repeated pressing of the TIMER
button while the air purifier is operating changes the timer setting, one
step at a time, to the next setting in the sequence: ½ hr., 2 hrs., 4 hrs.,
8 hrs., 12 hrs., OFF, ½ hr…. The timer setting you select is shown by
the number of lighted indicators in the timer display. While the timer is
operating, the number of lighted indicators decreases to reflect the time
remaining before the air purifier shuts off.
2. Speed: Selects one of the five operating speeds of the air purifier.
Repeated pressing of the SPEED button while air purifier is operating
changes the fan speed, one step at a time, to the next speed in sequence
(1, 2, 3, 4, 5, 1…). The fan speed at which the air purifier is operating
is shown by the number of lighted indicators in the speed display.
3. Turbo: Provides a burst of cleaning power. Air purifier operates at highest
speed (setting 5) for 30 minutes, then turns off or returns to the previous
mode and speed.
4. Auto: Provides continuous operation until you turn the air purifier off or
change to another mode. Fan speed automatically changes in response to
input from the particle sensor: the dirtier the air, the faster the fan runs.
5. Power: Turns the air purifier on and off.
Fig. 13
