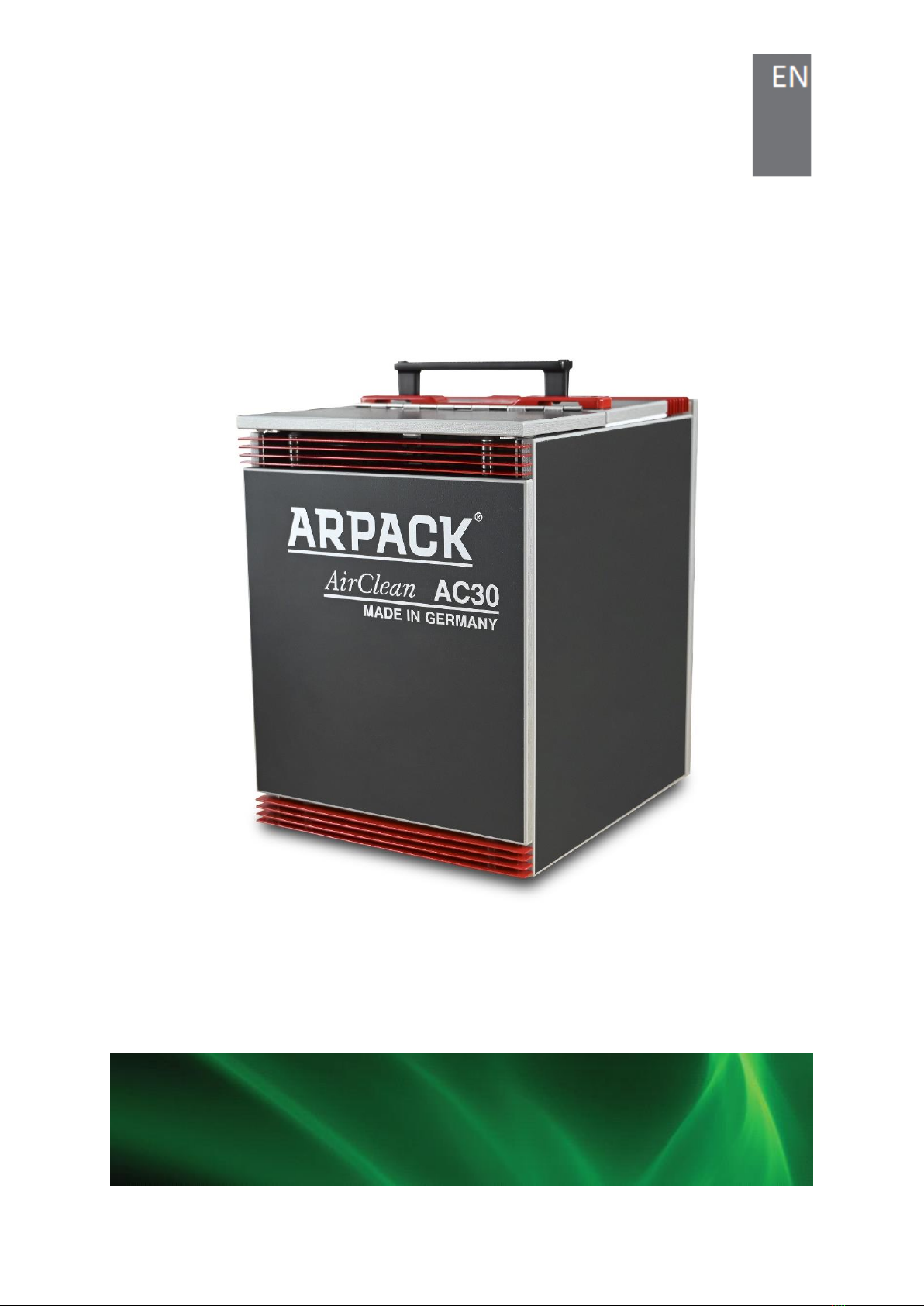

ARPACK AirClean AC 30 User manual
1 I ARPACK GmbH
User Manual
ARPACK AirClean AC 30 Air Purifier
(Original)
English
2 I ARPACK GmbH
Dear Customers!
Before using the ARPACK AirClean AC 30, please make sure to read this user manual carefully.
1. Intended use and usage recommendations
The device’s primary purpose is disinfection (bactericidal, virucidal treatment) and purification of air
from volatile organic compounds after their photocatalytic mineralization on nanocrystalline titanium
dioxide under the action of UV radiation in the A range (365 nm).
The main types of volatile organic compounds removed by the product include:
▪Bacteria, viruses and mould spores;
Hydrocarbons of the methane and ethylene series;
aldehydes, ethers, ketones;
▪Aromatic hydrocarbons;
▪heterocyclic carcinogens;
▪Most allergens;
▪Ozone and reactive oxygen species
The device is intended for domestic use as well as use within medical institutions,schools and boarding
schools, hotels and pharmacies, offices, technical rooms, production and storage facilities with a
recommended area of 30 m² to 40m². Maximum efficiency is achieved when the device is utilised in
closed, poorly ventilated rooms with high microbiological contamination, e.g.:
•Resuscitation wards and wards with bedridden patients;
•Microbiology laboratories;
•Rooms with a large amount of plastics, household chemicals and items that emit phenol and
formaldehyde (e.g. particle board furniture).
The device is perfectly safe be used in the presence of people, animals and plants and is designed for
non-stop operation.
3 I ARPACK GmbH
2. Contents
1. Intended use and usage recommendations.....………………………………………………….………………(p.2)
2. Contents……………….………………....………………………………………………………………………………………(p.3)
3. About this document.…………………….…………………………………………………………………………………(p.3)
4. Safety.……….……………………………………………………………………………………………………………………..(p.4)
4.5 Declaration of Conformity ………………………………………………………………………………………………..(p.6)
5. Safety Precautions .……………………………………………….…………………………………………………………(p.7)
6. Scope of delivery / Transport..…………………………………………………………………………………….……(p.9)
7. Function / Operation ……………………………………………………………………….…………………………….(p.11)
8. Technical Specifications.…………………………………………………………………………………………………(p.16)
9. Warranty …………………………………………..………………………………………..……………………………….. (p.17)
10. Storage …………………………………………………………………………………………………………………………..(p.17)
11. Recycling and disposal ……………………………………………………………………………………………………(p.18)
3 About this Document
▪Please read this manual before using the device to ensure safe and proper use.
▪Please follow the instructions in this document.
Failure to comply with these instructions will void your ARPACK GmbH warranty.
3.1 Document Validity
The information in this document applies only to ARPACK AirClean AC 30 air purifiers.
3.2 Target Audience
This document is intended for the operator or user of the device.
3.3 Documents Retention
The documents must be stored in a suitable place and must be readily available at all times.
The device‘s user is responsible for the storage of all documents.
4 I ARPACK GmbH
4 Safety
▪Only allow specialists to carry out maintenance entailing disassembly on the device.
▪Only allow qualified electricians to operate electrical components in accordance to VDE 0105
Part 1.
▪Observe accident prevention regulations (UVV) whenever operating the device.
▪Take note of warning labels on the device or any of its components.
4.1 Utilisation
Intended Use
The ARPACK AirClean AC 30 air purifier is a ventilation device that can neutralize viruses, germs,
bacteria and spores, as well as odours.
The device reduces the dwell time and the concentration of aerosol and suspended matter clouds
directly in the installation room.
ARPACK AirClean AC 30 air purifier is intended for filtering or cleaning normal indoor air.
The device is designed for indoor installation in frost-free rooms. Its primarily use is to clean the air in
rooms such as living areas, offices, receptions, waiting areas and other common rooms. Intended use
also entails observing the supplied operating instructions!
This device can be used by children aged 8 years and older and by persons with reduced physical,
sensory or mental abilities or lack of experience and knowledge only if they are supervised or have
been instructed in safe use and understand the resulting hazards.
Children must not play with the device. Cleaning and maintenance may be carried out by persons aged
18 and over.
Improper Use
Any use for purposes other than those described above is considered improper.
In particular, use outdoors, in rooms with high humidity (permanently over 65±15% relative
humidity), high levels of dust, aggressive atmospheres or explosive atmospheres is not permitted.
Modifying the device or improper use of the device is not permitted.
ARPACK GmbH accepts no liability for any resulting damage. Responsibility and risk are borne solely
by the user.
5 I ARPACK GmbH
4.2 Safety Measures
Do not attempt to remove, bridge or disable safety and monitoring devices in any way. Only operate
the air purifier when it is in perfect technical condition. Repair faults and damage that impair or could
impair safe use immediately and professionally.
▪Replace defective components with original ARPACK spare parts.
▪Original ARPACK spare parts can be obtained at short notice from [email protected]m or
Fax +49 (30) 80 95 200 - 28.
Self-repair by the user is not permitted and will void the warranty.
Any issues regarding warranty or service should be reported at +49 800 22 33 889 or at
4.3 General safety instructions
Danger
Electricity!
There is a risk of injury or death from electric shock.
▪Never open the device yourself
▪Have all electrical work carried out by a specialist
▪Check electrical components such as cables and plugs regularly and have defects repaired
4.4 Notes for the user
▪Carry out inspection and maintenance in accordance with chapter 7.5
▪Only allow specialists to carry out repairs on the device
▪Only use original ARPACK replacement parts.
▪Do not make any technical changes to the air purifier or control components.
▪Keep these instructions and the other applicable documents in a suitable place to ensure they
are readily available at all times.
6 I ARPACK GmbH
4.5 Declaration of Conformity

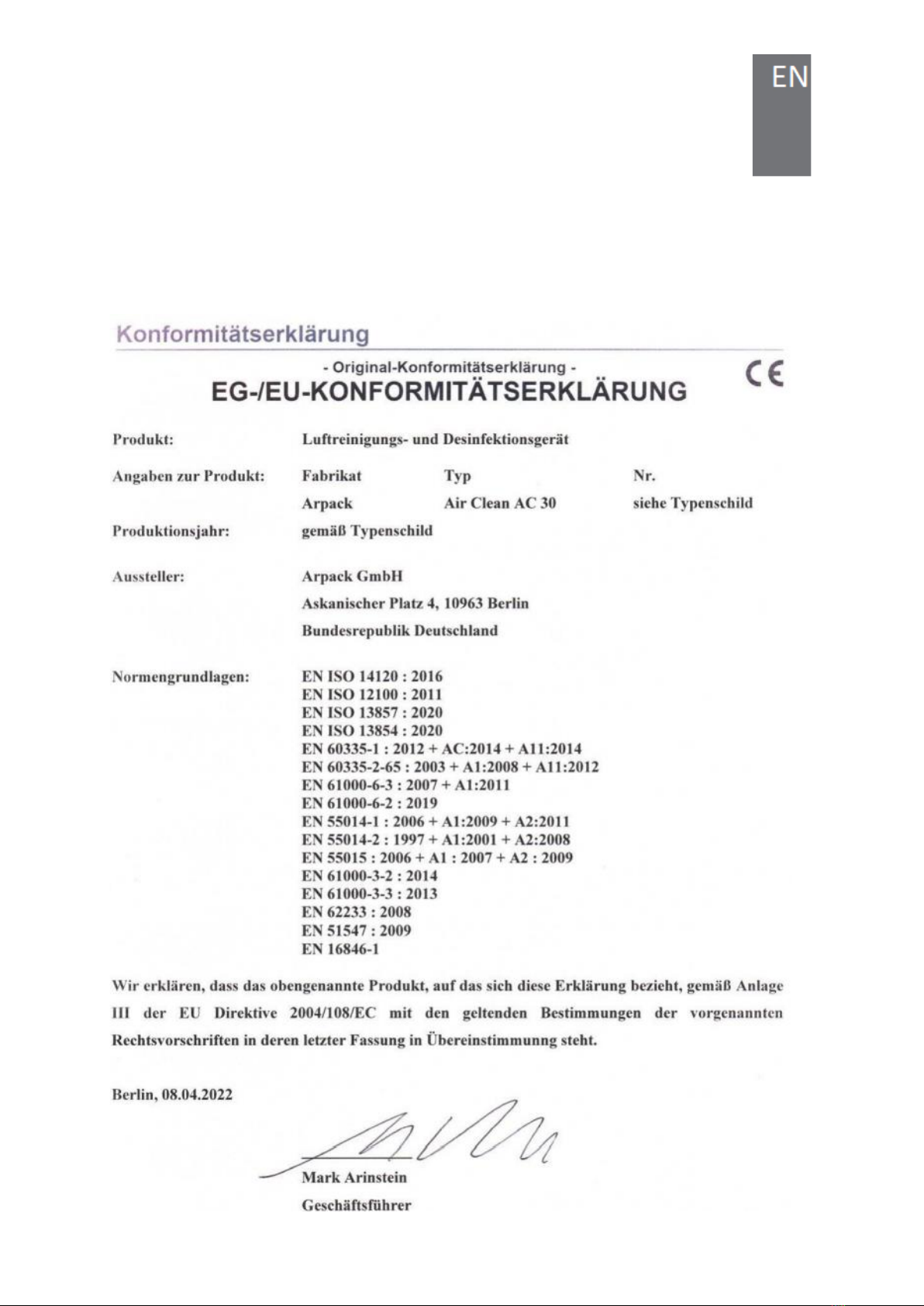

Declaration of Conformity
This product conforms to European directives and national requirements.
7 I ARPACK GmbH
5 Safety Precautions
5.1 General
These operating instructions are only applicable to the ARPACK AirClean AC50 air purifier.
These instructions must be read by the personnel assigned to carry out the respective work before
start-up or maintenance.
The specifications given in this manual must be observed.
These instructions must be kept readily available as part of the delivered device.
If the operating instructions are not observed, the warranty claim against ARPACK GmbH is voided.
5.2 Notice Signs
The following symbols and notices are used in this description.
These important instructions relate to personal protection and technical operational safety.
SAFETY NOTICE
A safety notice indicates instructions that must be followed exactly in order to avoid danger
and injury to persons and to prevent damage to the device.
DANGER
Danger from electrical voltage on active electrical components!
Warning: Turn off the power switch before removing the panel.
Never touch electrical components or electrical contacts when the operating switch is turned
on!
There is a risk of an electric shock causing injury or death.
There is still a current at the connection terminals even when the power switch is switched off.
NOTICE
This notice indicates technical instructions that must be observed in order to prevent damage to or
malfunctions in the device.
In addition to the operating instructions, information is attached to the device in the form of stickers.
These must also be taken into account in the same way.
8 I ARPACK GmbH
5.3 Further Safety Precautions
DANGER
Work on any of the device’s electrical system may only be carried out by qualified electricians. For
electrical installation work, please comply with the regulations of the VDE and the local electrical
supply company (EVU).
GEFAHR
The device can only be operated within the performance range specified in the technical
documentation from ARPACK.
The device can only be operated if it is in perfect technical condition.
Malfunctions and damage that impair or could impair the safety or proper functioning
of the device must be rectified immediately and professionally.
This device can only be used to circulate air.
This must not contain any harmful, flammable, explosive, aggressive, corrosive or otherwise
hazardous components, as otherwise these substances will be distributed throughout
the room resulting in the health of the people, animals or plants living in it to be impaired or
even their death.
When installing the device, the general accident prevention regulations (UVV) must
be observed
5.4 Fire
There is no direct risk of fire arising from the operation of this device.
5.5 Warnings
The removal or disabling of safety and monitoring components is prohibited! The device may only be
operated if it is in perfect technical condition. Malfunctions and damage that impair safety must be
eliminated immediately.
9 I ARPACK GmbH
6 Scope of delivery / Transport
When opening the packaging please check the device for any visible transportation damage.
Scope of delivery includes:
- 1 ARPACK AirClean AC 30 air purifier
-1 User Manual
Notify the seller immediately if any damage is found on the device.

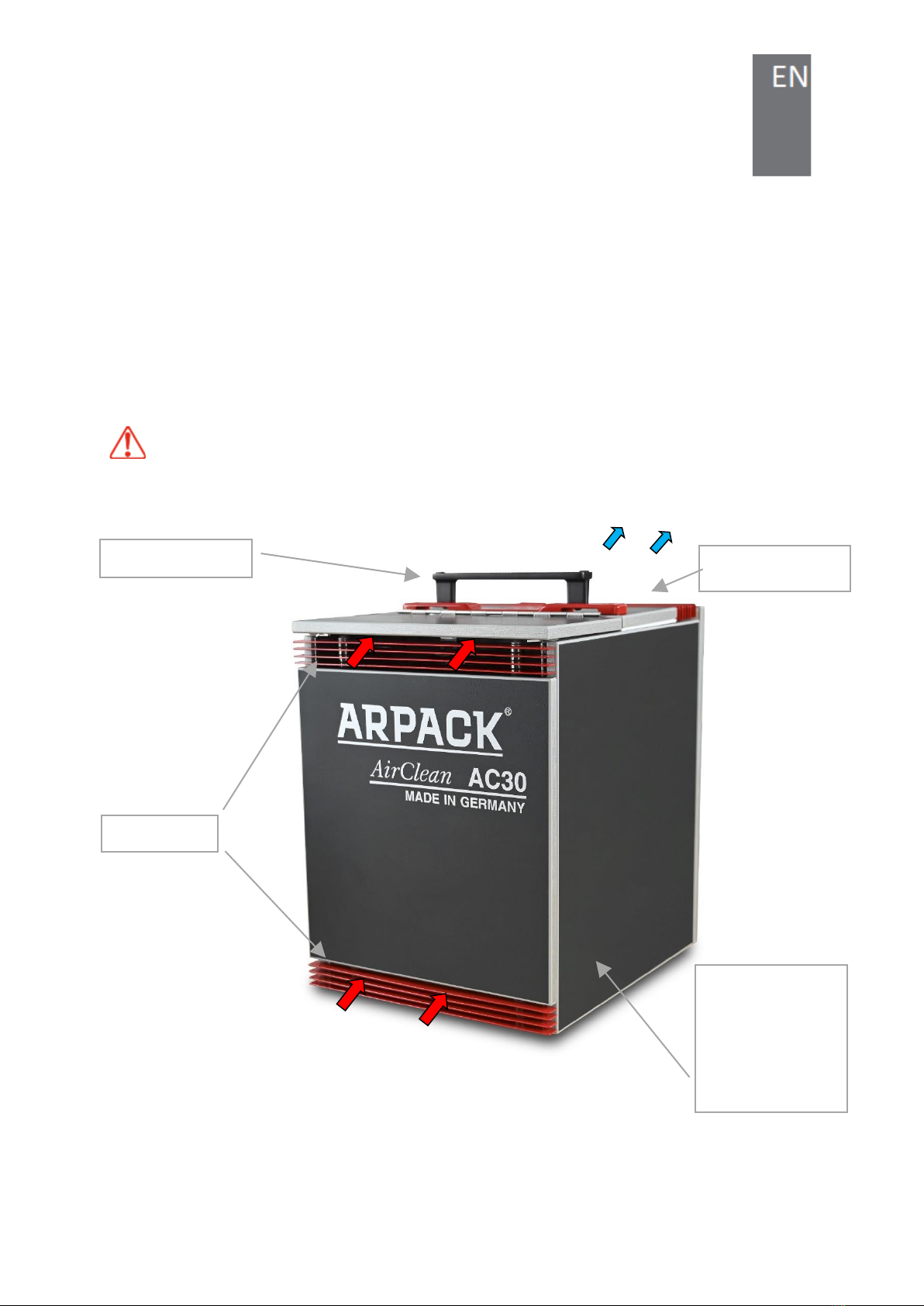

Figure 1
ARPACK AirClean
AC 30
Air Purifier
Air Intake
Carry Handle
Air Outlet
10 I ARPACK GmbH
Back of the
ARPACK AirClean AC 30
Main switch +
Mains
connection
ECO-mode
Button
Power Button
USB 2 Port
Figure 2 (Back)
Figure 3 Buttons
Lit buttons indicate operation

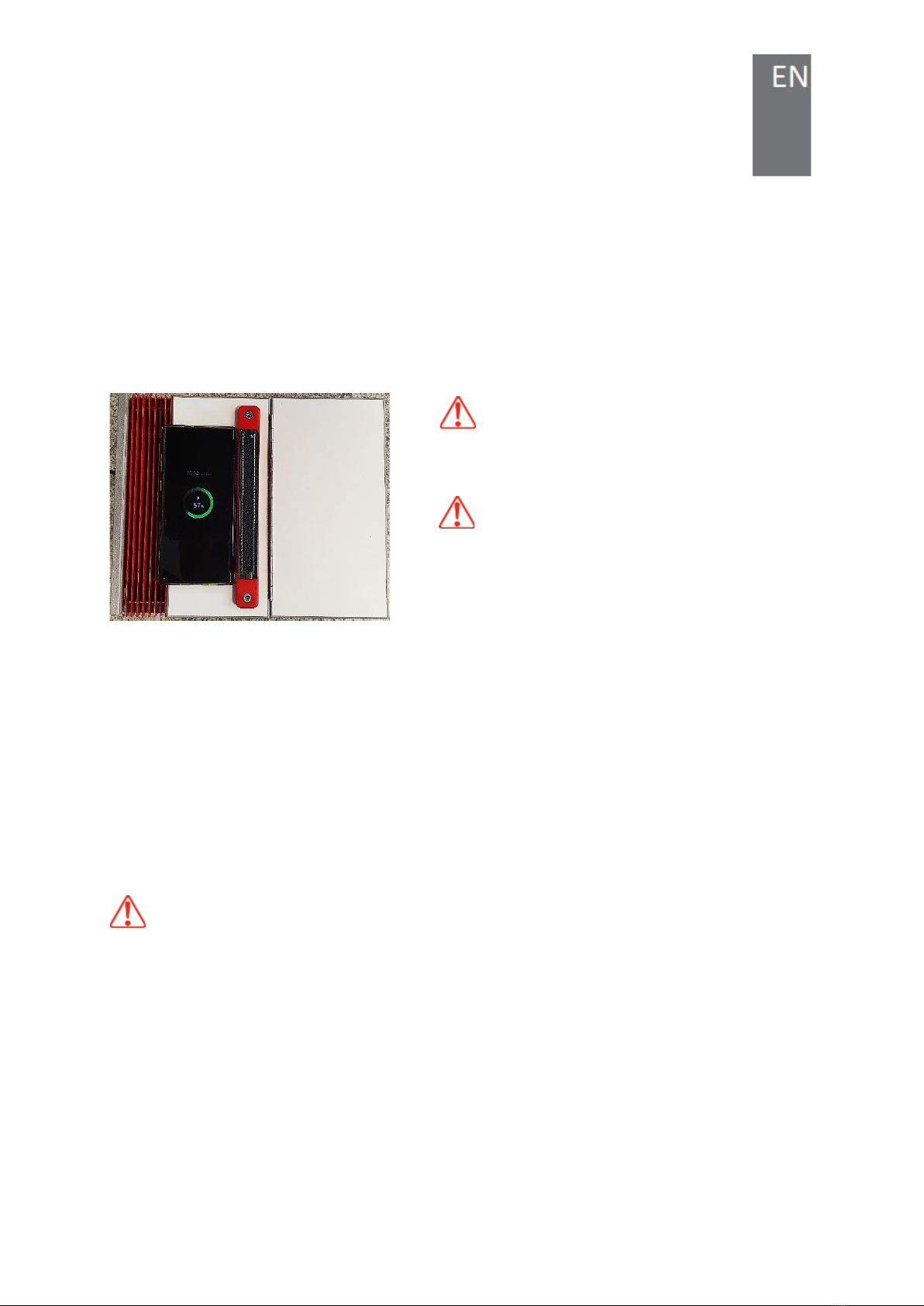

Requirement for wireless
charging - only use mobile
phones designed for this -
Figure 4 Induction Field
11 I ARPACK GmbH
7 Function / Operation
7.1 Intended function and and main purpose of the device
The device is based on the photocatalytic
oxidation of volatile organic compounds on the
surface of nanocrystalline titanium dioxide
under the influence of soft UV-A (365nm) radiation.
It is designed to provide molecular purification and
reduction of microbial contamination
in the air of medical facilities and public spaces.
The device is capable of remove contaminants harmful
to humans.
These include:
- viruses, bacteria, mold spores;
- hydrocarbons (e.g. methane and ethylene);
- aldehydes, esters and ketones;
- Aromatic hydrocarbons;
- Heterocyclic carcinogens;
- substances that cause allergies ;
-Ozone
These are absorbed on the surface of the
photocatalytic elements and mineralised
to form mainly carbon dioxide and water
vapour under the influence of the light from
UV-A LEDs.
Figure 5 Working Diagram
Working Diagram
12 I ARPACK GmbH
7.2 Operation
The device is portable thanks to its compact design. Select the place of installation for the device on a
stable floor, table, cabinet or similarly stable support. The device can be placed in the immediate
vicinity of you and other people, in the middle of the room or directly against the wall. The device
should not stand in the way / walkways so as to be protected against being involuntarily tipped over.
Before changing its location, the device must be switched off with the main switch and the mains plug
must be disconnected from the mains socket.
Operating Conditions
Normal Operating Conditions:
- ambient temperature 20C±°5°C
- relative humidity 65%±15%
Acceptable Operating Conditions:
- ambient temperature of 10C°to 35°C
- relative humidity up to 95%
Storage conditions (upper and lower limits):
- ambient temperature of -30C° to 60°C
The average service life of the device is at least 10 years.
7.2.1 First time start-up
Before switching on the device for the first time, ensure that it has warmed up to room temperature
and that there is no visible condensation. When switching on, note the following:
7.3 ECO –Mode
The ARPACK AirClean AC 30 has an Eco mode (see Figure 2), this uses less energy than normal
continuous operation. To achieve this, the AC 30 automatically switches between the collection
phase and the “cold” combustion phase.
For use only in rooms with a low expected load (few people and animals).
•The device is operated with a mains voltage of 220V/50Hz.
•The working position of the device is vertical.
•The ventilation openings of the device should always remain unobstructed
(Figure 1).
•The device will require approximately 20 minutes to warm up to operating
temperature after being switched on.
13 I ARPACK GmbH
7.4 Induction Field
The ARPACK AirClean AC 30 is equipped with an additional induction field wireless phone charger
(Figure 4).
To do switch this function on, simply turn on the device at the main switch (Figure 2).
The AC 30 will charge your mobile phone concurrently with other operations.
(Figure 6).
Before using the induction field, please check
with your mobile phone manufacturer
whether your device has a wireless induction
charging function.
Mobile phone "covers" can restrict the
induction charging Induction charging
capability.
Figure 6
7.5 Preparing for Utilisation and Operation
Plug the power cord into a regular 230V, 50Hz household outlet.
Switch on the main switch, followed by the power button on the back of the device.
The controls are located on the back of the device. The fan starts up slowly.
The device will require approximately 20 minutes to warm up to operating temperature after being
switched on. We recommended letting the device operate continuously.
The ARPACK AirClean AC 30 is switched off with the power button on the back. If the device is to be
left idle for a long period of time, it is recommended to unplug the power cord from the outlet.
It is forbidden to spray the device with aerosols for "test" purposes.
This leads to spiking “shock” concentrations of organic pollutants. It can take up to several
days for the photocatalyst to regenerate and resume normal operation.
14 I ARPACK GmbH
7.6 Care and Maintenance Intervals
It is recommended to periodically wipe the external surface of the device with a damp cloth.
A 3% solution of hydrogen peroxide with the addition of 0.5% synthetic
detergent or 1% chloramine solution can be used for disinfection.
Following longer periods of non-operation, the device must be set up in places with a minimum of
dust exposure and the air intake must not be obstructed. The maintenance of the device is only to be
carried out by qualified personnel.
Never use acetone or liquids containing acetone to wipe down the device.
7.6.1 Simple pre-filter cleaning / replacement
The AC 30 uses 2 high-quality grade F7 “pre-filters" made of fiberglass. We recommend checking,
cleaning or, if necessary, replacing them at regular intervals.
To open the maintenance flap, connect the device to the mains plug and socket.
A "click" sound can be heard, that is the maintenance flap being unlocked.
Do not put the device into operating mode while the maintenance flap is open.

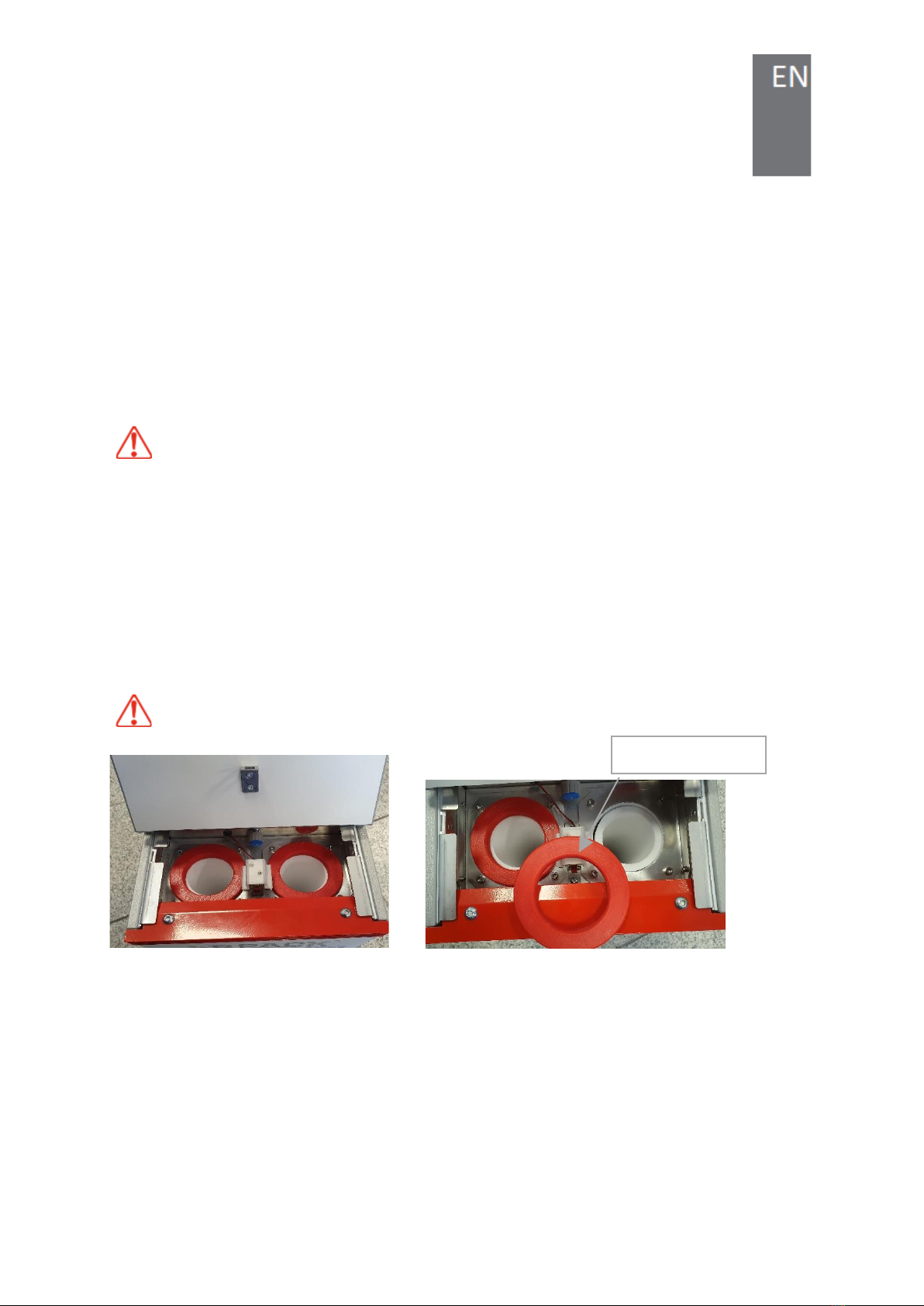

Open the maintenance flap and pull out the red round clamps.
Round Clamp
15 I ARPACK GmbH
The pre-filters can both be removed.
Both pre-filters can be cleaned with a
vacuum cleaner or with water
(detergent-free).
If the pre-filters should get too dirty,to the point of being uncleanable replace both with new pre-
filters.
If the filter structure is damaged, a new pre-filter is required!
Only use filters manufactured by Arpack GmbH!
When inserting the pre-filter, ensure that its titanium dioxide coated fiberglass surfaces are not
damaged.
F7 Vorfilter aus Glasfaser
Reinsert the clamping rings to lock the filters in place.
Close the maintenance flap. The device can now be operated safely again.
Titanium dioxide
Coated fiberglass
2xFiberglass
pre-filters
16 I ARPACK GmbH
8 Technical Specifications
Model
ArpackAirClean AC 30
Parameter
Value
Cleaning performance in m³/hour
40
Recommended maximum room size in m²
30 - 40
Glass-based photocatalytic filter with TiO²
+
Complete mineralization without accumulation of volatile organic air
pollutants and pathogenic microflora on the photocatalytic filter
+
Capacity to remove volatile organic compounds in mg / min
≈ 8
Max. Operational noise level in dB
36
Safe operating range UV-A bodies in nm
315-400
By-production of Ozone
None
Power connection in V / Hz
220 (+/-10%) / 50
Dimensions in W x D x H in mm
240 x 357 x 304
Total weight in kg
9,6
Preferred operating mode
Continuous
Max. power consumption in W
50
Warranty period in months
24
Special Mounting Requirements
None
17 I ARPACK GmbH
9 Warranty
The product guarantee is active for a period of 24 months from the date of sale.
The manufacturer does not grant any warranty claims in the following cases:
•Improper storage, handling and transportation by the owner
•Failure to comply with operating instructions
•Repair of the device by companies not expressly authorised by the manufacturer
•Exploitation of the device in a power supply system with voltage fluctuations that are above
normal values
•In the case where defects can be traced back to erroneous or intentional actions
•In the event of a defect resulting from alterations to the design
•If the device fails due to force majeure
•In the event of damage caused by the ingress of foreign bodies or liquids
•In case of mechanical damage
10 Storage
For devices that are packed in foil or wrapping, we recommend removing this foil/wrapping
immediately after delivery. The foil/wrapping is purely a transport packaging for the short-term
protection of the devices. The foil/wrapping is not suitable for long-term storage of the devices, as it
generally promote the formation of condensation and thus corrosion. If the device is not installed
immediately after delivery, the devices must be stored dry, protected from the weather and (e.g. by
suitable packaging) on a level, horizontal surface with a secure footing. It is particularly important to
ensure that damage and impairments caused by the weather (humidity, temperature, dust, dirt) and
external influences (shocks, blows, animals, vermin) are prevented. Existing device openings (air
intake, outlet etc.) must be sealed tightly.
18 I ARPACK GmbH
11 Recycling and Disposal
Under no circumstances dispose of this device into household waste!
In accordance with the Waste Disposal Act, the following components must be disposed of and
recycled in an environmentally friendly manner via appropriate collection points:
•The old device itself
•Worn out components
•Defective components
•Electrical or electronic scrap
Environmentally friendly means separated according to material groups in order to achieve the
maximum possible reusability of the basic materials with the lowest possible environmental impact.
•Dispose of cardboard packaging, recyclable plastics and filling materials made of plastic in an
environmentally friendly manner using the appropriate recycling systems or recycling
centres.
•Observe the respective country-specific or local regulations.
•Return service can be contacted at 0800/ 22 33 88 9, [email protected]om
Take Note!
WEEE-Reg.-Nr. DE 75352519
We strive for environmental protection and sustainability.
This device should not be disposed of into household waste.
Please send the device back to the manufacturer.
We will take care of the costs.
Table of contents
Other ARPACK Air Cleaner manuals
