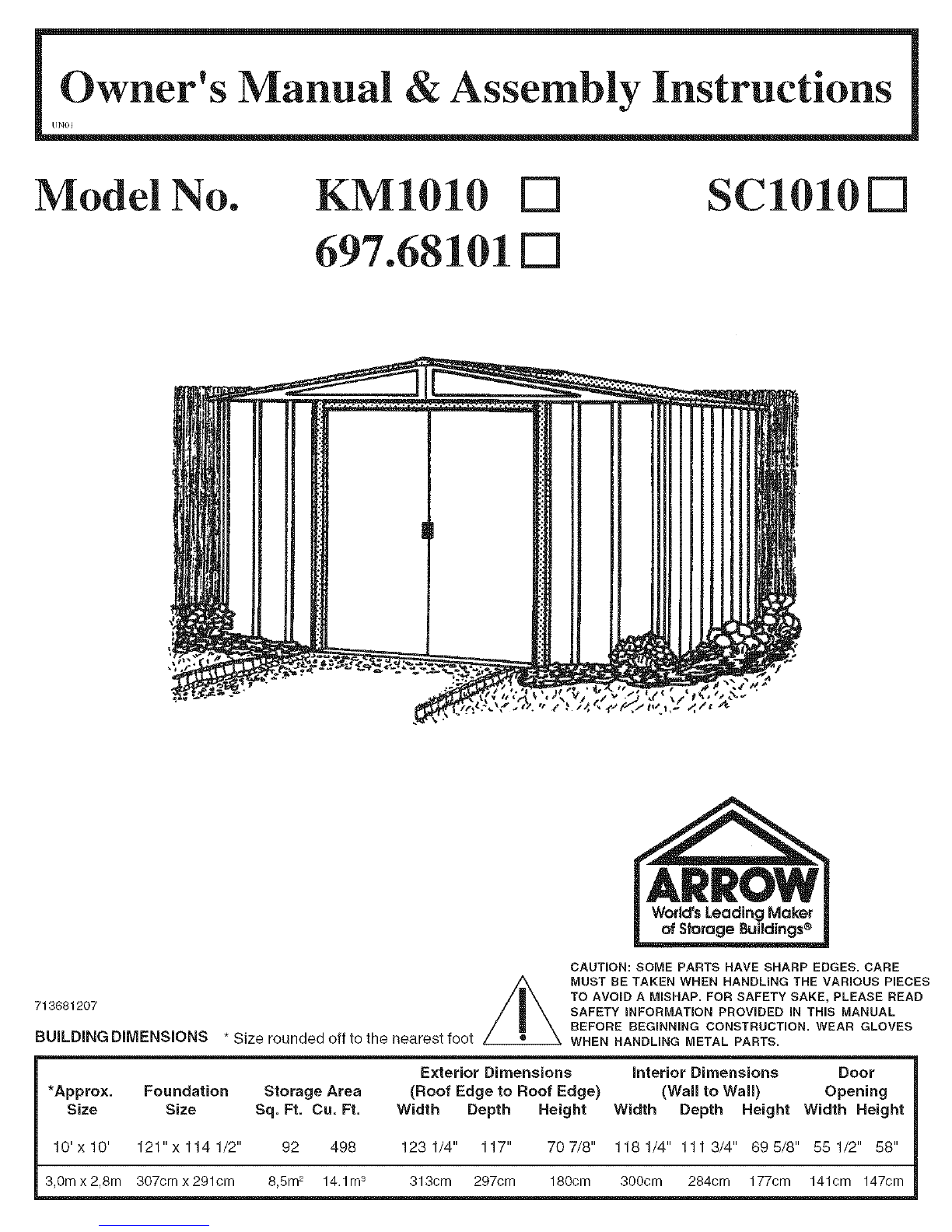

Arrow Storage Products 697 Use and care manual

Owner's Manual & Assembly Instructions
[]NOI
Model No. KM1010 D
697.68101D SC1010D
713681207
BUILDING DIMENSIONS * Size rounded off to the nearest foot
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Exterior Dimensions Interior Dimensions Door
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Sq, Ft. Cu, Ft, Width Depth Height Width Depth Height Width Height
10'x10' 121"x1141/2" 92 498 1231/4" 117" 707/8" 1181/4" 1113/4" 695/8" 551/2" 58"
3.0mx28m 307cmx291cm 8,5m 2 14.1m _ 313cm 297cm 180cm 300cm 284cm 177cm 141cm 147cm

BEFORE YOU BEGIN....
A2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation andAnchoring: Your storage building must be anchored to prevent wind
damage. A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Frame Kit and an Arrow Anchoring
Kit as an effective method of securing your building to the ground (Available by mail order
or at your local dealer) or you may construct a foundation and anchoring system of your
choice. Your assembly instructions provide information on a few methods commonly used
to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
,All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
,If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
,Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
,Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
2

PLAN AHEAD....
A3
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need.
Required
* Eye Goggles
. No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
Required
• Work Gloves
Step Ladder
Utility Knife /Scissors
• Pliers
•Carpenter's Level
,,Tape Measure
OptionaITime-Savers
,.Wrench /Nut Driver
,, Electric /Cordless Drill
Square
String (for squaring frame)
Foundation Preparation
• Hammer and Nails
Spade or Shovel
Hand Saw/Power Saw
• Lumber and/or Concrete
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
,AIIow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
*Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.

SAFETY FIRST....
A4
Safety precautions are important to follow throughout the construction of your building.
,Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protection and long sleeves when assembling
or performing any maintenance on your build-
ing.
,Practice caution with the tools being used in the
assembly of this building. Be familiar with the
operation of all 3ower tools.
sM_ty edge
sharp edge
sharpedge
satiety edge
,Keep children and pets away from worksite to
avoid distractions and any accidents which
may occur.
,Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Do not attempt to assemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
*Do not attempt to assemble the building on a
windy day, because the large panels acting as a
"sail", can be whipped about by the wind making
construction difficult and unsafe.
",o

CARE & MAINTENANCE....
A5 Web
Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws. Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips ....
, Wash off inked part numbers on coated panels with soap and water.
,Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and[I
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly instructions for future reference.
5

ACCESSORIES....
A6 V_ EB
ROOF STRENGTHENING _- __r-
(heavy snow load) KITS _
Extra roof beams and gable braces _[_1
designedforaddedprotectionagainst ?t lll t u,,,'llllI t t1II1
heaWsnow accumulation. Increases _,_._ _ I!1!1
the strength of your roof by 50% _'_-"_'_-)_
ANCHOR KITS
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps. No digging or concrete /"-_ A--"_----_
pouring, just insert cable under roof,
over roof beams, into augers and twist
augers into the ground. For buildings
larger than 10'x9', use 2 kits.
Model No. AK100
New concrete anchor system permits
anchoring any size Arrow building
directly to a concrete slab. Each kit
contains heavy-duty, hot-dipped
galvanized steel corner gussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonary drill bit are included.
Model No. AK600
Earth Anchor Kit anchors any size
Arrow building to the ground.
Each kit contains heavy duty,
hot-dipped galvanized steel
corner gussets and 4 earth anchors.
TOOL HANGING RACK
Model No. THI(}(}
The perfect tool organizer. Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers, pliers, etc. Holders
slide along channel for fully
adjustable spacing. Great for
garage, basement, or the back
of any door. Fits all Arrow
storage buildings.
FLOOR FRAME KITS
MODELS FB47410, FB5465, FB106-A
FB109-A and FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.
ATTIC KIT /WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organize space and create more
useable space as an attic or
workbench. Will hold up to 250 Ibs.
(113kg) evenly distributed.
Model No. Fits Shipping Weight
AT101 10' Long, 250 lb. (113kg) load+ 16 Ibs. (7kg)
Fits all Arrow 10' wide buildings.
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
SHELF UNITS
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrowbuildings.*
Model No. SS404
* Makes 8" to 12" (20-30cm)
wide shelves in any length.
. Brackets, braces,
hardware included.
Lumber is not included.
Model No. ssg00-A
* Grey color
. 3 shelves
* Holds up to 85 Ibs. (38kg)
(even weight distribution)
* Some drilling required to fit buildings without mid-wall bracing.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY

Foundation
S09
The Foundation For Your Building
OPTION 1: ARROW FLOOR FRAME KIT: (orderNo.FB109-Aor SR68385-A)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one
of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
f. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.
Allow I - 2 hours for construction.
OPTION 2: Wood Platform
if you decide to build your own foundation, be sure to select the appropriate materials.
These are the recommended materials for your foundation:
• 2 x 4's (5cm x 10cm) Pressure Treated Lumber O 5/8" (1,5cm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
® 10 & 4 penny Galvanized Nails ® Concrete Blocks (optional)
The platform should be level and fiat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
To construct the foundation follow instructions and diagram,
Construct frame (using 10 penny galvanized nails)
Measure 16"/24" (40,6cm/61 cm) sections to construct
inside frame (see diagram)
Secure plywood to frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
Note: Platform/Slab will extend 9/16" (1,4era) beyond floor
frame on all four sides. Seal this 9/16" of wood with a
roofing cement (not included), or bevel this 9/16" of
concrete when pouring, for good water drainage.
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
• 1 x 4's (2,5cm x 10cm) (will be removed once the concrete cures)
O Concrete O Sheet of 6 rail plastic
• We recommend for a proper strength concrete to use a mix of:
1 part cement ® 3 parts pea sized gravel ® 2 1/2 parts clean sand
Prepare the Site/Construct aFoundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 rail plastic.
4. Construct a wood frame using four planks of lx4 (2,5cm x 10cm) FRONT 3
lumber. (DOOR)
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level. Note: Finished Slab dimensions, with lumber removed.
Allow 3 - 5 hours for construction and a week for concrete curing time.

Anchoring
_\ll)
it is important that the entire floor frame be anchored after the building is erected.
Below are recommended ways of anchoring.
Arrow Anchoring Kit: (Model No. AK4 or 60298) Anchoring into Wood/Post:
Recommended for use with any suggested base. Use 1/4" Wood Screws. There are 1/4" (0,83cm) dia.
Contains: 4 Anchors with Cable, Clamps and holes provided in the frames for proper anchoring.
installation instruction.
J"
OVER THE BEAMS
AND INTO THE GROUND
1.
Arrow Anchoring Kit: (Model No. AK100 or 88383)
Recommended for use with the concrete foundation.
Contains: Corner gussets, perimeter clips, hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 8" Lag Screws.
2.
10

Hardware
SII
Remove from bag of screws
and save for the last step
T T T
65900A
65103 #10Bxl/2" Black Screw(8) 65923 65004
#8-32 Hex Nnt(165} (Packed with Screws) #8=32×3/8" Bolt (165) #8Ax5/16" Screw (336}
66646 65109 67468
66045 Washer(361 ) #8-32 Acorn Nut (4) Peak Cap (2)
Handle (2) (10 sheets of 40) (Packed with Screws) (Arrow Logo)
66183
66769 66382 Roof Trim Cap 6228
Door Slide (4) Lower Door Guide (4) (2 right & 2 left) Track Support (2)
5971 67545
Roof Beam Bracket (4) Weather Stripping (1)
11

Parts List
LINI2
Assembly
Key No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Part
Number
3719
5986
6000
6001
6015
10497
9355
6403
9156
8995
6529
6635
6640
6641
6869
9917
10489
10489
8934
8936
9923
9294
9295
9298
9299
9365
9366
9367
9900
9372
Part
Description
Door Handle Brace
Rear Wall Angle
Right Gable
Left Gable
Side Roof Trim
Horizontal Door Brace
Vertical Door Brace
Door Track Splice
Corner Panel
Wall Panel
Roof Panel
Gable Brace
Right Roof Panel
Left Roof Panel
Ridge Cap
Rear Wall Channel
Right Door
Left Door
Ramp
Rear Floor Frame
Side Wall Channel
Right Roof Beam
Left Roof Beam
Side Wall Angle
Side Floor Frame
Front Wall Channel
Door Track
Front Floor Frame
Door Jamb
Front Wall Panel
Quantity
in Carton
2
2
2
2
4
4
2
1
4
8
4
2
2
2
2
2
1
1
1
2
4
4
4
4
4
2
2
2
2
2
Check
List
12

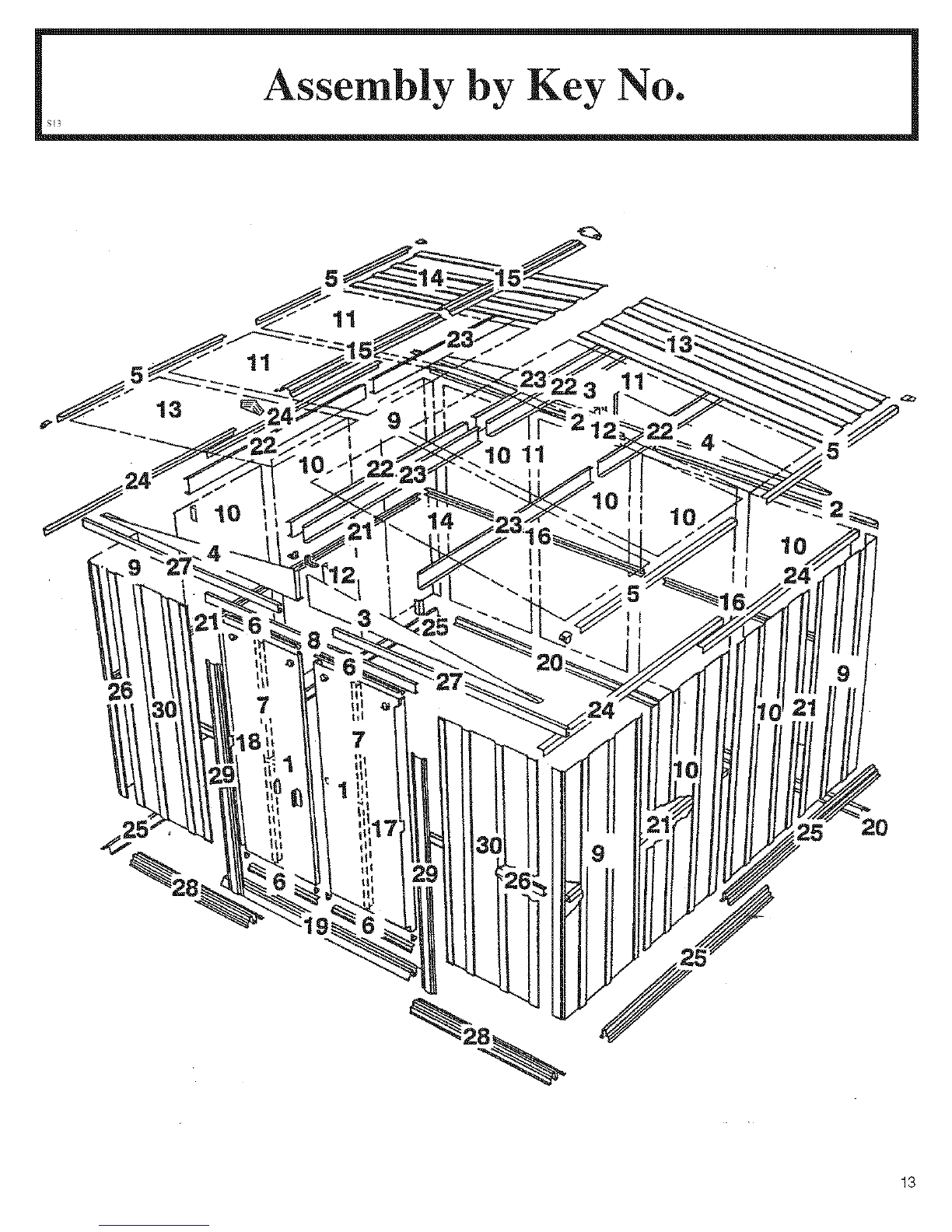

Assembly by Key No.
sI;
1
3
Ig 2 ,=22 4
414 II lo.. 2
2O
13

08934 Ramp (1)
C_,d.._. t ® Parts Needed For O •9367FrontFloorFrame(2)
_1 _V= I Floor Frame Assemblies ®8936RearF_oorFrame(2)
• 9299 Side Floor Frame (4)
$14
The front floor frame is made up of
three pieces. The side floor frames
and the rear floor frame are made up
of two pieces. The holes in these
pieces will align when the pieces are
positioned with correct amount of
overlap. The illustrations below show
the proper overall length for the sides,
rear and front. Proceed as follows:
9367
9299
"1 Place the front floor frames as
shown. Center the ramp, with drain
holes facing outside, on top of the two
front floor frames. Join the frames by
inserting eight screws.
20vedap the aidefloor frames and
the rear floor frames as shown. The
holes in these pieces will align when
the pieces are positioned with cor-
rect amount of overlap. See the illus-
trations below for the proper overall
length of the side and rear floor frames.
Join the frames by inserting five bolts
into each frame set as shown.
3Double check the length of each
and set these pieces aside for later
use.
97 99 Front Floor
_ 9'_, 8934 9'9', Frame Assembly
__ _ 1193/8" 3,0m
- DRAIN HOLES FACE "
OUTSIDE
9299 _lht_!_t
,__ -- '_1=_ Side Floor Frame 112 7/8"
B 9299 2,9m
Rear Floor Frame 119 3/8"
_l 8 3,0m
8936 I ! *,t _ _r 8936
•112 7/8"
_'' Side
112 7/8" 2,9m
1193/8" 3,0m
Front & Rear
1193/8" 3,0m
2,9m
14

O5988 Rear Wall Angle (2)
tpC"e- e Needed e .99 7Rea Wa,,C,anne, 2)
Frame Assemblies o 9923S_dewa.C.anne_(4)
•9298 Side Wall Angle (4)
SIS
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
one bolt in the center hole (three
holes will align).
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
9917 RearWall Channel
118 1/8" 3,0m
9917
9923
Side Wall Channels
111 5/8" 2,8m
9923
together with one bolt in the center
hole of each set.
3Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one boltin
the center hole. 9298 Side Wall Angles
929_ 111 5/8" 2,8m
4Make two side wall angles by
overlapping the side wall angle piec-
es as shown. Fasten each set togeth-
er with one bolt in the center hole.
5 Set the assemblies aside. You will
use them later. Rear Wall Angle
118 1/8" 3,0m
Side Wall Angles
1115/8" 2,8m
15

Step 3 ® Parts Needed For O Roof Beam Assemblies • 9294 Right Roof Beam (4)
• 9295 Left Roof Beam (4)
S_6
The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped, back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces. 9295 __,
Hint: These pieces are force-fitted, How.To Hentify Left and "_'_... _'_ Right
so you may have to press hard to join Right RoofBeams "-_.:...._.... o;_
them together.
"1 The figu re shows how to identify a 1137/16"
2,9m
left and a right roof beam. As you
will note, the difference is only which
end of each beam has the six holes
for joining the beams at the center.
2 Place the end of a right roof beam
inside a left roof beam so that the six
holes in each piece align. Make four
sets of roof beams by repeating this
procedu re. Do not insert bolts yet.
3 Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts and nuts.
4 Fasten the other two pressed-
together roof beams with 8 bolts to
make the left and right roof beam
assemblies.
5 Set these pieces aside for later
61137/16"
2,9m
Single Beam
Assembly
at Side of Roof
assembly.
16
Main Roof Beam 1137/16"
Doubled Beam Assembly at Peak 2,9m
1137/16"
2,9m

® Parts Needed For ® o 6403DoorTrackSplice(1)
Step 4 #oorTrackAssembly .e3e6DoorTrack(2)
AI7
NOTE:
Door Track Splice (painted part)
The door track assembly supports
the sliding doors and reinforces the
front wall. Iris made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
64O3
2 Insert four screws from the under-
side only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall in
a later step.
3Position door slides onto the ,
legs, from the end of door track
END VIEW _ 66769
17

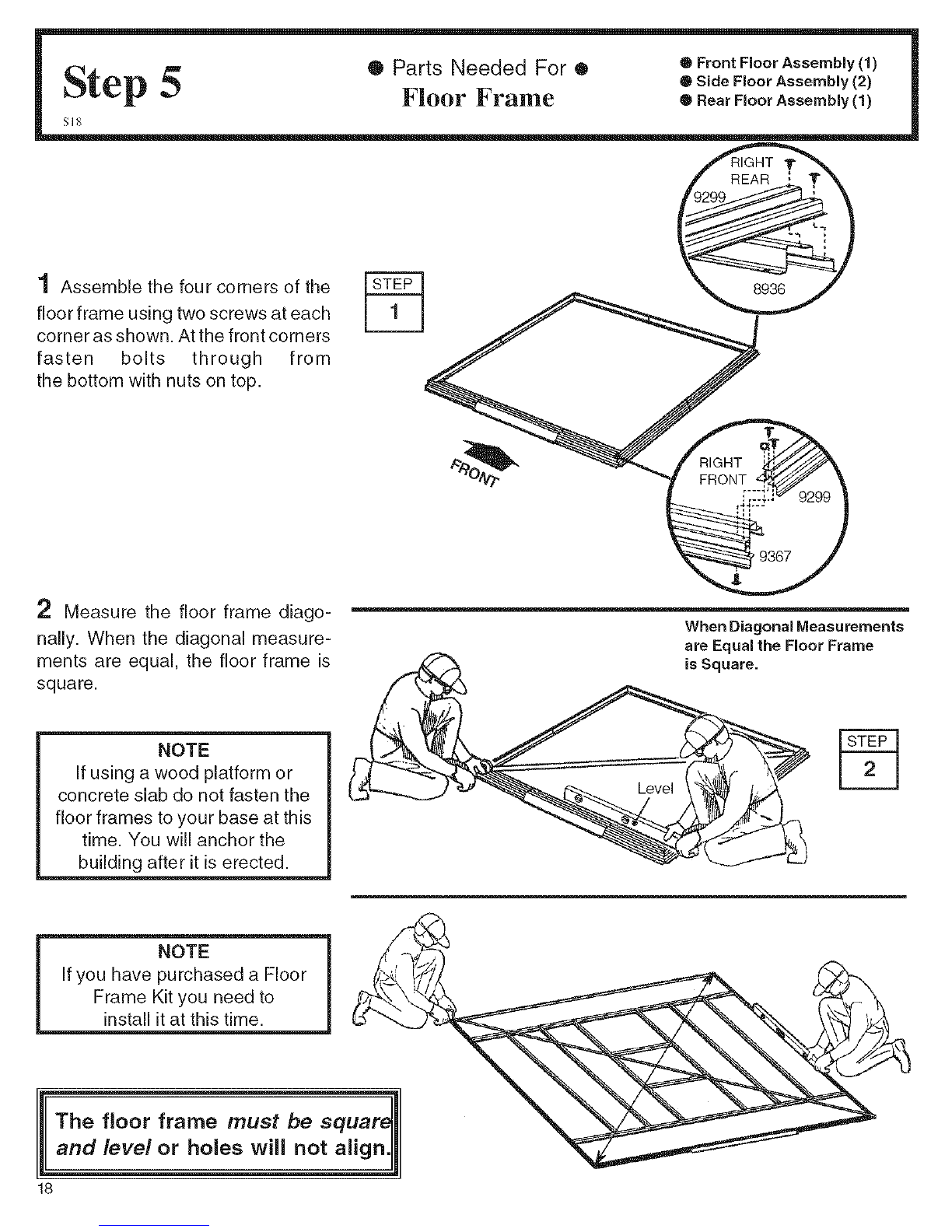

Step 5 Q Parts Needed For e
Floor Frame
• Front Floor Assembly (1)
•Side Floor Assembly (2)
•Rear Floor Assembly (1)
"1 Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from
the bottom with nuts on top.
2 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
When Diagonal Measurements
are Equal the Floor Frame
is Square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Frame Kit you need to
install it at this time.
18

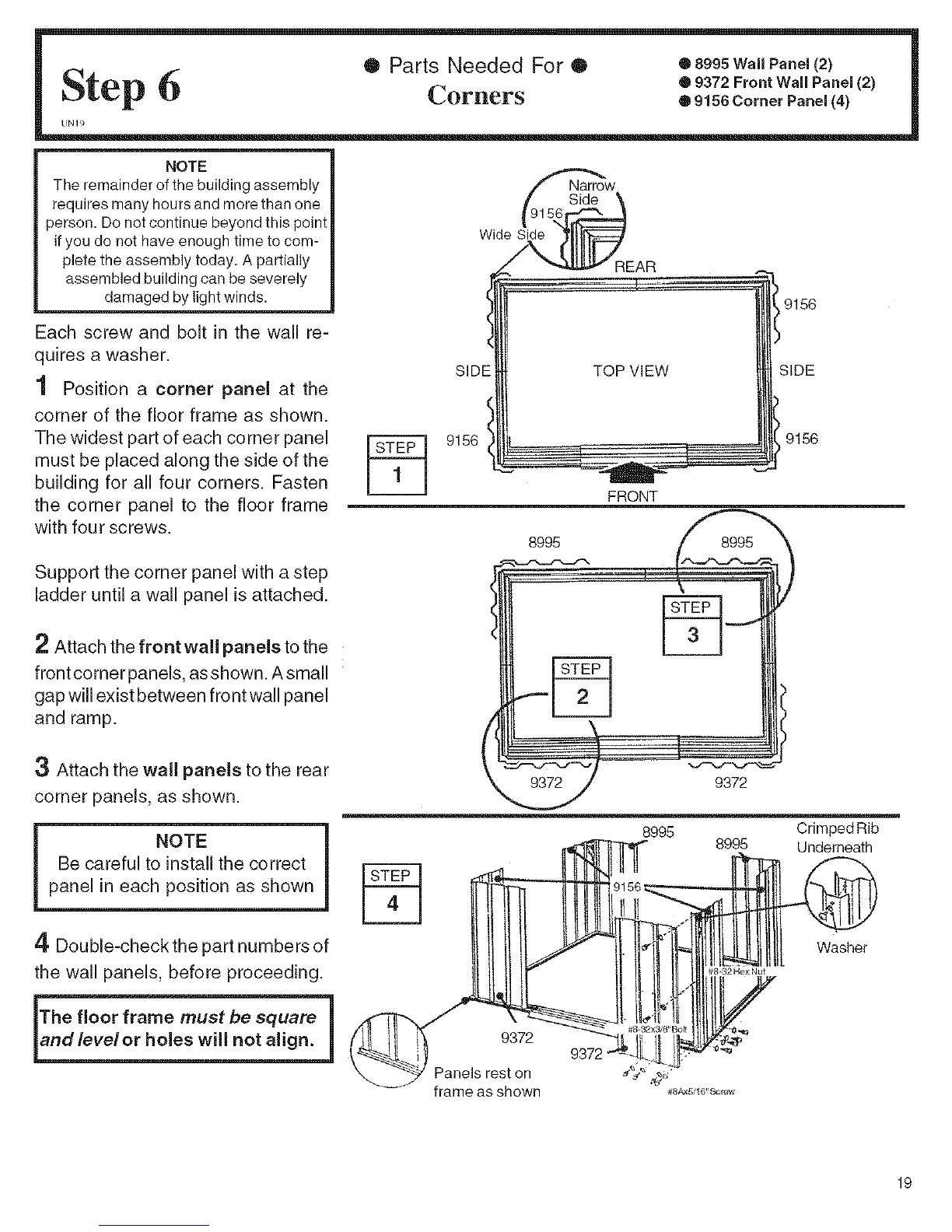

Step 6 ® Parts Needed For ® Corners ®8995 Wall Panel (2)
• 9372 Front Wall Panel (2)
Q 9156 Corner Panel (4)
UNI9
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
Each screw and bolt in the wall re-
quires a washer.
"1 Position a corner panel at the
corner of the floor frame as shown.
The widest part of each corner panel
must be placed along the side of the
building for all four corners. Fasten
Narrow
Wide Side
the corner panel to the floor frame
with four screws. 8995
Support the corner panel with a step
ladder until a wall panel is attached.
2 Attach the front wall panels to the
front corner panels, as shown. A small
gap will exist between front wall panel
and ramp.
3Attach the wall panels to the rear
corner panels, as shown.
4. Double-check the part numbers of
the wall panels, before proceeding.
IThe floor frame must be square I
9372
8995 Crimped Rib
8995 Underneath
Washer
#8-32 Hex Nut
9372
Panels rest on
frame as shown #8Ax5/16"Sclew
19

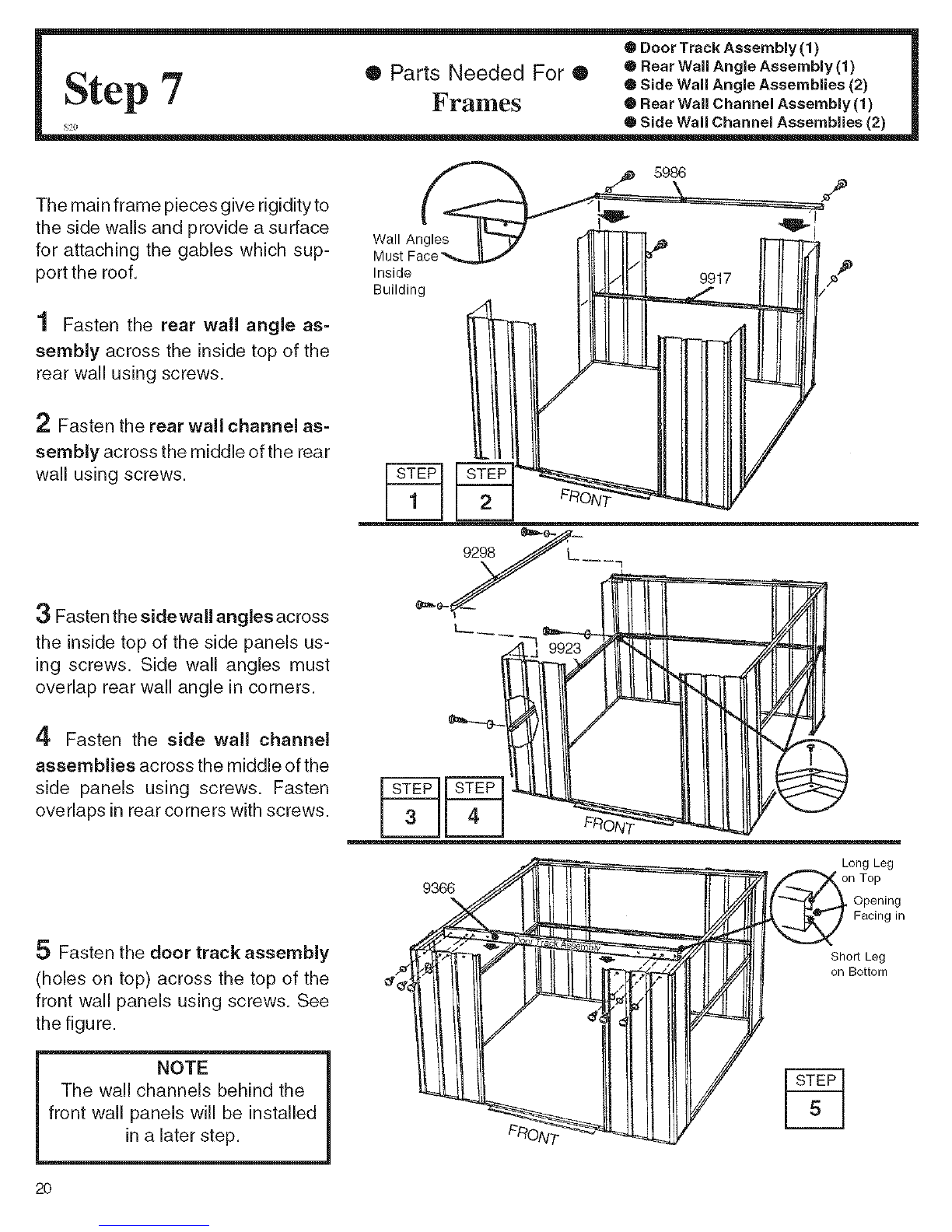

0Door Track Assembly (1)
O Parts Needed For O ORearWallAngleAssembly(1)
St p 7 , Side Wail Angle Assemb,ies (2)
e Frames •Rear Wall Channel Assembly (1)
s2o O Side Wall Channel Assemblies (2)
The main frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
1 Fasten the rear wall angle as-
sembly across the inside top of the
rear wall using screws.
2 Fasten the rear wall channel as-
sembly across the middle of the rear
wall using screws.
3Fasten the sidewall angles across
the inside top of the side panels us-
ing screws. Side wall angles must
overlap rear wall angle in corners.
4. Fasten the side wall channel
assemblies across the middle of the
side panels using screws. Fasten
overlaps in rear corners with screws.
5 Fasten the door track assembly
(holes on top) across the top of the
front wall panels using screws. See
the figu re.
NOTE
The wall channels behind the
front wall panels will be installed
in a later step.
9366
\l
i
Long Leg
_on Top
t """_..-.,_ Opening
_ Facing in
Short Leg
on Bottom
2O
