Arrow EV410-A Use and care manual

* Size rounded off to the nearest foot
BUILDING DIMENSIONS
CAUTION:SOMEPARTSHAVESHARPEDGES.CARE
MUSTBETAKENWHENHANDLINGTHEVARIOUSPIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETYINFORMATIONPROVIDEDINTHISMANUAL
BEFOREBEGINNINGCONSTRUCTION.WEARGLOVES
WHENHANDLINGMETALPARTS.
707740904
Model No. YS410-A EV410-A
697.68602
Owner's Manual & Assembly Instructions
BS1
Exterior Dimensions Interior Dimensions Door
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall) Opening
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height Width Height
4' x 10' 50 1/2" x 116 3/4" 38 227 49" 116" 82" 47 3/4" 114" 81 1/4" 38 1/2" 60 1/4"
1,2m x 2,9m 128cm x 297cm 3,5m26,4m3124cm 295cm 208cm 121cm 290cm 206cm 98cm 153cm

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation andAnchoring:Yourstoragebuilding must be anchored to preventwind
damage.A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Foundation Kit and an Arrow
Anchoring Kit as an effective method of securing your building to the ground (Available
by mail order or at your local dealer) or you may construct the foundation and anchoring
system of your choice.Your assembly instructions provide information on a few methods
commonly used to secure and level a storage building.
Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allowenoughworkingspaceforeaseofmovingpartsintopositionduringassembly. Besurethere
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day.Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need.
FoundationPreparation
•HammerandNails
• Spade or Shovel
• Hand Saw / Power Saw
•Lumberand/orConcrete
OptionalTime-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
•Square
• String (for squaring frame)
Required
• Work Gloves
•Step Ladder
• Utility Knife / Scissors
• Pliers
•Carpenter'sLevel
•TapeMeasure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protectionandlongsleeveswhenassembling
orperforming anymaintenanceonyourbuild-
ing.
•Practicecautionwiththetoolsbeingusedinthe
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keepchildrenandpetsawayfromworksiteto
avoid distractions and any accidents which
mayoccur.
•Donotattempttoassemble the building if parts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windyday,becausethe large panels acting as a
"sail",canbewhippedaboutbythewindmaking
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws.Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

6
ACCESSORIES....
A6 WEB
* Some drilling required to fit buildings without mid-wall bracing.
ModelNo.SS404
• Makes 8" to 12" (20-30cm)
wide shelves in any length.
• Brackets, braces,
hardwareincluded.
Lumber is not included.
ModelNo.SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrowbuildings.*
SHELF UNITS
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
10'Long,250lb.(113kg)load+
Fits all Arrow 10' wide buildings. 16 lbs. (7kg)AT101
Model No. Fits ShippingWeight
ATTIC KIT / WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organizespaceandcreatemore
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg)evenlydistributed.
ANCHOR KIT
Model No. AK100
New concrete anchor system permits
anchoringanysizeArrowbuilding
directly to a concrete slab. Each kit
containsheavy-duty,hot-dipped
galvanizedsteelcornergussets and
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonarydrillbit are included.
TOOL HANGING RACK
Model No. TH100
Theperfecttool organizer.Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers,pliers, etc. Holders
slide along channel for fully
adjustablespacing.Greatfor
garage,basement, or the back
of any door. Fits all Arrow
storagebuildings.
ROOFSTRENGTHENING (heavysnowload) KITSExtra roof beamsandgablebraces
designedforaddedprotectionagainstheavysnowaccumulation.Increasesthestrengthofyourroofby50%.
ANCHOR KIT
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps.Nodigging or concrete
pouring,justinsert cable under roof,
over roof beams, into augers and twist
augersintotheground.Forbuildings
larger than 10'x9', use 2 kits.
FLOOR FOUNDATION KITS
MODELS FB47410, FB5465, FB106-A
FB109-A, FB1010 AND FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
8

The Foundation For Your Building
9
FRONT
(DOOR)
FRONT
(DOOR)
Foundation
BS9
Note:Finished Slabdimensions,with lumberremoved.
OPTION 1: ARROW FLOOR FOUNDATION KIT: (Order No. FB47410)
Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This foundation should be used
with one of the following:
A. To support a plywood deck B. To be filled with sand. We recommend the combined use of
1.anARROWFLOORFOUNDATIONKITand2.anARROWANCHORINGKITasaneffectivemethodofsecuringthebuildingtothe
ground. Allow 1 - 2 hours for construction.
OPTION 2: Wood Platform
If you decide to build your own foundation, be sure to select the appropriate materials.
Thesearetherecommended materials foryourfoundation:
●2 x 4's (5cm x 10cm) Pressure Treated Lumber ●5/8" (1,5cm) 4 x 8 (122cm x 244cm) Plywood-exterior grade
●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)
The platform should be level and flat (free of bumps, ridges etc.)
to provide good support for the building. The necessary materials
may be obtained from your local lumber yard.
Toconstruct the foundationfollowinstructions and diagram.
Constructframe (using10 pennygalvanizednails)
Measure 16"/24" (40,6cm/61cm) sections to construct
insideframe(seediagram)
Secureplywoodto frame (using 4 penny galvanized nails)
Allow 6 - 7 hours for construction.
OPTION 3: Concrete Slab
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
●1 x 4's (2,5cm x 10cm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
PreparetheSite/ConstructaFoundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 1x4 (2,5cm x 10cm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note:Platform/Slab willextend 9/16"(1,4cm) beyondfloor
frame on all four sides. Seal this 9/16" of wood with a
roofing cement (not included), or bevel this 9/16" of
concretewhen pouring, for good waterdrainage.
1163/4"
3,0m
16"/24"
40,6cm/61cm
501/2"
1,3m
1163/4"
3,0m
501/2"
1,3m

It is important that the entire floor frame be anchored after the building is erected.
Belowarerecommendedwaysofanchoring.
Anchoring Down The Building
Anchoring
BR10
ArrowAnchoringKit:(ModelNo.AK100or68383)
Recommendedforusewiththeconcretefoundation.
Contains:Cornergussets,perimeterclips,hardware,
1/4" masonary drill bit and installation instruction.
AnchoringintoConcrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.
AnchoringintoWood/Post:
Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holesprovidedin theframesforproperanchoring.
10

11
67293/67545
Foil Tape (2)
66057
Trim Cap (1)
66462
Hasp(1)
66684
SpringLatch(2)
66016
FaciaCap
(1 Right and 1 Left) 66463
SwivelStaple (1)
66646
Washer(276)
(8sheetsof40)
66645
#6-32x3/4"FlatHdBolt(6)
(PackedwithScrews) 66022
GrayFoamTape (2)
65004
#8Ax5/16"Screw(306)
65923
#8-32x3/8"Bolt(68)
65941
#6-32HexNut(22)
(PackedwithScrews)
65103
#8-32HexNut(68)
Hardware
BS11
66604
Hinge(4)
66714
#6-32x7/16"FlatHdBolt(16)
(PackedwithScrews)

12
Parts List

13

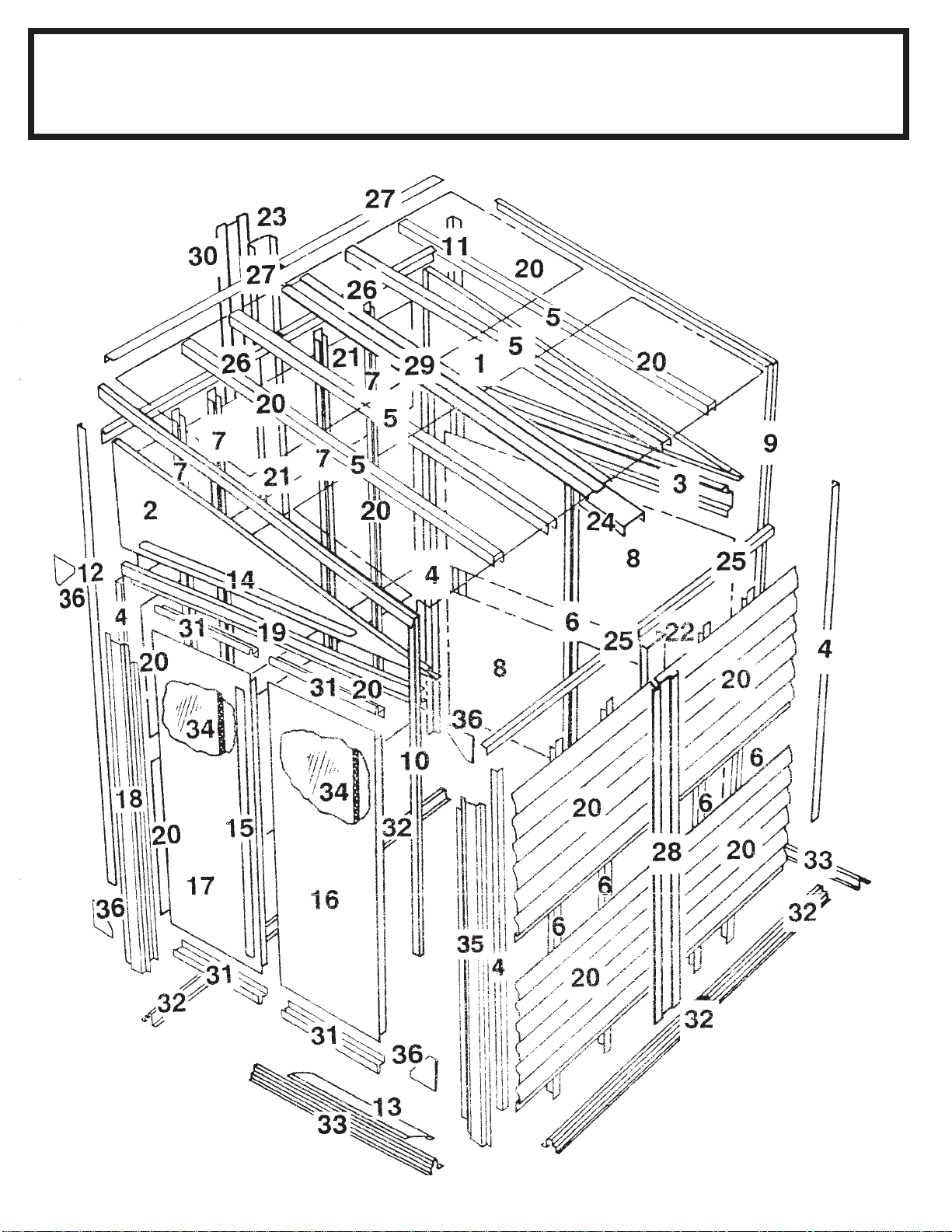

Assembly by Key No.

14
●●
●●

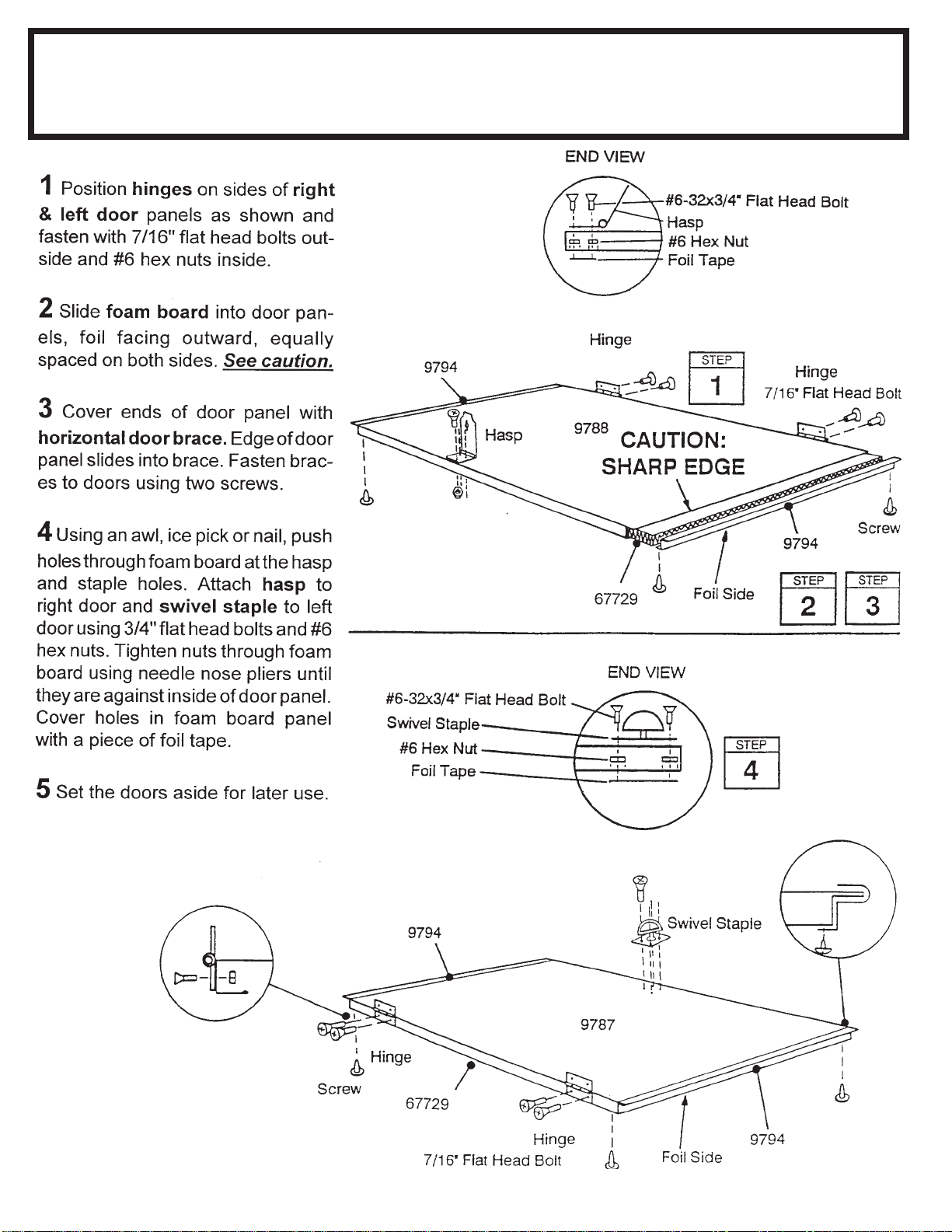

●9794Horizontal Door Brace(4)
●●
●●
●9788 Right Door (1)
●●
●●
●9787Left Door (1)
●●
●●
●67729 Foam Board (2)
●Parts Needed For ●
DoorAssembly
Step 1

●●
●●
●9796 Ramp (1)
●●
●●
●9795 Floor Frame (2)
●●
●●
●8976 Side Floor Frame (4)
●Parts Needed For ●
Floor Frame Assembly
Step 2
BS15
The floor frame must be square
and level or holes will not align. 15
3 Assemble the four corners of the
floorframeusingtwoscrewsateach
corner as shown.
4 Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Foundation Kit you need to
install it at this time.
STEP
8976
Level
STEP
4
WhenDiagonalMeasurements
are Equal the Floor Frame
is Square.
1
Side Floor Frame 115 1/8" (2,9 m)
8976 8976
1 Overlap the side floor frames as
shown. The holes in these pieces will
align when the pieces are positioned
with correct amount of overlap. See
the illustration below for the proper
overall length of the side floor frames.
Join the frames by inserting five bolts
and nuts in each frame set as shown.
2 Center the ramp on top of the floor
frame. Note that the door can be
installed on either end. Join the
frames by inserting four screws.
8976
RIGHT
REAR
9795
2
STEP STEP
3
9796
FRONT
9795
8976

●●
●●
●9793Corner Post (2)
●●
●●
●8075 Rear Siding (1)
●Parts Needed For ●
Corner Posts/Rear Siding
Step 3
16

●●
●●
●6481Gusset(4)
●●
●●
●9793Corner Post (2)
●●
●●
●8433 Siding Stud (1)
●●
●●
●8434 Siding Stud (1)
●●
●●
●8431 Side Siding (4)
●Parts Needed For ●
Corner Posts/Studs/Siding
Step 4
17

●●
●●
●9791FrontHeader(1)
●●
●●
●8437 Side Eave Frame (2)
●●
●●
●8062RearHeader(1)
●●
●●
●9789 Left Door Jamb (1)
●●
●●
●9790 Right Door Jamb (1)
●Parts Needed For ●
Headers/Frames/Jambs
Step 5
18

●●
●●
●8431 Side Siding (4)
●●
●●
●8075 Rear Siding (1)
●●
●●
●8067 Siding Stud (5)
●●
●●
●8068 Siding Stud (4)
●Parts Needed For ●
Side/Rear Siding/Studs
Step 6
19

●●
●●
●8061Left Gable (1)
●●
●●
●8060 Right Gable (1)
●●
●●
●8438 Side Peak Frame (2)
●●
●●
●8066 Roof Frame (4)
●●
●●
●8435 Roof Frame (1)
●Parts Needed For ●
Gables/Peak/Roof Frames
Step 7
20
NOTE
The gables are packed nested
togetherandmightbemistakenas
onepiece. Carefullyseparate
thembeforecontinuing.
