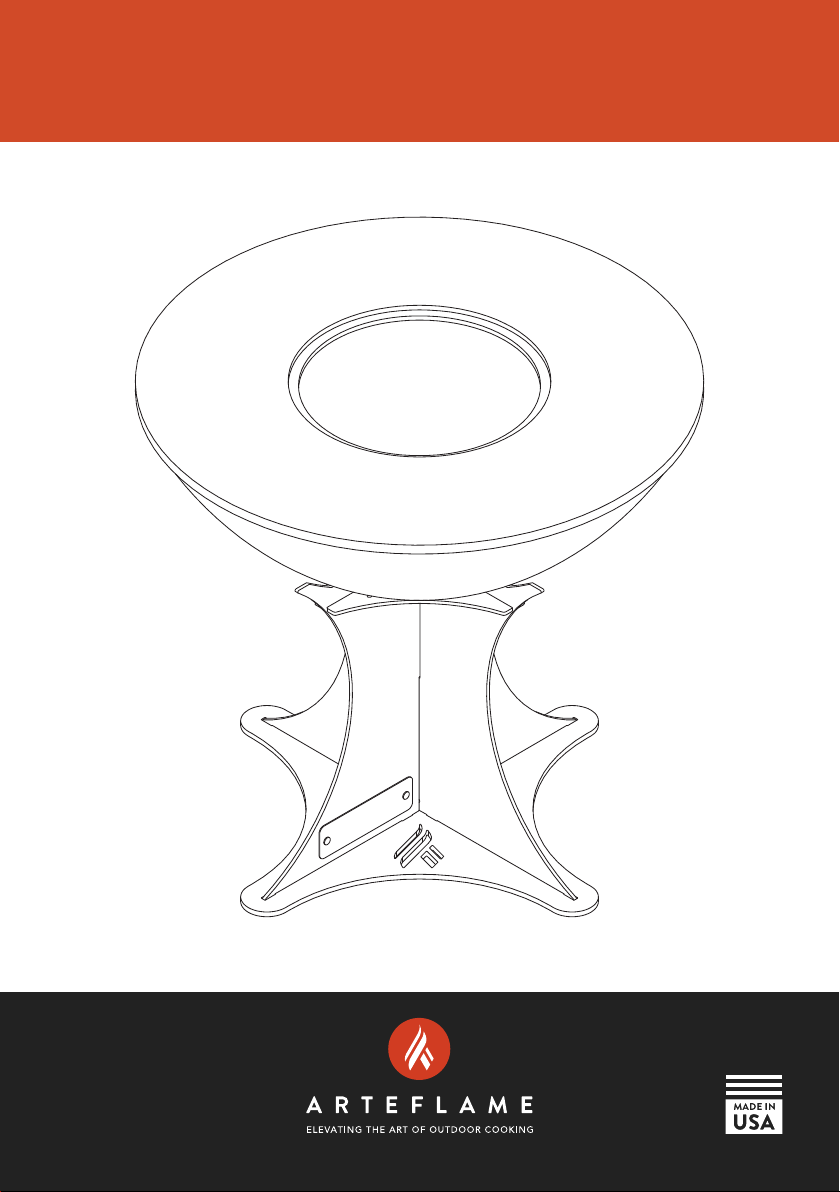

Arteflame EURO 20 GRILL User manual

ASSEMBLY INSTRUCTIONS
EURO 20” GRILL

2
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Thank you for your purchase!
You are minutes away from firing up your Arteflame and
beginning to experience outdoor entertainment, Arteflame style.
Assembly is simple and requires one person.
When you first unpack your grill, carefully unpack all the
components and move them to where you want to assemble your
grill. Handle all parts by the edges as to not disturb the natural
patina already present. If you are setting up the Euro grill in grass
or in sand, you may choose to just assemble the base without the
stainless steel base plate.
Attention
Assembly requires one person and we recommend holding all
parts by their edges while wearing gloves
1 person Wear gloves

3
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Euro Base assembly
The Euro Base is made up of four pieces pictured below from left
to right:
■Two Corten steel legs
■One with Arteflame badge, notch facing down
■One without badge, notch facing up
■One Corten steel cross key
■One stainless steel, notched star footing base
All Corten steel parts have a carefully developed patina and
should be handled with care as to not scratch, damage or disturb
the patina on them.

4
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Place the stainless steel footer
where you would like your
Arteflame to be. Make sure this
footer is as level as possible.
Place the first leg without the
Arteflame badge, notch facing
up, onto the footer so that the
tabs on the legs fit into the slots
of the footer.
Step
Step
1
2

5
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Have the other person place the
second leg with the Arteflame
badge, notch facing down, over
the first leg and slide it straight
down so that the two notches
slide into each other.
Step 3
Make sure the intersection of
the two legs is flush and flat
where they cross at the top. If
the legs are still not flush and
flat then move any leg that is
not seated properly back and
forth a bit until all the notches
are seated and then the legs will
become flush and flat.
Step 4

6
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Place the Corten steel cross key
on top of the interlocking legs,
ensuring it sits flat and flush
with the top of the legs and can
be pushed into place.
Now that your Euro Base is
assembled you are ready to
place the heavy duty fire bowl
and cooktop on top of the base.
Step 5

7
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Cooktop assembly
The Arteflame Classic 20 Bowl is made up of three pieces:
■The laser cut carbon steel cooktop
approximately 24 pounds (11 kg)
■The Corten steel firebase
■The spun Arteflame Corten steel bowl
approximately 50 pounds (23 kg)

8
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Lift the Arteflame fire bowl by
the inside ring so the patina
doesn’t get disturbed.
Carefully walk the fire bowl to
the grilling location where the
base is waiting. Carefully place
it on top of the base as level as
possible.
The firebase is shipped inside
the bowl. If it is removed during
installation, it needs to be put
into the bowl before putting
the cooktop on top of the
bowl. Pickup the firebase and
carefully rest it inside the bowl
with the 2 pins through the
holes at the bottom of the bowl.
Step
Step
1
2

9
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
There is no lifter or need of a
2x4. Just lift it up (weighs 24
pounds) and carefully put it in
place without pinching fingers.
The cooktop slightly overhangs
the bowl evenly on all sides.
Position the cooktop by lifting it
through the center hole ONLY.
DO NOT lift it by the outer
edge as your fingers could get
pinched between the bowl and
the cooktop.
Step 3

10
EURO 20” GRILL
ASSEMBLY INSTRUCTIONS
Your fully assembled Arteflame grill is now complete! Make sure
your Arteflame is as level as possible so all excess grease will
always flow into the middle and into the fire.
You are now ready to build your fire and start the seasoning
process of the cooktop. Any cooking oil can be used but we
recommend using flaxseed oil for best results.
You can use a carpenter level or even your smartphone if it has a
level function. When leveling the cooktop, please note that the
cooktop is sloped downward towards the middle to allow oils to
slide into the grill center. To get your best readings on levelness,
place the leveling device around the outer edge of the cooktop to
give you the most accurate reading.
