INTRODUCTION

This manual describes the operation and use of the C&H Model VX414C VXI 16/48-Channel

Switching Module (Part Number 11027680). This VXI module is one of a number of test and

data acquisition/control modules in the VME and VXI format provided by C&H.

Contained within this manual are the physical and electrical specifications, installation and startup

procedures, functional description, and configuration and programming guidelines to adequately

use the product.

The part numbers covered by this manual are:

Part Number Description

11027684-0001 VX414C 16/48-Channel Switching Module

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

TABLE OF CONTENTS

1.0 GENERAL DESCRIPTION ............................................................................................ 1

1.1 PURPOSE OF EQUIPMENT............................................................................... 1

1.2 SPECIFICATIONS.............................................................................................. 1

1.2.1 Key Features.......................................................................................... 1

1.2.2 Electrical................................................................................................ 1

1.2.3 Mechanical............................................................................................. 1

1.2.4 Environmental........................................................................................ 2

1.2.5 Bus Compliance..................................................................................... 2

2.0 INSTALLATION ............................................................................................................ 3

2.1 UNPACKING AND INSPECTION ..................................................................... 3

2.2 HANDLING PRECAUTIONS............................................................................. 3

2.3 INSTALLATION................................................................................................. 3

2.4 PREPARATION FOR RESHIPMENT................................................................. 3

3.0 FUNCTIONAL DESCRIPTION...................................................................................... 5

3.1 GENERAL........................................................................................................... 5

3.1.1 VXI Interface......................................................................................... 5

3.1.2 Data Latches.......................................................................................... 5

3.1.3 Relay Driver........................................................................................... 6

3.1.4 Relay Status........................................................................................... 6

3.1.5 Relay...................................................................................................... 6

3.1.6 Connector.............................................................................................. 6

3.2 HARDWARE CONFIGURATION ...................................................................... 7

3.3 INDICATORS ..................................................................................................... 8

3.4 CONNECTORS................................................................................................... 8

3.4.1 Front Panel Connectors.......................................................................... 8

3.4.2 Rear Connectors .................................................................................... 8

3.5 CONFIGURATION REGISTERS........................................................................ 9

3.5.1 VXI Configuration Registers.................................................................. 9

3.5.2 Relay Control/Status Registers............................................................... 11

4.0 OPERATING INSTRUCTIONS...................................................................................... 13

APPENDIX A - BOARD LAYOUT......................................................................................A-1

APPENDIX B - VXI CONNECTORS...................................................................................B-1

APPENDIX C - RELAY CONNECTORS.............................................................................C-1

vii

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

LIST OF FIGURES

Figure 1. Functional Block Diagram.......................................................................................5

Figure 2. Hardware Configurable Controls .............................................................................7

Figure 3. Front Panel..............................................................................................................8

Figure 4. VXI Registers .........................................................................................................10

Figure 5. Relay Control/Status Registers ................................................................................12

Figure B-1. P1 Pin Configuration ...........................................................................................B-3

Figure B-2. P2 Pin Configuration ...........................................................................................B-4

LIST OF TABLES

Table I. Relay Specifications...................................................................................................2

Table II. Configuration Register Summary..............................................................................9

viii

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

1.0 GENERAL DESCRIPTION

The VX414C 16/48-Channel Switching Module is a C size, Register based switching card that

provides 16 channels of SPST (Form-A) switching and 48 channels of SPDT (Form-C)

switching. The 16 Form-A channels are rated for up to 5 amps and the 48 Form-C channels are

rated for up to 2 amps.

1.1 PURPOSE OF EQUIPMENT

This module is designed to provide a low cost solution to Form-A and Form-C switching

requirements in VXI test or measurement applications. Typical applications include power

switching, and low-frequency switching and control.

1.2 SPECIFICATIONS

1.2.1 Key Features

•16 independently controlled single pole, single throw (SPST) non-latching relays

•48 independently controlled single pole, double throw (SPDT) non-latching relays

•Dry contact relays and unique circuit board construction provide high current

carrying capacity

•Read-back of control register state

•Relay contacts are open on power-up or reset

1.2.2 Electrical

The module requires +5V and +12V power from the VXI backplane. The typical (quiescent)

module current for the +5 volt supply is TBD amps. The relays require 16 milliamps per closed

relay from the +12 volt supply. Detailed specifications for the relays is provided in Table I.

1.2.3 Mechanical

The mechanical dimensions of the module are in conformance with the VXI bus specification for

single slot Size-C modules. The nominal dimensions are 233.35 mm (9.187 in) high x 340 mm

(13.386 in) deep. The module is designed for a mainframe with 30.48 mm (1.2 in) spacing

between slots.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table I. Relay Specifications

Ratings For Resistive Loads Form-A Relays Form-C Relays

Maximum Power Switched, per relay 525 VA 250 VA

Maximum Volts Switched 250 VAC, 110 VDC 250 VAC, 110 VDC

Maximum Current:

Switched

Carry 5.0A (125 VAC, 30 VDC)

5.0A (125 VAC, 30 VDC) 2.0A (125 VAC, 30 VDC)

2.0A (125 VAC, 30 VDC)

Contact Resistance 100mΩ(max. initial) 100mΩ(max. initial)

Insulation Resistance 1000 MΩ(500 VDC) 1000 MΩ(500 VDC)

Relay Life (operations)

Rated Load 107operations 107operations

Operate Time 6 ms (typical) 6 ms (typical)

Release Time 4 ms (typical) 4 ms (typical)

1.2.4 Environmental

The environmental specifications of the module are:

Operating Temperature: 0°C to +55°C

Storage Temperature: -40°C to +75°C

Humidity: <95% without condensation

1.2.5 Bus Compliance

The module complies with the VXIbus Specification Revision 1.4 for B-size register based

modules and with VMEbus Specification ANSI/IEEE STD 1014-1987, IEC 821 and IEC 822.

Module: C-size, single slot

Device Type: Register Based

Manufacturer ID: FC116

Model Code: FFFE16

Addressing: A16

Data Transfer: D16 Slave

Memory Space: None

Interrupts: None

Bus Arbitration: BRx tied to BGx

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2.0 INSTALLATION

2.1 UNPACKING AND INSPECTION

In most cases the VX414C is individually sealed and packaged for shipment. Verify that there has

been no damage to the shipping container. If damage exists then the container should be retained

as it will provide evidence of carrier caused problems. Such problems should be reported to the

carrier immediately as well as to C&H. If there is no damage to the shipping container, carefully

remove the module from its box and anti static bag and inspect for any signs of physical damage.

If damage exists, report immediately to C&H.

2.2 HANDLING PRECAUTIONS

The VX414C contains components that are sensitive to electrostatic discharge. When handling

the module for any reason, do so at a static-controlled workstation, whenever possible. At a

minimum, avoid work areas that are potential static sources, such as carpeted areas. Avoid

unnecessary contact with the components on the module.

2.3 INSTALLATION

AAAA

AAA

AAAA

CAUTION: Read the entire User's Manual before proceeding with the

AAAA

AAA

AAAA

installation and application of power.

Set the module's logical address and configure all jumpers as described in 3.2. Insert the module

into the appropriate slot according to the desired priority. Apply power. If no obvious problems

exist, proceed to communicate with the module as outlined in Section 4.0 (Operating

Instructions).

2.4 PREPARATION FOR RESHIPMENT

If the module is to be shipped separately it should be enclosed in a suitable water and vapor proof

anti static bag. Heat seal or tape the bag to insure a moisture-proof closure. When sealing the

bag, keep trapped air volume to a minimum.

The shipping container should be a rigid box of sufficient size and strength to protect the

equipment from damage. If the module was received separately from a C&H system, then the

original module shipping container and packing material may be re-used if it is still in good

condition.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.0 FUNCTIONAL DESCRIPTION

3.1 GENERAL

VX414C is a general purpose switching module that provides individual switches for controlling

external devices and routing general purpose signals. The module provides 16 channels of Form-

A relays and 48 channels of Form-C relays with external access via a front panel connector. Each

Form-A channel includes a SPST non-latching relay with the two contact terminals of each relay

brought out through the front panel connectors. Each Form-C channel includes a SPDT non-

latching relay with the three contact terminals (COM, NO, NC) of each relay brought out through

the front panel connectors.

A functional block diagram is shown in Figure 1.

CONNECTORS

VXI ADDRESS

DECODE

LOGIC

DATA

BUFFER

CONTROL

LOGIC

DATA

LATCHES

RELAY

STATUS

RELAY

DRIVERS

CONTROL

LOGIC

CONTROL

LOGIC

VXI ADD BUS

VXI DATA BUS

CONTROL LOGIC

FRONT PANEL CONNECTIONS

16 SPST RELAYS

K1-K14

IN OUT

K15

IN OUT

FRONT PANEL CONNECTIONS

48 SPDT RELAYS

K16 K63

K17-K62

NC COM NO NC COM NO

Figure 1. Functional Block Diagram

3.1.1 VXI Interface

The VXI interface, consisting of the VXI connectors, address decode logic, control logic and data

buffer, provides the electrical and mechanical connections to the VXI backplane. It performs

address decoding and bus buffering functions.

3.1.2 Data Latches

Programming of the module is through direct register access. There are 64 independent relays on

the module which are controlled using the relay control registers. The relay control register

receives relay control data from the VXI interface and latches it into registers. Module reset

results in these registers being cleared to a low output.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.1.3 Relay Driver

The relay driver function receives relay control data from the data latch and provides relay coil

current control for energizing or de-energizing the relay. A logic high on the input of the relay

driver results in a low on its output, thus providing a current through the relay coil, which closes

the contact. Module reset results in the output of the relay driver at logic high, thus de-energizing

the relay and opening the contact.

3.1.4 Relay Status

This function reports the status of the control state of the relays. A read of the relay status

registers allows a verification of the programmed state of the relays.

3.1.5 Relay

The contacts of the relay are routed to corresponding pins on a connector on the front panel, and

are available by supplying a mating connector and wiring to an external requirement. The relay

contact closes when the relay has a sufficient current applied across its coil. The relay is in its

open state if no current is present on its coil, such as when the module is reset.

3.1.6 Connector

The front panel connectors allow the relay contacts to be connected to an external application. A

mating connector must be acquired and wired to the external application.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.2 HARDWARE CONFIGURATION

Logical Address The logical address has a range of 0 to 255. Any value, except 0 and 255

which are reserved for slot 0 controllers and dynamic addressing, is valid. However, care should

be taken not to set the logical address the same as another module in the system. The most

significant bit (MSB) has a weighted value of 128 when the switch is in the off (1) position. The

least significant bit has a weighted value of 1 when the switch is in the off (1) position. The sum

of the weighted values of all the switches in the off position is the module logical address. The

switch location is shown in Figure 2.

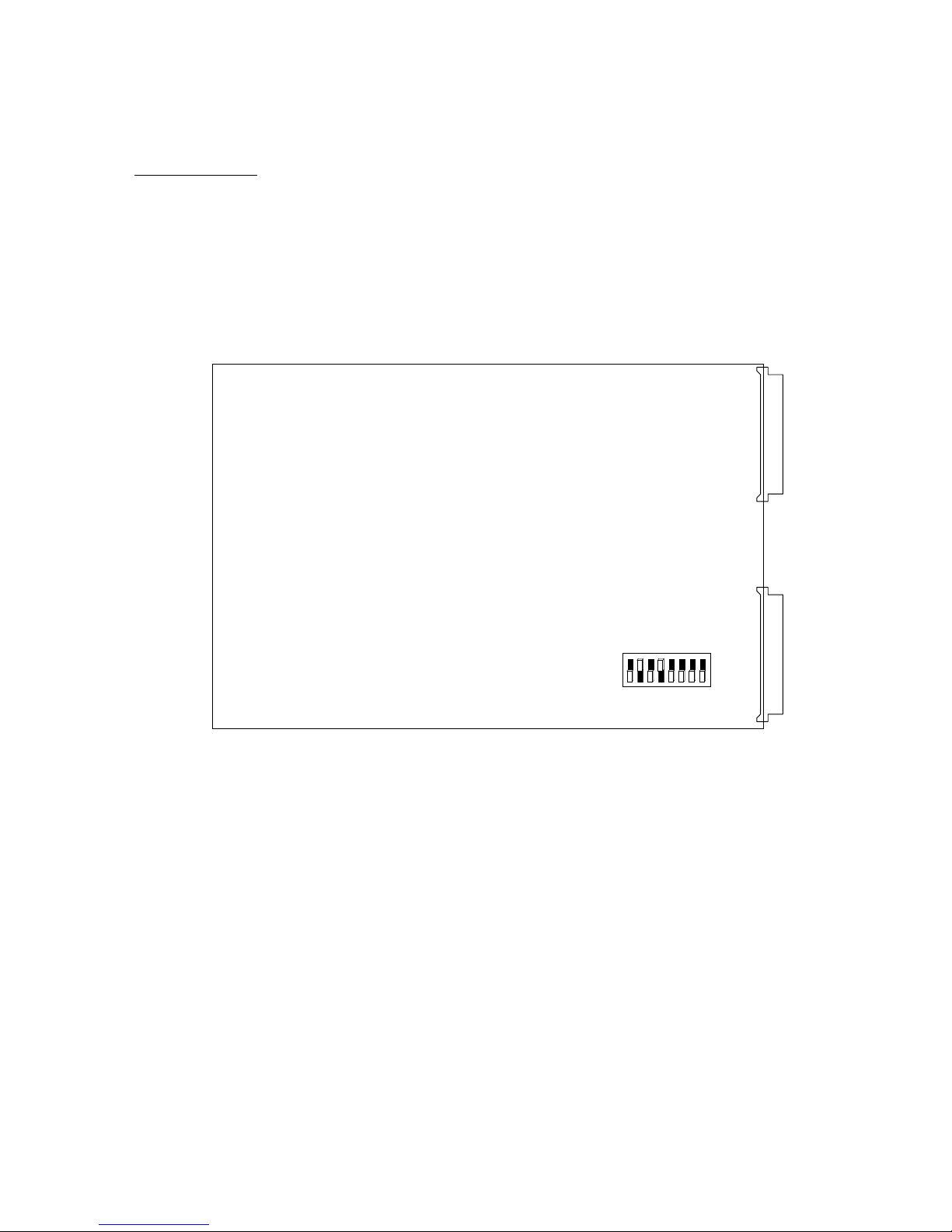

LOGICAL ADDRESS SWITCH

OFF

NOTE: BIT POSITIONS ARE AS INDICATED

ON THE MODULE'S SHIELD

Figure 2. Hardware Configurable Controls

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.3 INDICATORS

bus

VX414C

16/48

SWITCHING

ACCESS

MODID

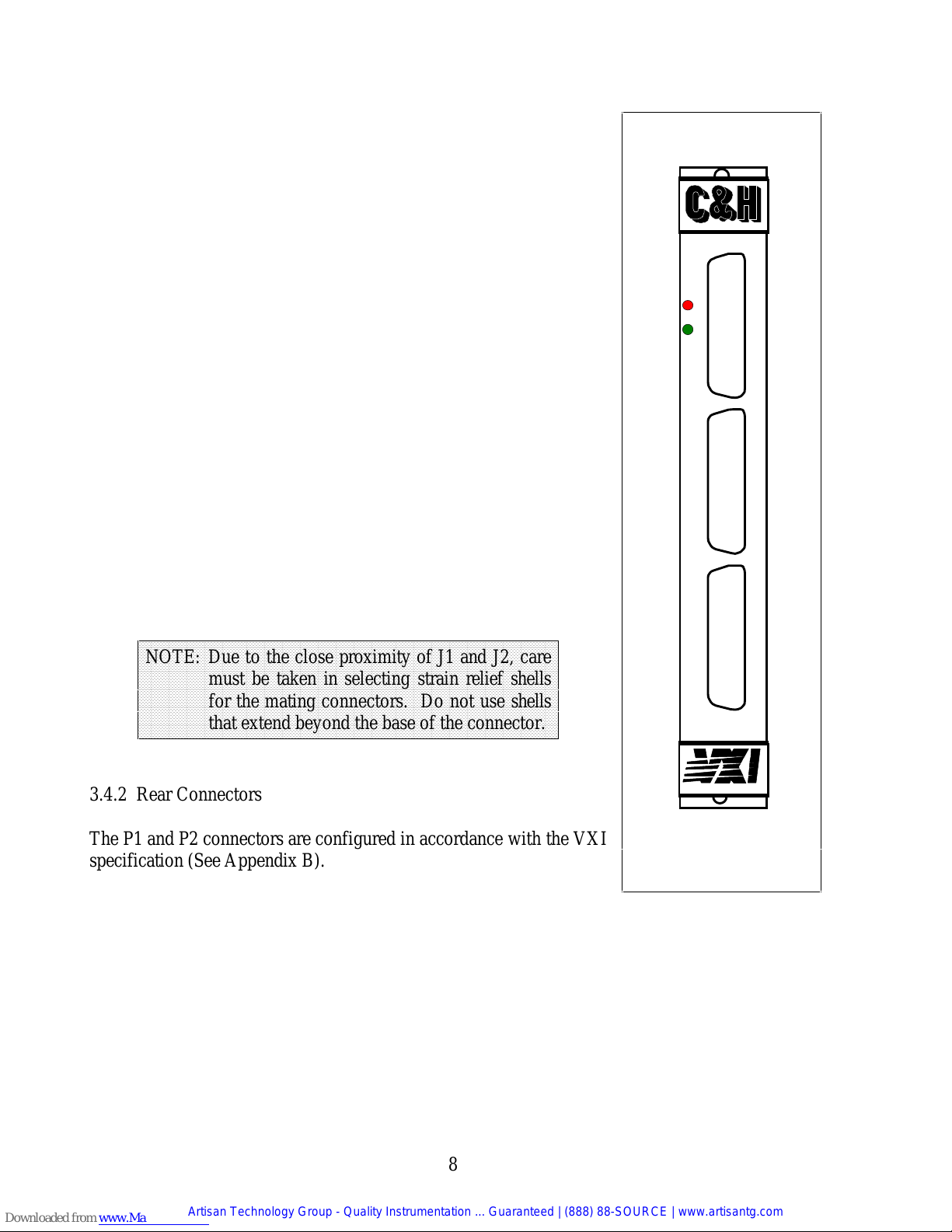

Figure 3. Front Panel

Two LED indicators are provided on the front panel. Their functions

are described below:

ACCESS This LED illuminates when the module is

properly accessed by the host processor.

MODID This LED illuminates when the host

processor applies the MODID signal to the

slot the module is occupying.

3.4 CONNECTORS

3.4.1 Front Panel Connectors

J1 is an AMP HD-22 50-postion receptacle type connector. J2 and

J3 are AMP HD-22 78-position receptacle type connectors. The

connectors mate with any size 22 subminature D connectors

dimensionally complying with MIL-C-24308. Pin locations are

shown in Appendix C.

AAAA

AAA

AAAA

AAA

AAAA

NOTE: Due to the close proximity of J1 and J2, care

AAAA

AAA

AAAA

AAA

AAAA

must be taken in selecting strain relief shells

AAAA

AAA

AAAA

AAA

AAAA

for the mating connectors. Do not use shells

AAAA

AAA

AAAA

AAA

AAAA

that extend beyond the base of the connector.

3.4.2 Rear Connectors

The P1 and P2 connectors are configured in accordance with the VXI

specification (See Appendix B).

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.5 CONFIGURATION REGISTERS

There are several registers used to configure and control the VX414C. These registers are

divided into two groups: VXI Configuration and Relay Control/Status. All of the registers are

located within the A16 address space as shown in Table I. The base address of the registers is a

function of the Logical Address of the module.

Table II. Configuration Register Summary

A16 Address Register Description

Base + 00 VXI ID

Base + 02 VXI Device Type

Base + 04 VXI Status/Control

Base + 06 VXI Unused Register

Base + 08 to 0E Unused

Base + 10 Relay Control/Status K15-K0

Base + 12 Relay Control/Status K31-K16

Base + 14 Relay Control/Status K47-K32

Base + 16 Relay Control/Status K63-K48

3.5.1 VXI Configuration Registers

The VXI configuration registers contain basic information needed to configure a VXIbus system.

The configuration information includes: manufacturer identification, product model code, device

type, memory requirements, device status, and device control. The registers are briefly described

below and are detailed in Figure 4.

VXI Identification (ID) Register (0016) A read of this register provides manufacturer

identification, device classification (i.e., register based), and the addressing mode (A16). A write

to this register has no effect.

VXI Device Type Register (0216) A read of this register provides the model code identifier. A

write to this register has no effect.

VXI Status/Control Register (0416) A read of this register provides the state of P2 MODID* line,

the interrupt level, and the Ready and self-test Passed status. A write to this register controls

resetting of the module.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

00 VXI ID

Bit1514131211109876543210

Read

Only Device

Class Address

Space Manufacturer ID

Device Class

Device Class (11 = Register Based)

Address Space

Address Space (11 = A16 only)

Manuf. ID

Manufacturer Identification (C&H Technologies = FC116)

02 VXI Device Type

Bit1514131211109876543210

Read

Only Model Code

Model Code

Model code (VX414C = FFFE16)

04 VXI Status/Control

Bit1514131211109876543210

Write Not Used RST

Read AAA MID 1111110000RDYPASS 0 1

AAA

A24/A32 Access (0 = disabled)

RST

Reset (A 1 written to this bit resets the module)

MID

Module ID Status (0 = P2 MODID* line is selected)

RDY

Ready (1 = ready)

PASS

Pass/fail indicator (0 = executing or failed, 1 = passed)

Figure 4. VXI Registers

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

3.5.2 Relay Control/Status Registers

The Relay Control and Status Registers are used for the control and status of relay switch states,

as described below.

Relay Control/Status Register K15-K0 (1016) A write to this register controls the state of the

Form-A relays K0 through K15 (0 = open, 1 = close). A read of this register reports the status of

the control state of the relays.

Relay Control/Status Register K31-K16 (1216) A write to this register controls the state of the

Form-C relays K16 through K31 (0 = open, 1 = close). A read of this register reports the status

of the control state of the relays.

Relay Control/Status Register K47-K32 (1416) A write to this register controls the state of the

Form-C relays K32 through K47 (0 = open, 1 = close). A read of this register reports the status

of the control state of the relays.

Relay Control/Status Register K63-K48 (1616) A write to this register controls the state of the

Form-C K48 through K63 (0 = open, 1 = close). A read of this register reports the status of the

control state of the relays.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of contents

Other artisan Switch manuals

artisan

artisan APC AP7722 User manual

Popular Switch manuals by other brands

Honeywell

Honeywell ZW4003 manual

Digitus

Digitus DA-70135-1 user manual

Gerber Technology

Gerber Technology GPS-2000 manual

Wegener

Wegener Unity RF Switch Installation & operating guide

barclaycard

barclaycard Smartpay Hub Get started

ETS

ETS SM17 instructions

hiltbrand

hiltbrand DUNGS LGW A4 Series manual

ACME

ACME SMK520 user manual

LevelOne

LevelOne GEP - 5271 Quick installation guide

H3C

H3C S9500 Series Command manual

Planex

Planex SF-0424F Quick installation guide

CYP

CYP EL-5600 Operation manual

Aus Electronics Direct

Aus Electronics Direct AA6067 user manual

Lindy

Lindy 43228 user manual

ANTAIRA

ANTAIRA LNP-0800-60-24 Series Quick installation guide

Vega

Vega VEGASWING 66 operating instructions

Cisco

Cisco Catalyst 3560-24PS Specifications

Hall Research Technologies

Hall Research Technologies URA-232 user manual

artisan VX414C User manual

Popular Switch manuals by other brands
