Artopex conference User manual

conference
Installation Guide
February 2013

5
6
7
9
10
11
12
14
15
16
18
18
19
21
Index
1-BASES
Alto bases with modesty panels
Duo bases with modesty panels
X-base assembly
X-base with modesty panels
Rectangular bases with modesty panels
Triangular bases with modesty panels
Positioning drum bases on a surface
Positioning metal bases on a surface
2-SURFACES
Assembly of a multiple section surface
Positioning a conference surface on wood bases
Positioning a meeting surface on a wood base
3-ELECTRICITY AND CABLE MANAGEMENT
Conference table with Alto bases, Duo bases or X-wood bases
Conference table with architectural bases
Conference table with drum bases
Conference table with metal bases
Meeting table with wood base
Meeting table with metal base
Work wall with credenza
Conference Installation Guide - February 2013

INdex
4-STORAGE
Installation of legs on a storage unit
Installation of a credenza shelf
Installation of a wall mounted credenza
5-PRESENTATION BOARD
Installation of a presentation board
4- WORK WALLS
Installation of an upper work wall
Installation of a lower work wall
Conference Installation Guide - February 2013
23
24
25
27
29
31

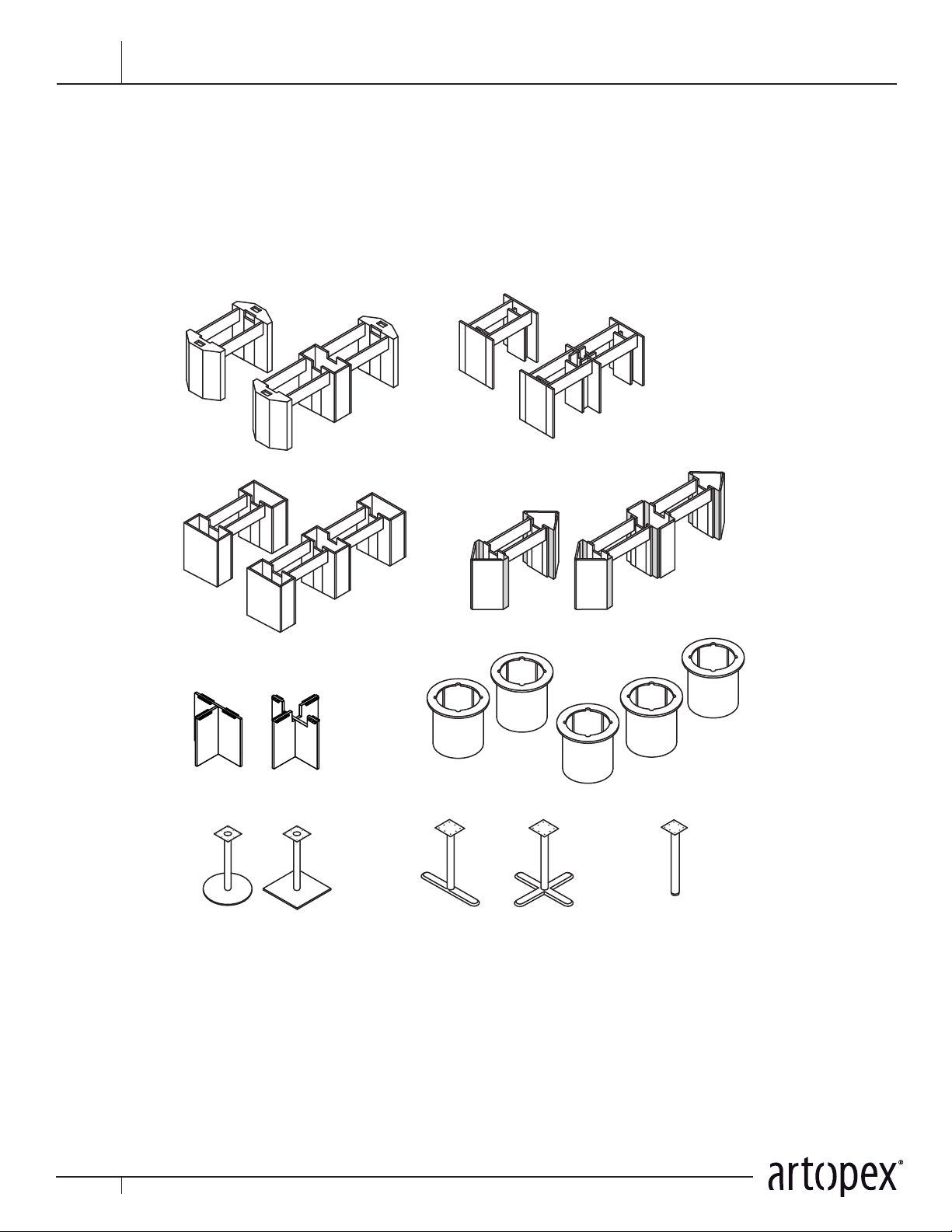

1BASES
Conference Installation Guide - February 2013

FE-FCFE-FC
A
A
A
B
A
A
Alto Wood Base
5Conference Installation Guide - February 2013
Assembly of bases with modesty panels
The interior measurements between modesty panels vary depending on the shape and dimensions
of the surface. Refer to the charts below for these specic measurements.
Anchor the modesty panel to the
base using the cleats provided.
MEASUREMENT A(between modesty panels)
SURFACES A
36 72 –
42 84 10"
48 96 10"
48 120 10"
48 144 10"
54 144 16"
54 168 16"
54 192 16"
60 216 20"
SURFACE DIMENSIONS
–
–
–
–
–
–
–
–
–
SURFACES A B
36 48 96 – –
36 48 120 – –
36/42 60 120 14" –
36 54 144 – –
36/42 60 144 10" 16"
42 60 168 10" 16"
42 60 192 10" 16"
42 60 216 10" 16"
30 54 72 10" –
30 60 84 10" –
30 60 96 10" –
30 60 120 10" –
30 60 144 10" 16"
A
B
–
–
–
–
1
4
"
–
–
–
1
0
"
1
6
"
1
0
"
1
6
"
1
0
"
1
6
"
1
0
"
1
6
"
1
0
"
–
1
0
"
–
1
0
"
–
1
0
"
–
1
0
"
1
6
"
MEASUREMENTS A& B(between modesty panels)
SURFACE DIMENSIONS

AA
A
B
A
FE
FC
A
Duo Wood Base
Anchor the modesty panel to the
base using the cleats provided.
6Conference Installation Guide - February 2013
Assembly of bases with modesty panels
The interior measurements between modesty panels vary depending on the shape and dimensions
of the surface. Refer to the charts below for these specic measurements.
MEASUREMENT A(between modesty panels)
SURFACES A
36 72 –
42 84 10"
48 96 10"
48 120 10"
48 144 10"
54 144 16"
54 168 16"
54 192 16"
60 216 20"
SURFACE DIMENSIONS
–
–
–
–
–
–
–
–
–
SURFACES A B
36 48 96 – –
36 48 120 – –
36/42 60 120 14" –
36 54 144 – –
36/42 60 144 14" 16"
42 60 168 14" 16"
42 60 192 14" 16"
42 60 216 14" 16"
A
B
–
–
–
–
1
4
"
–
–
–
1
4"
1
6
"
1
4
"
1
6
"
1
4
"
1
6
"
1
4
"
1
6
"
MEASUREMENTS A& B(between modesty panels)
SURFACE DIMENSIONS

FE-FC
7
Conference Installation Guide - February 2013

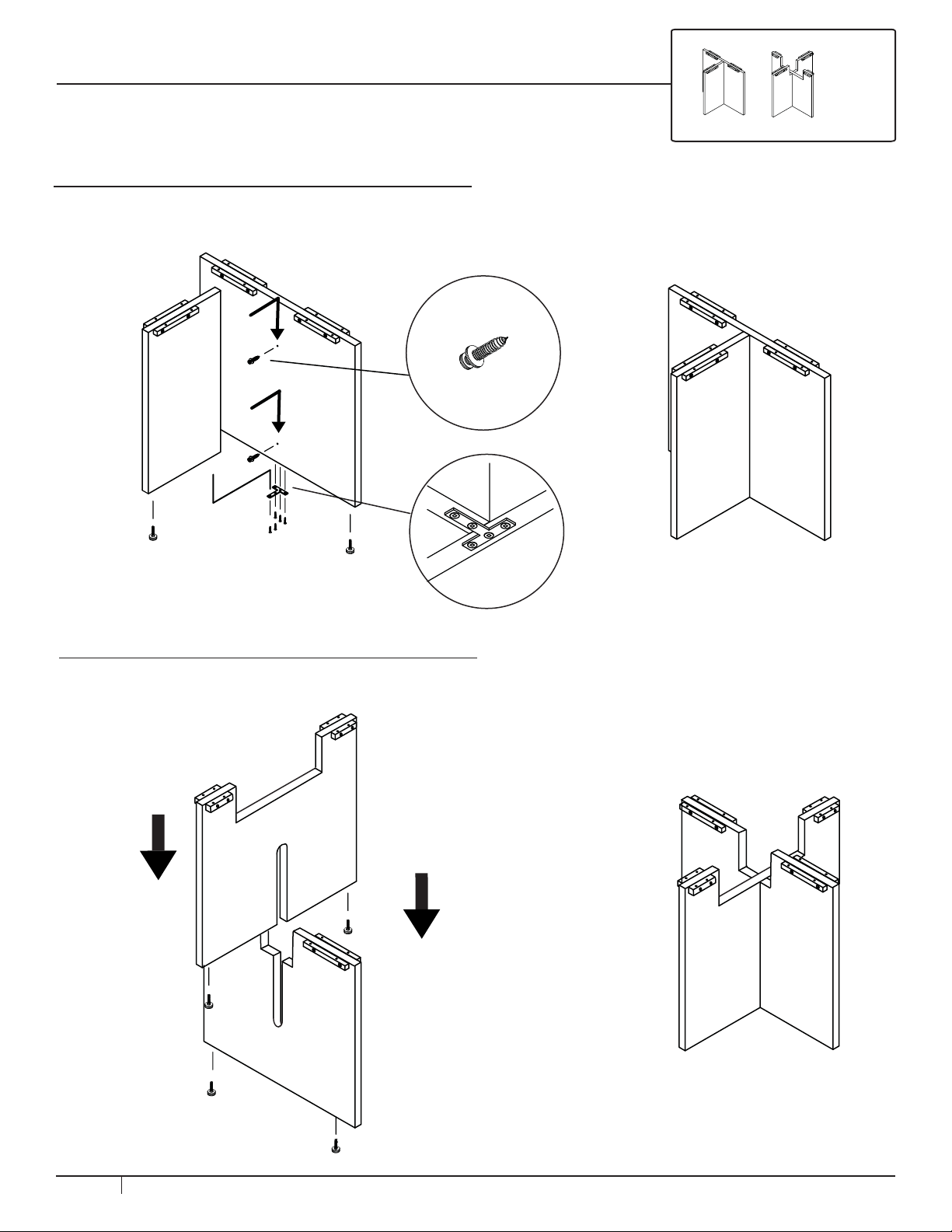

X-Wood Base
End bases (T-shaped)
Install lateral panel to main panel as shown.
Install levelers on both panels and junction plate.
Central base (X-shaped)
Install upper section to lower section as shown.
Install levelers on both panels.
Assembly of X-wood bases
JUNCTION PLATE
LATERAL
PANEL
UPPER
SECTION
LOWER
SECTION

A
A
A
FE-FC
X-Wood Base (cont’d)
8
Conference Installation Guide - February 2013
Anchor the modesty panel to the
base using the cleats provided.
The panel with the longest notch must
be positioned length-wise to allow for
multi-outlet module installation.
Assembly of bases with modesty panels
The interior measurements between modesty panels vary depending on the shape and dimensions
of the surface. Refer to the chart below for these specic measurements.
SURFACES A
36 72 8"
42 84 8"
48 96 10"
48 120 10"
48 144 10"
54 144 16"
54 168 16"
54 192 16"
60 216 20"
MEASUREMENT A(between modesty panels)
SURFACE DIMENSIONS
–
–
–
–
–
–
–
–
–

A
A
A
FE-FC
Rectangular Architectural Wood Base
9
Assembly of bases with modesty panels
The interior measurements between modesty panels vary depending on the shape and dimensions
of the surface. Refer to the chart below for these specic measurements.
Conference Installation Guide - February 2013
SURFACES A
36 72 –
42 84
48 96 10"
48 120 10"
48 144 10"
54 144 12"
54 168 12"
54 192 12"
60 216 18"
MEASUREMENT A(between modesty panels)
SURFACE DIMENSIONS
–
–
–
–
–
–
–
–
– –
Anchor the modesty panel to the
base using the cleats provided.

AA
FE-FC
A
A
A
B
Triangular Architectural Wood Base
10
Conference Installation Guide - February 2013
Assembly of bases with modesty panels
The interior measurements between modesty panels vary depending on the shape and dimensions
of the surface. Refer to the charts below for these specic measurements.
SURFACES A
36 72 –
42 84
48 96 10"
48 120 10"
48 144 10"
54 144 12"
54 168 12"
54 192 12"
60 216 18"
MEASUREMENT A(between modesty panels)
SURFACE DIMENSIONS
–
–
–
–
–
–
–
–
–
SURFACES A B
36 48 96 –
36 48 120 –
36/42 60 120 –
36 54 144 –
36/42 60 144 10" 12"
42 60 168 10" 12"
42 60 192 10" 12"
42 60 216 10" 12"
A
B
–
–
–
–
1
0"
1
2
"
1
0"
1
2
"
1
0"
1
2
"
1
0"
1
2
"
MEASUREMENTS A& B(between modesty panels)
SURFACE DIMENSIONS
Anchor the modesty panel to
the base using cleats provided.
10"
10"
10"
10"
IMPORTANT!
If there are two dierent modesty panel
lenghts, the shortest panels must be
installed on the triangular base.

FE-FC
11
Conference Installation Guide - February 2013
Drum Base
Positioning a surface on a wood drum base
Position marks indicate installation of the bases.
Position marks for drum bases
Drum base orientation (when specied with access panel)
ACCESS PANEL
TOWARDS CENTER
OF TABLE
Refer to Electricity and Wire Management on p.17 for further details.
LEVELER POSITION
Ensure conference
table stability

12"
FE-FC
16"
Metal Legs
12
Conference Installation Guide - February 2013
Positioning a surface on metal legs
Position marks indicate installation of the legs.
Position marks for metal legs with base plate, T-base or X-base
LEG WITH 6" x 6" TOP PLATE
LEG WITH 12" x 12" TOP PLATE
LEG WITH 16" x 16" TOP PLATE
Position marks for tubular metal legs

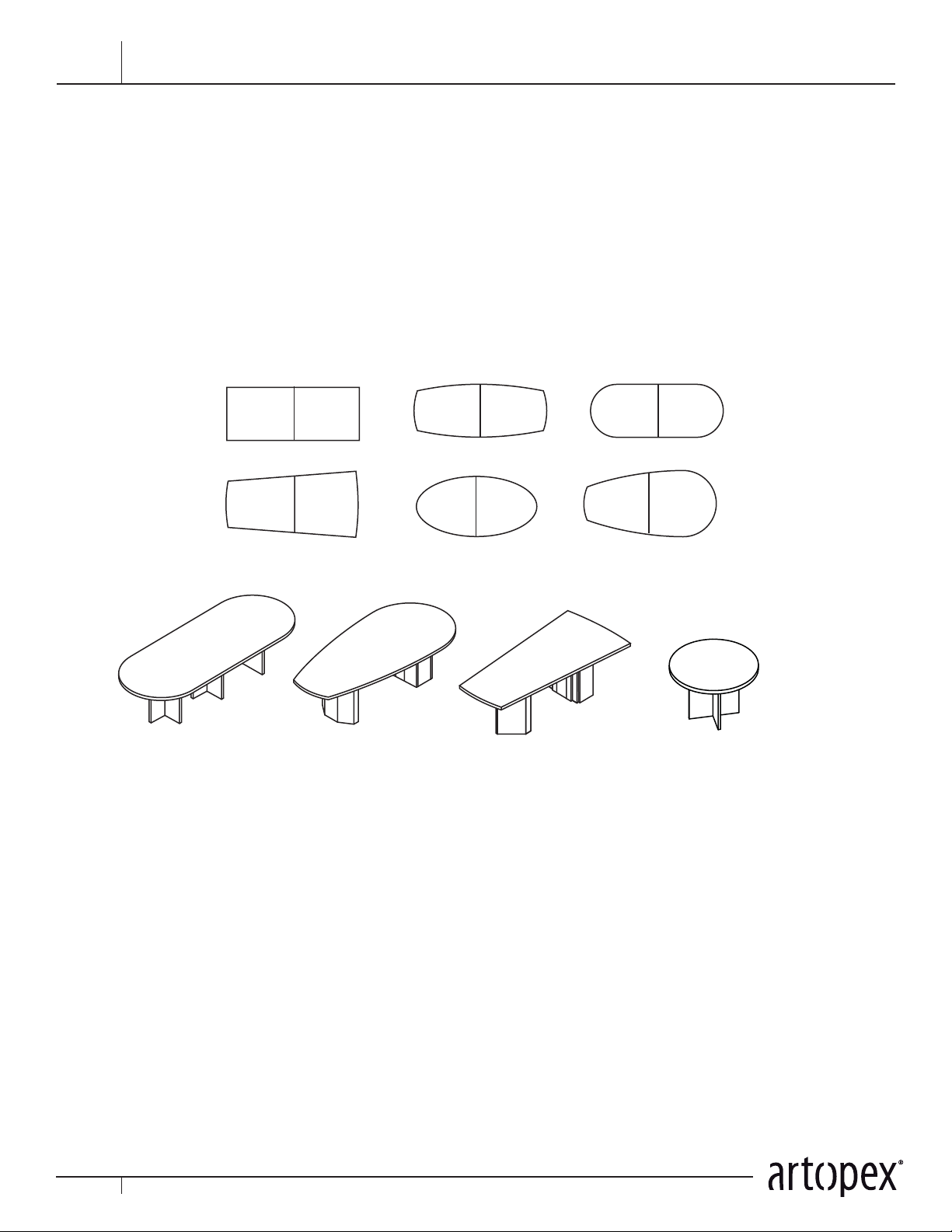

2SURFACES
Conference Installation Guide - February 2013

FE-FC
Step 2
Install stieners.
Surface
14
Conference Installation Guide - February 2013

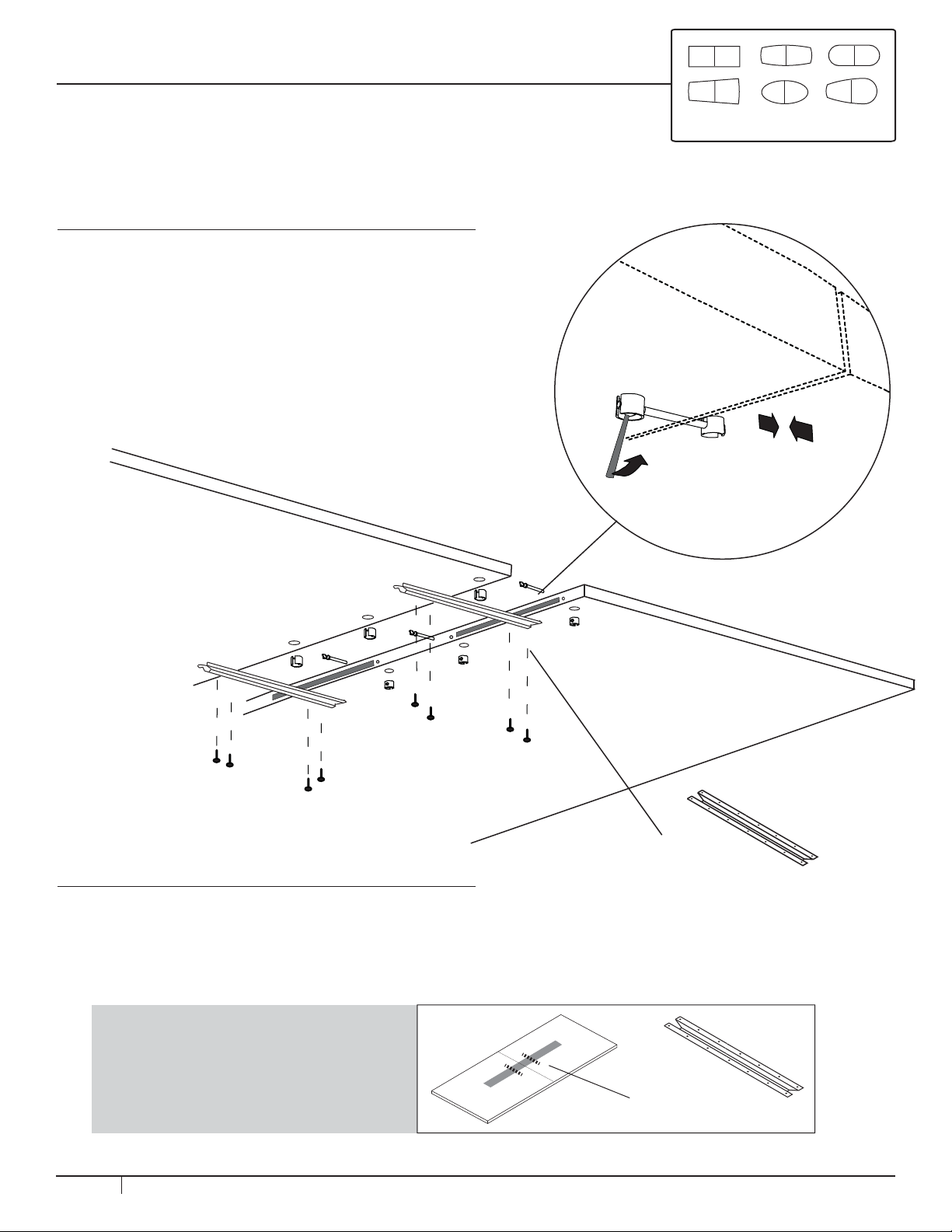

Assembly of a multiple section surface
Surface sections must be positioned on bases before assembly.
SURFACE WITH CENTRAL ACCENT
Remove central accent stierers when
installing a base with modesty panels.
STIFFENER
STIFFENER
ANCHORING
DEVICES
TOOL
Step 1
Position surface sections at the appropriate location.
Insert achoring devices as shown and tighten with a tool (such as an Allen key).

FE-FC
C
L
X
X
C
L
L
C
Surface
15
Conference Installation Guide - February 2013

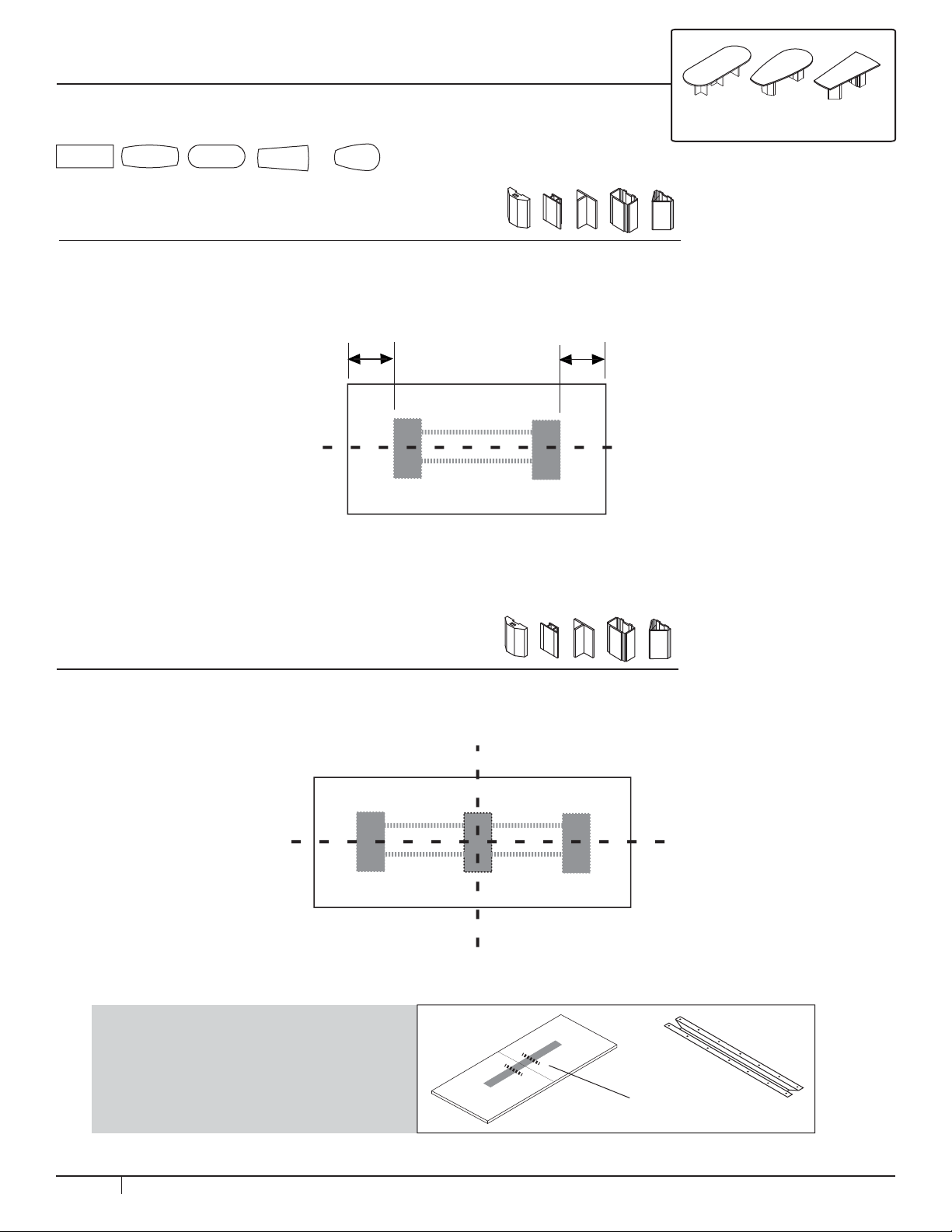

Positioning using 2 wood bases
SURFACE WITH CENTRAL ACCENT
Remove central accent stierers when
installing a base with modesty panels.
EQUAL DISTANCE at each ends
Positioning using 3 wood bases
STIFFENER
Positioning a surface on wood bases
Align the surface center with center base

FE-FC
C
C
L
L
C
C
L
L
Surface
16
Conference Installation Guide - February 2013

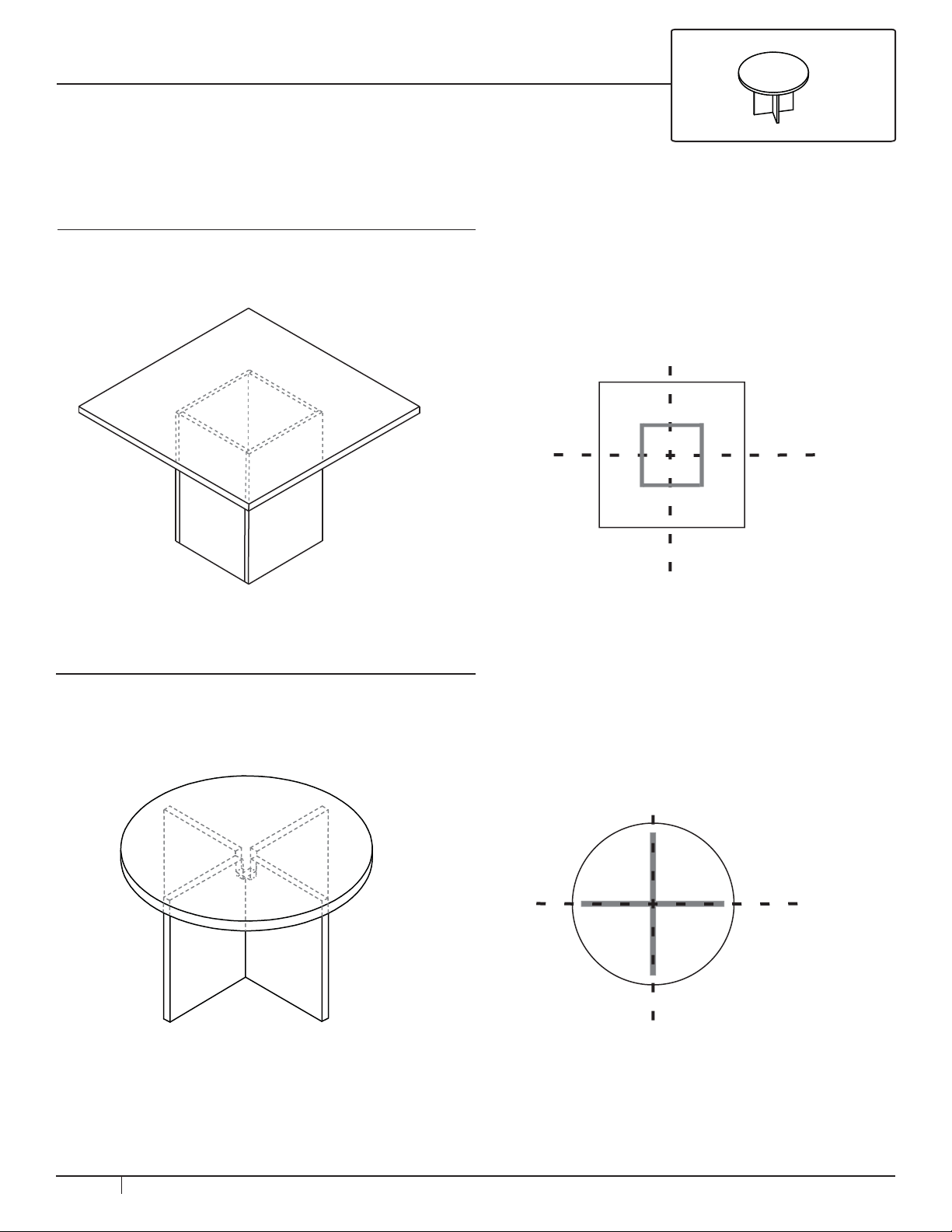

Assembly of a meeting table (wood base)
Meeting table with architectural wood base
Meeting table with X-wood base
Align center of surface with center of base
Align center of surface with center of base

3ELECTRICITY AND CABLE MANAGEMENT
Conference Installation Guide - February 2013

FE-FC
Electricity & Cable Management
18
Conference table with multi-outlet modules
Examples showing cable management.
Conference Installation Guide - February 2013
Use wire trough (AC-WR24) or
fasteners to run cabling along
the modesty panels
Wire trough in vertical
position (AC-WR24)
Duo base
Alto base
Conference tables with wood bases
Conference table with architectural bases
Use wire trough (AC-WR24) or
fasteners to run cabling along
the modesty panels
Power bar
(AC-PWBE)
Cabling runs from the
surface to the oor, inside
the base
Multi-outlet module (M4)
Multi-outlet module (M3)
Power bar
(AC-PWBE)
A removable panel allows
access to interior cabling

FE-FC
Electricity & Cable Management
19
Conference Installation Guide - February 2013
Cabling runs from the
surface to the oor, inside
the base
Conference table with Drum bases (with removable panel)
Conference table with metal base
Conference table with multi-outlet modules
Examples showing cable management.
Grommets on both sides
allow for cable passage
Cabling runs from the
surface to the oor, inside
the tubular structure
Multi-outlet module (M2)
Multi-outlet module (M4)
A removable panel allows for cable
access inside the base

FE-FC
Electricity & Cable Management
20
Conference Installation Guide - February 2013
Meeting table with multi-outlet module
Examples showing cable management.
Cabling runs from the
surface to the oor, inside
the tubular structure
Removable panel
for interior access
Removable panel
for interior access
Cabling runs from the
surface to the oor,
inside the base
Cabling runs from the
surface to the oor,
inside the base
Meeting table with wood base
Meeting table with metal base
Multi-outlet module (M3)
Wire trough
(AC-WR24)
Wire trough
(AC-WR24)
MUlti-outlet module (M2)
