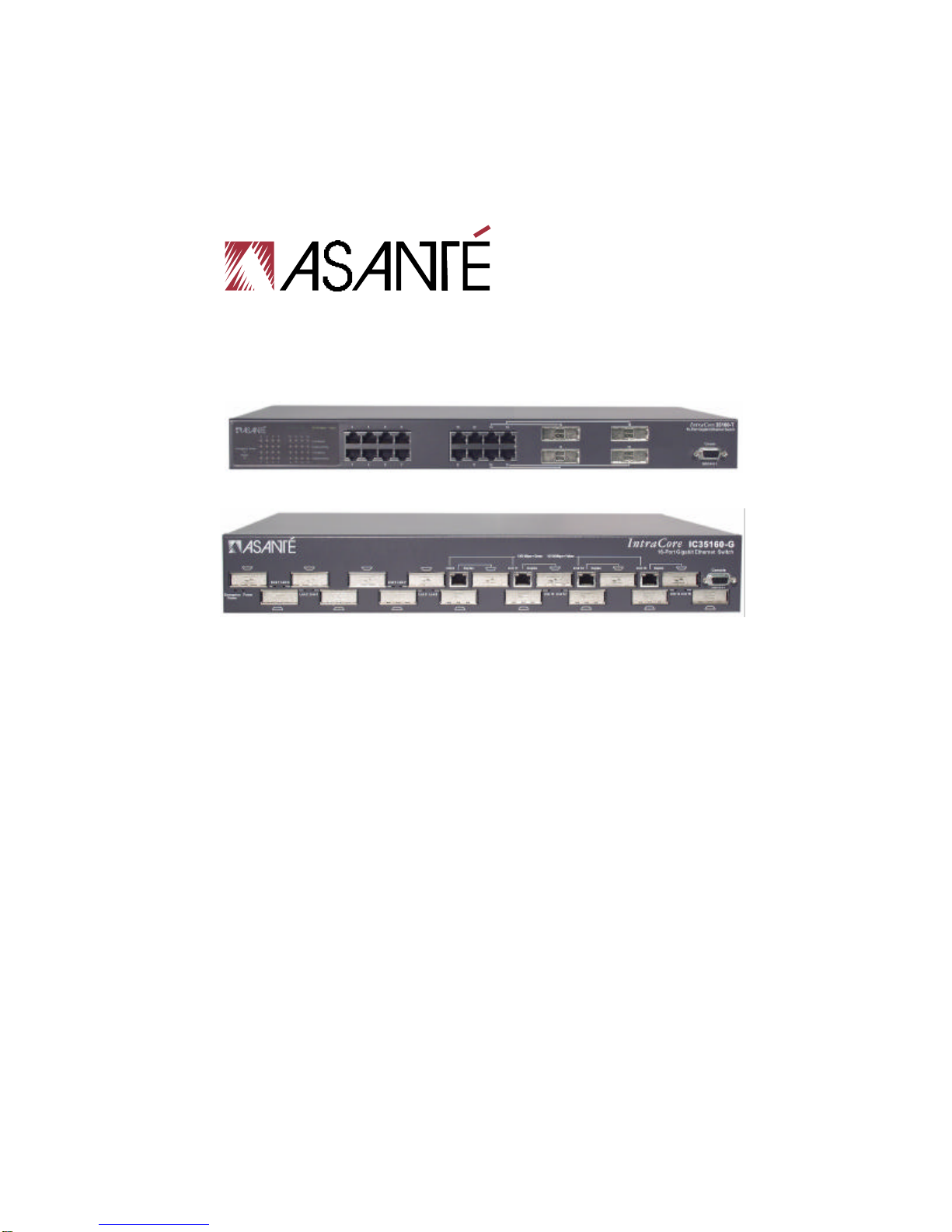

Asante IntraCore 35160 Series User manual

IntraCore™35160 Series
Layer 2 Gigabit Switches
Setup Guide

2Setup Guide
Quick Start Guide
Follow the steps below to install the IntraCore switch:
1. Open the box and check the contents. SeeChapter 1.2 Package Contents
foracompletelistoftheitemsincludedwiththeIntraCoreswitch.
2. Install the switch in an equipment or wall rack, or prepare it for desktop
placement.
3. Connect the power supply.
4. Connect network devices to the switch.
5. Refer to the User’s Manual on the accompanying CD-ROM for configu-
ration and management capabilities.
For more information on installing the switch, please refer toChapter 2
Installation and Setup.

3
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
Table of Contents
Quick Start Guide 2
1. Introduction 5
1.1 Features 6
1.2 Package Contents 6
1.3 LEDs 7
1.4 Front and Back Panel Descriptions 9
1.5 Management and Configuration 10
2. Installation and Setup 13
2.1 Safety Overview 13
2.2 Recommended Installation Tools 14
2.3 Power Requirements 14
2.4 Environmental Requirements 14
2.5 Cooling and Airflow 15
2.6 Installation Overview 15
2.7 Chassis Installation/Placement 15

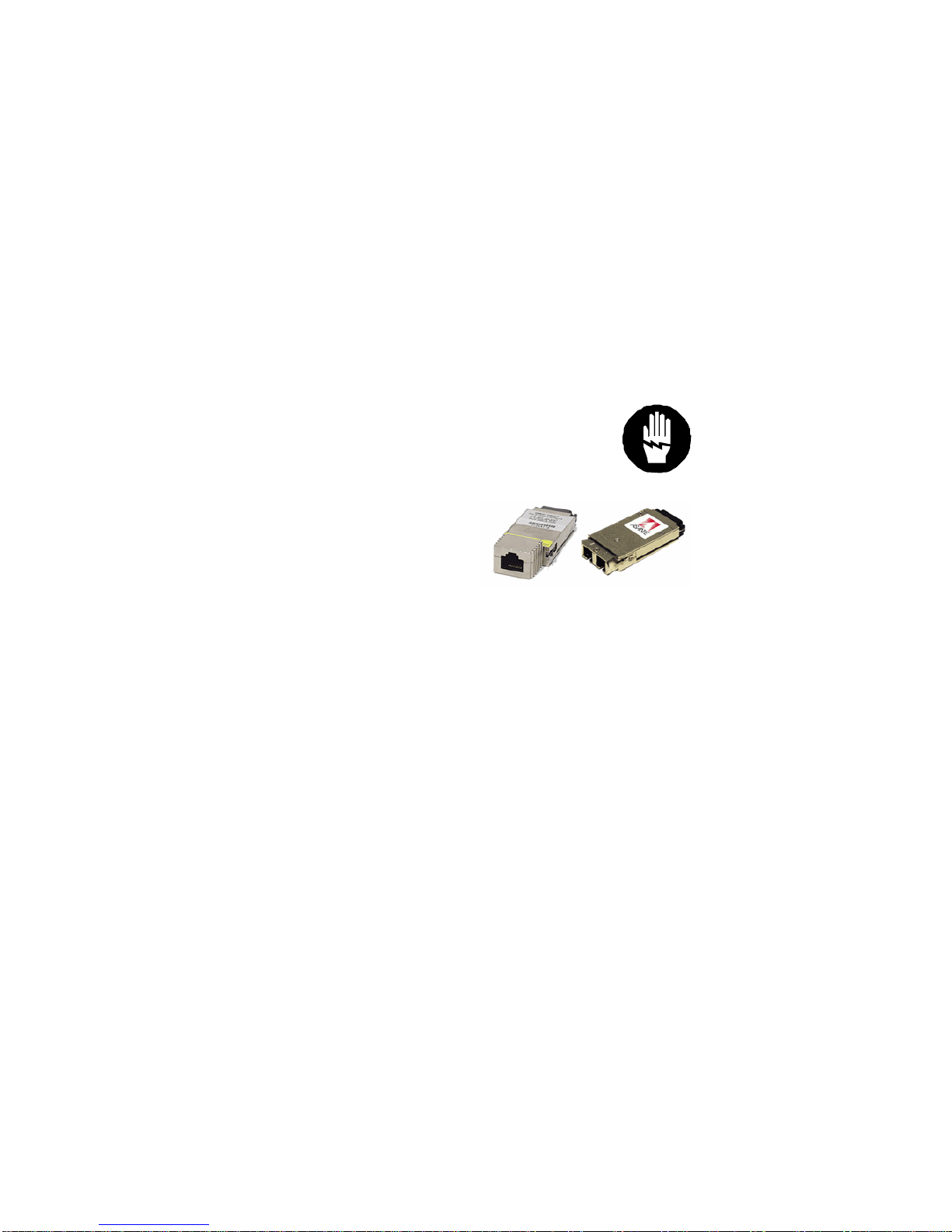

2.8 Installing GBIC Interfaces 17
2.9 Installing Optional Emergency Power 18
Supply
2.10 Connecting Power 19
2.11 Connecting to the Network 19
Appendix A Troubleshooting 23
Appendix B Safety and Regulatory Compliance 25
Appendix C Specifications 27

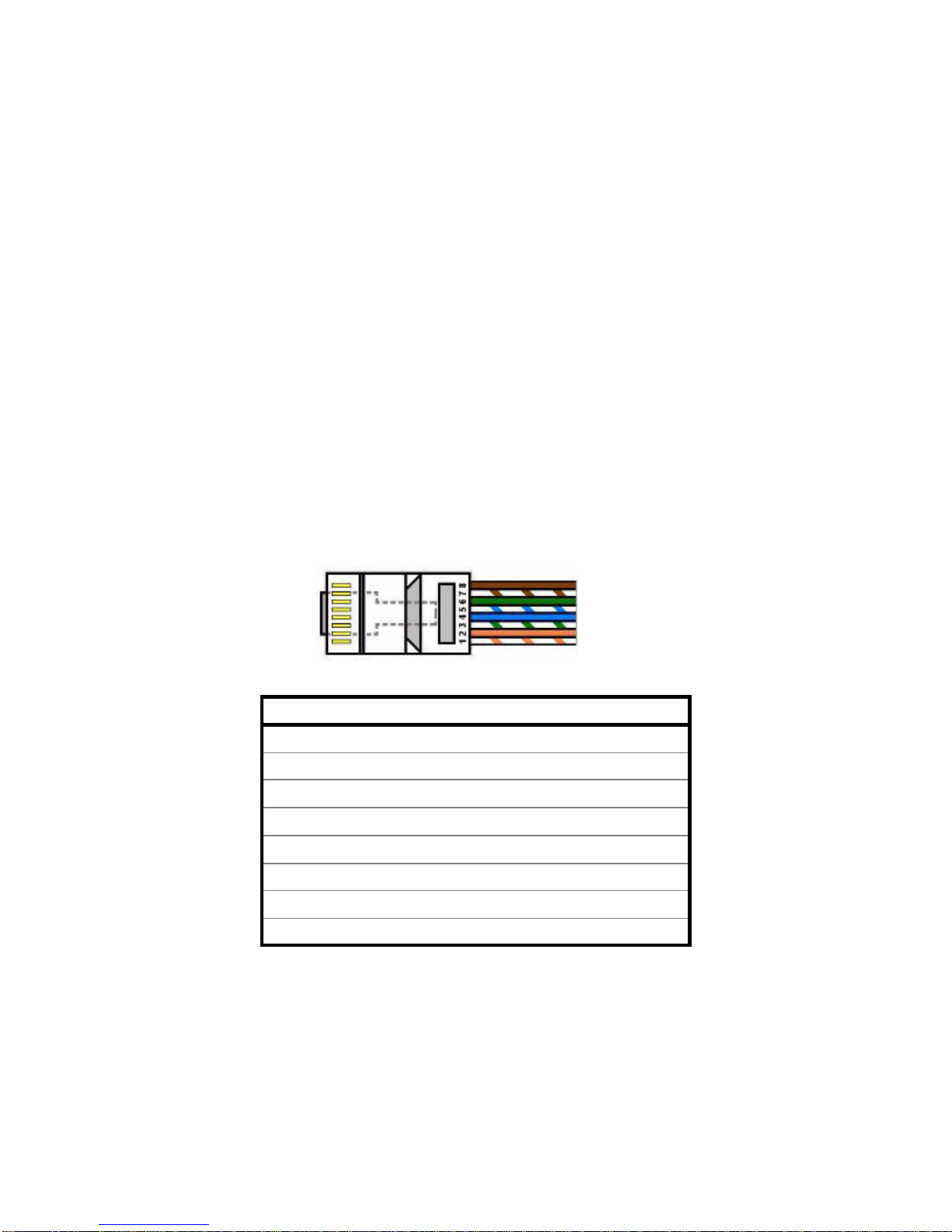

Appendix D Serial Port Pin Outs 29
Appendix E Warranty and Support 31

4Setup Guide

5
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
1Introduction
Thank you for purchasing the Asanté IntraCore 35160 Series Giga-
bit switch. These switches are a family of multi-media and multi-
protocol switches capable of supporting Layer 2 switching and
Layer 3 and Layer 4 protocols. They are designed to offer industry-
leading performance at a very competitive cost of ownership.
Each IntraCore 35160 switch is a 16-port solution for Gigabit
Ethernet switching using shared-memory architecture to achieve
Gigabit switching on all ports. The highly integrated system includes
MACs, Address Look-up Content Addressable Memory (CAM),
Switch Engine, Primary Buffer Memory, and programmable Quality
of Service (QoS).
Two models in the 35160 series cover different customer applica-
tions.
The IntraCore 35160-T is a 16-port switch that has 12 10/100/
1000BaseT ports and 4 dual function Gigabit ports that support ei-
ther 1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.
The IntraCore 35160-G is a 16-port switch that has 12 GBIC style
Gigabit Ethernet ports and 4 dual function Gigabit ports that support
either 1000BaseT RJ-45 Gigabit ports or GBIC Gigabit ports.
The following types of GBIC modules are supported on the 35160
switches:
•1000SX multi-mode fiber for 500m applications
•1000LX single-mode fiber for 2km applications
•1000LHsingle-mode fiber for 20km applications
•1000LZ single-mode fiber for ultra distance (120km) appli-
cations
•1000BaseT Copper Gigabit for low-cost 100m applications
The system can operate as a stand-alone network or be used in
combination with other IntraCore series switches in the backbone.

6Setup Guide
1.1 Features
The IntraCore 35160 is a multi-media, multi-protocolswitch de-
signed to be a high-performance, compact Layer 2 switch that is
field upgradeable to Layer 4 Type of Service. It utilizes the Switch-
Core-CXE2010 packet processor to support its many features. The
following is a partial list of the switch’s features (please refer to the
User’s Manual on the CD-ROM for a complete list of features):
•SNMP v.1 and RMON (4 groups), telnet, console menu-
driven management
•MIBs: MIB ll (RFC 1213), RMON (RFC 1757), 802.1Q/p
(RFC 2674), Bridge (RFC1493), Asanté Private MIB
•IEEE 802.1q VLAN
•IEEE 802.1p 8-level Class of Service
•IEEE 802.3x Flow Control
•IEEE 802.1D Spanning Tree
•IGMP V1, V2 snooping
•Support for up to 256 multicast groups
•Large address table of up to 8000 MAC addresses
•MAC address ageing
•MAC/IP address table display
•Provides Jumbo Packet support up to 16384 Bytes in size
•Port security, including station move detection and Dupli-
cate IP detection; 1 trusted address per port
•Port Mirroring/monitoring on Ingress only (upgrade to In-
gress/Egress)
•Local and Global port management
1.2 Package Contents
The following items are included in your package:
•Switch
•AC power cord
•Rack mount brackets with screws
•Rubber feet

7
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
•User’s Manual (on CD-ROM)
•Getting Started Guide (this document)
•IntraCore 35160 CD-ROM
Contact your dealer immediately if any of these items is missing.
1.3 LEDs
The system’s front panel LED display allows the manager to moni-
tor the status of the switch. Refer to the following sections for LED
information specific to the switch’s model.
1.3.1 IC35160-T
The IC35160-T has one power LED indicator, one (optional) emer-
gency power LED, and two LED indicators for each of the 16 ports.
See the table below for a complete LED description.
LED Color Description
Power Green
Off
Power is on.
Power is off, or main power has failed.
Emergency
Power (optional) Green
Off
Primary power has failed and optional power supply
is powering the switch.
Optional power supply is in standby mode and pri-
mary power is working.
Link/Speed Green
Yellow
Off
A valid 1000Mbps link has been established.
A valid 10/100Mbps link has been established.
No link has been established.
Duplex/Activity Blinking Green
Blinking Yellow
Off
Activity is detected in full-duplexmode.
Activity is detected in half-duplexmode.
No traffic has been detected, or no link has been
established.

8Setup Guide
1.3.2 IC35160-G
The IntraCore 35160-G has one power LED, one (optional) emer-
gency power LED, two LED indicators for 10/100/1000BaseT
status, and one LED for GBIC status. See the table below for a
complete LED description.
LED Color Description
Power Green
Off
Power is on.
Power is off, or main power supply has failed.
Emergency Power
(optional) Green
Off
Primary power has failed and optional power supply
is powering the switch.
Optional power supply is in standby mode and
primary power is working.
BaseT
10/100/1000
Link/Speed
Green
Yellow
Off
A valid 1000Mbps link has been established.
A valid 10/100Mbps link has been established.
No link has been established.
BaseT
10/100/1000
Duplex/Activity
Blinking Green
Blinking Yellow
Off
Activity is detected in full-duplexmode.
Activity is detected in half-duplexmode.
No traffic has been detected, or no link has been
established.
GBIC
Link Green
Off
A valid 1000Mbps link has been established.
No link has been established.

9
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches

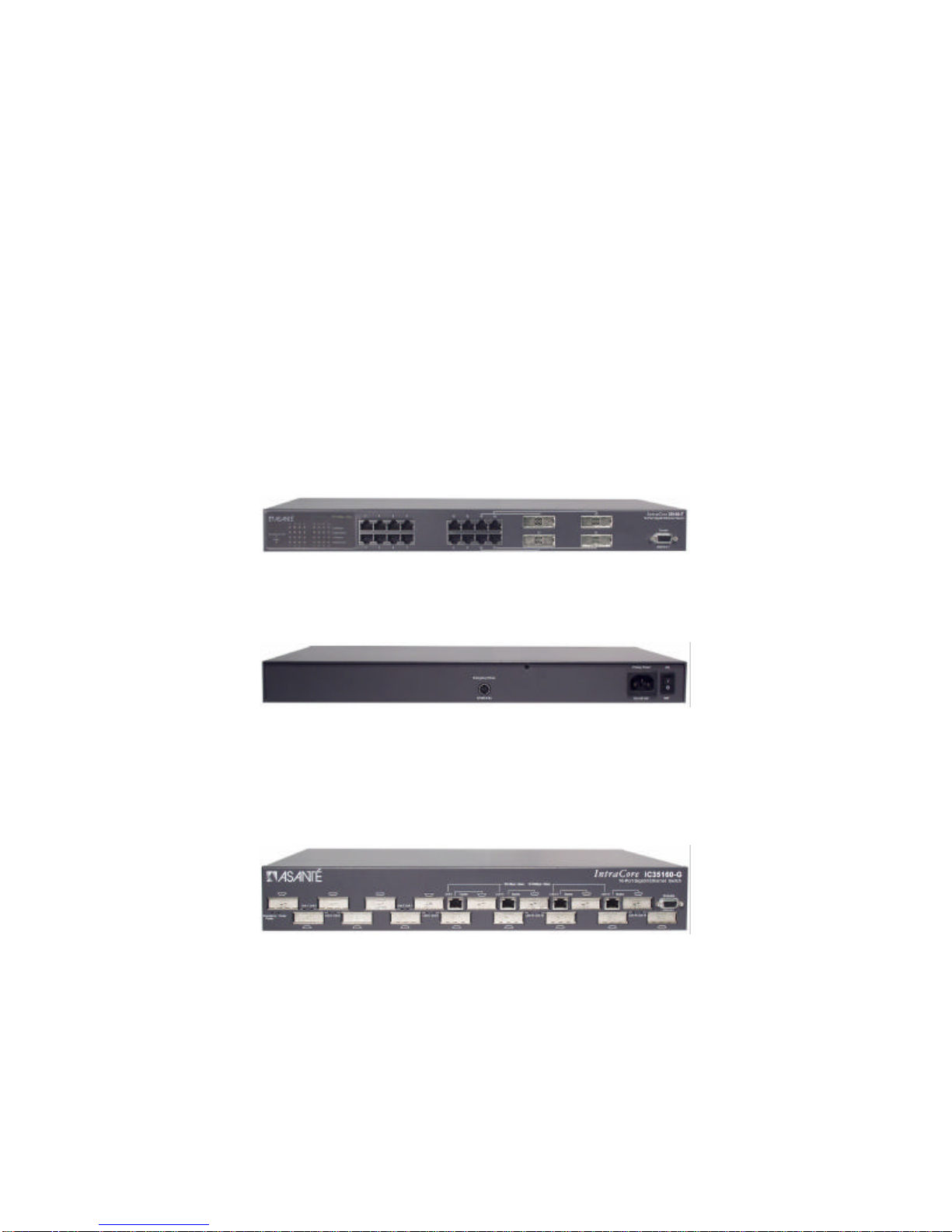

1.4 Front and Back Panel Descriptions
Refer to the following sections for detailed descriptions of the front
and back panels of the IntraCore 35160 series switches.
1.4.1 IC35160-T

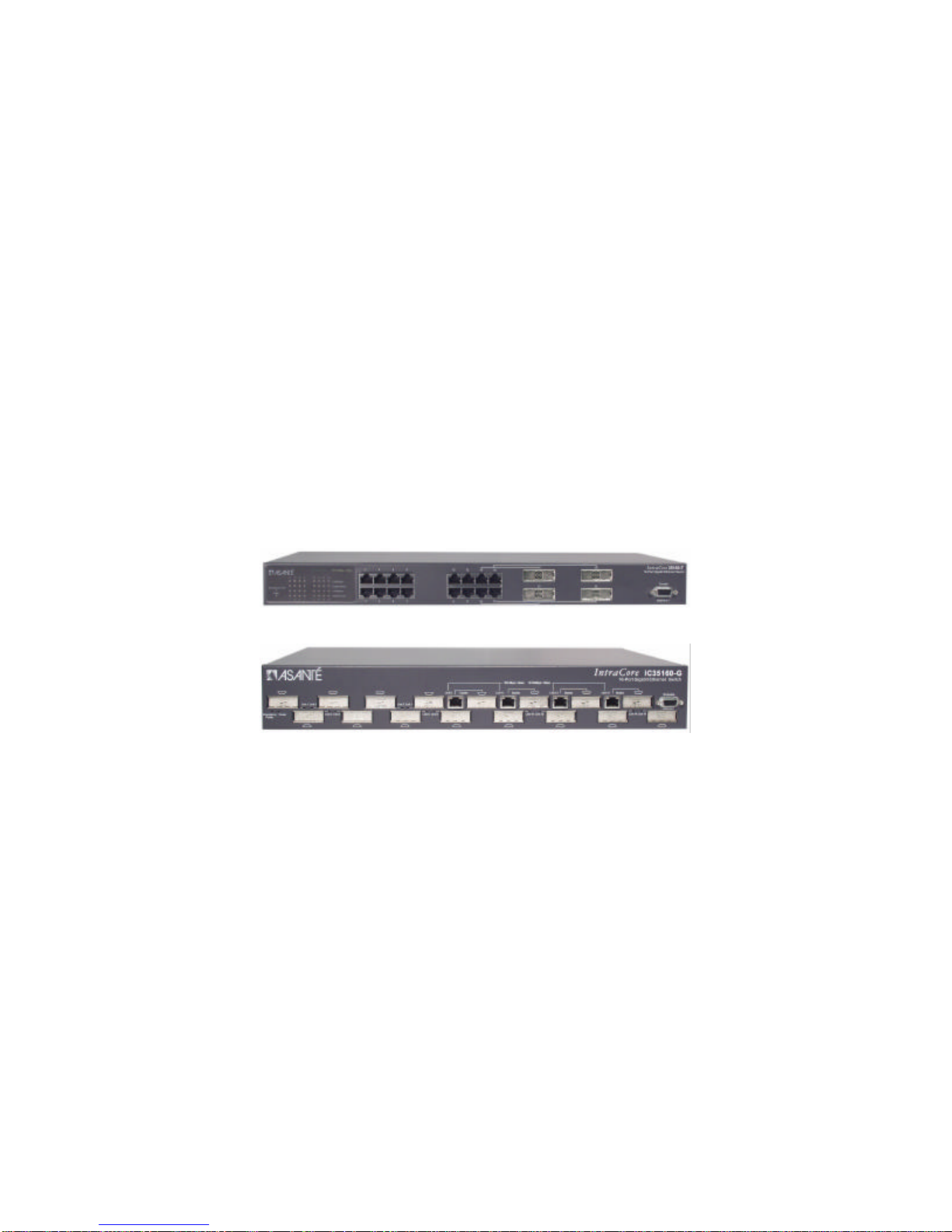

The front panel of the IC35160-T contains the following: power and
port LEDs; 12 10/100/1000BaseT ports; 4 dual-function Gigabit
ports that support either 1000BaseT or GBIC style Gigabit Ethernet
ports; and a console port.

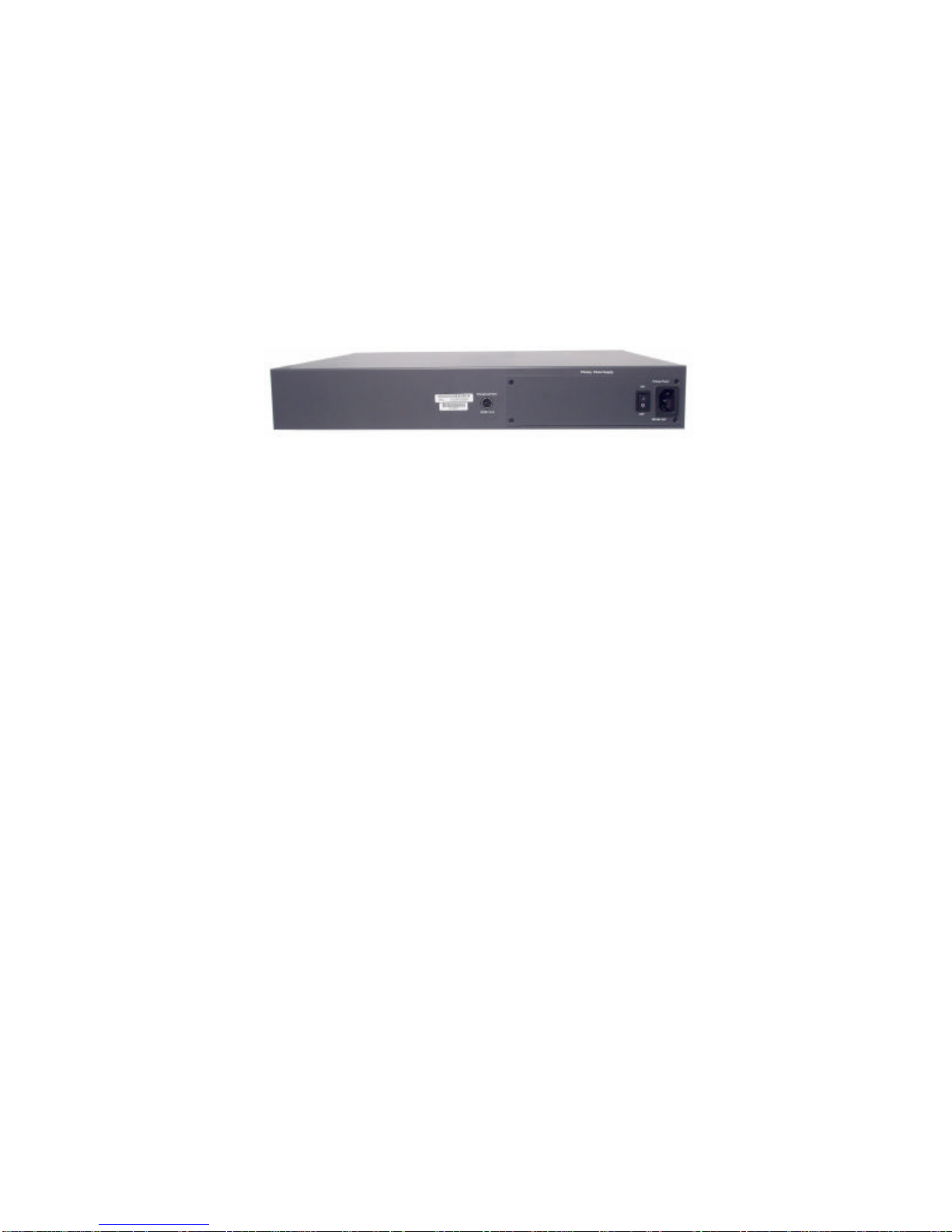

The back panel, shown below, contains a 12VDC jack for (optional)
emergency power; the primary power bay cover plate; the primary
power outlet; and the on/off switch.
1.4.2 IC35160-G
The front panel of the 35160-G contains the following: power and
port LEDs; 12 GBIC ports; 4 dual-function Gigabit ports that support
either 1000BaseT or GBIC style Gigabit Ethernet ports; and a con-
sole port.

10 Setup Guide
The back panel, shown below, contains: A 12VDC jack for (optional)
emergency power; the primary power bay cover plate; the on/off
switch; and the primary power outlet.
1.5 Management and Configuration
A network administrator can manage the switch with three different
methods: web, console/telnet, or SNMP software. They may prefer
using a web browser to enable configuring the switch from any local
or remote computer, via the network, or they may wish to use a
console for out-of-band management. The switch’s default IP ad-
dress is192.168.0.1 and the default password isAsante (the pass-
word is case sensitive and must appear exactly as it is shown here).
SNMP is an advanced management application, and is mostly auto-
matic, giving the information without having to go through an inter-
face step-by-step (Note: The switch is shipped with BootP support.
See Appendix F BootP Configurationof the User’s Manual for more
information on setting up BootP.)
1.5.1 Console Interface
Users can access the switch in a more traditional way by connect-
ing a PC or terminal to the console port or by telnet across the net-
work. The menus are organized in a manner similar to the web-
based interface. A detailed description can be found inChapter 3
Configuration of the User’s Manual (CD-ROM.)
Note: By default, the HTTP server is disabled. In order to manage
the switch through the web interface, the HTTP server function must
be enabled via the console interface.

11
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
1.5.2 Web-Based Interface
With Internet access, users can link directly to the local switch’s
home page. The web interface uses a default user name of root
(the default password isAsante). After enabling the HTTP server
through the console interface, users can configure the switch via the
web browser. A detailed description can be found inChapter 5
Web-Based Managementof the User’s Manual.
1.5.3 SNMP Management
Because the switch supports SNMP, users can manage the switch
with an SNMP-compatible management station running platforms
such as HP OpenView. It also supports a comprehensive set of MIB
extensions, along with MIB II, Ethernet MIB, the 802.1D bridge MIB,
and 4 groups of RMON. Please seeChapter 3 Configuration, or
Chapter 6 SNMP Managementin the User’s Manual for more infor-
mation.

12 Setup Guide

13
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
2Installation and Setup
This chapter explains how to install and connect the switch to
the network. To configure the switch for management, refer to
the User’s Manual on the CD-ROM.
The following guidelines will help in installing the switch in such
a way that it has the proper power supply and environment.
2.1 Safety Overview
The following information provides safety guidelines to ensure
safety and to protect the switch from damage.
Note: Be aware, however, that this information is intended as a
guideline, and may not include every possible hazard to which the
user may be exposed. Use caution when installing this switch.
•Only trained and qualified personnel should be allowed to in-
stall or replace this equipment
•Always use caution when lifting heavy equipment
•Keep the chassis clean
•Keep tools and chassis components off the floor and away from
foot traffic
•Avoid wearing rings or chains (or other jewelry) that could get
caught in the chassis. Metal objects can heat up and cause
serious injury to persons and damage to the equipment. Avoid
wearing loose clothing, such as ties or loose sleeves
When working with electricity, follow these guidelines:
•Before accessing the interior of the chassis, locate
the emergency power-off switch for the room you
are in
•Disconnect all external cables before installing or removing a
chassis
•Do not work alone when working with electricity
•Always check that the power has been disconnected from the
circuit
•Do not tamper with the internal components of the switch. This

14 Setup Guide
could void the product’s warranty
•Examine the work area for potential hazards (such as wet
floors or ungrounded cables) and eliminate them before install-
ingthe switch
For more safety information, please refer to the User’s Manual.
2.2 Recommended Installation Tools
The following tools and equipment (not in-
cluded) are needed to install the switch:
•Flathead screwdriver
•Phillipshead screwdriver
•Antistatic mat or foam
2.3 Power Requirements
The electrical outlet should be located near the switch and be easily
accessible. It must also be properly grounded.
Make sure the power source adheres to the following guidelines:
•Power: Auto-switching 110/240 VAC
•Frequency range: 50/60 Hz
•Maximum input AC Current: 1.0A at 115 VAC full load
2.4 Environmental Requirements
The switch must be installed in a clean, dry, dust-free area
with adequate air circulation to maintain the following environ-
mental limits:
•Operating Temperature: 0° to 40° C (32° to 104° F)
•Relative Humidity: 10% to 90% non-condensing

15
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
Failure to observe these limits may cause damage to the switch and
void the warranty.
Avoid direct sunlight, heat sources, or areas with high levels of
electromagnetic interference.
2.5 Cooling and Airflow
The switch uses internal fans for air cooling. Do not restrict air
flow by covering or obstructing air vents on the sides of the
switch.
2.6 Installation Overview
Follow these steps to install the switch:
1. Open the box and check the contents. SeeChapter 1.2 Package
Contents for a complete list of the items included with the switch.
2. Install the IntraCore switch chassis in an equipment rack or wall
rack, or prepare it for desktop placement.
3. Connect the power supply.
4. Connect network devices to the switch.
5. Refer to the User’s Manual on the CD-ROM for configuring the
switch for management capabilities.
2.7 Chassis Installation/Placement
The switch can be installed in a standard 19-inch equipment rack. It
can also be placed on a stable horizontal surface.
Note:The equipment rack or desk on which you install the switch
must be secure and stable. Equipment racks must be fastened to
the floor; desks must be resting on a flat, stable surface.
2.7.1 Installation in an Equipment Rack
Important! Before continuing, disconnect all cables from the
switch.

16 Setup Guide
To mount the switch onto an equipment rack:
1. Place the switch on a flat, stable surface.
2. Locate a rack-mounting bracket (supplied) and place it over the
mounting holes on one side of the unit.
3. Use the screws (supplied) to secure the bracket (with a Phillips
screwdriver).
4. Repeat the two previous steps
on the other side of the unit.
5. Place the switch in the equip-
ment rack.
6. Secure the switch by securing
its mounting brackets onto the
equipment rack.
Important! Make sure the unit is
supported until all of the mounting screws for each bracket are se-
cured to the equipment rack. Failure to do so could cause the unit to
fall, which may result in personal injury or damage to the unit.
2.7.2 Equipment Rack Guidelines
•Size: 17.1x 10.1 x 1.6 inches (IC35160-T)
17.5 x 14.0 x 2.6 inches (IC35160-G)
•Ventilation: Ensure that the rack is installed in a room in
which the temperature remains below 40° C (104° F). Be sure
that no obstructions, such as other equipment or cables,
block airflow to or from the vents.
•Clearance: In addition to providing clearance for ventilation, ensure
thatadequate clearance forservicing theswitch fromthe frontex-
ists.
2.7.3 Free-Standing/Desktop Placement
The switch has rubber feet for the bottom of the case that allow for
secure, free-standing placement of the unit.
Follow the steps below for free-standing/desktop placement:
1. Attach the rubber pads (supplied) to the bottom of each corner of
the unit.
2. Place the unit on a flat, stable surface.
3. Make sure enough ventilation space between the switch and sur-
rounding walls or objects exists.

17
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
2.8 Installing GBIC Interfaces
Instructions for installing, removing, and maintaining GBIC inter-
faces are provided in this section.
Note: Auto-negotiation must be disabled on a port where a copper
GBIC is installed.
Important! The 35160-G has 12 GBIC ports that are
paired—port numbers 1 and 2, 3 and 4, 5 and 6, 7 and
8, 10 and 12, and 14 and 16. Do not use more than one
copper GBIC module per pair, or no more than 6 copper
GBIC modules total.
2.8.1 Installing a GBIC
Note:GBICs are hot-swappable.
This means that they can be in-
serted and removed while the unit
is powered on.
1. Remove the GBIC from its protective packaging.
2. Grip the sides of the GBIC with your thumb and forefinger, then
insert the GBIC into the slot on the face of the Gigabit Ethernet
module.
3. Slide the GBIC into the slot until you hear or feel a click. The
click indicates that the GBIC is locked into the slot.
4. Connect your network cable.
2.8.2 Removing a GBIC
Note: Copper GBIC modules run hot under normal operating condi-
tions. Remove with care and place on a heat-resistant surface and
allow to cool before handling.
Follow the steps below to remove a GBIC interface from a Gigabit
Ethernet module:
1. Disconnect the network cable from the GBIC connector.
2. Release the GBIC from the slot by simultaneously squeezing
the locking tabs on both sides of the GBIC.
3. Slide the GBIC out of the slot and store the GBIC in its protec-
tive packaging.

18 Setup Guide
2.8.3 GBIC Care and Handling
Follow these GBIC maintenance guidelines:
•Unnecessary removal and insertion of a GBIC can lead to
its premature failure. A GBIC connector has a lifetime of
100 to 500 removals/insertions
•GBICsarestatic-sensitive. To prevent ESD damage, follow
yournormalboardandcomponenthandlingprocedures
•GBICs are dust-sensitive. When the GBIC is stored or
when a fiber-optic cable is not plugged in, always keep
plugs in the GBIC optical bores
•Use an alcohol swab or Kim-Wipe to clean the ferrules of
the optical connector. The most common source of con-
taminants in the optical bores is debris picked up from the
optical connectors
2.9 Installing Optional Emergency Power Supply
To ensure increased reliability for mission-critical applications, the
IC35160 can be equipped with a 12VDC emergency backup power
supply (the IC35-EPS12, sold separately). When installed, the
emergency power supply is in standby mode. Should the primary
unit fail, the DC backup automatically switches on and the LED on
the front panel lights. In addition, an SNMP fault notice is sent.
Should the IC35-EPS12 become active due to a fault with the pri-
mary power, the unit should be swapped out at the earliest conven-
ience and sent for repair. The IC35-EPS12 is designed to be a tem-
porary replacement when the primary power fails, not a permanent
replacement.
To install the optional power supply, simply attach the 12VDC con-
nector of the power supply to the jack located in the center of the
rear panel of the switch. Connect the power cord to the power sup-
ply and plug the power cord into an outlet.
Important! The optional power supply becomesHOT under normal
operating conditions. To avoid damage or injury, set the power sup-
ply on a heat-resistant surface andUSE CAUTION when handling
the unit.

19
Asanté IntraCore 35160 Series Layer 2 Gigabit Switches
2.10 Connecting Power
Important! Carefully review the power requirements (Chapter 2.3)
before connecting power to the unit.
Use the following procedure to connect power to the switch:
1. Plug one end of the supplied power cord into the power con-
nector on the back of the unit.
2. Plug the other end into a grounded AC outlet. The power LED
will begin its initialization process.
The front panel LEDs blink and the power LED illuminates when it
has initialized. The switch is ready for connection to the network.
Important: If the power does not come on, refer toAppendix A
Troubleshooting.
2.11 Connecting to the Network
The switch may be connected to an Ethernet network with the unit
powered on or off. Use the following procedure to make your net-
work connections:
1. Connect network devices to the switch, using the cable guide-
lines that follow.
2. After the unit is connected to the network, it can be configured
for management capabilities. Please refer to the User’s Manual
on the CD-ROM for instructions on how to set up the manage-
ment features of the switch.

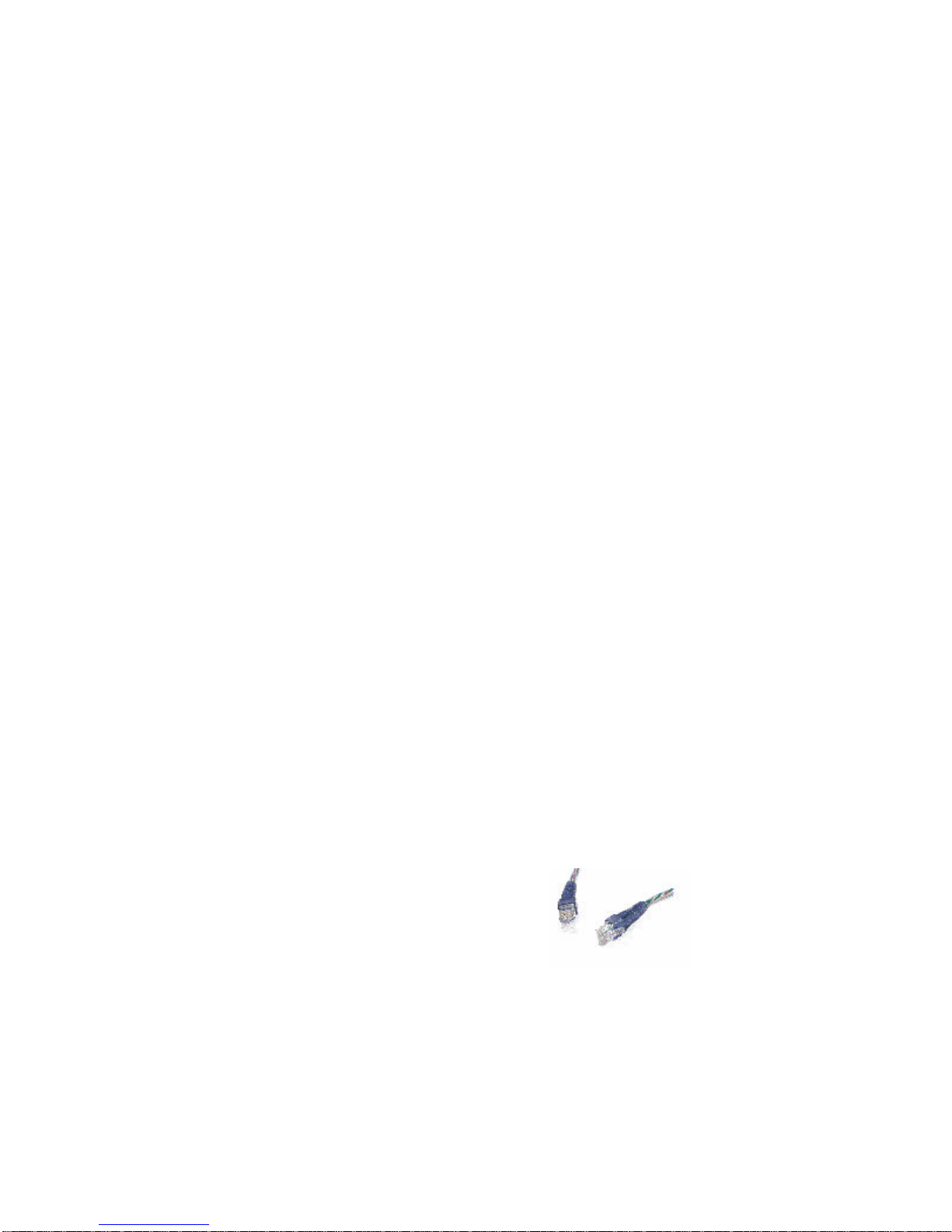

2.11.1 10/100/1000BaseTX Ports Cabling Procedures
The 10/100/1000 ports on the switch allow for the connection of
10BaseT, 100BaseTX, or 1000BaseT net-
work devices. The ports are compatible with
IEEE 802.3 and 802.3u standards.
Important: The switch must be located
within 100 meters of its attached devices.

20 Setup Guide
Note: This switch has no uplink port. All 10/100/1000 ports on this
switch are auto-sensing MDI/MDI-X. This advanced feature means
that the 10/100/1000 ports will automatically determine whether the
device at the other end of the link is a hub, switch, or workstation,
and adjust its signals accordingly.
Although 10BaseT requires only pins 1, 2, 3, and 6, Asanté strongly
recommends cables with all 8 pins wired as shown in the following
table.
1000BaseT DOES require that all four pairs (8 wires) be connected
correctly. The following table shows the correct pairing of all eight
wires.
BR
WH/BR
GR
WH/BL
BL
WH/GR
OR
WH/OR
Pin Number Pair Number & Wire Colors
12 White/Orange
22 Orange/White
33 White/ Green
41 Blue/White
51 White/Blue
63 Green/White
74 White/Brown
84 Brown/White
