ASC CablePassThru User manual

ASC - Refining the way we listen.
REVISED 1-11
Step 1: Materials
Parts Supplied Tools Required
. 2 CablePassThru Units . Drill . #2 Phillips Bit . Tape Measure
. Pencil
. Sharp Knife
. Stud Finder
. Keyhole Saw
. 12 2” Bugle Head
Drywall Screws
. Rubber Seal in
Cardboard Tube
CablePassThru
In s t a l l a t I o n
Step 2: Placement
Using your studnder, determine a spot on your wall between studs to install your CablePassru. Ensure
that the placement is clear of any wires, ducting, or plumbing, as we need a clear path through the the wall.
Step 3: Prep for Cut
Once placement is determined, hold the CablePassru up to the wall. Level the unit using a Torpedo Level
(Fig. 1). While continuing to hold it in place, use a pencil to trace the outline of the inner sleeve (Fig 2).
*Use included Wall Cutout Template to verify and adjust size as needed for correct t.
Fig. 1 Leveling the Unit Fig. 2 Tracing Inner Sleeve Fig. 3 Checking Hole Size
Step 4: Cut CablePassThru Hole
Use keyhole saw to cut out the hole traced in Steps 2 and 3. Cut out any insulation that may be in the wall where
the hole is. en use a long drill bit or similar tool to indicate the corners of the hole on the other side of the wall.
Use the keyhole saw to cut the second hole on the other side of the wall.
4275 West 5th Ave. Eugene, OR 97402 Phone: [phone] Fax: [phone] acousticsciences.com

ASC - Refining the way we listen.
REVISED 1-11
CablePa s s th u I n s t a l l a t I o n - C ont’d
Step 5: Install CablePassThru
Place one of the Cable Pass assemblies into the hole we cut in Step Two.
Check once again to be sure it’s level. Place the six 2” bugle head drywall
screws into the provided screw holes. en use your driver to gently drive
each screw into the drywall, making sure not to overdrive them. Repeat the
process for the other side. You are now ready to install your rubber seal.

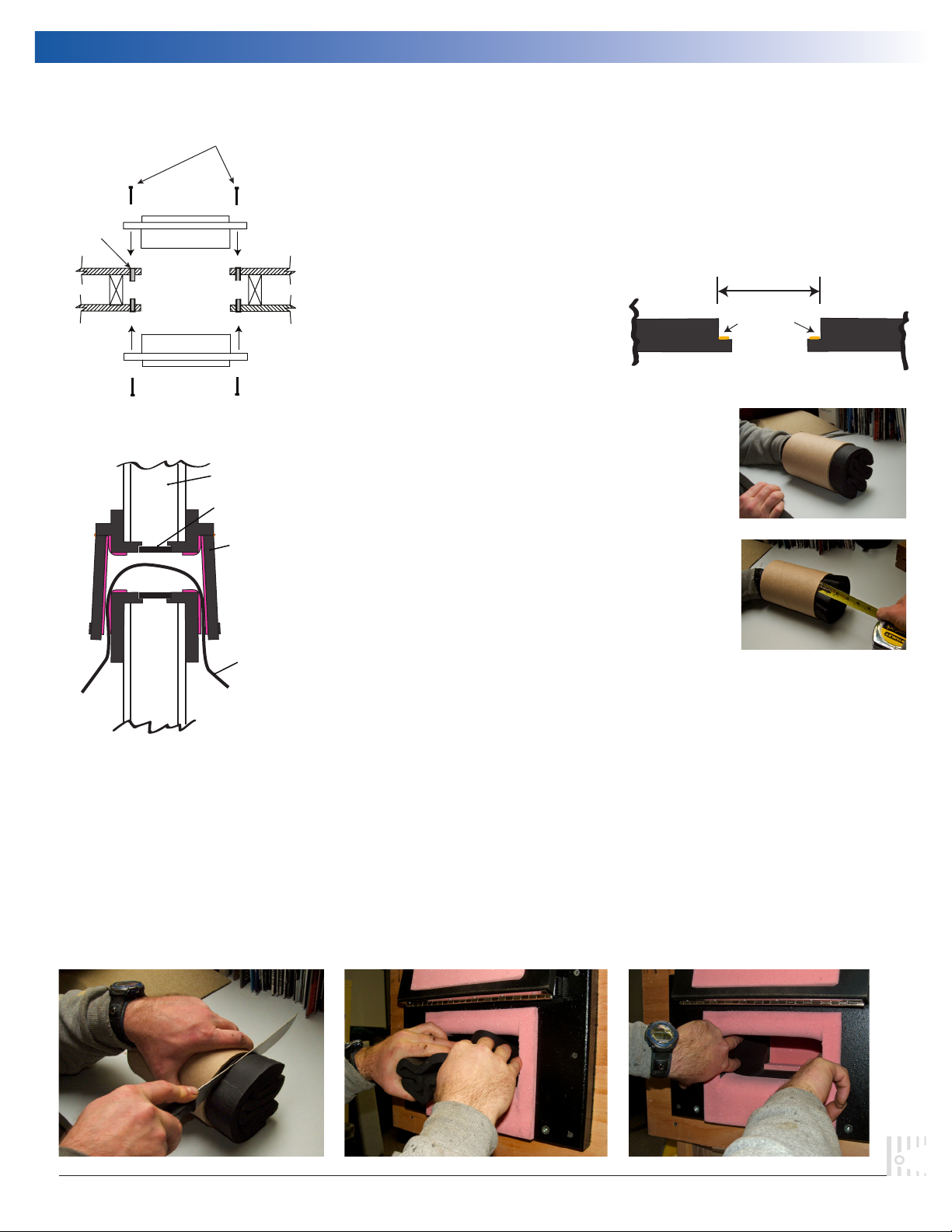

Installation Diagrams
Screws
Anchors
Top View Cross Section
Side View Cross Section
Wall with Cutout
Cable
CablePassThru
Rubber Seal
Step 6: Measure Gap
Once both CablePassru units
are installed on either side of the
wall, measure gap between the
edges of the Passru tunnel (See
Fig. 4). Completed seal will settle
into notched lips.
Measure
Glue
(optional)
Fig. 4 Measuring the Gap
Step 7: Measure the Seal
Push one end of the Rubber Seal through
cardboard tube until it is protruding (Fig 5).
Measure the exposed end of the rubber seal
until it matches the length measured in Step 5
(Fig. 6) . Continue to measure the rubber seal
while rotating the tube to ensure it is even and
protruding end is ush and square.
Fig. 5
Fig. 6
Step 8: Cut Seal
Using the cardboard tube as a measuring guide, cut the rubber seal to
length with a sharp, serrated knife (Fig. 7).
With one CablePassThru door open, insert the folded rubber seal
through the cable slot (Fig. 8). Unfold rubber seal in the PassThru
tunnel, using hands to press it into the notched lips (Fig. 9).
Seal with a tight bead of silicone caulk around all four exterior edges
where the passthru abuts the wall. Congratulations, you’re done!
Step 9: Insert Seal
Step 10: Finish
Fig. 7 Fig. 8
OPTIONAL
For a more permanent seal:
Smear a light coating of fast
drying adhesive to the notched
edges of the cable pass through
units. Install and flatten the seal.
As shown in Fig. 4
Fig. 9
4275 West 5th Ave. Eugene, OR 97402 Phone: [phone] Fax: [phone] acousticsciences.com
