ASCOLI ACDW571W User manual

Safety and warning information
Table of Contents
Product Introduction
Installation
Operation
Maintenance
1
Warning
Basic safety symbol----------------------------------------- 2
Appliance connection -------------------------------------- 2
Safety and warning information--------------------------- 2
Product features--------------------------------------------- 6
Product components---------------------------------------- 7
Installation dimension-------------------------------------- 8
Transport----------------------------------------------------- 9
Place environment ----------------------------------------- 9
Adjust plastic feet------------------------------------------ 9
Before using ------------------------------------------------ 10
Starting and functions setting ---------------------------- 10
Control panel ----------------------------------------------- 10
Feature selection --------------------------------------------11
Freezer compartment settings ----------------------------11

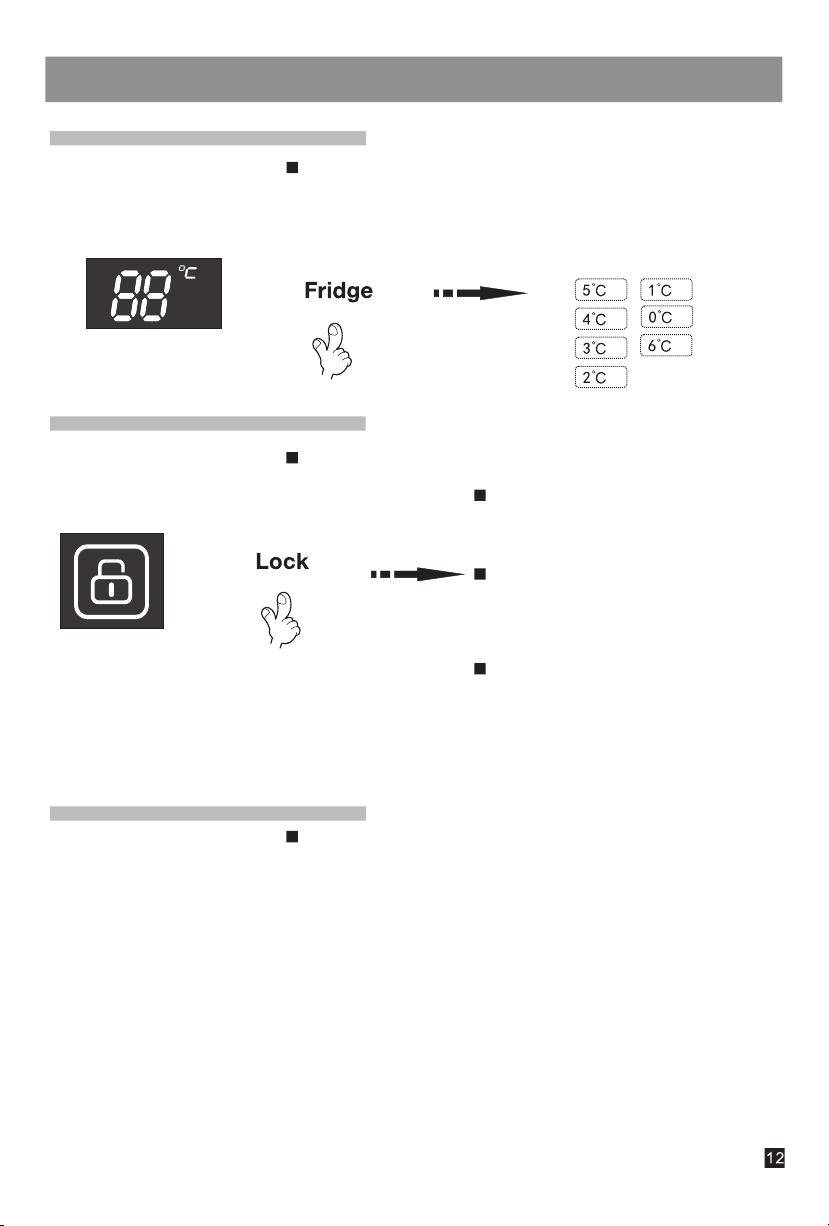

Refrigerator compartment settings ---------------------- 12
Lock/unlock button ----------------------------------------- 12
Open door alarm ------------------------------------------- 12
Refrigerator chamber ------------------------------------- 13
Freezing chamber ------------------------------------------ 14
Storage of foods ------------------------------------------- 15
Energy saving tips ----------------------------------------- 15
Defrosting --------------------------------------------------- 16
Cleaning ----------------------------------------------------- 16
General information --------------------------------------- 16
Normal phenomena --------------------------------------- 17
Trouble shooting ------------------------------------------ 18
Warning ----------------------------------------------------- 19

Safety and warning information
2
This guide contains many inportant safety messages.
Always read and obey all safety messages.
△
!DANGER
WARNING
CAUTION
You will be killed or seriously injured if you don't follow the
instructions.
△
!
△
!
△
!This is the safety alert symbol.It alerts you to safety messages
that inform you of hazards that can kill or hurt you or others or
cause damage to the product.All safety messages will be
preceded by the safety alert symbol and the hazard signal word
DANGER,WARNING,or CAUTION.These words mean:
To reduce the risk of fire,electric shock,or injury to persons
when using your product,basic safety precautions should be
followed,including the following.
Read all instructions before using this appliance.
You will be killed or seriously injured if you don't follow the
instructions.
Indicates an imminently hazardous situation which,if not avoided,
may result in minor or moderate injury,or product damage only.
Basic safety symbol
Safety and warning information
Appliance connection
CAUTION

Safety and warning information
△
!Children should be supervised to ensure that they do not play
with the appliance.
Do not use or store inflammable materials ether,benzene,
alcohol,medicine,LP gas,spray or cosmetics near or in the
fridge.It may cause explosion or fire.
Do not put glassware in freezing chamber or refrigerator
chamber air outlet,it may cause explosion or hurt.
Make sure of grounding.
Consult a qualified electrician or service person if the ground-
ing instructions are not completely understood,or if you have
doubts on whether the appliance is properly grounded.
The incorrect grounding may cause breakdown and electric
shock.
DANGER
△
!Do not damage the refrigerant circuit.
Refrigerant will cause serious injury when it splashing into the
eyes.If it happened please go to hospital immediately.
Keep ventilation openings,in the appliance enclosure or in the
built-in structure,clear of obstruction.
Do not use electrical appliance inside the food storage
chambers of the appliance.
Do not use mechanical devices or other means to accelerate
the defrosting process.
△
!This appliance is not intended for use by persons(including
children)with reduced physical,sensory or mental capabilities,
or lack of experience and knowledge,unless they have been
given supervisionor instruction concerning use of the appliance
by a person responsible for their safety.
WARNING
CAUTION
This appliance is intended to be used in household and similar
applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential
type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Safety and warning information
3

Safety and warning information
4
The dedicated outlet should be used.
Using several devices at one outlet may cause fire.
Install the appliance in a dry,well ventilated room.
The appliance should be place close to socket,it is easy
to cut off the power supply at the time of the accident.
Do not allow the power plug to face upward or to be
squeezed at the back of the fridge.
Water may be flown into or the plug may be damaged,
which causes fire or electric shock.
Do not allow the power cord bent or pressed by the heavy
object to be damaged.If it is damaged,it must be replaced
by the service agent or a similarly qualified person in order
to avoid a hazard.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Unplug the power plug when cleaning,handling the interior
lamp of the fridge.
It may cause electric shock or injury.
If the LED lamp is damaged, it must be replaced by the
manufacturer, its service agent.
Remove water or dust from the power plug with dry clean
cloth,do not use wet hands touch it and insert it with the
ends of the pins securely connected.
Do not touch food or containers at the freezer with wet
hands.It may cause frostbite.
Do not place the heavy object or the dangerous object,
cup,flower vase,cosmetics,medicineor any container with
water on the fridge.
It may be dropped to cause injury,fire or electric shock
when opening or closing the door.
Do not spray water at the outside or the inside of the
fridgeor do not clean it with benzene or thinner.
Safety and warning information

GAS
NO
Wait for 5 minutes or longer when reconnecting the plug.
It may cause the operation of the freezer to fail.
Do not use the fridge for non-domestic perpose(storing
medicine or testing material,blood,using at the ship,etc.)
It may cause an unexpected risk such as fire,electric
shock,deterioration of stored material or chemical reaction.
Do not use drier to dry the inside,nor light a candle to
remove odor.It may cause explosion or fire.
Do not cling to the door or the trays of the door.
It may make the fridge fallen down or damage the hands.
Especially,do not allow the children to do the above.
When gas is leaked,do not touch the fridge or the outlet
and ventilate the room immediately.
The explosion by spark may cause fire or burn.
When the gas is leaked by the severe damage during
delivering,installing or using the fridge,any spark may
cause fire or burn.
Do not insert the hands or the metal stick into the exit of
cool air,the cover,the bottom of the fridge,the heatproof
grill(exhaust hole)at the backside.
It may cause electric shock or injury.
Do not put ice in thin crystal cup or ceramic ware.
It may break cup or ceramic ware to cause injury.
Use the submerged the fridge after checking it.
It may cause electric shock or fire.
Do not install the fridge in the wet place or the place
which water or rain splashes.
Deterioration of insulation of electric parts may cause
electric leakage.Please check the fridge regularly.
Do not allow any person except the qualified engineer to
disassemble,repair or alter the fridge.
It may cause injury,electric shock or fire.
NO
After
5 minutes
Safety and warning information
Safety and warning information
5

Product features
Product Introduction
Energy saving and noise reduction
It contains super freeze,energy saving,noise reduction,
optimal refrigeration system to achieve.
Precise temperature control
Microcomputer control system separate to set,control and
display the R-temperature and F-temperature,more
precise control.
Automatic defrosting
Special program to reduce the temperature fluctuation of
the fridge,it's for keeping food fresh.
LED display and touch button
Control board respectively display refrigerator and freezer
chamber temperature setting and functional status;touch
button operation is convenient.
Door-opening alarm system
If more than 1 minute door-opening,alarm system will
remind you to close the door.
Tempered glass,safe and reliable
Tempered glass,safe and reliable,easy clean and durable.
Compressor condensing unit
Compressor condensing unit,Fan cooling and refrigeration
effect,to protect compressor long life.
Easy clean and removable door seal
Door seal is easy clean and removable,and long service life.
6

Product Introduction
7
All figures in this manual are schematic; some features and devices may not be
consistent fully with your refrigerator and the specific structure and configuration shall be
subject to the actual product.
Product components
The appearance and specifications of the actual product may differ depending on the model.
A Freezer compartment B Refrigerator compartment
1 Freezer door tray 4 Refrigerator glass shelves
2 Freezer glass shelves 5 Refrigerator drawer
3 Freezer drawer 6 Refrigerator door tray

The figure above is schematic for installation only, not representing
the actual product. The specific dimension shall be subject to the
product that you have bought.
Installation dimension
Product Introduction
Select a good location to place your appliance where it is flat and easy to use.Avoid
placing the unit near heat sources,direct sunlight or moisture.
To ensure proper air circulation around the fridge,please maintain
sufficient space.If install the top panel or closet,please maintain
sufficient space to move when necessary.
8
911
426
1655

The refrigerator must be placed on a hard, flat ground; if cushioning is
needed, stable, hard, nonflammable cushion blocks shall be used,
rather than the foam backing of refrigerator.
The refrigerator shall be kept away from damp locations where water
is easy to splash; water or dirt shall be removed with soft cloth timely
to prevent rusting which may have an effect on the electrical
characteristics.
Place the refrigerator in a well-ventilated place, reserve a certain
space around and behind the refrigerator, and do not cover or block
the air grille on the rear cover plate of compressor at the back of
refrigerator; Keep the refrigerator away from heat source or direct
sunlight.
Do not carry the refrigerator horizontally or reversely.
Do not carry the refrigerator by holding the door or handle; the
refrigerator shall be carried by lifting the bottom.
Installation
Transport
Place environment
Adjust plastic feet
When the refrigerator stays in the packing box, plastic feet are in
tightened state. After carrying it out from the packing box for
placement, please make sure to adjust two front plastic feet until the
height is suitable; just adjust two plastic feet with a wrench or directly
by hand.
Plastic feet and rear rollers must touch the ground to prevent the
refrigerator from movement, vibration or noise.
When moving the refrigerator, adjust plastic feet counterclockwise to
keep them off the ground, and then push the refrigerator gently to
move it.

Operation
Before Using
Connect the power cord, and turn on the power switch.
Upon startup for the first time, the screen will display respective set
temperature values (the temperature of refrigerating chamber is set
as 5℃,temperature of freezing chamber -18℃)
Starting
Function setting of LED display
The default mode is energy saving upon startup: The screen displays
for 20 s and then goes off.
This mode to save energy and prolong the service life of LED lights.
Remove all packages, including the foam backing at the bottom of
refrigerator and the tapes fixing accessories in the box.
Place the refrigerator to a proper position, and adjust the feet to level.
It is better to clean the refrigerator before use.
Remove the film: There is a layer of transparent film on the panel of
our product, which can protect products from being scratched in the
process of production and transportation, and you can choose to
reserve or remove the film as needed.
Place the refrigerator and adjust to level, clean it, let the refrigerator
stand for above 2 ~ 6 hours, and then power on to ensure that the
refrigerator can operate normally.
Starting and function setting
Control panel

11
Feature selection
The default temperature of the freezer is -18°C. To change the
temperature press the “Freezer” button to cycle through the set
temperatures.
Set Temperature
CAUTION: Do not put fresh roods directly on the frozen foods.
Freezer compartment settings
Operation
Each press of the “Feature” button will cycle through the operating
modes.
Holiday Mode - the refrigerator will run at 6°c while the freezer will
operate at -15°c.
Super freezer mode - when super freezer mode is selected, the
compressor will operate continuously for 180 minutes after which
the freezer will return to the last set operating mode.
Super fridge mode – When the super fridge mode is selected, the
fridge compartment reaches the set temperature in the shortest
period,in order to keep the food as fresh as possible.under this
mode,the set temperature of the fridge compartment locks on 0°C.
The program runs 150mins maximally then exits automatically,
the super fridge icon goes out,which represent the super fridge
function is disable,the set temperature returns to the last one
before the super fridge mode operates.

This product has button lock function.
The default temperature of the refrigerator is 5°C. To change the
temperature press the “Fridge” button to cycle through the set
temperatures.
Set temperature
Press the “Lock” button will enable lock
mode and the lock icon will be visible.
While the refrigerator is in this mode the
other buttons on the control panel will not
function, when the buttons are touched a
chime will sound and the lock icon will flash.
To exit lock mode press and hold the lock
button for 3 seconds until the icon is no
longer displayed.
When the refrigerator door is open for above 1 min, the buzzer will
alarm to remind users to close the door. After the door is closed, the
alarm sound will stop automatically.
Lock/unlock button
Open door alarm
Operation
Refrigerator compartment settings

13
The refrigerator chamber is mainly used to store
foods that are preserved for a short time.
Refrigerator chamber
The refrigerator chamber is suitable for storing fruits,vegetables,drinks
and other foods that will be eaten recently. It is suggested to seal foods
and then put them into the refrigerator.
Suggested sections of refrigerator chamber for various foods and
variety name:
Glass shelve: wheaten foods, milk, etc.;
Drawer: fruits, vegetables, etc.;
Top tray: dairy products, odorous foods, etc.;
Bottle rack: the thin packaging food, etc.;
①
②
③
④
Fruit and vegetable box
The refrigerating chamber has a fruit and vegetable box, which can
retain the moisture of fruits and vegetables and keep the humidity of
the box proper. It is suitable for storing fruits and vegetables.
Operation
Glass shelve
Inner liner of refrigerator
Glass shelve
Inner liner of refrigerator
Please push the sliding plug when you want to move
the glass shelve.
Door liner
Door bins
When you want to take off the door bins , please hold the door
bins and meanwhile push the door bins inward until the buckle
be emerged.
Glass shelves
Bottle Frame

Freezing chamber
The freezing chamber is used to freeze foods, store deeply
frozen foods and make ice cubes.
It can preserve foods for a long time.
The freezing chamber is suitable for retaining the freshness of
foods for a long time. When storing meat, it is suggested to cut the
meat into pieces which are easy to take out, and mark the freezing
date to prevent foods from exceeding the time limit.
Drawer of freezing chamber
Suggested sections of freezing chamber for various foods and variety
name:
ottle rack: small frozen articles;
Glass shelve: frozen foods, such as fishes, meats and ice creams;
Drawer: packaged frozen foods, etc.;
① Upper b
②
③
The upper drawer of freezing chamber can freeze and store large-
volume foods, and the lower drawer is mainly used to store frozen
foods.
Operation
CAUTION
14
The food especially the oily food which stored in refrigerator ,please
avoid the direct contact with the liner.When the interior stained with
oil or oily food soup stains, should be cleaned immediately to avoid
the long contact with the liner which may lead to the liner corrosion
and cracking.

Storage of foods
Instructions for storing foods
CAUTION
Energy saving tips
When storing freezing foods, put them to the inside of freezing
chamber, other than the bottle rack.
Do not put bottled or canned foods into the freezing chamber to
prevent frost cracking.
Before putting hot foods into the refrigerator, cool them to room
temperature first; otherwise, they will increase power consumption.
Mark the freezing date on the packaging bag according to different
storage lives of foods, so as to prevent foods from exceeding the
time limit.
Divide foods into proper pieces and package them separately, which
are easy to freeze thoroughly and will not frozen together.
The packaging materials shall be odorless, airtight, watertight and
pollution-free, so packaged foods are not easy to taint by other odor,
without quality reduction.
Do not put too many fresh foods into the freezing chamber once,
preferably not exceeding the freezing capacity value of refrigerator.
Melted foods can not be frozen again, unless they are made into
dishes; otherwise, their service quality will be affected.
Glass bottles or glass containers shall not be placed into the freezing
chamber or at the air outlet of refrigerating chamber duct; otherwise,
they may explode.
Foods can not block the air outlet; otherwise, abnormal air circulation
will be caused.
Make sure to keep the refrigerator away from heat source and direct
sunlight.
Before storing hot foods, cool them to room temperature and then
put into refrigerator.
Close the door timely, reduce the opening frequency, and shorten
the opening time.
When unfreezing frozen foods, you can put them into the
refrigerating chamber, which will assist in refrigeration of the
refrigerating chamber.
Make sure that the temperature sensor is not covered or blocked by
foods, and keep proper distance with foods.
Operation
15

Cleaning
Defrosting
This production has automatic defrosting function, without manual
operation.
Precautions for internal and external cleaning of refrigerator:
After cleaning, connect the power plug of refrigerator, and
connected with the refrigerator.
Maintenance
■Before cleaning, always turn off the power switch, disconnect the
power plug.
■During cleaning, make sure that no water will enter the switch,
control panel, door lamp and top control box.
■Remove dirt from the outside of refrigerator with mild cleaner, then
wipe with clean soft cloth, and let the refrigerator dry naturally.
■When cleaning door sealing strip, always use clean water, wipe
with dry cloth and let it dry naturally. Wet soft cloth with warm water
or neutral cleaner to wipe the refrigerator body except the door
sealing strip.
■It is forbidden to flush the refrigerator directly with water, which will
affect electrical insulation properties, etc.
■It is forbidden to clean the refrigerator with metal wipers, ware
brushes, coarse abrasive cleaners, strong alkaline detergents, or
flammable or toxic cleaning fluids.
General information
On vacation
■When you want to leave for vacation, you had better to make the
refrigerator operate continuously and leave foods that can be
stored for a short time. If you want to stop the refrigerator, remove
all foods, disconnect the power plug, clean the inside of refrigerator
fully, and open the door to avoid producing abnormal odors.
At power failure
■Generally, short-term power failure will not affect the temperature
of the refrigerator sharply. However, if power failure lasts for a long
time, you shall reduce the opening frequency of refrigerator, and
shall not put fresh foods into the refrigerator (prevent rise in the
temperature of refrigerator from speeding up).
■If you know power failure is coming, you can turn on the “Super
Freezer” fu nction in advance to keep the temperature of
refrigerator to the lowest value.
Shutdown
■Generally, it is not suggested to stop refrigerator or turn off the
power switch; otherwise, the life of refrigerator may be affected.

Normal phenomena
Maintenance
Low voltage,the compressor can't start
You should purchase pressurizer of more than 1000W
when the area of the appliance installation,that's better to
protect your fridge.
Long time to start
When the ambient temperature too high, it will take long time
to start the appliance.
Button failure
Please check the control board whether the fridge under
lock mode.When under lock mode,all buttons can't work.
Dew drops
When external air flows into the cool inner surface of the
fridge,dew drops can be formed.
If the humidity of the installed location is high or during
the rainy season,dew drops can form on the outer side
of the fridge.This is a natural phenomenon that occurs
during the humid weather,Wipe the water drops with a
dry cloth.
Noise
When you operate the fridge for the first time,the fridge
will operate at high speed to cool fast and the sound can
seem louder.When the internal temperature falls below a
certain level,the noise will subside.
When the operation of the compressor is starting or
ending;various parts expanding/contracting or various
control devices operating or temperature change within
the fridge,you will hear the sounds,these are normal
sounds.
Compressor hot
When working,the temperature of the compressor is
more than 80℃,please do not touch the compressor,it
may cuase serious injury.
outer
Compressor long time running
When the ambient temperature too high or put too much
fresh foods into the fridge,it will take long time to cool
down until the appliance run at the setting temperature.
Middle beams feel hot
Middle beams feel hot after a period of time of the appliance run,
it belongs to the normal phenomenon.
17

Maintenance
Trouble shooting
18

Warning
19
The refrigerant isobutene(R600a) is contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental compatibility,which is nevertheless flammable.
During transportation and installation of the appliance, ensure that none of the components
of the refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
1.The appliance must be positioned so that the plug is accessible.
2.If the supply cord is damaged,it must be replaced by the manufacturer,its service
agent or similarly qualified persons in order to avoid a hazard.
3.Keep ventilation openings,in the appliance enclosure or in the built-in structure,
clear of obstruction.
4.Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
5.Do not damage the refrigerant circuit.
6.Do not use electrical appliances in side the food storage compartments of the
appliance,unless they are of the type recommended by the manufacturer.
7.This unit is using R600a as the Refrigerant and cyclopentance as Foaming agent,both
of this two kind of materiral is easy to be burnt, so the abandoned unit should be away
from the fire, and can not be treated with fire.
8.Danger of electrical shock,the yellow-green earthling of this appliance must be earthed
before operation.
9.Refrigerator discarded after the need for disposal according to local lows and
regulation.
10.WARNING-The refrigerant and insulation blowing gas are flammable.When disposing of the
appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
envirment or human health from uncontrolled waste disposal,recycle it
responsibly to promote the sustainable resuse of material resources.
To return your used device,please use the return and collection systems
or contact the retailer where the product was purchased. They can take
this product for envirmental safe recycling.
Caution:risk of fire
CAUTION This appliance can be used by children aged from 8 years and above and persons
with reduced physical,sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
△
!
