Asgard Annexe User manual

It is always recommended to anchor the unit to the ground. Drill through
the four holes in the base of the unit using 6mm dia masonry drill to a
depth of 70mm. Screw in the anchor fixings. (These have a self cutting
thread). If not anchoring the unit, fit the self seal plugs BEFORE
BUILDING to block the fixing holes from underneath. Please note
product must be anchored down to comply with LPS1175.
TOOLS REQUIRED
Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
10mm socket or spanner.

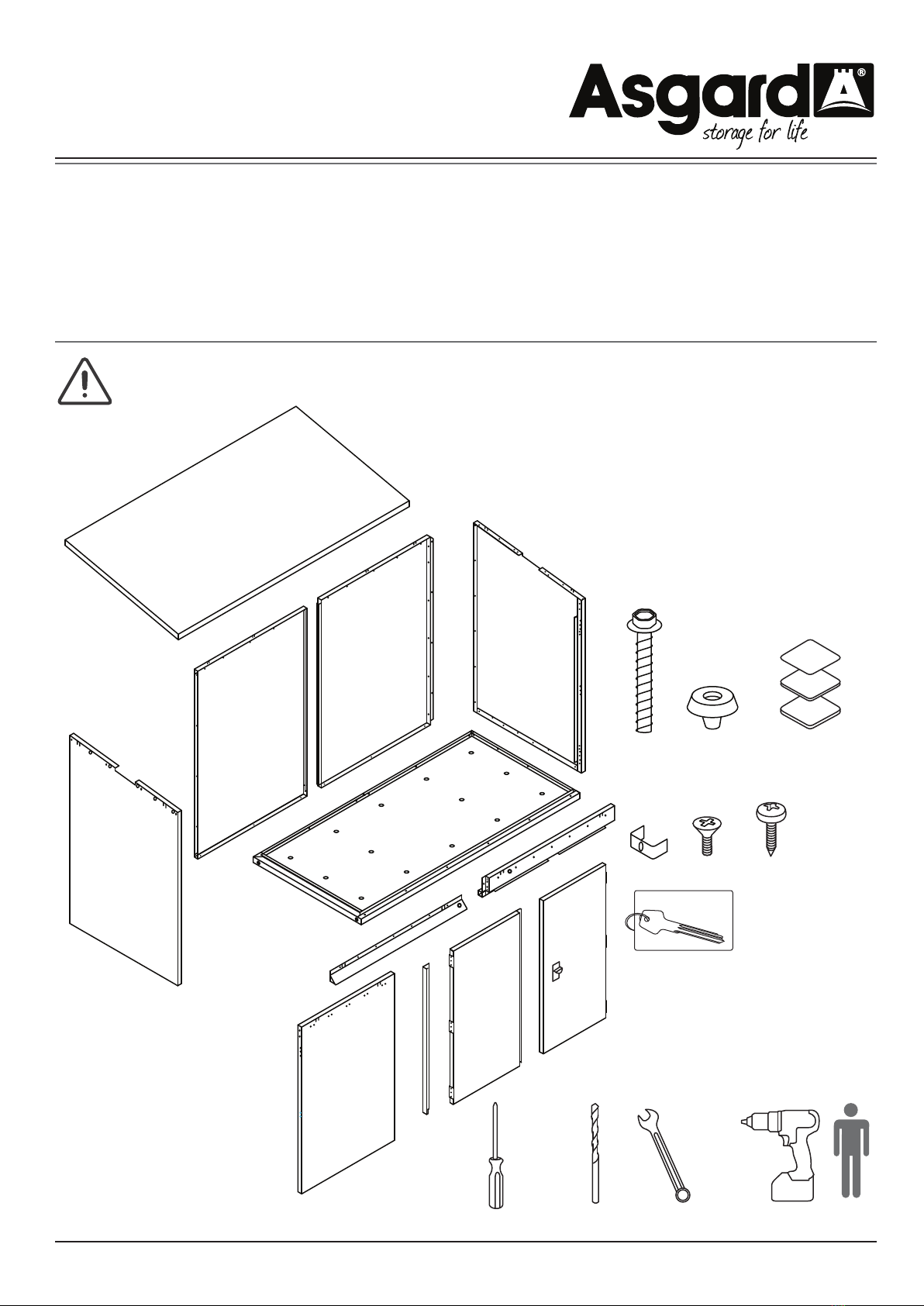

ANNEXE
ZSCREW32 x4
ZSCREW100 x115
ZSCREW340 x18
32670 x12
6mm
Dia.
10mm
Spanner
18V
ZCOMPPLZS02 x4
ZCOMPPLAS22-23-24 x6
2x 2mm, 2x 3mm, 2x 5mm
RH DOOR 32613 x1
LH DOOR 32612 x1
FRT PNL TRAP PLATE 32614 x1
LARGE FRT PANEL 32610 x1
LH SIDE PANEL 32608 x1
RH SIDE PANEL 32609 x1
RH BACK PANEL 32607 x1
LH BACK PANEL 32606 x1
TOP PANEL 32696 x1
BASE PANEL 32605 x1
FASCIA 32611 x1
RAIN GUARD 32615 x1
BASE INSTRUCTIONS
Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 1990mm x 1100mm x 50mm.
LEVELING THE UNIT
Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
For maintenance instructions of this product visit www.asgardsss.co.uk
Warning: some panels may weigh over
20Kg. Beware of manual handling
Warning: Please keep
this key card safe! Refer
to if replacement key is
required.
x2
Posi-Driv
Screwdriver
00001
YOUR UNIQUE
KEY CODE

1
3
5 6
4
2
PLEASE NOTE ALL SCREWS ARE FIXED FROM THE INSIDE
RH SIDE PANEL 32609
RH BACK PANEL 32607
x10 x11
x8
LH BACK PANEL 32606
LH SIDE PANEL 32608
LARGE FRT PANEL 32610
ATTACH PANEL 32610 TO LEFT OR
RIGHT HAND SIDE TO DETERMINE
DOOR LOCATION
!
x6
x4
x5
x10
x3
x5
x2
x2
x2
x2
x3
x9
BASE PANEL 36443
x3
x5
x3
x18
x6
x3
x8
FASCIA 32611
IF YOU HAVE AN OPTIONAL RAMP,
PLACE UNDERNEATH FRONT
BASE PANEL AT THIS STAGE
!

7 8
910
11 12
x8 x12
9A. TRAP RAIN GUARD
BETWEEN FASICA &
LID. 9B. SCREW IN
!
FRT PNL TRAP PLATE 32614
TOP PANEL 32696
RAIN GUARD 32615
x8
x7
x3
x4
x4
x10
x21
32670
x7
x18
RH DOOR 32613
LH DOOR 32612
x3
x3
x3
x3
x3
x3

13 14
www.asgardsss.co.uk
32735/21.06.19/KW/REV4
x4
LEVEL SHED UNTIL DOORS
ALIGN USING ZCOMPPLAS
AS SUITABLE
!
ZCOMPPLAS22-23-24
