Ashdown Ashdown Acoustic Series User manual

USER MANUAL
ENGLISH / FRANÇAISE / DEUTSCH / ESPAÑOL / ITALIANO

THANK YOU!
FOR PURCHASING
YOUR NEW STUDIO BASS COMBO
ASHDOWN ENGINEERING - STUDIO RANGE USER GUIDE
PAGE
4-5 STUDIO JNR
6-7 STUDIO 8
8-9 STUDIO 10
INTRODUCTION
The all-new designs feature a new light-weight design using responsibly sourced poplar-ply
wood, providing a light but strong structure for our new combo enclosures.
Today people require our products to be portable yet practical, which in essence is a task of its
own. When designing our new studio line we discussed a number of different ideas, but the key
point what they needed to sound as good as they look...
So going back to basics we leaned upon one our tried and tested EQ sections by way of the 5
BAND EQ featured across our Rootmaster and OriginAL ranges, this EQ opens up everything
you need to establish a great tone straight out of the box, with everything at 12 O’clock the NEW
Ashdown Studio Range sounds as you would expect from a bass guitar warm yet articulate.
10-11 STUDIO 12
12-13 STUDIO 15
14-15 STUDIO 210
16-17 STUDIO MINIRIG
Please register this product online so we can make sure we give you years of
customer support through our friendly in-house service centre.
Here is where you need to visit to register your product:
http://www.ashdownmusic.com/pages/register
REGISTER ONLINE
WWW.ASHDOWNMUSIC.COM

ASHDOWN ENGINEERING - STUDIO JNR ASHDOWN ENGINEERING - STUDIO JNR
FEATURES
1. Input - a 1/4” Jack Socket for use with
your instrument
2. Volume - A rotary control to adjust the
overall output of the amp.
3. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
4. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
5. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
6. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker
for silent practice).
7. Line In - For use with a line level
instrument or audio device such as an MP3
player
8. On - light indicates the amplier is
powered.
9. Power Switch - Turn your amp on or off
10. IEC Power input - a fused IEC power inlet
for use with the supplied cable
USER GUIDE
USER GUIDE

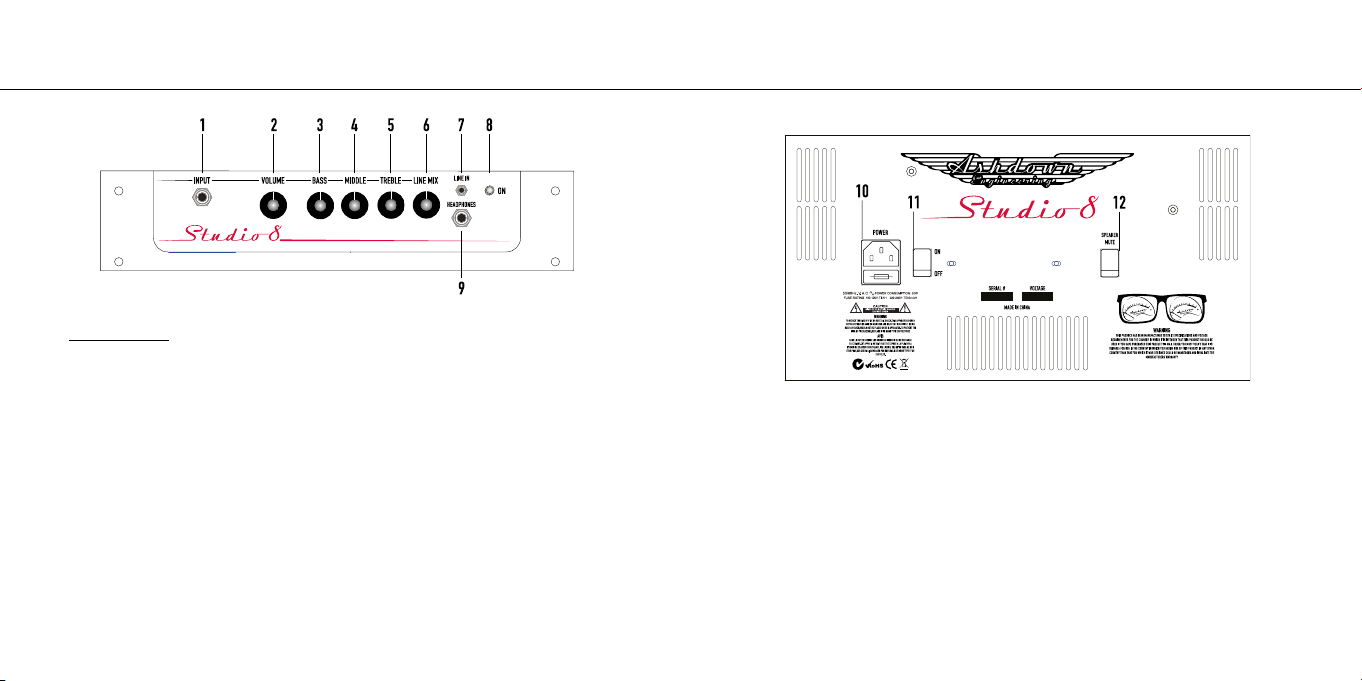

ASHDOWN ENGINEERING - STUDIO 8 ASHDOWN ENGINEERING - STUDIO 8
FEATURES
1. Input - a 1/4” Jack Socket for use with
your instrument
2. Volume - A rotary control to adjust the
overall output of the amp.
3. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
4. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
5. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
6. Line Mix - A rotary control to mix the
line level signal with your instrument
7. Line In - For use with a line level instrument
or audio device such as an MP3 player
8. On - light indicates the amplier is
powered.
9. Headphones - Mini Headphone Jack
Output.
10. IEC Power input - a fused IEC power inlet
for use with the supplied cable
11. Power Switch - Turn your amp on or off
12. Speaker Mute - To mute the speaker for
use with headphones
USER GUIDE
USER GUIDE

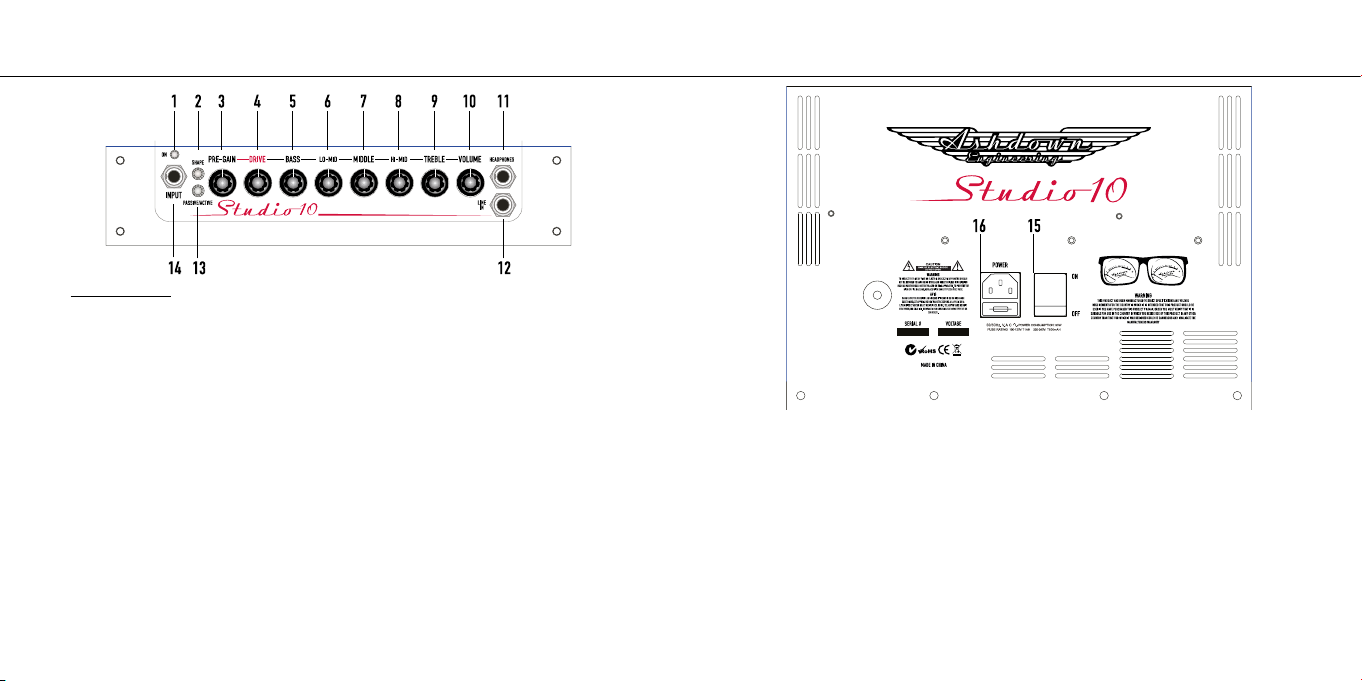

ASHDOWN ENGINEERING - STUDIO 10 ASHDOWN ENGINEERING - STUDIO 10
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
10. Volume - A rotary control to adjust the
overall output of the amp.
11. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
12. Line In - For use with a line level instrument
or audio device such as an MP3 player
13. Passive/Active - A -15dB input pad for use
with active instruments
14. Input - a 1/4” Jack Socket for use with your
instrument
15. Power Switch - Turn your amp on or off
16. IEC Power input - a fused IEC power inlet
for use with the supplied cable
USER GUIDE
USER GUIDE

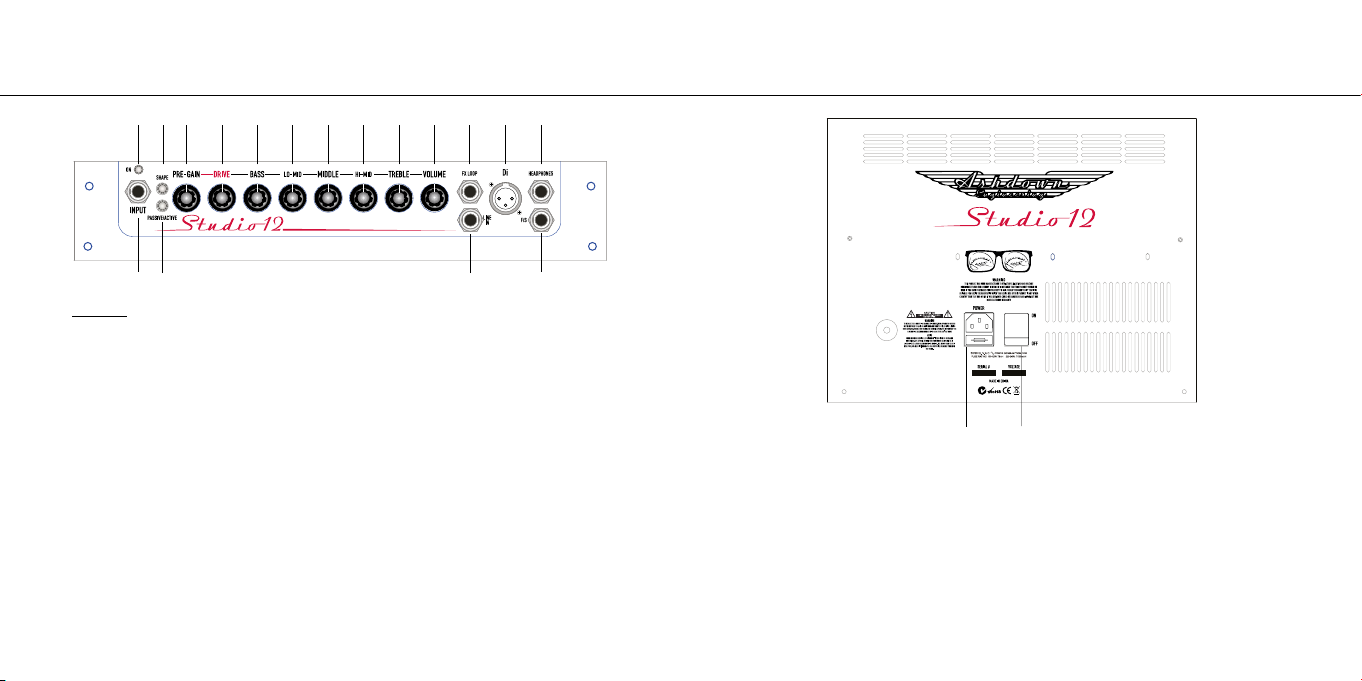

ASHDOWN ENGINEERING - STUDIO 12 ASHDOWN ENGINEERING - STUDIO 12
STUDIO 12
12345678910111213
14151617
1819
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
10. Volume - A rotary control to adjust the
overall output of the amp.
11. FX Loop - a TSR Jack is provided for use
with a Y cable (tip send ring return).
12. Di - A balanced XLR Di Output.
13. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
14. F/S - Footswitch out for use with an FS-
1single latching footswitch (sold separately)
to control the Drive in/out.
15. Line In - For use with a line level instrument
or audio device such as an MP3 player
16. Passive/Active - A -15dB input pad for use
with active instruments
17. Input - a 1/4” Jack Socket for use with your
instrument
18. Power Switch - Turn your amp on or off
19. IEC Power input - a fused IEC power inlet
for use with the supplied cable
USER GUIDE
USER GUIDE

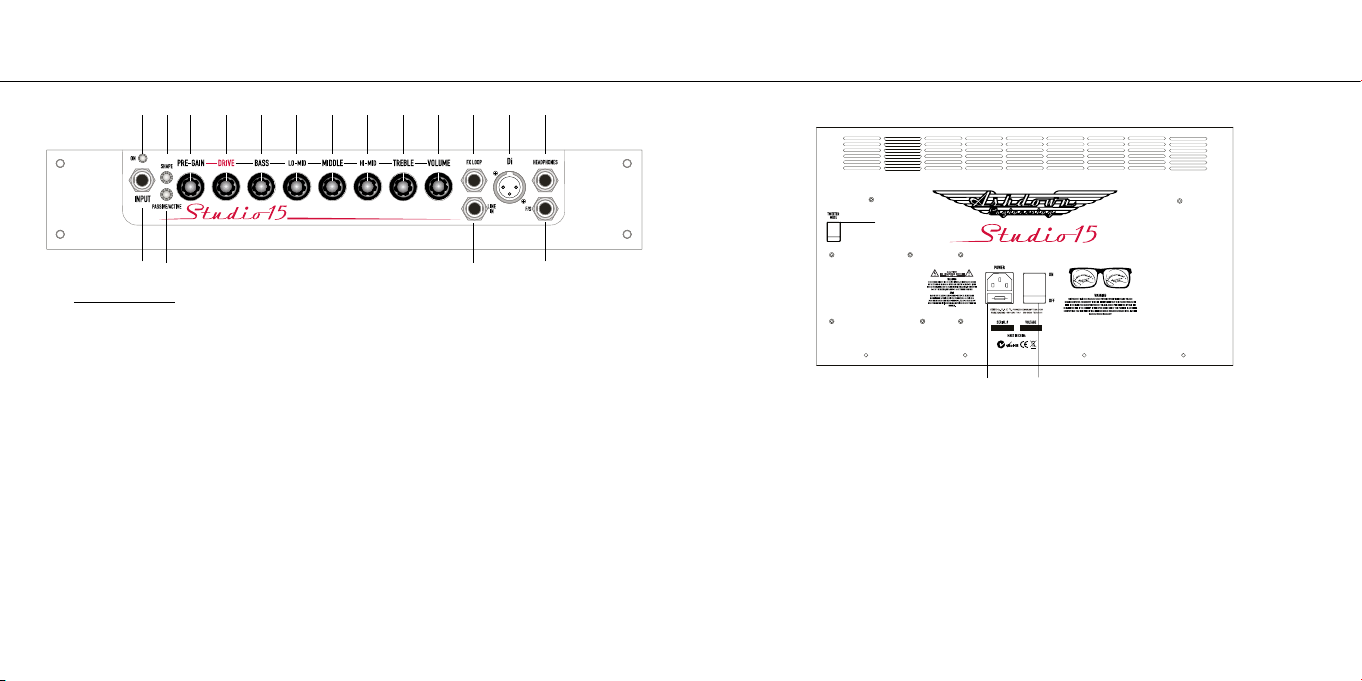

ASHDOWN ENGINEERING - STUDIO 15
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
ASHDOWN ENGINEERING - STUDIO 15
1819
20
12345678910111213
14151617
10. Volume - A rotary control to adjust the
overall output of the amp.
11. FX Loop - a TSR Jack is provided for use
with a Y cable (tip send ring return).
12. Di - A balanced XLR Di Output.
13. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
14. F/S - Footswitch out for use with an FS-
1single latching footswitch (sold separately)
to control the Drive in/out.
15. Line In - For use with a line level instrument
or audio device such as an MP3 player
16. Passive/Active - A -15dB input pad for use
with active instruments
17. Input - a 1/4” Jack Socket for use with your
instrument
18. Power Switch - Turn your amp on or off
19. IEC Power input - a fused IEC power inlet
for use with the supplied cable
20. Tweeter Mute - a simple on/off switch to
engage/defeat the on board HF tweeter
USER GUIDE
USER GUIDE

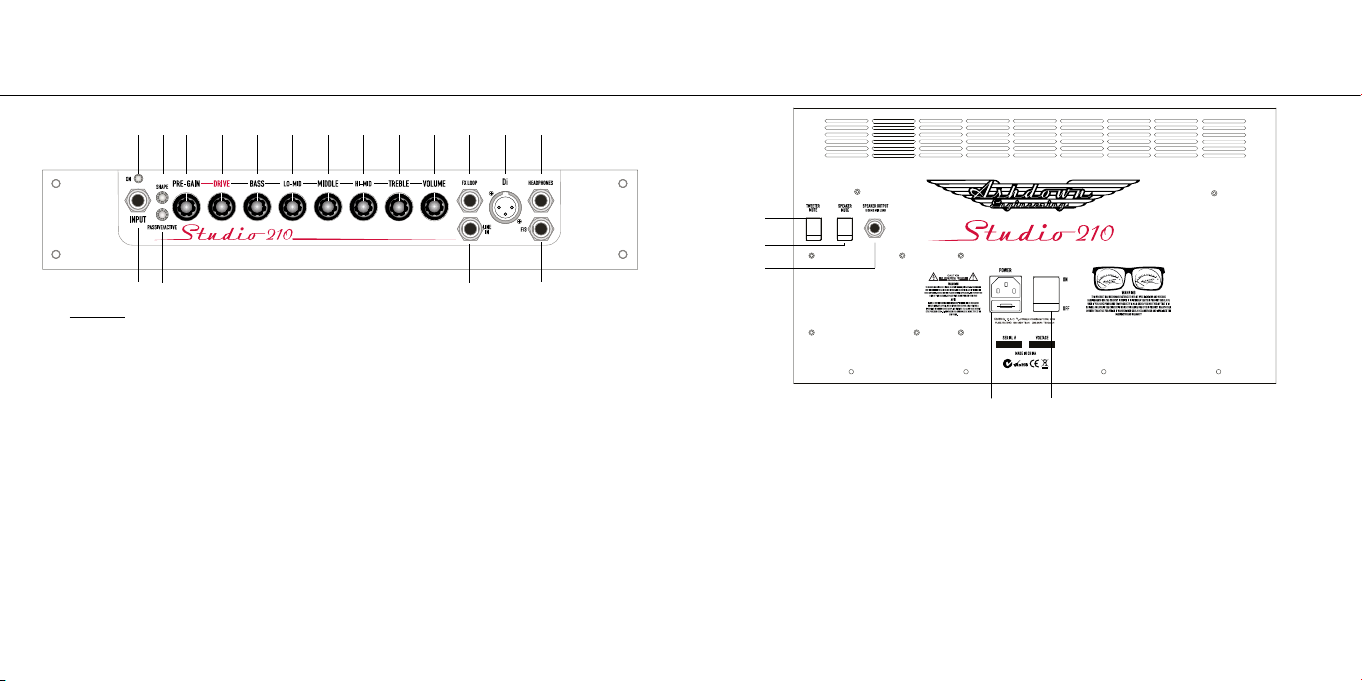

ASHDOWN ENGINEERING - STUDIO 210
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
ASHDOWN ENGINEERING - STUDIO 210
10. Volume - A rotary control to adjust the
overall output of the amp.
11. FX Loop - a TSR Jack is provided for use
with a Y cable (tip send ring return).
12. Di - A balanced XLR Di Output.
13. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
14. F/S - Footswitch out for use with an FS-
1single latching footswitch (sold separately)
to control the Drive in/out.
15. Line In - For use with a line level instrument
or audio device such as an MP3 player
16. Passive/Active - A -15dB input pad for use
with active instruments
17. Input - a 1/4” Jack Socket for use with your
instrument
18. Power Switch - Turn your amp on or off
19. IEC Power input - a fused IEC power inlet
for use with the supplied cable
20. Tweeter Mute - a simple on/off switch to
engage/defeat the on board HF tweeter
21. Speaker Mute - a simple on/off switch to
mute the on board speaker for silent use
22. Speaker Output - An 8 Ohm speaker 1/4”
output for use with an extension speaker
12345678910111213
14151617
1819
20
21
22
USER GUIDE
USER GUIDE

ASHDOWN ENGINEERING - STUDIO MINIRIG
FEATURES
1. On - light indicates the amplier is
powered.
2. Shape - A switchable pre-shape EQ.
3. Pre-Gain - A rotary control to set
the input sensitivity of the amp in
conjunction with your instrument.
4. Drive - A rotary control to adjust the
amount of tube emulated overdrive.
5. Bass - A rotary control to adjust the
amount of Bass +/- 15dB.
6. Lo-Mid - A rotary control to adjust the
amount of Lo-Mid +/- 15dB.
7. Middle - A rotary control to adjust the
amount of Middle +/- 15dB.
8. Hi-Mid - A rotary control to adjust the
amount of Hi-Mid +/- 15dB.
9. Treble - A rotary control to adjust the
amount of Treble +/- 15dB.
ASHDOWN ENGINEERING - MINIRIG
10. Volume - A rotary control to adjust the
overall output of the amp.
11. FX Loop - a TSR Jack is provided for use
with a Y cable (tip send ring return).
12. Di - A balanced XLR Di Output.
13. Headphones - 1/4” Headphone Jack
Output (this actively mutes the speaker for
silent practice).
14. F/S - Footswitch out for use with an FS-
1single latching footswitch (sold separately)
to control the Drive in/out.
15. Line In - For use with a line level instrument
or audio device such as an MP3 player
16. Passive/Active - A -15dB input pad for use
with active instruments
17. Input - a 1/4” Jack Socket for use with your
instrument
18. Power Switch - Turn your amp on or off
19. IEC Power input - a fused IEC power inlet
for use with the supplied cable
20. Speaker Output - A min 4 Ohm speaker
1/4” output for use with an extension
speaker
USER GUIDE
USER GUIDE

ASHDOWN ENGINEERING - STUDIO RANGE
SPECIFICATION:
Studio Jnr
Output Power 15watts rms into 8 ohms
Speaker Unit 1 x 6” Ashdown Driver
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Passive Bass, Middle, Treble.
Weight 6Kgs 13.1Lbs
Studio 8
Output Power 30watts rms into 8 ohms
Speaker Unit 1 x 8” Ashdown Driver
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Passive Bass, Middle, Treble.
Dimensions (mm) H:336* W:360 D:227
Weight 6.1Kgs 13.4Lbs
Studio 10
Output Power 60watts rms into 8 ohms
Speaker Unit 1 x 10” Ashdown Driver
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Passive Bass, Middle, Treble.
Dimensions (mm) H:366* W:360 D:302
Weight 7Kgs 15.4Lbs
Studio 12
Output Power 100watts rms into 8 ohms
Speaker Unit 1 x 12” Ashdown Driver
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Bass, Hi-Mid, Middle, Lo-Mid, Treble
Dimensions (mm) H:472* W:414 D:357
Weight 10.3Kgs 22.7Lbs
ASHDOWN ENGINEERING - STUDIO RANGE
Studio 15
Output Power 300watts rms into 8 ohms
Speaker Unit 1 x 15” Ashdown Driver & Tweeter
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Bass, Hi-Mid, Middle, Lo-Mid, Treble
Dimensions (mm) H:526* W:428 D:378
Weight 11.2Kgs 24.6Lbs
Studio 210
Output Power 300watts rms into 8 ohms
Speaker Unit 2 x 10” Ashdown NEO Driver & Tweeter
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Bass, Hi-Mid, Middle, Lo-Mid, Treble
Dimensions (mm) H:526* W:428 D:378
Weight 11.2Kgs 24.6Lbs
Studio Minirig
Output Power 180 watts into 4 ohms min load
Speaker Unit 2 x 10” Ashdown NEO Driver & Tweeter
Input Impedance 1 Meg ohm
Input Signal Range 100Mv to 10v
E.Q. Bass, Hi-Mid, Middle, Lo-Mid, Treble
Dimensions (mm) HEAD: 170 x 400 x 300 CABINET: 690 x 400 x 350
Weight (kg) HEAD: 7.74 CABINET: 18
* + 20mm for feet
SPECIFICATIONS
SPECIFICATIONS
