Ashly SRA-TR2 User manual

SRA-TR2
60W/70V
Transformer Option
ASHLY AUDIO I C.
847 Holt Road Webster, NY 14580-9103 Phone: [phone]
Toll-Free: (800) 8 8-6308 Fax: [phone]
www.ashly.com
The Ashly SRA-TR2 60W/70V transformer option allows the Ashly SRA-120 power amplifier
to drive 70 volt distributed sound loads. Mount the transformer option directly next to an SRA-120
for connecting to the amplifier outputs. Separate transformers are used for channel one and channel
two. Transformer input wires are pre-stripped for connecting to the SRA-120 binding posts, while

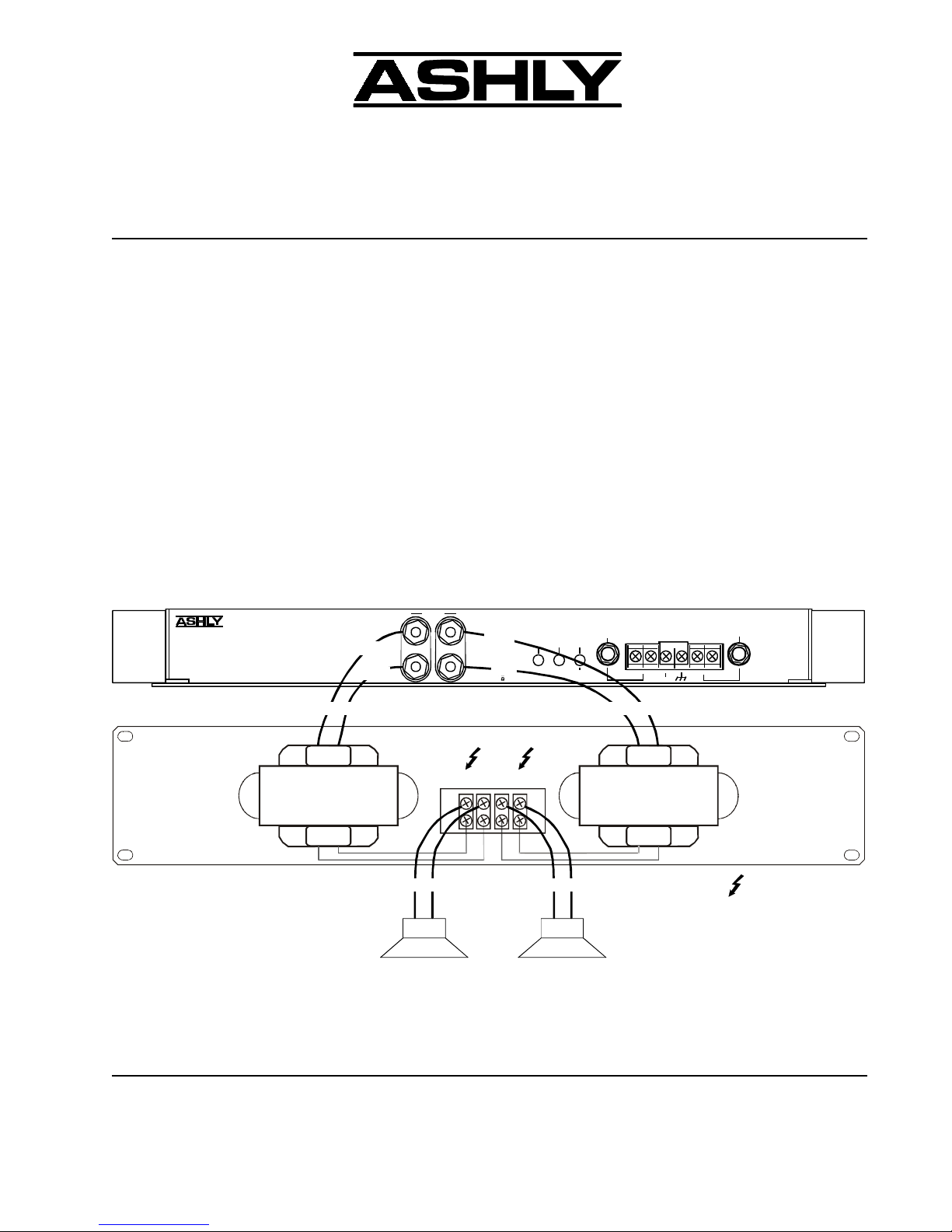

70 volt transformer outputs are factory wired to #8 screw teminals for speaker wire connections. The
following diagram shows the proper use of the SRA-TR2. Please note that the SRA-TR2 is not
compatible with other power amplifiers, only the Ashly SRA-120.
Ch. Out
p
ut Ch.1
(
+
)
(
-
)
Stereo
Mono
orm
Bridged
0dB
-10dB
Input
Sensitivity
(
+
)
(
-
)
(
+
)
(
-
)
Channel
In
p
ut
Input is active balanced.
If unbalanced connection is used,
be sure to
g
round unused path. Channel 1
(
Mono
)
In
p
ut
In
p
ut
Ground
SRA-1 0
Made In USA
45W/Ch.@8
60W/Ch.@4
Blue = 70V
Black = Com
Red = 4Ω
Black = Com
Blue = 70V
Black = Com
Red = 4Ω
Black = Com
To Amplifier Output Ch 2 To Amplifier Output Ch 1
(Red)
(Blk) (Blk)
(Red)
Cautio : Risk Of Electric Shock.
Disco ect From Amplifier Outputs
Before Co ecti g Speakers.
Ch 2
+Com Com +
70 Volt Output
Ch 1
Features:
• Designed Specifically for the SRA-120
• Mounted, Dual 60W/70V Transformers and Terminal Strip
• Secondary Wiring Terminated to #8 Screw Terminal Block
• 14” 20 ga. Input Wire
Specifications:
MaximumWattage: 60 Watts (RMS) • Input: 4 ohms •Output: 70.7 Volts RMS •
Frequency Response: 50~15,000 Hz, +/- 2dB • Insertion Loss: 0.5dB • Termination: 14”, UL1015, 20 ga. lead
wire • Dimensions: 19.0” W x 3.5”H x 3.0”D • NetWeight: 5.0 lbs. • Shipping Weight: 7.0 lbs.
