Asiatelco AWP-S Series User manual

Atel
3F, Building-8,#289 Bisheng Road,
Zhangjiang Hi-Tech Park, Pudong, Shanghai, China, 201204
http://www.asiatelco.com
Asiatelco Technologies Co.

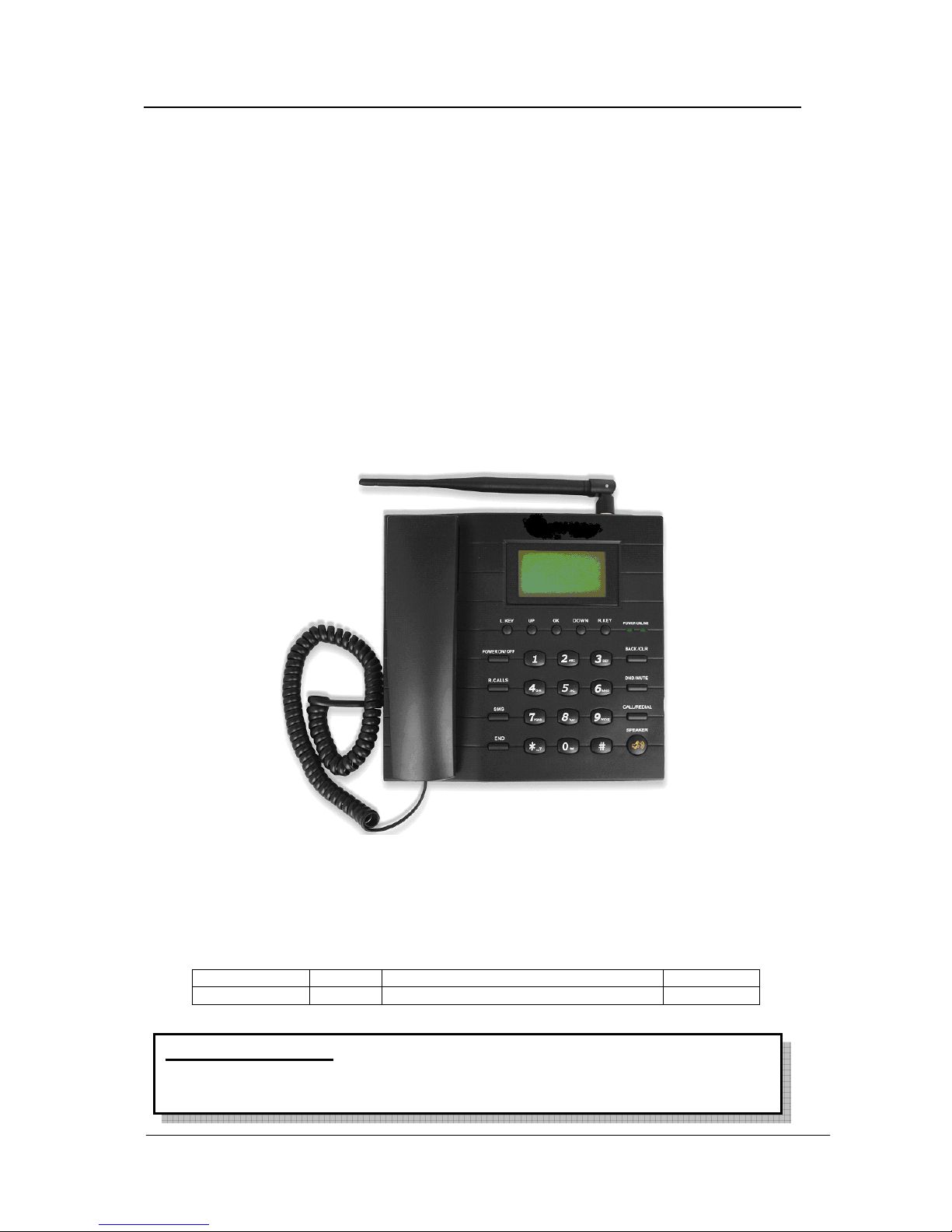

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
R1.0
Author Revision Changes Date
Oliver Liu R1.0 First Release
Confidential Material: This document contains information that is proprietary and confidential,
copying this document is prohibited without permission from AsiaTelco
Technologies Co.

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential
Index
1 GENERAL INTRODUCTION...................................................................................................................1
2 IMPORTANT INFORMATION................................................................................................................2
3 PRODUCT OVERVIEW............................................................................................................................3
3.1 P ACKING L IST ........................................................................................................................................3
3.2 P RODUCT I NTRODUCTION ......................................................................................................................3
3.2.1 Appearance.......................................................................................................................................3
3.2.2 Key Definition...................................................................................................................................4
3.2.3 Display Icon......................................................................................................................................5
4 BASIC OPERATIONS................................................................................................................................5
4.1 P OWER O N /O FF .....................................................................................................................................5
4.2 M AKE A C ALL ........................................................................................................................................5
4.3 A NSWER A C ALL ....................................................................................................................................5
4.4 E ND A C ALL ...........................................................................................................................................5
5 MAIN MENU...............................................................................................................................................6
6 CONTACTS.................................................................................................................................................6
6.1 V IEW A C ONTACT ..................................................................................................................................6
6.2 S EARCH FOR A C ONTACT .......................................................................................................................7
6.3 A DD A N EW C ONTACT ...........................................................................................................................7
6.4 D ELETE A C ONTACT ...............................................................................................................................7
6.5 E DIT A C ONTACT ...................................................................................................................................7
6.6 G ROUP ...................................................................................................................................................7
6.6.1 Add a Contact to the Group..............................................................................................................7
6.6.2 Delete a Contact from the Group......................................................................................................7
6.6.3 Rename a Group...............................................................................................................................7
6.6.4 Set a Ring tone to a Group................................................................................................................7
7 MESSAGES..................................................................................................................................................8
7.1 S END A M ESSAGE ..................................................................................................................................8
7.2 R ECEIVE A M ESSAGE .............................................................................................................................8
7.3 V IEW O UTBOX .......................................................................................................................................8
7.4 E RASE M ESSAGES ..................................................................................................................................8
7.5 M EMORY S TATUS ..................................................................................................................................8
7.6 M ESSAGE S ETTINGS ...............................................................................................................................8
8 RECENT CALLS ........................................................................................................................................8
8.1 I NCOMING C ALLS ...................................................................................................................................9
8.2 O UTGOING C ALLS ..................................................................................................................................9
8.3 M ISSED C ALLS .......................................................................................................................................9
8.4 E RASE L ISTS ..........................................................................................................................................9
8.5 C ALL S TAT . ...........................................................................................................................................9
9 TOOLS..........................................................................................................................................................9
9.1 S CHEDULE .............................................................................................................................................9
9.2 A LARM C LOCK ......................................................................................................................................9
9.3 C ALCULATOR .........................................................................................................................................9
10 SETTINGS .................................................................................................................................................10
10.1 S OUNDS ...............................................................................................................................................10
10.1.1 Ringer.........................................................................................................................................10
10.1.2 Volume........................................................................................................................................10
10.1.3 Alert............................................................................................................................................10
10.2 D ISPLAY ..............................................................................................................................................10
10.2.1 Banner........................................................................................................................................10
10.2.2 Backlight.....................................................................................................................................10
10.2.3 Contrast......................................................................................................................................10

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential
10.2.4 Language....................................................................................................................................10
10.3 S ECURITY .............................................................................................................................................10
10.3.1 PIN Management........................................................................................................................10
10.3.2 Restrict Incoming Call................................................................................................................10
10.3.3 Restrict Outgoing Call................................................................................................................10
10.3.4 Change Password.......................................................................................................................11
10.3.5 Set Keypad Password.................................................................................................................11
10.3.6 Load Default...............................................................................................................................11
10.4 C ALL S ETUP .........................................................................................................................................11
10.4.1 Auto Answer ...............................................................................................................................11
10.4.2 Voice Privacy .............................................................................................................................11
10.4.3 Dial Delay Time .........................................................................................................................11
10.5 N ETWORK S ERVICE ..............................................................................................................................11
10.6 P HONE I NFO .........................................................................................................................................11
10.7 P ORT S PEED .........................................................................................................................................11
10.8 D ATA /F AX ...........................................................................................................................................11
11 DATA SERVICE .......................................................................................................................................11
12 TECHNICAL PARAMETERS ................................................................................................................12
13 QUICK TROUBLESHOOTING GUIDE................................................................................................12

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 1
1 General Introduction
Thank you for choosing AWP-V series CDMA Fixed Wireless Phone of AsiaTelco. To use your phone well,
please read this user manual carefully before you use.
The phone has been designed to operate with the latest digital communication technology - Code Division
Multiple Access (CDMA). The phone provides the following advanced features:
Large LCD with backlight, easy to read
Status Indicators
Two-way SMS, voice mail and caller ID
Call Forwarding, Call Waiting, Three-Way Calling and Do not disturbing
High speed packet data dial-up Internet service (Only AWP-S200, AWP-S400, AWP-S600)
PC Fax (Only AWP-S200, AWP-S400, AWP-S600)
Emergency call
Menu driven interface for easy operation and configuration
Store 200 contacts
Save 200 SMS
Last call redials
Choice of 13 ring tones and power On/Off music
Adjustable ring and voice volume
AC power supply
Indoor antenna (and Outdoor antenna is optional)
Speaker phone for hand-free operation
Call privacy is also supported by CDMA technology
User friendly keypad
Long battery stand-by and talk time
USB data cable is provided for AWP-S200, AWP-S400, AWP-S600
Easy to service and repair
Note:
Only AWP-S200, AWP-S400, AWP-S600 support data service, please consult your local operator for the
services.

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 2
2 Important Information
The product can only be installed indoors.
Do not place the phone near high temperature objects, under direct sunlight, near source of water, near fire
or near inflammable and explosive materials. Avoid using the phone in high temperature or humidity.
The phone may interfere with heart pacemaker, hearing aid and other electronic medical devices. Therefore
please follow the instructions given by your equipment suppliers or consult your doctor. Turn your phone
OFF in health care centers if any regulations posted in the area instruct you to do so. Hospitals or health
care centers may be using equipment that may be sensitive to external RF energy.
Place the phone away from other electronic devices like TV and Radio to avoid interference.
Keep the product away from magnetic field and static electricity.
Place the phone out of the reach of small children.
Do not attempt to reassemble the phone by yourself. Only authorized personnel could service the phone
and its accessories. Faulty installation or service can be dangerous and may invalidate the warranty.
Do not clean the phone while in operation. Before attempting to clean the phone, turn the phone off,
disconnect the external power adapter and take out the battery. Use a dry, soft cloth for cleaning. Do not
use liquid or aerosol cleaners.
Do not drop, knock or shake the phone. Rough handling may break the phone body and internal circuit
boards.
Do not use the phone if the antenna is damaged. Replace the damaged antenna immediately by a qualified
technician. Use only a manufacturer approved antenna. Non-approved antennas, modifications or
attachments may impair call quality and damage the phone.
Do not hold the antenna during operation. This may affect call quality and cause the phone to operate at
unintended power levels.
Keep the antenna free from obstructions and position the antenna straight up. This will ensure best call
quality.
Only use the battery and the power adapter approved by the manufacturer. If not, it may cause an explosion
or result in a short circuit.
It is highly recommended to fully charge the battery before initial use. The battery might have been
discharged during storage and delivery.
Do not throw battery. Batteries are not to be disposed off by putting them in fire. It may explode or catch
fire.
The power adapter must be used within the specified AC voltage range.
Take out the battery if you won’t use your phone for a long time and keep the battery well.
During lightning, do not touch the power plug. It may result in an electric shock or death.
Do not touch the plug with wet hands. Always grasp and pull the plug, not the cord. Do not put heavy
things on the power cord or bend it too much.
During daily use, do not pull out the power adapter. The battery is used for backup power, which will not
cause the increasing consumption of electricity.
Don’t use the power adapter if the power cable is damaged. Contact the maintenance center immediately
and replace the adapter.

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 3
3 Product Overview
3.1 Packing List
Once you open the product package, please check the packing list to make sure there is no part missing. If any
part is missing or broken, please contact the customer service. The packing list is as follow:
No. Name Qty. Remark
1 Phone Body 1
2 Handset 1
3 Antenna 1
4 Handset Cable 1
5 Ni-MH Rechargeable Battery 1 Li-Ion Battery if specified
6 Charger 1
7 USB Cable 1 Only for AWP-S200, AWP-S400, AWP-S600
8 CD Disk 1 Only for AWP-S200, AWP-S400, AWP-S600
9 Prints 1 Including one User Manual, one Warranty Card and one
Quality Certificate
Table 1 Packing List
3.2 Product Introduction
3.2.1 Appearance

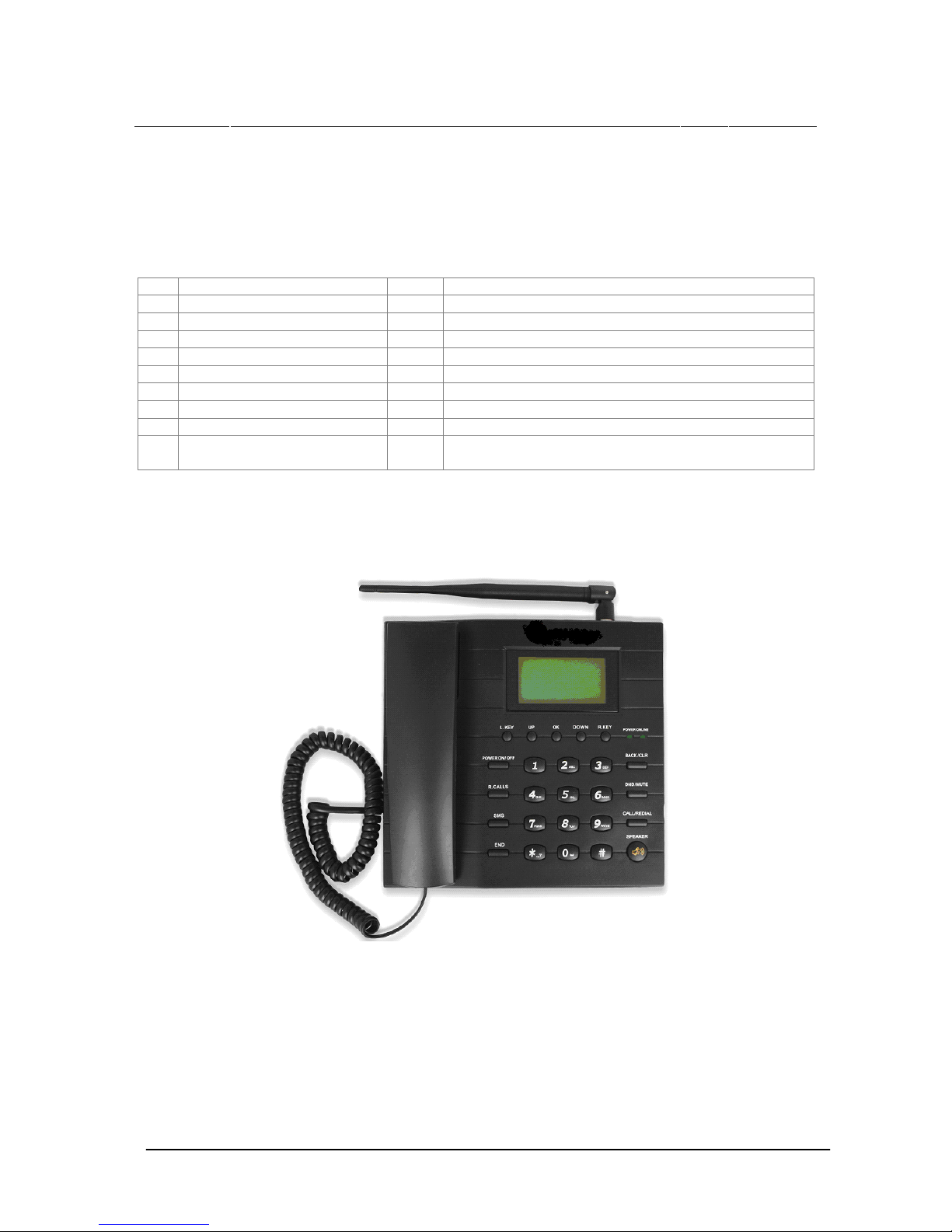

Figure 1 AWP-S series Appearance

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 4
3.2.2 Key Definition
Figure 2 Key Layout
1 L.KEY,UP,DOWN,R.KEY
Direction Keys Move the cursor or scroll the menu. L.KEY and R.KEY also be Left Soft Key and Right Soft Key.
2 OK Key Confirm your selection
3 BACK/CLR Cancel your selection
4 POWER ON/OFF Key Hold this key to power on/off the phone
5 R.CALLS Call history
6 SMS Key Enter SMS Menu
7 END Key Reject an incoming call, end a call, return to idle mode
8 DND/ MUTE Key Switch to silent profile
9 SEND Key Make a call
10 SPEAKER Key Hand free Key, active speaker phone mode
11 0~9 Alpha Numeric Keys
and * # Key To input numbers and characters, In text input mode, press 0 Key to input space

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 5
3.2.3 Display Icon

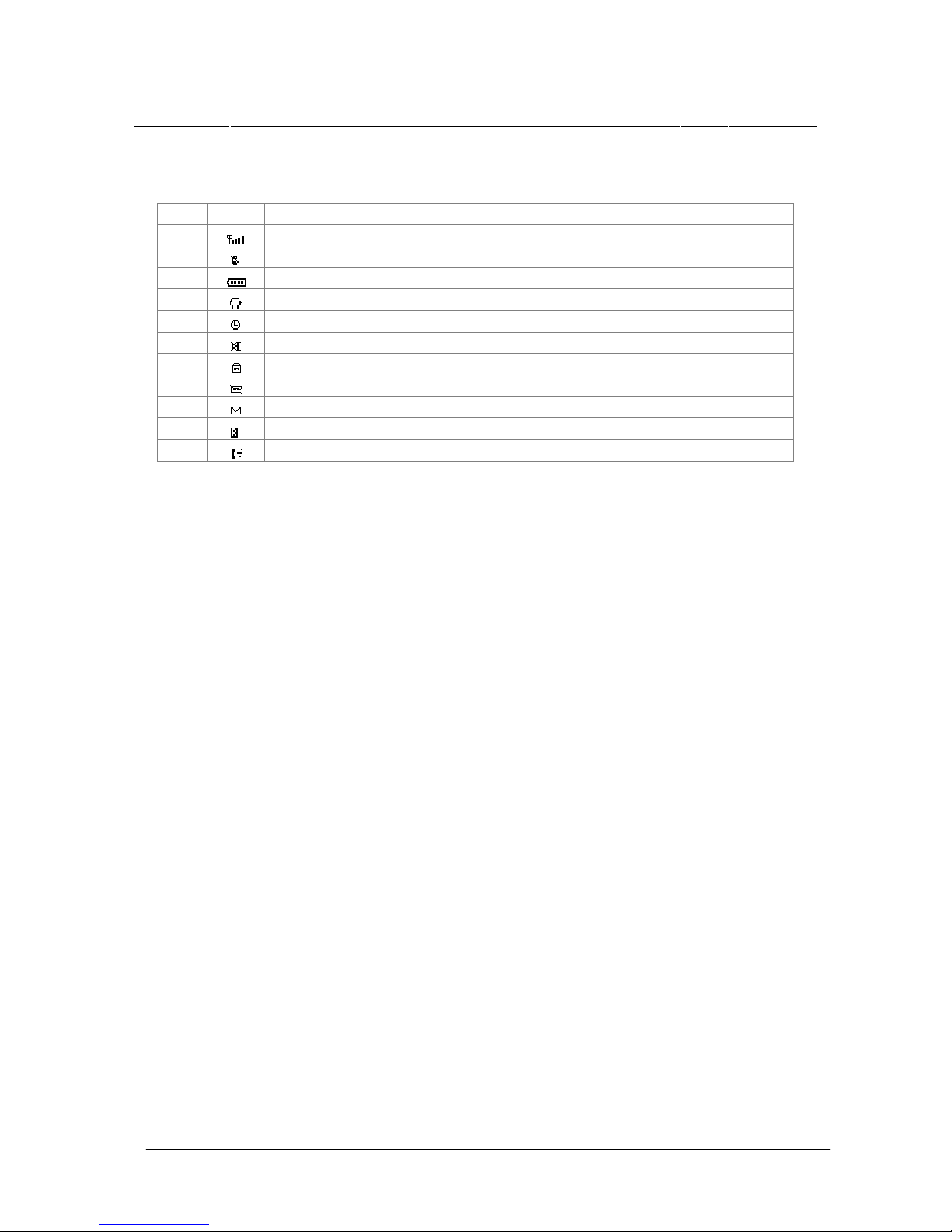

The following icon may appear on the display of the phone:
No. Icon Description
1 Current signal strength. The more bars there are, the stronger the signal is.
2 No signal.
3 Battery capacity indicator. The more bars there are, the more capacity the battery has.
4 Supplied by charger
5 Alarm on
6 Mute
7 Keypad lock
8 No UIM card
9 Unread message
10 Roaming
11 Speakerphone actives
Figure 3 Display Icon
4 Basic Operations
4.1 Power On/Off
Hook up handset to your phone and put the handset to hang up position, then connect DC power supply to the
“DC IN” port at the rear of the phone or insert the battery to the battery chamber. Switch the “Power” switch (on
the rear of the Phone) to ON, then press the Power On/Off Key on the panel for 3 seconds to power on the
phone, your phone should go to idle screen and is ready to use.
You can turn the phone off directly by switching the “Power ON/OFF” switch (on the rear of the phone) to OFF
position. If the phone will not be used for long time, please turn this switch to OFF. Or you can press the Power
On/Off Key for 3 seconds to power off the phone.
4.2 Make a Call
While your phone is power on and at idle screen, enter a destination number you wish to call and then press
SEND Key. (Note: To modify digits you enter, you can press BACK/CLR Key to delete wrong digits first and
then enter new digits). Once the call is connected, the phone’s screen will display the number you have dialed,
and the time duration the call has lasted.
The phone also has a speaker. To use the speaker to make a call, press SPEAKER Key, enter a phone number,
and press SEND Key.
4.3 Answer a Call
When there is an incoming call, the phone will ring and display the phone number of the incoming call (if the
number is available). You can pick up the handset or press SPEAKER Key to answer the incoming call. The
ring tone and ring-tone volume can be changed in the setting menu.
4.4 End a Call
You can end a call by pressing END Key. If you are using the handset for a phone call, hanging up the handset
will end the call automatically.

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 6
5 Main Menu
Press Key to enter the main menu from the idle screen. The main menu includes: Contacts, Messages, Recent
Calls, Tools, and Settings. The menu tree is as follow:
Contacts
View Contacts
New Entry
Search Name
Groups
Erase All
Speed Dial
Memory State
Messages
Voice Mail
Write
Inbox
Outbox
Erase Messages
Memory State
Msg Settings
Recent
Incoming Calls
Outgoing Calls
Missed Calls
Erase Lists
Call Stat.
Tools
Schedule
Alarm Clock
Calculator
Menu
Settings
Sounds
Display
Security
Call Setup
Phone Info
Port Speed
Data/Fax
Figure 4 Menu Tree
Note: Port Speed and Data/Fax menu only shown in the model AWP-S200, AWP-S400, AWP-S600.
6 Contacts
Contacts can be used to store contact’s name and contact’s phone numbers, address, email, internet address and
note. You can store up to 200 entries to phone memory.
6.1 View a Contact
There are 4 ways to view a contact.
1) Press Key to view the contacts list in idle mode, scroll to the desired contact, press Key to view the
contact information;
2) Select Menu > Contacts > View Contacts, scroll to the desired contact, then press Key to view the
contact information;
3) Select Menu > Contacts > Search Name, input nothing, press Key to view the contact list. Scroll to
the desired contact, press Key to view the contact information;

AWP-S Series
CDMA Fixed Wireless Phone
User Manual
Rev.:
R1.0
AsiaTelco Technologies Co.
Proprietary/Confidential 7
4) Select Menu > Contacts > Groups, select the group that desired contact belongs, press OK Key to view
the group member list, then scroll to the desired contact, press OK Key to view the contact information.
6.2 Search for a Contact
You can search a contact by name,
1) Select Menu > Contacts > Search Name,
2) Input the name for inquiry,
3) Press Key to search.
6.3 Add a New Contact
1) Select Menu > Contacts > New Entry, or press Contacts in idle mode, then select New Entry;
2) Scroll to the item you want to add, press Key to input the item, press Key to finish the inputting, the
phone will ask you to input the name of the contact, input the name to finish adding a contact;
3) If you want to add a new item to a contact stored in phone, you could view the contact information, then
press Key, scroll to the item you want to add.
6.4 Delete a Contact
1) Press Key to view the contact list in idle mode, scroll to the desired contact, press Key twice, scroll to
Erase Entry, and then press Key,
2) You will be prompted “Erase the Contact?” choose OK to delete the contact.
6.5 Edit a Contact
1) Press Key to view the contact list in idle mode, scroll to the desired contact, press Key, scroll to the
item you want to edit, then press Key, scroll to Edit Entry, and then press Key,
2) Edit the item, and then press Key to finish the modification.
6.6 Group
6.6.1 Add a Contact to the Group
1) Select Menu > Contacts > Groups, scroll to the group that the desired contact belongs,
2) Press OK Key, then press Key, select Add,
3) Scroll to the desired contact, press Key to add the contact to the group.
6.6.2 Delete a Contact from the Group
1) Select Menu > Contacts > Groups, scroll to the group that the desired contact belongs,
2) Press OK Key, then press Key, scroll to 4, press, change the group to No Group.
6.6.3 Rename a Group
There are 5 groups in your phone; these 5 groups can not be renamed. You could rename the group you add.
1) Select Menu > Contacts > Groups, scroll to the group you want to rename, press Key,
2) Scroll to Rename, press Key, rename the group, and press Key to rename the group.
6.6.4 Set a Ring tone to a Group
1) Select Menu > Contacts > Groups, scroll to the group you want to rename, press Key,
2) Scroll to 2, press Key, set a ring tone to the group, press Key to set the new ring tone.
