Asivio Vybe User manual

SPECIFICATION
TYPE: Wireless Bluetooth Earbuds
MODEL：Asivio Vybe
FCC-ID NUMBER：2A3BX-VYBE

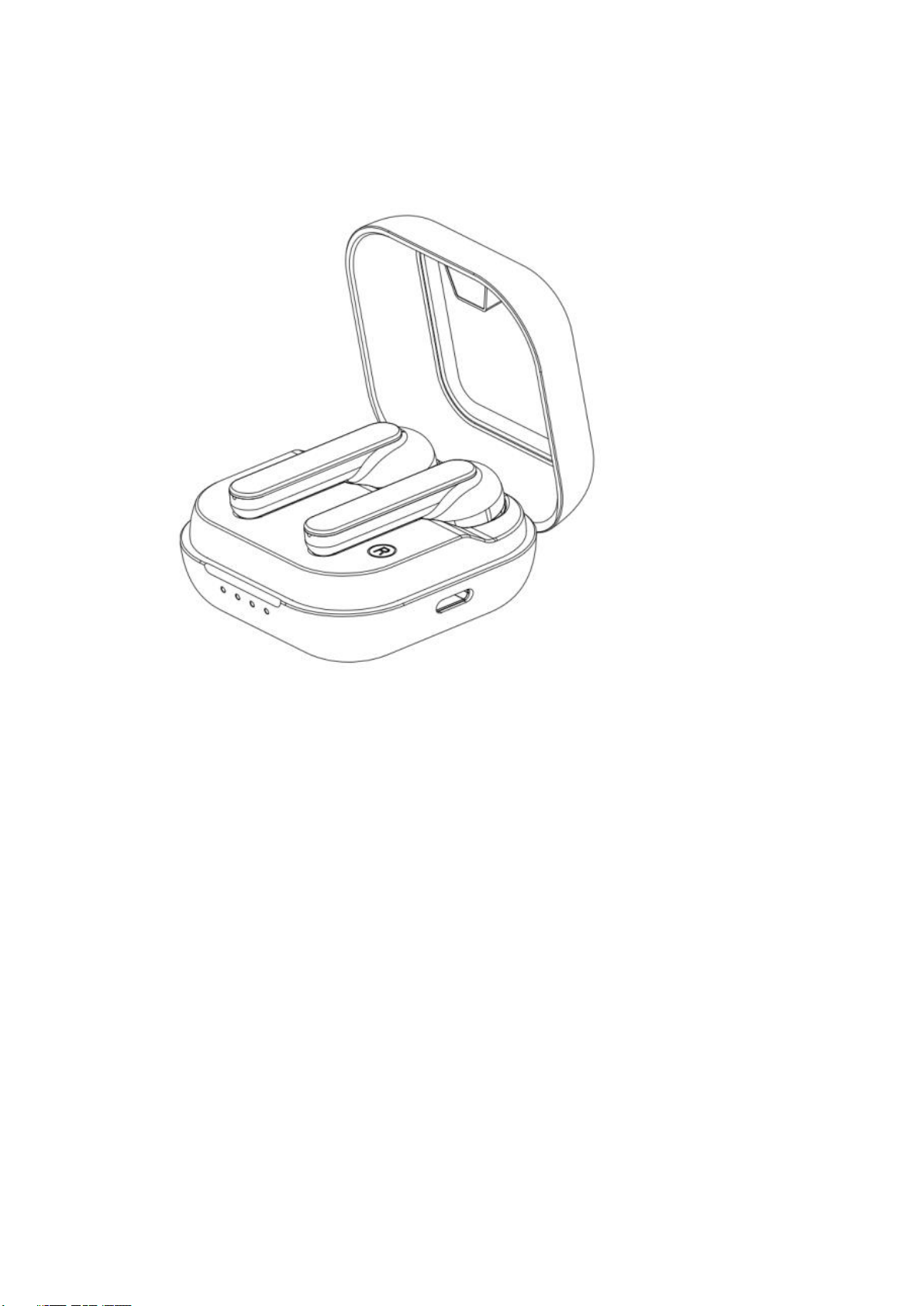

Vybe Wireless Bluetooth Earbuds
Overview
■Bluetooth pairing name: Asivio Vybe
■FCC-ID number: 2A3BX-VYBE
■Vybe is a stereo Bluetooth earbuds that supports TWS functions.
■Use Airoha AB1536U Bluetooth chip as the core data processing, Bluetooth version
is: V5.0
■ Launch power: Class II, the range of use within 10 meters (the actual range depends
on the device connected to it)
■ Frequency range: Bluetooth standard 2.402 ～ 2.480GHz
■ Support HFP, HSP, A2DP, AVRCP and other protocols
■ Connect with mobile phones, computers, tablets and other devices that support
Bluetooth function
■ Support CODEC: SBC AAC
■ Support Bluetooth pairing security key: 0000; V2.1 or above does not need to enter
the key.
■ Music status (70%volume) use up to about 4 hours
■ Call status (70%volume) use up to about 3 hours
■ The use time of the charging case can charge about two earbuds 4 times
■ The charging time of the earbud is 1 ± 0.5 hours, charging input requirements:
5V DC ≥300mA
■The charging time of the charging case is 2 ± 0.5 hours, charging input
requirements: 5V DC ≥1A
■ Earbud battery: 40mAh lithium ion polymer can charging batteries
■ Charging case battery: 420mAh lithium ion polymer can charging battery
■ Work temperature: -10-55 ℃
■ Net weight: total weight of about 46.6 grams (earbuds 4.3gX2, charging case 38g)
■ Size: (charging case) 53.5*53.5*28mm; (earbud) 43.1*23.8*11.74mm

Product details
1.1. Product introduction
■ The Vybe is a TWS stereo wireless Bluetooth earbuds. the range of use within 10
meters (the actual range depends on the device connected to it). The Bluetooth version
is: V5.0.
■ It can be connected to devices that support Bluetooth function (HFP, HSP, A2DP,
AVRCP and other protocols).
■ The Vybe comes with the charging case can charging the earbud at any time.

1.2. Operation description
1. Power on: After opening the charging case, automatically turn on the earbud
(automatically enter the TWS pairing state when the TWS pairing is not paired before).
2. Power off: Put the earbud into the charging case and close the lid for shutdown.
3. Enter the TWS pairing status: When the earbud is out of the factory and clear the
pairing record, open the charging box lid to automatically enter the TWS state. After
opening the charging box, the two earbuds will automatically perform the TWS
connection.
4. Enter the Bluetooth pairing status: When the earbud TWS paired successfully, you
can automatically enter the phone pairing status.
5. Switching of the main and auxiliary earbud: When calling or listening to songs, put
the host earbud into the charging case, and the pair of earbud will be connected to the
phone to become the host. That is, in the TWS mode, you can complete the switching
in any earbud put it in the charging case.

6. Previous song: Play the music state Double -click the "touch button" in the left ear
switch the song.
7. The next song: Play the music state Double -click the "touch button" in the right ear
to switch the next song.
8. Receive calls: The connected state, short press the "touch button" to answer the phone
when you have an incoming call (both left and right ears).
9. Hanging the phone: During the call, short press the “touch button” to hang the phone
(both left and right ears).
10. Refuse to listen to the phone: When there is an incoming call, double -click the
"touch button" to refuse the call (both left and right ears).
11.Play/Pause: In the earbud connecting music player, press the left ear or the right ear
to touch the button at one time to play/pause the music.
12. Voice Awakening: In the state of connecting or music connection, long press the
earbud "touch button" for 1-2 seconds to launch the mobile phone voice assistant (all
left and right ears) (*need mobile phone support).
13. Clear pairing records: In the pairing state of a single ear (the other earbud is shut
down on the charging case), the three -shot touch button can be cleared to the pairing
record and shut down and restarted, and then put the cleaned pairing earbud in the
charging case and shut down. Take out another earbud in the pairing status three -click
to clear the pairing state (the single ear is not connected to the aircraft status, you can
double -click to enter the pairing state)
14. Automatic return: When there is a pairing record, turn on the charging case earbud
to automatically enter the pairing state and try to return the connected device (both left
and right ears).
15. Automatic shutdown: The pairing status is more than 20 minutes (including 10
minutes of uninterrupted aircraft) without connecting automatically turn off, or the
battery voltage is lower than 3.0V.
16. Exit pairing status: pairing state for 10 minutes without connection, automatically
exit the pairing state into an unconnected standby state.
17. Enter the DUT mode: The pairing state can be performed by DUT test.
18. Enter the DFU mode: you can upgrade software.

19. Low-battery alarm: When the voltage of the earbud battery is lower than 3.45V,
there is a prompt sound of "Battery_ Low" every 3 minutes.
Remarks: In order to save power, except for the status indicator described below, there
are no indicators in other states
20. Enter the brothers pairing status: white LED quickly flashes
21. Enter the Bluetooth pairing status: Host: White light flashes once every 3 seconds,
auxiliary ear: white lights flash once every 10 seconds
22. Connected status: Host: White light flashes once every 10 seconds, auxiliary ear:
White light flashes once every 10 seconds
23. Clear pairing record: The white light continues to light up for 2 seconds
24. Low power alarm: White LED flashs every 2 seconds
25. Charging: When putting the left earbud, the first LED light of the charging case is
on. When the right earbud is placed, the fourth LED light is on, and when the left and
right earbuds are charged at the same time, the first and fourth LED lights are on.
26. Full charging: When the left earbud is full, the first LED light is destroyed. When
the right earbud is full, the fourth LED light is destroyed. When the left and right
earbuds are full, the charging box LED light is completely extinguished.
The remaining power indicator of the charging box:
1. When the remaining power is 0% -25%, the first white light is always on;
2. When the remaining power is 25% -50%, the first and second white lights are often
on;
3. When the remaining power is 50% -75%, the first and second and third white lights
are often on;
4. When the remaining power is 75% -100%, the four white lights are often on;
Charging box charging indicator:
1. When the power is 0% -25% charging, the first white light flashes slowly;
2. When the power is 25% -50% charging, the first white light is often on, and the
second white light flash slowly;
3. When the power is 50% -75% charging, the first white light is often on, the second
white light is often on, and the third white light is slow;
4. When the power is 75% -99% charging, the first white light is often on, the second
and third white lights are often on, and the fourth white light flashes;
5. Full charging: Four indicators are often on

Conventional parameter table
Bluetooth specification
Bluetooth 5.0
Operation frequency
2.402-2.480GHz
Supported profile
HFP, HSP, AVRCP, A2DP
Chip solution
Airoha AB1536
Decoding
SBC
Operation range
UP to 10 meters
Talk time
Earbuds: about 3 hours (70%volume)
Use with charging case: about 12 hours(70%volume)
Music time
Earbuds: about 4 hours (70%volume)
Use with charging case: about 16 hours (70%volume)
Standby time
Earbuds：About 40 hours
Battery type
Earbuds：3.7V 40mAh*2
Charging case：3.7V 420mAh
Charge time
Earbud：1±0.5 hour
Charging case：2±0.5hours
Operating temperature
-10—55℃
Net weight
Total about 46.6g（earbud：4.3g*2；charging case：
38g）

Prompt sound
Status
prompt sound
Turn on
Power on
Turn off
Power off
Enter the pairing state
pairing
TWS pairing successfully
TWS connected
TWS pairing failed
TWS Disconnected
Bluetooth connection successfully
connected
Bluetooth disconnection
Disconnected
Low voltage alarm
Battery Low

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could
void the user's authority to operate the equipment.
