Askey CDR8010-DBB1/-SBB1 User manual

-User Manual -
iDVR800
CDR8010-DBB1/-SBB1
CDR8011-DBB1/-SBB1
Connected Car Cam+
ASKEY Computer Corp.

CDR8010 - User Manual i
Revision History
Copyright© 2019, ASKEY Computer Corp. All rights reserved
Printed in Taiwan, 2019.
The information provided in this document is subject to change without notice. The statements,
configurations, technical data, and recommendations provided in this document are believed to be
accurate and reliable, but are presented without express or implied warranty. Users must take full
responsibility for their applications of any products specified in this document.
The information provided in this document is proprietary to ASKEY Computer Corp. The software
described in this document is furnished under a license agreement and may only be used in accordance
with the terms of that license. A summary of the Software License is included in this document.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, ASKEY Computer
Corp. reserves the right to make changes to the products described in this document without notice.
ASKEY Computer Corp. does not assume any liability that may occur due to the incorrect use or
application of the products or circuit layouts described herein.
In addition, the program and information contained herein are licensed only pursuant to a license
agreement that contains restrictions on use and disclosure, which may incorporate by reference certain
limitations and notices imposed by third parties.
Version Number Revision Date Description
1.0 October, 2019 Initial Release

CDR8010 - User Manual ii
Important Notes to Read Before Use
• Manufacturers cannot assume responsibility for inconveniences caused by not observing the notes
stated in the user manual. Incorrect usage of the product falls outside the scope of the warranty.
•The product operates on a voltage of 5 V DC. The CDR8010 is powered up by connecting it to a
cigarette lighter socket (or hardwired to the car’s battery) or the Driving Recorder Power Cable
CDZ-0200 (sold separately). Exercise caution while using either method of connection.
• The CDR8010 accepts SD cards formatted to FAT32 only. For optimum results, always format the SD
card before initial use with the CDR8010.
• The CDR8010 may not be able to use the Global Positioning System (GPS) in the following areas:
• Parking lot of buildings
• Tunnels
• Two-layer highways
• Between closely positioned high buildings and trees

CDR8010 - User Manual
Table of Content
1. Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
1.1. Safety Instruction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
1.2. Intended User - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
1.3. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
1.4. Package Content -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
2. Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
2.1. Device Overview ---- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
3. Getting Started - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3.1. Installing the Mounting Bracket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3.2. Mounting the DVR ------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
3.3. Dismounting the DVR - ----- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10

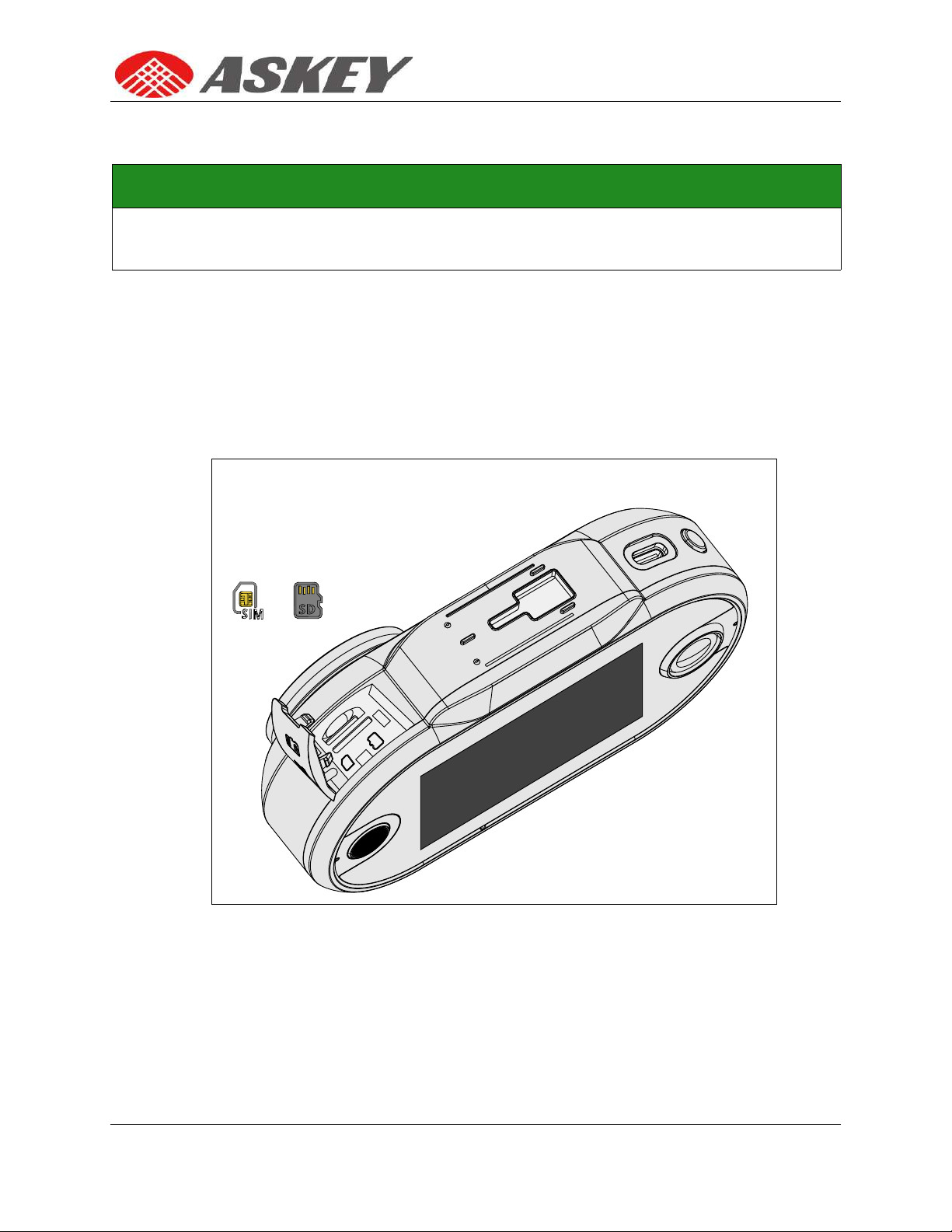

3.4. Insertion of SD Card and SIM Card ----- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
3.5. Activation and Battery Charge - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
3.6. Manual Power Off - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
3.7. Reset ------------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
3.8. Date and Time --------- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
3.9. Screen Icons/Buttons - --------------------------------------------14
3.10. Touch Screen Operations ------------------------------ -------------15
4. Menu Operations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
4.1. Connection Menu --- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
4.1.1 WiFi- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
4.1.2 Bluetooth - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
4.1.3 Cellular Data (LTE/3G) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
4.1.4 Hotspot - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4.1.5 APN - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - --------24
4.2. Playback Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
4.2.1 Event Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
4.2.2 Continuous Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
4.3. Settings Menu - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 26
4.3.1 Driver Assist Setup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -27

CDR8010 - User Manual
5. Voice Assistant - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
5.1. Alexa Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
5.2. Alexa Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40
5.3. Alexa Mute - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40
5.4. Alexa Light Guide - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41
6. Firmware Upgrade - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
6.1. Firmware Upgrade through FOTA - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 42
7. Network Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
7.1. Frequency Band Widths Supported - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 45
8. Emergency Call (E-Call) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 46
9. Technical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 44
9.1. Environmental Conditions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 48
9.2. Input Parameters - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 51
9.3. LEDs and Buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 51
9.4. LED Status of an E-call - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 51
9.5. LED Status for SD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52
9.6 Certifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52
10. Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 53
11. Compliance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 55
11.1. CE for CDR8010 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 55
11.2. FCC for CDR8011 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 56
11.3. NCC for CDR8010 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
4.3.2 Advanced Driver-Assistant System Alerts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
4.3.2.1 Forward Collision Warning System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 30
4.3.2.2 Lane Departure Warning System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 31
4.3.3 System - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
4.3.3.1 Volume - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
4.3.3.2 Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 33
4.3.3.3 About - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
4.3.4 Recording - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 34
4.3.4.1 Recording Audio -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35
4.3.4.2 SD Card Storage - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 35
4.3.4.3 Format SD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 36

Introduction
CDR8010 - User Manual ASKEY© 2019 1
1. Introduction
•The Askey Connected Car Cam+ CDR8010 represents a new generation of in-car accessories that
make driving safer, smarter, and connected. This device, which can be mounted on the dashboard
of any vehicle, enhances vehicular safety with preventive diagnostics.
• The CDR8010 is equipped with a Full HD 1080p camera system with an F/2.0 aperture and a 136°
wide-angle lens to facilitate real-time recording and live video streaming.
• The CDR8010 allows rear camera to detect drowsiness and fatigue on the driver’s face. This
additional external camera is equipped with a face recognition detector and voice command
control for hands-free operation while driving.
• Gyro sensors help in sensing abnormal movement and trigger the emergency recording function
to eventually save and upload the recorded video on to the cloud. This video can be later used for
incident analysis.

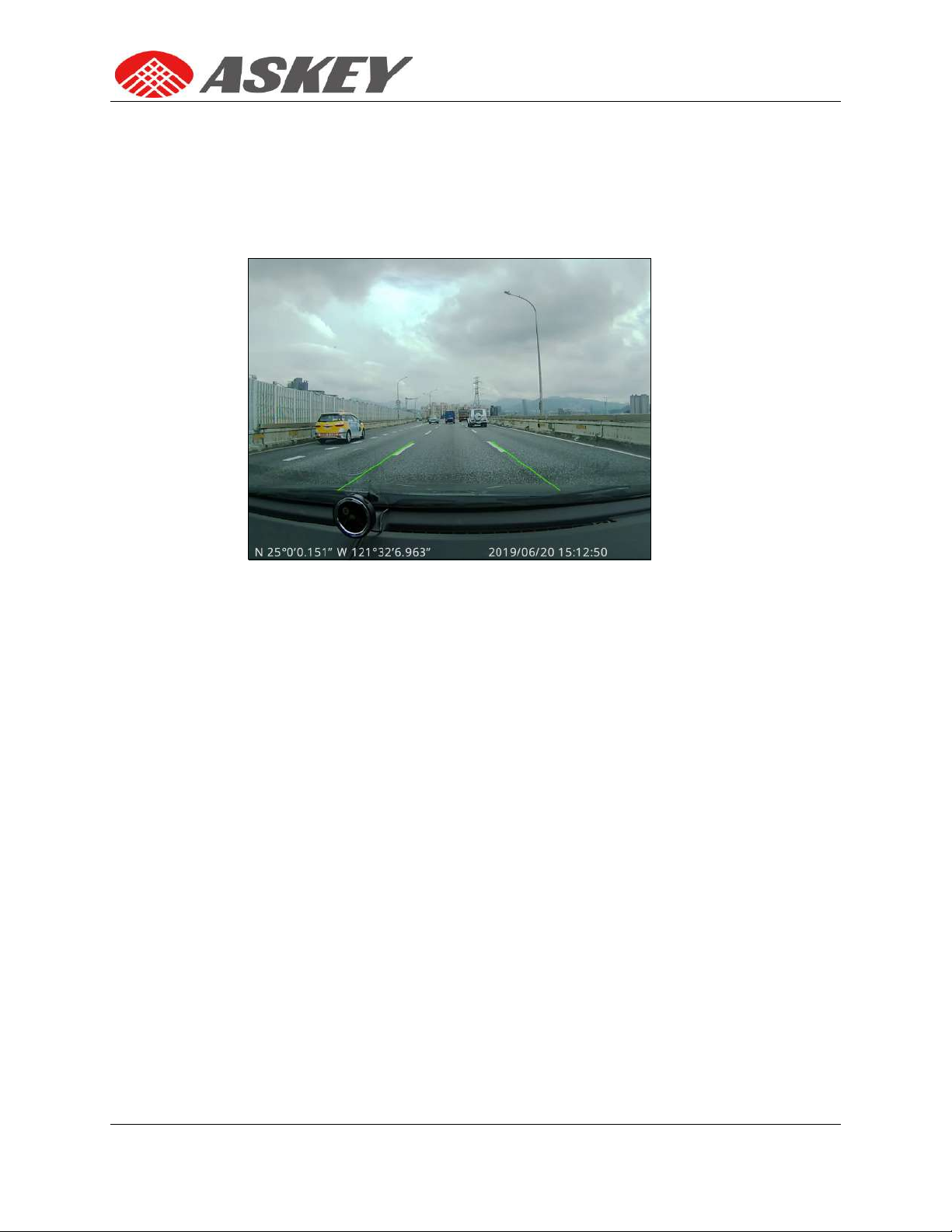

• The Advanced Driver-Assistance System (ADAS), which includes the Lane Departure Warning
System (LDWS) and the Forward Collision Warning System (FCWS), alters the driver on the
identification of a risk, thus preventing accidents.
•Support for LTE provides in-car internet connectivity for all passengers, facilitates connection to
service centers, and enables automatic firmware updates.
1.1. Safety Instruction
For users' attention, scenario-specific safety instructions are provided in the following three boxes
throughout the document. Following these instructions will help prevent untoward incidents in the use of
the CDR8010.
Note
Instructions provided under “Note” provides insights for prudent use of the product.
CAUTION
Failure to follow the instructions provided under “Caution” will lead to data loss.
WARNING
Failure to follow the instructions provided under “Warning” will lead to serious injury or death, and
property damage.

Introduction
2 ASKEY© 2019 CDR8010 - User Manual
1.2. Intended User
This manual is intended for the user of CDR8010 as well as for service center customer support staff.
1.3. Features
1. The CDR8010 offers the following features:
• Touch-screen control
• 2.7-inch LCD 320 × 240 display
• Dual-channel Full HD 1080p camera system with F/2.0 aperture and 136° wide-angle lenses
•Edge AI
•ADAS
• Built-in voice assistance with Alexa
• Emergency call (E-Call) and live video streaming
• Fleet Management
•API (for Integration/Customization)
• Built-in gyro sensor (accelerometer)
• GPS powered by Quasi-Zenith Satellite System (QZSS)
•Support for LTE and 3G, as well as Wi-Fi, Bluetooth, and NFC
•Wi-Fi Wireless Access Point (WAP) or hotspot
• Event/parking mode recording
• Firmware Over-The-Air (FOTA)
• 3.7 V, 750 mAh rechargeable Li-ion Non-Removable Battery
• USB Type C support for power supply
• Supports up to 128 GB with Class 10 Micro SDHC Memory Card
2. The CDR8010 offers the following optional features:
• User Authentication (Facial/Voice)
• Optional feature for driver for drowsiness and fatigue detection

Introduction
CDR8010 - User Manual ASKEY© 2019 3
1.4. Package Content
Content Overview
CDR8010
Mount Bracket
USB Type C to Cigarette Car Charger
Quick Start Guide
Micro SD card and SD Card Adaptor
Status

Overview
4 ASKEY© 2019 CDR8010 - User Manual
2. Overview
2.1. Device Overview
Item Number Description Item Number Description
1Bracket 11 Rear Camera
2 Front Camera12 Status Light
3 Metal Decoration 13 Microphone 3
4Front Housing 14 Rear Housing
5E-Call Light Guide 15 Power Button
6 Microphone 1 16 USB Type C-Port
7 E-Call Button 17 Card Slots Cover
8 Microphone 2 18 Speaker Opening
9 Alexa Light Guide 19 Mute Button
10 Touch Panel 20 Film
Status
1
2
3
4
5
6
78 9 11
12
13
14
15 16 17
18 19
10
ASKEY
20
1
2
3
4
6
5
78910 11
12
13
14
15 16 17
20
19
18

Getting Started
CDR8010 - User Manual ASKEY© 2019 5
3. Getting Started
3.1. Installing the Mounting Bracket
Step 1: Remove alcohol wipe from pouch. Wipe the area (of the windshield) where the mounting
rack will be mounted clean of dust or grease.
Steps 2:
Wipe windshield clean
Remove the protective film from the mounting rack adhesive. Position the mounting rack
over the location (on the windshield) where it’s being wiped clean.
Note
•The adhesive is extremely sticky. Avoid touching the adhesive.
•The adhesive can’t be reused if stained or removed from windshield.
Mount location
Windshield
Mounting bracket
Remove protective film

Getting Started
6 ASKEY© 2019 CDR8010 - User Manual
Steps 3: Mount the Mounting Bracket on the windshield.
Steps 4: Press on the suggested pressure points with your thumbs.
Mount Location
Steps 5: Press the mounting rack evenly to push out the air bubble.
Leave the mounting rack on the windshield for up to 24 hours before installing the
DVR.

Getting Started
CDR8010 - User Manual ASKEY© 2019 7
3.2. Mounting the Bracket

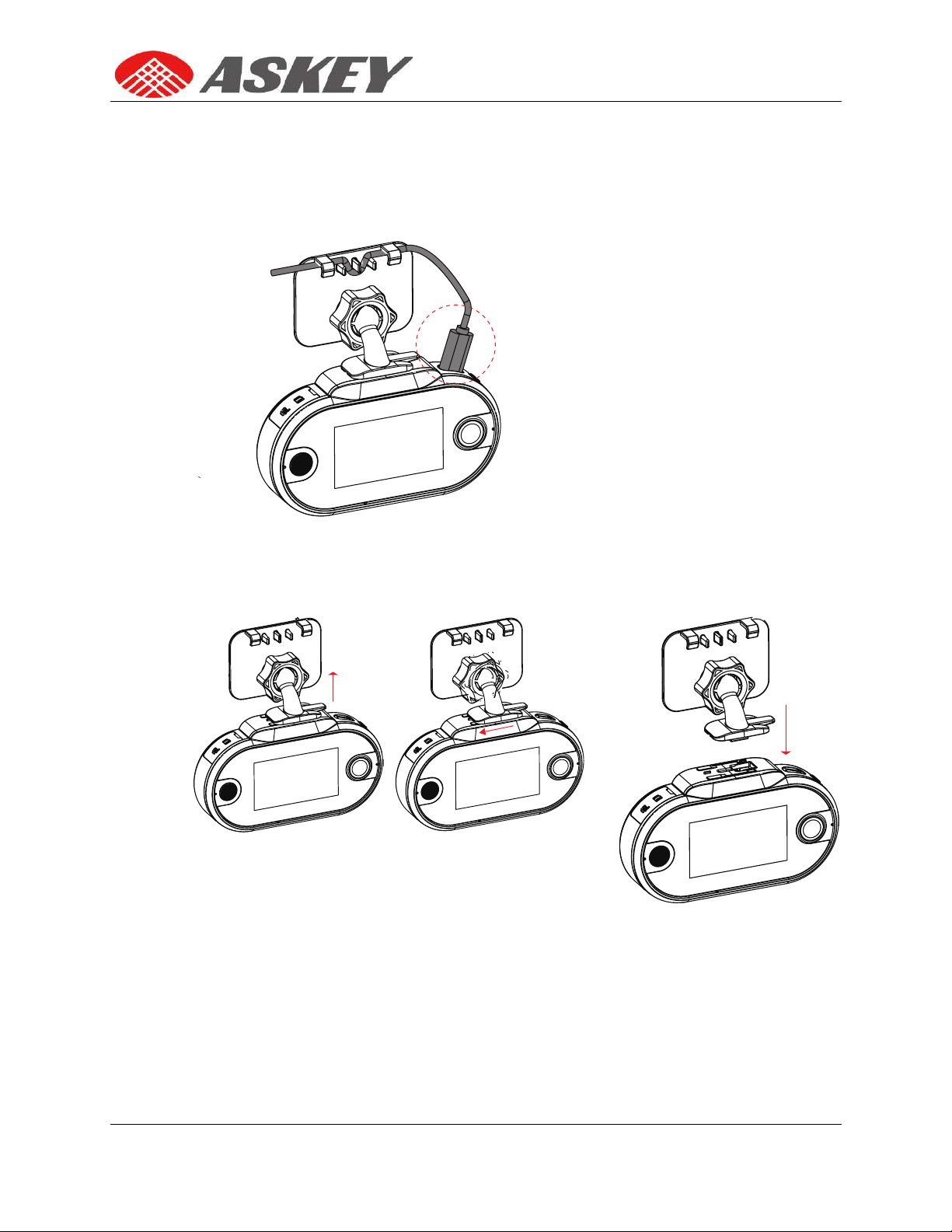

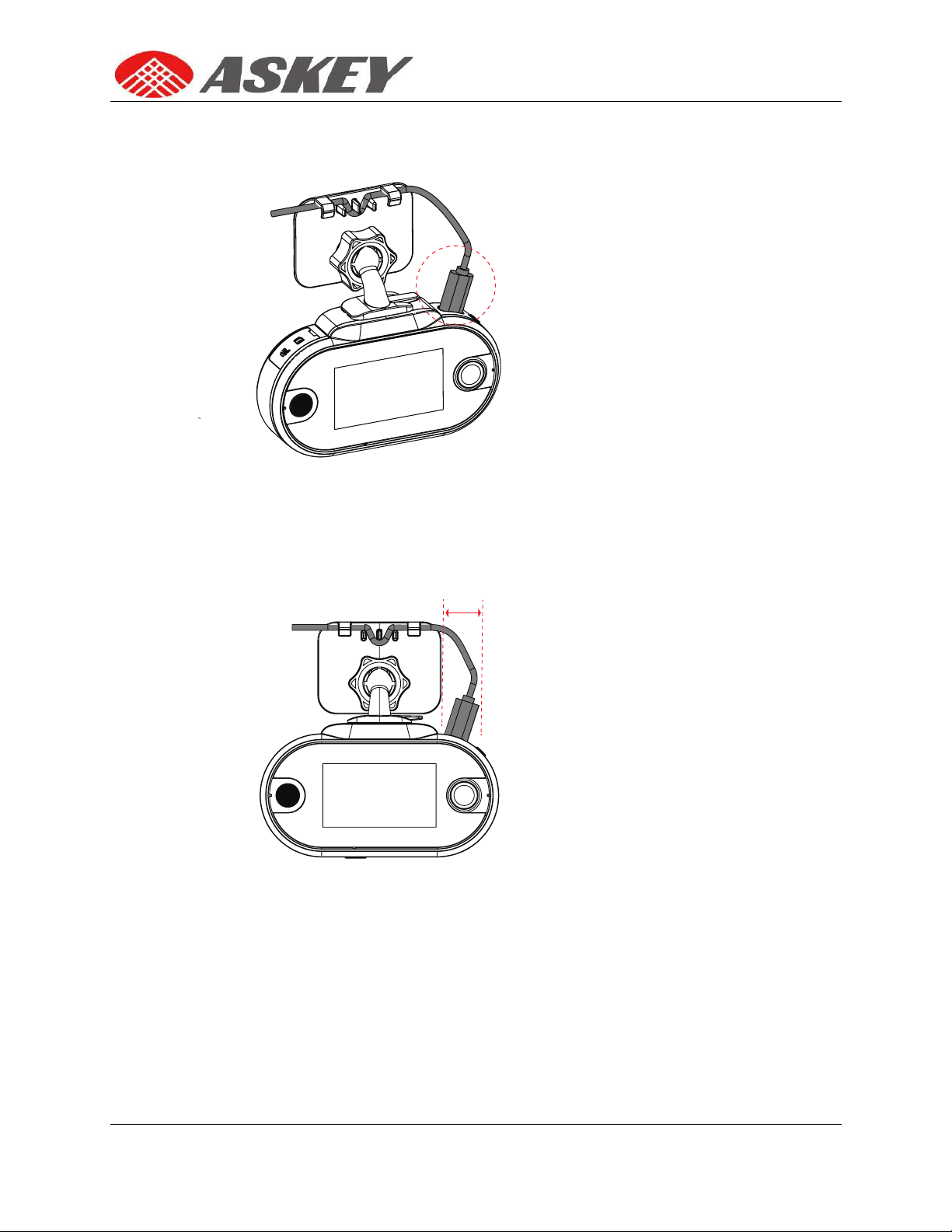

Step 1: Mount the DVR onto the mounting bracket. Align the docking slot (on top of the device)
with the docking arm (extended from the mounting bracket).
Steps 2: Make sure the release latch is in locked position.
Docking Slot
X
Latch not in locked position
O
Latch in locked position
Slide device sideways

Getting Started
8 ASKEY© 2019 CDR8010 - User Manual
Steps 3: Plug in the mini-USB connector (extended from the car charger unit) to the DVR’s USB port.
Steps 4: To better secure the USB cable, route the cable, as suggested in the diagram below.
Reserve sufficient cable length.

Getting Started
Steps 5: Start the vehicle, plug the car charger unit into the vehicle’s power outlet. Power on the DVR
and set to recording (viewing) mode.
Steps 6: Loosen the cap nut (turn counter clockwise) to adjust the position of the DVR. Tighten the
cap nut (turn clockwise) to lock the adjustable ball.
To loosen,
turn cap nut
counter clockwise
To tighten,
turn cap nut
clockwise
Cap nut
CDR8010 - User Manual ASKEY© 2019 9

Getting Started
Steps 1: Unplug the car charger unit from the vehicle’s power outlet, then unplug the mini USB
connector from the DVR.
3.3. Dismounting the DVR
Lift latch Slide device side way
Pull gently
downward to
detach device
from docking arm.
Step 2: Dismounting the DVR
10 ASKEY© 2019 CDR8010 - User Manual

Getting Started
CDR8010 - User Manual ASKEY© 2019 11
3.4. Insertion of SD Card and SIM Card
To insert the SIM card (1) or SD card (2):
1. Open the card slots cover.
2. Place the SIM card (1) or SD card (2) in the slot per orientation marking.
3. Push the SIM card (1) or SD card (2) into the slot.
4. Close the card slots cover properly.
NOTE
•If the SD card is not inserted, the device will show error message.
• The CDR8010 supports only Nano sim cards (LTE/3G).
1
2
1
2
12

Getting Started
12 ASKEY© 2019 CDR8010 - User Manual
3.5. Activation and Battery Charge
To activate and charge the CDR8010:
1. Plug one end of the charger into device's USB Type C-Port.
2. Plug the other end of the charger into the cigarette lighter socket of your vehicle.
3. When the vehicle's engine is started, the CDR8010 turns on and the built-in battery begins to charge.
3.6. Manual Power Off
To turn off CDR8010 manually:
1. Press the “Power Off” button and Hold for 3 seconds. The “Power off” confirmation dialog box dis-
plays on touch screen.
2. On the confirmation dialog box:
•Touch “Power off” to turn off the device.
• Touch other areas on the display to cancel.
3.7. Reset
1. If the CDR8010 fails to function normally due to unknown causes, hold the Power button for
3 seconds until the “Power off” confirmation dialog box appears on the display.
2. To turn off the device, follow the instructions provided in Section 3.4.
NOTE
• Make sure that SD card is inserted on the CDR8010. If the SD card is not inserted, the device will
show error message. For more information on insertion of SD card, refer to section 3.4.
•Always use the attached car charger to activate and charge the CDR8010.

Getting Started
CDR8010 - User Manual ASKEY© 2019 13
3.8. Date and Time
• The local date and time are automatically updated upon connection to an LTE/3G (or above) network
or GPS.
•The date and time are displayed in the recorded video as shown below.

Getting Started
14 ASKEY© 2019 CDR8010 - User Manual
3.9. Screen Icons/Buttons
Icons/Buttons/Indicators Description Icons/Buttons/Indicators Description
Main menu
Battery Charge Level,
25%, 50% and 75%
Firmware update
available (dot on Main
menu)
Battery Charge in
progress
Recording ON icon
Broken cameras
Recording error/OFF
icon
Impact
Recording event icon
E-Call Answer/End
buttons
No SIM card
Wi-Fi connection status
with signal strength
No GPS signal Bluetooth on/off
3G/4G Cellular
connection Hotspot on/off
Front cam recording
icon Rear cam recording icon
Back button Play button
Pause button
No SD card

Getting Started
CDR8010 - User Manual ASKEY© 2019 15
3.10. Touch Screen Operations
Description Operation Example Action
Volume Adjustment (from
Default Recording Screen)
Swipe up to increase the volume.
Swipe down to decrease the
volume.
Toggle between Cameras (from
Default Recording Screen)
Swipe right to use the rear cam.
Swipe left to use the front cam.
Forward or Rewind Video
(from Playback option)
Swipe right to forward.
Swipe left to rewind
Screen Brightness Adjustment
(from Display option)
Swipe up to increase the
brightness.
Swipe down to decrease the
brightness.
