Viking Stack-Rack Quick setup guide

Figure 1
Step 2: Rack Assembly
Position the port and starboard brackets onto the center of
the cooler rack rear tube as shown in figure 2. Attach the
brackets using two 8mm x 55mm hex bolts, washers and
locknuts. Finger tighten only. Attach this assembly to the
column tube at the desired position and secure using one
10mm x 70mm hex bolt, washer and locknut as shown in
Figure 3. Tighten securely, then reverse the nut until the
brackets rotate freely on the column tube. Now securely
tighten the two 8mm x 55mm bracket bolts.
Step 1: Attaching Column Tube to the Receiver Tube
The Column Tube is attached to the Receiver Tube
using one 12mm x 80mm hex bolt, flat washer and
locknut, and the 12mm curved clevis pin. Attach the
Column Tube as shown in figure 1. Tighten the
12mm hex bolt securely, then reverse the nut until
the column tube is free to rotate.
Stack-Rack
Vertical Receiver Mounted Cargo Rack
Assembly and Use Instructions
Assembly Tools Required:
Adjustable Crescent Wrench
13mm Box Wrench or Socket
16mm Box Wrench or Socket
18mm Box Wrench or Socket
Stack-Rack Parts Overview
General Purpose
Rack
Port Mounting
Bracket (2)
Column Tube
Tie-Down Rings
Receiver Tube
Starboard Mounting
Bracket (2)
Cooler Rack
Receiver Tube
Column Tube
12mm x 80mm Hex Bolt
8mm x 55 mm
Hex Bolt
Figure 3 Step 3: Repeat Step 2 for the general
purpose rack. Position the general purpose
rack at the desired location on the column
tube and secure using the same procedure in
Step 2.
10mm x 70mm
Hex Bolt
Receiver Clevis
Pin Hole
Figure 2
12mm Clevis Pin & Cotter Pin
12mm Washer and
Locknut this side
10mm Washer and
Locknut this side
Port Bracket
Starboard Bracket

Instructions for using the Viking Stack-Rack
Failure to read and follow all instructions may result in property damage, serious
injury or death.
 Never exceed the total maximum load capacity of 300 Lbs. (150 lbs. maximum each frame).
 Use appropriate tie-down straps to secure the load and always assure the load is balanced on the rack system.
 Always use caution to avoid pinch points during assembly, loading or use of the rack system.
 Never allow any cargo to extend beyond 36 inches from the tail lights of the vehicle.
 Never begin transporting any object until you are certain it is secured to the cargo frame(s).
 Never use for transportation of pets or live animals.
 Never load an object that is not fully contained within the rack frame(s).
 Always use additional caution during reverse operation of the vehicle.
 Always inspect for damage during storage, missing parts, etc. before each use.
 Store the Stack-Rack appropriately when not in use to provide years of trouble-free use.
Figure 4
©2015 Viking Solutions, LLC 919 Church St. NE Decatur, AL 35601
WWW.VIKINGSL.COM email: [email protected] Phone [phone]
If there are any questions concerning the assembly and/or operation of the Stack-Rack, please call
or email immediately for assistance.

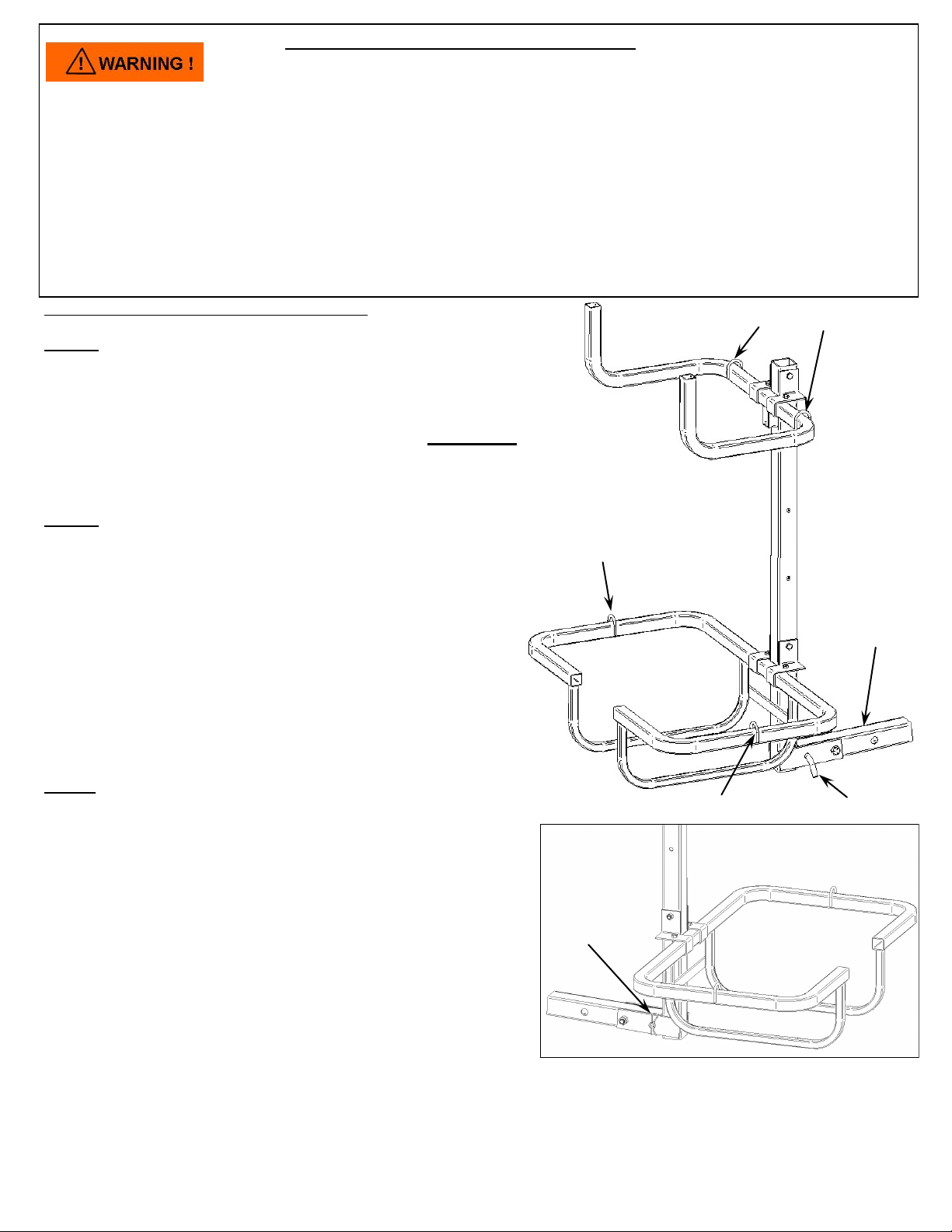

Set-up and Operation of the Stack-Rack
