Before You Use
RTV7805VW(RoHS) is a VDSL (Very High Speed Digital Subscriber Line) residential
gateway which allows ethernet connectivity for indoor residential or office
installation. It provides Wi-Fi 2.4GHz 802.11 b/g/n and voice over IP function for
home or office users. To benefit users’ access to the Internet, VDSL port and 4 fast
Ethernet LAN port are equipped with this gateway.
The router provides a cost-effective ADSL / ADSL2 / ADSL2+/ VDSL2 router. It
allows bidirectional communication with the ADSL / ADSL2 / ADSL2+/ VDSL2
DSLAM over a single conventional Unshielded Twisted Pair (UTP). The subscriber
line interface will carry the normal POTS telephone service, frequency multiplexed
with the upstream and downstream ADSL/ VDSL signals. For VDSL configuration,
the VDSL-POTS NT can receive up to 100Mb/s@VDSL2 in the downstream
direction and can send up to 50Mb/s@VDSL in the upstream direction; but largely
depending on circumstances. In the downstream direction (with data services
provided by a Remote Access Node) the ADSL/ VDSL NT will extract ATM cells
from the ATM cell stream and, based on their VPI/VCI, forward these cells towards
the Ethernet, or wireless interface. In the upstream direction, the ADSL/ VDSL NT
will insert ATM cells into an ATM cell stream and using a DMT (Discrete Multi Tone)
approach, convert these cells to a signal that can be sent over the subscriber line.
On the outgoing subscriber line, the DMT signal is frequency multiplexed with the
telephone service. Merging is done in an external splitter or built in filter
Now users can enjoy various bandwidth-consuming applications via
RTV7805VW(RoHS) residential gateway.

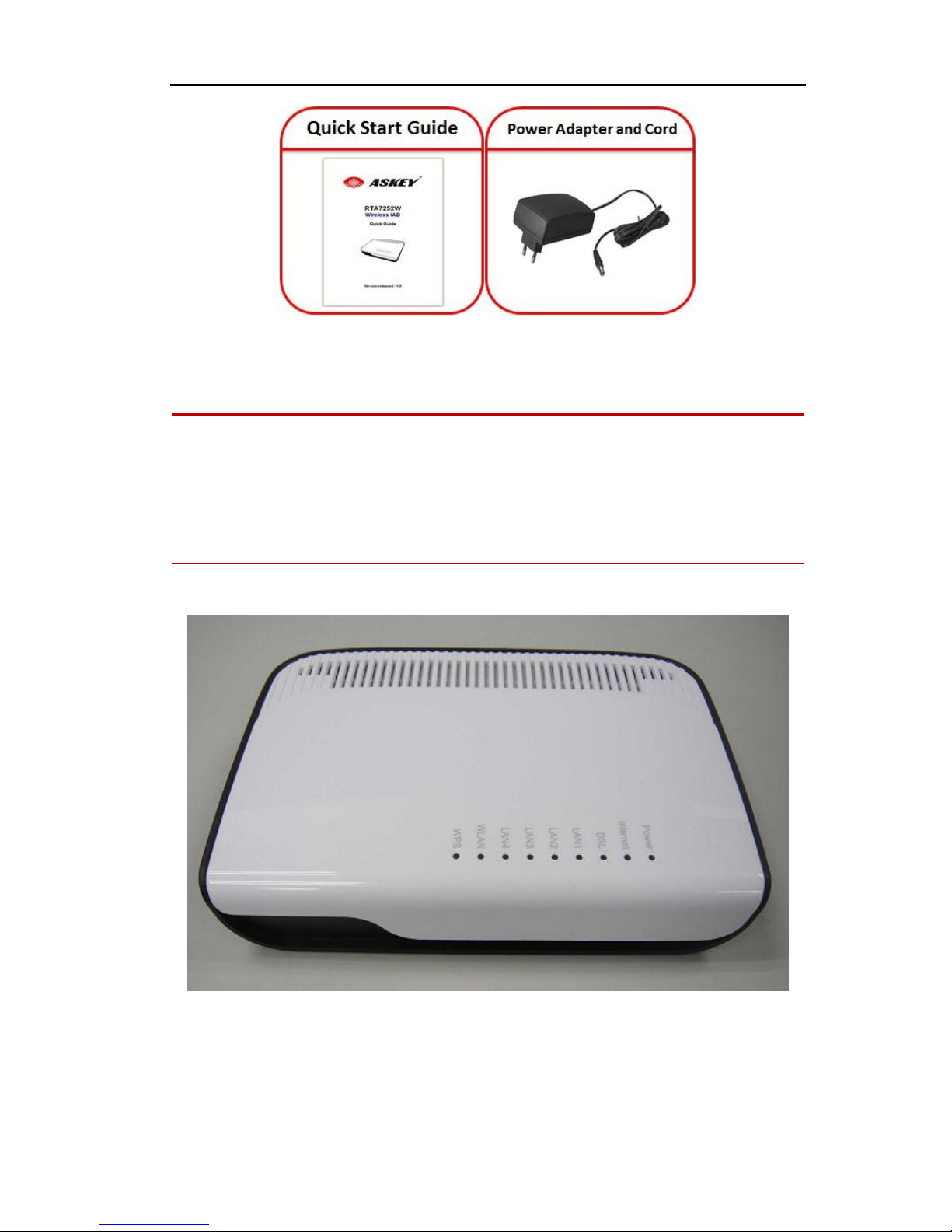

Unpacking
Check the contents of the package against the pack contents checklist below. If
any of the items is missing, then contact the dealer from whom the equipment was
purchased.
