Asko DFI5558MKXXL User manual

USER MANUAL
Dishwasher
EN
DFI5558MKXXL

3Your dishwasher ........................................
4Safety instructions .....................................
5Child lock .....................................................
5Installation ....................................................
5Overflow guard function ..............................
5Winter storage/Transport .............................
5Packaging ....................................................
5Disposal .......................................................
6Before washing for the first time ..............
6Water hardness ............................................
7Basic settings ..............................................
8Top up rinse aid ...........................................
8Top up salt ...................................................
9Greener dishwashing ................................
9Save energy and water ................................
10Loading the dishwasher ............................
10Fragile dishes ..............................................
10Loading affects the results ..........................
11The dishwasher's baskets ...........................
11Upper basket ...............................................
13Middle basket ..............................................
14Lower basket ...............................................
16Cutlery basket ..............................................
17Using the dishwasher ................................
17Add detergent ..............................................
18On/Off ..........................................................
18Select program ............................................
19Select program mode ..................................
20Select option ................................................
20Start/Stop .....................................................
21Status light ...................................................
21If you want to load more dishes ...................
21Power failure ................................................
22Once the program has finished ...................
22The best drying results ................................
22Unloading the dishwasher ...........................
23Program chart ............................................
24WiFi connection .........................................
24Connect Life .................................................
24Preparations .................................................
24Connect to a network and pair ....................
25Remote control the dishwasher ...................
25Remote start the dishwasher .......................
25Pair more devices ........................................
25
Turn off existing WiFi / Turn on existing
WiFi ..............................................................
25Remove all devices ......................................
26Settings .......................................................
29Care and cleaning ......................................
29Top up rinse aid ...........................................
29Top up salt ...................................................
30Clean the filters ............................................
31Cleaning the spray arms and spray pipes ...
32Clean the outside of the dishwasher ...........
32Run Self-cleaning .........................................
33Remove blockages ......................................
35Troubleshooting .........................................
36General ........................................................
42WiFi ..............................................................
43Installation ..................................................
43Safety instructions ........................................
44Setup ............................................................
44Drainage connection ...................................
44Connection to water supply .........................
45Electrical connection ...................................
46Service ........................................................
46Information about your product ...................
46Contact your nearest service centre ............
47Technical data and energy labelling ........
47Technical data .............................................
47Information for consumers ...........................
47Information for test institute ..........................
47EU declaration of conformity .......................
Contents

Welcome to our growing ASKO family!
We are proud of our appliances. We hope that this appliance will be an appreciated and dependable
aid for many years to come.
Please read the operating instructions before use. They include general tips, information about the
settings and adjustments you can make, and the best way to take care of your appliance.

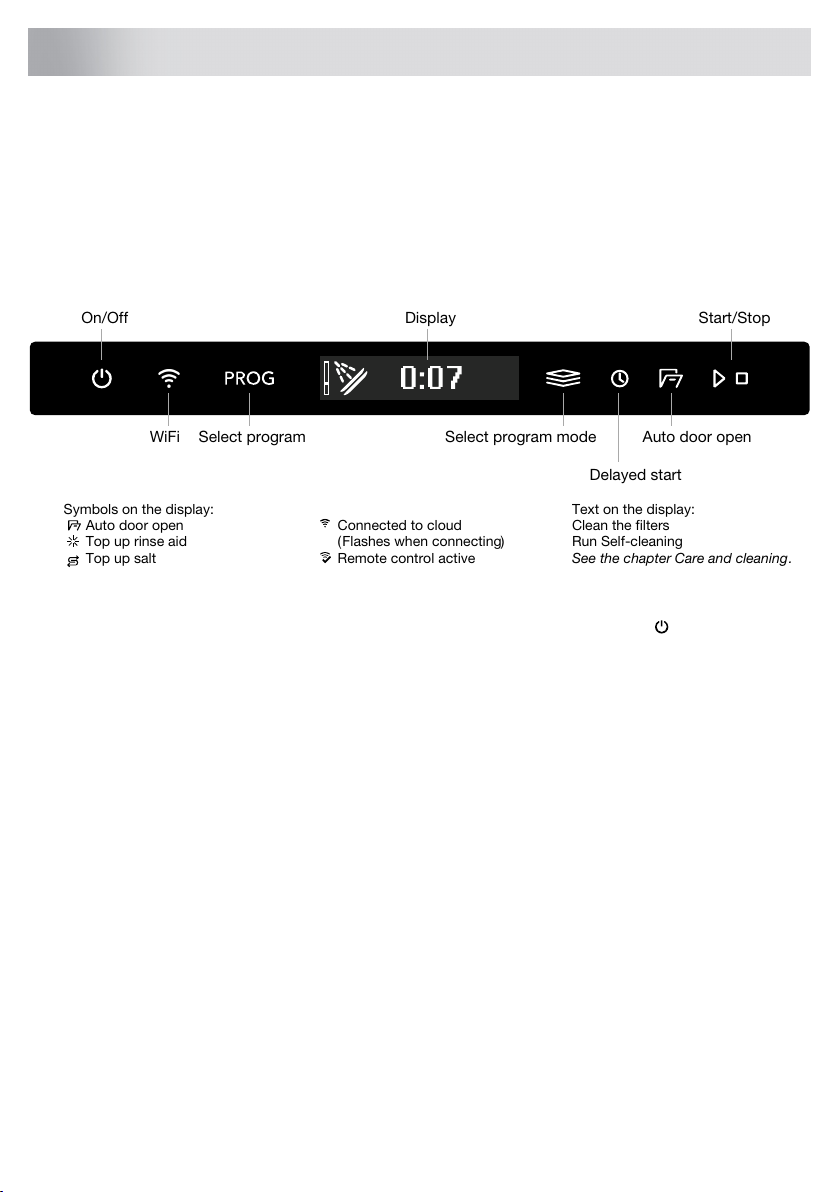

Display Start/Stop
Select program modeSelect program Auto door open
Delayed start
On/Off
WiFi
Connected to cloud
Top up salt
Top up rinse aid
Auto door open
(Flashes when connecting)
Symbols on the display: Text on the display:
Clean the filters
Run Self-cleaning
See the chapter Care and cleaning.Remote control active
Install the dishwasher, see the chapter Installation. Then open the door and press .
"Welcome to your ASKO. First time setup." is shown on the display the first time the dishwasher
is switched on. It is important that you choose the right settings to ensure good dishwashing results.
See page 6.
You can remote control this dishwasher with your smartphone/tablet. Connect the dishwasher to
your wireless network and pair with your smartphone/tablet to be able to remote control and start
the dishwasher using the Connect Life app. The app can be used to find information, change settings
and monitor the dishwasher. (The dishwasher can always be used without the app.)
3
Your dishwasher

•Read the operating instructions and keep them in a safe place!
•Number of standard place settings: 15
•Never use the dishwasher for any purpose other than that
specified in these operating instructions.
•Do not load the dishwasher door or dishwasher baskets with
anything other than dishes.
•Never leave the dishwasher door open as someone may trip on
it. Push the baskets in to avoid risking the dishwasher tipping
over.
•Use only dishwasher detergent!
•This machine can be used by children aged 8 and upwards, and
by people with reduced physical capacity, mental ability, memory
loss or lacking experience and knowledge. These individuals
must be supervised when using the machine or have instructions
on how to use the machine and understand the risks that can
occur. Cleaning of the machine must not be carried out by children
without supervision.
•Damaged supply cord must only be replaced by the
manufacturer's service centre or someone similarly professionally
qualified.
•Only use the dishwasher in household-type environments for
dishwashing household dishes. All other use is prohibited.
•Never place dishes with solvent residues in the dishwasher due
to the risk of explosion. Nor may dishes that contain ash, wax or
lubricants be washed in the dishwasher.
•Children must be watched. Do not allow children to use or play
with the dishwasher. Be especially vigilant when the door is open.
Some detergent may remain inside! After adding detergent, always
start the dishwasher immediately.
WARNING!
Knives and other pointed items must be placed with the points
down in the cutlery basket or horizontally in other baskets.
4
Safety instructions

WARNING!
Children must be supervised –dishwasher detergent is corrosive!
Child lock
You can activate the Automatic child lock setting to prevent children from starting the dishwasher.
See the chapter Settings. You can also temporarily activate and deactivate the Child lock function.
Press and hold and for three seconds.
Installation
See the chapter Installation.
Overflow guard function
The overflow guard starts pumping out the machine and turns off the water supply if the water level
in the dishwasher exceeds the normal level. If the overflow guard is triggered, F54 (Overfilling water)
appears on the display. Turn off the water tap and contact your nearest service centre. (To avoid
water leakage outside the dishwasher, do not remove the plug from the wall socket until the water
tap on the supply line has been turned off!)
Winter storage/Transport
Store the dishwasher above freezing and avoid long transport distances in very cold weather.
Transport the dishwasher upright or laying on its back.
Before transporting a used dishwasher, or before prolonged storage, water must first be removed
from the machine. Run the Self-cleaning program.
Packaging
The outer packaging protects the product during transport. The packaging material is recyclable.
Separate the different packaging materials to help reduce raw material use and waste. Your dealer
can take the packaging for recycling or direct you to the nearest recycling centre. The packaging
is comprised of:
•Corrugated cardboard made from up to 100% recycled material.
•Expanded polystyrene (EPS) with no added chlorine or fluorine.
•Supports made from untreated wood.
•Protective plastic made from polyethylene (PE).
Disposal
The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the
end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the
power cable and cut it as short as possible. Remove the light source/light sources.
Contact your local authority for information about where and how your dishwasher should be correctly
recycled.
5
Safety instructions

Water hardness
In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral
content). Hard water leaves a white coating on dishes and the dishwasher.
Checking water hardness
Water hardness is specified using German degrees of water hardness (°dH), French degrees of
water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).
A water supply with a water hardness in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/ll) must be softened.
This is done automatically with the aid of the built-in water softener. In order for the water softener
to function properly, its settings must be adjusted to the hardness of the water supply. Once you
have adjusted the water softener settings, add detergent and rinse aid in doses suitable for soft
water.
Contact the local waterworks to check the water hardness in your area.
Make a note of the water hardness:____________
Recommended settingmmol/l°eH°fH°dH
00.0-0.90-60-90-5
11.0-1.47-1010-146-8
21.5-2.011-1415-209-11
32.1-2.515-1821-2512-14
42.6-3.419-2426-3415-19
53.5-4.325-3035-4320-24
64.4-5.231-3644-5225-29
75.3-7.037-4953-7030-39
87.1-8.850-6171-8840-49
98.9628950
If the water hardness exceeds 50°dH (89°fH / 62°eH / 8.9 mmol/l), we recommend connecting an
external water softener.
Increased consumption during regeneration
The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration
extends the dishwashing program and increases energy and water consumption. Just how often
the dishwasher's water softener is regenerated depends on the selected setting.
Example: If the Eco program is run with a water hardness of 14°dH (25°fH / 18°eH / 2.5 mmol/l), the
water softener is regenerated at regular intervals (after 7 dishwashing cycles), energy consumption
increases by 0.015 kWh, and water consumption increases by 2.3 litres, while the program time is
extended by 3 minutes. Regeneration takes place during the program’s main wash.
6
Before washing for the first time

WARNING!
Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important
that you select the right setting for the water softener! See Water hardness.
Never run the dishwasher with an empty salt compartment if the water supply has a water hardness
in excess of 5°dH (9°fH / 6°eH / 0.9 mmol/l).
Basic settings
Open the door. Press .
"Welcome to your ASKO. First time setup." is shown on the display. It is important that you choose
the right settings to ensure good dishwashing results.
Select setting with . Confirm selected setting with .
Settings
Select the language to be shown on the display.Language1.
Drying is faster and a better result is achieved if you use
rinse aid. You will also achieve a better dishwashing result
with clear and spotless dishes.
Set level of rinse aid
0/1/2/3/4/5
Pre-selected at factory: 4
2.
The rinse aid dispenser can be adjusted between 0 (Off)
and 5 (High dosage).
Adjusting the water softener. Select a setting depending on
the hardness of the water supply. It is important that this
setting is correct!
Set water hardness
0/1/2/3/4/5/6/7/8/9
Pre-selected at factory: 4
3.
For a water supply with a hardness below 6°dH (10°fH /
7°eH / 1.0 mmol/l), select 0. The water softener is
deactivated and no salt needs to be added.
Activate this setting when using an all-in-one detergent that
contains rinse aid.
TAB On/Off
Pre-selected at factory: Off
4.
This setting reduces the rinse aid dosage.
To change the selected setting, see the chapter Settings.
7
Before washing for the first time

Top up rinse aid
Top up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5.
Lift up to open
Press to close
1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked MAX.
3. Wipe up any splashes of rinse aid around the compartment.
4. Close the lid firmly.
Top up salt
Add salt to the salt compartment if you have selected Water hardness 1 - 9.
1. Remove the salt compartment lid by turning it anticlockwise.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour
in about 1 l of water.
3. Add enough salt to fill the salt compartment (max. 750 gram). Use special dishwasher salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.
WARNING!
In order to avoid rust stains a dishwashing program must be started immediately after adding
salt.
8
Before washing for the first time

Save energy and water
When using a dishwasher in a residential setting, less energy and water are generally used compared
to washing the dishes by hand.
Do not rinse under running water
Do not rinse the dishes under running water as this will lead to increased energy and water
consumption. Simply scrape off large food particles before loading the dishwasher.
Choose a green detergent
Read the environmental declaration on the packaging!
Too much detergent, rinse aid and salt can result in less effective dishwashing and also entail greater
environmental impact.
Run a fully loaded dishwasher
Save energy and water by waiting until the dishwasher is full before running a program (see number
of standard place settings). Use the Rinse and hold program to rinse the dishes if there are any
unpleasant odours.
You can also use the Anti-odour program to prevent bad odours from dirty dishes left in the
dishwasher.
Run programs at a lower temperature
If the dishes are only slightly dirty, you can select a program with a low temperature.
Select dishwashing program –Eco
This program is suitable for washing normally soiled dishes and is the most effective program in
terms of combined energy and water consumption. This program is used to assess compliance with
EU legislation on ecodesign.
The dishwashing program is designed for an effective wash using as little energy and water as
possible. The program washes at a low temperature for a long time.
Select option –Auto door open
Better drying results are achieved if you use the Auto door open option, which automatically opens
the dishwasher door. Wait until the dishwasher indicates that the programme has ended and the
dishes have cooled before unloading the dishwasher.
Connect to cold water
Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas.
Connection to hot water supply
Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an
energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot
water connection reduces the dishwasher's energy consumption.
NOTE!
Do not exceed the permitted water supply temperature. Certain materials used in some cookware
cannot withstand high heat. See Fragile dishes in the chapter Loading the dishwasher.
9
Greener dishwashing

Fragile dishes
Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot
withstand high heat, others can be damaged by dishwasher detergent.
Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver,
copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking.
Fragile decoration
Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a
dishwasher.
Crystal/Glass
Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better
dishwashing result with clear and spotless dishes.
Hand-painted glassware, as well as antique and very fragile items, should not be washed in a
dishwasher.
Silver
In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver,
stainless steel and aluminium.
Aluminium
Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can
be washed in a dishwasher, even if some of the shine will be lost.
Cutlery with glued handles
Some types of glue are not dishwasher safe. In such cases, the handles may loosen.
Loading affects the results
Load the dishes carefully to ensure the best washing and drying results with the lowest possible
energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces,
as well as to dry the dishes as thoroughly as possible.
•All dirty surfaces should face inwards and downwards!
•Dishes should not be placed in or on each other.
•Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important
for plastic items.
•Make sure small items cannot fall through the dishwasher basket; place them in the cutlery
basket.
NOTE!
Check that the spray arms can rotate freely.
10
Loading the dishwasher
