Asko DC7784HP User manual

USER MANUAL Drying cabinet DC7784HP
DC7794HP
Read the user manual before using the machine

Dear ASKO customer,
Congratulations on making an excellent choice, and welcome to the ASKO
family, a global family with its roots in Sweden.
We at ASKO thank you for your trust and hope that you will enjoy using
your new drying cabinet.
A good drying cabinet should be well designed, dry clothes well, have a low
environmental impact, be user-friendly, save time and energy, have a long service life and be
reliable. ASKO offers you all these features.
When you buy an ASKO product you can be sure that the inside is just as
good as the outside and that the ethics and morality that go into building this
product are just as high as the quality and function you are getting. That's what Swedish
quality is all about.
Before using the product for the first time, please read the user instructions and the advice
on caring for the product. This will help you get the best possible results from your product
and all its functions.
If you have any questions, do not hesitate to call us or to contact us through
our website.
Best wishes from Sweden and the ASKO team.

3
CONTENTS
THIS USER MANUAL 4
IMPORTANT SAFETY INFORMATION 5
FOR A GOOD ENVIRONMENT 6
Packaging materials 6
Management of end-of-life
drying cabinet 6
DESCRIPTION OF THE DRYING CABINET 7
Air flow in the cabinet 8
CONTROL PANEL 9
Function of the button 9
Display 9
Language setting 10
PLACEMENT 11
UNPACKING 12
Assembly kit 12
REHANGING OF DOOR 13
CONDENSATION WATER 17
Detachable water tank 17
Connection to floor drain 18
Reconnection to water tank 19
INSTALLATION 20
Positioning/Attachment 20
Electrical connection 21
START-UP 22
OPERATION 23
User tips 24
Drying programmes 25
Selection of drying programme 25
Child lock 25
Starting drying programme 26
Ending drying programme 27
Door opened 27
SETTING OF DRYING PROGRAMME 28
Introduction 28
Procedure 29
Return to operating mode 29
Parameter list 30
Restoring to factory setting 30
CARE 31
Cleaning 31
Service 32
TROUBLESHOOTING 33
LIST OF ERROR CODES 35
TECHNICAL DATA 36

4
The contents of this user manual describe
function, operation and optimisation of
drying programmes, as well as instruc-
tions for installation and maintenance.
Alongside the User Manual there is a
Service Manual.
THIS USER MANUAL

5
IMPORTANT SAFETY INFORMATION
Applicable to installation in the EU
 The drying cabinet can be used by children over the age of
8 and persons (including children) with various disabilities or
inadequate experience and knowledge, provided they are kept
under supervision or are given instructions on how to use the
appliance in a safe way and understand the risks that use entails.
Children must not play with the appliance.
Applicable to installation in countries outside the EU
 The appliance is not intended for use by persons (including children)
with various disabilities or inadequate experience and knowledge.
They may use the appliance only under supervision or if they have
received instructions on how to use the appliance form a person
who is responsible for their safety.
Children must be supervised to ensure that they do not play with
the appliance.
Applicable to all installation
The drying cabinet must be installed and kept indoors.
If the power cord is damaged, it must be immediately replaced,
and this must be done only by the manufacturer, the manufac-
turer's service agent or similarly qualified persons in order to
prevent danger.
Follow ASKO instructions in repair and replacement of parts.
This drying cabinet meets applicable safety requirements. Incorrect use
may, however, lead to injuries and damage to objects.
The advice and caution notices in this manual have been written to ena-
ble you to avoid incorrect use and unnecessary risks of accidents, and
should be read before installing and using the drying cabinet.
CAUTION: This equipment is intended only to be used to dry fabrics
washed in water.

6
FOR A GOOD ENVIRONMENT
PACKAGING MATERIALS
The packaging that protects the drying
cabinet against damage in transit has been
chosen with concern for the environment in
mind and is therefore recyclable.
Packaging that is returned to the material
cycle means reduced consumption of raw
materials and a smaller volume of waste.
MANAGEMENT OF END-OF-
LIFE DRYING CABINET
When the drying cabinet has reached the
end of its useful life, it must be taken to a
recycling centre for disposal. Many parts
of the drying cabinet can be re-used, but
it also contains other materials that must
be handled correctly. You should therefore
never leave the drying cabinet or parts of
the cabinet for collection with household
waste, as this may lead to risks to health
and cause damage to the environment.
The end-of-life drying cabinet should
instead be taken to a recycling centre.
Check with your dealer if necessary.
All the plastic parts of the drying cabinet
are marked with internationally stand-
ardised symbols. The parts of the drying
cabinet can therefore be recycled in an
environmentally sound manner by waste
separation.

7
DESCRIPTION OF THE DRYING CABINET
The ASKO DC7784HP and DC7794HP dry-
ing cabinets operate according to the heat
pump principle with a dehumidifier instead
of a conventional hot-air unit. As a result,
the washing is dried at lower heat and with
substantially lower energy consumption.
The cabinet is a completely enclosed
system. No exhaust-air connection is re-
quired. The moisture condenses during
the process, and the water that is formed
is conveyed to a detachable water tank, or
through a hose to the drain.
In addition, the fan is so powerful that it
causes the items of clothing to flutter, mak-
ing the drying process even more efficient.
Extendible hanger
sections (3x)
Door hangers
Detachable shoe rack
Tank for condensation
water
Dehumidifier
Adjustable feet (4x)
Wall mount
Clothes hanger rack (2x)

8
AIR FLOW IN THE CABINET
Air return after dehumidification
Enters a duct in the back of the
drying cabinet
Air intake in 6
rows of holes
Cleaning filter
below the shoe
rack
Dehumidifier
_____________________________
NB
Make sure that shoes and similar items
do not block the airflow.
____________________________________

9

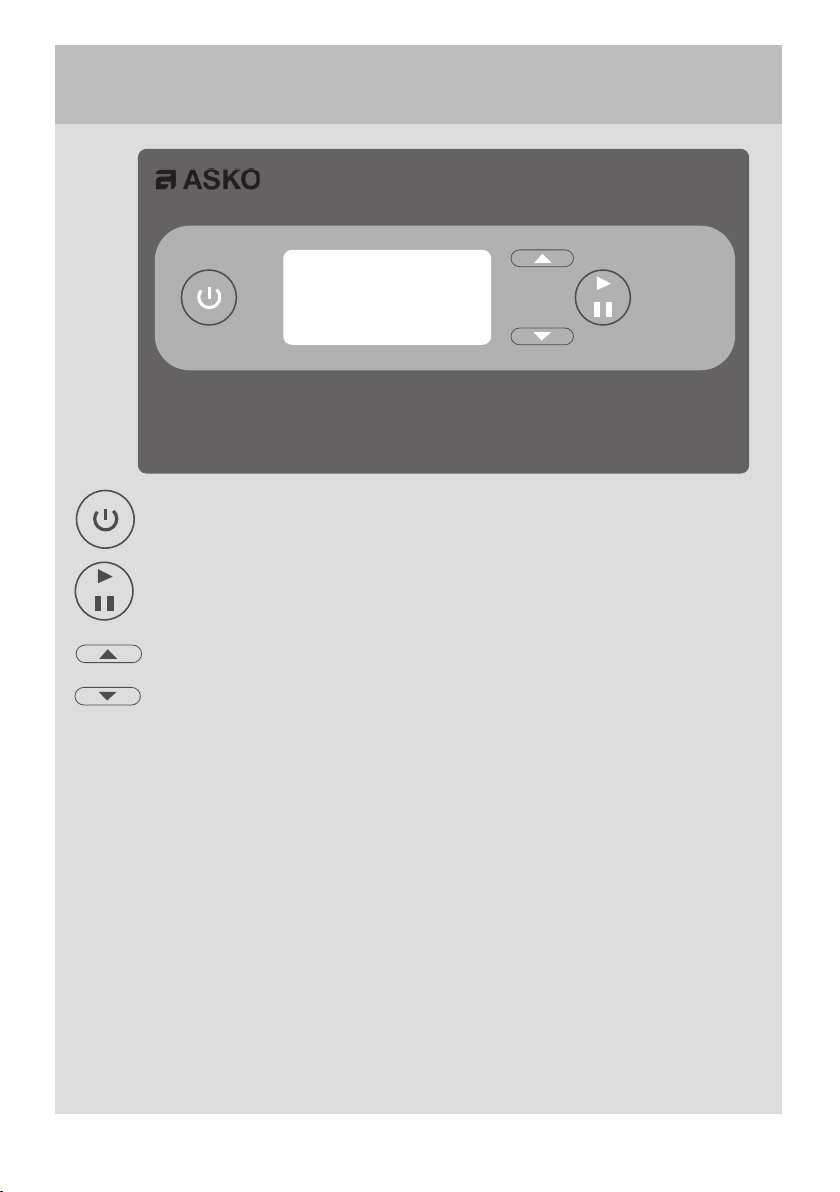

ON / OFF
OK/START/STOP
UP ARROW
DOWN ARROW
FUNCTION OF THE BUTTON
ON-OFF
The display is lit and shows the last programme used
OK/START/STOP
Confirms selection of programme, functions and settings.
If the setting flashes, it must be confirmed or changed using the ARROW keys and/
or OK. The drying process starts.
UP ARROW / DOWN ARROW
These are navigation keys to step through lists and information texts.
If UP and DOWN are pressed simultaneously when ON-OFF is turned off,
PROGRAMMING MODE opens when ON-OFF is pressed.
To return to operating mode, press DOWN ARROW and then OK.
CONTROL PANEL
DISPLAY
The display has two rows with 6
characters on each row. During the
drying process the selected drying
programme and a rolling bar indicat-
ing that the process is in progress are
shown.

10
CONTROL PANEL
1Make sure that the main ON/OFF
switch on the drying cabinet is off. The
display is unlit.
2Hold down the UP ARROW and
DOWN ARROW buttons and press
the ON/OFF switch to the ”ON” posi-
tion. The display lights up and on the
top row shows “P105” flashing, which is
the parameter for language setting. If a
different value is shown, use the arrow
up or down buttons to step through to
the parameter P105.
3Press START/STOP to confirm.
The row for current language now
flashes. The languages have a numer-
ical symbol as shown in the list below.
Language
symbol
Display lan-
guage
0 English
1 Swedish
2 Norwegian
3 Danish
4 Finnish
5 Italian
6 French
7 German
8 Spanish
9 Portuguese
10 Dutch
4Step through to the desired language
with the UP ARROW or DOWN AR-
ROW buttons.
5To save the set value, press START/
STOP.
6To return to operating mode, press
DOWN ARROW and START/STOP.
LANGUAGE SETTING
The following languages can be handled: English, Swedish, Norwegian, Danish, Finnish,
Italian, French, German, Spanish, Portuguese and Dutch.

11
A
595
665
PLACEMENT
There must be an earthed socket
within a distance of 2 m from the
lower part of the drying cabinet.
The drying cabinet has a 2 m long
earthed lead with a plug connect-
ed at the bottom. The power socket
should be located such that there
is no need for an extension cable.
It must be possible to reach the
socket easily after the drying cab-
inet has been installed. This must
also be borne in mind if the drying
cabinet is built in.
The floor where the cabinet is lo-
cated must withstand a weight of
around 95 kg.
The floor must be level with a max
drop of 2.5 cm under the cabinet.
The drying cabinet is intended
only for installation indoors with a
temperature above 15°C.
The drying cabinet must not be
placed in an environment in which
high-pressure water is used for
cleaning.
Cabinet desig-
nation
A mm
DC7784 1840
DC7794 1930

12

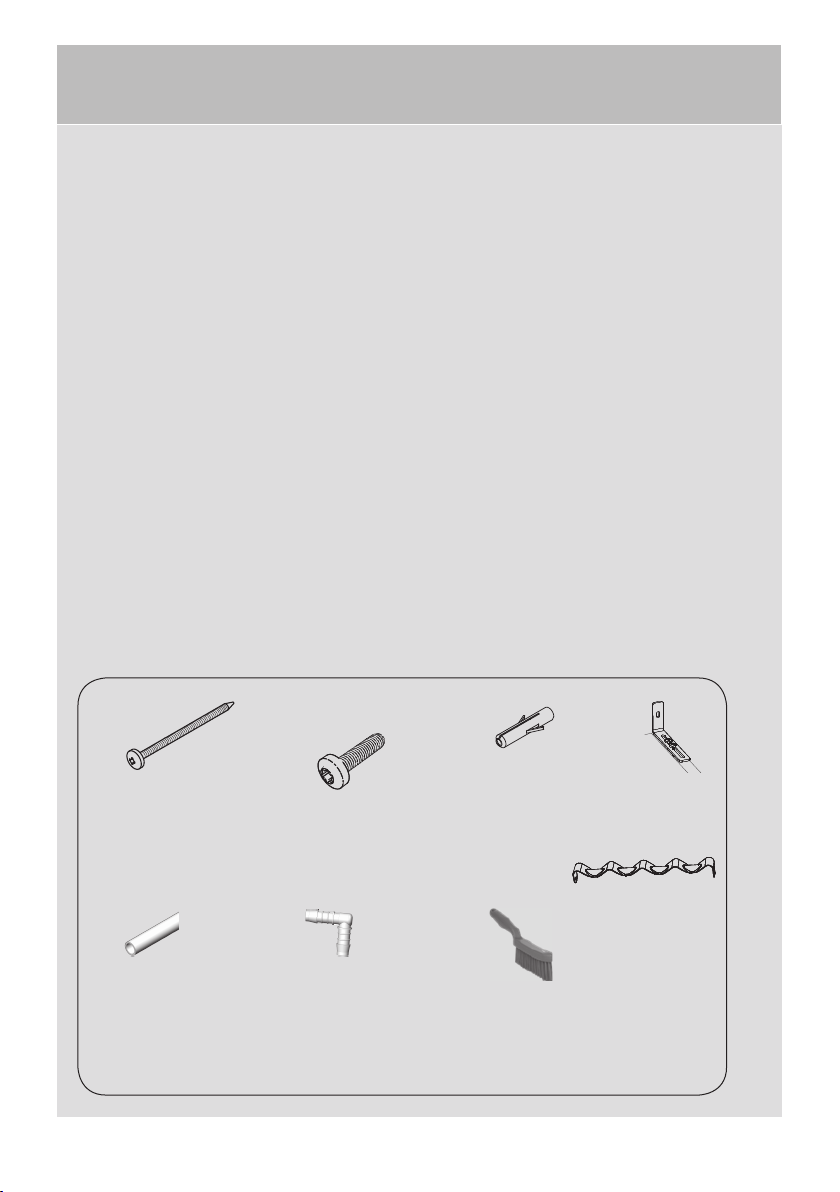

2x Screw TRX 5x45
fzk for wall mounting 4x Screw MRT 5x20
for the fixing bracket
2x Plastic
plug 2x Bracket
for wall
attachment
1.5 m Plastic
hose 10 x 13
1x Nipple for
water hose Hand brush for
filter
2x Clothes
hanger rack
____________________________________
Check to make sure that the product has
not been damaged in transit. Any dam-
age incurred in transit must be reported
to the dealer within 7 days.
____________________________________
____________________________________
After unpacking, check that the product is
intact. Damage, defects and any missing
parts must be reported to the dealer.
____________________________________
_________________________________
Check that all transport securing
devices have been removed before
connecting the drying cabinet.
_________________________________
_________________________________
Packaging materials such as plastic
and Styrofoam must be kept out of
the reach of children.
________________________________
Complete delivery must include:
Cabinet with pre-installed dehumidifier
Assembly kit
User Manual
ASSEMBLY KIT
UNPACKING

13
4
3
2
1
REHANGING OF DOOR

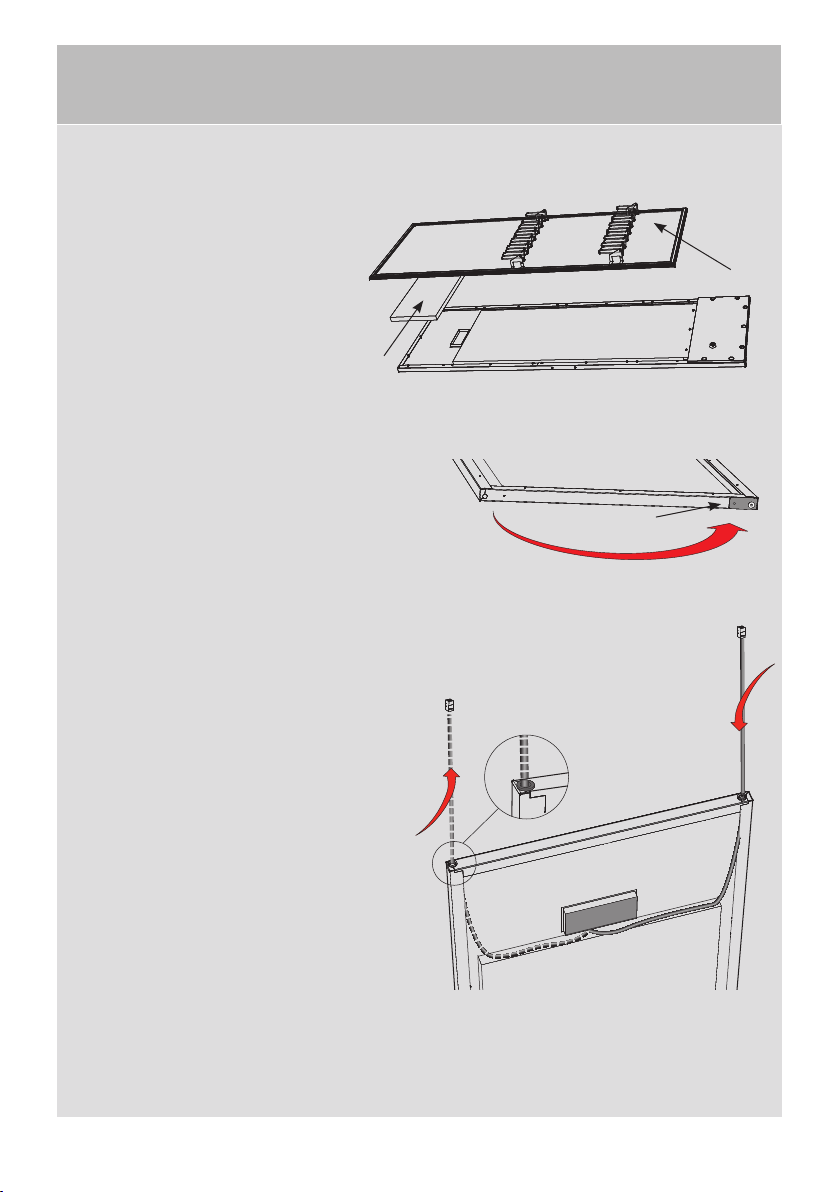

1Detach the two screws holding the outer
roof. The screws are located beneath
the blind plugs (1). as illustrated, and
remove the roof.
2Remove the protective cover (2) on the

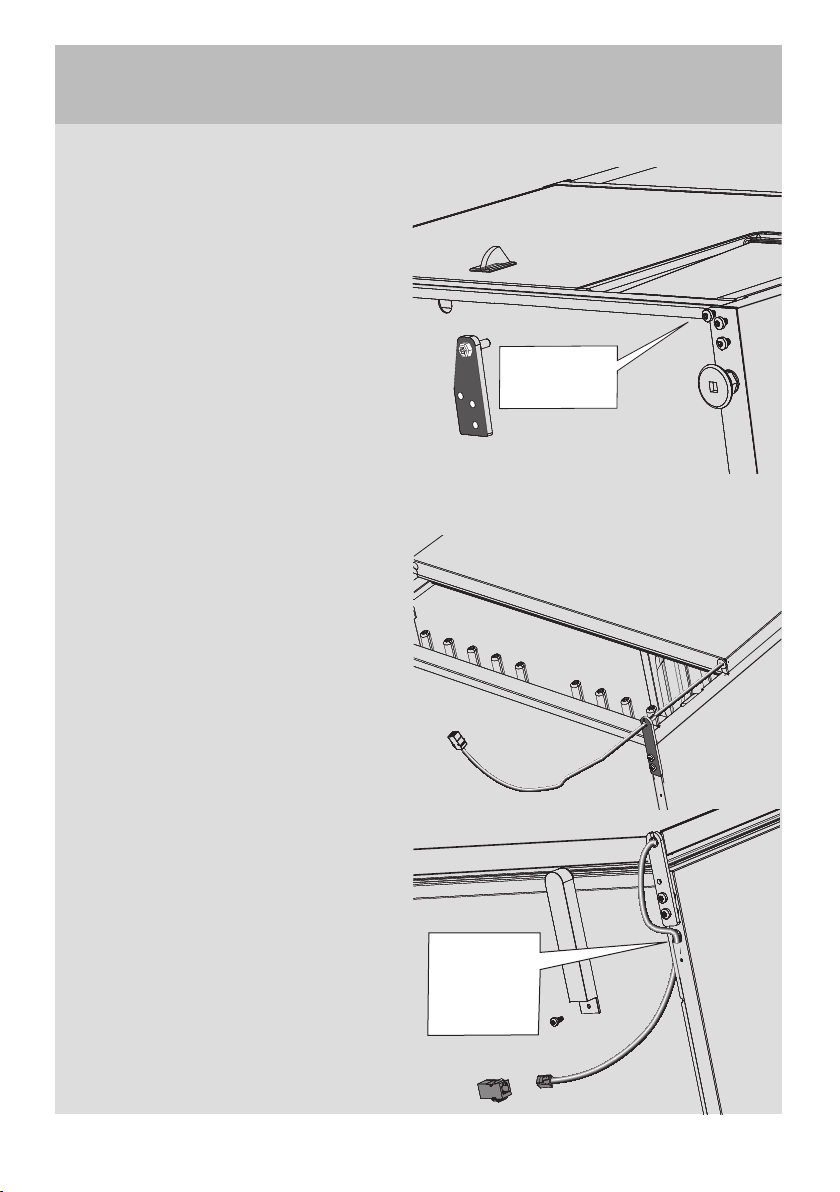

upper hinge and separate the door cable
(3) from the connector (4). Thread the
cable through the hole in the chassis
and stretch out the cable.
3Remove the upper hinge and release
the cable from the hinge. The hinge has
a slot through which the cable can be
threaded. See illustration.
Release the door from the hinge and to-
gether with the control cable lay it aside.

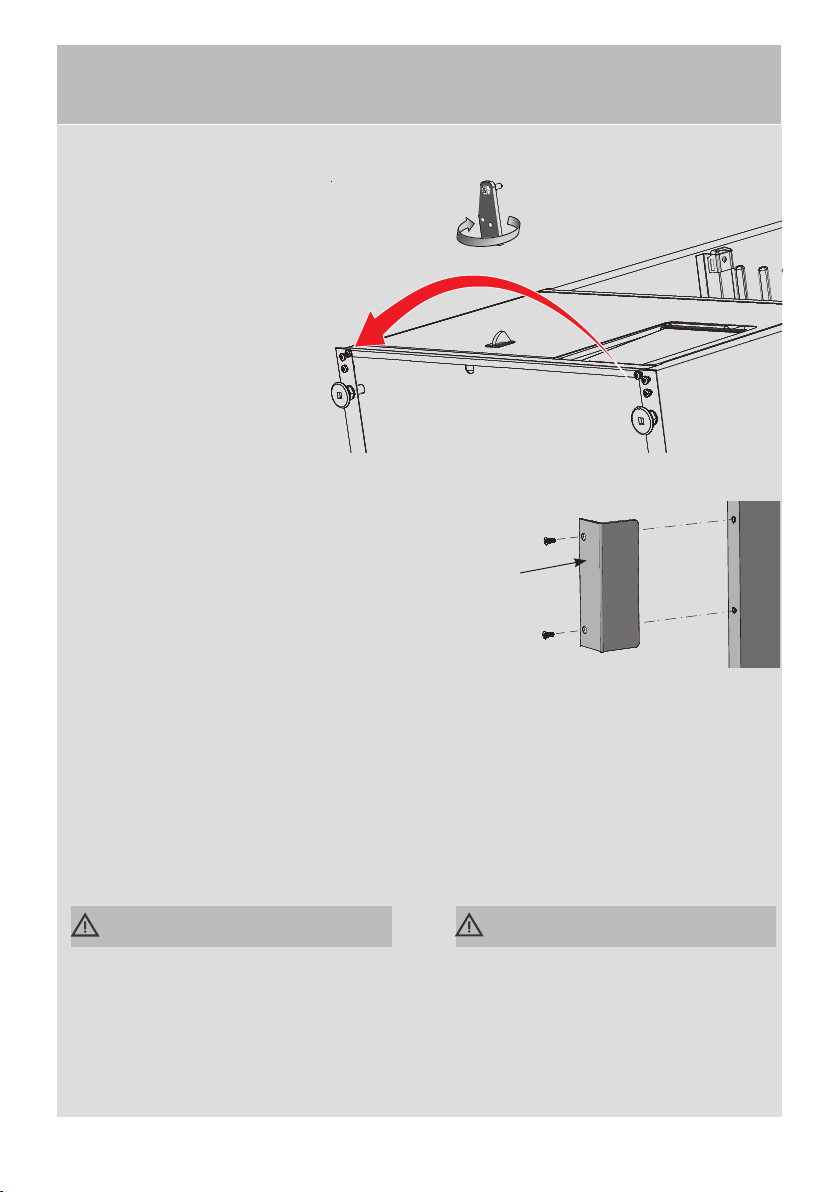

4Fit the new replacement hinge, which
is included in the rehanging kit, on the
opposite side. Use the same screws as
previously.
The pictures below illustrate rehanging from right-hung door to left-hung.
Rehanging kit
For rehanging, a rehanging kit must be ordered from the supplier of the cabinet. The
kit consists of a new upper hinge, as the left and right hinges are not interchange-
able. The kit also includes a control cable for fitting in the door with associated
hinge bushing.
Lay the cabinet down carefully on
its back.
_______________________________
NB
Before placing the cabinet on its back, take
out and empty the water tank.
_______________________________________
Upper hinge with slot
for cable
OUTER
ROOF

14
5
6
7
Reconnection in the door
5Lay the door down with
the inside facing up on a
non-damaging surface.
6Detach the inner plate
(5) with magnetic strips,
glove hangers and, if
applicable, door hangers.
Screws are beneath the
magnetic strips.
Move the insulation into
position(6).
7Detach and transfer the reinforce-
ment plate with lower hinge
bushing (7) in the door to the
opposite side.
8Detach existing control cable from
control panel and pull cable out
with hinge bushing (8). Discard
the cable as there is a new com-
plete cable in the rehanging kit.
Fit the new cable on the opposite
side - press the bushing firmly into
the hole and connect the cable to
the control panel socket.
9Move back the insulation and
inner plate with magnetic strips
and, if applicable, hangers.
Existing control
cable New control
cable

15
Lay the door in position
10 Before laying the door in position,
remove the lower hinge with pin
and washer and lay it aside. Screw
back the fixing bolts as they con-
tribute to the stability of the cabinet.
11 Lay the door in position and intro-
duce the control cable through the
slot in the new upper hinge, and
slide the door onto the hinge pin.
12 Connect the control cable to the
connector in the upper part of the
drying cabinet. The control cable
must be pulled through the hole as
illustrated.
13 Refit the protective cover over the
hinge and the roof of the drying
cabinet removed under point 1.
Lower
hinge
Screw back
the retaining
screws
The cabinet viewed from
below
New upper
hinge
The control
cable must
be pulled
through the
hole.

16
9
14 Transfer the hinge to the
other side. The hinge
must be mirror-inverted
and the hinge pin must be
unscrewed and refitted
on the other side of the
hinge.
Make sure that the hinge
pin is tightened firmly.
Transfer the door handle
15 Transfer the handle (9) to the other
side.
Fit the cover plugs for the old holes
by hand. Cover plugs are supplied
in the assembly kit.
Raise the cabinet
16 Raise the cabinet and place it in
position and secure the cabinet
to the wall.
Lower hinge mirror-
inverted
Door handle
_____________________________
NB
Wait at least 1 hour before using the
cabinet again. This is to allow time for the
oil in the compressor to flow back. The
compressor may otherwise be damaged.
____________________________________
_____________________________
CAUTION
The drying cabinet must not be used
without being secured to a wall owing to
the risk of tipping over forward.
____________________________________

17
CONDENSATION WATER
Condensation water may be removed in two ways, collected in a detachable
water tank or via a hose to the floor drain.
DETACHABLE WATER TANK
_____________________________
NB
The water tank is designed to be suffi-
ciently large for a complete wash by a
comfortable margin. But make a habit of
always emptying the water tank before
each drying operation.
____________________________________

18
1Carefully pull the upper part of the hose
out around 2 - 3 cm.
2Trim the hose in the middle of the opening.
3 Install the new drain hose with the nipple
supplied in the assembly kit as illustrated.
Push the hose on without hose clips.
4 Position the drain hose in one of the
recesses in the sheet metal so that
there is no risk of the hose being
crushed.
CONNECTION TO FLOOR DRAIN
The drying cabinet is supplied from the factory with a hose to the detachable water tank.
To change to removal of condensation water to the floor drain, proceed as follows:
Cabinet viewed from rear
Position the drain
hose in one of the
recesses in the
sheet metal
New hose to
drain
Nipple
Trimmed
hose from
condensation
water pump
Hose to
the de-
tachable
water tank
Hose from
condensa-
tion water
pump

19
5Route the drain hose to the drain.
6 If the drain is higher than the outlet on the cabinet, make sure that the hose runs to the
floor in an arc and forms a trap. There is otherwise a risk of the condensation water
flowing back to the tray when the pump is not working. This may cause the tray to be
filled with water and the cabinet to stop working.
RECONNECTION TO WATER TANK
If you wish to reconnect the condensation water to the water tank, all you need to do is
to connect the two hoses together again with the nipple.
_____________________________
NB
Do not under any circumstances bend
the hose so that water flow is prevented.
____________________________________

20
INSTALLATION
POSITIONING/ATTACHMENT
LEVELLING
The drying cabinet must be level on
a flat surface, resting on all four feet.
Adjust the adjustable feet from the
outside.

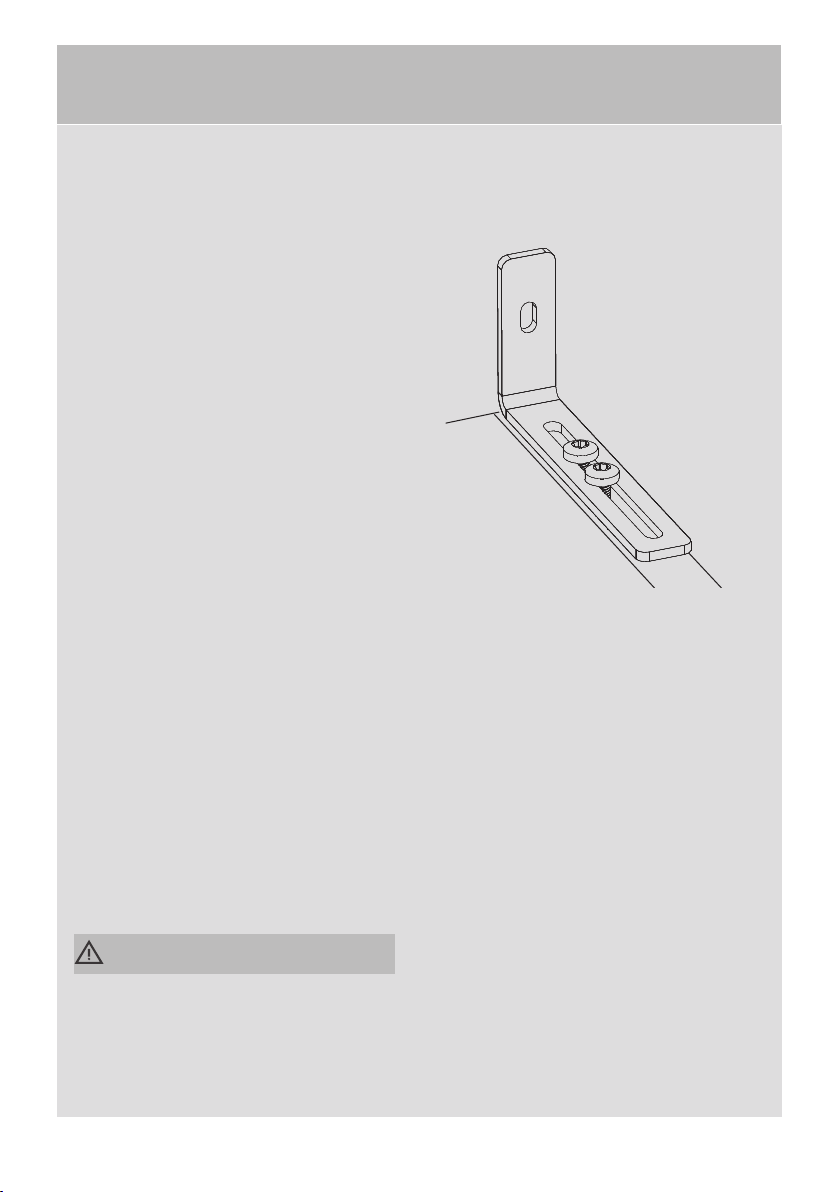

ATTACHMENT TO WALL
The cabinet must be attached to a wall
to prevent tipping over.
The assembly kit includes two angle
brackets that are fitted on the top of
the drying cabinet, as illustrated. Use
the screws supplied. The brackets have
slots for fitting to the wall.
Fix the cabinet to the wall. Screws for
fixing, washers and plastic plugs are
supplied in the assembly kit.
____________________________________
The drying cabinet must not be placed in
an environment in which high-pressure
water is used for cleaning.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
____________________________________
The drying cabinet is intended only for
location indoors in a dry place.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
_____________________________
CAUTION
The drying cabinet must not be used
without being attached to a wall owing to
the risk of tipping over forward.
____________________________________
Fixing bracket
Top of drying
cabinet
