WM 90
PROGRAMS AND ELECTRICAL FUNCTIONS. WM 90A

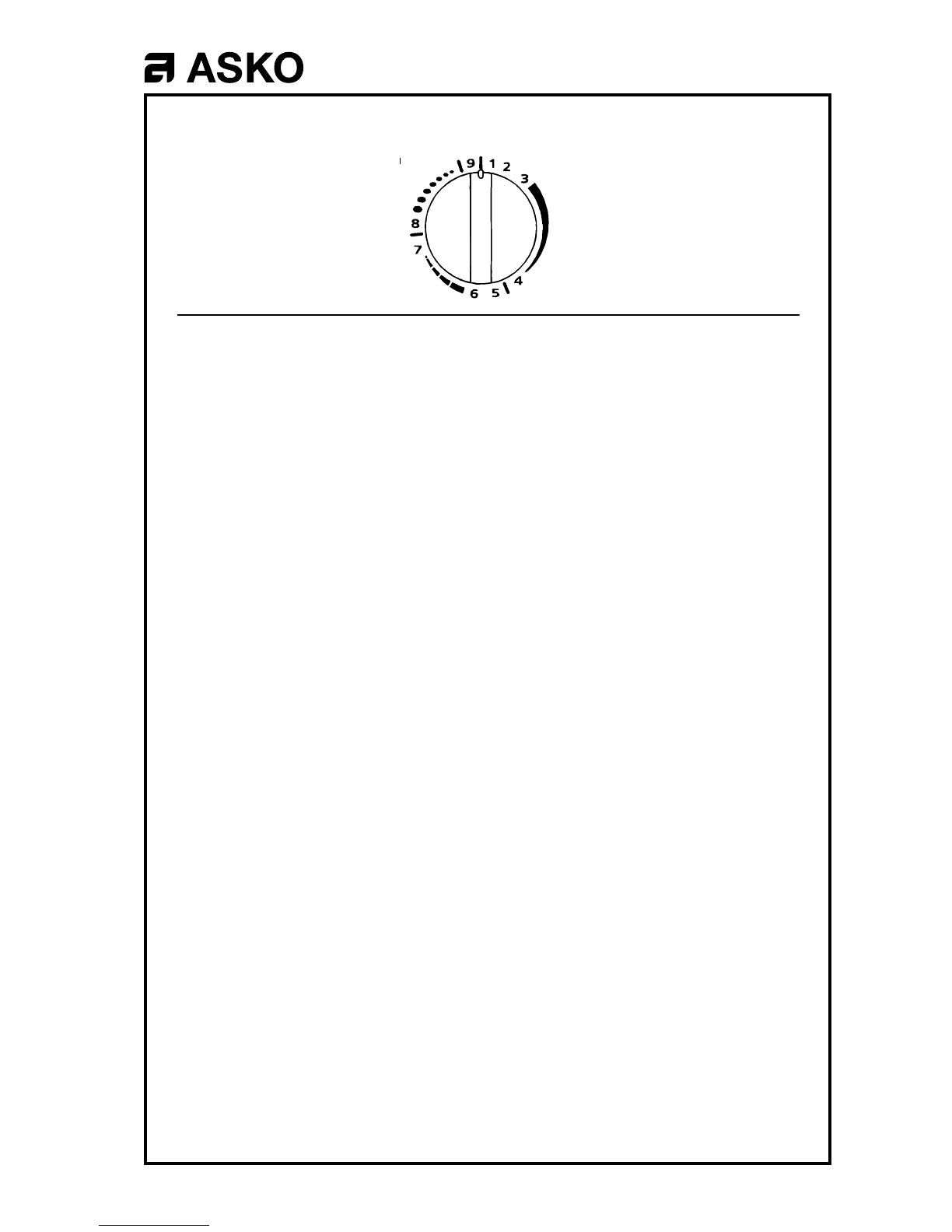

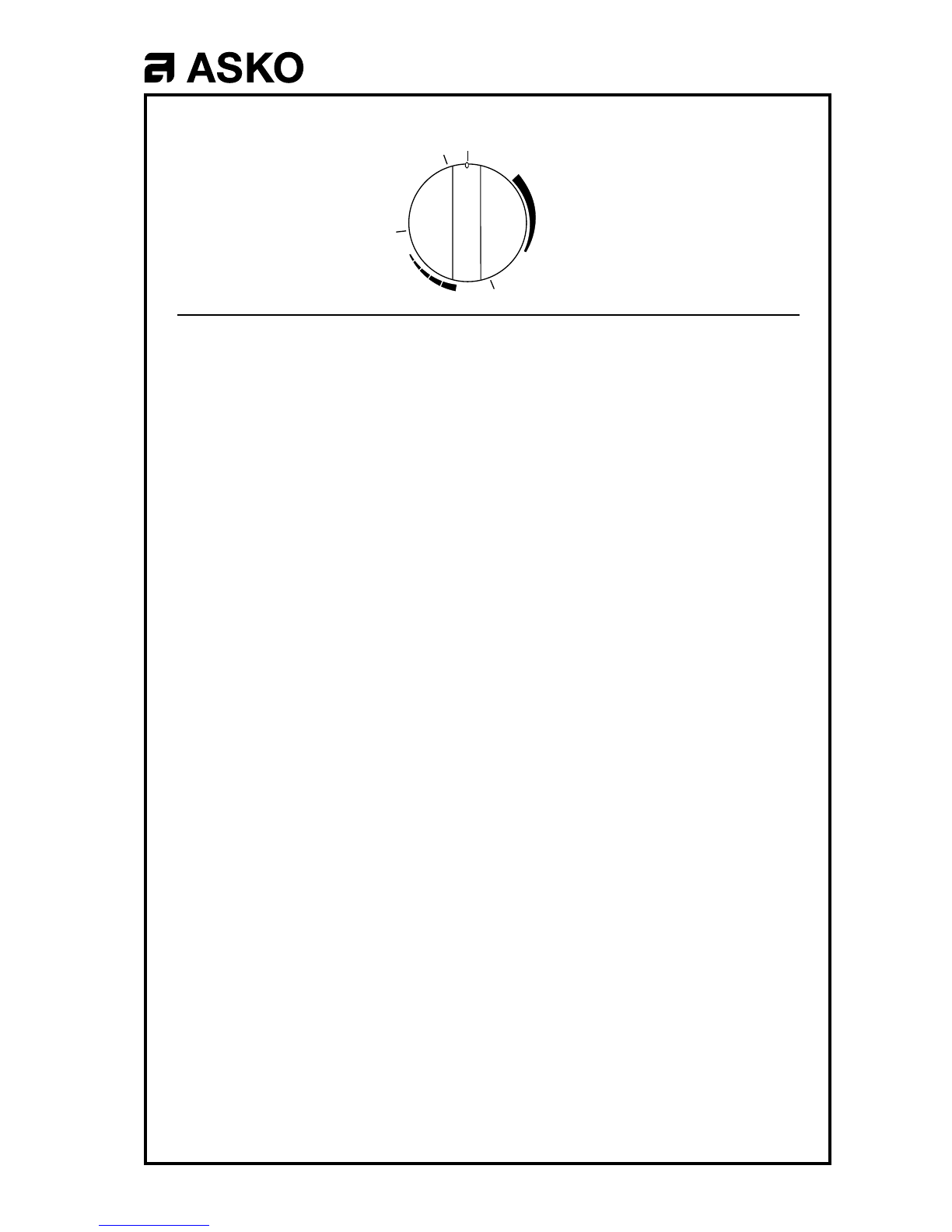

PROGRAMS
1Normal wash with prewash
Prewash, long main, 3 rinses, short intermediate spin, 2 rinses and
long spin.
2Normal program
As program 1, but without prewash.
3Quick wash
Short main wash, 3 rinses, short spin, 2 rinses and long spin.
4Long spin
5Synthetic wash
Long main wash, 3 rinses and short spin.
6Synthetic wash
Long main wash, 3 rinses and short spin.
7Short spin
8Wool program
Short main wash, 3 rinses, short spin.
Gentle action and high water level.
9Pumping out

WM 90
PUSH BUTTONS
Main switch
Interupts the line (L1) and neutral connections.
No Spin
Omits the intermediate and the terminall spin. In programs 1-3 is
the water pumped out after the last rinse. In program 5, 6 and 8
the machine stops with the last rinse water in the cylinder.
Door opening
The door can be opened when the power is turned on, the water is
pumped out, and the timer is in one of the two positions, which are
marked with a dot.
Economy
Extends the main wash by 22 minutes.
Half load button
Omits the intermediate spin and two rinses in program 1-3. In
program 5 and 6 reduces one rinse.
800-button
Reduces spin speed to 800 rpm. With the button up, spin speed is
1000rpm.
Rinse level
In position you get high rinse level. In position you get
normal rinse level.
Normal rinse
Super rinse
E
800
1/2

WM 90
ELECTRICAL FUNCTIONS
Level controlled pumping out
Pumping out is made to the return level for the normal level, plus
additional 30 seconds, max. 1,5 minutes
Advantages:
*By installations with reduced drain flow, the pumping out is
prolonged to prevent the machine to go on washing with "old"
water" left in the machine.
* By normal drain flow there will be no noise by pumping of mixture
water-air.
Temperature block
In the wool program, the temperature Stop step has been maximized to 24
minutes. This means that if the temperature by mistake is set on, say 90°C,
the temperature still will not be higher than good 40°C (can vary a little
depending on the temperature of incoming water, the size of the load etc.).
In Whites wash/Cotton programs and in the synthetic programs the time for
the temperature stop is maximized to 80 min. This prevents among other
things the water to cook by broken thermostat (if the capillary tube is
broken) or that the machine goes on "for ever" by broken heater.
Out-of-balance-control by spin
The spin sequence consists of a short spin-up to 500 rpm, a so called
"peak", distribution and a longer spin. A tacho generator, placed on the
motor, measures the speed difference between the ”up-hill and down-hill”
before the spin. The greater the diffenrence, the greater the un-balance. If
the unbalance is too large, the spin is interrupted and the machine
distributes the washing and tries again.
By the peak maximal 9 start attempts are made,where the unbalance must
be below 0,8 kg for spin-up. If this is failed, additional max. 6 start attempts
are made with max 1,2 kg unbalance permitted.lf the unbalance is still too
high, machine will pass the spin step.
If the machine has made the ”peak”, the washing is distributed again,
start attempts to spin are made. Hereby max. 9 start attempts are made
with max. 0,7 kg permitted unbalance to reach 1000 rpm. After that further 6
start attempts are made on unbalance level 0,7 and 1,2 kg: If the unbalance
is less than 0,7 kg, the spin is made by 1000 rpm, if it is 0,7-1,2, the spin is
by 800 rpm.
If the unbalance is still too high, the machine passes the spin step.

WM 90
ELECTRICAL COMPONENTS
1Timer
The timer has an electro-mechanical unit and an separate electronic unit.
The electronic unit controls the motor, the timer motor and some of the
program features.
The mechanical unit among others controls inlet valves, outlet pump and
heater.
2Thermostat
The temperature can be set stepless 0-90° C.
3Motor
The motor is an universal motor The rotation speed is stepless controlled
by a tacho generator on the motor which measures the rotation speed.
Maximal speed is 1000 rotations.
4Outlet pump
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer.
5Inletvalve
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer
6Heater element
1800 W heater element. Machines Singel-phase 16 A or 3-phase 10 A
do also have an 1200 W heater element Machines with heater contactor
have elements with fuse.
7Level switch
There are two level switches with two levels each :
• Normal level for wash. The return level ofthe normal ofthe normal level
is used to control the length of the pumping out and decides if the
machine shall spin or not, and cut out the heat.
• Normal level for rinse
• High level for Super rinse, wool programme and cool-down
• Overfllling level, breaks the current to the inlet valves and starts the
outlet pump.

WM 90
ELECTRICAL COMPONENTS
8Contactor ( onlx 3-phase machines)
The heater contactor is controlled by the level switch, and interrupts the line
connections to the heaters.
9Door lock
The door lock is electric and the power must be turned on. The timer must also be
in one of the four positions for opening, on the scale. No water in the cylinder and
the cylinder must have stoped. Pressing the pushbutton operates a solenoid
which releases the door catch. The door can be opened in an emergency. By
inserting a screwdriver about 1 cm into the hole to the left of the glassdoor and
pressing upwards. A microswitch fitted beside the door-opening solenoid
interrupts the power supply to the machine when the door is open.
10 RFI suppression
RFI suppressions are fitted in accordance with international
requirements.
11 Wiring
The internal wiring in the machine is 1,5 mm2for heater connections, 1,0 mm2
or 18 AWG for earth connections and 0,5 mm2or 0,75 mm2for others.
12 Supply cord
The supply cord must be an RKK 3x1,5 mm2or 5x1,5 mm2cable
Wiring diagram and timer diagram are provided with the machine.
Power supgly alternatives
Poweralternative are:
1 phase, 230 V 10 A
1 phase, 230 V 16 A
3 phase, 400 V 10 A
The necary changes are made directly on the terminal block. See the
instructions.

WM 100
PROGRAMS AND ELECTRICAL FUNCTIONS. WM 100A
PROGRAMS
1Normal wash with prewash
Prewash, long main, 3 rinses, short intermediate spin, 2 rinses and
long spin.
2Normal program
As program 1, but without prewash.
3Quick wash
Short main wash, 3 rinses, short spin, 2 rinses and long spin.
4One rinse with spin
5Long spin
6Synthetic wash
Long main wash, 3 rinses and short spin.
7Synthetic wash
Long main wash, 3 rinses and short spin.
8Short spin
9Wool program
Short main wash, 3 rinses, short spin.
Gentle action and high water level.
10 Pumping out
123
4
5
6
7
8
9
10

WM 100
PUSH BUTTONS
Main switch
Interupts the line (Ll) and neutral connections.
No Spin
Omits the intermediate and the terminall spin. In programs 1-3 is
the water pumped out after the last rinse. In program 5, 6 and 8
the machine stops with the last rinse water in the cylinder.
Door opening
The door can be opened when the power is turned on, the water is
pumped out, and the timer is in one of the two positions, which are
marked with a dot.
Economy
Extends the main wash by 22 minutes.
Half load button
Omits the intermediate spin and two rinses in program 1-3. In
program 6 and 7 reduces one rinse.
800-button
Reduces spin speed to 800 rpm. With the button up, spin speed is
1200rpm.
Rinse level
In position you get high rinse level. In position you get
normal rinse level.
Normal rinse
Super rinse
E
800

WM 100
ELECTRICAL FUNCTIONS
Level controlled pumping out
Pumping out is made to the return level for the normal level, plus
additional 30 seconds, max. 1,5 minutes
Advantages:
*By installations with reduced drain flow, the pumping out is
prolonged to prevent the machine to go on washing with "old"
water" left in the machine.
* By normal drain flow there will be no noise by pumping of mixture
water-air.
Temperature block
In the wool program, the temperature Stop step has been maximized to 24
minutes. This means that if the temperature by mistake is set on, say 90°C,
the temperature still will not be higher than good 40°C (can vary a little
depending on the temperature of incoming water, the size of the load etc.).
In Whites wash/Cotton programs and in the synthetic programs the time for
the temperature stop is maximized to 80 min. This prevents among other
things the water to cook by broken thermostat (if the capillary tube is
broken) or that the machine goes on "for ever" by broken heater.
Out-of-balance-control by spin
The spin sequence consists of a short spin-up to 500 rpm, a so called
"peak", distribution and a longer spin. A tacho generator, placed on the
motor, measures the speed difference between the ”up-hill and down-hill”
before the spin. The greater the diffenrence, the greater the un-balance. If
the unbalance is too large, the spin is interrupted and the machine
distributes the washing and tries again.
By the peak maximal 9 start attempts are made,where the unbalance must
be below 0,8 kg for spin-up. If this is failed, additional max. 6 start attempts
are made with max 1,2 kg unbalance permitted.lf the unbalance is still too
high, machine will pass the spin step.
If the machine has made the ”peak”, the washing is distributed again,
start attempts to spin are made. Hereby max. 9 start attempts are made
with max. 0,7 kg permitted unbalance to reach 1200 rpm. After that further 6
start attempts are made on unbalance level 0,7 and 1,2 kg: If the unbalance
is less than 0,7 kg, the spin is made by 1200 rpm, if it is 0,7-1,2, the spin is
by 800 rpm.
If the unbalance is still too high, the machine passes the spin step.

WM 100
ELECTRICAL COMPONENTS
1Timer
The timer has an electro-mechanical unit and an separate electronic unit.
The electronic unit controls the motor, the timer motor and some of the
program features.
The mechanical unit among others controls inlet valves, outlet pump and
heater.
2Thermostat
The temperature can be set stepless 0,2-90 C.
3Motor
The motor is an universal motor The rotation speed is stepless controlled
by a tacho generator on the motor which measures the rotation speed.
Maximal speed is 1200 rotations.
4Outlet pump
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer.
5Inletvalve
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer
6Heater element
1800 W heater element. Machines Singel-phase 16 A or 3-phase 10 A
do also have an 1200 W heater element Machines with heater contactor
have elements with fuse.
7Level switch
There are two level switches with two levels each :
• Normal level forwash. The return level ofthe normal ofthe normal level
is used to control the length of the pumping out and decides if the
machine shall spin or not, and cut out the heater.
• Normal level for rinse
• High level for Super rinse, wool programme and cool-down
• Overfllling level, breaks the current to the inlet valves and starts the
outlet pump.

WM 100
ELECTRICAL COMPONENTS
8Contactor ( only 3-phase machines)
The heater contactor is controlled by the level switch, and interrupts the line
connections to the heaters.
9Door lock
The door lock is electric and the power must be turned on. The timer must also be
in one of the four positions for opening, on the scale. No water in the cylinder and
the cylinder must have stoped. Pressing the pushbutton operates a solenoid
which releases the door catch. The door can be opened in an emergency. By
inserting a screwdriver about 1 cm into the hole to the left of the glassdoor and
pressing upwards. A microswitch fitted beside the door-opening solenoid
interrupts the power supply to the machine when the door is open.
10 RFI suppression
RFI suppressions are fitted in accordance with international
requirements.
11 Wiring
The internal wiring in the machine is 1,5 mm2for heater connections, 1,0 mm2
or 18 AWG for earth connections and 0,5 mm2or 0,75 mm2for others.
12 Supply cord
The supply cord must be an RKK 3x1,5 mm2or 5x1,5 mm2cable
Wiring diagram and timer diagram are provided with the machine.
Power supgly alternatives
Poweralternative are:
1 phase, 230 V 10 A
1 phase, 230 V 16 A
3 phase, 400 V 10 A
The necary changes are made directly on the terminal block. See the
instructions.

WM 110
PROGRAMS AND ELECTRICAL FEATURES WM 110A
PROGRAMS
1Normal wash with prewash :
Prewash, long main wash, 3 rinses, short intermediate spin, 2 rinses
and long spin.
2Normal program
As program 1, but without prewash
3Quick wash
Short main wash, 3 rinses, short spin, 2 rinses and long spin.
4Wool program
Short main wash, 3 rinses, short spin.
Gentle action and high water level.
5One rinse with spin
6Pumping out
7Spin
8Pumping out
1
2
3
4
5
6
7
8

WM 110
PUSH BUTTON
Door opening
The door can be opened when the power is turned on, the water
is pumped out, and the timer is in one of the two positions, which
are marked with a dot.
Gentle action, high water level
This button gives three rinses instead of five. It also gives short
terminal spin. The gentle action means: motor on 3 seconds - off
42 sec - on 6 sec - off 39 sec - on 3 sec - off 42 sec etc.
No spin
Omits the intermediate and the terminall spin and the machine
stops with the last rinse water in the cylinder.
By starting program 7 with this button pressed in, you get a short
terminal spin.
Economy
Extends the length of the main wash by 22 minutes.
1/2-load
Omits the intermediate spin and two rinses.
900-button
Reduces the spin speed to 900 rpm. With the button up the spin
speed is 1400 rpm.
Rinse level
In position you get high rinse level. In position get normal
rinse level.
Normal rinse
Super rinse
E
1/2
900

WM 110
ELECTRICAL COMPONENTS
1Timer
The timer has a preselecting facility. Only the eight starting points can be
set, after which the timer mechanism steps the cams to the correct
position that has been selected.
2Thermostat
The thermostat is combined with the main onloff switch. A manual safety
catch, which can be disengaged, must be pressed in, when turning the
thermostat to higher temperatures.
3Motor
The motor is a 8-pole combined capacitor motor and a commutator
motor. The 8-pole section drives the motor at normal wash speed with
reversing, while the commutator section produces the 900 rpm and
1400 rpm spin speeds. The motor is protected by a built-in thermal
overload cutout.
4Outlet pump
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer.
5Inlet valve
The inlet valve provides three-way control of the water to direct it to the
appropriate inlets for 1) prewash and rinses, 2) main wash and 3) fabric
conditioner. A fourth inlet valve can be fitted for machines intended for
use with hot water supplies.
6 Heater element
The heater elements are of 1200 W and 1800 W repectively. Machines
with heater contactor have elements with fuse.
7 Capacitor
The capacitor is of 16 µF, and is mounted together on the electrical
component tray.
8Level switch
There are two level switches with two levels each:
• Normal level for wash and rinse and high level for Super rinse,
wool program and cool down.
• Spin protection level, advances the timer over the spin, if the the
water is not pumped out. Overfill level; cuts the current to the inlet valves
and starts the outlet pump.

WM 110
ELECTRICAL COMPONENTS
9Contactor
The heater contactor is controlled by the level switch, and interrupts the line
connections to the heaters.
10 Door lock
The door lock is electric and the power must be turned on. The timer must
also be in the door opening position in order to be able to open the glass
door in the normal manner.
Pressing the pushbutton operates a solenoid which releases the door catch.
The door can be opened in an emergency by removing the lower panel,
unscrewing the emergency ring and pulling it. A microswitch fitted beside the
door-opening solenoid interrupts the power supply to the machine when the
door is open.
11 RFI suppression
RFI suppressors are fitted in accordance with international requirements.
12 Wiring
The internal wiring in the machine is 1 ,5 mm2for heater connections,
1,0 mm2or 18 AWG for earth connections and 0,5 mm2or 0,75 mm2for
others.
13 Supply cord
The supply cord must be an RKK 3xl,5 mm2or 5xl,5 mm2cable.
Wiring diagram and timer diagram are provided with the machine.
Power supply alternatives
Power supply alternatives are:
1-phase, 230 V 10 A
1-phase, 230 V 16 A
3-phase, 400 V 10 A
The necessary changes are made directly on the terminal block. See the
instructions.

WM 120
PROGRAMS AND ELECTRICAL FUNCTIONS. WM 120A
PROGRAMS
1Normal wash with prewash
Prewash, long main, 3 rinses, short intermediate spin, 2 rinses and
long spin.
2Normal program
As program 1, but without prewash.
3Quick wash
Short main wash, 3 rinses, short spin, 2 rinses and long spin.
4One rinse with spin
5Long spin
6Synthetic wash
Long main wash, 3 rinses and short spin.
7Synthetic wash
Long main wash, 3 rinses and short spin.
8Short spin
9Wool program
Short main wash, 3 rinses, short spin.
Gentle action and high water level.
10 Pumping out
123
4
5
6
7
8
9
10

WM 120
PUSH BUTTONS
Main switch
Interupts the line (Ll) and neutral connections.
No Spin
Omits the intermediate and the terminall spin. In programs 1-3 is
the water pumped out after the last rinse. In program 6, 7 and 9
the machine stops with the last rinse water in the cylinder.
Door opening
The door can be opened when the power is turned on, the water is
pumped out, and the timer is in one of the two positions, which are
marked with a dot.
Economy
Extends the main wash by 22 minutes.
Half load button
Omits the intermediate spin and two rinses in program 1-3. In
program 6 and 7 reduces one rinse.
5h-delayed start
Gives 5 hour delayed start.
Rinse level
In position you get high rinse level. In position you get
normal rinse level.
Knob Spin speed
Choice spin between 600-1400 rpm alt. 700-1500 rpm.
Every step 100 rounds.
Normal rinse
Super rinse
E
5h

WM 120
ELECTRICAL FUNCTIONS
Level controlled pumping out
Pumping out is made to the return level for the normal level, plus
additional 30 seconds, max. 1,5 minutes
Advantages:
*By installations with reduced drain flow, the pumping out is
prolonged to prevent the machine to go on washing with "old"
water" left in the machine.
* By normal drain flow there will be no noise by pumping of mixture
water-air.
Temperature block
In the wool program, the temperature Stop step has been maximized to 24
minutes. This means that if the temperature by mistake is set on, say 90°C,
the temperature still will not be higher than good 40°C (can vary a little
depending on the temperature of incoming water, the size of the load etc.).
In Whites wash/Cotton programs and in the synthetic programs the time for
the temperature stop is maximized to 80 min. This prevents among other
things the water to cook by broken thermostat (if the capillary tube is
broken) or that the machine goes on "for ever" by broken heater.
Out-of-balance-control by spin
The spin sequence consists of a short spin-up to 500 rpm, a so called
"peak", distribution and a longer spin.
A tacho generator, placed on the motor, measures the speed difference
between the "up-hill and down-hill" before the spin.
The greater the diffenrence, the greater the un-balance. If the unbalance is
too large, the spin is interrupted and the machine distributes the washing
and tries again.
By the peak maximal 15 start attempts are made,where the unbalance must
be below 1,2 kg for spin-up. If the unbalance is still too high, the machine
will pass the spin step.
If the machine has made the "peak", the washing is distributed again, and
new start attempts to spin are made.
Hereby max. 6 start attempts are made with max. 0,4 kg permitted
unbalance to reach 1300-1400/1500 rpm. After that further 5 start attempts
are made on unbalance level 0,7 kg and 4 start attempts are made on
unbalance level 1,2 kg. If the unbalance is less than 0,4 kg, the
spin is made by 1300-1400/1500, if it is 0,4-0,7 kg the spin is by 900-1200
rpm and if it is 0,7-1,2 the spin is by 800 rpm.
If the unbalance is still too high, the machine passes the spin step.

WM 120
ELECTRICAL COMPONENTS
1Timer
The timer has an electro-mechanical part and an electronic part.
2Control unit. motor
Include a micro-processor which control the motor and communicate with
the timer.
3Thermostat
The temperature can be set stepless 0-90 C.
4 Motor
The motor is an universal motor The rotation speed is stepless controlled
by a tacho generator on the motor which measures the rotation speed.
Maximal speed is 1400-1500 rotations.
5Outlet pump
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer.
6Inletvalve
The outlet pump is combined with a integral button trap, which can be
cleaned by the customer
7Heater element
1800 W heater element. Machines Singel-phase 16 A or 3-phase 10 A
do also have an 1200 W heater element Machines with heater contactor
have elements with fuse.
8Level switch
There are two level switches with two levels each :
• Normal level forwash. The return level ofthe normal ofthe normal level
is used to control the length of the pumping out and decides if the
machine shall spin or not, and cut out the heater.
• Normal level for rinse
• High level for Super rinse, wool programme and cool-down
• Overfllling level, breaks the current to the inlet valves and starts the
outlet pump.
