Congratulations!
By purchasing an Askoll PURE LED Aquarium you will not only enjoy
a fully made-in-Italy design that harmonises well with several interior
design styles, but you will also be able to rely on a product that con-
centrates the best of Askoll technology, a company that can boast
more than thirty years of experience in the design and production of
articles for aquariums and ponds.
In just a few minutes, after starting installation, we are sure that you
will appreciate a product conceived in every detail to make any oper-
ation easy and fast. You will enjoy even more the moment in which
you will be able to dedicate your time to create a nature corner in
your new Askoll PURELED Aquarium and you will be able to count on
cutting edge devices to preserve the beauty of the aquatic world over
time, in a simple way.
This aquarium is equipped with a LED lighting system characterized
by such a light intensity and spectrum that make it suitable for a
marine environment.
Before starting, kindly read and follow the warnings and hints con-
tained in this manual carefully.
When choosing the suitable setup for your aquarium, follow the ad-
vice of a qualied retailer.
To enhance as much as possible the unique style of your Askoll
PURELED Aquarium, Askoll recommends using the aquarium stands
specically created for this product line.
1. IMPORTANT SAFETY INFORMATION
The product has been designed and manufactured in conformity
with the current and applicable directives to ensure safe use and
operation throughout its life cycle. Using the product incorrectly (not
in conformity with the instructions given in this manual) can damage
the product and poses a safety risk for the user.
WARNING
Before using the product kindly read and understand
this instruction manual in all its parts.
This manual is an integral part of the product: keep it
for future reference.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
WARNING
To avoid electric risk:
Each power cable of the electric devices has to show a
drip loop positioned lower than the plug-outlet connec-
tion point in order to prevent any drop from reaching
such point.
The electric devices plug and outlet should not get
wet.
Should the plug or outlet of any of the electric devices
become wet, do not disconnect the cable. Disconnect
power supply to the electric system acting on the main
switch.
Disconnect the plugs of the electric devices from the
outlets before handling the product and/or immersing
the hands in water.
Never pull the cable of the electric devices to discon-
nect the plugs from the outlets. To disconnect them,
grab the plugs and pull them.
The product has glass components.
Handle with care and place it according to the instruc-
tions of this manual avoiding to lean the tank directly
on the edges.
To avoid instability risk: check with a level that the sup-
port surface of the product is horizontal.
Do not lean the product on inclined surfaces.
After installation, do not move the product.
If necessary, move it only if the tank is completely
empty.
Do not connect the electric devices of the product to
the mains before having completed the installation or
having repositioned the same after maintenance op-
erations. Do not use the thermal heater and the pump
dry. To avoid the risk of burns:
After disconnecting the plug, let the hot parts of the
thermal heater (about 30 minutes) and of the lighting
unit (about 5 minutes) cool down, before handling
them. On the thermal heater, the warning light indi-
cates only that the heating phase is active. When the
warning light is off, it does not mean that the thermal
heater is cool.
Check that the water level is always included in the
min. and max. level range indicated on the label.
After maintenance operations, if necessary, restore
the proper water level.

4
PURE Aquarium KIT
CAUTION
Use the product exclusively as decorative aquarium
for indoor domestic use.
Each component is an integral part of the product.
It shall not be used on other products.
Do not use the product for use with foodstuffs.
Do not use the product as terrarium.
Do not use the product, if damaged and/or disassem-
bled.
Do not damage and/or remove the sealant positioned
on the joints of the tank glasses (edge seals).
Do not lean any rocks, stones or other heavy decorat-
ing elements directly on the bottom of the tank.
Do not place any item on the product.
Verify the integrity of the product before pouring water
into the tank.
The thermal heater must always be immersed at least
up to the minimum level marked on the same.
Install the electric devices of the product observing the
voltage and frequency values shown on the devices
and the temperature ones specied among the techni-
cal data under par. 3.3.
Connect the electric devices to mains protected by a
residual current device with a sensitivity ≤30 mA.
After maintenance operations, if necessary, dry the
external parts of the product and the stand.
To protect the polished surfaces of the product from
scratches and scrapes, pay utmost care when clean-
ing and handling the same.
CAUTION
Do not cut the power cables.
Power cables cannot be repaired. If the cable is dam-
aged, the product has to be discarded.
Do not use extension cables.
If the length of the power cable of the electric devices
is not sufcient, refer to a qualied electrician.
Do not try to repair any product component: in case of
damage replace the damaged component with original
spare parts (see chap. 9).
2. CONTENTS
1. IMPORTANT SAFETY INFORMATION page 3
2. CONTENTS 4
3. PRODUCT SPECIFICATIONS 4
4. PREPARING THE PRODUCT FOR USE 7
5. STARTING UP THE SYSTEM 8
6. MAINTENANCE AND CLEANING 12
7.TROUBLESHOOTING 13
8. STORAGE AND REPACKING 14
9. OPTIONAL MODULES AND SPARE PARTS 14
10. PRODUCT DECOMMISSIONING 14
3. PRODUCT SPECIFICATIONS
3.1. Product identication
Name
Components
Askoll PURELED Aquarium KIT
Mod. PURE XL HC LED MARINE
Lighting unit Mod. PURE LED UNIT XL MARINE
Type T-52103
Thermal heater Mod. THERM L (200W)
Type D-38200
Pump Mod. PURE PUMP XL HC
Type C-04311

5
EN
CAUTION
Do not cut the power cables.
Power cables cannot be repaired. If the cable is dam-
aged, the product has to be discarded.
Do not use extension cables.
If the length of the power cable of the electric devices
is not sufcient, refer to a qualied electrician.
Do not try to repair any product component: in case of
damage replace the damaged component with original
spare parts (see chap. 9).
2. CONTENTS
1. IMPORTANT SAFETY INFORMATION page 3
2. CONTENTS 4
3. PRODUCT SPECIFICATIONS 4
4. PREPARING THE PRODUCT FOR USE 7
5. STARTING UP THE SYSTEM 8
6. MAINTENANCE AND CLEANING 12
7.TROUBLESHOOTING 13
8. STORAGE AND REPACKING 14
9. OPTIONAL MODULES AND SPARE PARTS 14
10. PRODUCT DECOMMISSIONING 14
3. PRODUCT SPECIFICATIONS
3.1. Product identication
Name
Components
Askoll PURELED Aquarium KIT
Mod. PURE XL HC LED MARINE
Lighting unit Mod. PURE LED UNIT XL MARINE
Type T-52103
Thermal heater Mod. THERM L (200W)
Type D-38200
Pump Mod. PURE PUMP XL HC
Type C-04311
3.2. Names of components and contents of package
Check that the package contains all the components shown in the following gures.
9
10
8
11
PURE MARINE
PURE MARINE
1
2
3
4567
1) Glass tank
2)2) Edge seals (glass sealant)Edge seals (glass sealant)
3) Light cover door
4) Light cover
5) Filter cover
6) Filter cover door
7) Timer
8) Led Driver
9) Lighting unit cable
10) Lighting unit
11) Decorative trim
1

6
PURE Aquarium KIT
12) Frame
13) Thermal heater (with glass tube)
14) Heater bracket with suction cups
15) CO2tube connection
16) Fairlead seat
17) Cable guide
18) Pump unit
19) Intake tube
20) Volute
21) Delivery for circulation in the tank
22) Delivery tube
23) Impeller
24) Pump gasket
25) Pump motor
26) Delivery (water outlet nozzle)
27) Accessories compartment
28) Chemical cartridges (in bag): 2 CARBON cartridg-
es and 2 ZEO cartridges
29) Ceramic cylinders (in bag)
30) Chemical ltration separator
31) Biological baskets with cover (for ceramic cylin-
ders)
32) Baskets for mechanical ltration sponges
33) Mechanical ltration sponges
12
27
14
13
17
29
31
3028
18
2
16
15
32
33
26
22
25
19
20
23
24
21
Pump

7
EN
3.3. Technical data
Description PURE XL HC LED
MARINE
Capacity L 130
Imp gal 28,6
Product weight kg 28,3
Maximum allowed weight
of the aquarium kg 215
Height cm 57
Width cm 76
Depth cm 36
Water temperature
(min. / max.) °C from +5 to +35
PUMP / LIGHTING UNIT / THERMAL HEATER
Power supply V / Hz See data provided on the
individual electric devices
making up the product.
Consumption W
IP protection rating
4. PREPARING THE PRODUCT FOR USE
4.1. Unpacking
WARNING
The product has glass components.
Handle with care and place it according to the instruc-
tions of this manual avoiding to lean the tank directly
on the edges.
1) Open the carton’s top aps and remove the polystyrene sheet.
2) Extract the product as indicated on the packaging itself. Always
handle it with care.
3) Place it on a at, smooth and clean surface; take care not to
scratch or damage the glass tank bottom.
4) Remove the transparent lm on the covers and upper frame.
5) Remove the lighting and lter covers from the frame (g. 3) and
place them on a at, clean surface without scratching them.
6) Remove the pump unit (g. 4) and place it on a at surface.
7) Remove the frame from the tank (g. 5) and place it on a at,
clean surface without scratching it.
8) Carefully remove the thermal heater and led driver from their
packaging inside the tank, along with the cable guide.
9) Dispose of the packaging material in observance of local reg-
ulations.
10) Check that the product has all the components indicated in par.
3.2.
4.2. Positioning
The product must be positioned with care, in observance of the fol-
lowing instructions:
WARNING
To avoid instability risk: check with a level that the sup-
port surface of the product is horizontal.
Do not lean the product on inclined surfaces.
CAUTION
It is advisable to place the product on the foreseen
aquarium stand. Alternatively, use a sturdy support
able to bear the maximum allowed weight of the
aquarium (see technical data par. 3.3). Such support
must have a levelled, smooth and clean support sur-
face.
In order not to ease algae proliferation: place the
product far from heat sources and direct exposure to
sunlight.
1) Place the product with the writing "PURE MARINE" (or "FRONT")
on the front side and at such a distance from the power outlet
to allow the creation of a drip loop for each power cable of the
electric devices.
2) Remove the label "PURE MARINE" (or "FRONT") and dispose
of it in accordance with the regulations in force in the country
where disposal takes place.
3 4 5

8
PURE Aquarium KIT
4.3. Assembly
CAUTION
To prevent the risk of scratching the product: clean
it exclusively using a soft cloth moistened with water.
Do not use abrasive products, toxic substances or de-
tergents.
1) Clean the tank with a cloth moistened with water (g. 6).
2) Install the thermal heater with its provided bracket (g. 7). IM-
PORTANT: For proper installation, make sure the adjustment
knob is below the bottom edge of the decorative trim. Place
the thermal heater in the aquarium and press its suction caps
against the wall so that they adhere. Set the desired water tem-
perature using the adjustment knob referred to the graduated
scale in °C (g. 8).
3) Restore the frame to the tank.
4) Unwind the thermal heater cable and route it out of the tank via
the pump compartment (g. 9).
5) Restore the pump in its compartment, tidy away the thermal
heater power cable (g. 10).
6) Pick the baskets for the mechanical ltration sponges. Take out
the sponges, rinse them under running water and replace them
in the baskets (g. 11).
7) Pick the biological baskets with their cover (g. 12).
8) Take the ceramic cylinders, one CARBON cartridge and one
ZEO cartridge.
9) On a washbasin, open the bags containing the ceramic cylin-
ders, then pour them into the biological baskets and rinse them
under running water; rinse also the CARBON and ZEO cartridg-
es after having extracted them from the bag (g. 13).
10) Reposition the biological baskets, the basket for the mechanical
ltration sponges, and the CARBON and ZEO cartridges in the
proper frame spaces (g. 14).
11) Dispose of the plastic bags in observance of local regulations.
12) Restore the light cover to the frame after removing the sticker
securing its power cable (g. 15).
13) Route the power cables for the three electrical devices (lighting
unit, pump unit and thermal heater) out of the tank through the
fairlead seat (g. 16).
14) Restore the lter cover to the frame and hook up the lighting unit
to the led driver with its connector (g. 17).
15) Gather all cables into the provided cable guide (g. 18).
4.4. Installation
WARNING
Do not connect the electric devices of the product to
the mains before having completed the installation. Do
not use the thermal heater and the pump dry.
After installation, do not move the product.
If necessary, move it only if the tank is completely
empty.
CAUTION
When choosing the suitable setup for your aquarium, follow the
advice of a qualied retailer.
Make sure that the equipment material or any other
objects present in the tank do not obstruct the inlet
grids placed at the lower end of the intake tube.
Do not lean any heavy objects on the intake tube.
After installation, check the correct water level.
1) Open the light cover and slowly ll the tank with water until it
reaches a level included between the min. and max. levels, as
shown on the label inside the tank (g. 19).
2) Close the light cover and check the tank for leaks.
5. STARTING UP THE SYSTEM
5.1. Routine operation
WARNING
To avoid electric risk, each power cable of the electric
devices has to show a drip loop positioned lower than
the plug-outlet connection point in order to prevent any
drop from reaching such point.
1) Read the warnings in Chap. 1.
2) After having connected the plug of each electric device verify the
operation of the same (in case of malfunction refer to(in case of malfunction refer to chap. 7chap. 7):):
• Water should ow out of the delivery.
• The warning light of the thermal heater should turn on if the
water temperature is lower than the setpoint.
• The programming timer should be on, with its two rst digits
ashing.
5.1.1. Programming the timer and lighting system
PURE XL HCLED MARINE aquariums are equipped with an integrat-
ed digital electronic timer that controls the switching-on sequence of
the white, red and blue LEDs that make up the lighting unit. Thanks
to a simple interface (g. 20), the timer allows performing several
functions:
• Light on / off in manual mode.
• Light on / off in automatic mode, at set times.
• Managing the Rolling Filtration Timer (RFT), the system that
every 15 days reminds the user to replace the CARBON and
ZEO cartridges to keep the aquarium under ideal conditions.
The timer has three touch sensitive buttons, 4 status icons and 4
digital digits. If you set automatic light on/off times, the unit runs a
daily cycle with the following steps:
1) Switching-on of the blue actinic light 2 hours before the switch-
ing-ON time set by the user, with a progressive raising of the
light intensity for about 30 minutes (only the blue LEDs are on).

9
EN
67
3
0
1
9
2
2
2
4
2
7
8
910 11
12 13 14
15 16 17
18
max
min
PURE
19 20

10
PURE Aquarium KIT
2) Switching-on of the day light at the switching-ON time set by the
user, with a progressive raising of the light intensity for about
30 minutes (the white and red LEDs become on; the blue LEDs
remain on).
3) Switching-off of the day light at the switching-OFF time set by
the user, with a progressive lowering of the light intensity for
about 30 minutes (the white and red LEDs switch off; the blue
LEDs remain on).
4) Complete switching-off of the blue actinic light 2 hours and 30
minutes after the switching-OFF time set by the user, with a
progressive lowering of the light intensity for about 30 minutes
(complete switching-off of the blue LEDs).
You can always turn the light on and off manually, even if the timer
is set to automatic mode.
The timer is equipped with a lock function to prevent accidental pres-
sure of the keys. Key locking is activated automatically after 3 min-
utes of inactivity.The locked status is signaled by the “bloc” message
that appears as soon as the block is activated and at each subse-
quent pressing of any keys.To remove the locked status and access
the timer functions, it is necessary to press the , and keys
quickly in sequence. Unlocking is conrmed by the appearance of
4 dashes on the clock digits for a few moments. If during the pro-
gramming phase the current time or the on/off times settings are not
completed, the lock will not activate after 3 minutes of key inactivity.
There is also a demo mode (DEMO), which simulates the complete
daily cycle in a few seconds to highlight the potential off the led
lighting system when controlled by the integrated timer (point F).
IMPORTANT
Turning the light off manually with the button on the Timer and
turning the light off automatically at the set time do not disconnect
the lighting unit from the power supply.
The PURE LED aquarium timer does not need batteries. If there is a
mains power failure, the system maintains the user settings for at
least 12 hours.
A. Setting the clock time on rst start up (hours and
minutes)
Once the lighting unit is connected to the power supply, the timer
waits for the time to be set (it displays icon and the two hour
digits ash).
1) Set the hour by pressing to increase and to decrease the
setting. Then press to set the minutes.
2) Set the minutes by pressing to increase and to decrease
the setting. Press to conrm. The time has now been set.
If not any other programming operation is carried out, the lighting
system is pre-set to switch the day light on at 10:00 a.m. and switch
it off at 6:00 p.m. according to pre-set ramps. Therefore the blue light
will switch on at 08:00 a.m. and will switch off completely at 8:30 p.m.
To set the on/off times to your preference or to set the only manual
mode, refer to point C.
B. Manual mode
By pressing the key it is possible to switch on in sequence the
day light ( icon on), the actinic blue light ( icon on) and to switch
off the light completely.
C. Programming the automatic light on/off times
CAUTION: For a correct execution of the daily cycle, the time frame
between the switching-ON time and switching-OFF time set by the
user should not exceed 19 hours and 30 minutes.
1) Unlock the timer by pressing the , and keys quickly
in sequence.
2) Hold down button until the text “light” displays (wait for the
countdown 3..2..1 “light” to terminate).
3) The time digits will now display “Auto” and icons and will
ash. To set the only manual mode, press until the text “man”
displays. Conrm by pressing .
4) Once you have set automatic mode “auto”, icon and the hour
digits will ash. Set the on time (hour and minutes) in same way
as for the clock time (points 1 and 2, par. A).
5) Once you have set the on time, icon and the hour digits will
ash. Set the off time (hour and minutes) in same way as for the
clock time (points 1 and 2, par. A).
6) Once you have nished, the timer will display the clock time
again.
7) The timer is now programmed to run the automatic daily light
cycle, as indicated at the start of this chapter.
D. Changing the clock time (hours and minutes)
If you need to change the clock time, proceed as follows:
1) Unlock the timer by pressing the , and keys quickly
in sequence.
2) Press and hold down until the clock digits display “time” (you
must wait for 2 countdowns to complete: 3..2..1 “light” 
3..2..1 ”time”).
3) The icon and the hour digits will ash: set the clock time
(hours and minutes) as indicated in par. A.
E. Turning the RFT function on and off
The RFT is on by default (On). To turn it on/off, proceed as follows:
1) Unlock the timer by pressing the , and keys quickly
in sequence.
2) Press and hold down until the clock digits display “RFT” (you
must wait for 3 countdowns to complete: 3..2..1 “light” 
3..2..1 ”time” 3..2..1 ”RFT”).
3) The clock digits display “On” and icon ashes; press to
deactivate (OFF) or activate (ON) the RFT function. Conrm by
pressing .
4) Once you have nished, the timer will display the clock time
again.
When the RFT function is on, the timer will ash every 15 days to
remind you to do scheduled maintenance. To reset the indication,
press .

11
EN
F. Turning the DEMO function on and off
1) Unlock the timer by pressing the , and keys quickly
in sequence.
2) Hold down buttons and simultaneously until the clock dig-
its display “DEMO” (you must wait for the countdown 5..4..3..2..1
“DEMO” to terminate). The DEMO function is now active.
3) To turn DEMO mode off, press . The timer will display clock
time again.
G. Restoring the factory defaults (timer reset)
1) Unlock the timer by pressing the , and keys quickly
in sequence.
2) Press and hold down buttons and simultaneously until
the clock digits display “RSET” (you must wait for 2 countdowns
to complete: 5..4..3..2..1 “DEMO” 5..4..3..2..1 ”RSET”).
3) The timer will now restore the factory default settings.
5.1.2. Filtration
CAUTION
Always close the lter cover after the necessary oper-
ations have been performed, to prevent algae growing
on the lters due to their exposure to direct light.
The water of each aquarium has to undergo continuous mechanical,
biological and chemical ltration in order to provide the best habitat
for the living beings present in the tank.
Mechanical ltration, which uses double layer sponges, removes
suspended particulates to keep the water clear. You can always
check the degree to which the sponges are soiled by simply opening
the lter cover.
Biological ltration, done by the nitrifying bacteria which grow in
the pores of the ceramic cylinders, minimises the level of toxic chem-
icals in the water, which are harmful for the aquatic fauna, transform-
ing the ammonia produced by the sh into nitrates. It takes around
4 weeks for a sufcient amount of bacteria for effective purication
to develop in the ltration media. For this reason, shes have to be
added very gradually to allow the nitrifying bacteria to have enough
time to settle, multiply and be effective.
Chemical ltration is carried out by the CARBON and ZEO car-
tridges:
• CARBON: Activated carbon for purifying the previously ltered
water from bad odours, colourants, pharmacological residues
and other undesired compounds.
• ZEO: zeolite, a natural origin material, is used to remove the
ammonia produced by the sh, supporting the action of the bio-
logical lter and limiting the build-up of nitrates.
The regular replacement of the CARBON and ZEO cartridges (par.
6.2) allows keeping the main unwanted compounds under control,
thus maintaining the water clear and crystalline.
5.1.3. Heating
WARNING
To avoid the risk of burns:
After disconnecting the plug, let the hot parts of the
thermal heater (about 30 minutes) and of the lighting
unit (about 5 minutes) cool down, before handling
them. On the thermal heater, the warning light indi-
cates only that the heating phase is active. When the
warning light is off, it does not mean that the thermal
heater is cool.
CAUTION
The thermal heater is factory calibrated. Variables like
low ambient temperature, large temperature uctua-
tions, lack of covers, positioning of the product close
to cooling sources, may require a higher power to pro-
vide for a better temperature control.
Prevent the bottom (sand or other material) or any oth-
er objects in the aquarium from getting in contact with
the thermal heater. It is necessary to assure a free
water circulation around the glass tube.
Install the product close to the pump (g.9) to ensure
that the heated water is distributed evenly and com-
pletely throughout the aquarium.
The thermal heater allows adjusting aquarium water temperature
(from 18°C to 31°C) using the adjustment knob referred to the grad-
uated scale (g. 8). Once it has been started up for the rst time and
the water has reached the setpoint, the thermal heater will keep the
temperature constant by turning off and on as needed. Wait for the
water to reach the temperature set on the thermal heater before put-
ting sh or other animals into the aquarium. Check the temperature
with an aquarium thermometer (not provided).
REMARK
The thermal heater only guarantees water temperature control
when the set temperature is higher than the ambient temperature.
The maximum temperature rise (Δt) of water in relation to the am-
bient temperature is around 10 °C.
5.2. In case of power failure
Power failures have the following effects:
• Gradual reduction, after a few hours, of the effectiveness of the
biological lter, thus potentially damaging the aquarium eco-sys-
tem.
• The timer may need reprogramming if the power failure lasts
more than 12 hours or so.
• The water temperature may fall in proportion to the duration of
the power failure.
For malfunctions, refer to Chap. 7.

12
PURE Aquarium KIT
6. MAINTENANCE AND CLEANING
WARNING
To avoid electric risk:
Disconnect the plugs of the electric devices from the
outlets before handling the product and/or immersing
the hands in water.
Never pull the cable of the electric devices to discon-
nect the plugs from the outlets. To disconnect them,
grab the plugs and pull them.
Do not connect the electric devices of the product to
the mains before having completed the installation or
having repositioned the same after maintenance op-
erations. Do not use the thermal heater and the pump
dry.
To avoid the risk of burns:
After disconnecting the plug, let the hot parts of the
thermal heater (about 30 minutes) and of the lighting
unit (about 5 minutes) cool down, before handling
them. On the thermal heater, the warning light indi-
cates only that the heating phase is active. When the
warning light is off, it does not mean that the thermal
heater is cool.
Check that the water level is always included in the
min. and max. level range indicated on the label.
After maintenance operations, if necessary, restore
the proper water level.
Do not use detergents or other chemical products
which may damage the product's components or con-
taminate the aquarium itself.
CAUTION
Always close the lter cover after the necessary oper-
ations have been performed, to prevent algae growing
on the lters due to their exposure to direct light.
CAUTION
Perform a frequent and accurate cleaning (at least
once every 15 days) of parts affected by the salt
condensate. To remove the salt scaling that is most
difcult to clean, mere lemon juice can be used. Then
rinse thoroughly to remove any acid residues.
6.1. Maintenance and cleaning jobs
Observe the indicated maintenance and cleaning schedule to keepObserve the indicated maintenance and cleaning schedule to keep
your product in excellent working order.your product in excellent working order.
Frequen-
cy Part Job
Every
week
Mechanical
ltration
Visually inspect the sponges; if they
are clogged, rinse them out or replace
them
Tank
Check that the water level is between
the MIN and MAX marks and top it up
as needed.
Every 15
days
Chemical
ltration
Replace the CARBON and ZEO car-
tridges (par. 6.2 Rolling Filtration
System)
Every
month
Mechanical
ltration
Replace the mechanical lter sponge
(2 sponges for the XL model). For the
L and XL models, replace the spong-
es closest to the water outlet nozzle
(par. 6.2)
Every 6
months Pump unit Clean the pump unit (par. 6.3)
6.2. Rolling Filtration System
To keep the lters working properly and ensure the best water con-
ditions in the aquarium, Askoll recommends that you replace the
sponges and cartridges according to a specic maintenance sched-
ule, the Rolling Filtration System (RFS).
This can be done quite easily by purchasing the original Askoll
PURE MARINE FILTER MEDIA KIT maintenance kit from your trust-
worthy retailer (see product code under chapter 9). The Kit contains
1 sponge for mechanical ltration, 1 CARBON cartridge and 1 ZEO
cartridge.
Replace the sponges and cartridges as follows:
1) After disconnecting the plug of each electric device, open the
lter cover.
21 22 23

13
EN
2) Remove the sponges and cartridges and dispose of them ac-
cording to local regulations.
3) Replace the sponges and cartridges at the specied intervals
(par. 6.1).
4) Close the lter cover.
The timer integrated in Askoll PURE LED aquariums activates a con-
venient light warning every 15 days (icon ashing) suggesting
the replacement of the CARBON and ZEO cartridges. To turn off the
RFT indication, simply press .
To turn off the RFT function, refer to par. 5.1.1. - E.
6.3. Cleaning and servicing the pump unit
1) After disconnecting the plug of each electric device, remove the
lter cover and extract the pump unit cable from the fairlead seat
and cable guide.
2) Extract the pump unit (g. 21).
3) Detach the intake tube and delivery tube (with delivery) from the
volute (g. 22).
4) If necessary, replace the pump (dispose of it as indicated indispose of it as indicated in
Chap. 10)Chap. 10), otherwise go to the next step.
5) Turn the pump volute counterclockwise to remove it, then ex-
tract the impeller (g. 23).

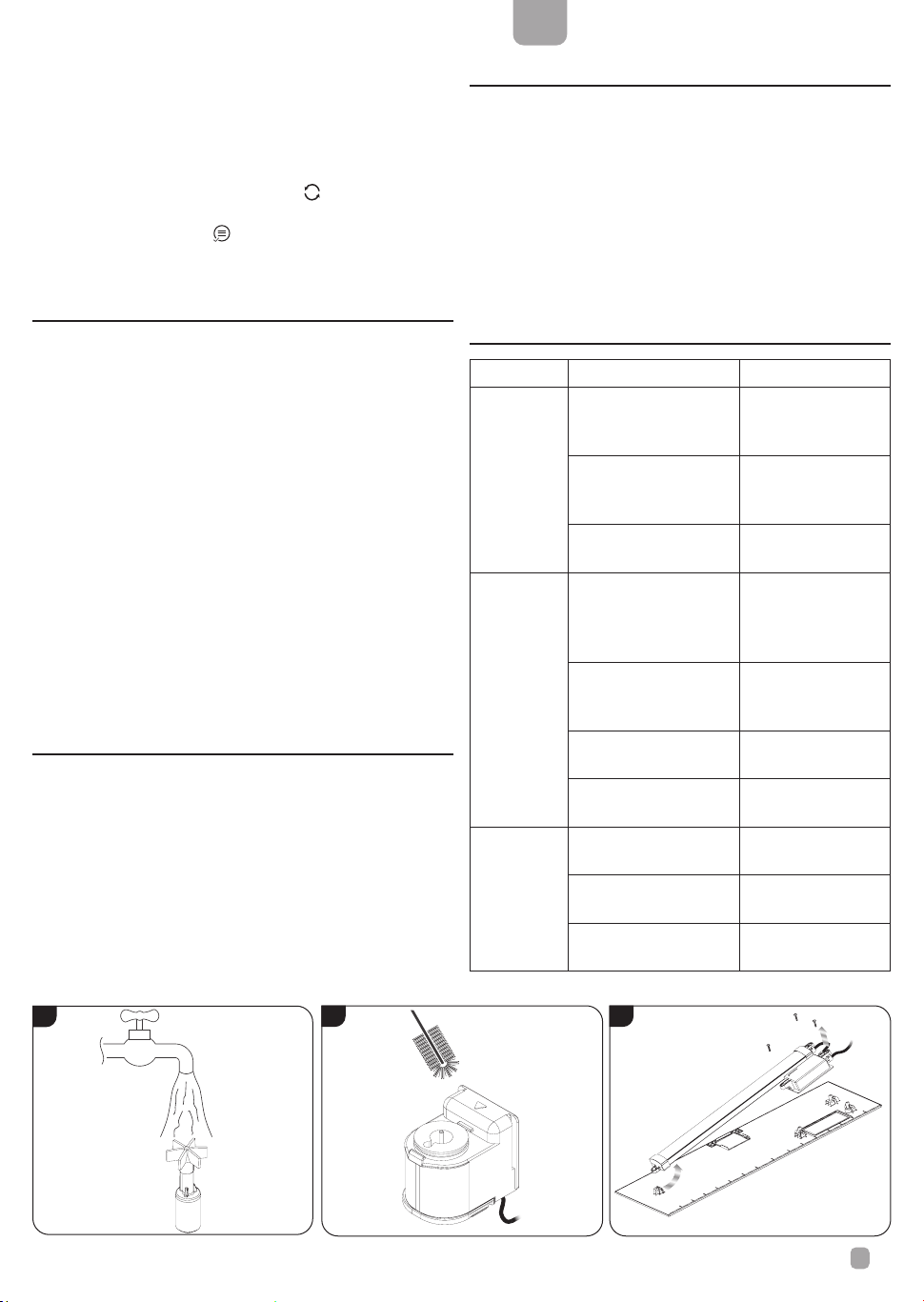

6) Rinse the impeller under running water (g. 24).
7) Clean the impeller’s seat carefully with a non-abrasive brush
(g. 25).
8) If necessary, also clean the intake tube, delivery tube and deliv-
ery under running water.
9) Reassemble and restore the pump carefully along with the other
components, proceeding in the reverse order to the disassembly
procedure.
6.4. Cleaning the lighting unit
1) After disconnecting the plug of the lighting unit, remove the lter
cover and the light cover.
2) Place the covers on a surface protected with a cloth so as not
to scratch them.
3) If the light cover or the lighting unit (with the timer) need re-
placing, disassemble the two elements by unscrewing the three
screws which keep them together using a suitable Phillips
screwdriver (g. 26).
4) Clean the lighting unit with a damp cloth.
5) Reassemble and reposition the components carefully repeating
the above described procedure in opposite order.
6.5. Cleaning the thermal heater
1) After disconnecting the plug of each electric device, let the hot
parts of the thermal heater cool down (about 30 minutes) before
handling the product.
2) Clean the glass tube to remove any scaling and deposits, which
may jeopardise the effectiveness of the heating and sensitivity
of the thermostat.
3) Reassemble and reposition the components carefully repeating
the above described procedure in opposite order.
4) Await about 30 minutes to allow the thermal heater to adapt to
water temperature and then connect the plug.
7.7. TROUBLESHOOTINGTROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The lighting
is not
working
Missing connection of
the led driver to the pow-
er outlet
Connect the led driver
to the power outlet
Missing connection of
the lighting unit to the led
driver
Connect the lighting
unit to the led driver
with its connector
Other Contact your retailer
Water
temperature
low
The thermal heater is not
plugged into its power
outlet
Plug the thermal
heater into its power
outlet
The thermal heater ad-
justment knob is set too
low
Set the temperature
to the correct value
(par. 5.1.3)
The ambient tempera-
ture is too low
Add a supplementary
thermal heater
Other Contact your retailer
No water
ow
The pump is not plugged
into its power outlet
Plug the pump into its
power outlet
The pump is jammed Clean the impeller
(par. 6.3)
Other Contact your retailer
24 25 26

14
PURE Aquarium KIT
PROBLEM CAUSE SOLUTION
Low water
ow
The intake tube, pump,
delivery tube or delivery
is clogged
Clean the parts
(par. 6.3)
8. STORAGE AND REPACKING
To store the product:
1) Carefully clean and dry off all parts of the product. The mechan-
ical ltration sponges and the CARBON and ZEO cartridges
have to be disposed of in compliance with the regulations in
force in the country where disposal takes place.
2) Store the product and its components in suitable containers.
3) Keep the product indoors in a dry place, out of the weather and
freezing temperatures.
9.9. OPTIONAL MODULES AND SPARE PARTSOPTIONAL MODULES AND SPARE PARTS
9.1. Optional modules
The product can be tted with the following optional modules (not
included):
Module Description
ROBOFOOD
programmable sh
feeder
Battery powered programmable sh feeder
which can dispense up to two meals a day
PURE aquarium
stand
Specically designed, it is the best tting
for the aquarium, enhancing its style and
providing a sturdy and suitable support to
the same
9.2. Spare parts
For part numbers in circles refer to g. 1 and g. 2.
Model PURE XL HC LED
MARINE
Component Codes
PURE PUMP pump 20 23 24 25 EUR AB350098
UK AB350099
Impeller 23 AB350100
Led Driver 8 EUR AB350102
UK AB350103
Lighting unit (with timer) 10 AB350104
Thermal heater THERM 13 14 EUR AA230004
UK AA230009
Heater bracket with suction cups 14 AB230001
Delivery and intake KIT 19 22 26 AB350101
Baskets KIT (n. 1 biological basket for ceramic
cylinders, n. 1 basket for mechanical ltration
sponges, n. 1 chemical ltration separator) 30
31 32
AB350018
Cable guide 17 AB350022
Light cover and lter cover 4 5 white AB350071
black AB350072
PURE MARINE FILTER MEDIA KIT 28 33 AC350017
Askoll PURE MAX MINI ceramic cylinders
100g 29 AC350006
10.PRODUCT DECOMMISSIONING
On the package and/or in the product, the symbol indi-
cating the separate collection of electric and electronic
equipment is printed in a visible, readable and indeli-
ble way. It consists of a crossed-out wheeled bin. The
user shall convey the discarded product to the collec-
tion centres in his own Municipality or return it to the retailer when
purchasing a new equivalent product, on a one-against-one basis.
Suitable separate collection, which allows for the following recycling,
treatment and compatible environmental disposal of the discarded
product, contributes to prevent to affect negatively the environment
and the health, besides easing reuse and/or recycling of the material
of which the product is made. Abusive disposal of the product by the
user implies the application of the administrative sanctions set forth
by the regulations in force in the country of disposal.

E1642201 16M17
Askoll Due S.r.l.
Via Industria, 32/34 - 36031 DUEVILLE (VI) - ITALIA
www.askoll.com
PURE MARINE
